  1. Automationofmachinetoolsprogramming Ing. Jan Tomíček

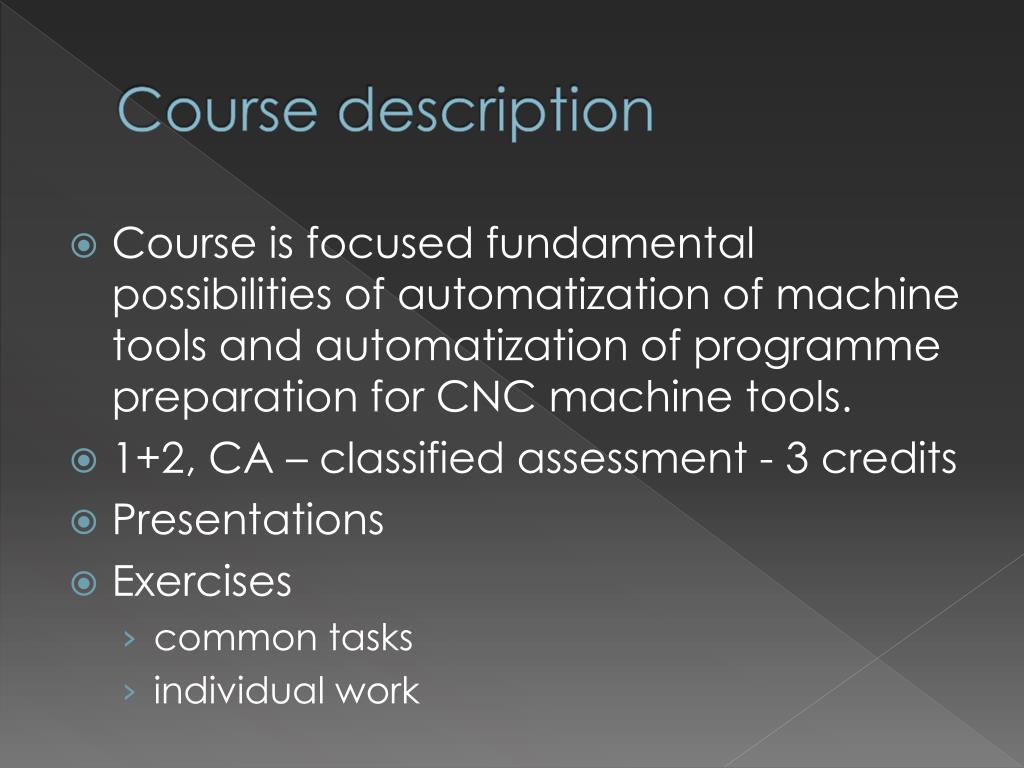

  2. Coursedescription • Courseisfocused fundamental possibilities of automatizationofmachinetoolsandautomatizationof programme preparation for CNC machine tools. • 1+2, CA – classifiedassessment - 3 credits • Presentations • Exercises • commontasks • individualwork

  3. Presentations 1+2, 1 hourofpresentation, 2 ofexercise => 13 + 13weeks (13+26) => 4 + 9 approx.(12+27) presentationexplainthework on exercise=> presentationwillbetogether on thebeginning andthenyouwillhavetime to makethetaskandindividualwork!

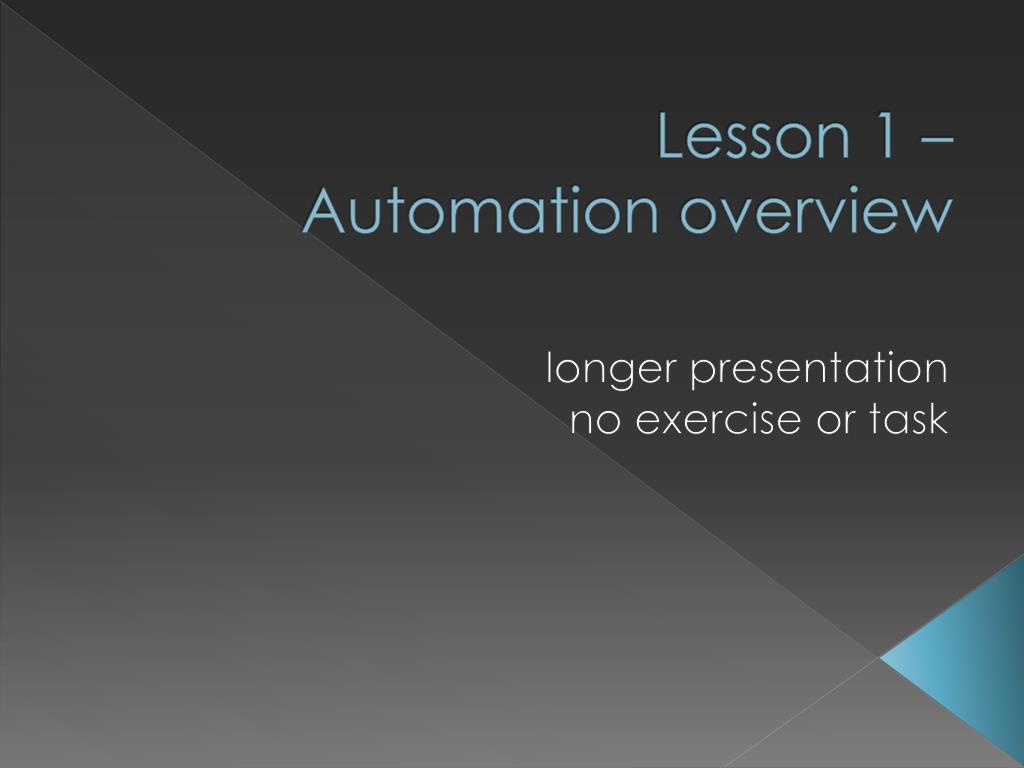

  4. Lesson 1 – Automationoverview longerpresentation no exerciseortask

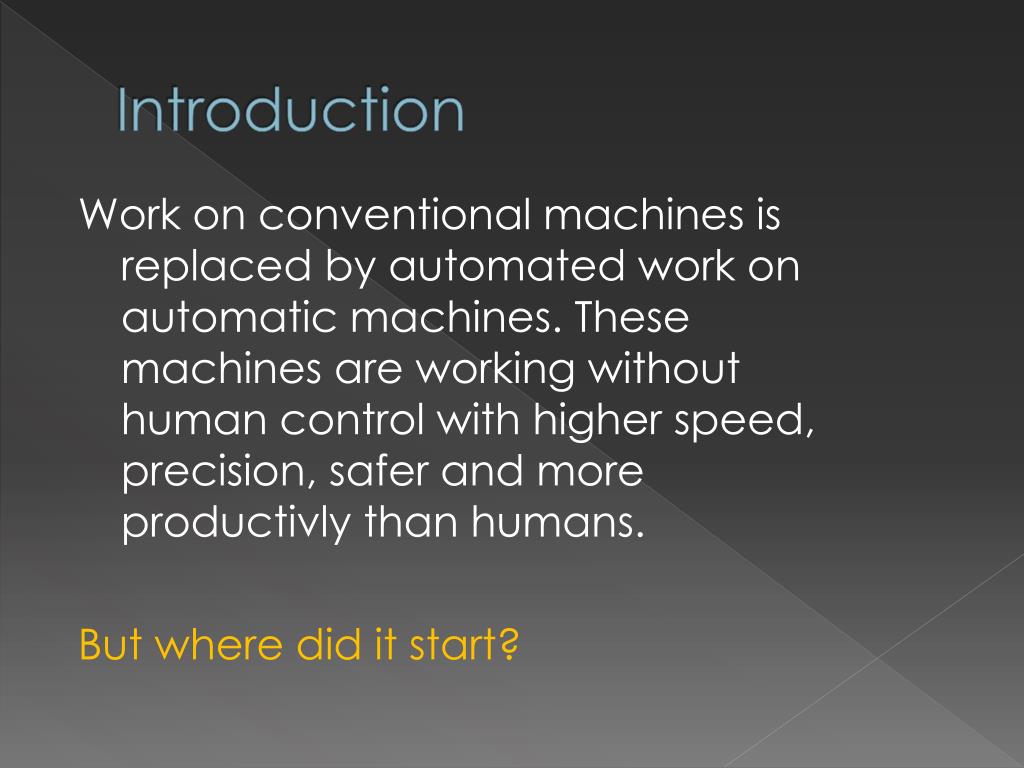

  5. Introduction Work on conventionalmachinesisreplaced by automatedwork on automaticmachines. These machines are workingwithouthumancontrolwithhigher speed, precision, saferand more productivlythanhumans. Butwheredidit start?

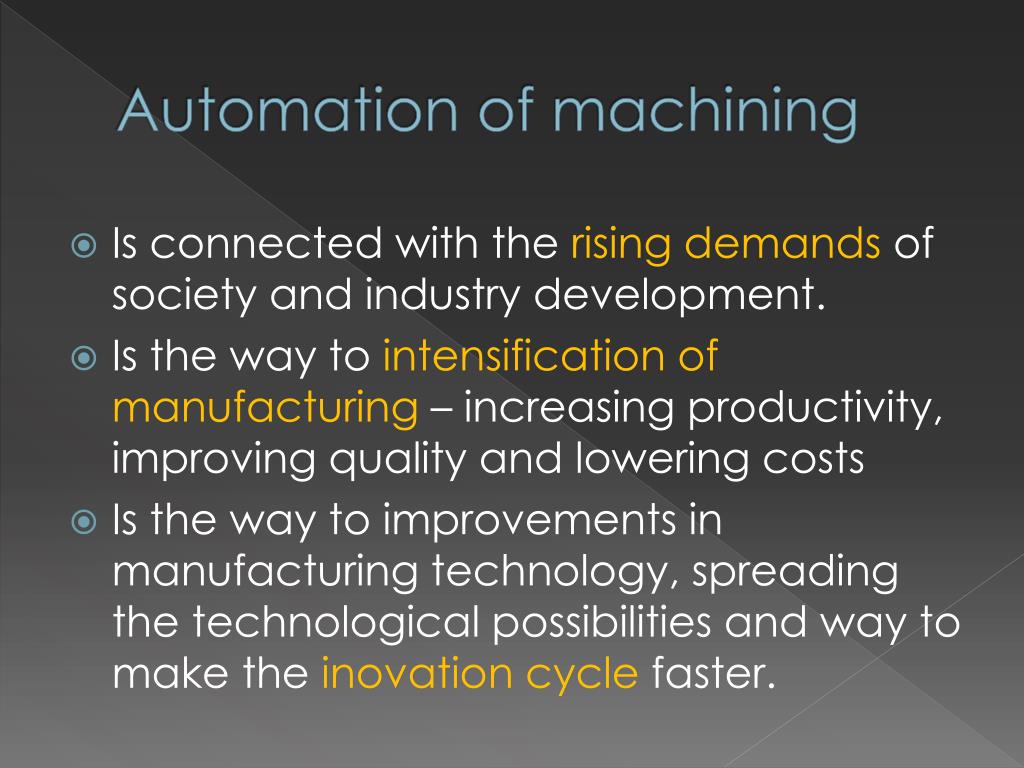

  6. Automation of machining • Is connected with the rising demands of society and industry development. • Is the way to intensification of manufacturing – increasing productivity, improving quality and lowering costs • Is the way to improvements in manufacturing technology, spreading the technological possibilities and way to make the inovation cycle faster.

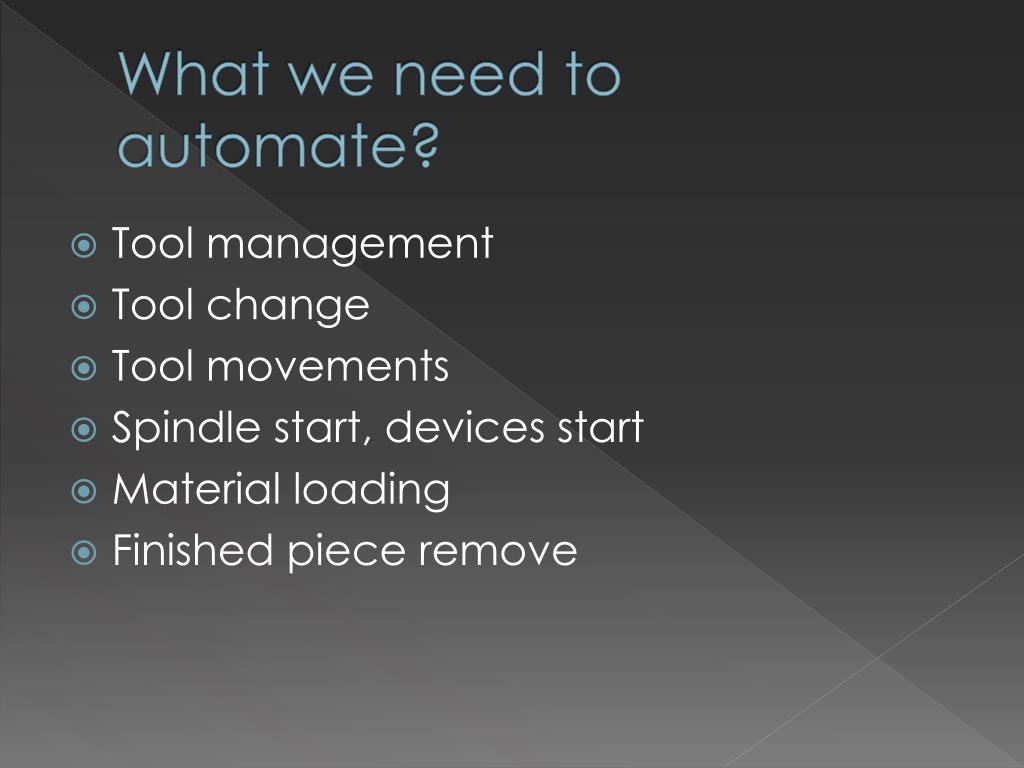

  7. Whatweneed to automate? • Tool management • Toolchange • Toolmovements • Spindle start, devices start • Materialloading • Finishedpieceremove

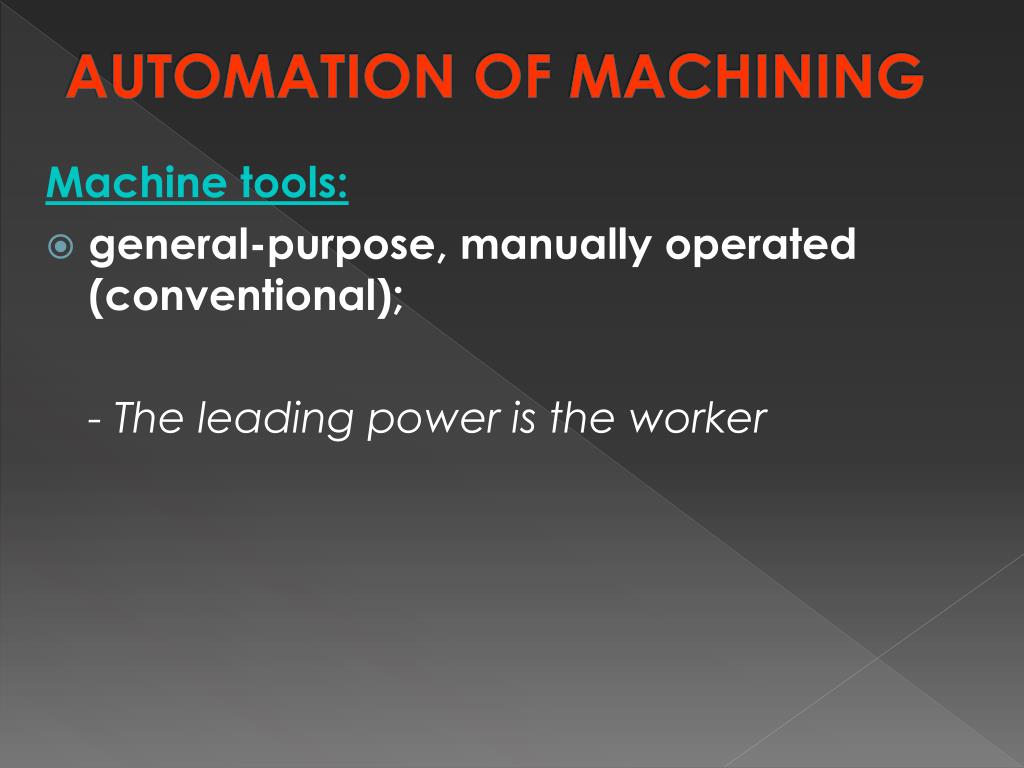

  8. AUTOMATION OF MACHINING Machine tools: • general-purpose, manually operated (conventional); - Theleadingpoweristheworker

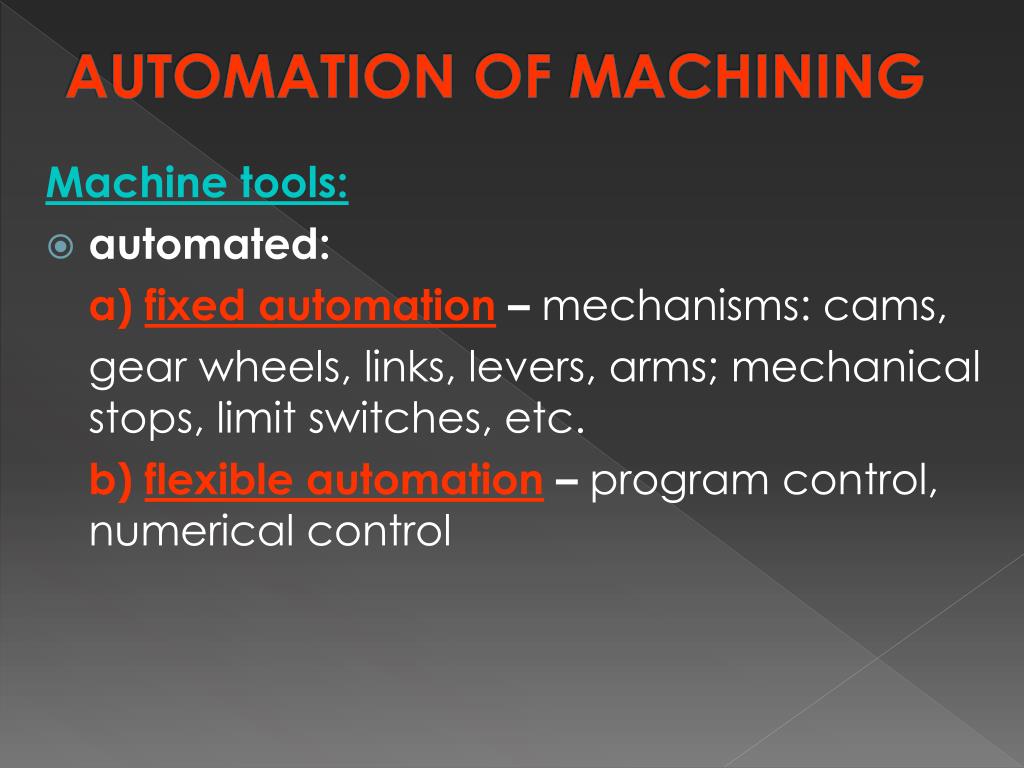

  9. AUTOMATION OF MACHINING Machine tools: • automated: a) fixed automation – mechanisms: cams, gear wheels, links, levers, arms; mechanical stops, limit switches, etc. b) flexible automation – programcontrol, numerical control

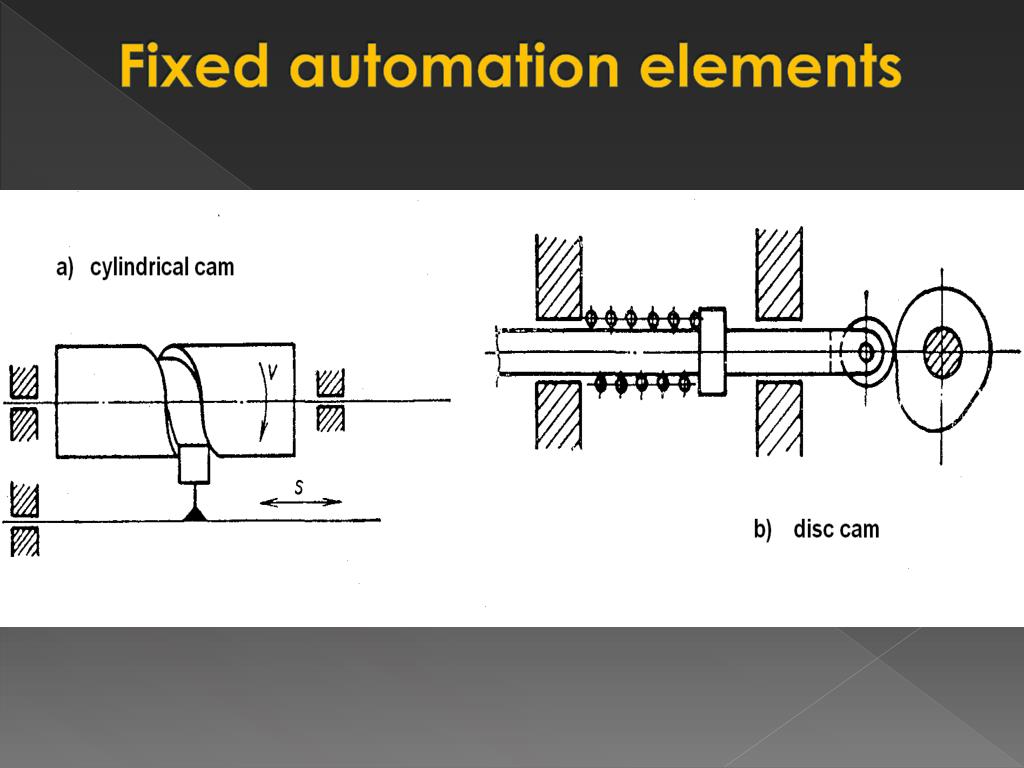

  10. Fixed automation elements

  11. Cam Is a discorcylinderwith a curveshapedpath. A boss in support is in thepathand as thecamturnsthe support moves. Cam are connectedtogether to providecomplexmovementof support, feed, rotationandother.

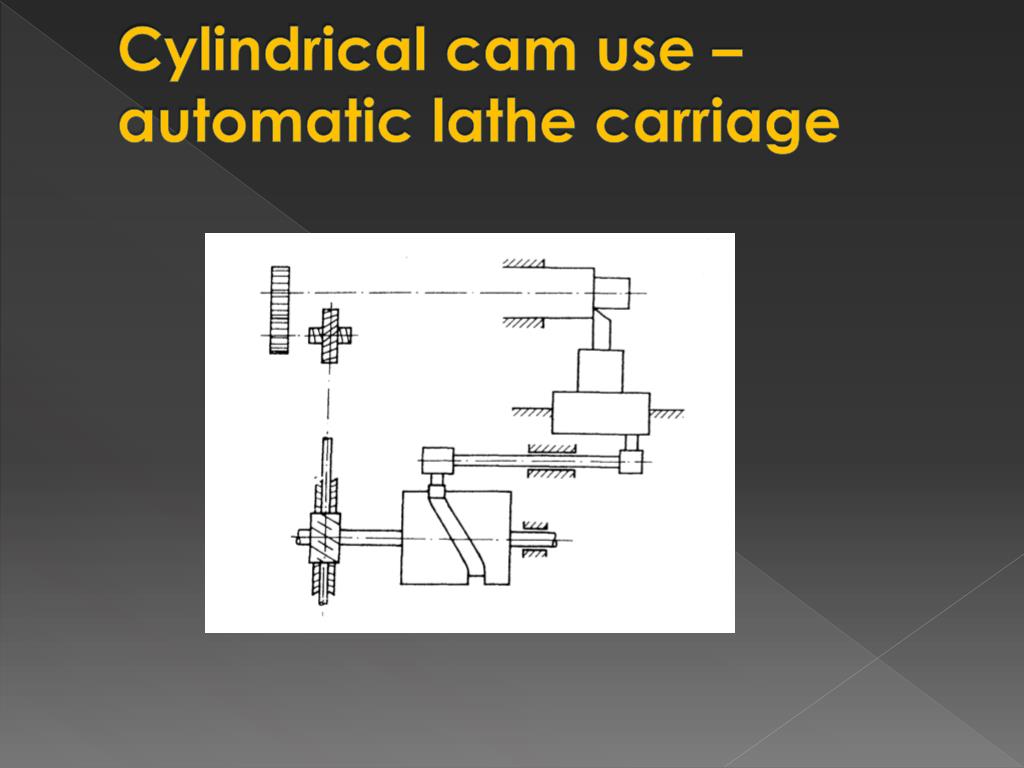

  12. Cylindrical cam use – automatic lathe carriage

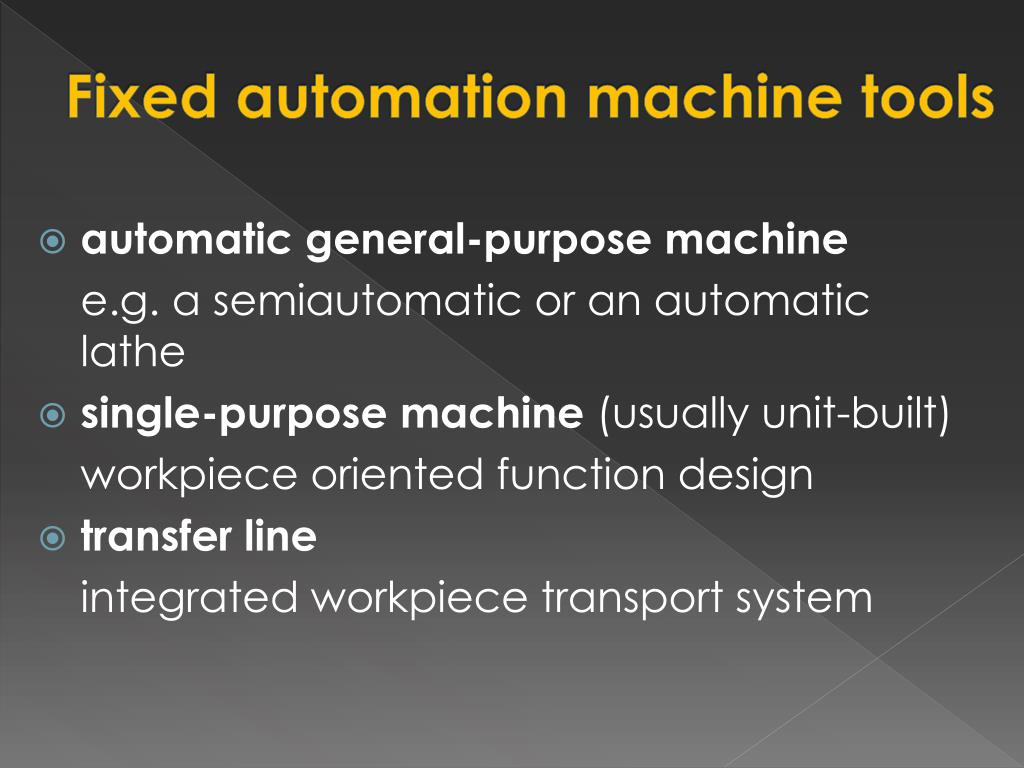

  13. Fixed automation machine tools • automatic general-purpose machine e.g. a semiautomatic or an automatic lathe • single-purpose machine (usually unit-built) workpiece oriented function design • transfer line integrated workpiece transport system

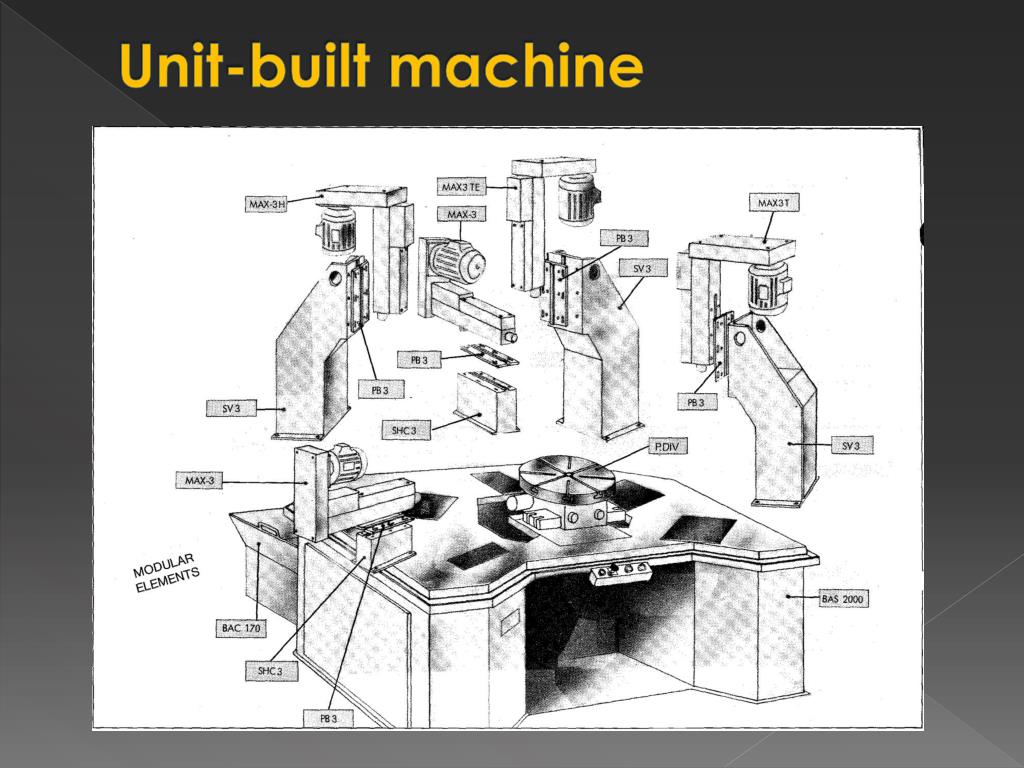

  14. Unit-built machine

  15. Modular units design

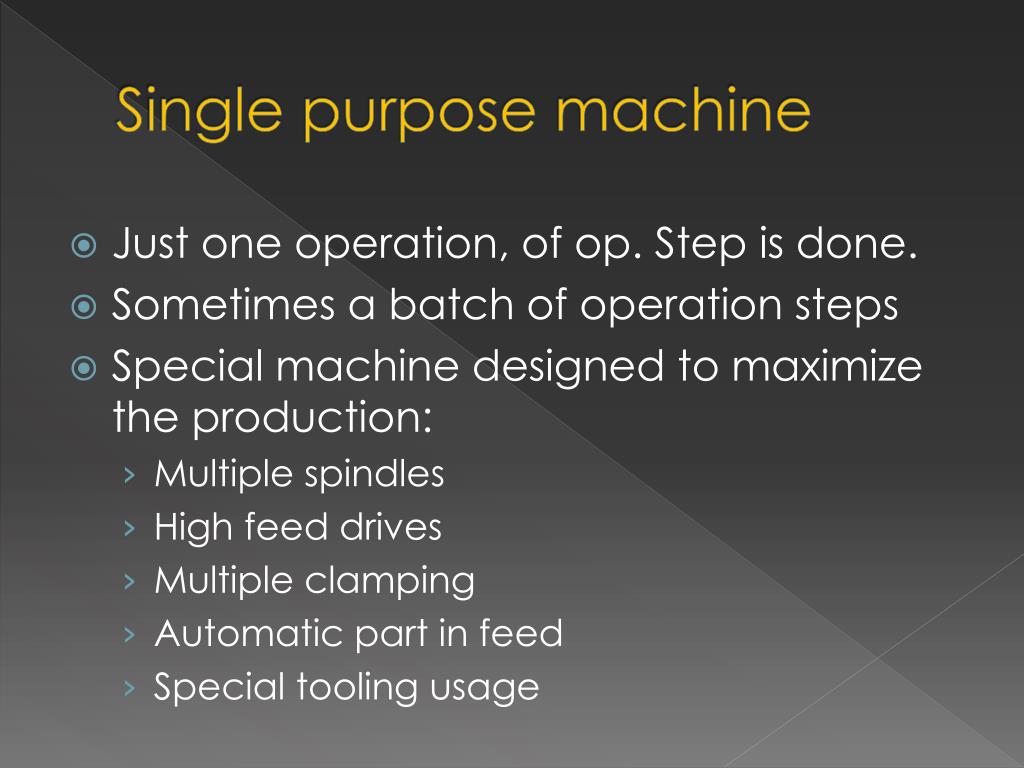

  16. Single purposemachine • Just oneoperation, ofop. Step isdone. • Sometimes a batchofoperationsteps • Specialmachinedesigned to maximizetheproduction: • Multiple spindles • Highfeeddrives • Multiple clamping • Automatic part in feed • Specialtoolingusage

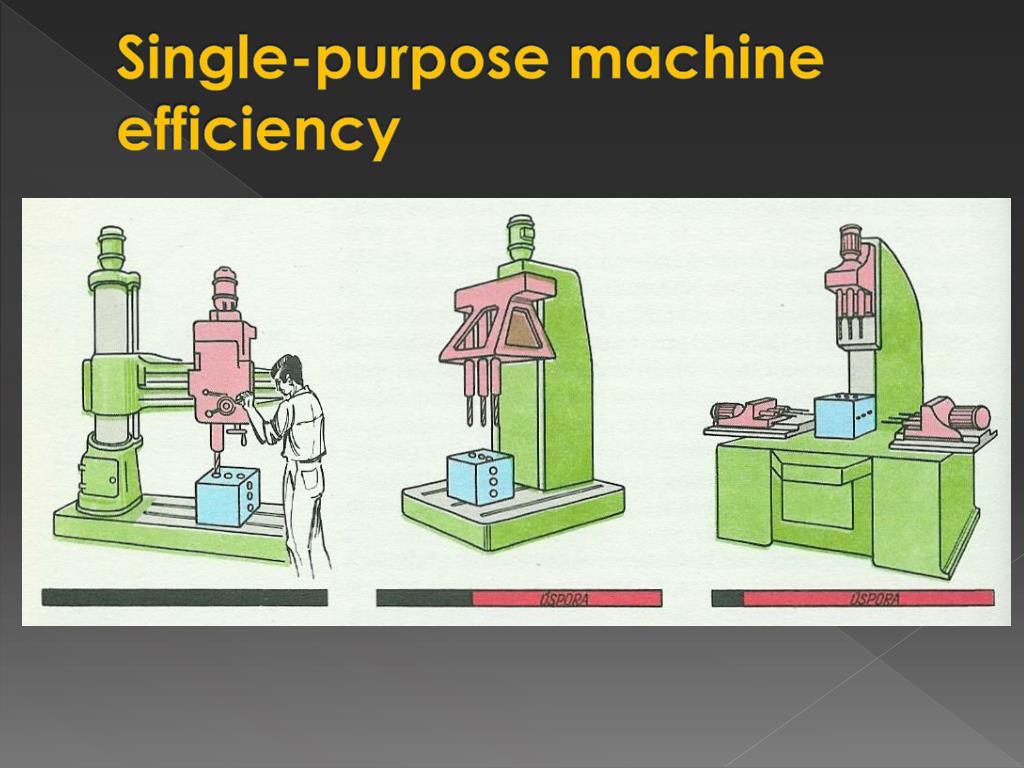

  17. Single-purpose machine efficiency

  18. Transfer line – a concept

  19. Transfer line – a schema

  20. Block machining transferline Video – Transfer line

  21. Transfer line station – an example

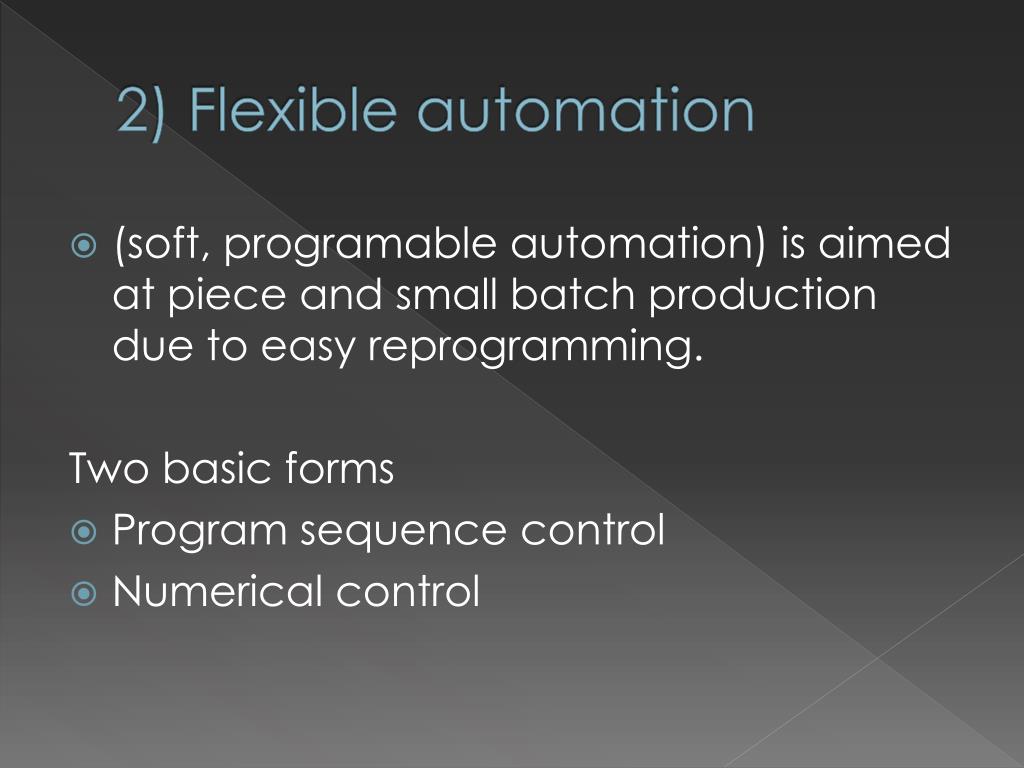

  22. 2) Flexibleautomation • (soft, programableautomation) isaimedatpieceandsmallbatchproductiondue to easyreprogramming. Two basic forms • Program sequencecontrol • Numericalcontrol

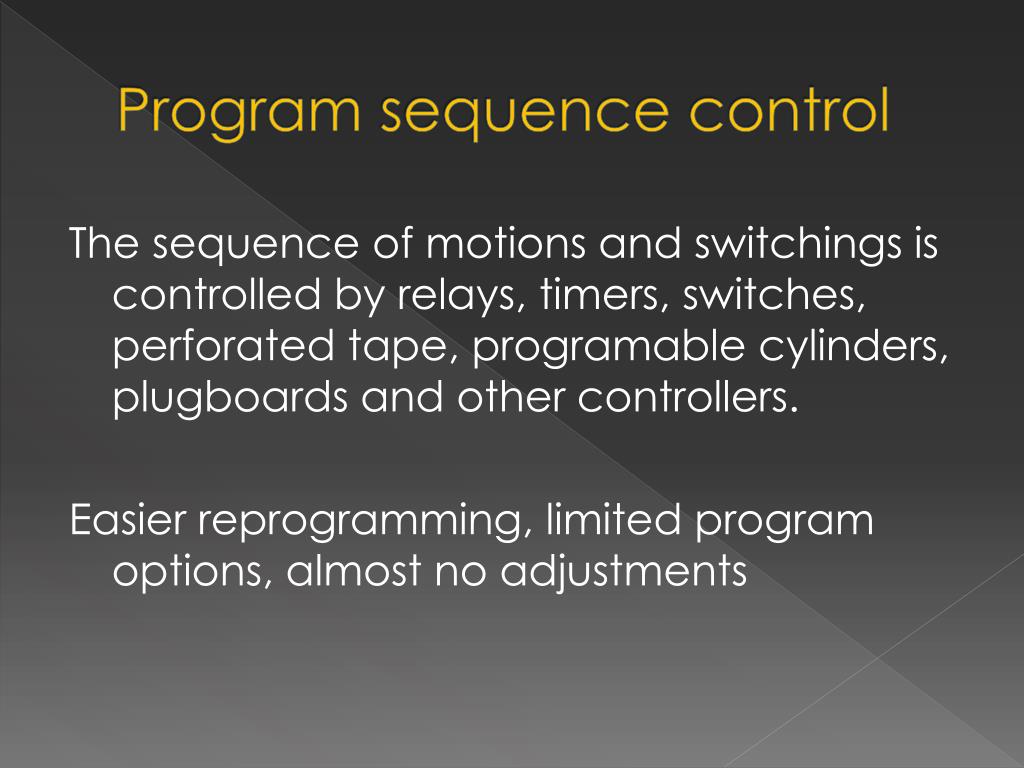

  23. Program sequencecontrol Thesequenceofmotionsandswitchingsiscontrolled by relays, timers, switches, perforatedtape, programablecylinders, plugboardsandothercontrollers. Easierreprogramming, limited program options, almost no adjustments

  24. Perforated tape Each line presents a different movement or switch. It has to be printed correctly, no error control. FYI: 8 line perforated paper tape can contain one byte of information in one column of holes. Normal pitch of columns is 2,54 mm. That means you need 2,6 m of tape to store 1kB of data. A dual-layer DVD is then approx. 22100 km of perforated tape.

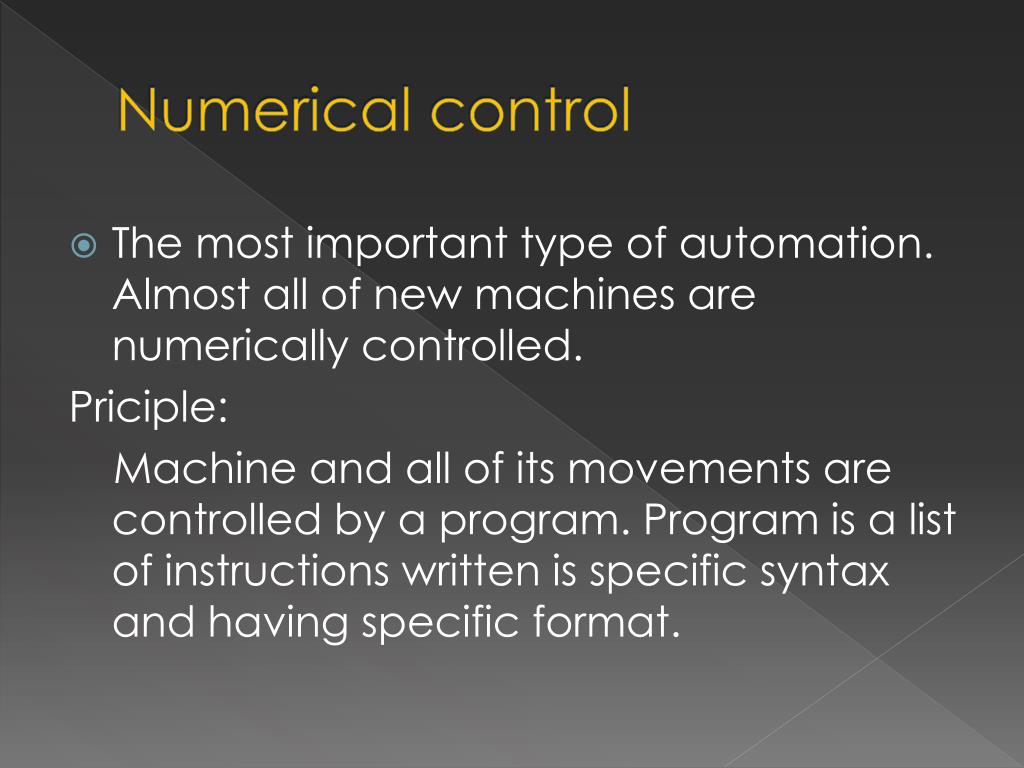

  25. Numericalcontrol • The most important type ofautomation. Almostallofnewmachines are numericallycontrolled. Priciple: Machineandallofitsmovements are controlled by a program. Program is a list ofinstructionswrittenisspecific syntax andhavingspecificformat.

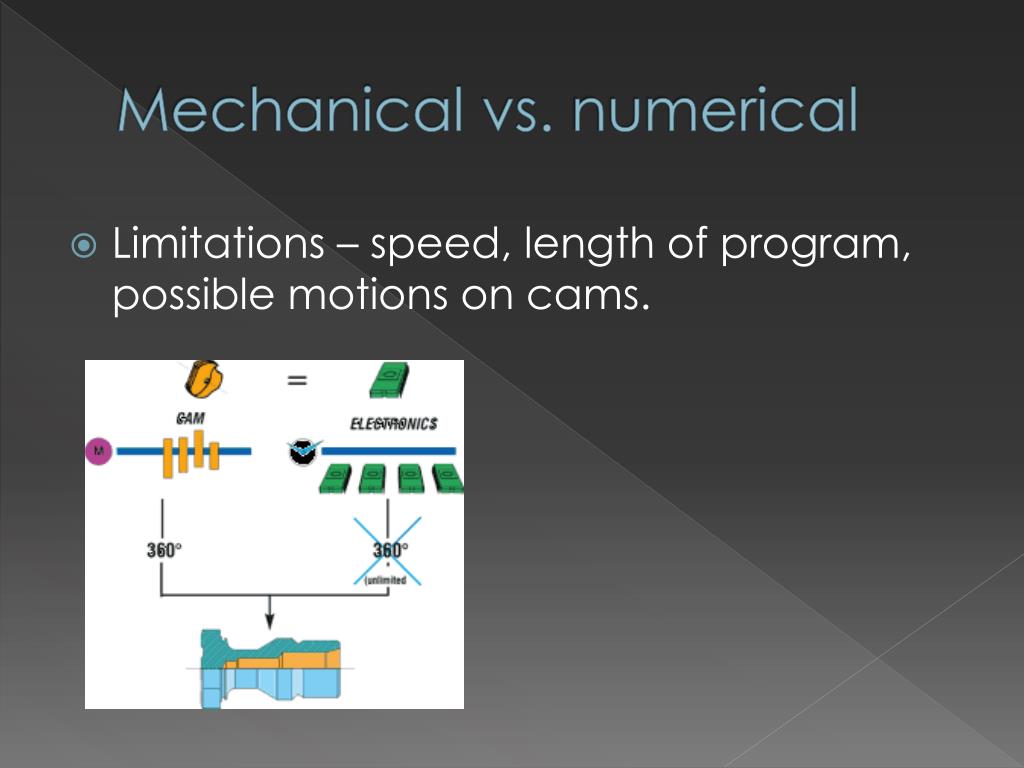

  26. Mechanical vs. numerical • Limitations – speed, lengthof program, possiblemotions on cams.

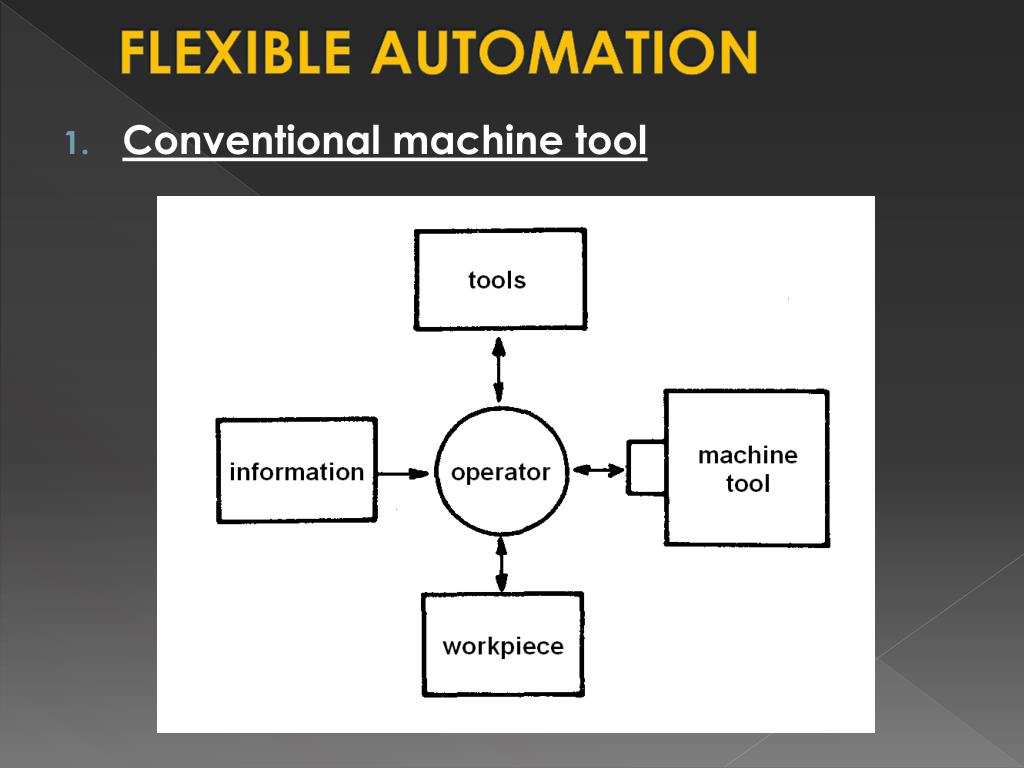

  27. FLEXIBLE AUTOMATION • Conventional machine tool

  28. FLEXIBLE AUTOMATION 2. NC machine tool (stand-alone)

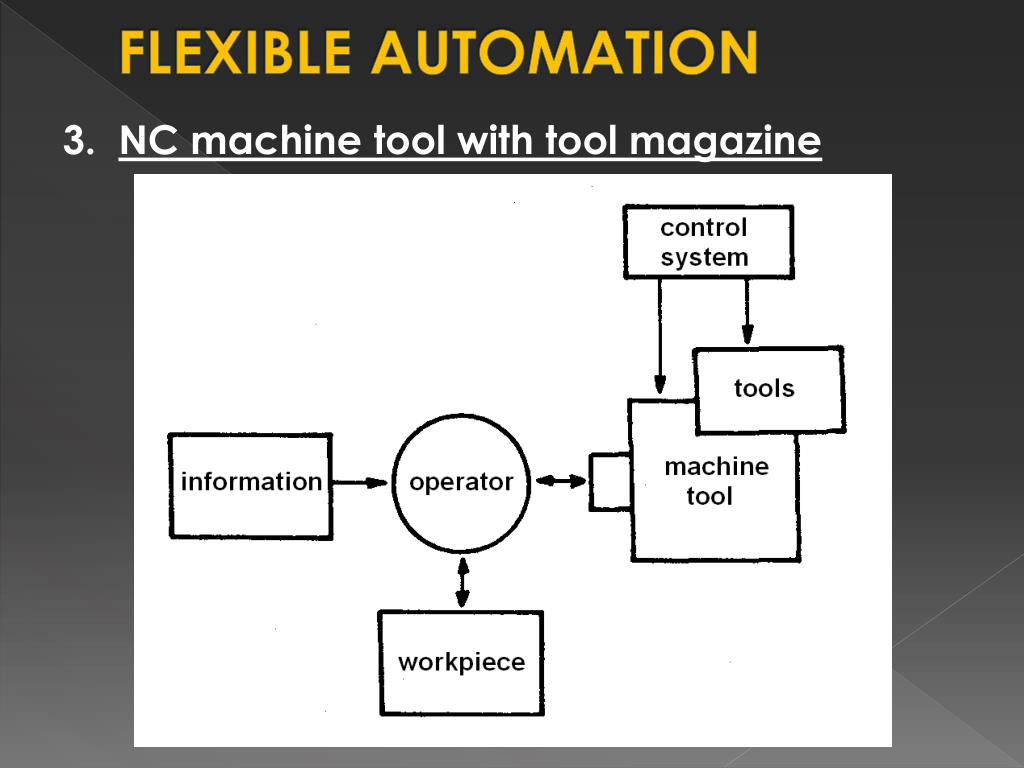

  29. FLEXIBLE AUTOMATION 3. NC machine tool with tool magazine

  30. FLEXIBLE AUTOMATION 4. CNC machine tool

  31. Mechanization vs. automation • Mechanization – human power is replaced by machines, drives, hydraulic or mechanic devices • Automation – human control is replaced by sequentional machine, cams, computer, PLC controller

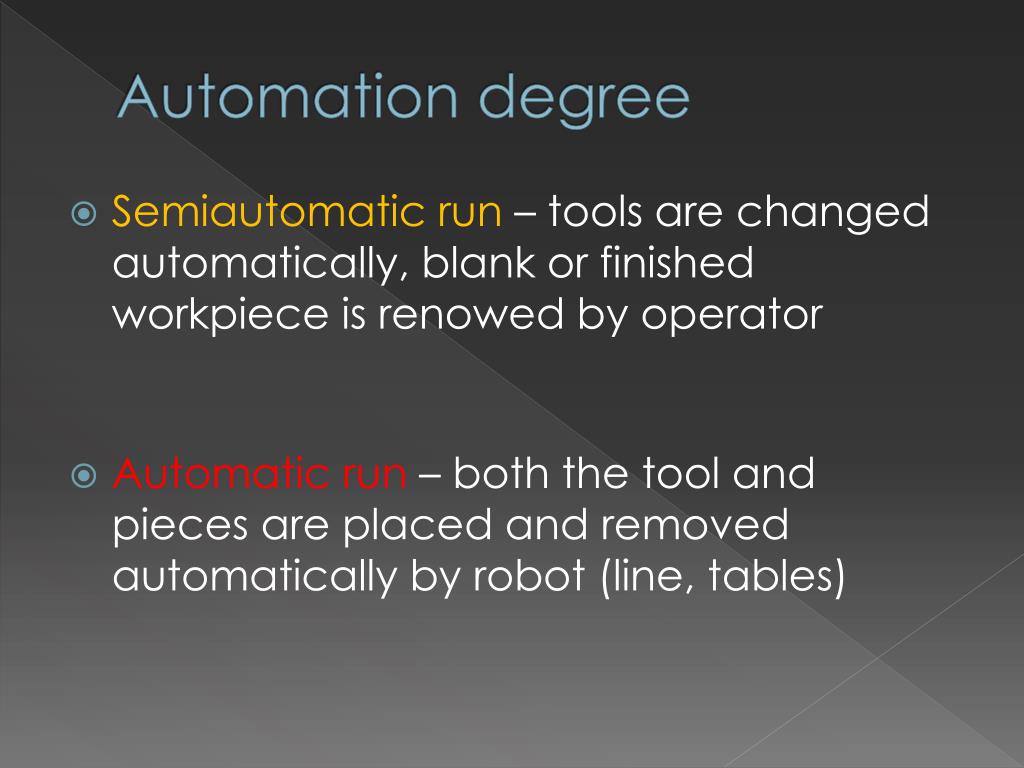

  32. Automation degree • Semiautomatic run – tools are changed automatically, blank or finished workpiece is renowed by operator • Automatic run – both the tool and pieces are placed and removed automatically by robot (line, tables)

  33. Whatweneed to automate? Semiautomatic • Tool management • Toolchange • Toolmovements • Spindle start, devices start • Materialloading • Finishedpieceremove Automatic

  34. NC / CNC definition Originalyonly NC controlwasused. Program wasstored on tapeordiscandreadone line afteranother. Influence of rapid developmentofcomputersresulted to CNC control (Computernumericalcontrol). Nowthe program isloadedintocomputersmemoryandexecutedfromhere.

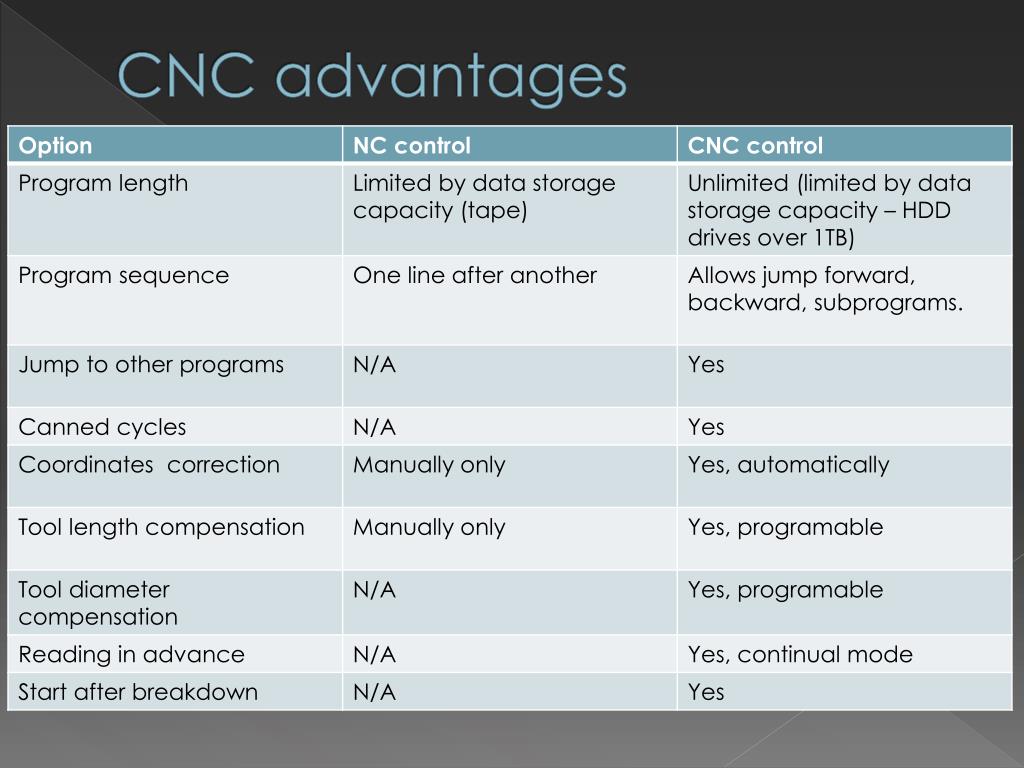

  35. CNC advantages

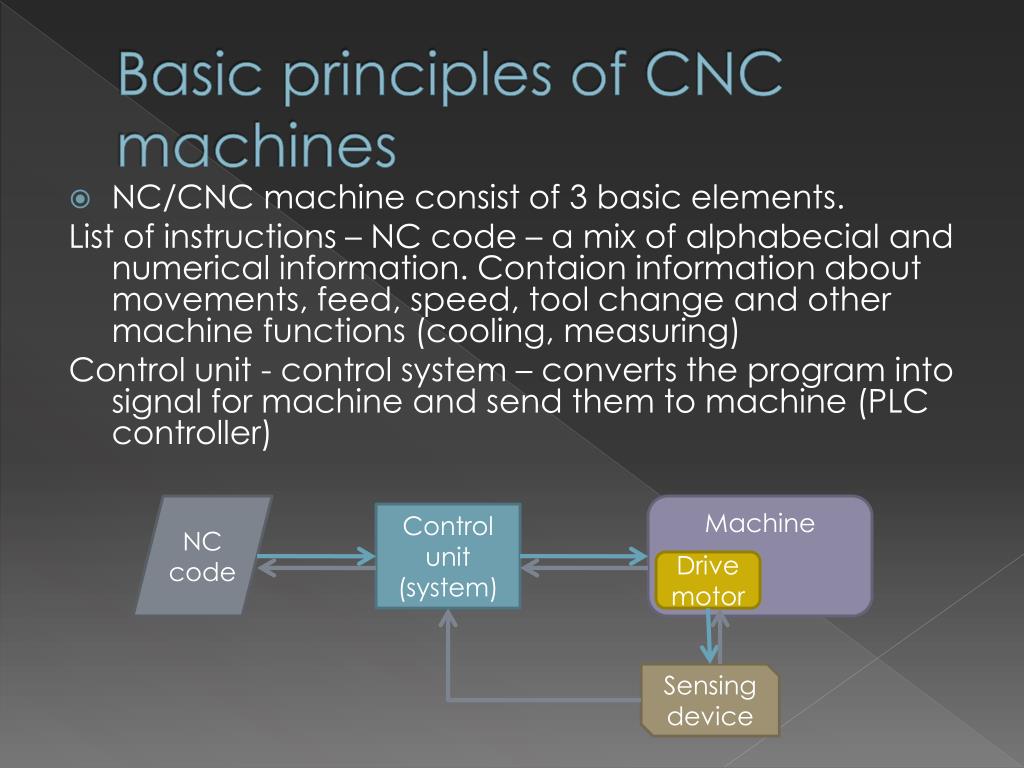

  36. Basic principlesof CNC machines • NC/CNC machine consist of 3 basic elements. List of instructions – NC code – a mix of alphabecial and numerical information. Contaion information about movements, feed, speed, tool change and other machine functions (cooling, measuring) Control unit - control system – convertsthe program intosignalformachineandsendthem to machine(PLC controller) NC code Machine Control unit (system) Drive motor Sensing device

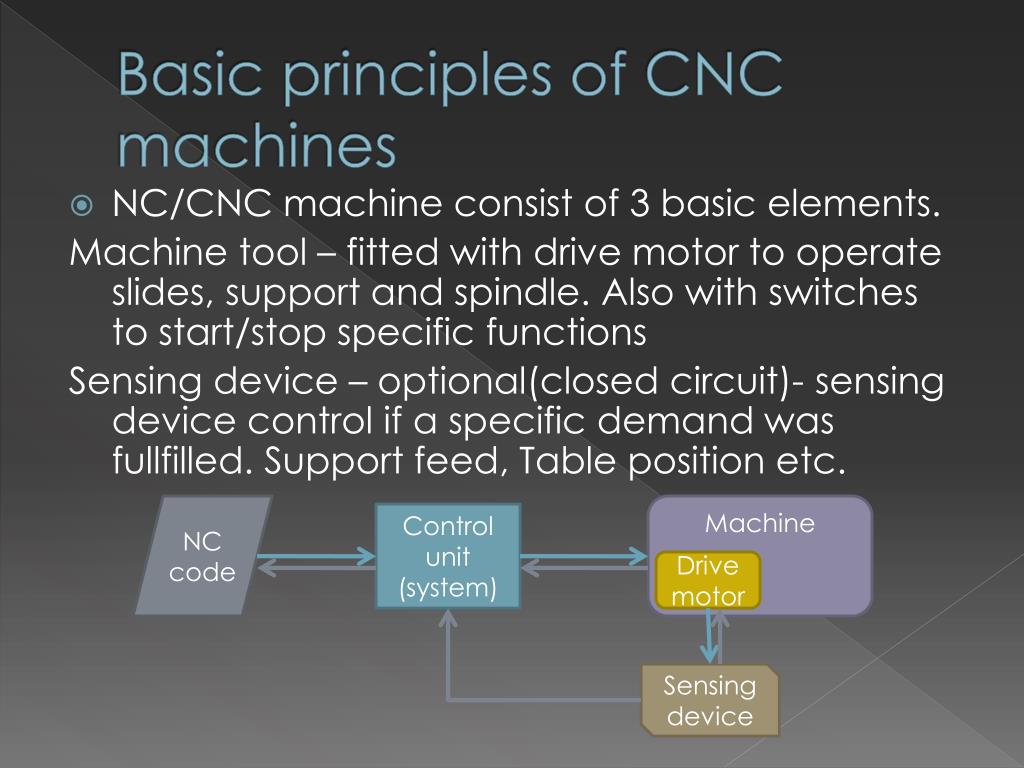

  37. Basic principlesof CNC machines • NC/CNC machine consist of 3 basic elements. Machinetool – fittedwith drive motor to operateslides, support andspindle. Alsowithswitches to start/stop specificfunctions Sensing device – optional(closedcircuit)- sensing device controlif a specificdemandwasfullfilled. Support feed, Table positionetc. NC code Machine Control unit (system) Drive motor Sensing device

  38. CNC machine tool

  39. Motions Threetypesofmotion • point-to-point motion – toolismoved to specificlocation, pathor speed ofmovebetweenlocationis not controlled. (drilling) • Linearcontrol – movementalongoneoftheaxesofthemachine. • Contouringcontrol – movementcanbemade in twoor more axessimultaneously.

  40. Motions Point-to-point controlLinearcontrolContouringcontrol (continual) drillingmillingmachines, lathesmachiningc.(milling, turning)

  41. CNC machining centre(MC) • MC combine a number of different machining processes in one operation

  42. Modular tool set

  43. Modulartool set – toolingsystem Allmanufacturersaroundtheworld Basic concept: • Holderwithstandadizedconecting part – ISO, BSK cone, CAPTO systemetc. • Extension bar – active (vibrationelimination) adujstableandbalanced • Quickchangetooltip/insert

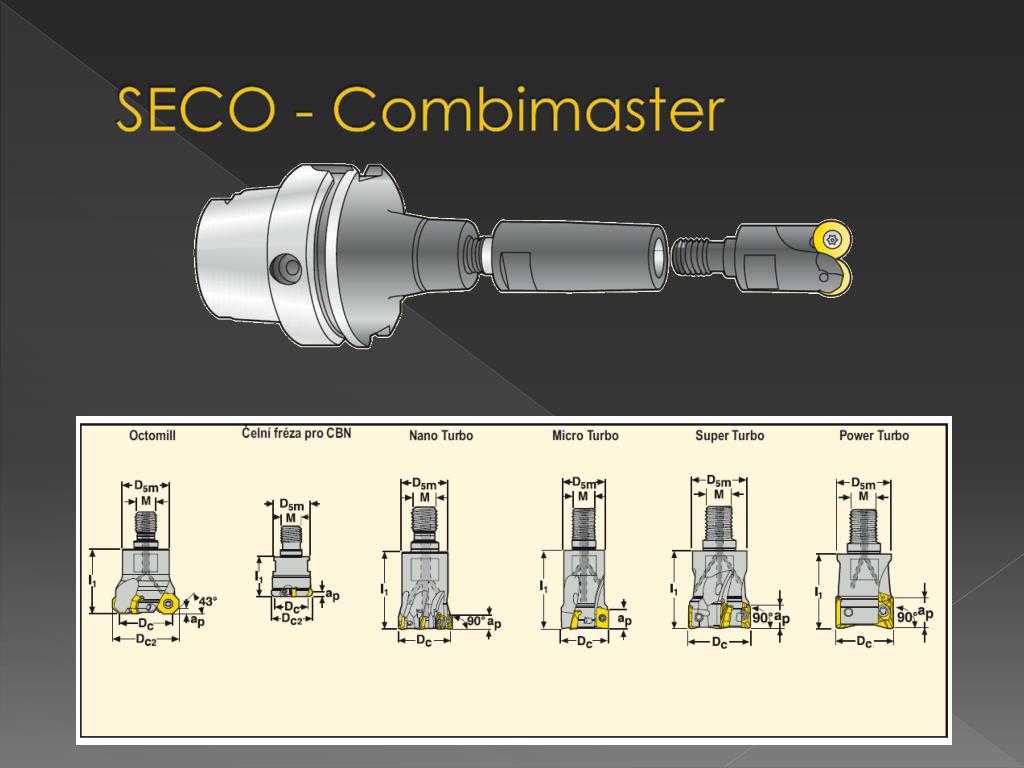

  44. SECO - Combimaster

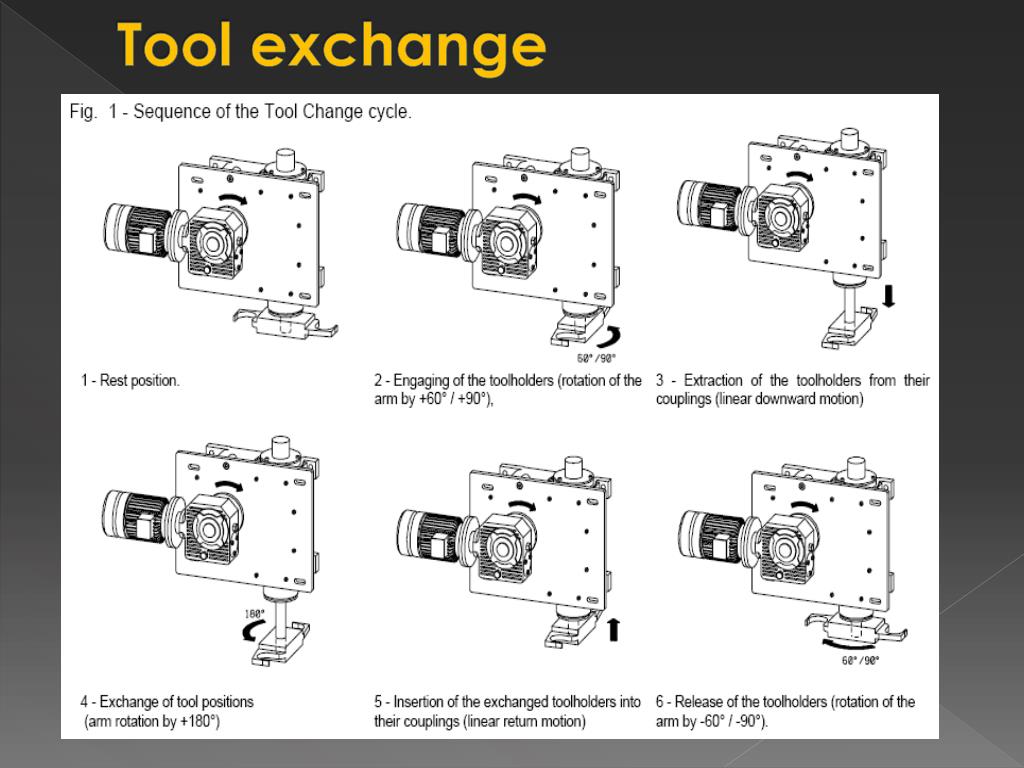

  45. Tool exchange

  46. Tool exchange

  47. Flexible cell – a concept

  48. Flexible manufacturing system

  49. Conveyors Device usedfortransportationofblankandsemiproduct in production Types: Beltconveyor Pulley(rolls) conveyor Cradleconveyor
