Optimization of a 1974 VW Electric Bug

This project involves optimizing a 1974 VW Electric Bug to improve its speed, torque, and range while meeting customer needs. Through various concepts, including adding batteries and upgrading the motor and controller, we developed a range of configurations. Key concepts explored include the addition of six deep-cycle batteries, a new AC motor setup, and innovative battery configurations, all aimed at maximizing performance metrics. Our decision matrix led us to conclude that combining battery optimization with advanced motor controls will yield the best performance results.

eloise
Télécharger la présentation

Optimization of a 1974 VW Electric Bug

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Optimization of a 1974 VW Electric Bug Group 16 Michael Boyle Michael LaBeach Andrew Magaletti Rabei Rabei

  2. Customer • Andrew Park • Owner of the car • Graduate Student at Florida State University • Dr. Hollis

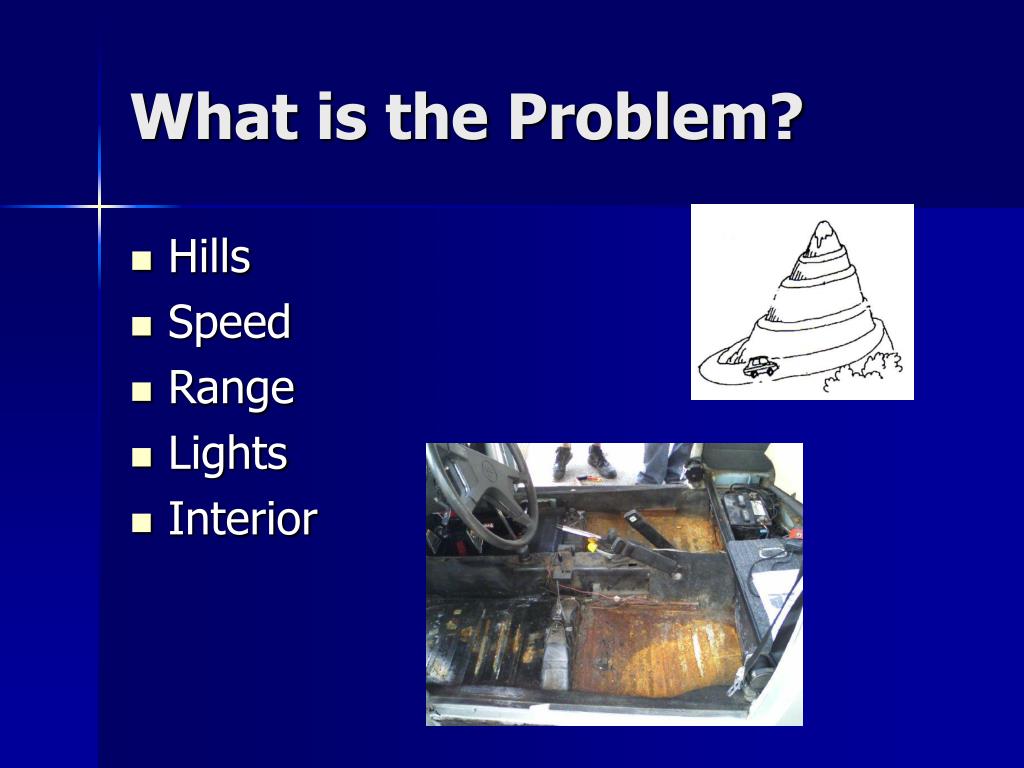

  3. What is the Problem? • Hills • Speed • Range • Lights • Interior

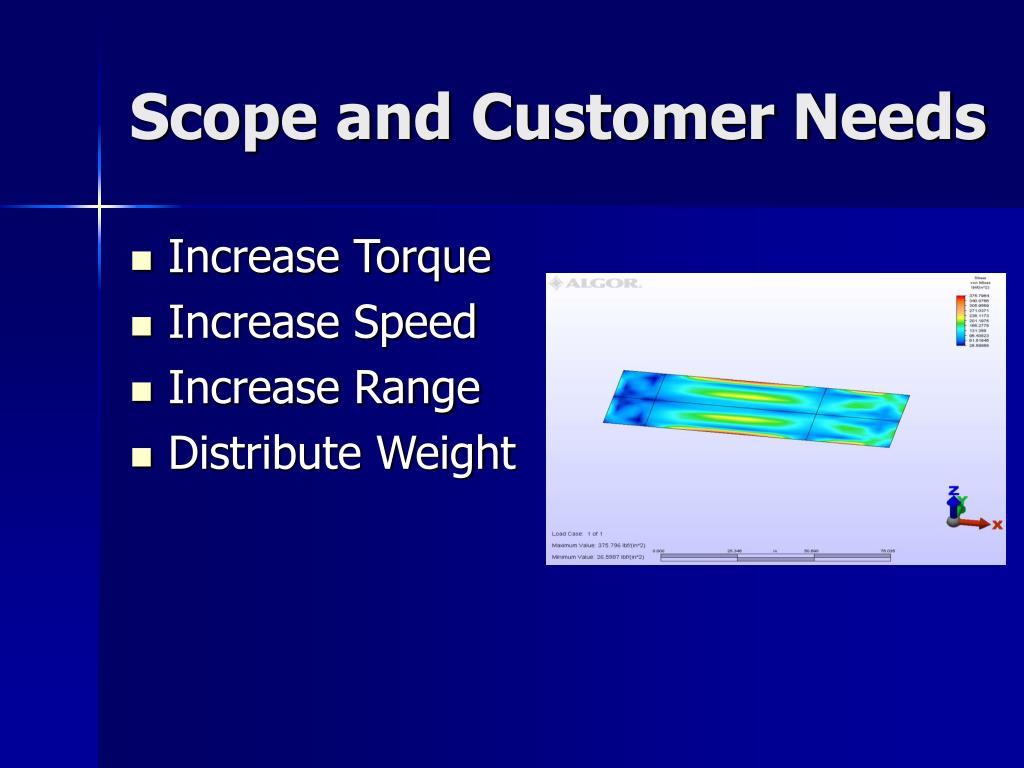

  4. Scope and Customer Needs • Increase Torque • Increase Speed • Increase Range • Distribute Weight

  5. QFD Chart

  6. Concept 1 – Add 6 Batteries • Components Needed: • 6 12V Deep Cycle Batteries • 24V Field Battery Pack • Battery Configuration: Series/Parallel • Estimated Top Speed: 70mph • Estimated Range: 55 miles • Cost: $530

  7. Concept 2 – New Motor • Components Needed: • AC Motor • DC to AC inverter • Battery Configuration: Series • Estimated Top Speed: 50mph • Estimated Range: 45 miles • Cost: $4000

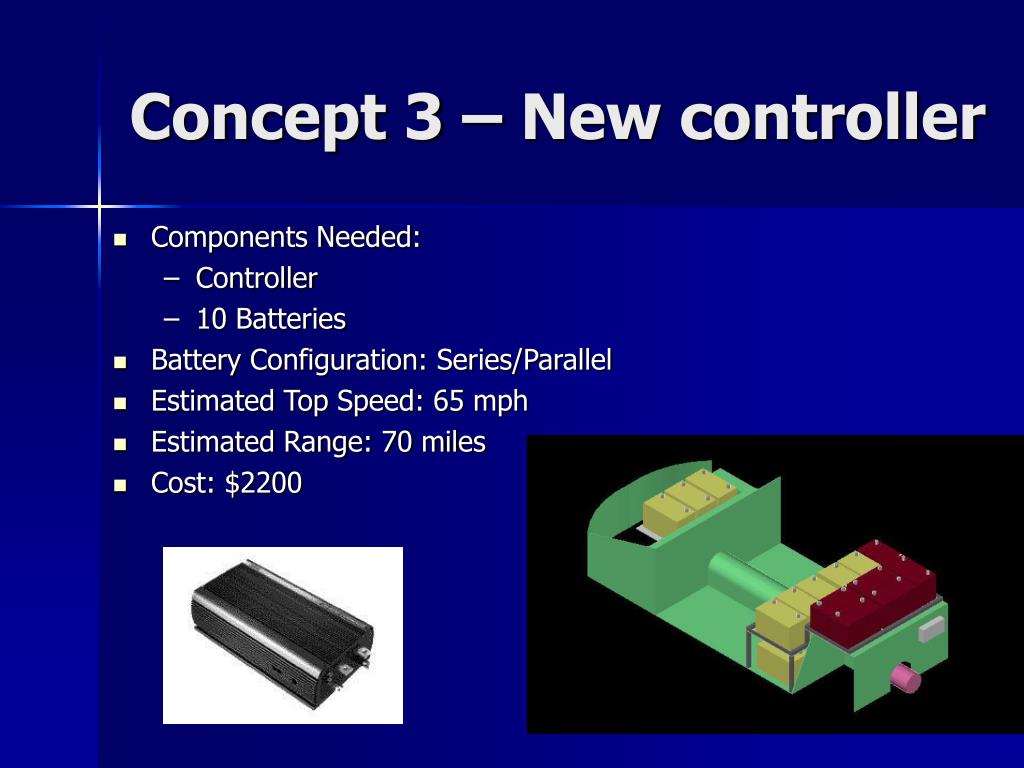

  8. Concept 3 – New controller • Components Needed: • Controller • 10 Batteries • Battery Configuration: Series/Parallel • Estimated Top Speed: 65 mph • Estimated Range: 70 miles • Cost: $2200

  9. Concept 4 – Lower Voltage Batteries • Components Needed: • 9 8V Deep Cycle Batteries • 24V Field Battery Pack • Battery Configuration: Series • Estimated Top Speed: 70mph • Estimated Range: 35 miles • Cost: $840

  10. Concept 5 • Components Needed: • Advanced DC L91-4003 Series Motor • Kelly Controls KDH09500A • (10) 12V Deep Cycle Batteries • Battery Configuration: Series/Parallel • Estimated Top Speed: 80mph • Estimated Range: 70 miles • Hills? - Yes • Cost: $2506.86

  11. Decision Matrix

  12. Optimum Design • Concept 1 • Why?

  13. Conclusion • Boundaries Overcome • Battery connection • Pre-winding the magnetic field of the motor • Series vs. Shunt vs. AC

  14. Future Plans • Regenerative Braking • LED Lights • Battery Cage • Rob Matthies • Conversion Manual

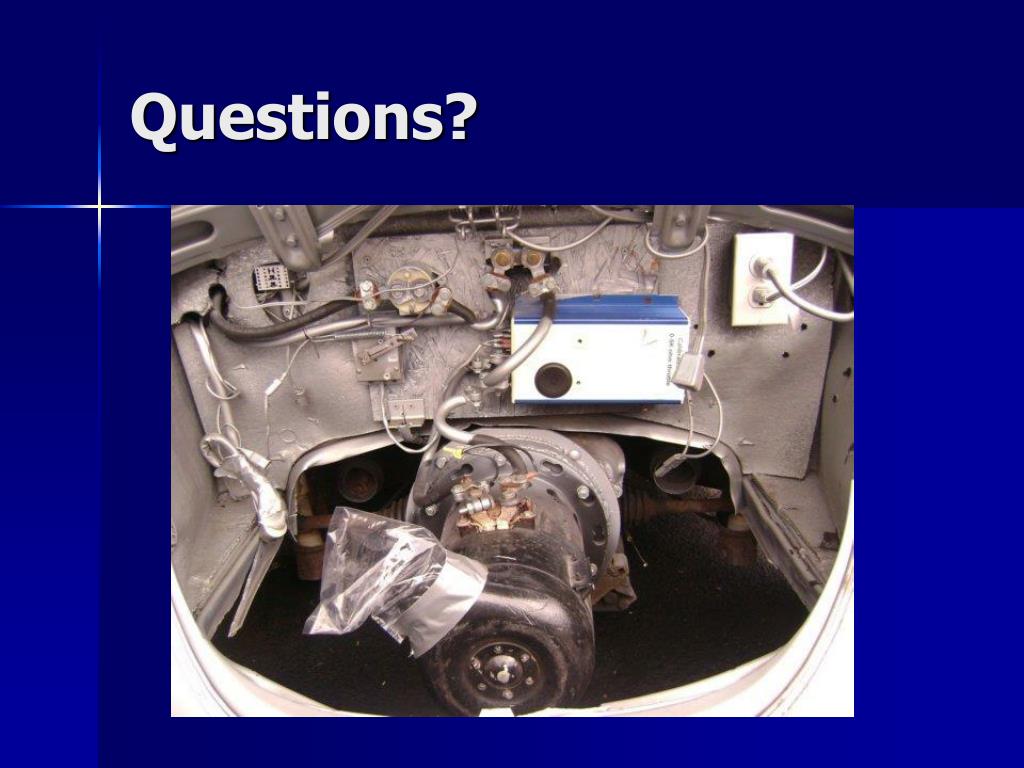

  15. Questions?
