  1. Information Systems Department IS312: levels of systems LECTURE 3

  2. Outlines • The Role of IS in Business • The important attributes of information quality. • What are the types of Information System (IS) within an organization. • Decision support. • Levels of organization. • The role of each types of IS in organization.

  3. Do you think using IS in Business important? Why?

  4. The Role of IS in Business • Businesses make use of information systems so that accurate and up-to-date information will be available when it is required. • Most organizations use computers to record and store the details of all their business transactions. When a query arises, or a standard business report must be produced, this raw data can be retrieved and manipulated to produce the required information. • For example : • A customer may enquire whether an item is in stock. • A financial statements must be produced for shareholders.

  5. What characteristics of information products make them valuable and useful to Business?

  6. Information Quality • Information that is: • outdated. • inaccurate. • or hard to understand ,is not very meaningful, useful, or valuable to you or other business professionals. • People need information of high quality. • It is useful to think of information as having the three dimensions of time, content, and form.

  7. Information Quality

  8. So what kind of IS do we need?

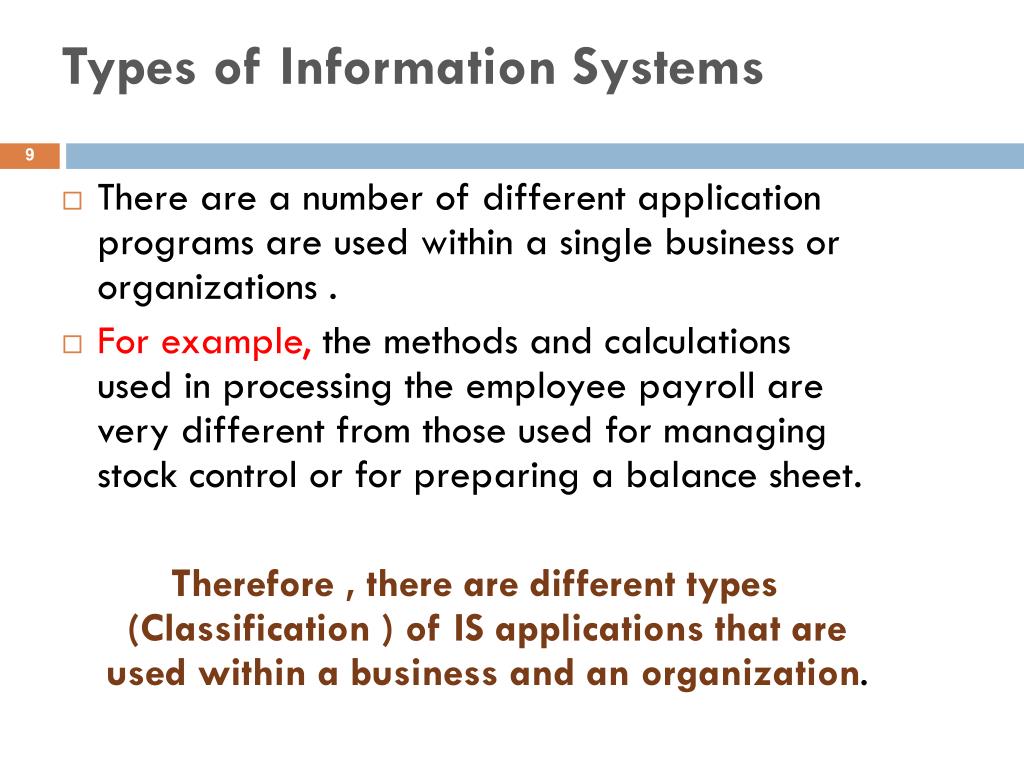

  9. Types of Information Systems • There are a number of different application programs are used within a single business or organizations . • For example, the methods and calculations used in processing the employee payroll are very different from those used for managing stock control or for preparing a balance sheet. Therefore , there are different types (Classification ) of IS applications that are used within a business and an organization.

  10. Types of Information Systems Information systems generally are classified into four categories:  • Transaction processing systems (TPS). • Management information systems (MIS). • Decision support systems (DSS). • Expert systems( ES).   The following sections present each of these information systems

  11. 1-Transaction Processing Systems (TPS) • A transaction processing system (TPS) is an information system that captures and processes data generated during an organization’s day-to-day transactions. • A transaction is a business activity such as a deposit, payment, order ,reservation , invoicing ,issuing of stock , booking airline tickets, purchasing goods or services. • Support simple processing of large amount of structured data

  12. 1-Transaction Processing Systems A Payroll Transaction Processing System (Example)

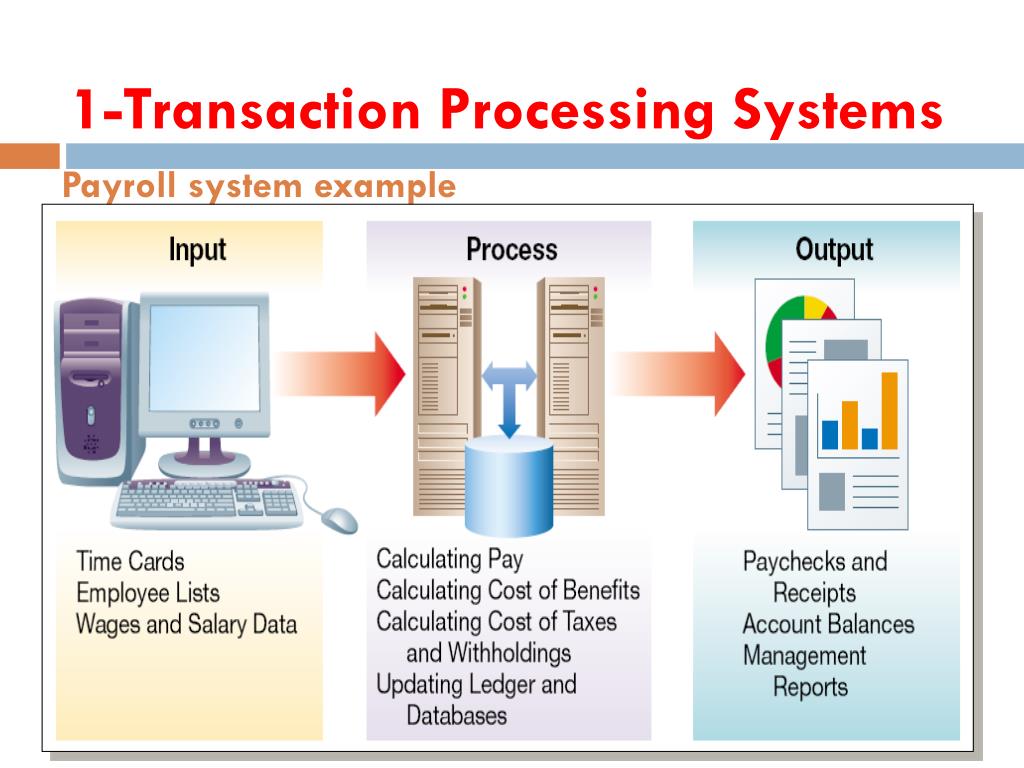

  13. 1-Transaction Processing Systems Payroll system example

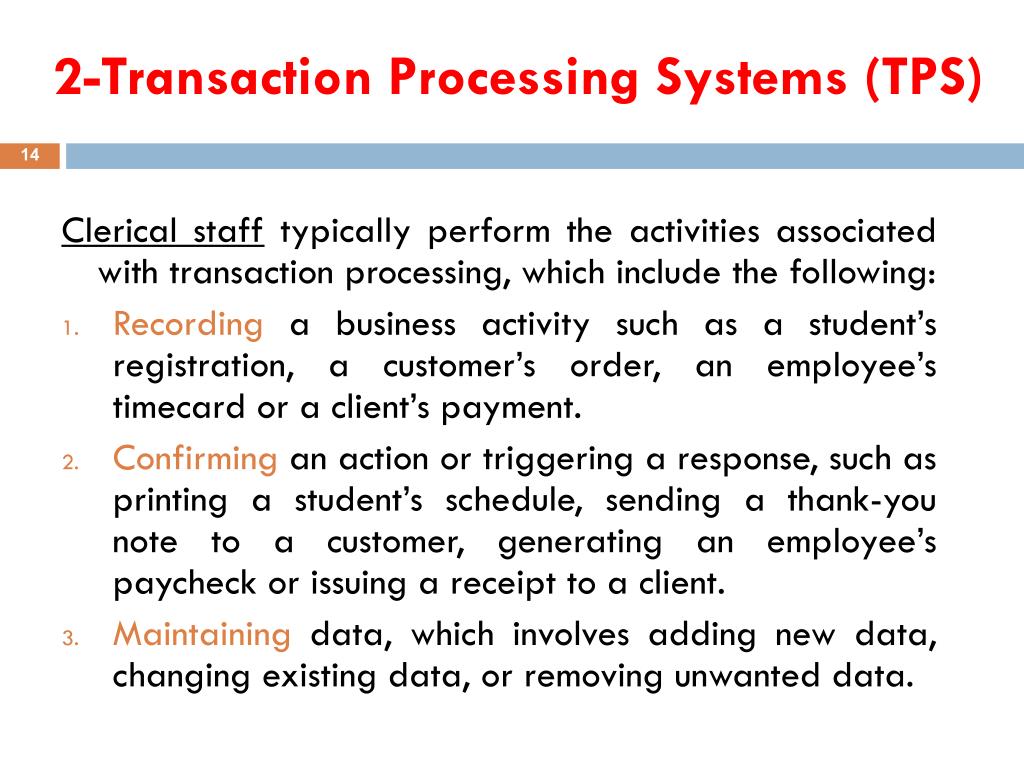

  14. 2-Transaction Processing Systems (TPS) Clerical staff typically perform the activities associated with transaction processing, which include the following: • Recording a business activity such as a student’s registration, a customer’s order, an employee’s timecard or a client’s payment. • Confirming an action or triggering a response, such as printing a student’s schedule, sending a thank-you note to a customer, generating an employee’s paycheck or issuing a receipt to a client. • Maintaining data, which involves adding new data, changing existing data, or removing unwanted data.

  15. 1-Transaction Processing Systems (TPS) Examples of TPS

  16. 1-Transaction Processing Systems (TPS) Architecture of a transaction processing system using the basic systems model

  17. 1-Transaction Processing Systems (TPS) • As computers became more powerful, system developers built online transaction processing systems.  With online transaction processing (OLTP) the computer processes transactions as they are entered.   • For example when you register for classes, your school probably uses OLTP.  The registration administrative assistant  enters your desired schedule and the computer immediately prints your statement of classes.

  18. 2- Management Information Systems (MIS) • A Management Information System, is an information system that generates accurate, timely and organized information so managers can make decisions, solve problems, supervise activities, and track progress.   • Or, it is a System that use the data generated by the TPS to help lower and middle managers in their decision making.

  19. 3-Management Information Systems (MIS) • For example : To process a sales order, • the transaction processing system records the sale, updates the customer’s account balance, and makes a deduction from inventory.   • Using this information, the related management information system can produce reports that recap daily sales activities; list customers with past due account balances; graph slow or fast selling products; and highlight inventory items that need reordering.

  20. 2-Management Information Systems (MIS) More example: where TPS data are used for MIS applications Because it generates reports on a regular basis, a management information system sometimes is called a management reporting system (MRS).

  21. 2-Management Information Systems (MIS) • Management information systems provide a variety of information products to managers. • Four major reporting alternatives • Periodic Scheduled Reports: This traditional form of providing information to managers uses a pre-specified format designed to provide managers with information on a regular basis. examples daily or weekly sales analysis reports and monthly financial statements.

  22. 2- Management Information Systems (MIS) • Exception Reports. In some cases, reports are produced only when exceptional conditions occur. In other cases, reports are produced periodically but contain information only about these exceptional conditions. • For example, a credit manager Can be provided with a report that contains only information on customers who have exceeded their credit limits. • Exception reporting reduces information Overload Instead of overwhelming decision makers with periodic detailed reports of business activity.

  23. 2- Management Information Systems (MIS) • Demand Reports and Responses: Information is available whenever a manager demands it. For example: Web browsers, DBMS query languages, and report generators enable managers at PC workstations to get immediate responses or to find and obtain customized reports as a result of their requests for the information they need. Thus, managers do not have to wait for periodic reports to arrive as scheduled

  24. 2- Management Information Systems (MIS) • Push Reporting: Information is pushed to a manager’s networked workstation. Thus, many companies are using webcasting software to broadcast selectively reports and other information to the networked PCs of managers and specialists over their corporate intranets

  25. 3- Decision Support System(DSS) • A decision support system (DSS) is an information system ( interactive computer-based systems and subsystems ) designed to help higher managers to reach a decision when a decision-making situation arises For example: A sales manager might need to determine how high to set yearly sales quotas based on increased sales and lowered product costs. Decision support systems help provide information to support such decisions.

  26. 3- Decision Support System(DSS) A decision support system uses data from internal and/or external sources. • Internal sources of data might include data from an organization’s database. for example sales, manufacturing, inventory, or financial • External sources could include for example interest rates, population trends, and costs of new housing construction or raw material pricing.  •  Users of a DSS, often managers, can manipulate the data used in the DSS to help with decisions.

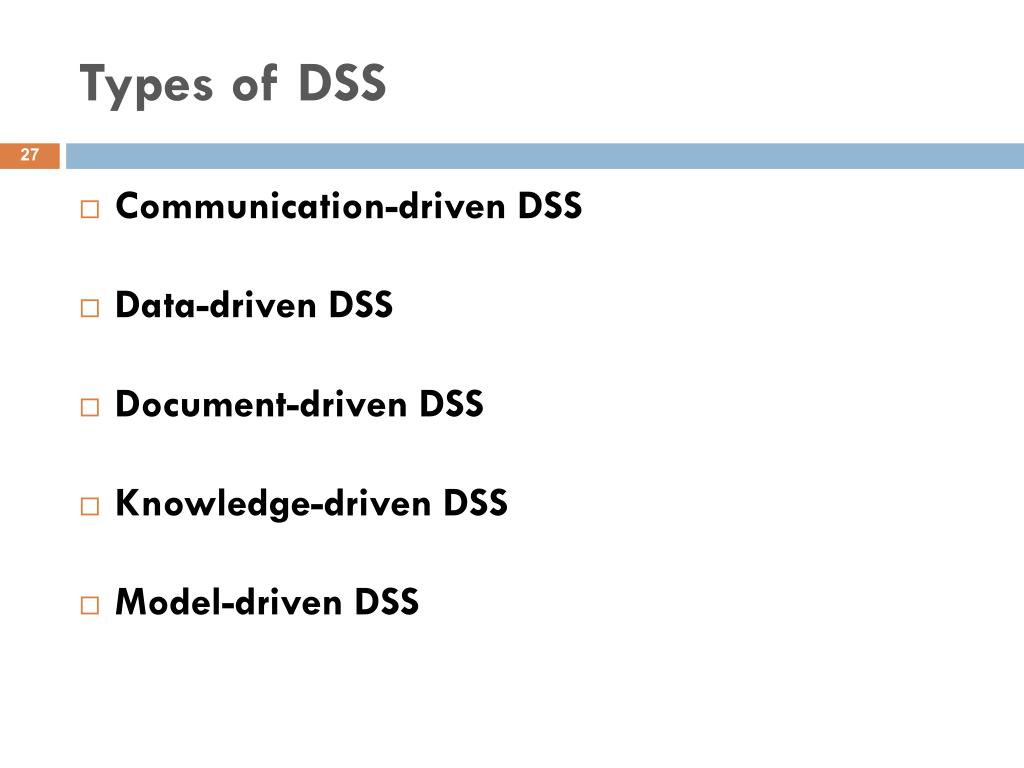

  27. Types of DSS • Communication-driven DSS  • Data-driven DSS  • Document-driven DSS  • Knowledge-driven DSS • Model-driven DSS

  28. Types of DSS : Communication-driven DSS  • Communication-driven DSS . • Most are targeted at internal teams, including partners. • Its purpose are to help conduct a meeting, or for users to collaborate. • The most common technology used to deploy the DSS is a web or client server. Examples: chats and instant messaging software, online collaboration and net-meeting systems.

  29. Types of DSS : Data-driven DSS • Data-driven DSS  • Most are targeted at managers, staff and also product/service suppliers. • It is used to query a database or data warehouse to seek specific answers for specific purposes. • It is deployed via a main frame system, client/server link, or via the web. Examples: computer-based databases that have a query system to check (including the incorporation of data to add value to existing databases).

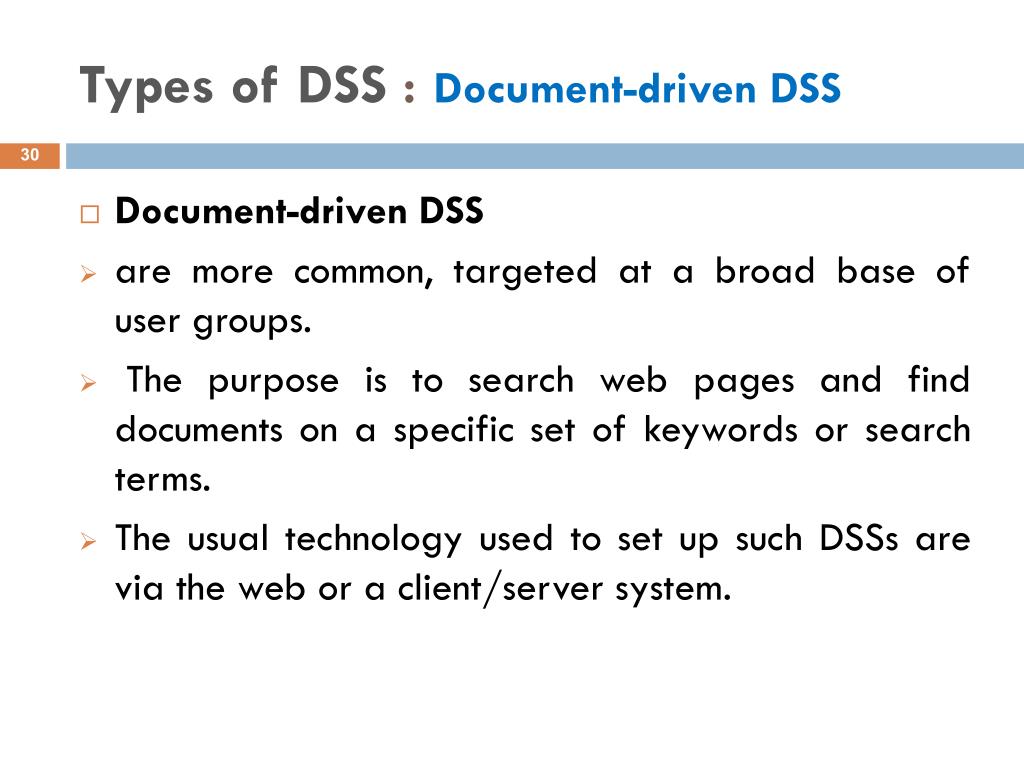

  30. Types of DSS : Document-driven DSS • Document-driven DSS  • are more common, targeted at a broad base of user groups. • The purpose is to search web pages and find documents on a specific set of keywords or search terms. • The usual technology used to set up such DSSs are via the web or a client/server system.

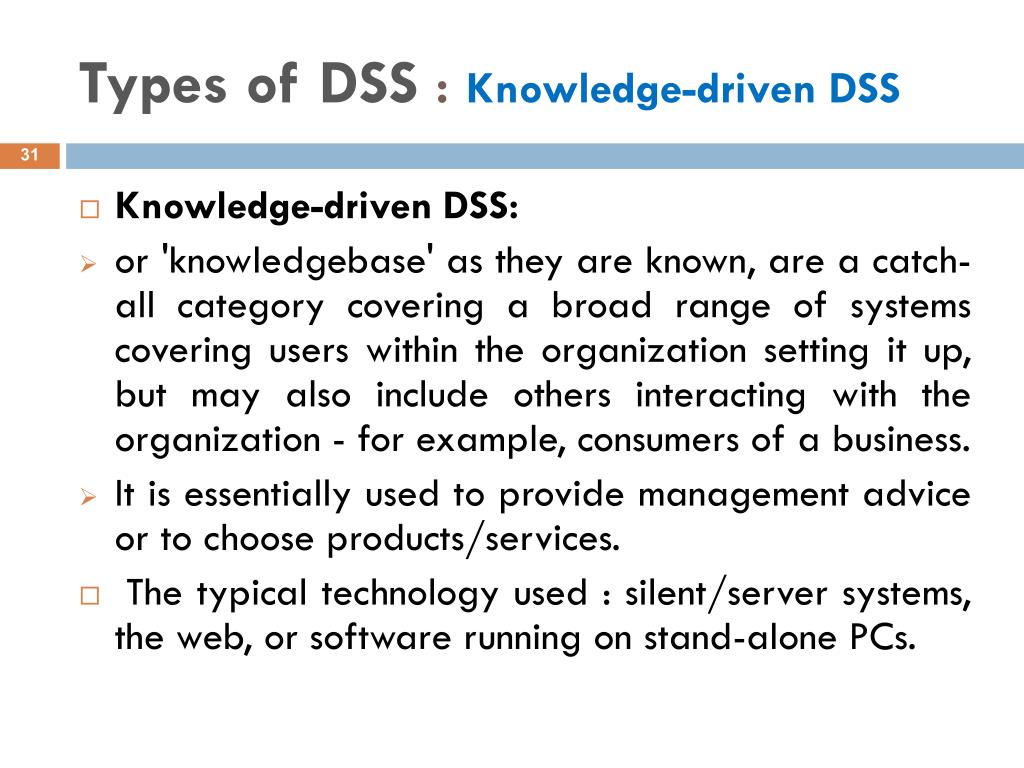

  31. Types of DSS :Knowledge-driven DSS • Knowledge-driven DSS:  • or 'knowledgebase' as they are known, are a catch-all category covering a broad range of systems covering users within the organization setting it up, but may also include others interacting with the organization - for example, consumers of a business. • It is essentially used to provide management advice or to choose products/services. • The typical technology used : silent/server systems, the web, or software running on stand-alone PCs.

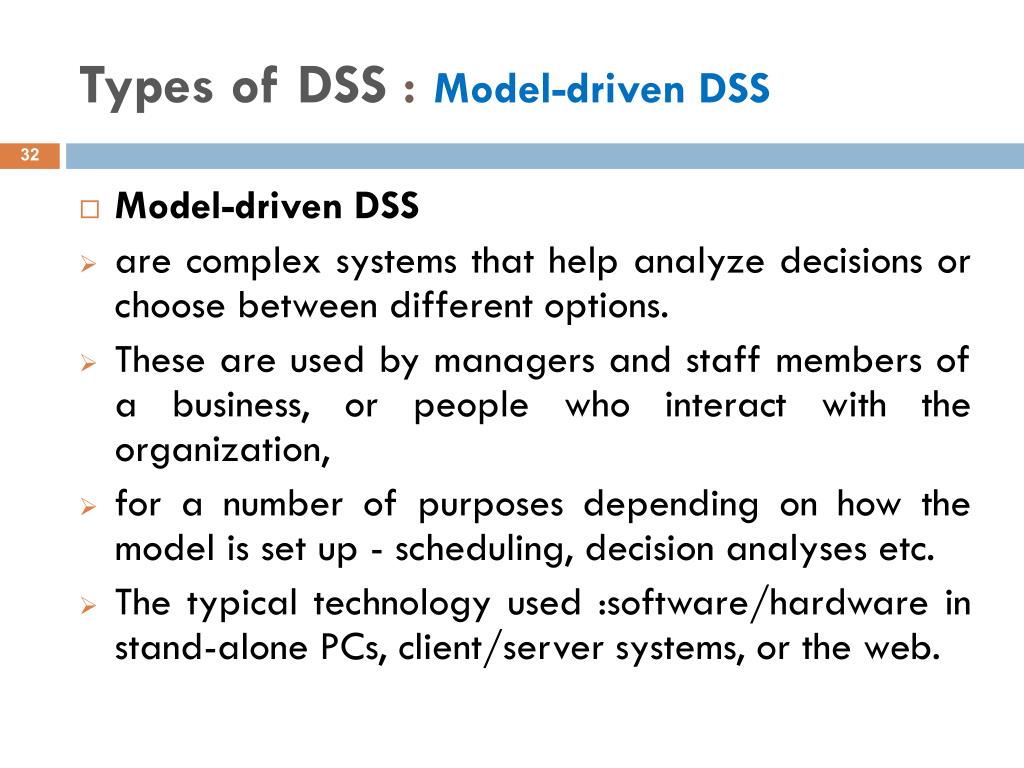

  32. Types of DSS : Model-driven DSS • Model-driven DSS  • are complex systems that help analyze decisions or choose between different options. • These are used by managers and staff members of a business, or people who interact with the organization, • for a number of purposes depending on how the model is set up - scheduling, decision analyses etc. • The typical technology used :software/hardware in stand-alone PCs, client/server systems, or the web.

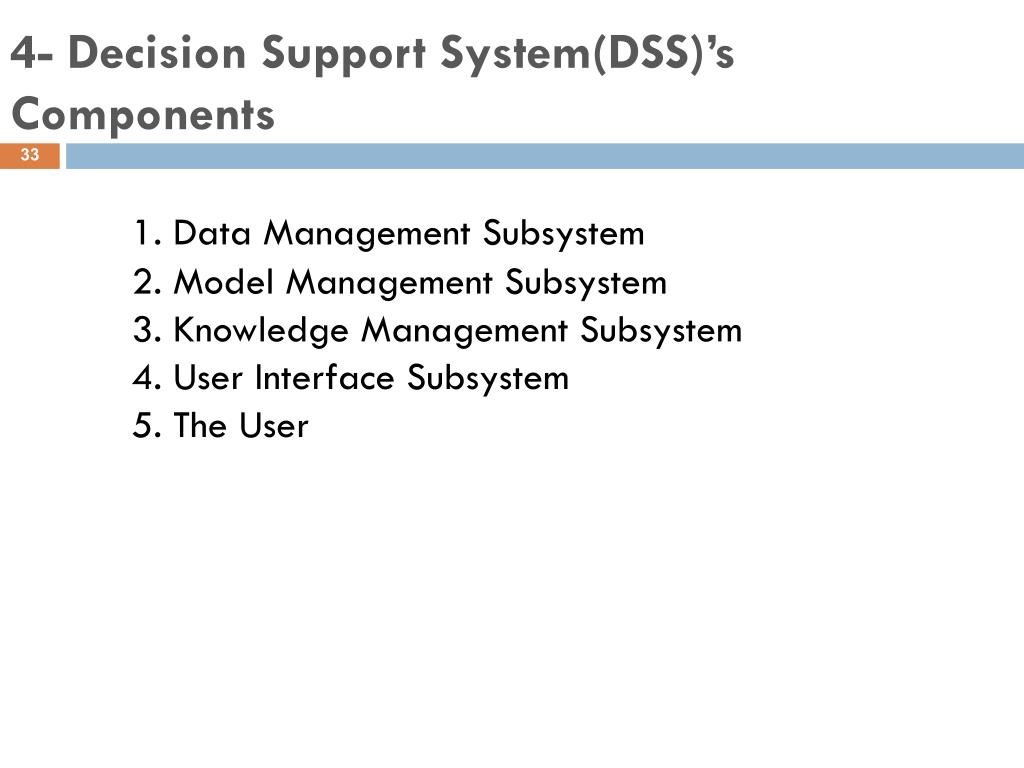

  33. 4- Decision Support System(DSS)’s Components 1. Data Management Subsystem2. Model Management Subsystem3. Knowledge Management Subsystem4. User Interface Subsystem5. The User

  34. 4- Decision Support System(DSS)’s Components Data Management Model Management Other Systems Knowledge Management User Interface User DSS Architecture

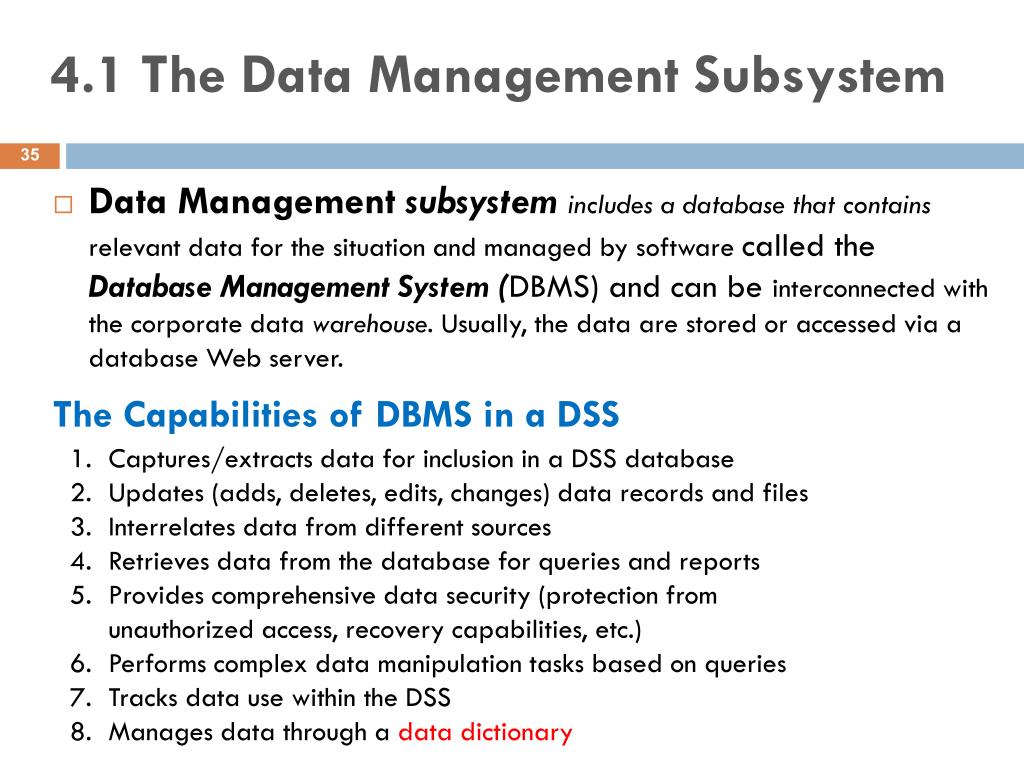

  35. 4.1 The Data Management Subsystem • Data Management subsystem includes a database that contains relevant data for the situation and managed by software called the Database Management System (DBMS) and can be interconnected with the corporate data warehouse. Usually, the data are stored or accessed via a database Web server. The Capabilities of DBMS in a DSS • Captures/extracts data for inclusion in a DSS database • Updates (adds, deletes, edits, changes) data records and files • Interrelates data from different sources • Retrieves data from the database for queries and reports • Provides comprehensive data security (protection from unauthorized access, recovery capabilities, etc.) • Performs complex data manipulation tasks based on queries • Tracks data use within the DSS • Manages data through a data dictionary

  36. 4.2 The Model Management Subsystem Model Management Subsystem is a software package that includes financial, statistical, management science or other quantitative models that provide the system’s analytical capabilities and appropriate software management. • There can be 3 different types of modeling software for DSSs: • Statistical models, • Optimization models, • Forecasting models.

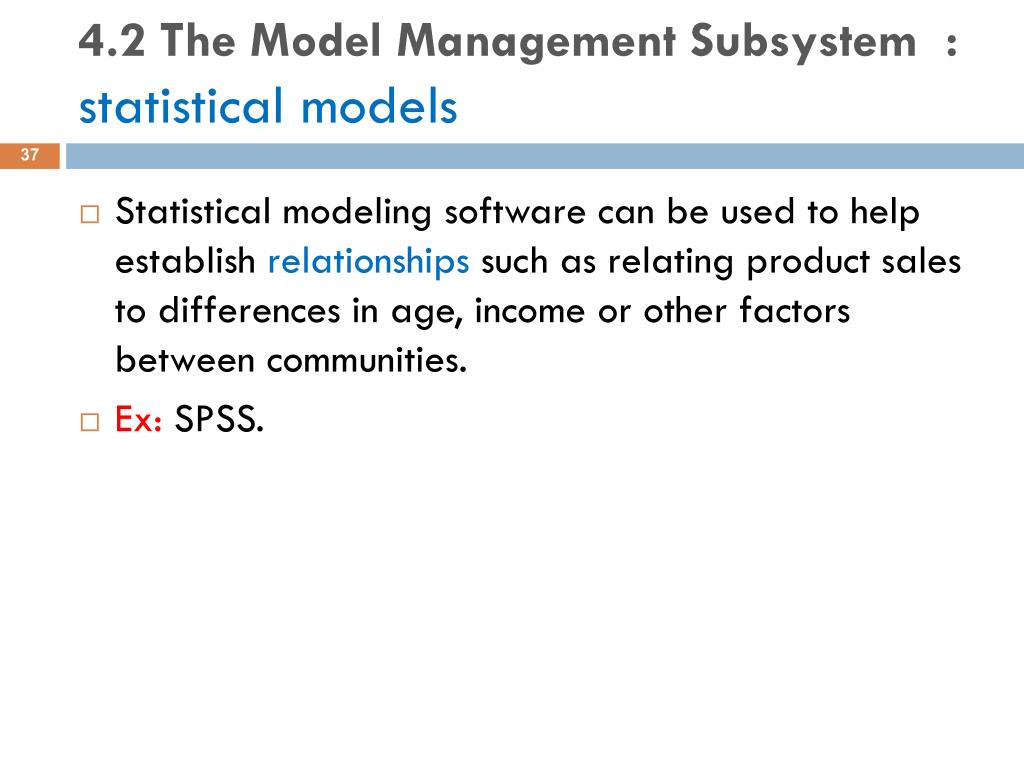

  37. 4.2 The Model Management Subsystem : statistical models • Statistical modeling software can be used to help establish relationships such as relating product sales to differences in age, income or other factors between communities. • Ex: SPSS.

  38. 4.2 The Model Management Subsystem : optimization models • Optimization models often using Linear Programming (LP) determine the proper mix of products within a given market to maximize profit.

  39. 4.2 The Model Management Subsystem :Forecasting models. • The user of this type of model might supply a range of historical data to expect future conditions and sales that might result from those conditions. • Companies often use this software to predict the action of competitors.

  40. 4.3 The Knowledge Management Subsystem • Provides expertise in solving complex unstructured and semi-structured problems What models to use, how, interpreting results Reasoning, handling uncertainty, learning from data Expertise provided by an expert system or other intelligent system (AI techniques) • Leads to intelligent DSS • Example: Data mining

  41. 4.4 The User Interface (Dialog) Subsystem • Includes all communication between a user and the DSS • To most users, the user interface is the system • Major Capabilities will include : • Provides graphical user interface. • Accommodates the user with a variety of input devices. • Presents data with a variety of formats and output devices. • Gives users “help” capabilities, prompting, diagnostic and suggestion routines, or any other flexible support. • Provides interactions with the database and the model base. • Stores input and output data. • Provides color graphics, three-dimensional graphics, and data plotting. • Has windows to allow multiple functions to be displayed concurrently. • Provides training by examples (guiding users through the input and modeling process).

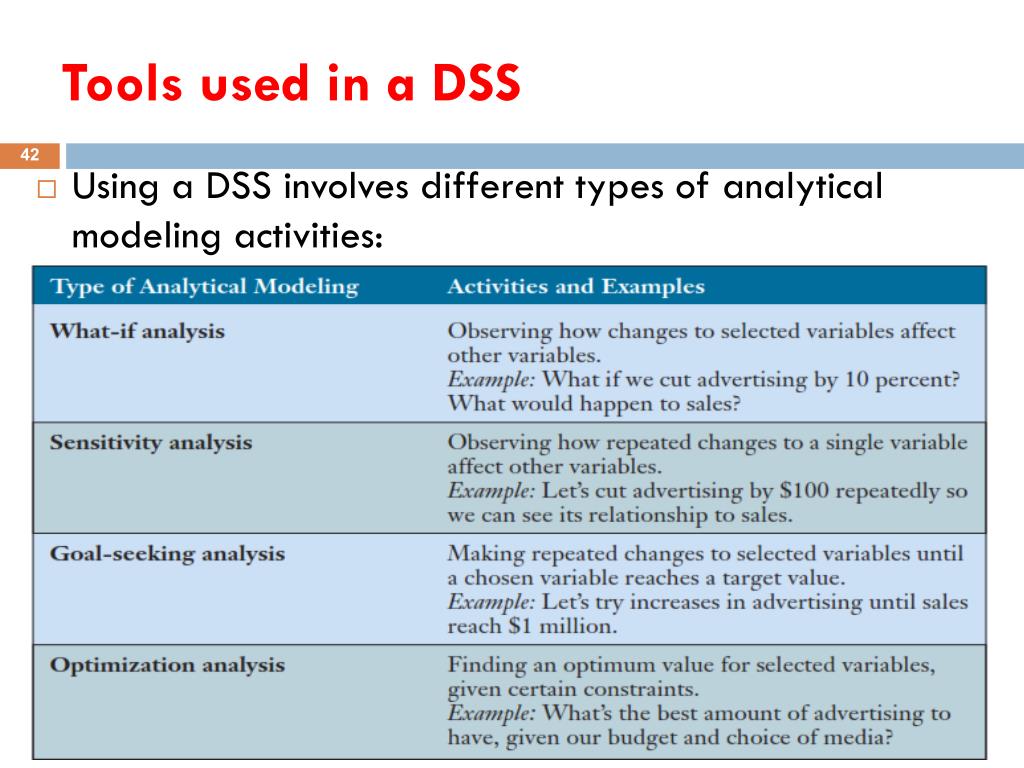

  42. Tools used in a DSS • Using a DSS involves different types of analytical modeling activities:

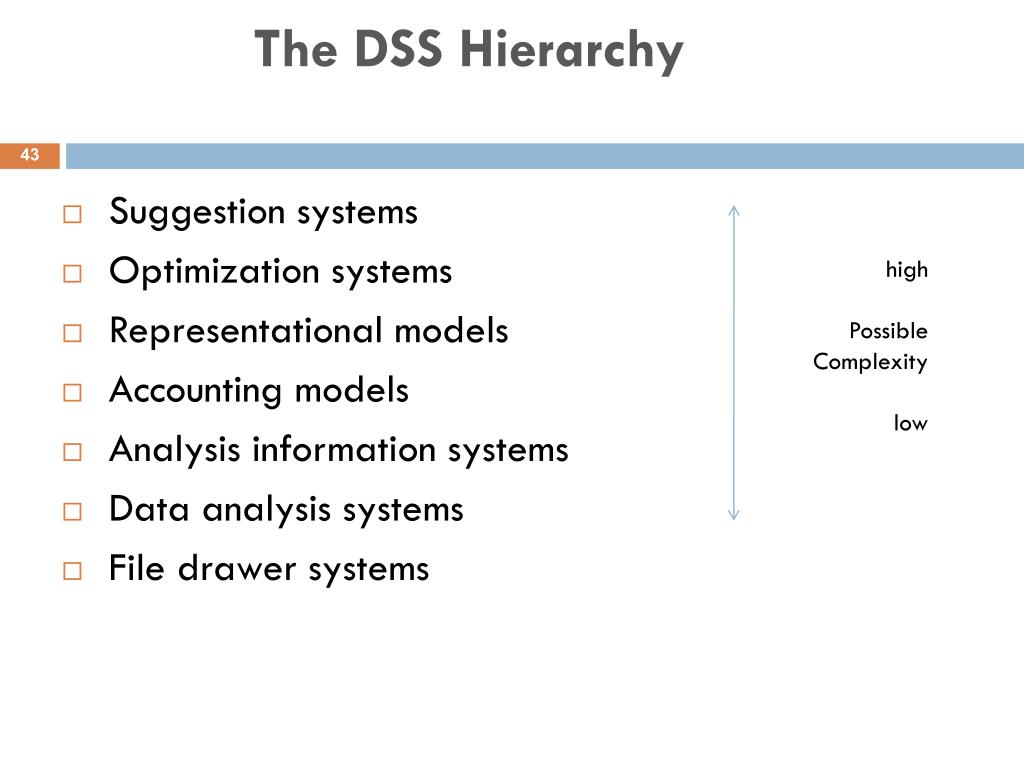

  43. The DSS Hierarchy • Suggestion systems • Optimization systems • Representational models • Accounting models • Analysis information systems • Data analysis systems • File drawer systems high Possible Complexity low

  44. File Drawer Systems • They are the simplest type of DSS • Can provide access to simple items of information • The values obtained are used straight forwardly to make a decision • Example: • ATM Machine • Discover the account balance before deciding how much to withdraw

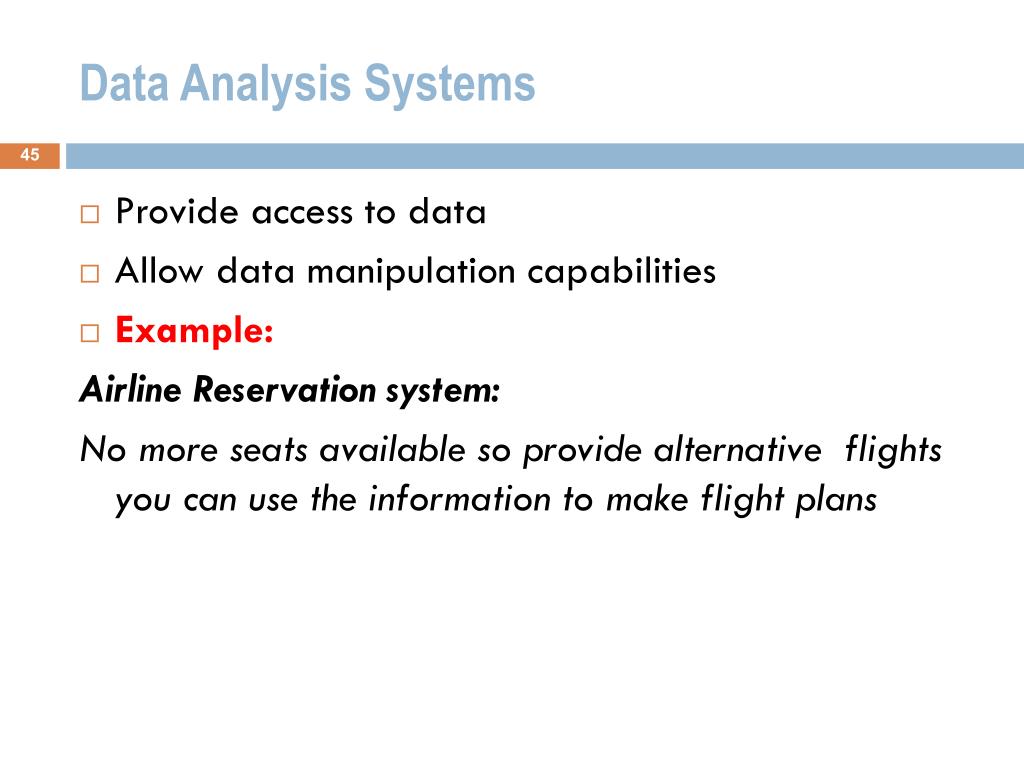

  45. Data Analysis Systems • Provide access to data • Allow data manipulation capabilities • Example: Airline Reservation system: No more seats available so provide alternative flights you can use the information to make flight plans

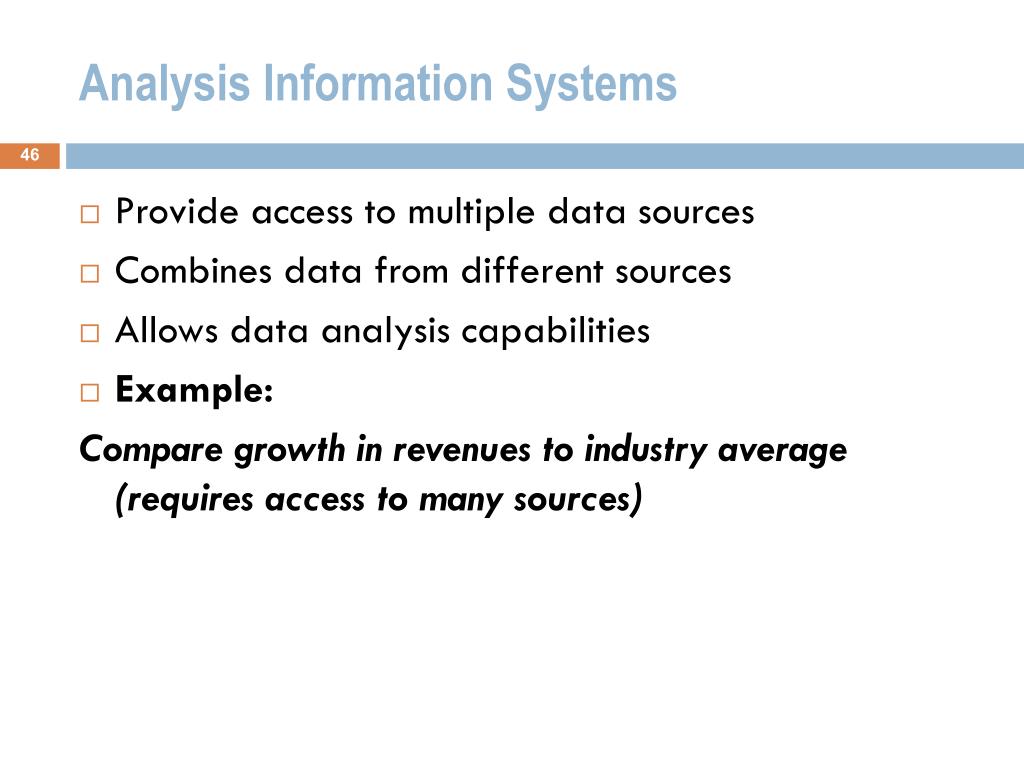

  46. Analysis Information Systems • Provide access to multiple data sources • Combines data from different sources • Allows data analysis capabilities • Example: Compare growth in revenues to industry average (requires access to many sources)

  47. Accounting Models • Use internal accounting data • Provide accounting modeling capabilities • Can not handle uncertainty • Example: Bill of material used in a dressmaking shop. Calculate production costs. Make pricing decisions.

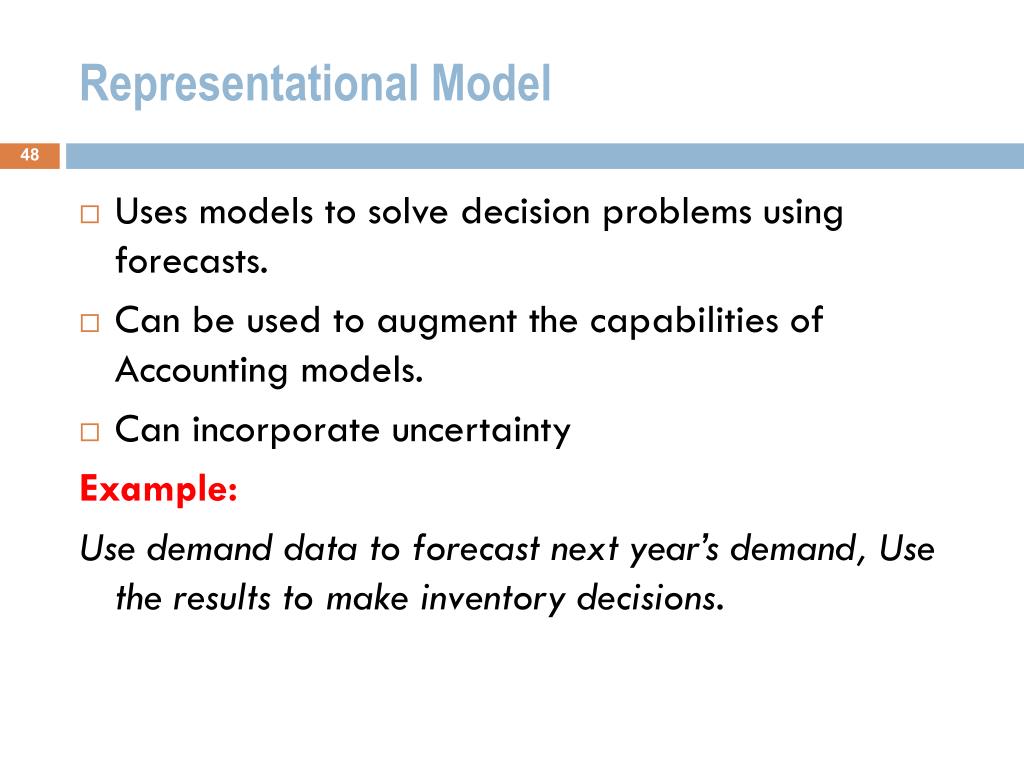

  48. Representational Model • Uses models to solve decision problems using forecasts. • Can be used to augment the capabilities of Accounting models. • Can incorporate uncertainty Example: Use demand data to forecast next year’s demand, Use the results to make inventory decisions.

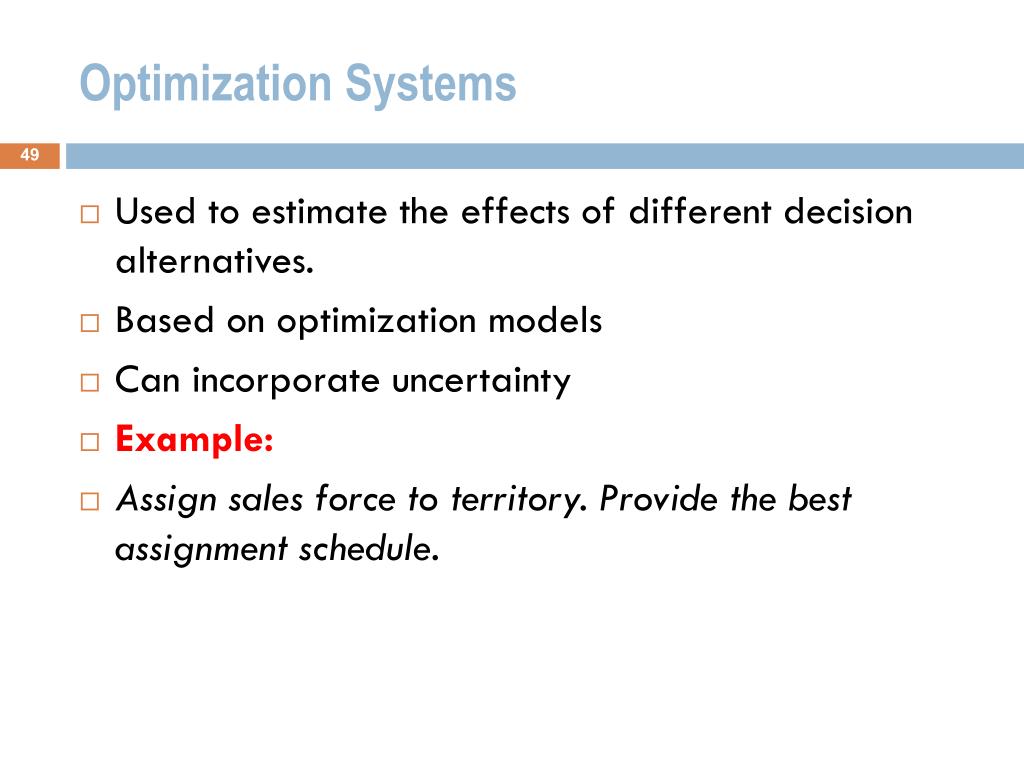

  49. Optimization Systems • Used to estimate the effects of different decision alternatives. • Based on optimization models • Can incorporate uncertainty • Example: • Assign sales force to territory. Provide the best assignment schedule.

  50. Suggestion Systems • A prescriptive model (this is the way it is) may be used to suggest to the decision maker the best action • may incorporate an Expert System. • Example: • Bank customer applies for personal loanUse the system to recommend a decision
