Polynomial Functions Zeros and Graphing

Section 2-2. Polynomial Functions Zeros and Graphing. Objectives. I can find real zeros and use them for graphing I can determine the multiplicity of a zero and use it to help graph a polynomial I can determine the maximum number of turning points to help graph a polynomial function.

elroy
Télécharger la présentation

Polynomial Functions Zeros and Graphing

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Section 2-2 Polynomial FunctionsZeros and Graphing

  2. Objectives • I can find real zeros and use them for graphing • I can determine the multiplicity of a zero and use it to help graph a polynomial • I can determine the maximum number of turning points to help graph a polynomial function

  3. Complex Numbers Real Numbers Imaginary Numbers RationalsIrrational

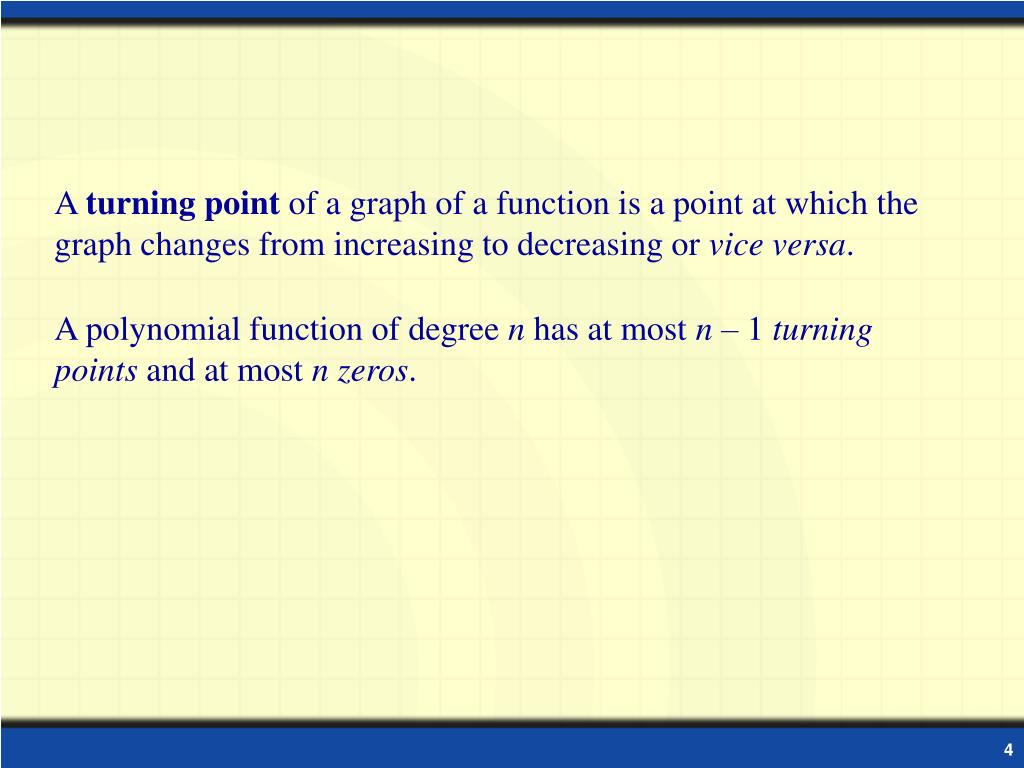

  4. Zeros of a Function A turning point of a graph of a function is a point at which the graph changes from increasing to decreasing or vice versa. A polynomial function of degree n has at most n–1turning points and at most nzeros.

  5. Degree (n) • The degree of a polynomial tells us: • 1. End behavior • (If n is Odd) Ends in opposite directions • (if n is Even) Ends in same direction • 2. Maximum number of Real Zeros (n) • 3. Maximum Number of Turning Points (n-1)

  6. y Turning point x Turning point Turning point f(x) = x4– x3 – 2x2 Example: Find all the real zeros and turning points of the graph of f(x) = x4– x3 – 2x2. Example: Real Zeros Factor completely: f(x) = x4 – x3 – 2x2 = x2(x+1)(x – 2). The real zeros are x = –1,x= 0, and x = 2. These correspond to the x-intercepts (–1, 0), (0, 0) and (2, 0). The graph shows that there are three turning points. Since the degree is four, this is the maximum number possible.

  7. Repeated Zeros If k is the largest integer for which (x – a)k is a factor of f(x)and k > 1, then a is a repeated zero of multiplicityk. 1. If k is odd the graph of f(x) crosses the x-axis at (a, 0). 2. If k is even the graph of f(x) touches, but does not cross through, the x-axis at (a, 0). y x Repeated Zeros Example: Determine the multiplicity of the zeros of f(x) = (x – 2)3(x +1)4. Zero Multiplicity Behavior 3 odd crosses x-axis at (2, 0) 2 –1 4 even touches x-axis at (–1, 0)

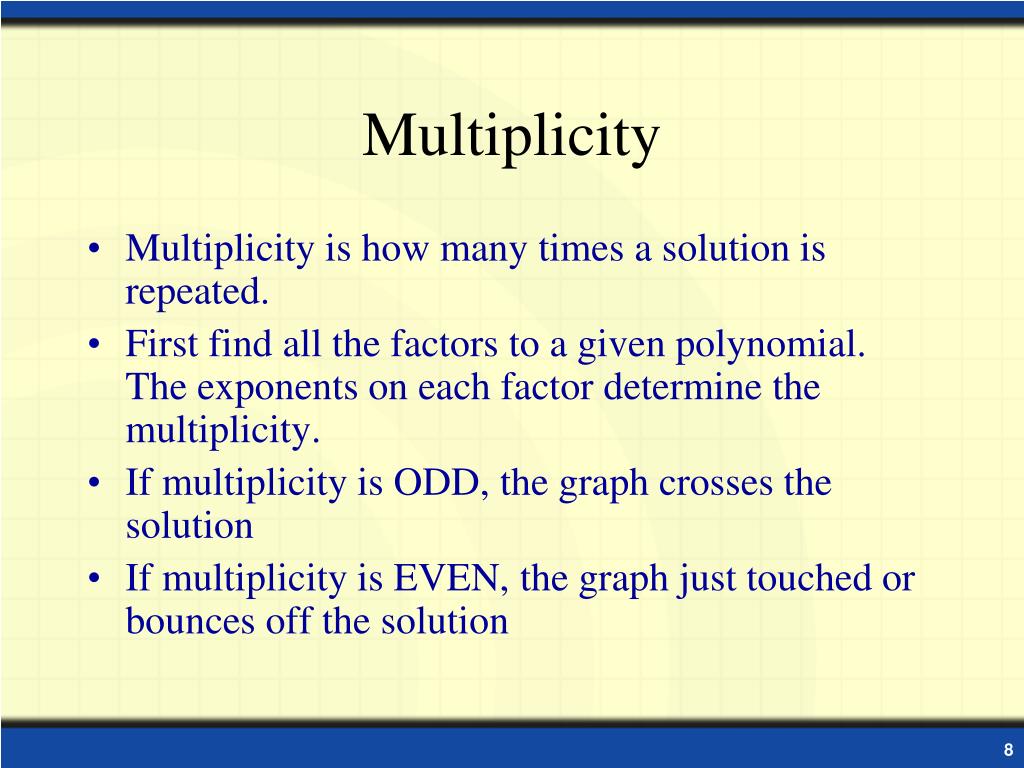

  8. Multiplicity • Multiplicity is how many times a solution is repeated. • First find all the factors to a given polynomial. The exponents on each factor determine the multiplicity. • If multiplicity is ODD, the graph crosses the solution • If multiplicity is EVEN, the graph just touched or bounces off the solution

  9. (x+2)(x-3)2(x+1)3 Zeros at (-2,0) (3, 0) and (-1, 0) Crosses at (-2, 0) Touches (3, 0) Crosses (-1, 0) Multiplicity

  10. as , y (2, 0) x (–2, 0) (0, 0) Example: Sketch the graph of f(x) = 4x2 – x4. Example: Graph off(x) = 4x2 – x4 f(x) = –x4 + 4x2 1. Write the polynomial function in standard form: The leading coefficient is negative and the degree is even. 2. Find the zeros of the polynomial by factoring. f(x) = –x4 + 4x2 = –x2(x2 – 4) = – x2(x + 2)(x –2) Zeros: x = –2, 2 multiplicity 1x = 0 multiplicity 2 x-intercepts: (–2, 0), (2, 0) crosses through (0, 0) touches only Example continued

  11. Putting it all together • 1. Find degree and LC to determine end behavior, maximum number of real zeros, and maximum number of turning points • 2. Find y-intercept • 3. Factor and find all zeros • 4. Determine multiplicity to determine if graph crosses or touches at the zeros • 5. Sketch the graph

  12. Homework • WS 3-5
