TABLET PCS - DIGITAL PEN-BASED TECHNOLOGY USE AND THE IMPACT ON EDUCATING ENGINEERS. Enhancing the student learning environment Robert Garrick, Ph.D., P.E. – Rochester Institute of Technology Elizabeth Dell - Rochester Institute of Technology

elsu
Télécharger la présentation

Enhancing the student learning environment

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

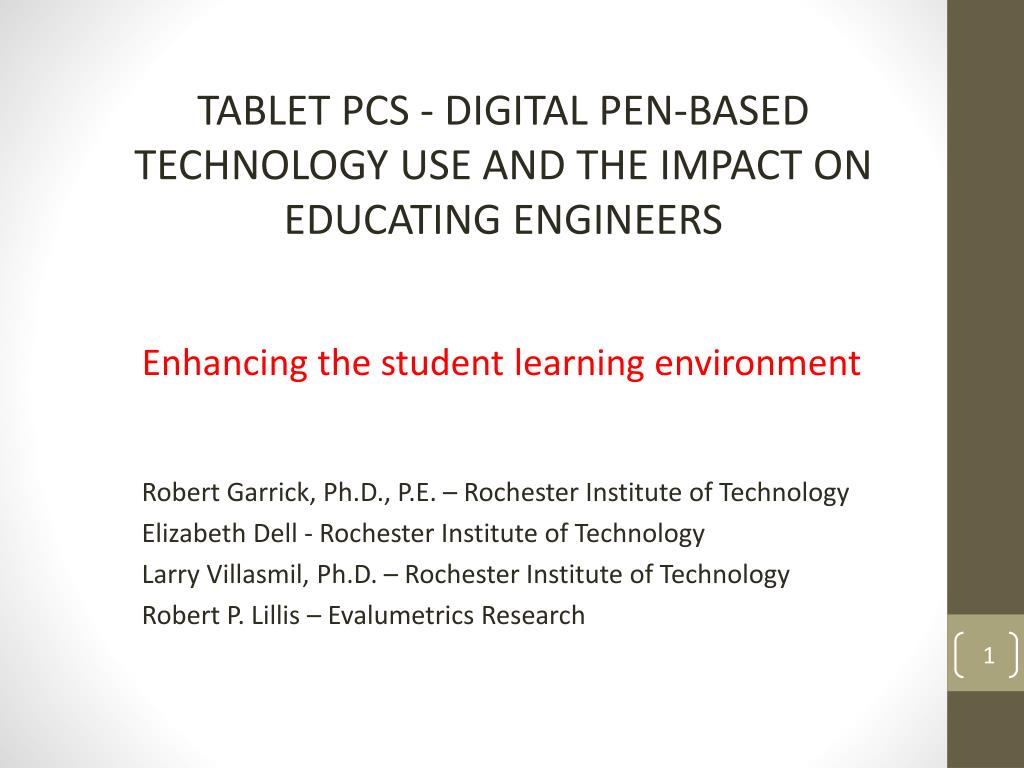

  1. TABLET PCS - DIGITAL PEN-BASED TECHNOLOGY USE AND THE IMPACT ON EDUCATING ENGINEERS Enhancing the student learning environment Robert Garrick, Ph.D., P.E. – Rochester Institute of Technology Elizabeth Dell - Rochester Institute of Technology Larry Villasmil, Ph.D. – Rochester Institute of Technology Robert P. Lillis – EvalumetricsResearch

  2. Contents • Problem Statement • Education Research – What has been Done • Instructional and Technology Domain • Methodology • Blended Experiment Design, Why • Examples • Findings • Next Steps

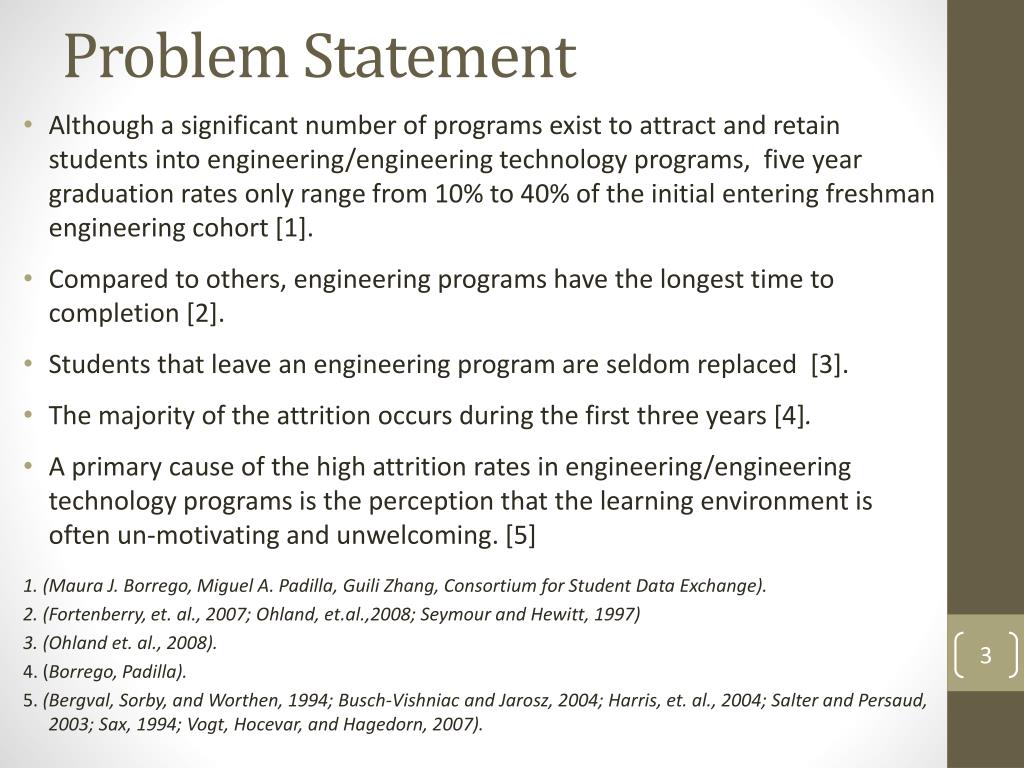

  3. Problem Statement • Although a significant number of programs exist to attract and retain students into engineering/engineering technology programs, five year graduation rates only range from 10% to 40% of the initial entering freshman engineering cohort [1]. • Compared to others, engineering programs have the longest time to completion [2]. • Students that leave an engineering program are seldom replaced [3]. • The majority of the attrition occurs during the first three years [4]. • A primary cause of the high attrition rates in engineering/engineering technology programs is the perception that the learning environment is often un-motivating and unwelcoming. [5] • 1. (Maura J. Borrego, Miguel A. Padilla, Guili Zhang, Consortium for Student Data Exchange). • 2. (Fortenberry, et. al., 2007; Ohland, et.al.,2008; Seymour and Hewitt, 1997) • 3. (Ohland et. al., 2008). • 4. (Borrego, Padilla). • 5. (Bergval, Sorby, and Worthen, 1994; Busch-Vishniac and Jarosz, 2004; Harris, et. al., 2004; Salter and Persaud, 2003; Sax, 1994; Vogt, Hocevar, and Hagedorn, 2007).

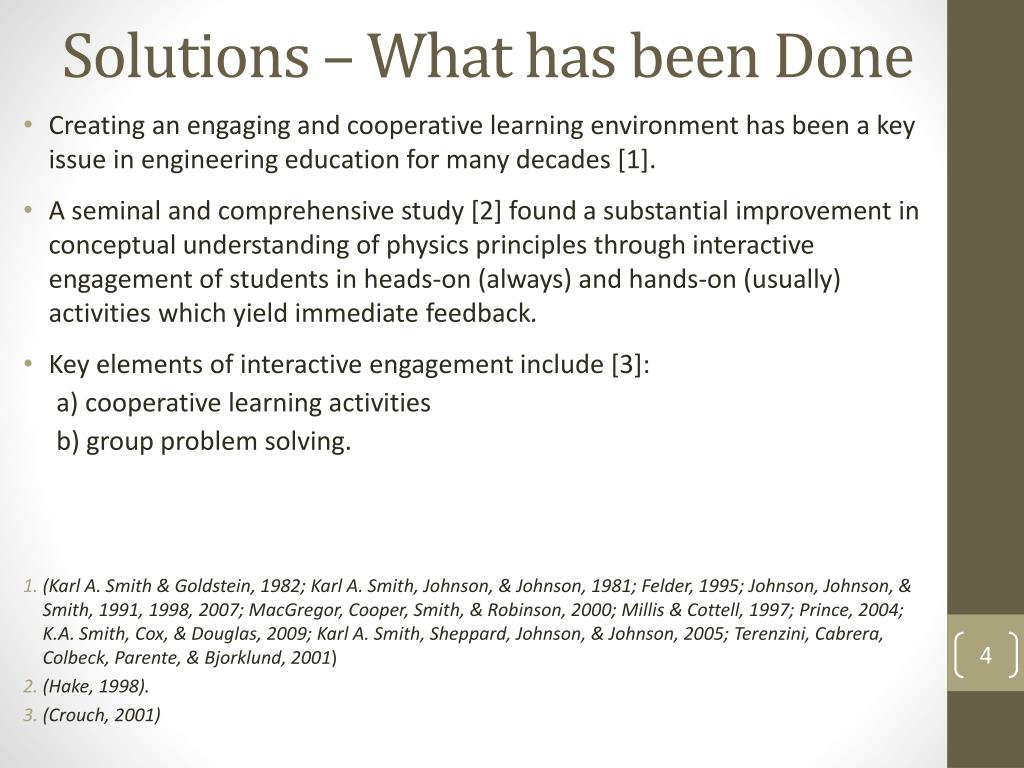

  4. Solutions – What has been Done • Creating an engaging and cooperative learning environment has been a key issue in engineering education for many decades [1]. • A seminal and comprehensive study [2] found a substantial improvement in conceptual understanding of physics principles through interactive engagement of students in heads-on (always) and hands-on (usually) activities which yield immediate feedback. • Key elements of interactive engagement include [3]: • a) cooperative learning activities • b) group problem solving. • (Karl A. Smith & Goldstein, 1982; Karl A. Smith, Johnson, & Johnson, 1981; Felder, 1995; Johnson, Johnson, & Smith, 1991, 1998, 2007; MacGregor, Cooper, Smith, & Robinson, 2000; Millis & Cottell, 1997; Prince, 2004; K.A. Smith, Cox, & Douglas, 2009; Karl A. Smith, Sheppard, Johnson, & Johnson, 2005; Terenzini, Cabrera, Colbeck, Parente, & Bjorklund, 2001) • (Hake, 1998). • (Crouch, 2001)

  5. Solutions – What has been Done A Local Pilot Study (Pilot #1 study) • The Pilot #1 study established [1]: a) students who had a lower GPA entering the class (GPA >2.0, but <3.0) experienced the most significant increase in test scores in the class. b) The class involved in Pilot #1 study was a late freshman/early sophomore engineering introductory class that had traditionally a high (>15%) rate of withdrawals, and D or F grades. Over the three year pilot #1 study, the withdrawal, D and F grades rate fell below 10%. (Parthum, 2009). • (Parthum, 2009)

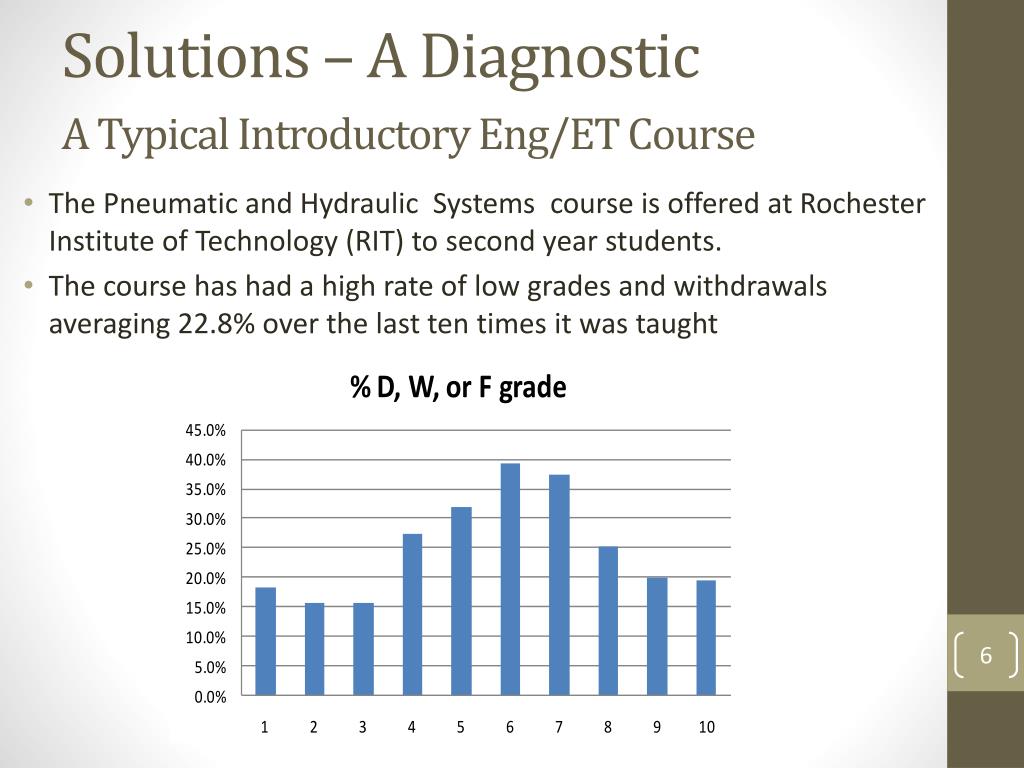

  6. Solutions – A Diagnostic A Typical Introductory Eng/ET Course • The Pneumatic and Hydraulic Systems course is offered at Rochester Institute of Technology (RIT) to second year students. • The course has had a high rate of low grades and withdrawals averaging 22.8% over the last ten times it was taught

  7. Solutions A Technology Rich Learning environment • A previous study (Pilot study #1) within the RIT department of Mechanical and Manufacturing Engineering Technology (MMET) demonstrated that Tablet PC based lectures helped students who had lower GPAs [1]. • A Tablet PC lecture environment has also been reported to increase student interest and involvement [2]. • (Parthum, 2009) • (Berque, Johnson, & Jovanovic, 2001; Birmingham, DiStasi, & Welton, 2009; Chidanandan et al., 2007; Chidanandan et al., 2008; Johri & Lohani, 2008; Lohani, Castles, Johri, Spangler, & Kibler, 2008; Sneller, 2007; Stanton, 2008).

  8. Instruction/Technology Domain Conceptual Framework of selecting the technology tools to enhance the learning environment Benlloch-Dualde, J.V. ; Buendía, F; Cano J.C; Supporting instructors in designing Tablet PC based courses

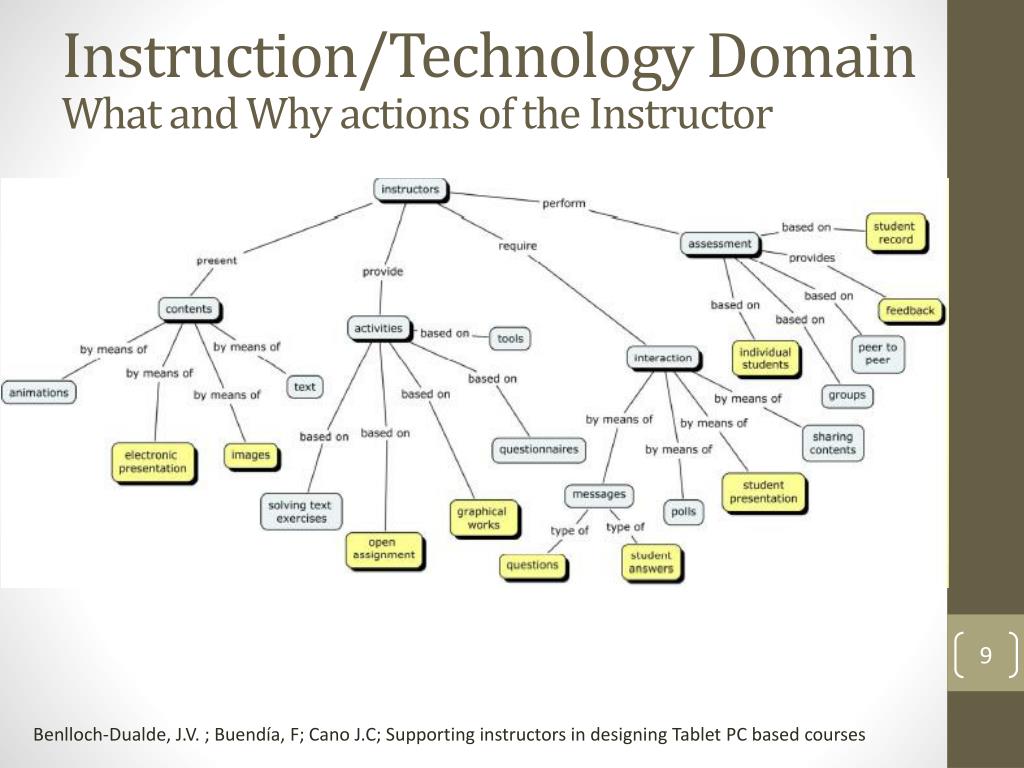

  9. Instruction/Technology Domain What and Why actions of the Instructor Benlloch-Dualde, J.V. ; Buendía, F; Cano J.C; Supporting instructors in designing Tablet PC based courses

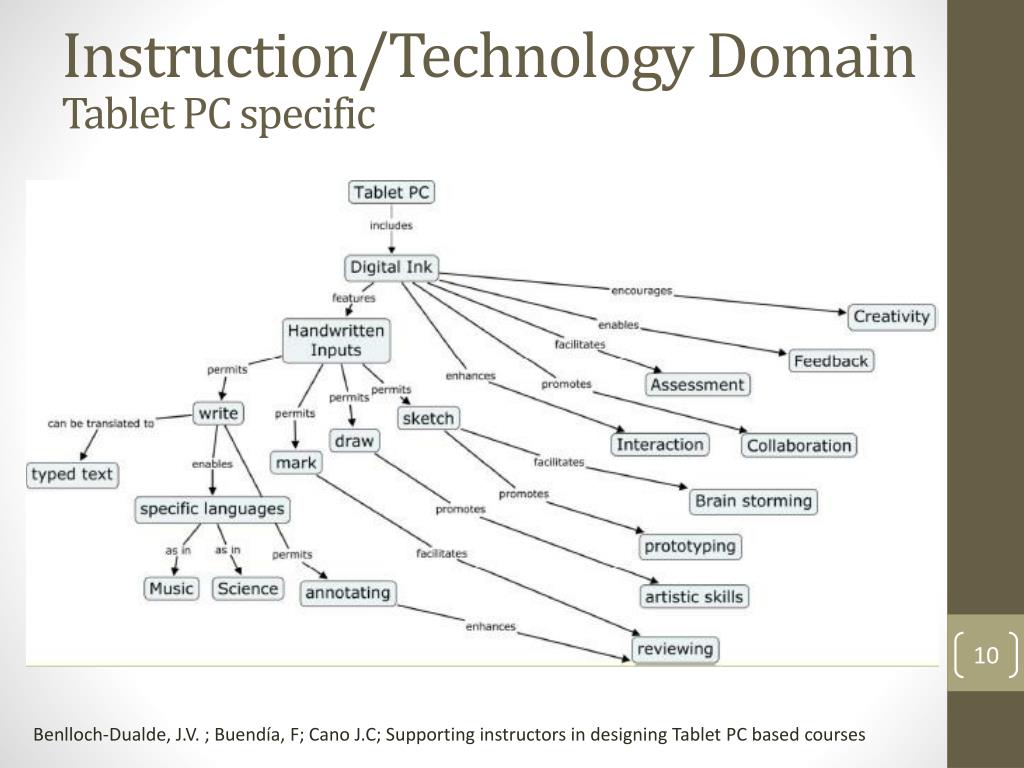

  10. Instruction/Technology Domain Tablet PC specific Benlloch-Dualde, J.V. ; Buendía, F; Cano J.C; Supporting instructors in designing Tablet PC based courses

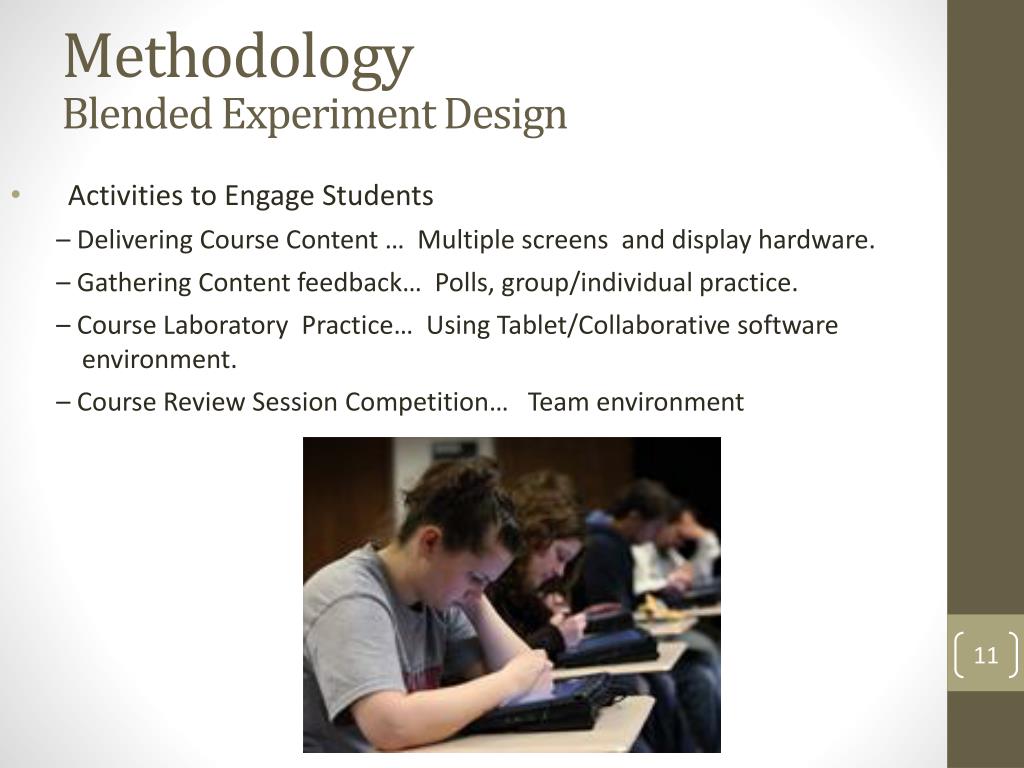

  11. Methodology Blended Experiment Design • Activities to Engage Students – Delivering Course Content … Multiple screens and display hardware. – Gathering Content feedback… Polls, group/individual practice. – Course Laboratory Practice… Using Tablet/Collaborative software environment. – Course Review Session Competition… Team environment

  12. Methodology – Examples Delivering Course Content – Multi-display Features AUXILIARY SCREEN VIDEOS / SUPPORT MATERIAL PREVIOUS SLIDE CURRENT SLIDE

  13. Methodology – Examples Gathering Content Feedback – Polls, group/individual practice

  14. Methodology – Examples Course Laboratory Practice – Using Tablet/Collaborative software environment How do I connect this circuit? (use a different color for each line)

  15. Methodology – Examples Course Review Session Competition– Team environment • Opportunity: • Utilize Tablet / Collaborative Software environment to create a competitive team based review session • Advantages: • Students involved (engaged) in completing problems rather than “traditional” instructor solved problems, timely feedback on errors, peer to peer mentoring with group work, ability to solve multiple problems simultaneously Blue Team Red Team Groups 1 & 4 • Competition Structure: • Two teams of students (Red team – Blue team) • Three subgroups per team (six total groups) • Six “rounds” of competition (timed) • Three problems per round (one problem per group) • Results: • Students exposed to 18 different problems for review in one class period • Students electronic notebooks have their solutions and those of other groups to review different approaches along with instructor solutions • Students receive problem solving suggestions from team members • Instructor able to monitor progress of teams with the collaborative software monitoring feature and personalize instruction. Groups 2 & 5 Groups 3 & 6

  16. Findings - Scope Pilot Study #2 - ~ 230 students

  17. Findings - Scope Student Demographics • ~ Even distribution among 2nd, 3rd and 4th/5th year students • ~ Normal distribution of entering GPAs • All full time students. • Most students between 18 and 22 years old with 3.7% above 23. During Lectures: • 83% reported usually taking notes using a pen/pencil and notebook. • 8% reported usually taking notes using a laptop /desktop computer. • 14% reported usually not taking notes during lectures

  18. Findings Pilot #2 Results • 14% of the students preferred the traditional/standard lecture learning environment. • Students preferred the following alternative lecture environment features: ( % of preferred/strongly preferred) • Instructor’s notes directly over the presented PowerPoint during lecture (81%) • Animations or videos incorporated into the PowerPoint lecture (78%) • Group problem solving work (74%) • Example problems completed by the instructor (72%) • Tablets, collaboration software and multi-screen projection (71%) • Real time integration of lecture and student’s personal notes (68%) • These preferences for the lecture environment features were consistent over the academic year but such preferences increased with student academic year.

  19. Findings Pilot #2 Results • Students responded that they were more likely to take notes in the technology rich lecture environment particularly third, fourth or fifth year students including students with the lowest GPA entering the class. • Students reported that they were more likely to use these notes for both homework and pre-test reviews primarily the students with the lowest GPA who reported improved comprehension of the material. • Students preferred solving problems in class using the technology rich environment. • Students overwhelmingly agreed that working virtually in groups was an effective method to do in-class problem solving. • The ability to make corrections seeing them immediately and the ability to watch the process were the most common positive comments. • Recalling Hake, “interactive engagement” is “designed in part to promote conceptual understanding through engagement of students in heads-on (always) and hands-on (usually) activities which yield immediate feedback through discussion with peers and/or instructors” (p 65) (Hake, 1998).

  20. Findings Pilot #2 Results – Focus Group • The focus group facilitator asked questions about the use of the tablet PCs, group work, note taking, preparation for tests and overall learning. • An independent evaluator reviewed video recordings of the focus groups and scored each student remark as positive or negative in one of several categories.

  21. Findings Main Conclusions • Overall, the students recommended using the technology rich lecture environment. • Students with a lower entering GPA perceived a greater benefit from this learning environment. • Results appear in agreement with those found in the seminal work of Hake and others that an interactive and engaging learning environment can result in improved student learning of the material. • A technology rich environment allows the instructor to implement an interactive and engaging learning environment using digital media, Tablet PCs and collaborative software. • A technology rich environment also increases student likelihood of note taking and using these notes (especially for the attrition vulnerable population with lower GPAs).

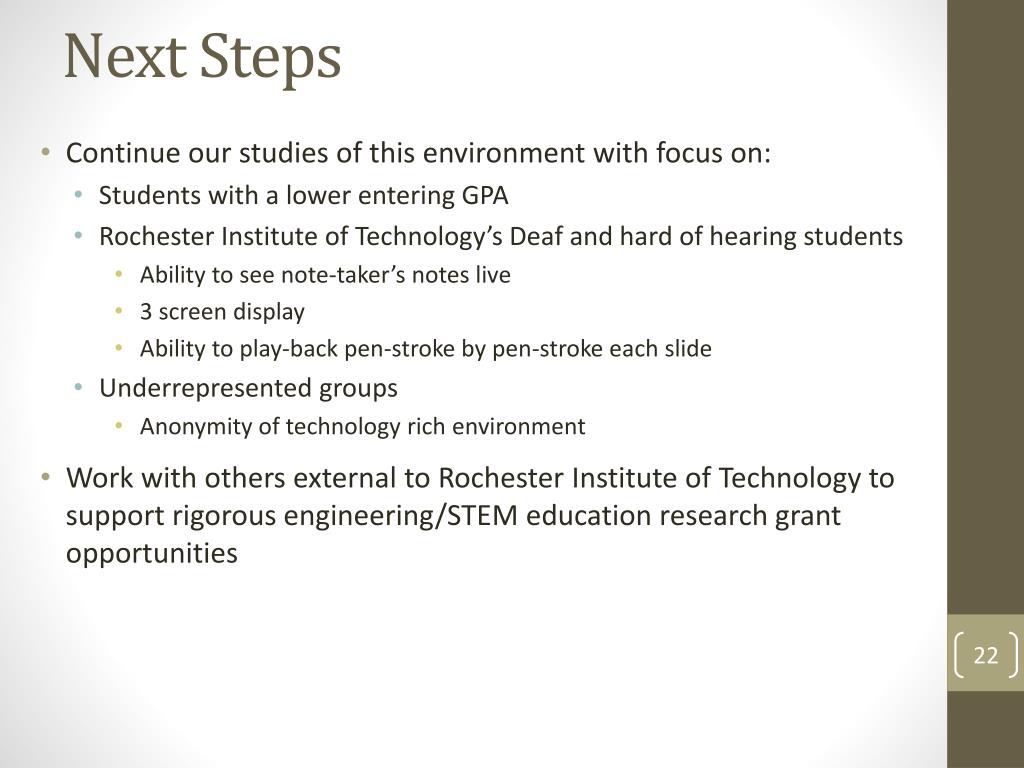

  22. Next Steps • Continue our studies of this environment with focus on: • Students with a lower entering GPA • Rochester Institute of Technology’s Deaf and hard of hearing students • Ability to see note-taker’s notes live • 3 screen display • Ability to play-back pen-stroke by pen-stroke each slide • Underrepresented groups • Anonymity of technology rich environment • Work with others external to Rochester Institute of Technology to support rigorous engineering/STEM education research grant opportunities
