  1. 4.5 Types of Small Scale Fading • fading depends on • channel characteristics (rms delay spread, Doppler spread) • transmitted signal (symbol bandwidth, symbol period) • Two independent propagation mechanisms • (1) multipath delay spread leads to • time dispersion • frequency selective fading or flat fading (BS << BC) • (2) Doppler spread leads to • frequency dispersion • time selective fading

  2. (1) multipath time-delay spread  = rms delay spread BC = coherence bandwidth BS < BC TS >  BS > BC TS <  Frequency Selective Fade Flat Fade (2) Doppler spread BD = Doppler spread TC = coherence time TS > TC BS < BD TS < TC BS > BD Slow Fade Fast Fade Small Scale Fading BS = signal bandwidth, TS = symbol period = BS-1 High Doppler Spread

  3. 4.5.1.1 Flat Fading (FF) channel occurs when BC >> BS & TS >>  • channel response has constant gain & linear phase • channel’s multipath structure preserves signal’s spectral • characteristics • time varying received signal strength due to gain fluctuations MPCs • - amplitude changes in received signal, r(t) due to gain fluctuations • - spectrum of r(t) transmission is preserved • typically cause deep fades compared to non-fading channel • - in a deep fade,may require 20dB-30dB transmit power for low BER • 4.5.1 Fading Due to Multipath Time Delay Spread • time dispersion from multipath causes either • flat fading • frequency selective fading

  4. Channels Complex Envelope,hb(t,) is approximated as having no • excess delay • a single delta function with  = 0 • Distribution of instantaneous gain for FF channels is an importantRF design issue • Rayleigh Distribution is the most common amplitude distribution • Rayleigh Flat Fading Model assumes channel induces time • varying amplitude according to Rayleigh Distribution

  5. time response s(t) h(t,) r(t) 0 TS 0 TS+, 0  channel H(f) R(f) frequency response S(f) fc fc fc Flat Fading Time & Frequency Response assume  << Ts

  6. s(t) r(t) Channel 4.5.1.2 Frequency Selective Fading (FSF) • FF Bandwidth = Channel Bandwidth over which signals experience • constant gain & linear phase • statistical variation in amplitude • if BS>>FF bandwidth  s(t) experiences FSF • channel impulse response has multipath delay spread > TS • r(t) is distorted & includes multiple versions of transmitted • waveform that are • - attenuated (faded) • - delayed in time • FSF is due to time-dispersion of transmitted symbols within channel • inter-symbol interference (ISI) induced by channel • different frequency components of R(f) have different gains

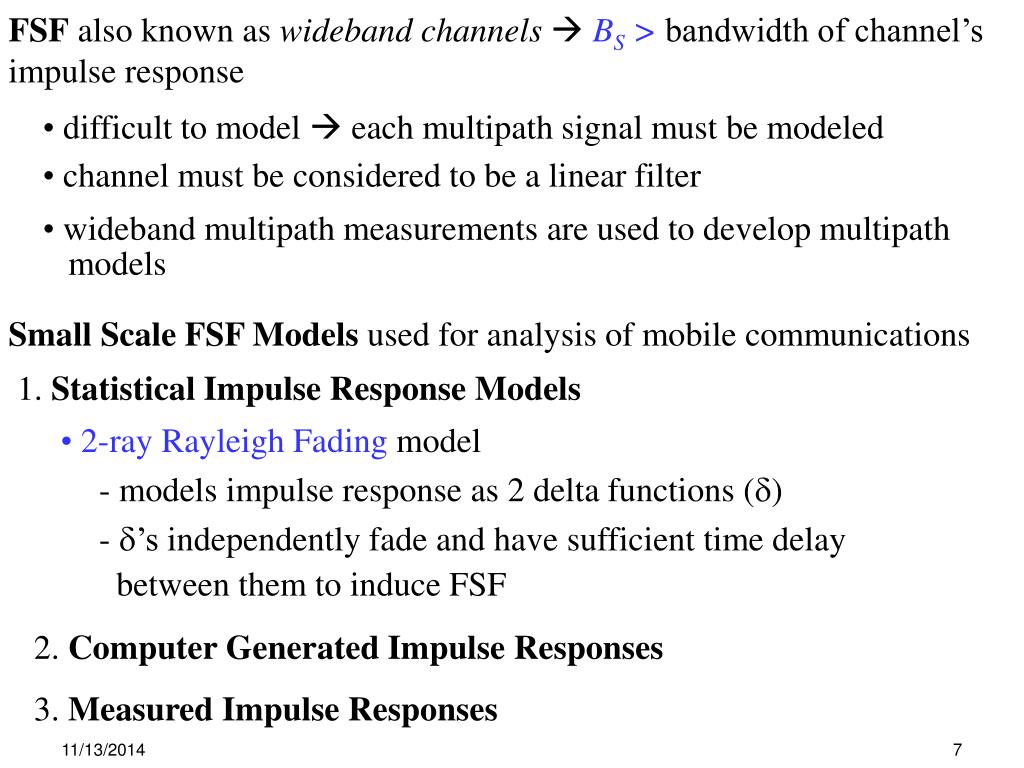

  7. FSF also known as wideband channelsBS > bandwidth of channel’s impulse response • difficult to model  each multipath signal must be modeled • channel must be considered to be a linear filter • wideband multipath measurements are used to develop multipath • models • Small Scale FSF Models used for analysis of mobile communications • 1. Statistical Impulse Response Models • 2-ray Rayleigh Fading model • - models impulse response as 2 delta functions () • - ’s independently fade and have sufficient time delay • between them to induce FSF • 2. Computer Generated Impulse Responses • 3. Measured Impulse Responses

  8. s(t) h(t,) r(t) time response 0  0 TS 0 TS TS+ channel frequency response S(f) H(f) R(f) fc fc fc Frequency Selective Fading Time & Frequency Response

  9. FSF fading occurs when BS> BCand TS <  • Common Rules of thumb • Channel is FF if TS 10 • Channel is FSF if TS < 10 • actual values depend on modulation technique • time-delay spread has significant impact on BER • FSF channel - different gain for different spectral components of S(f) • S(f) = spectrum of transmitted signal s(t) • BS = bandwidth of transmitted signal s(t) • FSF caused by MPC delays which exceed TS = BS-1 • time varying channel gain & phase over spectrum of s(t) • results in distorted signal r(t)

  10. FSF Channel model for large scale effects in complex phasor notation L ~ ~ ~ å = a - t x ( t ) s ( t ) l l = l 1 l = relative delay of lth path • a signal’s MPCs may have different path lengths • complex gain assumed constant  practically, true if receiver & • transmitter are stationary channel impulse response becomes channel response is time invariant but frequency dependent = complex gains

  11. 2.4 2.2 2.0 1.8 1.6 1.4 1.2 1.0 0.8 0.6 0.4 0.2 0.0 2 = -j 2 = 0.5 2 = j/2 amplitude response -0.4 -0.2 0.0 0.2 0.4 frequency (sample rates) e.g. assume 2-ray FSF Channel with impulse response: • 2 = relative delay of 2nd path • simulate channel digitally with sample period = Ts = 2 (fs = sampling • frequency) • channels frequency response will vary for different values of α2

  12. 4.5.2 Fading Effects Due to Doppler Spread • fading is affected by s(t)’s rate of change vs channel’s rate of change • (i) fast fading channel: channel impulse response changes rapidly during • symbol period TS • (ii) slow fading channel: channel impulse response changes slowly • during TS 4.5.2.1 Fast Fading - results in distorted r(t) Fast Fading assumes all reflected paths have equal lengths& delays • Fast Fading occurs when • (i) symbol period is longer than coherence time: TS > TC and • (ii) symbol bandwidth is less than Doppler Spread: BS < BD • time-selective fading:BD causes frequency dispersion • signal distortion from fast fading increases with larger BD

  13. 4.5.2.2 Slow Fading Slow Fading occurs when (i) symbol period is much less than coherence time: TS << TC and (ii) symbol bandwidth is much greater than Doppler Spread: BS >> BD • channel assumed static over one or more symbol periods, TS • Fast fading or Slow fading determined by relationship of TS to • (i) velocity of mobile terminals and • (ii) velocity of objects in the channel • deals with time rate of change of channel & signal (small scale • fading) • does not deal with path loss models (large scale fading)

  14. channel impulse response is time varying h(t,τ) = α(t)δ(t) • α(t) is time varying  received signal strength is also time varying Time-selective Channel • Power Spectrum of received signal = power spectra of transmitted • signal convolved with power spectra of fading process • multiplication in time domain = convolution in frequency domain Sr(f) = S(f)  Ss(f) • Sr(f) = power spectrum of received signal • S(f) = power spectrum of fading process • Ss(f) = power spectrum of transmitted signal

  15. 1.0 0.8 0.6 0.4 0.2 0.0 doppler spread spectrum original spectrum Frequency Response -2000 -1000 0 1000 2000 Frequency H(z) • Nominal transmitted spectrum  power spectrum of fading process  original spectrum vs doppler spread spectrum • Assume doppler spectrum  20% of signal bandwidth  B3dB 5fm • fm = maximum doppler shift • B3dB = 3dB bandwidth of nominal spectrum

  16. Flat Fading Channel Response: time selective & frequency flat L ~ ~ ~ å = a - t x ( t ) s ( t ) l l = l 1 time varying channel impulse response Frequency Selective Channel: large scale effects l = relative delay of lth path = complex gains time invariant but frequency dependent channel response

  17. TS = Transmitted Symbol Period TS Flat Slow Fade Flat Fast Fade  Frequency Selective Fast Fade Frequency Selective Slow Fade TC TS BS = Transmitted Baseband Signal BW BS Frequency Selective Fast Fade Frequency Selective Slow Fade BC Flat Slow Fade Flat Fast Fade BD BS

  18. 4.5.3 General Channels (i) flat-flat channel: neither frequency or time varying • (ii) time selective and frequency selective channel • MPCs of signal have different lengths  frequency selective fading • interaction of MPCs generated locally  time-varying fading received signal given as time varying channel impulse response is • channel model includes large and small scale effects • h(t,) is for finite number of signal paths • - represents continuum of MPC with arbitrarily small differences • - both time selective & frequency selective

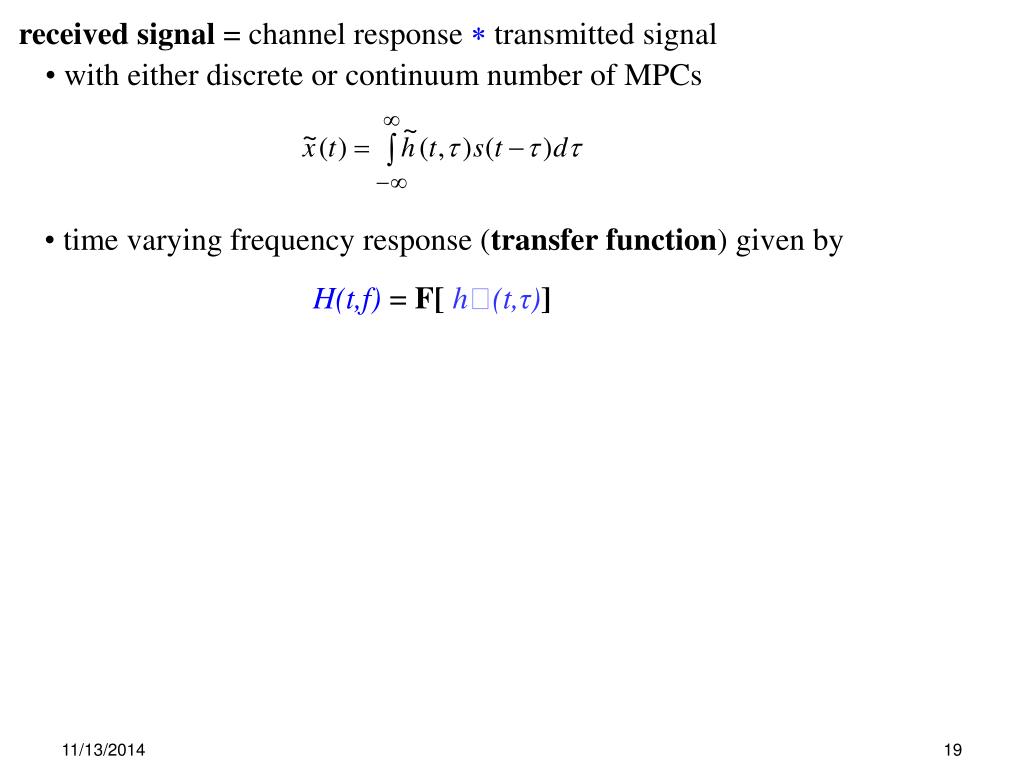

  19. time varying frequency response (transfer function) given by H(t,f) = F[ h(t,τ)] • received signal = channel response  transmitted signal • with either discrete or continuum number of MPCs

  20. e.g. time varying impulse response 0.35 0.30 0.25 0.20 0.15 0.10 0.05 0.00 25 20 15 10 5 0 spectrum time (ms) consider 400 300 200 100 0 -100 -200 -300 -400 kHz • where {αi(t)} are independent Rayleigh Processes • at time t = t0 Fourier Transform reveals power spectrum • different frequencies with nulls and strong responses vary with time

  21. 4.6 Rayleigh & Ricean Distributions • 4.6.1 Rayleigh Fading Distributions • in mobile RF channels commonly used to model describe statistical time • varying nature of • (i) received envelope for FF signal • (ii) envelope of a single MPC • envelope sum of 2 quadrature Gaussian noise signals obeys Rayleigh • distribution 10 5 0 -5 -10 -15 -20 -25 Rx Speed ≈ 120km/hr signal level (dB about rms) 0 50 100 (ms) λ/2 Rayleigh distributed signal vs time

  22. Multipath Reflections due to local objects arrive at stationary receiver • nthpath has electric field strength En& relative phaseθn • complex phasor of N signal reflections given by ∆ = • Ẽ is a RV representing effects of multipath channel Ẽ = small changes in path length  large changes in phase ∆x = difference in path length ∆ = change in phase e.g. fc = 2.4GHz ( 0.125m)  ∆ = 50.26 ∆x

  23. = Zr +jZi Consider mean of nth component of Ẽ , denoted as Enexp(jθn) E[Enexp(jθn)] = E[En] = E[En] E[exp(jθn)] = E[En] (0+0) = 0 • Model for complex channel envelope is Σ iid complex RVs • Central Limit Theorem: for large N  Ẽ becomes Gaussian distribution where Zr and Ziare real Gaussian random variables thus E[Ẽ] = 0 and Ẽ is a 0-mean Gaussian RV

  24. E[|Ẽ|2] = (equals 0 for all n ≠ m) = E = E E Considervariance (power) in Ẽ given by mean square value • θn- θmis the difference of 2 random phases = random phase • by symmetry  power is equally distributed between real & imaginary • parts of Ẽ • P0 = average receive power

  25. Define the amplitude of the complex envelope, Ẽ as R = PDF of amplitude is determined by changing variables of f ( z ) z r r Complex Envelop, Ẽ has 0-mean Zr & Zi have Gaussian PDF  2 = P0/2 for Zrand Zi

  26. 0 ≤ r ≤  p(r) = (4.49) r < 0 0.6065  p(r) p(r)= Pr[r = ] = 0  2 3 4 5 r Rayleigh PDF given by  = rms value of received voltage before envelope detection  2 = time average power of received signal before envelope detection Received Signal Envelope Voltage

  27. (4.50) Mean Value of Rayleigh Distributed Signal rmean = E[r] = (4.51) Variance of Rayleigh Distribution represents ac power in signal envelope 2r = E[r2] – E2[r] = P(R) = Pr[r  R] = (4.52) = • Rayleigh CDF • probability that received signal’s envelope doesn’t exceed specific value, R

  28. Envelope’s rms Value is the square root of mean square or r = = =  = rms voltage of original signal prior to envelope detection Median Value of r is found by (4.53) rmedian = 1.177 (4.54) = 1.414

  29. 1 0.1 0.01 10-3 10-4 -40 -30 -20 -10 0 10 amplitude 20log10(R/Rrms) Pr (r < R) • Conceptually, each location corresponds to different set of {n} • deep fades >20dB (R < 0.1Rrms)occur only about 1% • wide variation in received signal strength due to local reflections • if received signal were measured from a number of stationary locations •  power measurements would show Rayleigh distribution Rayleigh Distribution Graph

  30. Rayleigh Fading Signal • mean & median differ by only 0.07635 (0.55dB) • in practice - median is often used • - fading data usually consists of field measurements & a particular • distribution cannot be assumed • - use of median allows easy comparison of different fading • distributions with widely varying means

  31. 4.6.2 Ricean Fading Distributions • if signal has dominant stationary component (LOS path)  small scale • fading envelopehas Ricean Distribution • random MPCs arrive at different angles & are superimposed on dominant • signal • envelope detector output yields  DC component + random MPCs • Ricean distribution is result of dominant signal arriving with weaker MPCs • as dominant component fades  Ricean distribution degenerates to • Rayleigh distribution • composite signal resembles noise signal with envelope that is Rayleigh • same as in the case of sine wave detection in thermal noise

  32. A ≥ 0 , r ≥ 0 p(r) = (4.55) r < 0 p(r) K = - dB (4.56) K = 6 dB received signal envelope voltage K = K (dB) = r Ricean PDF A = peak amplitude of dominant signal 0() = modified Bessel function of the 1st kind & zero order • Ricean Distribution often described in terms of Ricean FactorK • K = ratio of deterministic signal power to multipath variance • as dominate path attenuates  A grows small • Ricean distribution degenerates to Rayleigh

  33. Ricean Fading Pr (r < R) 1 0.1 0.01 10-3 10-4 K = 0 (Rayleigh) K=5dB K=10dB K=13dB -40 -30 -20 -10 0 10 amplitude 20log10(R/Rrms) probability of deep fades reduced as K grows
