  1. MIKE 11 GIS • Fully integrated GIS based flood modelling • Developed in ArcView GIS • Pre-processing: Floodplain schematization • Post-processing: Flood depth mapsComparison maps Duration maps • Analysis with other GIS data

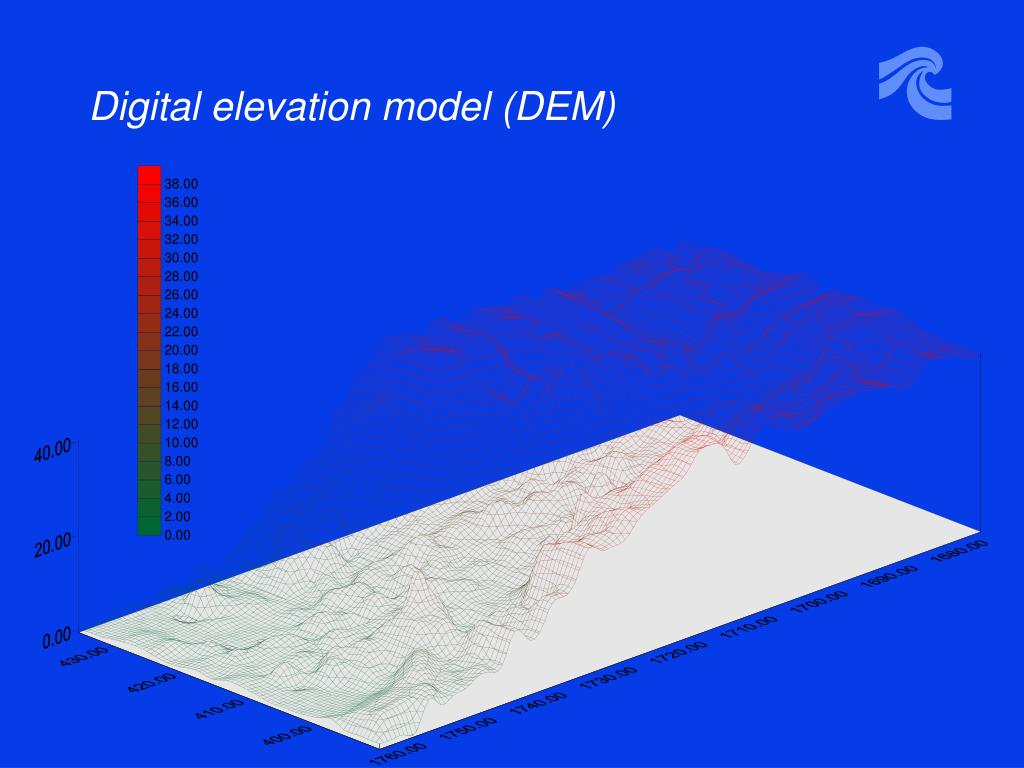

  2. Digital elevation model (DEM)

  3. Typical model schematisation Spill channel Floodplains Minor river Major River Spill channel

  4. Floodplain sections ... Section line on floodplain

  5. … and storage ...

  6. … extracted from DEM

  7. … and imported to MIKE 11

  8. Simulation of embankment breachSula valley, Costa Rica Breachdischarge Breach location

  9. Flooding in breach area
