Error detection in LR parsing

1. Error detection in LR parsing • Errors are discovered when a slot in the action table is blank. • Canonical LR(1) parsers detect and report the error as soon as it is encountered • LALR(1) parsers may perform a few reductions after the error has been encountered, and then detect it. • This is a result to the state merging.

2. Error recovery in LR parsing • Phase-level recovery • Associate error routines with the empty table slots. Figure out what situation may have cause the error and make an appropriate recovery. • Panic-mode recovery • Discard symbols from the stack until a non-terminal is found. Discard input symbols until a possible lookahead for that non-terminal is found. Try to continue parsing. • Error productions • Common errors can be added as rules to the grammar.

3. Error recovery in LR parsing • Phase-level recovery • Consider the table for grammar EE+E | id + id $ E 0 e1 s2 e1 1 1 s3 e2 accept 2 r(Eid)e3 r(Eid) 3 e1 s2 e1 4 4 r(EE+E)e2 r(EE+E) Error e1: "missing operand inserted". Recover by inserting an imaginary identifier in the stack and shifting to state 2. Error e2: "missing operator inserted". Recover by inserting an imaginary operator in the stack and shifting to state 3 Error e3: ??

4. Error recovery in LR parsing • Error productions • Allow the parser to "recognize" erroneous input. • Example: • statement : expression SEMI | error SEMI | error NEWLINE • If the expression cannot be matched, discard everything up to the next semicolon or the next new line

5. LR(1) grammars • Does right-recursion cause a problem in bottom-up parsing? • No, because a bottom-up parser defers reductions until it has read the whole handle. • Are these grammars LR(1)? How about LL(1)? SAa | Bb Ac Bc SAca | Bcb Ac Bc SAa | Bb AcA | a BcB | b LR(1): YES LL(1): NO LL(2): YES LR(1): NO LL(1): NO LL(2): NO LR(2): YES LR(1) : YES LL(k) : NO

6. Where are we? • Ultimate goal: generate machine code. • Before we generate code, we must collect information about the program: • Front end • scanning (recognizing words) CHECK • parsing (recognizing syntax) CHECK • semantic analysis (recognizing meaning) • There are issues deeper than structure. Consider: int func (int x, int y); int main () { int list[5], i, j; char *str; j = 10 + 'b'; str = 8; m = func("aa", j, list[12]); return 0; } This code is syntactically correct, but will not work. What problems are there?

7. Beyond syntax analysis • An identifier named x has been recognized. • Is x a scalar, array or function? • How big is x? • If x is a function, how many and what type of arguments does it take? • Is x declared before being used? • Where can x be stored? • Is the expression x+y type-consistent? • Semantic analysis is the phase where we collect information about the types of expressions and check for type related errors. • The more information we can collect at compile time, the less overhead we have at run time.

8. Semantic analysis • Collecting type information may involve "computations" • What is the type of x+y given the types of x and y? • Tool: attribute grammars • CFG • Each grammar symbol has associated attributes • The grammar is augmented by rules (semantic actions) that specify how the values of attributes are computed from other attributes. • The process of using semantic actions to evaluate attributes is called syntax-directed translation. • Examples: • Grammar of declarations. • Grammar of signed binary numbers.

9. Attribute grammars Example 1: Grammar of declarations Production Semantic rule D  T L L.in = T.type T  int T.type = integer T  char T.type = character L  L1, id L1.in = L.in addtype (id.index, L.in) L  id addtype (id.index, L.in)

10. Attribute grammars Example 2: Grammar of signed binary numbers Production Semantic rule N  S L if (S.neg) print('-'); else print('+'); print(L.val); S  + S.neg = 0 S  – S.neg = 1 L  L1, B L.val = 2*L1.val+B.val L  B L.val = B.val B  0 B.val = 0*20 B  1 B.val = 1*20

11. Attributes • Attributed parse tree = parse tree annotated with attribute rules • Each rule implicitly defines a set of dependences • Each attribute's value depends on the values of other attributes. • These dependences form an attribute-dependence graph. • Note: • Some dependences flow upward • The attributes of a node depend on those of its children • We call those synthesized attributes. • Some dependences flow downward • The attributes of a node depend on those of its parent or siblings. • We call those inherited attributes. • How do we handle non-local information? • Use copy rules to "transfer" information to other parts of the tree.

12. Production Semantic rule E  E1+E2 E.val = E1.val+E2.val E  num E.val = num.yylval E  (E1) E.val = E1.val Attribute grammars attribute-dependence graph 12 E E E + E num 2 10 ) ( + E E num 7 num 3

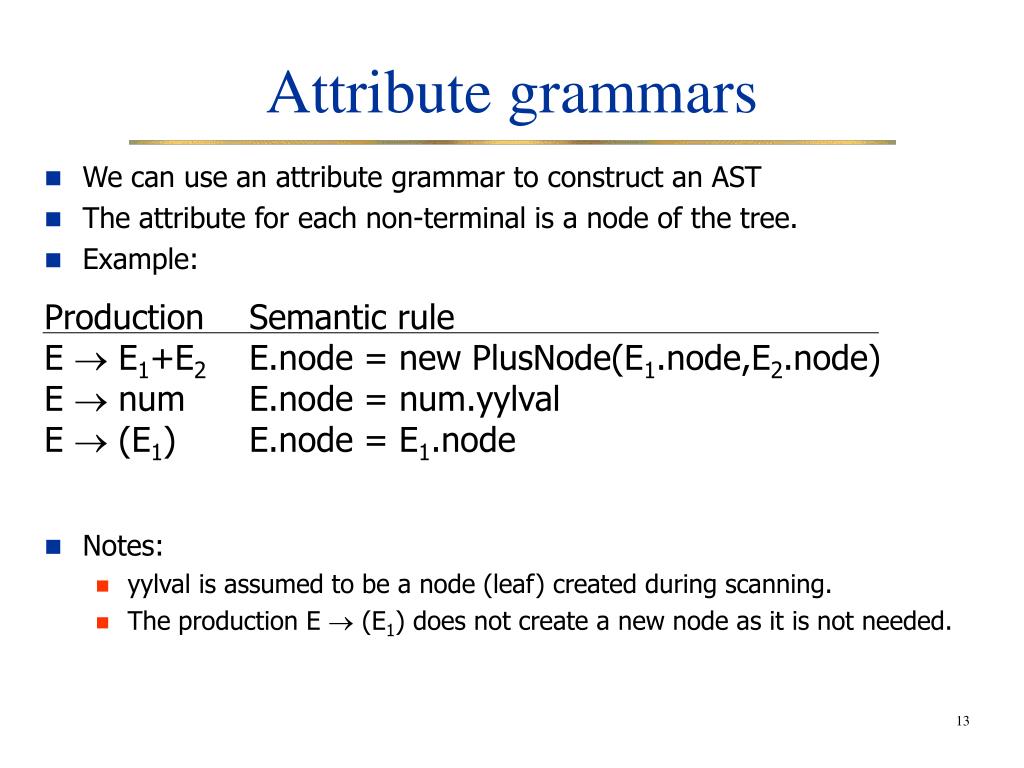

13. Production Semantic rule E  E1+E2 E.node = new PlusNode(E1.node,E2.node) E  num E.node = num.yylval E  (E1) E.node = E1.node Attribute grammars • We can use an attribute grammar to construct an AST • The attribute for each non-terminal is a node of the tree. • Example: • Notes: • yylval is assumed to be a node (leaf) created during scanning. • The production E  (E1) does not create a new node as it is not needed.
