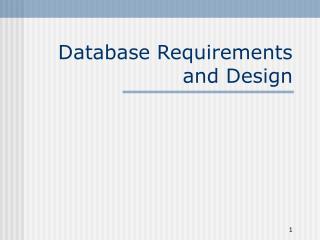

  1. Database Requirements and Design

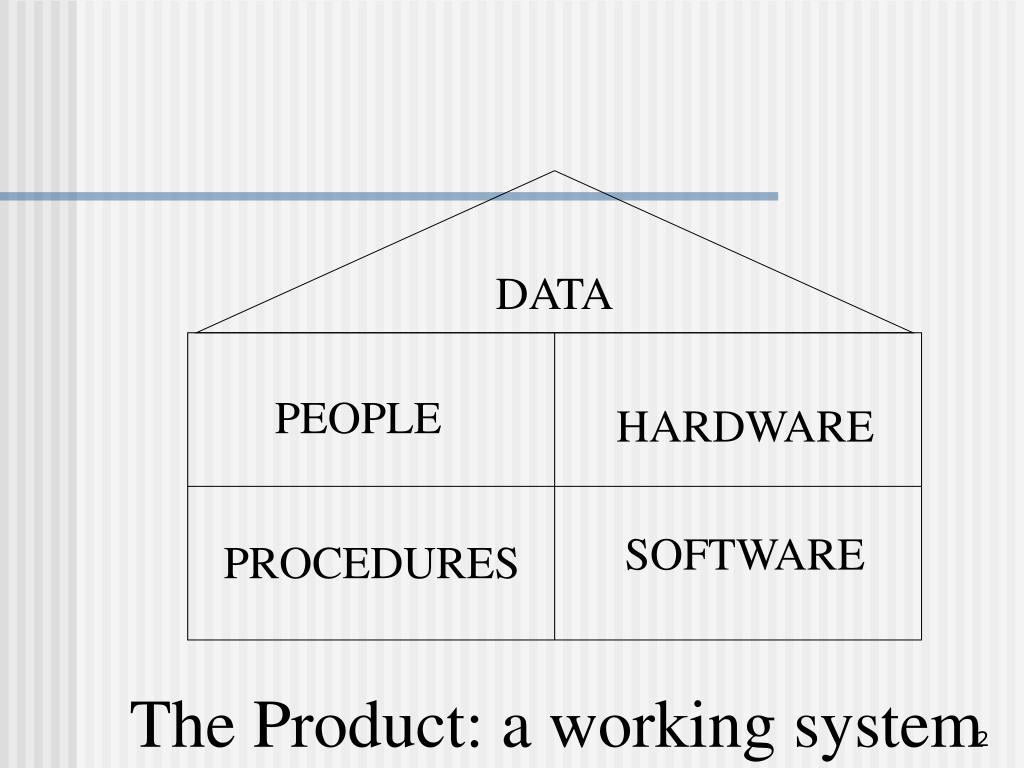

  2. DATA PEOPLE HARDWARE SOFTWARE PROCEDURES The Product: a working system

  3. Database development activities during the systems development life cycle (SDLC) Project Identification and Selection Project Initiation and Planning Analysis Logical Design Physical Design Implementation Maintenance

  4. Project Identification & Selection • Purpose: to develop a preliminary understanding of the business situation that has caused the request for a new or enhanced information system. • Deliverable: a formal request for services

  5. Project Identification and Selection • Printing Company: use internet to request quotes, place orders and check order status • Video Game Store: track customer information, track customer purchases, maintain inventory • Elementary school After School program: student records, important information, account balances • Interpreter’s Organizer: assignment status, income, costs, taxes

  6. Project Identification and Selection • Groups of 3-5, talk to me if you are thinking about an individual assignment • I would advise you use either a devise a case study with your group where you implement a database, or use a company/scenario that someone in your group is familiar with. Make sure everyone in the group understands the scenario • The next step in your group process should be to sit down and talk about the System Requirement. Make sure everyone in your group understands what data you want to get from the database.

  7. Project Initiation and Planning System Requirements: • Information requirements of the system • Stakeholders • Constraints • Application environment

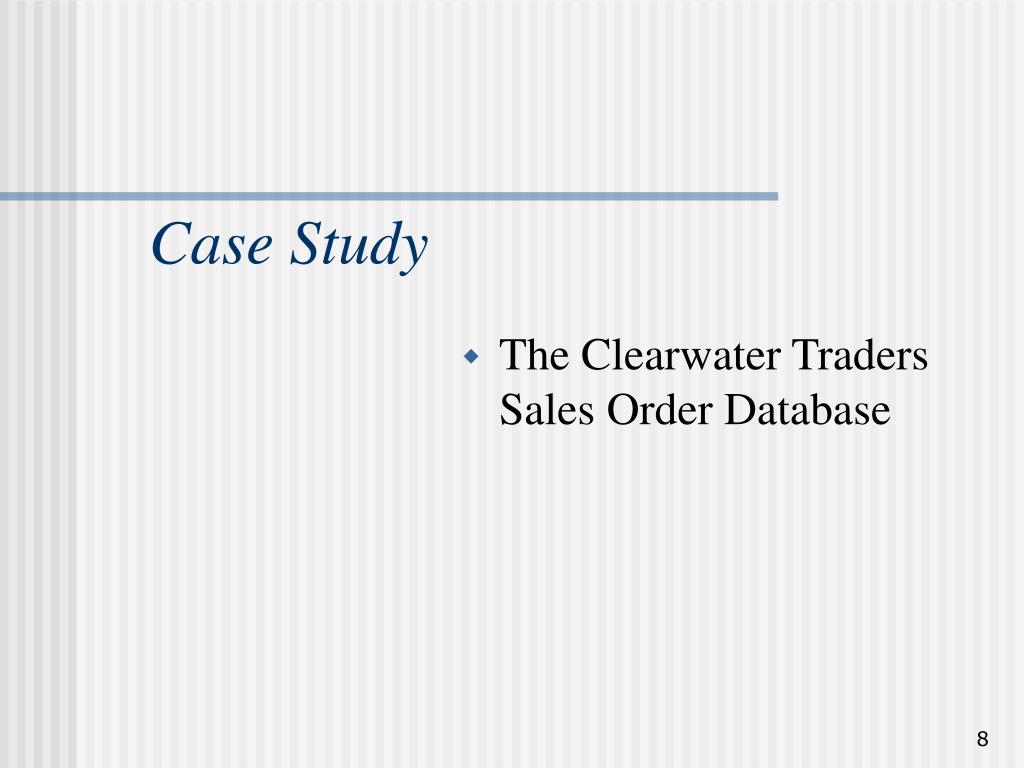

  8. Case Study • The Clearwater Traders Sales Order Database

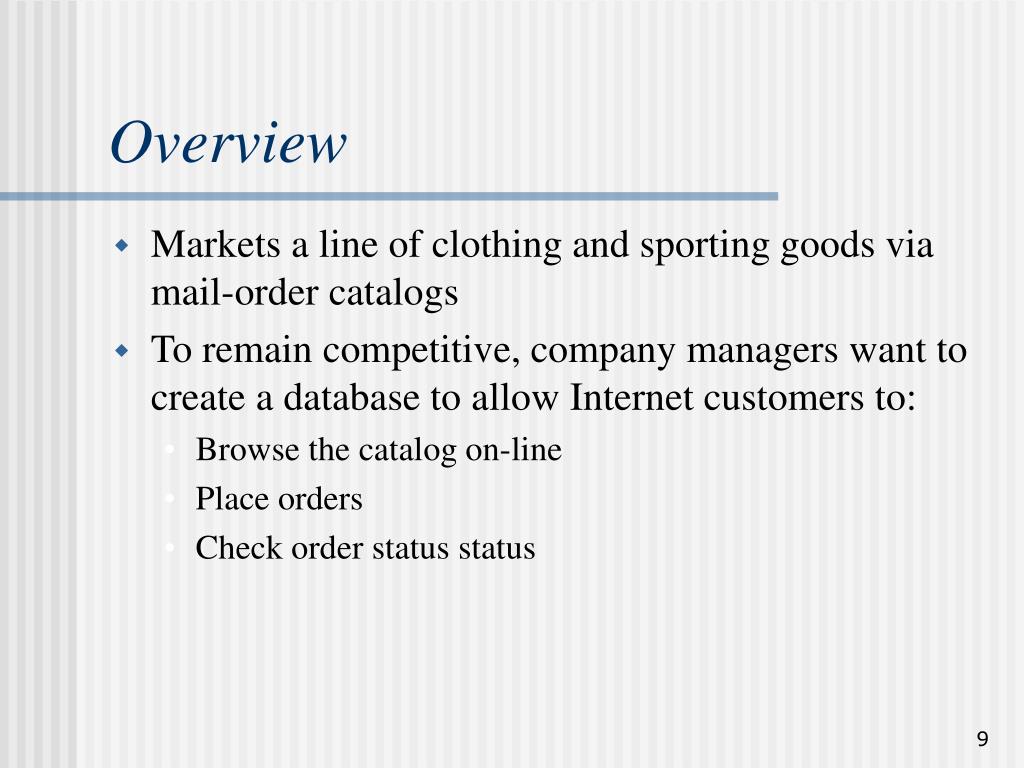

  9. Overview • Markets a line of clothing and sporting goods via mail-order catalogs • To remain competitive, company managers want to create a database to allow Internet customers to: • Browse the catalog on-line • Place orders • Check order status status

  10. Information Requirements • System must do all of the following: • Track information about customers and customer orders • Track customer orders • Track inventory information so customers can find out if an item is available • Have intranet applications, so Clearwater Traders personnel can: • Add, update, and delete inventory items • Update inventory amounts when new shipments are received • Modify item prices

  11. Stakeholders • Company management • Clearwater Traders personnel • Customers

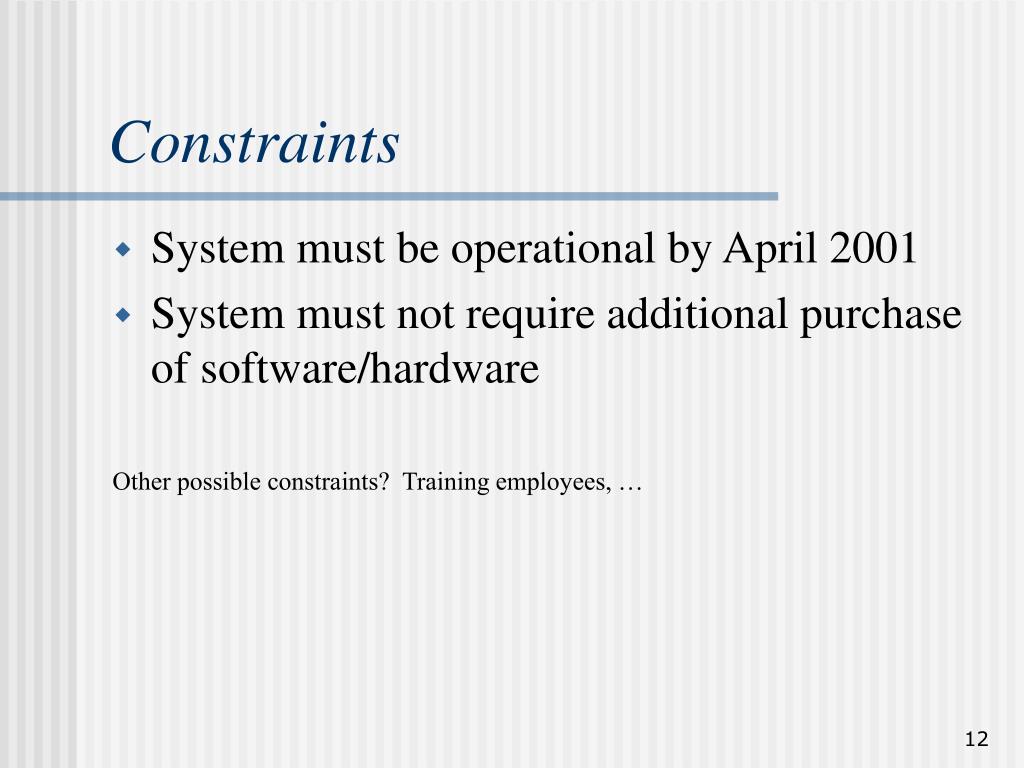

  12. Constraints • System must be operational by April 2001 • System must not require additional purchase of software/hardware Other possible constraints? Training employees, …

  13. Application Environment • Access 2000 on networked PCs • Expansion to Web sites using Visual Basic and Personal Web Server

  14. Logical Design • Purpose: to elicit and structure all information requirements • Deliverables: detailed functional specs for data, forms, reports, displays, and rules (logic, algorithms)

  15. Principles of Conceptual Database Design • Identify basic data needs and create conceptual data models that record needed data elements and their relationships • Your local Bank: • How many checking accounts do we have? • How many savings accounts? • How many customers? • How do we get each customer the right monthly statement? • How do I get a weekly report of overdue loan payments?

  16. Reality and Requirements Definition • Requires identifying user information requirements and representing them in a well-defined model • Model – a representation of reality that retains only selected details • Database Management System (DBMS) manages the database so that each user can record, access, and manipulate the data that is the “model of reality” of interest to the user • Requires mapping – associating elements in one sphere with elements in another sphere

  17. Conceptual Data Models • Object-oriented model • Represents real-world entities as objects rather than as records • Have their own object identities and attributes • Participate in relationships • Describes ways of manipulating data that focuses on the data and the manipulation (query, computation, update, etc.)

  18. Fundamentals • Objects • Important to users in the portion of reality modeled • Concrete objects • People, automobiles, trees, dishwashers, houses, hammers, books, etc. • Conceptual objects • Companies, skills, organizations, product designs, business transactions, job classifications, etc.

  19. Entity Relationship Diagram An entity-relationship diagram is a data modeling technique that creates a graphical representation of the entities, and the relationships between entities, within an information system.

  20. The three main components of an ERD are: • The entity is a person, object, place or event for which data is collected • The relationship is the interaction between the entities • The cardinality defines the relationship between the entities in terms of numbers.

  21. The steps involved in creating an ERD are: • Identify the entities; • Determine all significant interactions; • Analyze the nature of the interactions; • Draw the ERD

  22. Synonyms you should know… Entity = class = relation = table Attribute = column Instance = row columns table rows

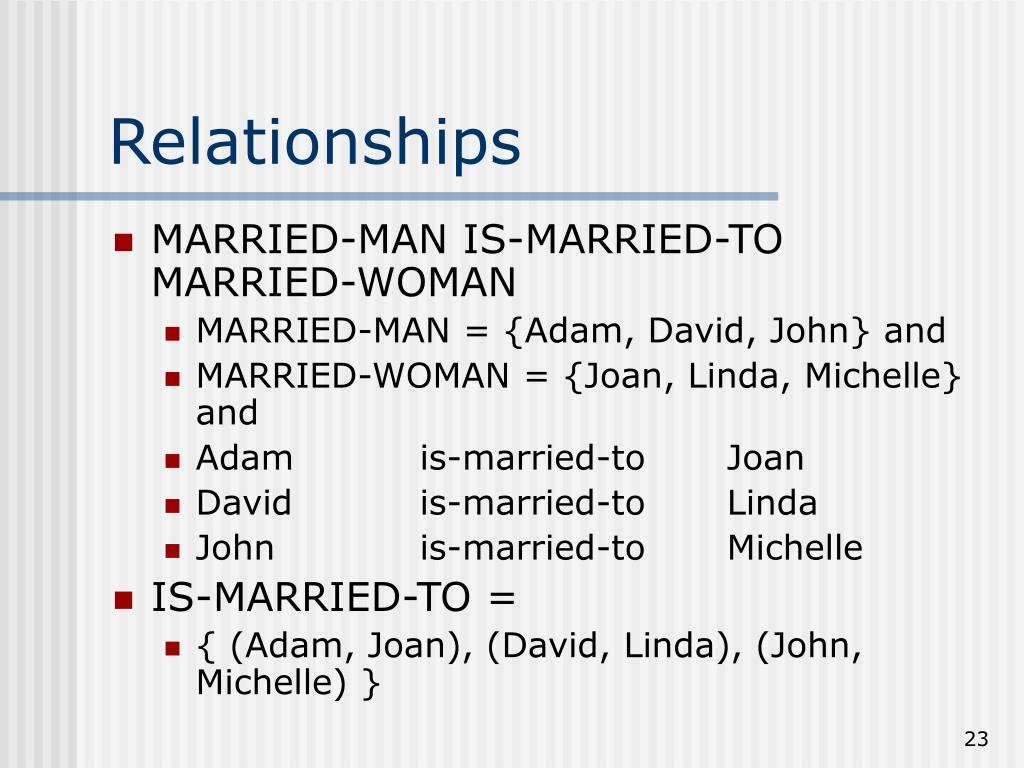

  23. Relationships • MARRIED-MAN IS-MARRIED-TO MARRIED-WOMAN • MARRIED-MAN = {Adam, David, John} and • MARRIED-WOMAN = {Joan, Linda, Michelle} and • Adam is-married-to Joan • David is-married-to Linda • John is-married-to Michelle • IS-MARRIED-TO = • { (Adam, Joan), (David, Linda), (John, Michelle) }

  24. Representations of a Relationship IS MARRIEDTO Married Man Married Woman (a) The IS MARRIED TO relationship Adam ----------------------------------- Joan David ----------------------------------- Linda John ----------------------------------- Michelle (b) Some instances of IS MARRIED TO

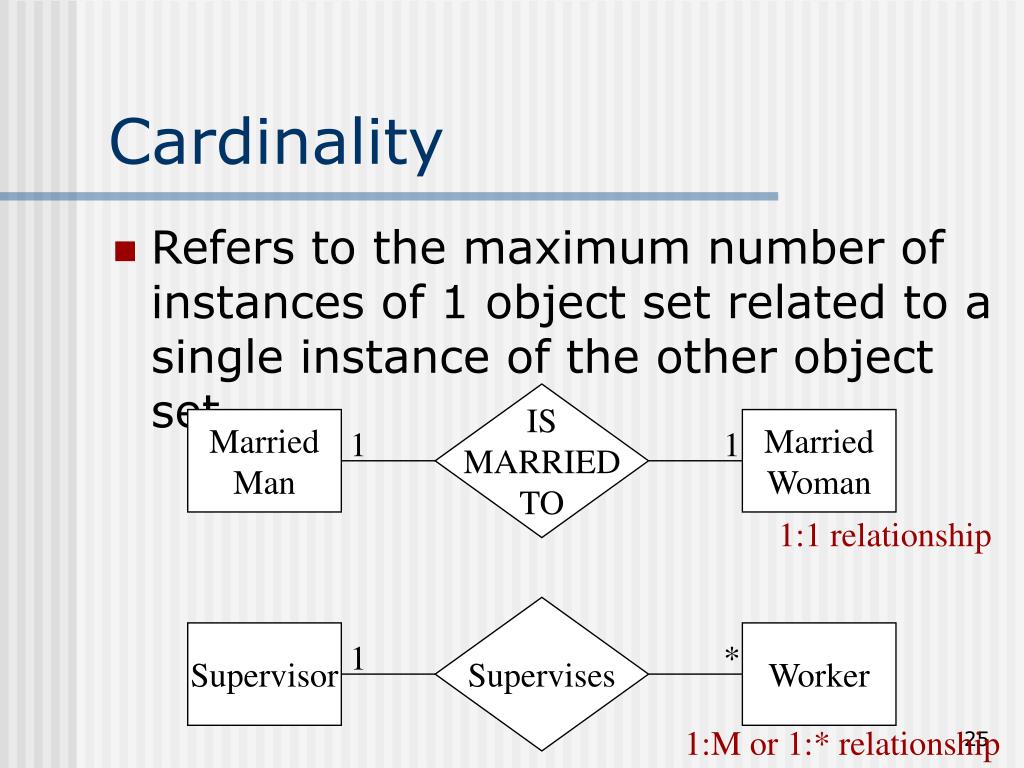

  25. Cardinality • Refers to the maximum number of instances of 1 object set related to a single instance of the other object set IS MARRIEDTO Married Man Married Woman 1 1 1:1 relationship Supervises Supervisor Worker 1 * 1:M or 1:* relationship

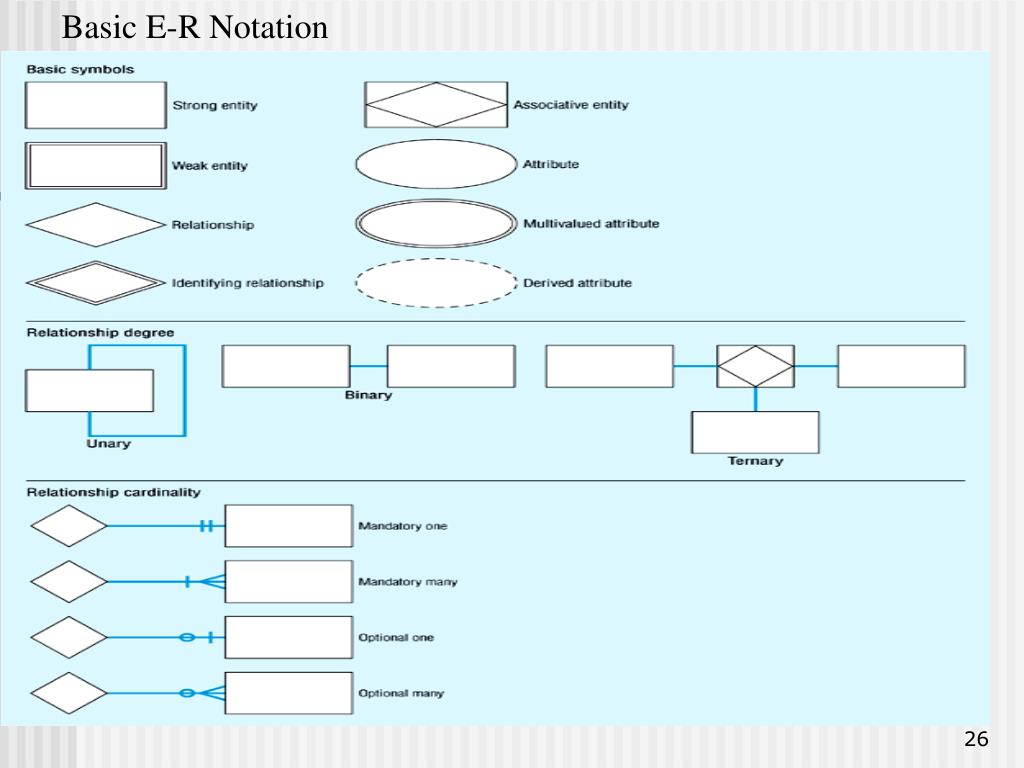

  26. Basic E-R Notation

  27. Sample E-R Diagram

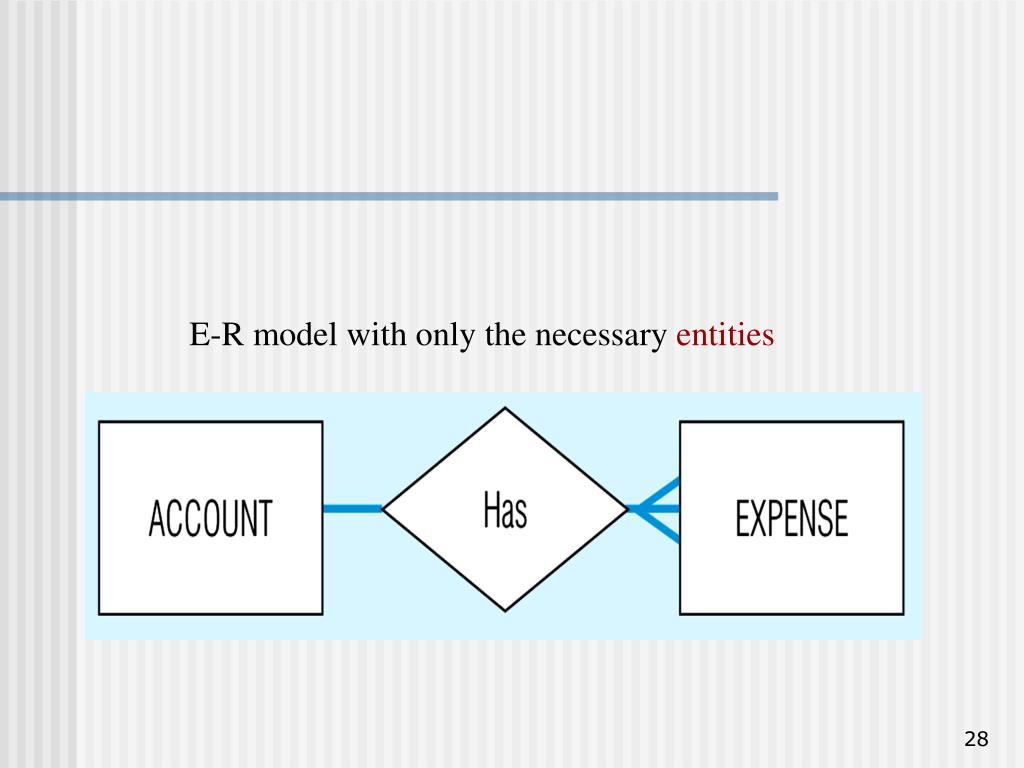

  28. E-R model with only the necessary entities

  29. Primary key attribute

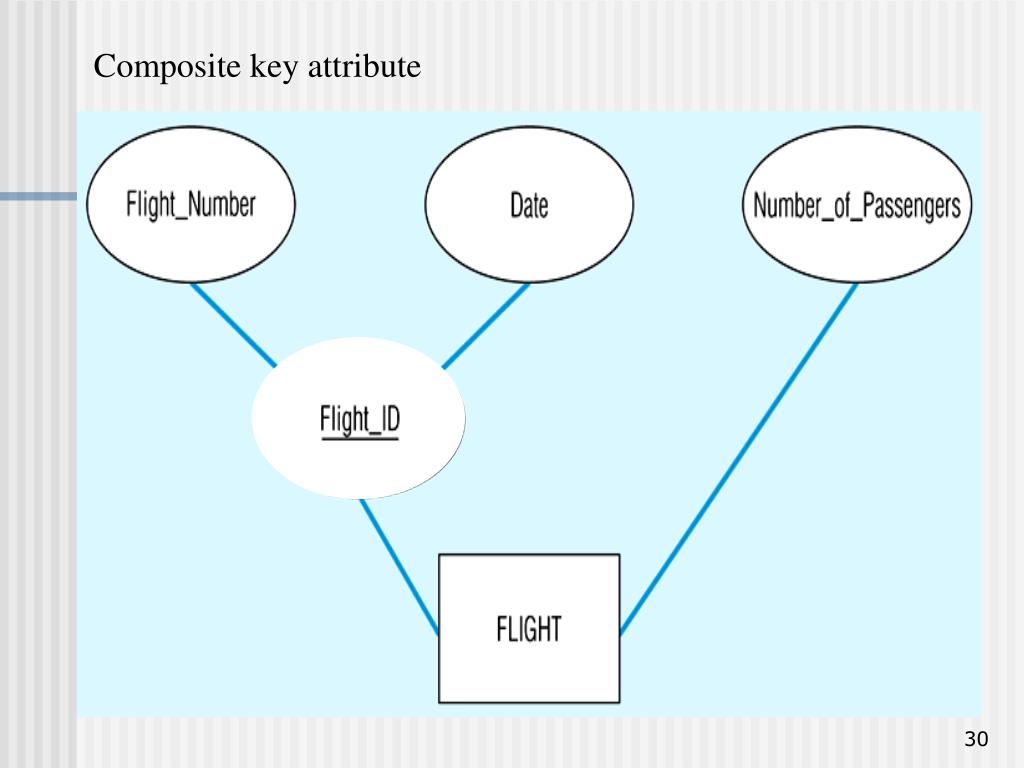

  30. Composite key attribute

  31. Relationship types and instances (a) Relationship type “Completes”

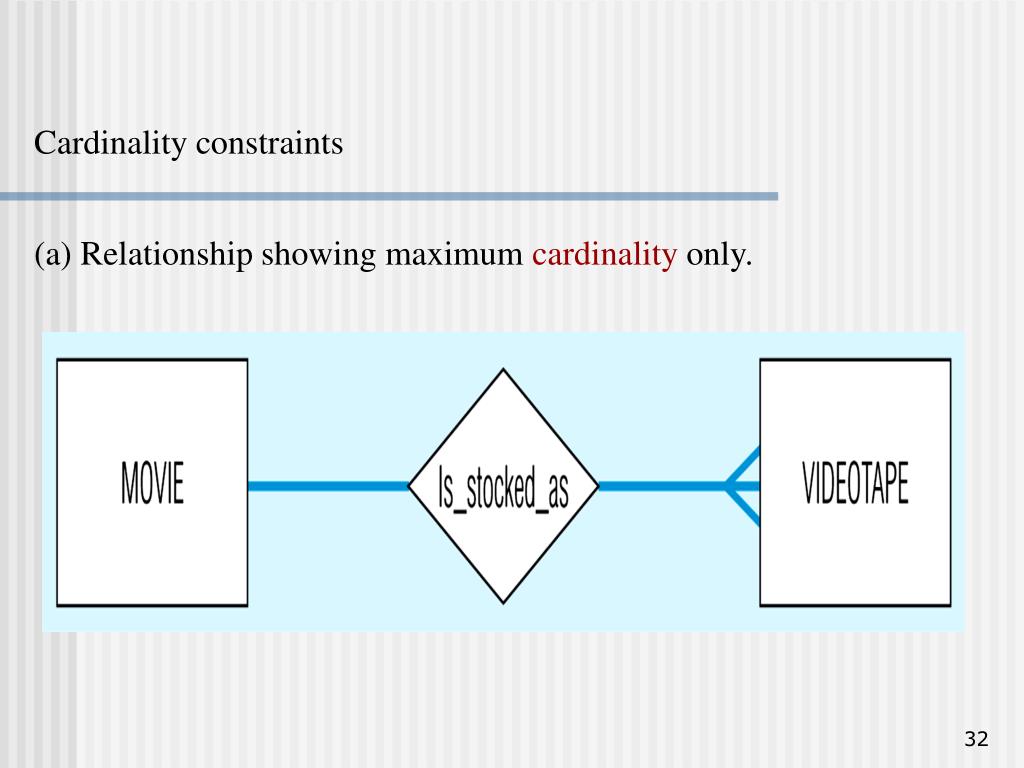

  32. Cardinality constraints (a) Relationship showing maximum cardinality only.

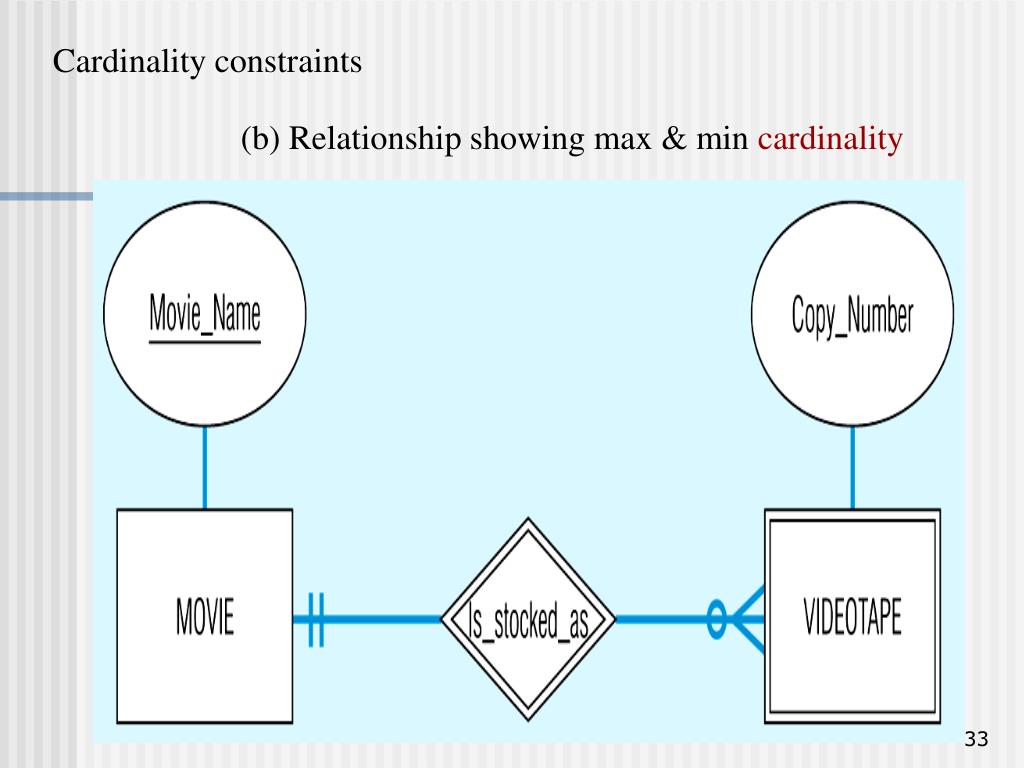

  33. Cardinality constraints (b) Relationship showing max & min cardinality

  34. Building a Conceptual Data Model from a Purchase Order Check # Number Address VENDOR PAYMENT Name Stock # Date PRODUCT ORDER Number Tax Description Price Date Total 1 PAID WITH 1 1 MADE FROM * * INCLUDES *

  35. Representing Tables (entities) • Vendor (Number, Name, Address) • Product (Stock #, Description, Price) • Order (Number, Date, Tax, Total) • Payment (Check #, Date) Attributes are in parentheses Primary key is underlined.

  36. Physical Design • Purpose: to develop all technology & organizational specs • Deliverables: program & database structures, technology purchases, physical site plans and organizational redesigns

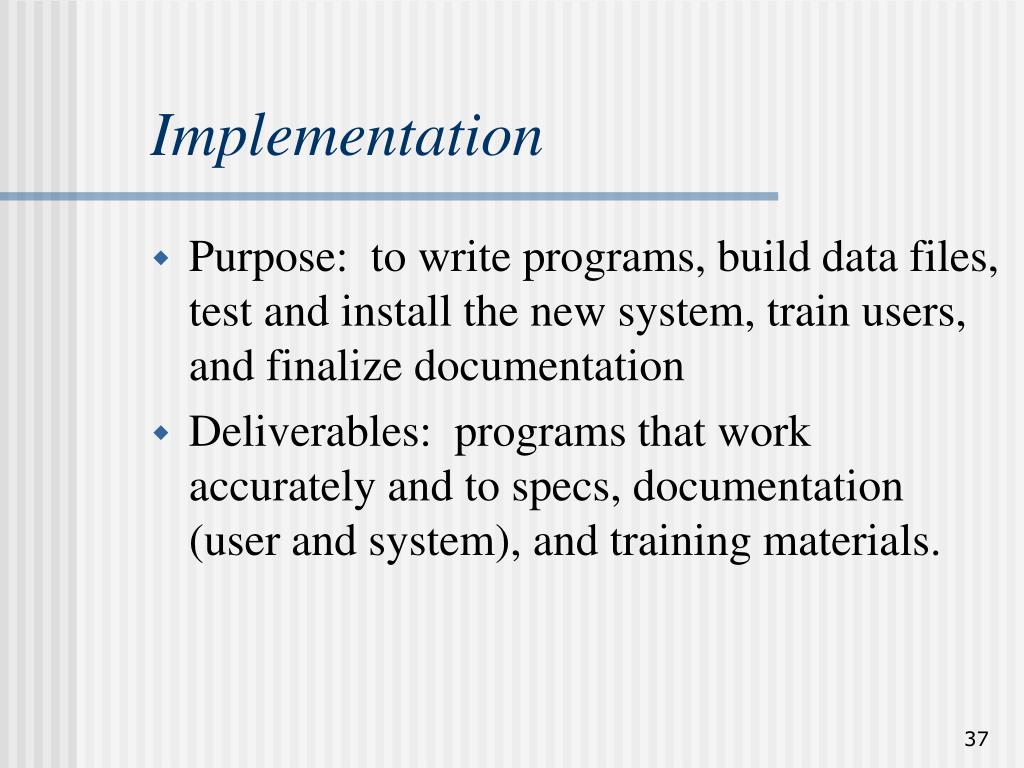

  37. Implementation • Purpose: to write programs, build data files, test and install the new system, train users, and finalize documentation • Deliverables: programs that work accurately and to specs, documentation (user and system), and training materials.

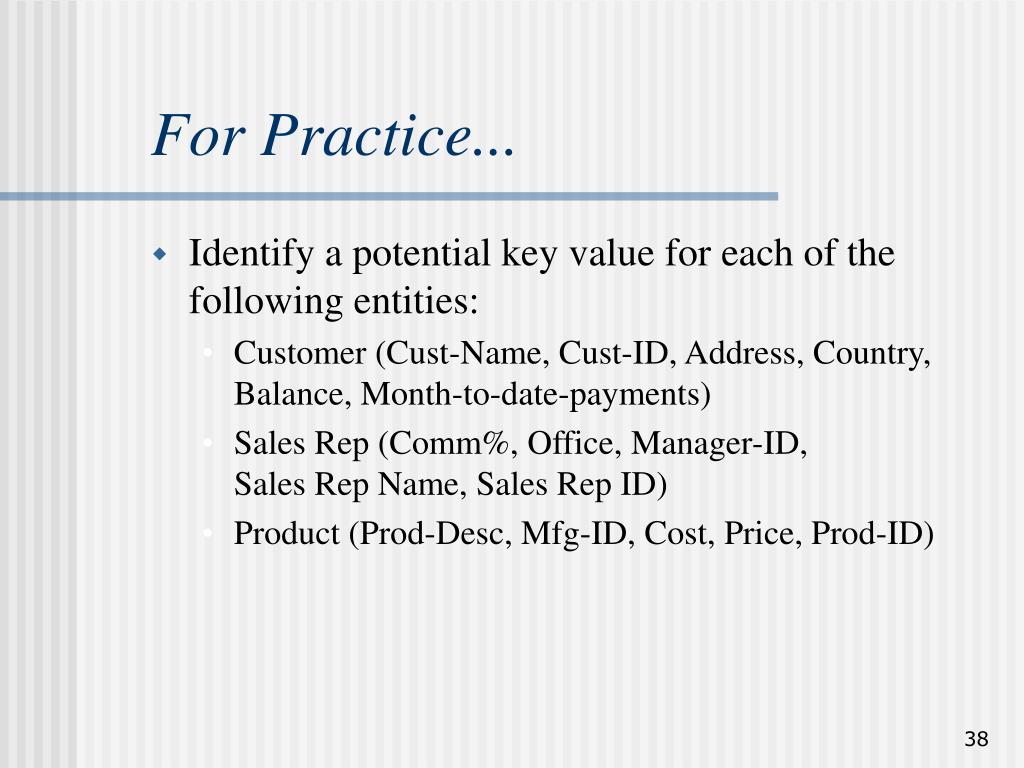

  38. For Practice... • Identify a potential key value for each of the following entities: • Customer (Cust-Name, Cust-ID, Address, Country, Balance, Month-to-date-payments) • Sales Rep (Comm%, Office, Manager-ID, Sales Rep Name, Sales Rep ID) • Product (Prod-Desc, Mfg-ID, Cost, Price, Prod-ID)
