Heuristic Optimization Athens 2004

1. Heuristic OptimizationAthens 2004 Department of Architecture and Technology Universidad Politécnica de Madrid Víctor Robles vrobles@fi.upm.es

2. Teachers • Universidad Politécnica de Madrid • Víctor Robles (coordinator) • María S. Pérez • Vanessa Herves • Universidad del País Vasco • Pedro Larrañaga

3. Course outline and Class hours • Day 1 / 10:00-14:00 / Víctor • Introduction to optimization • Some optimization problems • About heuristics • Greedy algorithms • Hill climbing • Simulated Annealing

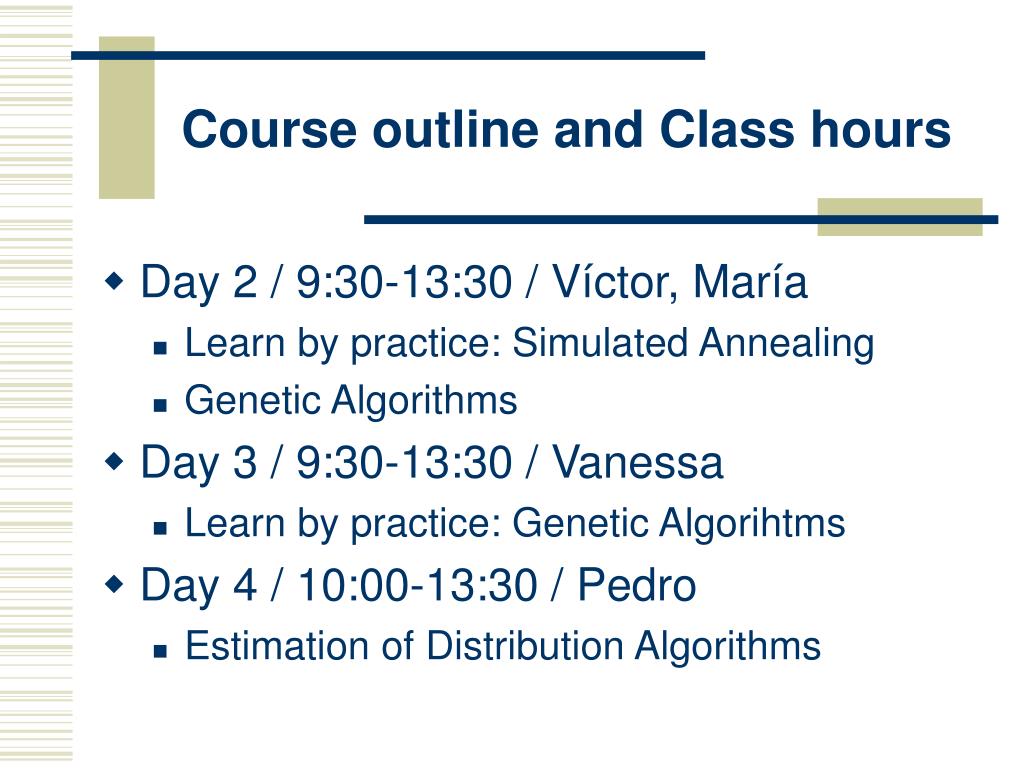

4. Course outline and Class hours • Day 2 / 9:30-13:30 / Víctor, María • Learn by practice: Simulated Annealing • Genetic Algorithms • Day 3 / 9:30-13:30 / Vanessa • Learn by practice: Genetic Algorihtms • Day 4 / 10:00-13:30 / Pedro • Estimation of Distribution Algorithms

5. Introduce yourself • Name • University / Country • Optimization experience • Expectations of the course

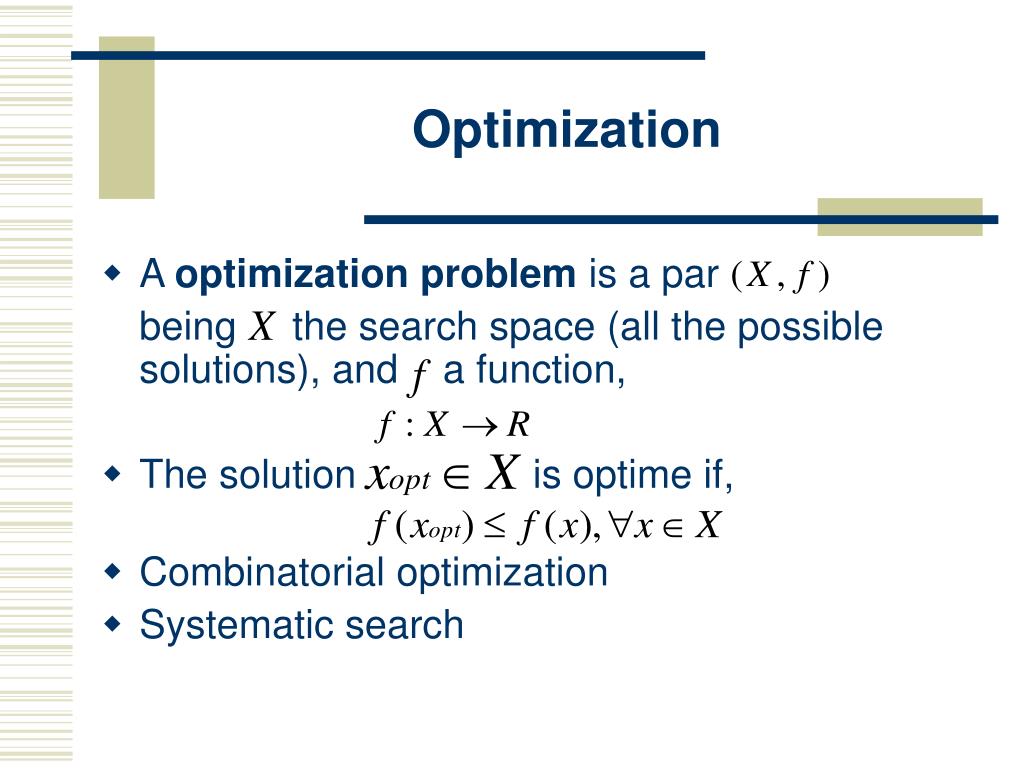

6. Optimization • A optimization problem is a par being the search space (all the possible solutions), and a function, • The solution is optime if, • Combinatorial optimization • Systematic search

7. State space landscape • Objective function defines state space landscape

8. Some optimization problems • TSP – Travel Salesman Problem • The assignment problem • SAT – Satistiability problem • The 0-1 knapsack problem Important tasks • Find a representation of possible solutions • To be able to evaluate each of the possible solutions  “fitness function” or “objective function”

9. TSP • A salesman has to find a route which visits each of n cities, and which minimizes the total distance travelled • Given an integer and a n x n matrix where each is a nonnegative integer. Which cyclic permutation of integers from 1 to n minimizes the sum ?

10. TSP representations • Binary representation • Each city is encoded as a string of [log2n] bits. Example 8 cities  3 bits • Path representation • A list is represented as a list of n cities. If city i is the j-th element of the list, city i is the j-th city to be visited • Adjancecy representation • City j is listed in position i if the tour leads from city i to city j (3 5 7 6 4 8 2 1)  tour: 1-3-7-2-5-4-6-8

11. The assignment problem • A set of n resources is available to carry out n tasks. If resource i is assigned to task j, it cost units. Find an assignment that minimizes • Solution: permutition of the numbers

12. SAT • The satisfiability problem consists on finding a truth assignment that satisfied a well-formed Boolean expression • Many applications: VLSI test and verification, consistency maintenance, fault diagnosis, etc • MAX-SAT: Find an assignment which satisfied the maximum number of clauses

13. SAT • Data sets in conjunctive normal form (cnf) • Example • Literals: • Clauses: • Representation? Fitness function? ...

14. The 0-1 knapsack problem • A set of n items is available to be packed into a knapsack with capacity C units. Item i has value vi and uses up ci units of capacity. Determine the subset of items which should be packed to maximize the total value without exceding the capacity • Representation? Fitness function?

15. Heuristics • Faster than mathematical optimization (branch & bound, simplex, etc) • Well developed  good solutions for some problems • Special heuristics: • Greedy algorithms – systematic • Hill-climbing (based on neighbourhood search) – randomized

16. Greedy algorithms • Step-by-step algorithms • Sometimes works well for optimization problems • A greedy algorithm works in phases. At each phase: • You take the best you can get right now, without regard for future consequences • You hope that by choosing a local optimum at each step, you will end up at a global optimum

17. Example: Counting money • Suppose you want to count out a certain amount of money, using the fewest possible bills and coins • A greedy algorithm would do this would be:At each step, take the largest possible bill or coin that does not overshoot • Example: To make $6.39, you can choose: • a $5 bill • a $1 bill, to make $6 • a 25¢ coin, to make $6.25 • A 10¢ coin, to make $6.35 • four 1¢ coins, to make $6.39 • For US money, the greedy algorithm always gives the optimum solution

18. A failure of the greedy algorithm • In some (fictional) monetary system, “krons” come in 1 kron, 7 kron, and 10 kron coins • Using a greedy algorithm to count out 15 krons, you would get • A 10 kron piece • Five 1 kron pieces, for a total of 15 krons • This requires six coins • A better solution would be to use two 7 kron pieces and one 1 kron piece • This only requires three coins • The greedy algorithm results in a solution, but not in an optimal solution

19. Practice • Develop a greedy algorithm for the knapsack problem. Groups of 2 persons

20. Local search algorithms • Based on neighbourhood system • Neighbourhood system: being X the search space, we define the neighbourhood system N in X • Examples: TSP (2-opt), SAT, assignment and knap

21. Local search algorithms • Basic principles: • Keep only a single (complete) state in memory • Generate only the neighbours of that state • Keep one of the neighbours and discard others • Key features: • No search paths • Neither systematic nor incremental • Key advantages: • Use very little memory (constant amount) • Find solutions in search spaces too large for systematic algorithms

22. TSP – 2 opt A B C D New distance = Old dist – dist(A-D) – dist(B-C) + dist(A-B) + dist (C-D)

23. Neighbourhood search (Reeves93) • (Initialization) • Select a starting solution • Current best and • (Choice and termination) • Choice . If choice criteria cannot be satisfied or if other termination criteria apply, then the method stops • (Update) • Re-set , and if , perform step 1.ii. Return to Step 2

24. Hill climbing • Diferent procedures depending on choice criteria and termination criteria • Hill climbing: only permit moves to neighbours that improve the current • (Choice and termination) • Choose such that and terminate if no such can be found

25. Hill-climbing: 8-Queens problem • Complete state formulation: • All 8 queens on the board,one per column • Neighbourhood: move one queen to a different place in the same column • Fitness function: number of pairs of queens that are attacking each other

26. 8-Queens problem:fitness values of neighbourhood

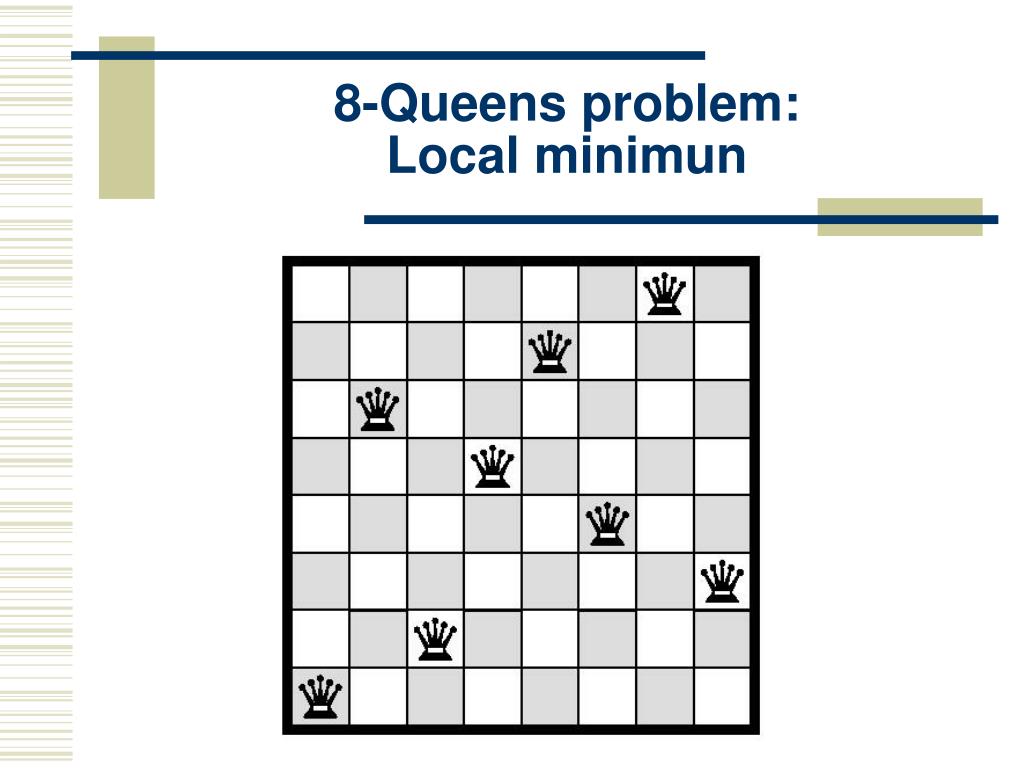

27. 8-Queens problem:Local minimun

28. Problematic landscapes • Local maximum: a peek that is higher than all its neighbours, but not a global maximum • Plateau: an area where the elevation is constant • Local maximum • Shoulder • Ridge: a long, narrow, almost plateau-like landscape

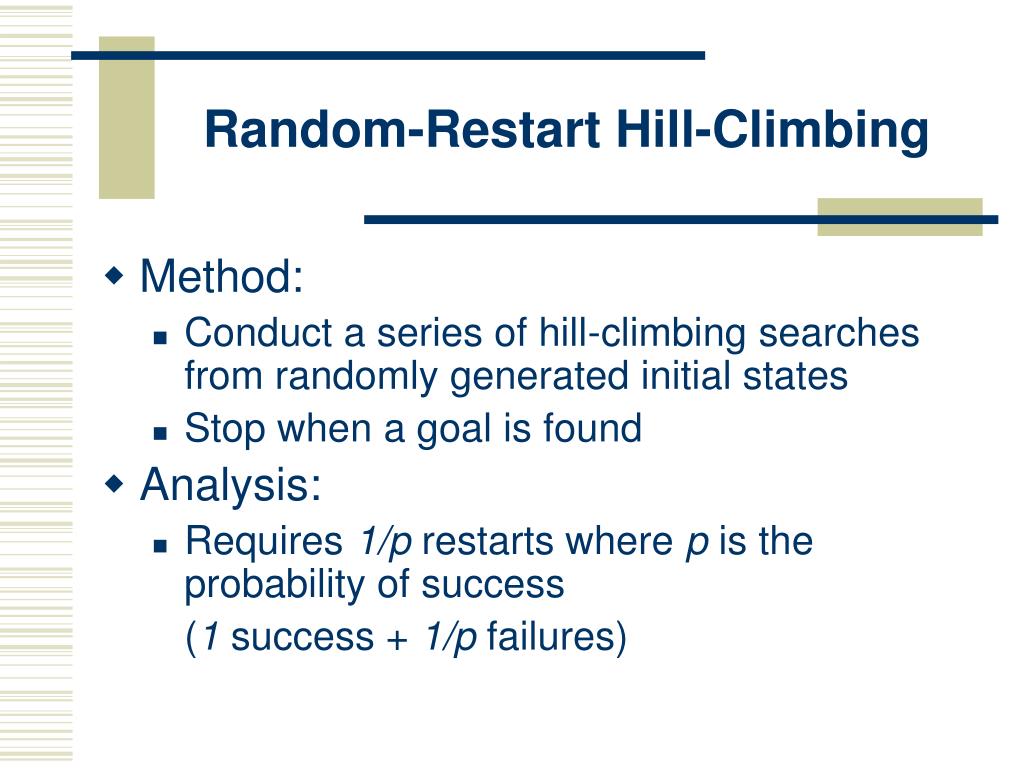

29. Random-Restart Hill-Climbing • Method: • Conduct a series of hill-climbing searches from randomly generated initial states • Stop when a goal is found • Analysis: • Requires 1/p restarts where p is the probability of success (1 success + 1/p failures)

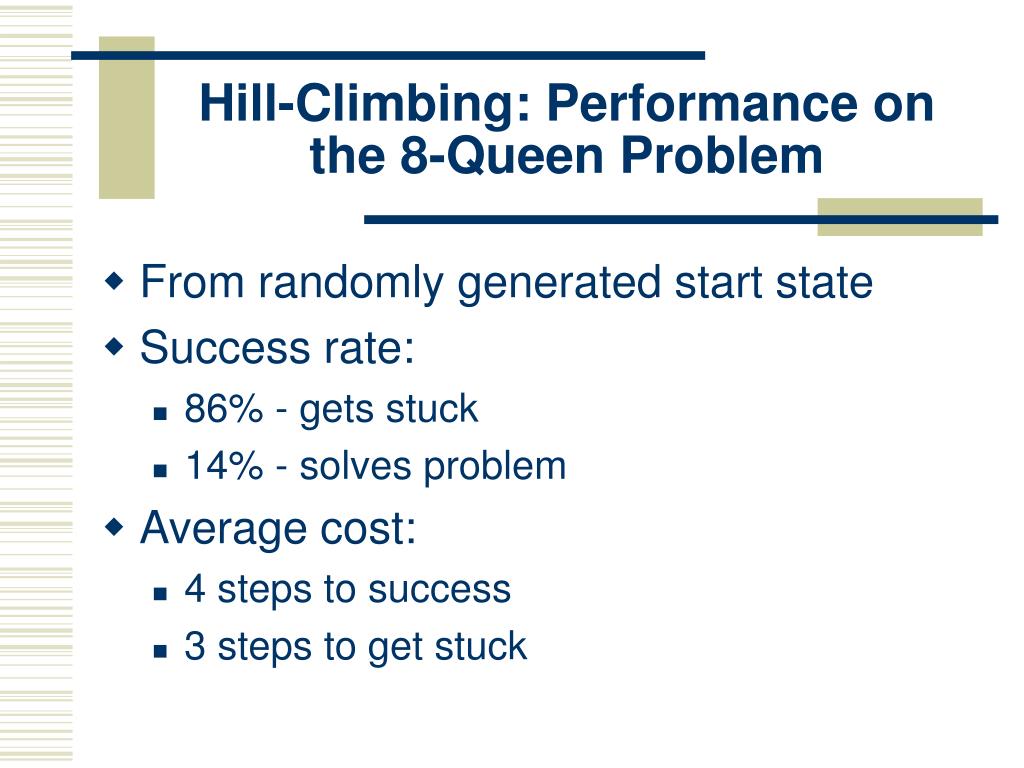

30. Hill-Climbing: Performance on the 8-Queen Problem • From randomly generated start state • Success rate: • 86% - gets stuck • 14% - solves problem • Average cost: • 4 steps to success • 3 steps to get stuck

31. Hill-Climbing with Sideways Moves • Sideways moves: moves at same fitness • Must limit number of sideways moves! • Performance on the 8-Queen problem: • Success rate: • 6% - get stucks • 94% - solves problem • Average cost: • 21 steps to succeed • 64 steps to get stuck

32. Hill-climbing: Further variants • Stochastic hill-climbing: • Choose at random from among uphill moves • First-choice hill-climbing: • Generate neighbourhood in random order • Move to first generated that represents an uphill move

33. Practice • Develop a hill-climbing algorithm for the knapsack problem. Groups of 2 persons

34. Shape of State Space Landscape • Success of hill-climbing depends on shape of landscape • Shape of landscape depends on problem formulation and fitness function • Landscapes for realistic problems often look like a worst-case scenario • NP-hard problems typically have exponential number of local-maxima • Despite the above, hill-climbers tend to have good performance

35. Simulated annealing • Failing on neighbourhood search • Propensity to deliver solutions which are only local optima • Solutions depend on the initial solution • Reduce the chance of getting stuck in a local optimum by allowing moves to inferior solutions • Developed by Kirkpatrick ’83: Simulation of the cooling of material in a heat bath could be used to search the feasible solutions of an optimization problem

36. Simulated annealing • If a move from one solution to another neighbouring but inferior solution results in a change in value , the move to is still accepted if T (temperature) – control parameter – uniform random number

37. Simulated annealing: Intuition • Minimization problem; imagine a state space landscape on table • Let ping-pong ball from random point  local minimum • Shake table ball tends to find different minimum • Shake hard at first (high temperature) but gradually reduce intensity (lower temperature)

38. Simulated annealing: Algorithm current = problem.initialSate for t=1 to T = schedule(t) if T=0 then return = a random neighbour of if then else with probability

39. Simulated annealing: Simple example • Maximize x coded as a 5-bit binary integer in [0,31] maximum (01010)  f=4100 • With ‘greedy’ we can find 3 local maxima

40. Simulated annealing: Simple example The temperature is not high enough to move out of this local optimum

41. Simulated annealing: Simple example Optimum found!!!

42. Simulated annealing: Generic decisions • Initial temperature Should be ‘suitable high’. Most of the initial moves must be accepted (> 60%) • Cooling schedule Temperature is reduced after every move Two methods: a close to 1 b close to 0

43. Simulated annealing: Generic decisions • Number of iterations • Other factors: • Reannealing • Restricted neighbourhoods • Order of searching
