1. Information Extraction Based on Extraction Ontologies: Design, Deployment and Evaluation Martin Labský, Vojtěch Svátek Dept. of Knowledge Engineering, UEP {labsky,svatek}@vse.cz AI Seminar, November 13th 2008

2. Agenda • Example applications of Web IE • Difficulties in practical applications • Extraction Ontologies • Extraction process • Experimental results • Future work and Conclusion AI Seminar IE based on Extraction Ontologies

3. Example apps of Web IE (1/5): online products AI Seminar IE based on Extraction Ontologies

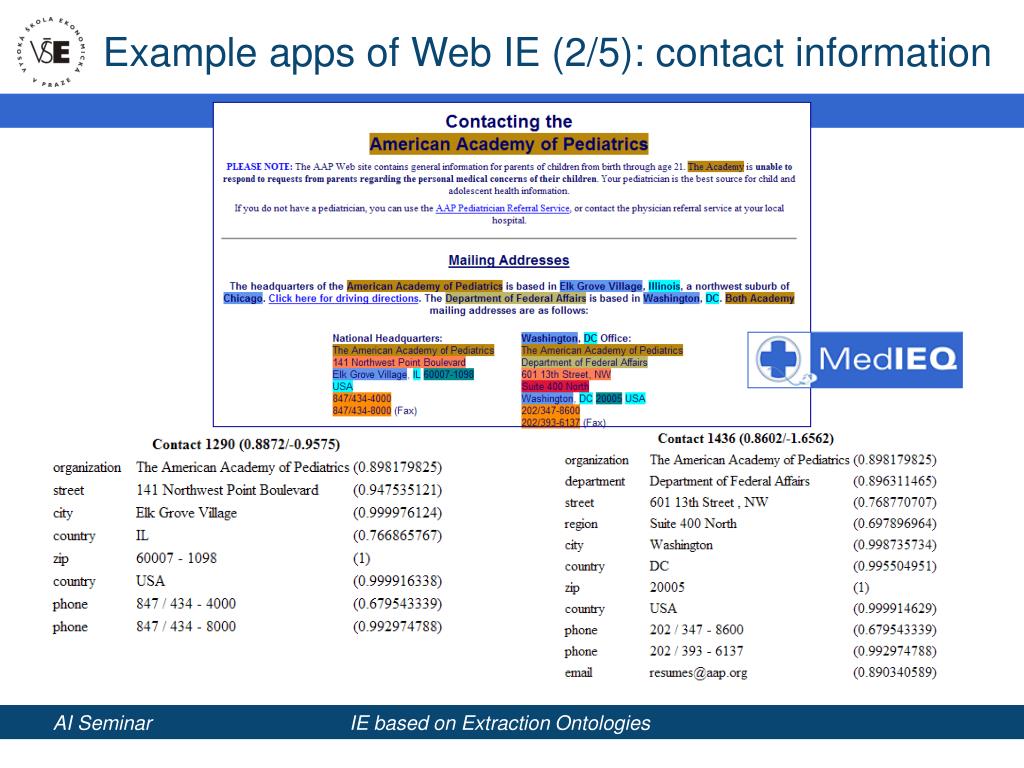

4. Example apps of Web IE (2/5): contact information AI Seminar IE based on Extraction Ontologies

5. Example apps of Web IE (3/5): seminars, events AI Seminar IE based on Extraction Ontologies

6. Example apps of Web IE (4/5): bike products AI Seminar IE based on Extraction Ontologies

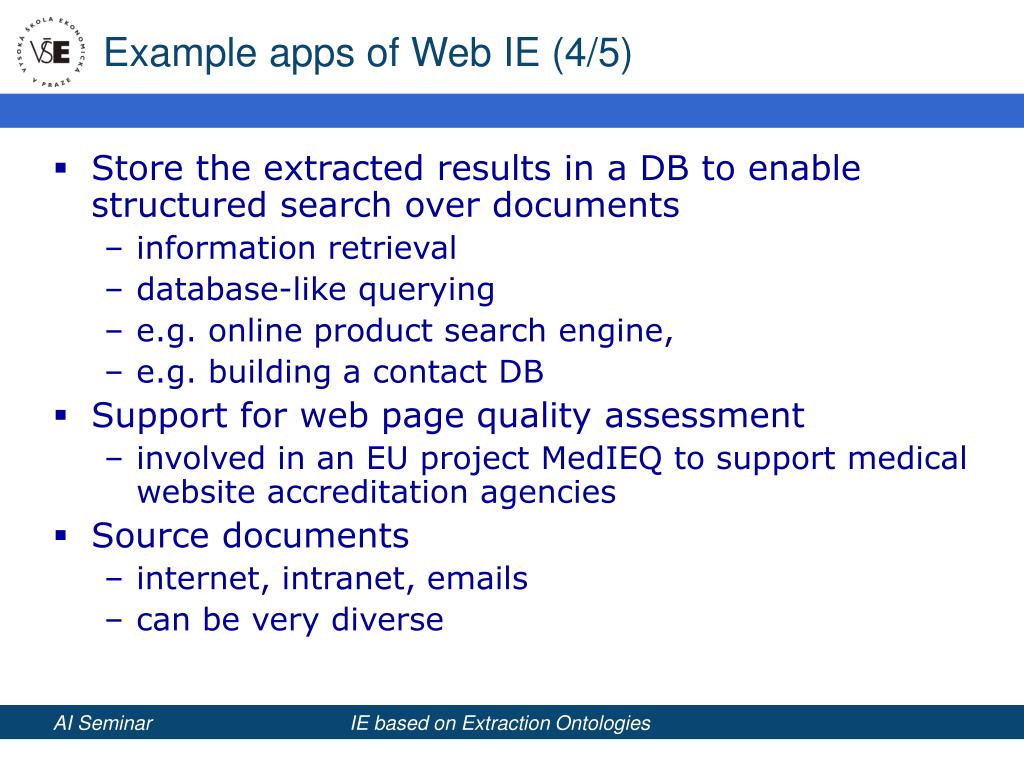

7. Example apps of Web IE (4/5) • Store the extracted results in a DB to enable structured search over documents • information retrieval • database-like querying • e.g. online product search engine, • e.g. building a contact DB • Support for web page quality assessment • involved in an EU project MedIEQ to support medical website accreditation agencies • Source documents • internet, intranet, emails • can be very diverse AI Seminar IE based on Extraction Ontologies

8. Agenda • Example applications of Web IE • Difficulties in practical IE applications • Extraction Ontologies • Extraction process • Experimental results • Future work and Conclusion AI Seminar IE based on Extraction Ontologies

9. Difficulties in practical applications (1/3) • Requirements • quickly prototype IE applications • not necessarily with the best accuracy initially • often needed for a proof-of-concept application • then more work can be done to boost accuracy • the extraction model changes • meaning of to-be-extracted items may shift, • new items are often added or removed AI Seminar IE based on Extraction Ontologies

10. Difficulties in practical applications (2/3) • Purely manual rules • writing extraction rules manually does not scale when more complex extraction rules need to be encoded • not easy to combine with trained models when training data become available in later phases • Training data • trainable IE systems often require large amounts of training data: these are typically not available for the desired task • when training data is collected, it is not easy to adapt it to modified or additional criteria • Wrappers • cannot rely on wrapper-only systems when extracting from multiple websites • non-wrapper systems often do not utilize regular formatting cues AI Seminar IE based on Extraction Ontologies

11. Difficulties in practical applications (3/3) • Seems interesting to exploit at the same time • extraction knowledge from domain experts • training data • formatting regularities AI Seminar IE based on Extraction Ontologies

12. Agenda • Example applications of Web IE • Difficulties in practical applications • Extraction Ontologies • Extraction process • Experimental results • Future work and Conclusion AI Seminar IE based on Extraction Ontologies

13. Extraction ontologies • An extraction ontology is a part of a domain ontology transformed to suit extraction needs • Contains classes composed of attributes • more like UML class diagrams, less like ontologies where e.g. relations are standalone • also contains axioms related to classes or attributes • Classes and attributes are augmented with extraction evidence • manually provided patterns for content and context • axioms • value or length ranges • links to trained models Person name {1} degree {0-5} email {0-2} phone {0-3} Responsible AI Seminar IE based on Extraction Ontologies

14. Extraction evidence provided by domain expert (1) • Patterns • for attributes and classes • for their content and context • patterns may be defined at the following levels: • word and character-level, • formatting tag level • level of labels (e.g. sentence breaks, POS tags) • Attribute value constraints • word length constraints, numeric value ranges • possible to attach units to numeric attributes • Axioms • may enforce relations among attributes • interpreted using JavaScript scripting language • Simple co-reference resolution rules AI Seminar IE based on Extraction Ontologies

15. Extraction evidence provided by domain expert (2) Axioms • class level • attribute level Patterns • class content • attribute value • attribute context • class context Value constraints • word length • numeric value AI Seminar IE based on Extraction Ontologies

16. Extraction evidence based on trained models (1) • Links to trainable classifiers • may classify attributes only • binary or multi-class • Trained models may use as features: • simple word level features (word itself, word type, possibly POS tags) • re-use all evidence provided by expert (patterns, axioms, constraints) • induced binary features based on word n-grams classifier usage classifier definition AI Seminar IE based on Extraction Ontologies

17. Extraction evidence based on trained models (2) • Data representation for classifiers: • word sequence (1 word = 1 sample) • phrase set (sliding window method) • Tested trainable classifiers: • CRF++ (Conditional Random Fields) http://crfpp.sourceforge.net • algorithms from the Weka machine learning toolkit • SVM (Support Vector Machine) • JRip (rule induction) • http://www.cs.waikato.ac.nz/ml/weka • Hidden Markov Model extractor AI Seminar IE based on Extraction Ontologies

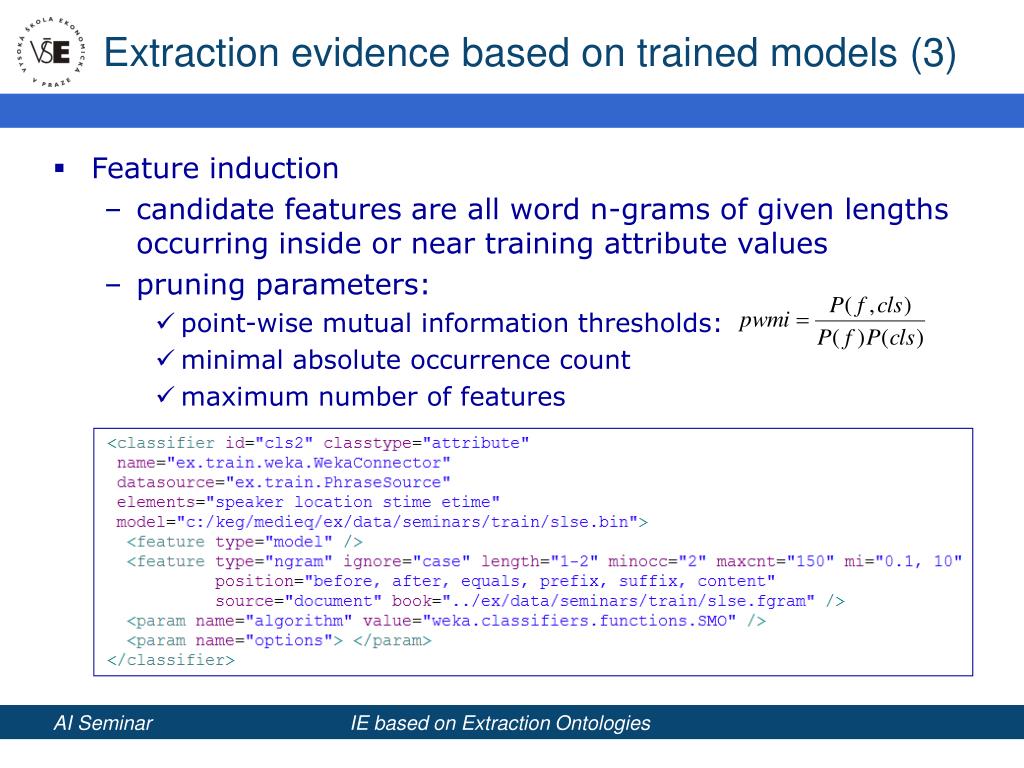

18. Extraction evidence based on trained models (3) • Feature induction • candidate features are all word n-grams of given lengths occurring inside or near training attribute values • pruning parameters: • point-wise mutual information thresholds: • minimal absolute occurrence count • maximum number of features AI Seminar IE based on Extraction Ontologies

19. Probabilistic model to combine evidence • Each piece of evidence E is equipped with 2 probability estimates with respect to predicted attribute A: • evidence precision P(A|E) ... prediction confidence • evidence coverage P(E|A) ... necessity of evidence (support) • Each attribute is assigned some low prior probability P(A) • Let be the set of evidence applicable to A • Assume conditional independence among : • Using Bayes formula we compute P(A | its evidence values) as: where AI Seminar IE based on Extraction Ontologies

20. Extraction vs. domain ontologies • When existing domain ontologies are available: • identify relevant parts • reuse classes, attributes, cardinalities, some axioms • Transformation rules • reused parts of domain ontology may require transformation to fit into extraction ontology • due to extraction ontologies focusing on the way of presentation rather than semantics • identified typical transformation rules that could be used to transform parts of OWL-encoded ontologies AI Seminar IE based on Extraction Ontologies

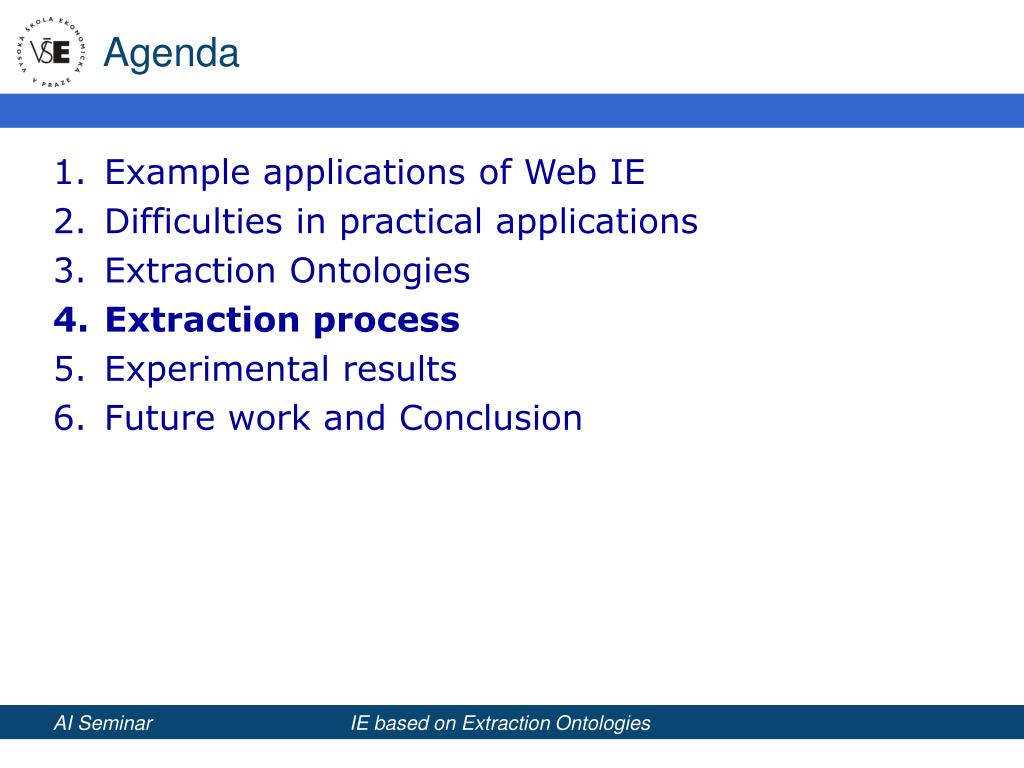

21. Agenda • Example applications of Web IE • Difficulties in practical applications • Extraction Ontologies • Extraction process • Experimental results • Future work and Conclusion AI Seminar IE based on Extraction Ontologies

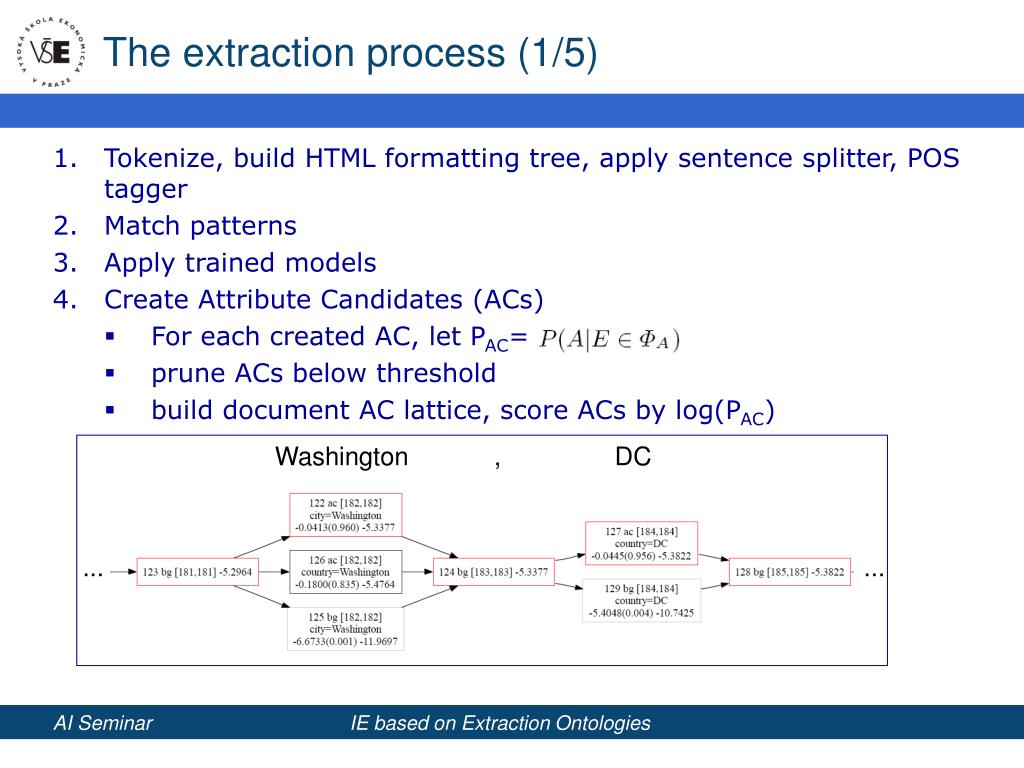

22. The extraction process (1/5) • Tokenize, build HTML formatting tree, apply sentence splitter, POS tagger • Match patterns • Apply trained models • Create Attribute Candidates (ACs) • For each created AC, let PAC= • prune ACs below threshold • build document AC lattice, score ACs by log(PAC) Washington , DC ... ... AI Seminar IE based on Extraction Ontologies

23. The extraction process (2/5) • Evaluate coreference resolution rules for each pair of ACs • e.g. “Dr. Burns”  “John Burns” • possible coreferring groups are remembered • in attribute’s value section: • Compute the best scoring path BP through AC lattice • using dynamic programming • Run wrapper induction algorithm using all AC  BP • wrapper induction algorithm described in next slides • if new local patterns are induced, apply them to: • rescore existing ACs • create new ACs • update AC lattice, recompute BP • Terminate here if no instances are to be generated • output all AC  BP (n-best paths supported) AI Seminar IE based on Extraction Ontologies

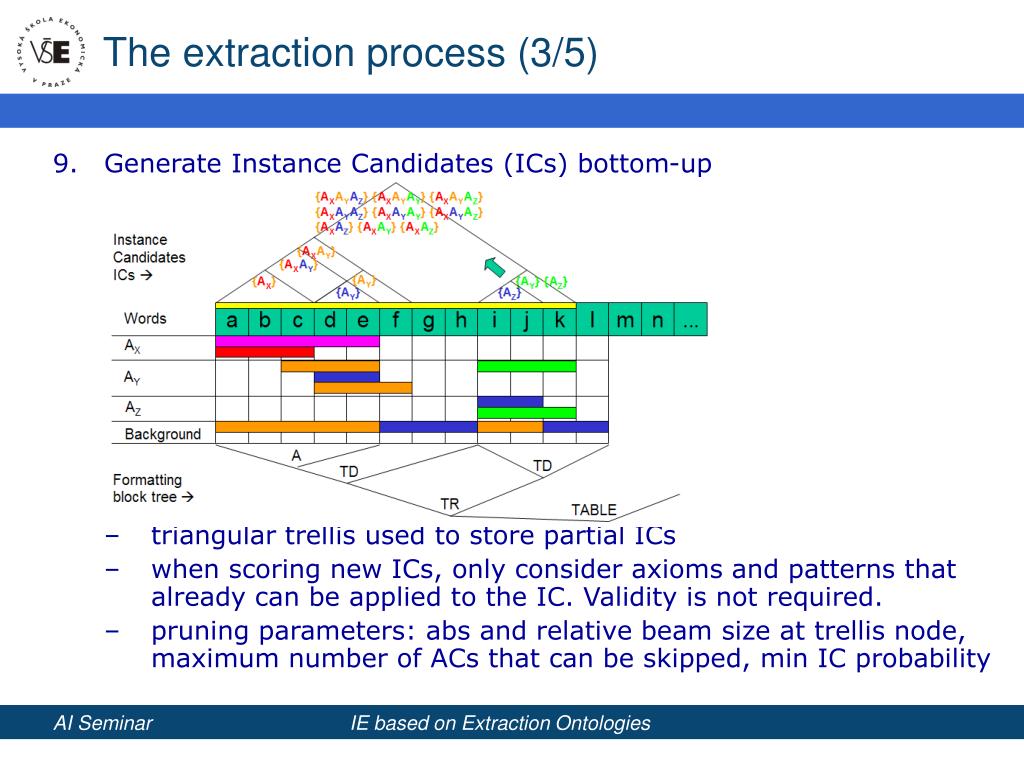

24. The extraction process (3/5) • Generate Instance Candidates (ICs) bottom-up • triangular trellis used to store partial ICs • when scoring new ICs, only consider axioms and patterns that already can be applied to the IC. Validity is not required. • pruning parameters: abs and relative beam size at trellis node, maximum number of ACs that can be skipped, min IC probability AI Seminar IE based on Extraction Ontologies

25. The extraction process (4/5) • IC generation: continued • When new IC is created, its P(IC) is computed from 2 components: where |IC| is member attribute count, ACskip is an non-member AC that is fully or partially inside the IC, PAC skip is the probability of AC being a “false positive”. where C is the set of evidence known for the class C, computed using the same probabilistic model as for ACs. • Scores are combined using the Prospector pseudo-bayesian method: AI Seminar IE based on Extraction Ontologies

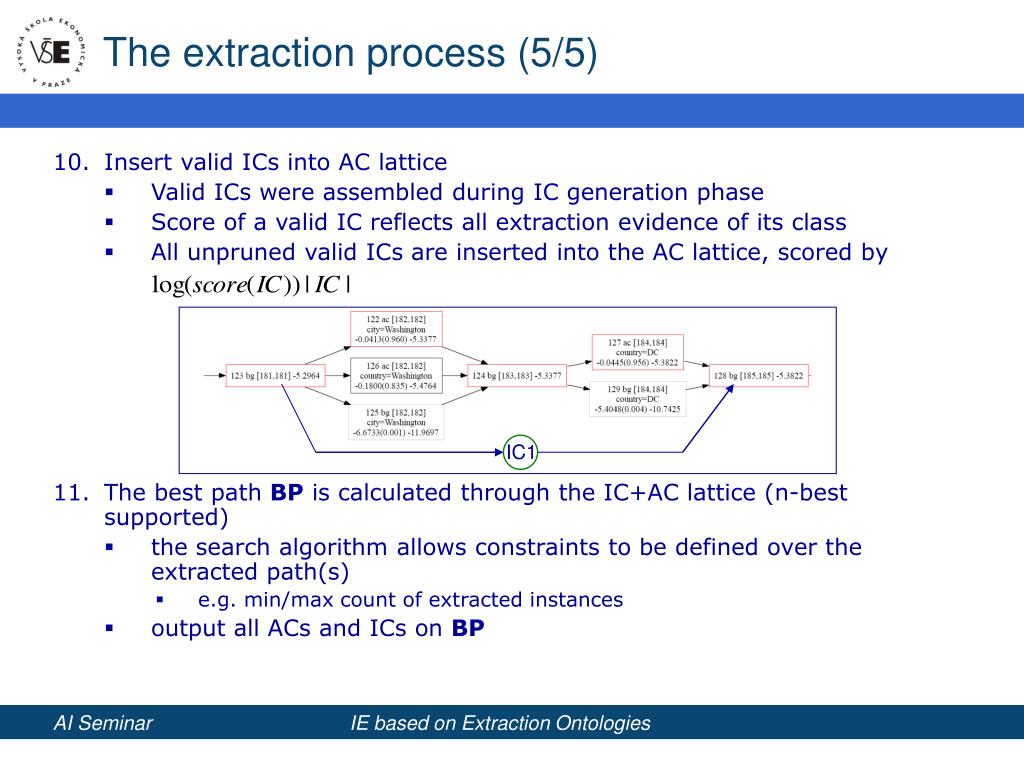

26. The extraction process (5/5) • Insert valid ICs into AC lattice • Valid ICs were assembled during IC generation phase • Score of a valid IC reflects all extraction evidence of its class • All unpruned valid ICs are inserted into the AC lattice, scored by • The best path BP is calculated through the IC+AC lattice (n-best supported) • the search algorithm allows constraints to be defined over the extracted path(s) • e.g. min/max count of extracted instances • output all ACs and ICs on BP IC1 AI Seminar IE based on Extraction Ontologies

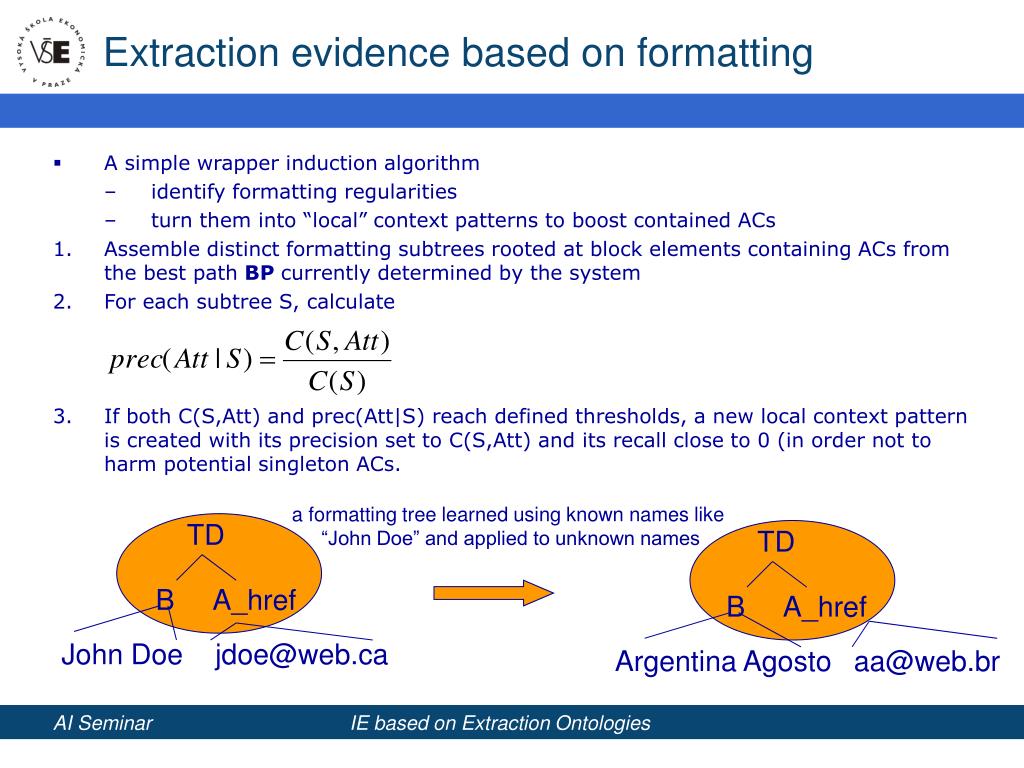

27. Extraction evidence based on formatting • A simple wrapper inductionalgorithm • identify formatting regularities • turn them into “local” context patterns to boost contained ACs • Assemble distinct formatting subtrees rooted at block elements containing ACs from the best path BP currently determined by the system • For each subtree S, calculate • If both C(S,Att) and prec(Att|S) reach defined thresholds, a new local context pattern is created with its precision set to C(S,Att) and its recall close to 0 (in order not to harm potential singleton ACs. a formatting tree learned using known names like “John Doe” and applied to unknown names TD TD B A_href B A_href John Doe jdoe@web.ca Argentina Agosto aa@web.br AI Seminar IE based on Extraction Ontologies

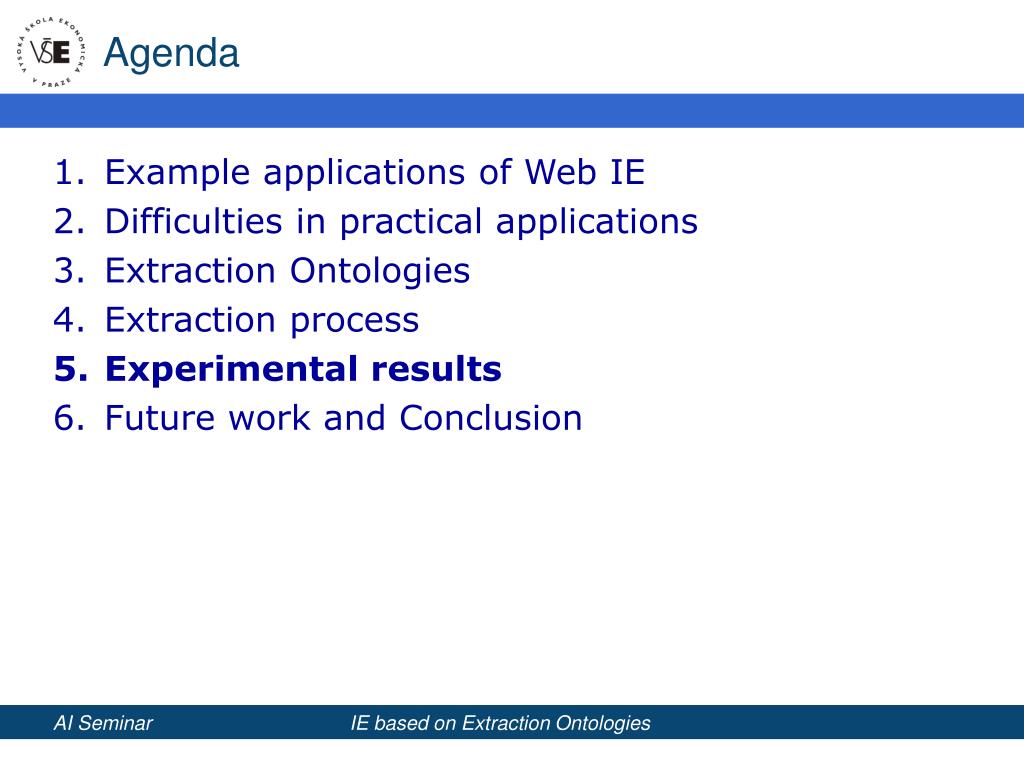

28. Agenda • Example applications of Web IE • Difficulties in practical applications • Extraction Ontologies • Extraction process • Experimental results • Future work and Conclusion AI Seminar IE based on Extraction Ontologies

29. Experimental results: Seminar announcements • 485 English seminar announcement text documents • Manual: extraction ontology created based on seeing 40 randomly chosen documents, evaluated using remaining 445 • Manual+CRF: same extraction ontology equipped with a CRF classifier used as further extraction evidence. 10-fold cross-validation using test set above AI Seminar IE based on Extraction Ontologies

30. Cost of the IE system: Seminar announcements • Creation of extraction ontology: 1-2 person weeks • annotate 40 training documents (expect 1-2 days) • inspecting examples in 40 documents • writing patterns, axioms, iterating • Training inductive model in addition to ex. ontology • 2-3 person weeks to annotate training data (445 docs) • F-measure improvement from 2 to 6% • ex. ontologies allow for fast & flexible prototyping (annotation design changes quickly reflected) • then, for parts of the ex. ontology that need accuracy improvement, obtain more training data & reuse as features all manual extraction evidence already provided AI Seminar IE based on Extraction Ontologies

31. Experimental results: Contact information • 109 English contact pages, 200 Spanish, 108 Czech • Named entity counts: 7000, 5000, 11000, respectively, instances not labeled • Only domain expert’s evidence and formatting pattern induction were used • Domain expert saw 30 randomly chosen documents, the rest was test data • Instance extraction done but not evaluated Instance grouping • Villain score F = 60-70% • Villain recall = % of correct links recovered • Villain precision = % of recovered links that are correct AI Seminar IE based on Extraction Ontologies

32. Experimental results: Bicycle descriptions • Hidden Markov Model • Trigram, naive topology • 103 labeled web pages, 12346 named entities, • Instances not labeled; instance extraction done but not evaluated • Single HMM for all extracted types: • 1 Background state • 1 Target, 1 Prefix and 1 Suffix state type for each extracted slot • =1+3*N states B P T S P’ T’ S’ ... AI Seminar IE based on Extraction Ontologies

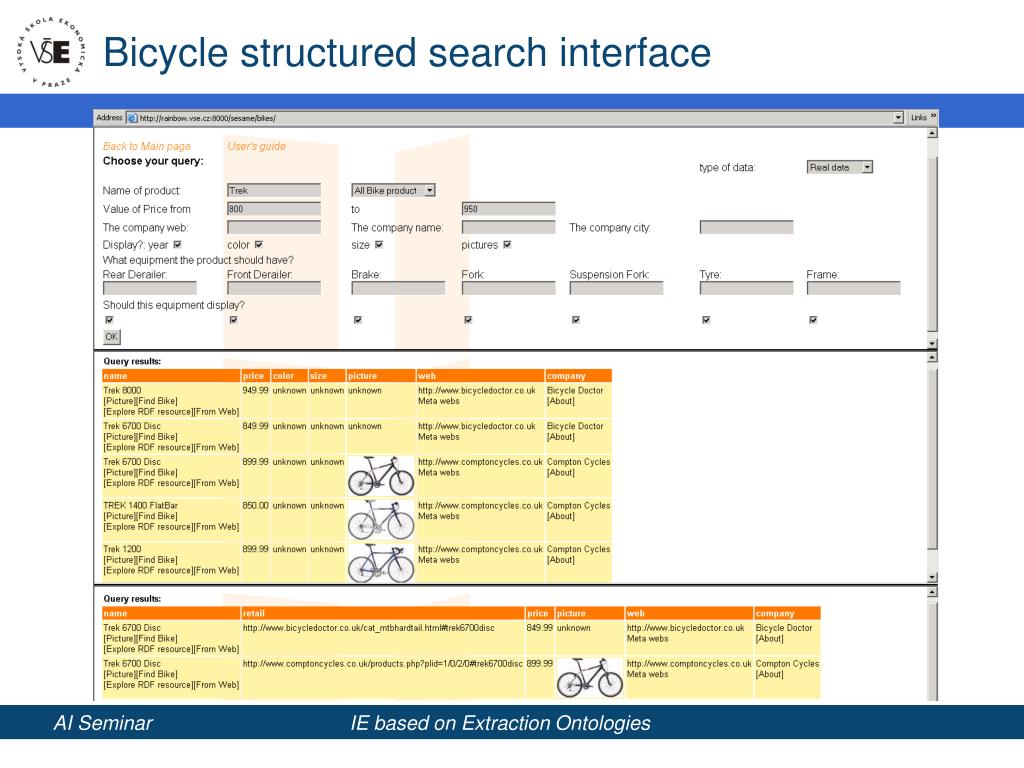

33. Bicycle structured search interface AI Seminar IE based on Extraction Ontologies

34. Future work • Attempt to improve a seed extraction ontology by bootstrapping using relevant pages retrieved from the Internet • Adapt the structure of extraction ontology according to data • e.g. add new attributes to represent product features AI Seminar IE based on Extraction Ontologies

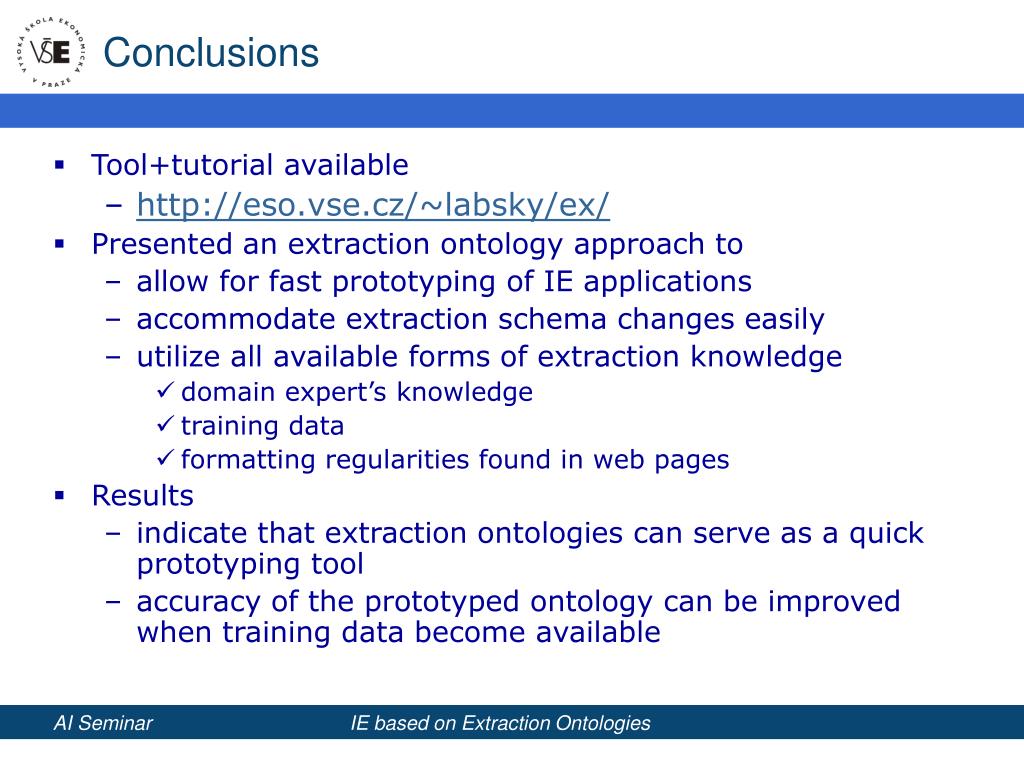

35. Conclusions • Tool+tutorial available • http://eso.vse.cz/~labsky/ex/ • Presented an extraction ontology approach to • allow for fast prototyping of IE applications • accommodate extraction schema changes easily • utilize all available forms of extraction knowledge • domain expert’s knowledge • training data • formatting regularities found in web pages • Results • indicate that extraction ontologies can serve as a quick prototyping tool • accuracy of the prototyped ontology can be improved when training data become available AI Seminar IE based on Extraction Ontologies

36. Acknowledgements • The research was partially supported by the EC under contract FP6-027026, Knowledge Space of Semantic Inference for Automatic Annotation and Retrieval of Multimedia Content: K-Space. • The medical website application is carried out in the context of the EC-funded (DG-SANCO) project MedIEQ. AI Seminar IE based on Extraction Ontologies
