Status PSP G.Sh. Gildenblat and D.B.M. Klaassen CMC, December 16 th , 2004 PSP SP MOS Model 11 MM11 and SP have been merged into PSP local level (non-scalable) ready global level (fully scalable) under construction new junction model (JUNCAP2) finished this will be part of PSP

emily
Télécharger la présentation

Status PSP

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Status PSP G.Sh. Gildenblat and D.B.M. Klaassen CMC, December 16th, 2004

  2. PSP SP MOS Model 11

  3. MM11 and SP have been merged into PSP • local level (non-scalable) ready • global level (fully scalable) under construction • new junction model (JUNCAP2) finished • this will be part of PSP • also available as stand-alone model • still to be done • add Berkeley stress model • transfer spline-collocation NQS model • from SP to PSP • well on track to meet the March deadline

  4. symbols: IBM data N10/0.08 lines: PSP VDS=1.2V VSB=-0.5, -0.25, 0, 0.5, 1.0V

  5. symbols: IBM data N10/0.08 lines: PSP VDS=1.2V VSB=-0.5, -0.25, 0, 0.5, 1.0V

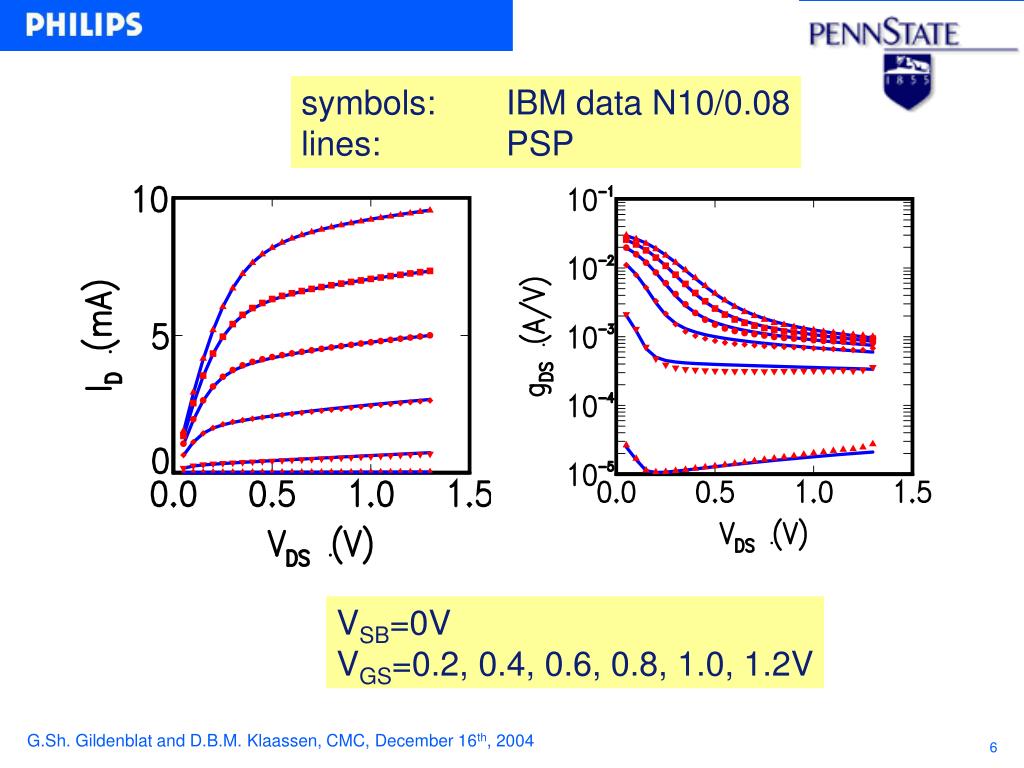

  6. symbols: IBM data N10/0.08 lines: PSP VSB=0V VGS=0.2, 0.4, 0.6, 0.8, 1.0, 1.2V

  7. JUNCAP2: survey of modelled effects • bottom/STI-edge/gate-edge • depletion capacitance • ideal current • Shockley-Read-Hall • trap-assisted tunneling • band-to-band tunneling • avalanche & breakdown • shot noise • bottom/STI-edge/gate-edge • depletion capacitance • ideal current • Shockley-Read-Hall • trap-assisted tunneling • band-to-band tunneling • avalanche & breakdown • shot noise forward & reverse

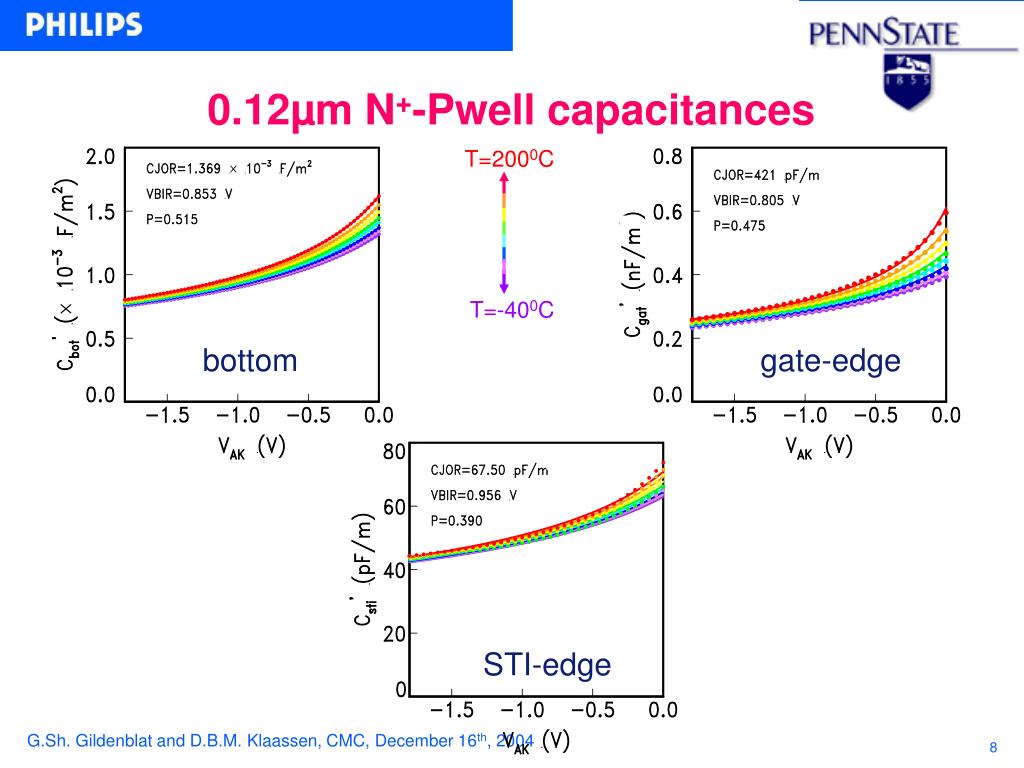

  8. 0.12µm N+-Pwell capacitances T=2000C T=-400C bottom gate-edge STI-edge

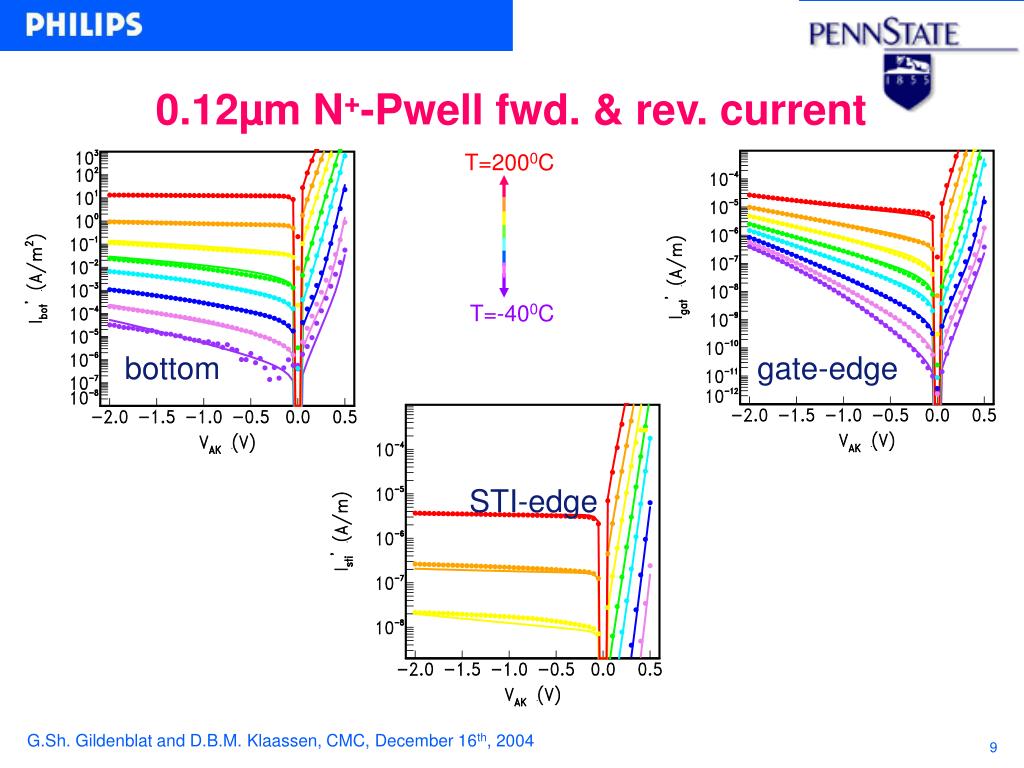

  9. 0.12µm N+-Pwell fwd. & rev. current T=2000C T=-400C bottom gate-edge STI-edge

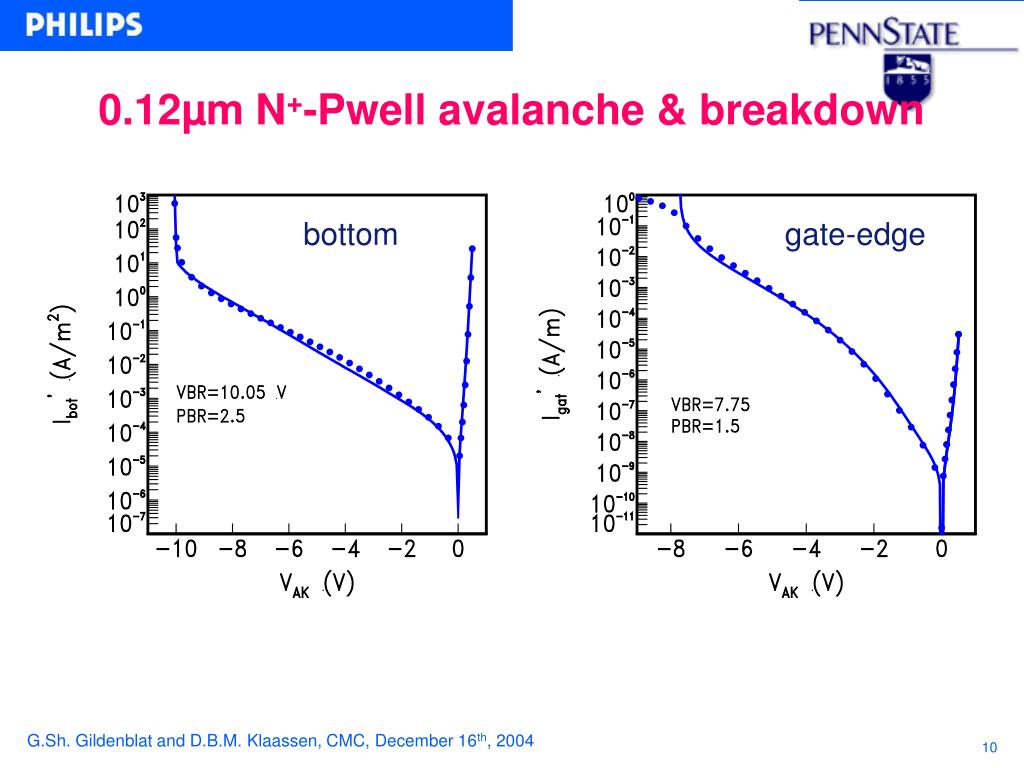

  10. 0.12µm N+-Pwell avalanche & breakdown bottom gate-edge
