Yeast as a model organism. Model eukaryote Experimental genetics Gene function – Orthologs, family members Pathway function - “Biological synteny” Testbed for genomic technologies Genome sequenced (4/96) relatively less complex
E N D
Yeast as a model organism • Model eukaryote • Experimental genetics • Gene function – Orthologs, family members • Pathway function - “Biological synteny” • Testbed for genomic technologies • Genome sequenced (4/96) relatively less complex • Ability to assess biological relevance of the data
Genomics technology developmentYeast as a testbed • Gene expression patterns • DNA microarrays, SAGE • Genomic DNA scans • Mapping complex traits (SNPs) • Phenotype screening • Genome-wide knockouts • Genetic interaction networks • Synthetic lethals • Protein interaction networks • Two-hybrid, mass spectrometry
Affymetrix whole genome yeast array 2 kb Gene1 Gene 2 25mers 25mers • Each gene is probed by multiple oligonucleotide probes (>19). • A control probe is synthesized adjacent to each actual probe • ~120,000 different oligonucleotide sequences for the entire genome. • Entire yeast genome is on 5 arrays (~ 65,000 25 mers on each). Lisa Wodicka, Dave Lockhart, Affymetrix
Mapping complex traits • Construct a SNP genetic map • Perform cross • Analyze rare segregants • Identify regions inherited solely from one parent
YJM789 • Isolated from the lung of an AIDS patient. • Able to grow at 42 °C, form pseudohyphae and undergo colony-morphology switching. • Hypersensitive to cycloheximide. • Polymorphic • one difference every 150 bases relative to sequenced strain Laboratory strain YJM789 parent
Allelic variation between two strains can be detected using arrays. Laboratory strain (non-pathogenic) YJM789 (virulent wild isolate) 2 kb 2 kb Polymorphisms Gene1 Gene1 * * * * 25mers 25mers Mismatch control probe (position 13 of 25) Yeast Array missing signals = markers Since probe locations are known, a genetic map can be constructed: interesting loci (virulence) can be mapped and positionally cloned for study.
Allelic variation in YJM789 • 3808 markers detected by automated analysis of scanned images. • Largest gap = 56 kb • Average frequency = 3000 bases (1.0 cM) • More markers identified in one hybridization than in the past 40 years of yeast genetics.
Verification of markers by tetrad analysis • Expect 90 cross-overs per genome. • Expect clear recombination breakpoints • Expect most markers to segregate 2:2.
Markers segregate as expected 96 crossovers (90 expected). 96% of markers segregate 2:2. Clear breakpoints observed. Segregation of markers in one tetrad (one chromosome)
Haploid Haploid 1 1 Diploid 16 16 ... ... 1 1 16 16 ... Laboratory strain (S96) genotype: MATa, lys5, LYS2, ho, CYH Wild Isolate (YJM789) genotype MATLYS5, lys2, ho::hisG, cyh 16 ... ... ... ... spore 4 spore 1 spore 3 spore 2 (matlys2, LYS5, ho, cyh)
Results of mapping five phenotypic loci in 10 segregants. • Five regions identified that were inherited solely from one parent. • Four encompassed known locations of MAT, LYS5, LYS2, and HO. • Minimum intervals ranged from 12 to 90 kb.
Cycloheximide sensitivity = pdr5 • Cycloheximide sensitivity maps to remaining 56 kb interval on Chromosome XV adjacent to pdr5. • PDR5 is deleted in YJM789. • Wildtype strain, deleted for pdr5 is unable to complement YJM789.
Mapping Complex Traits: Feasibility Summary • Identified 3808 genetic markers. • Demonstrated that traits can be mapped using these markers. • Next step: Map virulence loci.
Virulence in YJM789 • Virulence is a multigenic trait with 5 loci contributing. • Only 5 of 200 segregants from crosses between YJM789 and laboratory strain are virulent. • Genes cannot be cloned by complementation. • Hybridization with arrays is an appropriate way to map all contributing loci simultaneously.

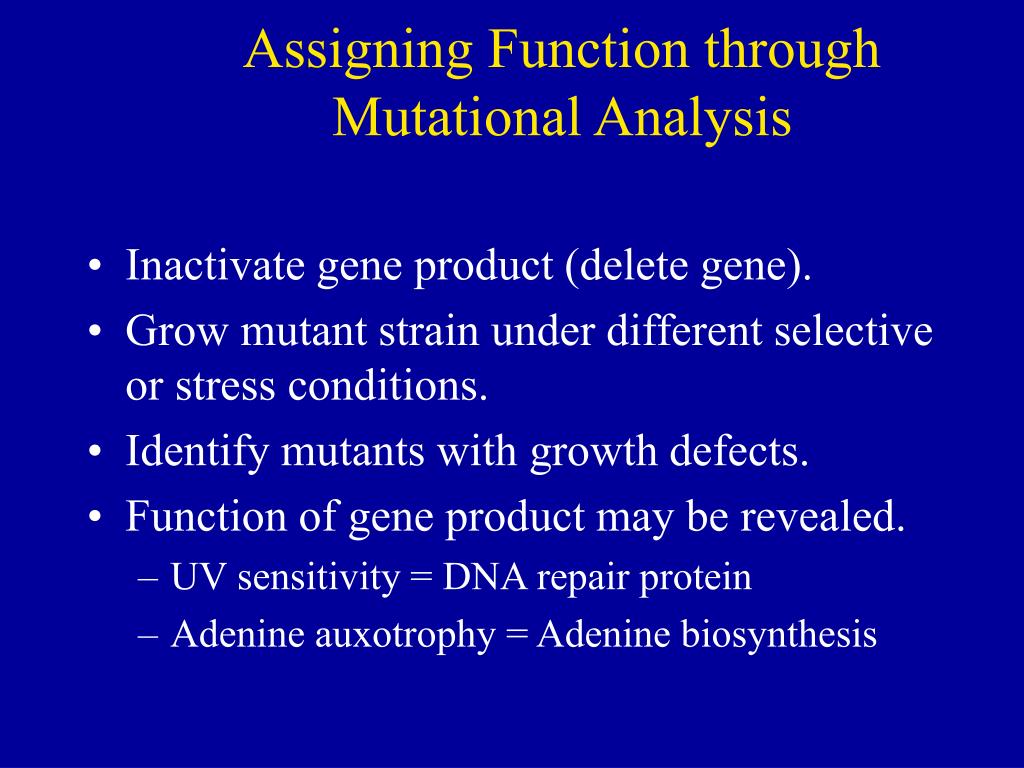

Assigning Function through Mutational Analysis • Inactivate gene product (delete gene). • Grow mutant strain under different selective or stress conditions. • Identify mutants with growth defects. • Function of gene product may be revealed. • UV sensitivity = DNA repair protein • Adenine auxotrophy = Adenine biosynthesis
Construction of yeast deletion strains yeast sequence Amplify selectable marker gene using primers with yeast gene homology at 5’ ends KanR plasmid Deletion Cassette Replace yeast gene by homologous recom-bination Chromosomal Gene
International Deletion Consortium Members Mike Snyder, Jasper Rine, Mark Johnston, Jef Boeke, Howard Bussey, Rosetta, Acacia, Peter Philippsen, Hans Hegemann, Francoise Foury, Guido Volckaert, Bruno Andre, Giogio Valle, Jose Revuelta, Steve Kelly, Bart Scherens 24,000 strains in 3 years
Serial analysis of deletion strains Apply Selection 1 Identify deletion strains with growth defects 2 3 6,000
Molecular tags as strain-identifiers • Unique 20-mers • Good hybridization properties • Similar melting temperatures • More than 5 base differences between each 1.1 x 10 12 possible 20mers 12,000best • Can be introduced during strain construction • Two different tags (UPTAG and DOWNTAG) per strain Shoemaker et al., 1996. Nature Genetics, 14:450-456
Detecting molecular tags in yeast pools Hybridize labeled tags to oligonucleotide array containing tag complements PCR-amplify tags from pooled genomic DNA using fluorescently-labeled primers Each tag has unique location
Tags can be used to perform negative selections on pools Growth in minimal media identifies all known auxotrophic strains Winzeler et., 1999 Science 285:901-906
Genomic profiling of drug sensitivities via “induced haploinsufficiency” Decreased gene dosage from two copies to one copy in heterozygous strains results in increased sensitivity, or drug- induced haploinsufficiency
Strains that are heterozygous for drug target are haploinsufficient in the presence of drug: Giaever et al., 1999. Nature Genetics, 21:278-283
Tunicamycin sensitivity Analysis of pools of heterozygous (and homozygous) strains reveals primary and secondary drug targets G. Giaever, unpublished results
Examples- global screens Synthetic lethals Synthetic dosage lethals Heterozygous diploids Haploinsufficiency modifiers Increased drug sensitivity- (target ID) Direct phenotype screening
Method for genomic synthetic lethal (SL) screen MAT a deletion set YF mutation, plasmid,reporter,…… each deletion strain in quadruplicate Final double mutant selection no growth potential SL interaction Tong et al., 2001 Science,Vol. 294, 2364-2368--- (Boone Lab)
