  1. HomeWork

  2. HomeWork Q. Find I1, I2, I3 and the voltage on the 4 ohms? I3

  3. HomeWork Q. Write all equations required to find I1 – I6? I3 I1 I2 I5 I4

  4. HomeWork Q. Find the current i(t) ?

  5. Transformer Circuits Section 07

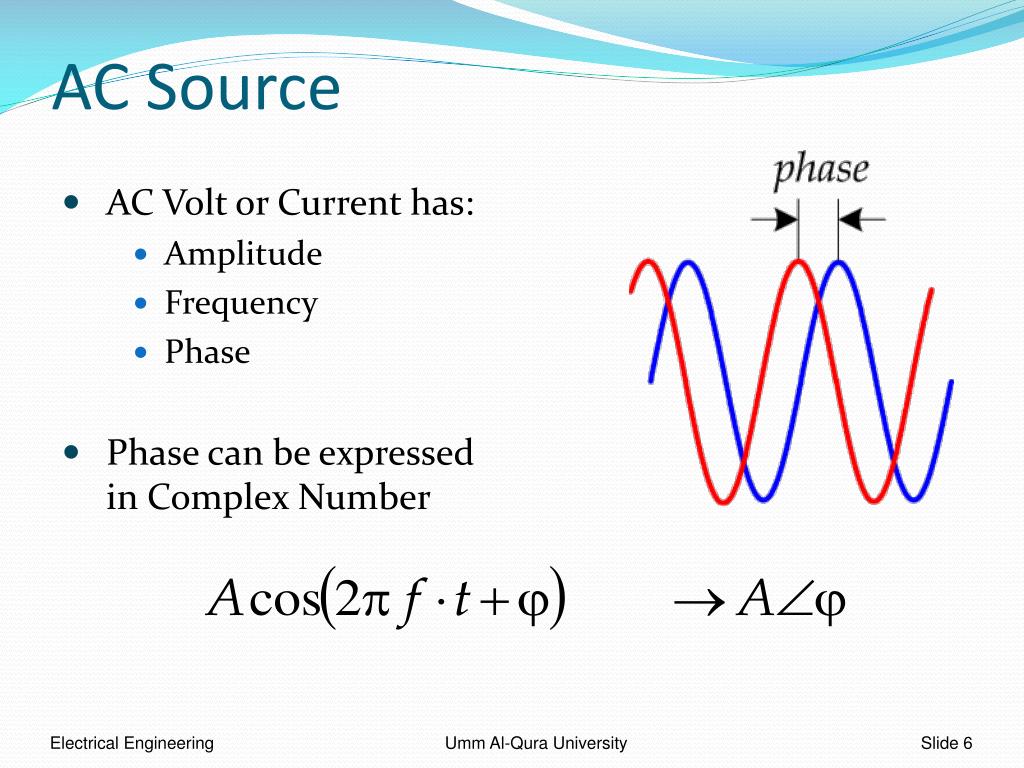

  6. AC Source • AC Volt or Current has: • Amplitude • Frequency • Phase • Phase can be expressedin Complex Number Electrical Engineering Umm Al-Qura University

  7. SINUSOIDS As function of time Dimensional plot

  8. LEARNING EXAMPLE Lags by 315 Leads by 45 degrees Leads by 225 or lags by 135

  9. Activity Electrical Engineering Umm Al-Qura University
