  1. Cloud Computing - Security Steven C. Markey, MSIS, PMP, CISSP, CIPP, CISM, CISA, STS-EV, CCSK Principal, nControl, LLC Adjunct Professor, Philadelphia University

  2. Cloud Security Risk & Cloud Security Guidance SPI Security Offerings Identity & Access Mgmt (IAM) Explained Public Key Infrastructure (PKI) Explained Virtualization Security Explained Securing Your Public Cloud Secure Cloud Options Service-Level Agreements (SLAs)

  3. Risk & Cloud • The Cloud is Perceived as Risky Business • Lack of Control • Immature Vendors/Technologies • Hacks, Outages, Natural Disasters….Oh My! Source: Youtube

  4. Risk & Cloud • Things to Look for in a Cloud Provider • Industry Experience • Process Alignment • Business Model/Technical Strategy

  5. Industry Experience Industry Vertical Jurisdictional Mandates Business Ecosystem Scalability

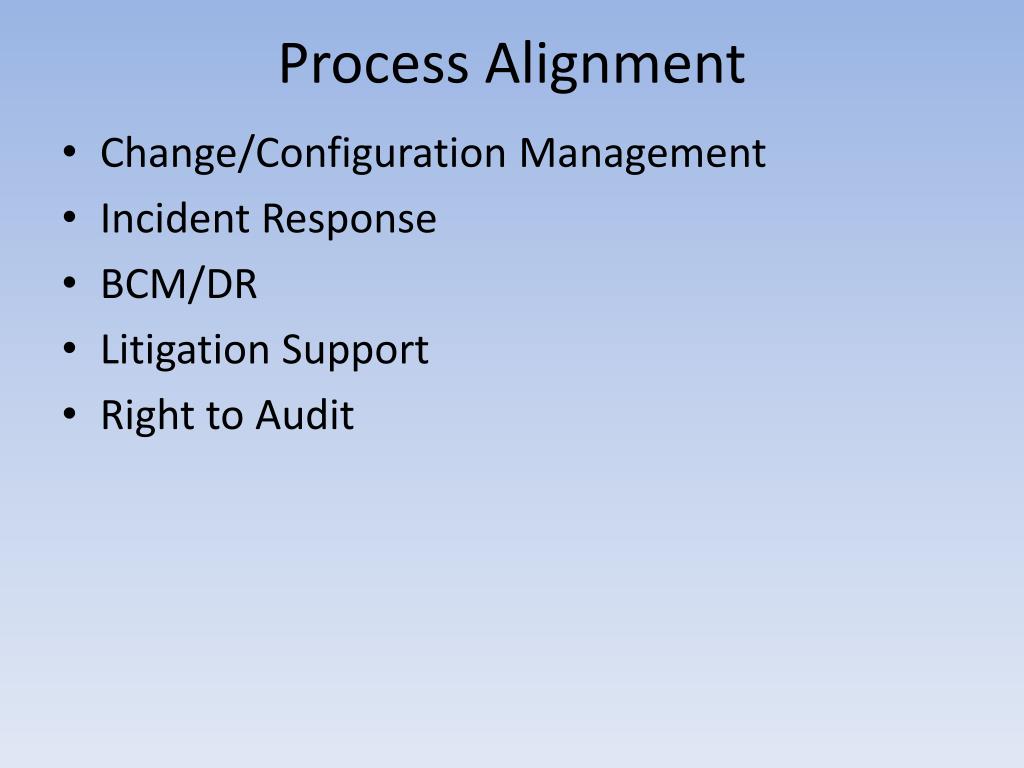

  6. Process Alignment Change/Configuration Management Incident Response BCM/DR Litigation Support Right to Audit

  7. Business Model/Technical Strategy Platform Geographic/Demographic Market Core Competency Pricing

  8. Security Guidance • CSA Guide v2.1 • ENISA Cloud Computing Risk Assessment • NIST SP 800-144 Guidelines Sec/Privacy Public

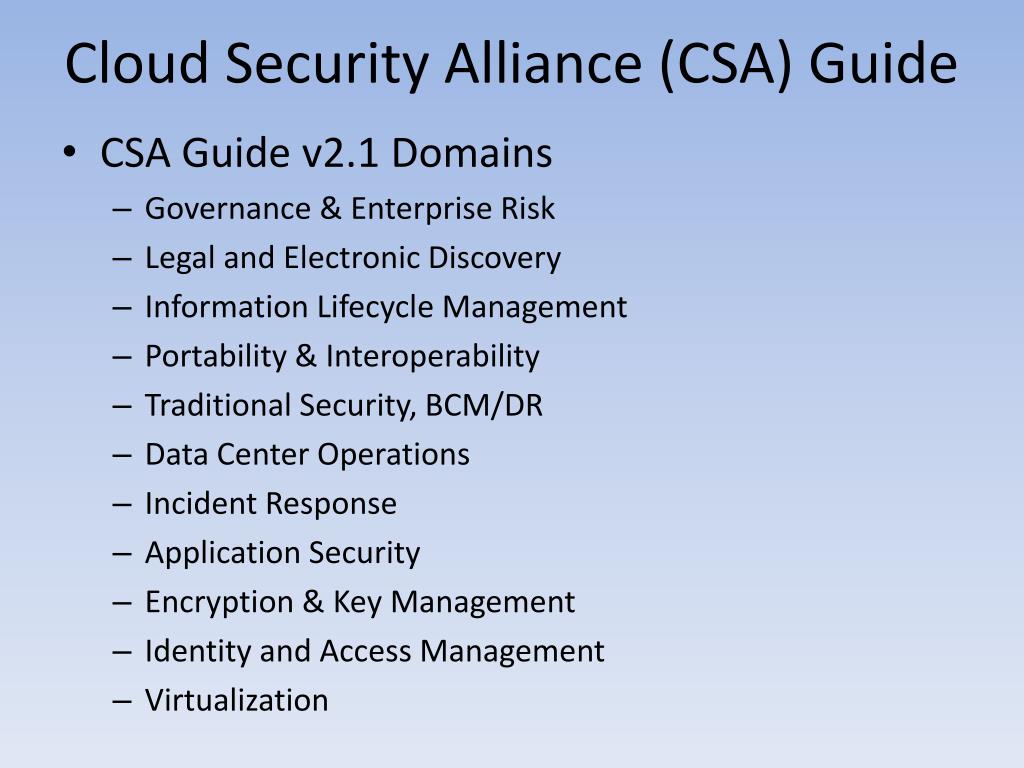

  9. Cloud Security Alliance (CSA) Guide • CSA Guide v2.1 Domains • Governance & Enterprise Risk • Legal and Electronic Discovery • Information Lifecycle Management • Portability & Interoperability • Traditional Security, BCM/DR • Data Center Operations • Incident Response • Application Security • Encryption & Key Management • Identity and Access Management • Virtualization

  10. ENISA Risk Assessment • ENISA Information Assurance Requirements • Personnel Security • Supply-Chain Assurance • Operational Security • Identity and Access Management • Asset Management • Data and Service Portability • Business Continuity Management • Physical Security • Environmental Controls • Legal Requirements

  11. NIST SP 800-144 • NIST SP 800-144 Domains • Governance • Compliance • Trust • Architecture • Identity and Access Management • Software Isolation • Data Protection • Availability • Incident Response

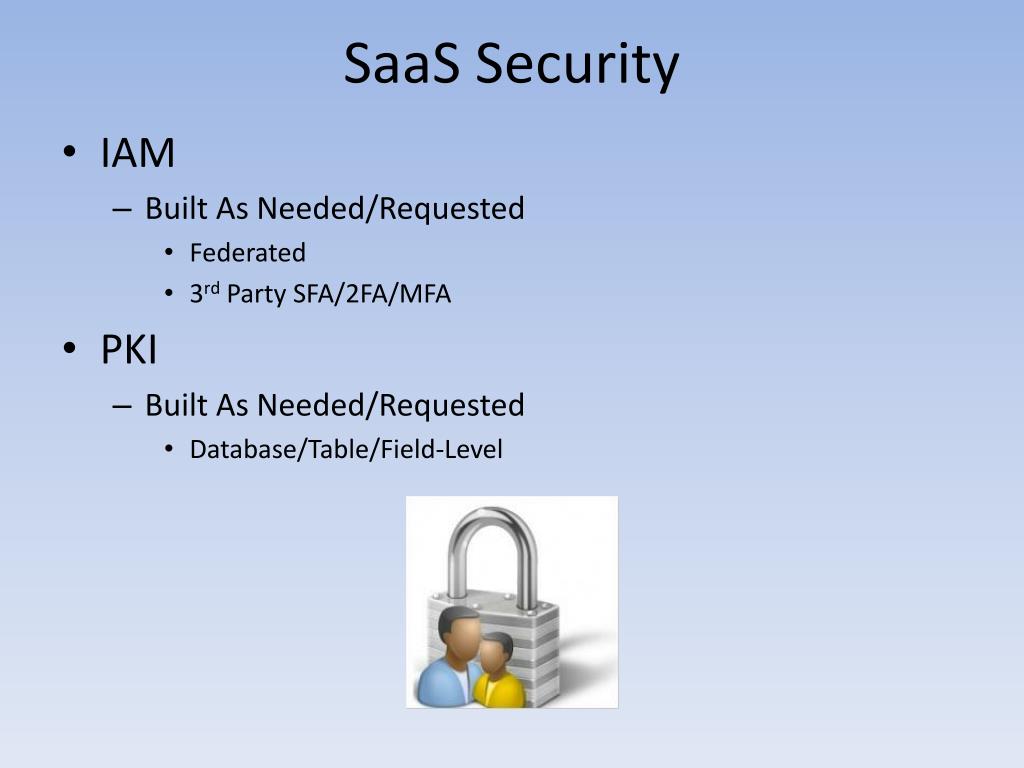

  12. SaaS Security • IAM • Built As Needed/Requested • Federated • 3rd Party SFA/2FA/MFA • PKI • Built As Needed/Requested • Database/Table/Field-Level

  13. PaaS Security • IAM • Built Into Application • Federated • OpenID • OAuth • SAML • WS-Trust • REST • Active Directory Federation Services (ADFS) • Windows Identity Foundation (WIF) • Windows Security Token Service (STS) • 3rd Party SFA/2FA/MFA • Google Has Native Offering (Probably Reselling)

  14. PaaS Security • PKI • General • SSL/TLS Support • Force.com • Spring ‘11 • Encryption and Key Management • Windows/SQL Azure • Crypto Services • Transparent Data Encryption (TDE) • Cryptographic Service Providers (CSPs)

  15. IaaS Security • PKI • General • Supported, Build It And They Will Come • Storage • Encrypt First, Then Upload

  16. IAM Explained • IAM Technologies • Kerberos • RADIUS • SSO • Federated

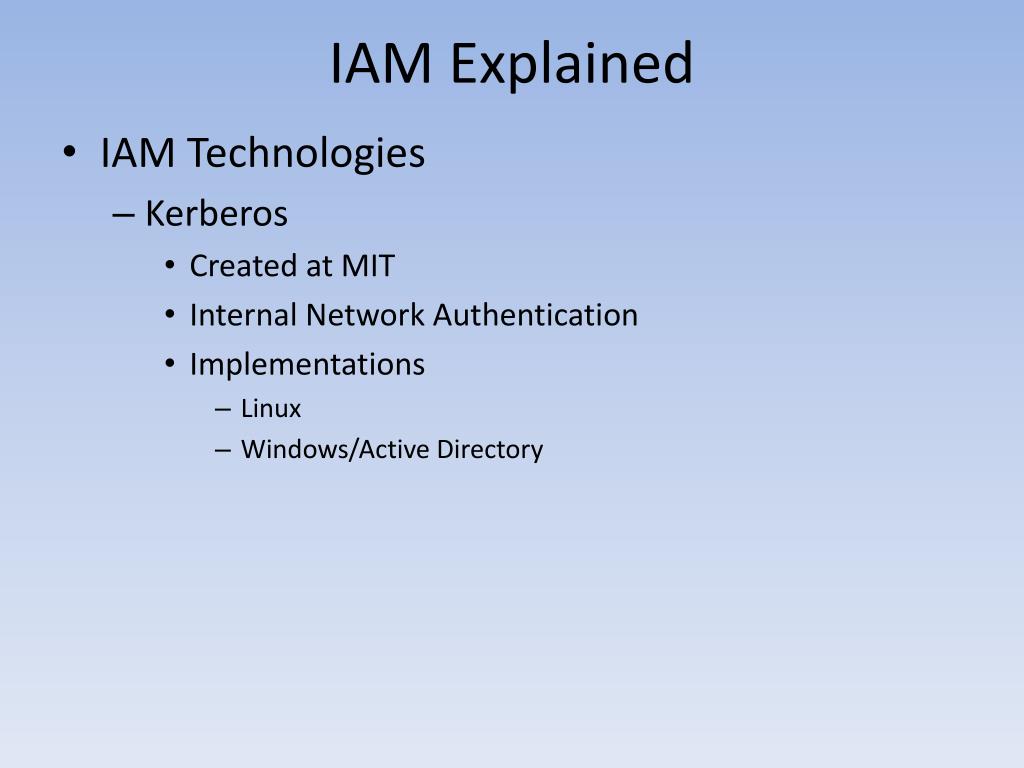

  17. IAM Explained • IAM Technologies • Kerberos • Created at MIT • Internal Network Authentication • Implementations • Linux • Windows/Active Directory

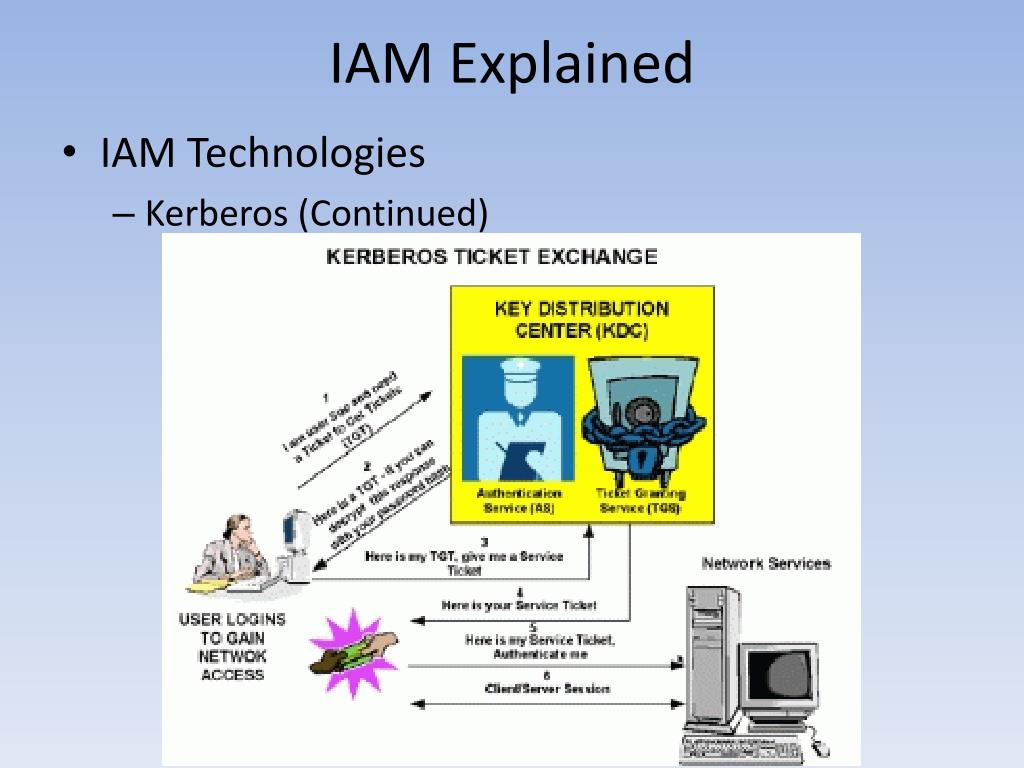

  18. IAM Explained • IAM Technologies • Kerberos (Continued)

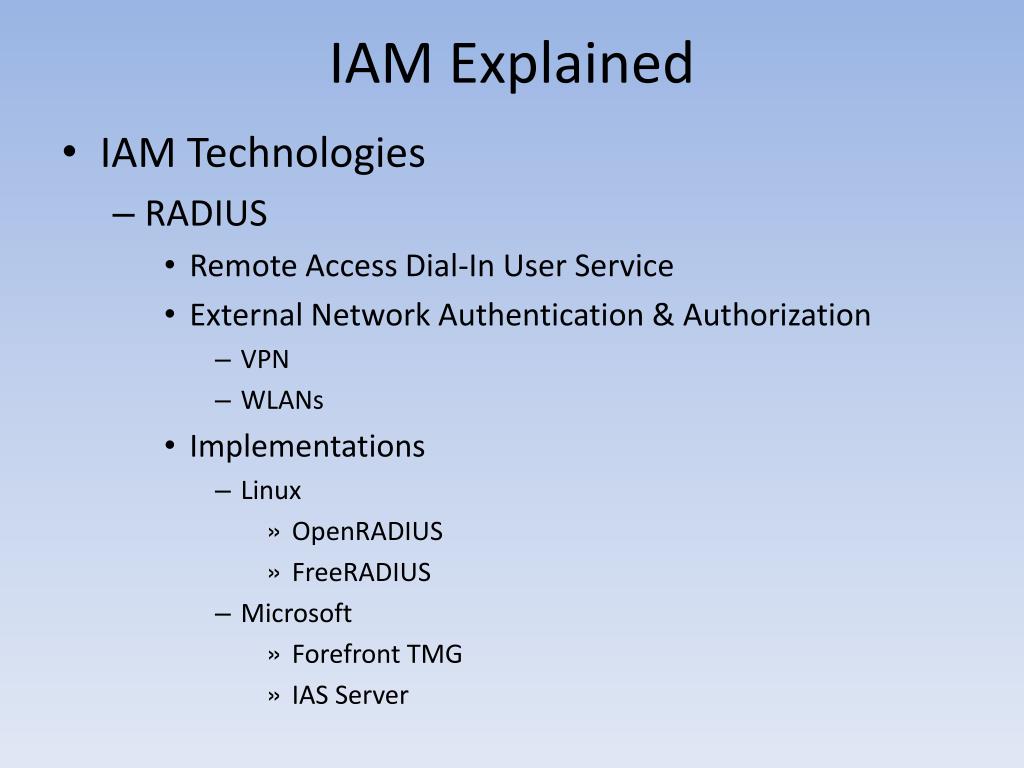

  19. IAM Explained • IAM Technologies • RADIUS • Remote Access Dial-In User Service • External Network Authentication & Authorization • VPN • WLANs • Implementations • Linux • OpenRADIUS • FreeRADIUS • Microsoft • Forefront TMG • IAS Server

  20. IAM Explained • IAM Technologies • SSO • Single Sign-On • Allows User to Gain Access to Multiple Systems/Apps • Negates Password Fatigue • Implementations • Externally • OTP: One-Time Password • Smart Card • Internally • Kerberos • LDAP: Lightweight Directory Access Protocol • Windows Integrated Authentication (Through LDAP)

  21. IAM Explained • IAM Technologies • Federated • OpenID • OAuth • SAML • WS-Trust • REST • ADFS • WIF • STS

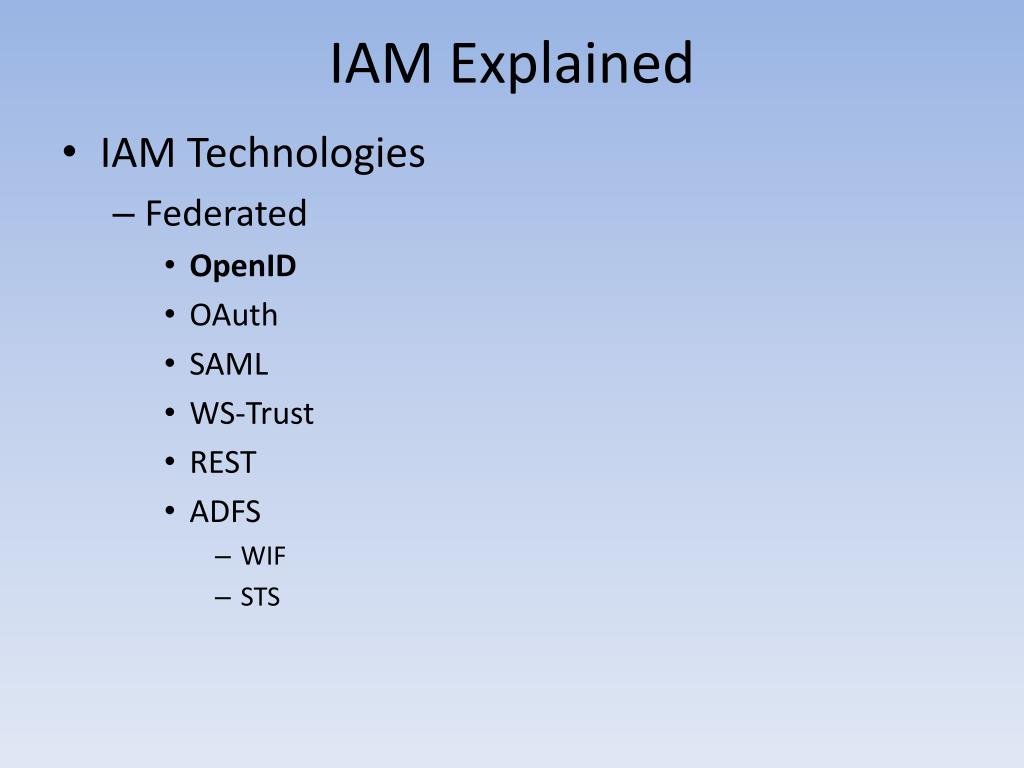

  22. IAM Explained • IAM Technologies • Federated • OpenID • OAuth • SAML • WS-Trust • REST • ADFS • WIF • STS

  23. OpenID

  24. OpenID

  25. IAM Explained • IAM Technologies • Federated • OpenID • OAuth • SAML • WS-Trust • REST • ADFS • WIF • STS

  26. IAM Technologies • Federated • OAuth • Authorization Only • Through Tokens

  27. IAM Explained • IAM Technologies • Federated • OpenID • OAuth • SAML • WS-Trust • REST • ADFS • WIF • STS

  28. IAM Explained • IAM Technologies • Federated • OpenID • OAuth • SAML • WS-Trust • REST • ADFS • WIF • STS

  29. IAM Explained

  30. IAM Explained

  31. IAM Explained • IAM Technologies • Federated • OpenID • OAuth • SAML • WS-Trust • REST • ADFS • WIF • STS

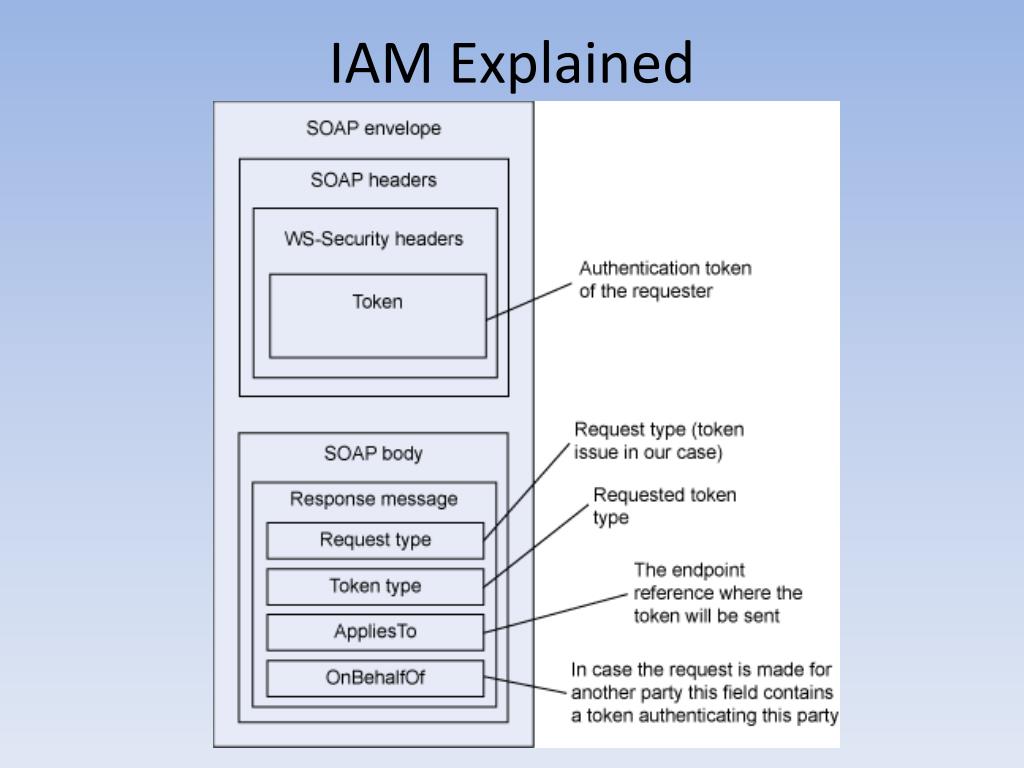

  32. IAM Explained

  33. IAM Explained • IAM Technologies • Federated • OpenID • OAuth • SAML • WS-Trust • REST • ADFS • WIF • STS

  34. IAM Explained

  35. IAM Explained • IAM Technologies • Federated • OpenID • OAuth • SAML • WS-Trust • REST • ADFS • WIF • STS

  36. IAM Explained

  37. IAM Explained • IAM Technologies • Federated • OpenID • OAuth • SAML • WS-Trust • REST • ADFS • WIF • STS

  38. IAM Explained

  39. PKI Explained • Crypto Terms • Encryption • Takes input data and a secret key and outputs data that appears to bear no relation to the input data. • Hashing • Takes input data and outputs a fixed size chunk of data that uniquely represents the input data. • Symmetric Key • Same key to encrypt/decrypt data – known receiver • Asymmetric Key • Different key to encrypt/decrypt data – unknown receiver

  40. PKI Explained • Crypto Examples • Symmetric Key • Deployment: IPSec (AH, ESP), Database, Tape, DRM • Asymmetric Key • Deployment: HTTPS (HTTP & SSL/TLS), WLAN, IPSec (IKE), S-MIME, SSH, SFTP • Hash Functions • HMAC: MD5, SHA1/2 • Encryption • Symmetric Algorithms: AES, Twofish, Serpent, DES, Triple DES (TDES) • Asymmetric Algorithms: Diffie-Hellman, RSA, ECC, DSA, El Gamal

  41. PKI Explained • PKI: 50,000 Feet • Asymmetric Key & HMAC • Public & Private Key • Leverages Symmetric Algorithm for Plaintext • Architecture • Sender: Private—Public  Receiver: Public—Private • Analogy • Sender: Cipher—USPS  Receiver: USPS—Cipher

  42. PKI Explained Ciphertext

  43. PKI Explained • Digital Signature • Digital Certificate • X.509

  44. Virtualization Best Practice

  45. Securing Your Public Cloud • AWS – Virtual Firewall Source: Amazon

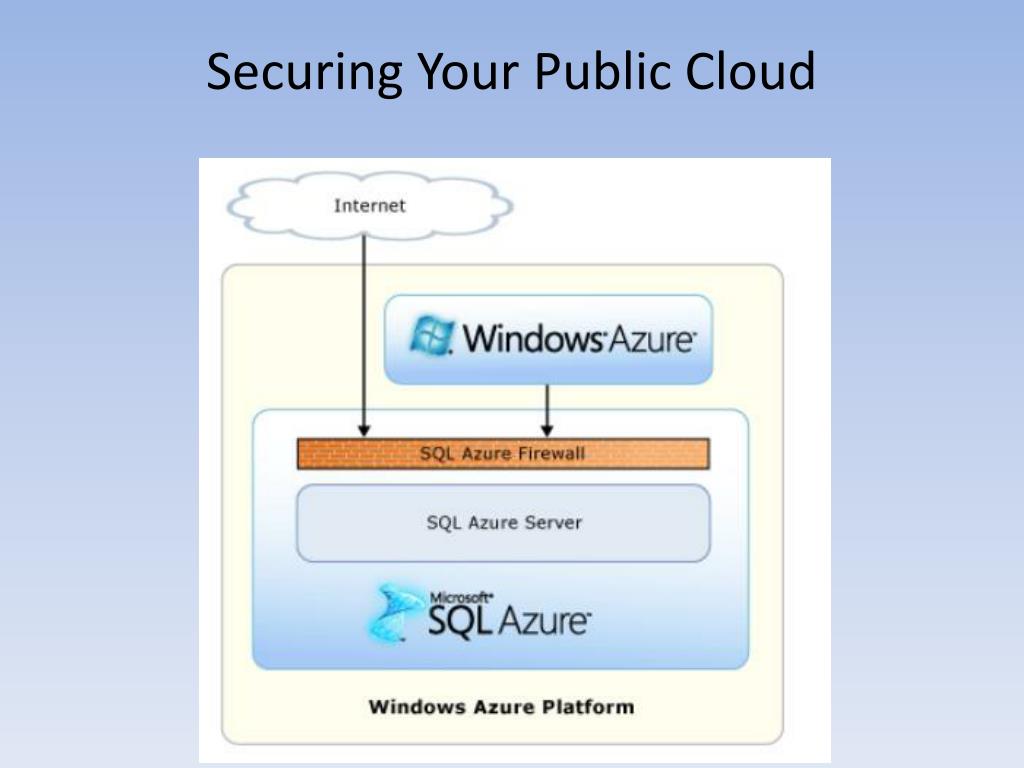

  46. Securing Your Public Cloud

  47. Securing Your Public Cloud Source: VPN-Cubed

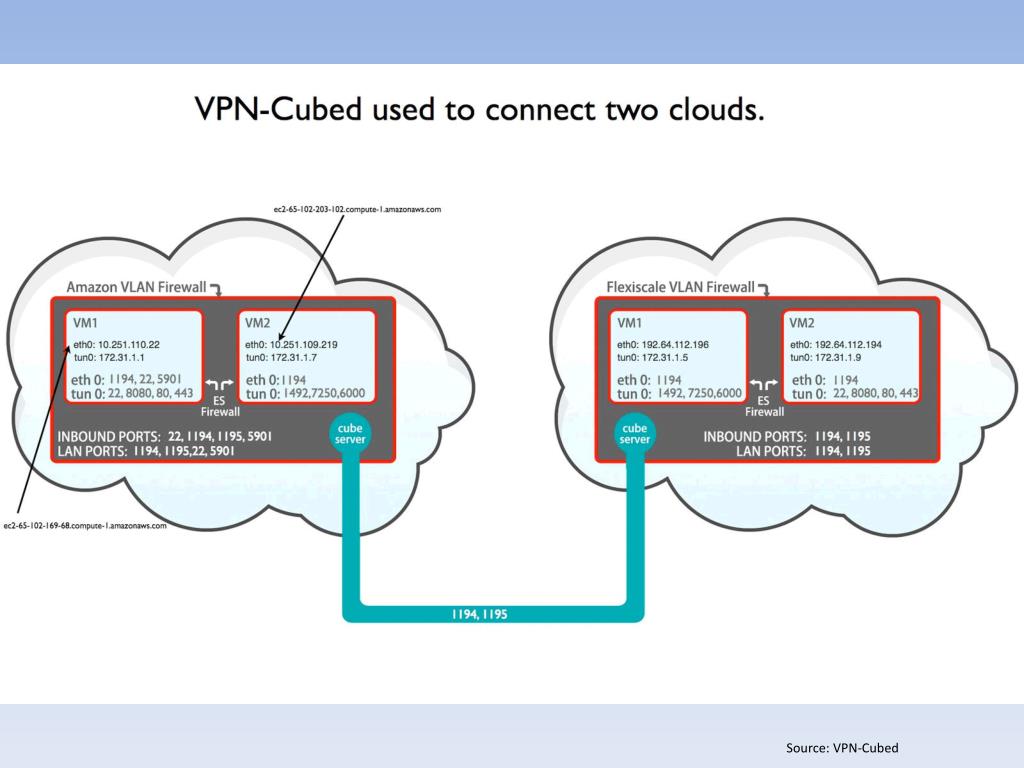

  48. Source: VPN-Cubed
