  1. Applied Cryptography Spring 2014

  2. Lecture times • Thursdays 14:30-16:00 room 413 • 16 lectures • Some changes are possible (but hopefully, not too • many).

  3. Requirements • Attend lectures (if you want to) • Collect at least 20 points • 2 practical assignments 20 points each • Written exam 20 points • Any of the above is optional • The grade will be calculated (approximately) as follows: • 10 56-60 6 32-38 • 9 52-55 5 24-31 • 8 46-51 4 20-23 • 7 39-45

  4. Problems covered • Text encryption/decryption • Ciphers • Digital signatures • Hash functions • Digital signature algorithms • Protocols • Key generation and exchange • Certificates • Some real cryptographic systems • SSL and TLS standards (+ some others), email security • Smartcards, EMV, data authentication • GSM and cryptograpy, DVD "protection" etc • Security of encryptions. Some attacks

  5. Problems covered • Text encryption/decryption • Ciphers • Symmetric and asymmetric ciphers

  6. Symmetric vs. asymmetric cryptography • Symmetric ciphers – sender and recipient use the same key • Dkey(Ekey(m)) = m • Substitution cipher is an example of a symmetric cipher • Impractical for big systems – number of keys is quadratic in the number of users • The solution – asymmetric algorithms. Think of a locked mailbox! Different keys for encryption and decryption • Dprivate key(Epublic key(m)) = m

  7. Problems covered • Text encryption/decryption • Ciphers • Symmetric and asymmetric ciphers • Which ciphers to use? • Substitution

  8. Simple example – substitution cipher • The key is a permutation of the letters of the alphabet, i.e. a bijection • Encryption is performed by substituting each letter for its corresponding letter • Decryption is the same as encryption with the difference that the inverse is used

  9. Substitution cipher – example • Example: Encrypt MY DOG ATE YOUR CAT using the key U

  10. Breaking the substitution cipher • Substitution ciphers are easily broken using frequency analysis • We use the fact that different letters (or combination of letters) occur with different probability • Example – break TK IL KQ JKT TK IL TBST CR TBL OULRTCKJ • Frequency of letters in English: ETAOINSHRDLU • Most common two letter words: OF TO IN IS IT BE BY HE AS ON AT OR AN SO IF NO

  11. Problems covered • Text encryption/decryption • Ciphers • Symmetric and asymmetric ciphers • Which ciphers to use? • Substitution • XOR

  12. Vigenère cipher (poly-alphabetic) • Example: Encryption key - string of n characters e.g. "gold" We represent it with numbers corresponding to symbols from alphabet - (6,14,11,13) To encrypt i-th symbol from the block of length n, we add to it i-th number from the key (modulo size of alphabet) U

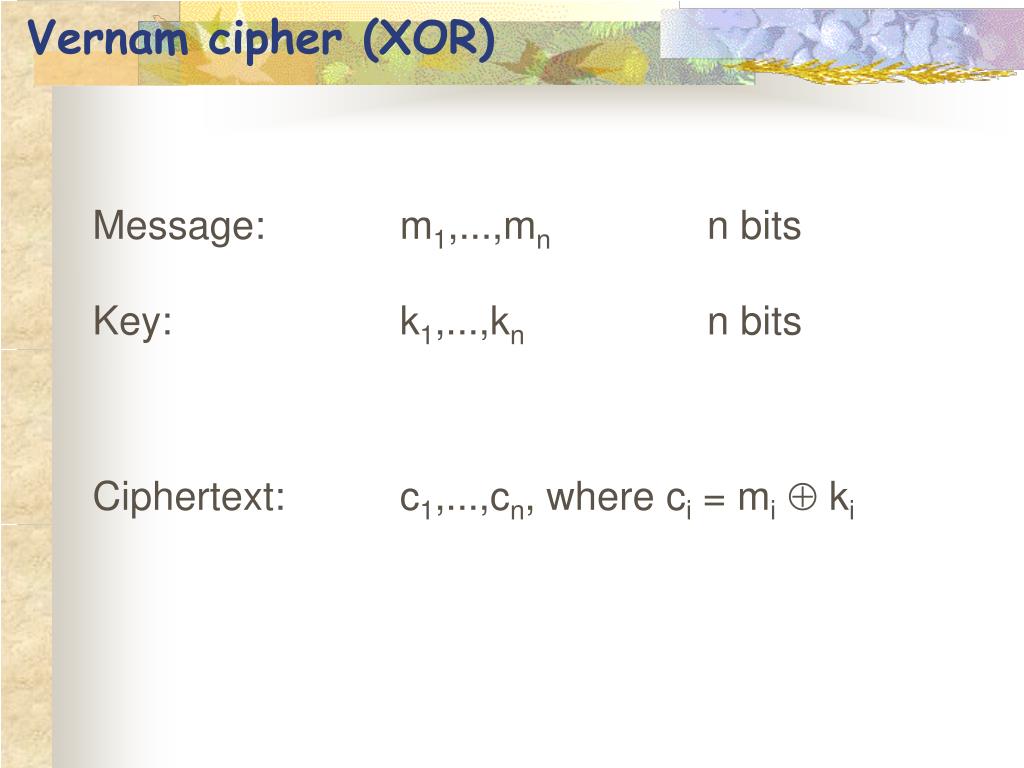

  13. Vernam cipher (XOR) Message: m1,...,mn n bits Key: k1,...,kn n bits Ciphertext: c1,...,cn, where ci = mi ki U

  14. Problems covered • Text encryption/decryption • Ciphers • Symmetric and asymmetric ciphers • Which ciphers to use? • Substitution • XOR • DES, IDEA, AES etc (symmetric)

  15. Data Encryption Standard (DES) • Financial companies found the need for a cryptographic algorithm that would have the blessing of the US government (=NSA) • First call for candidates in May 73, followed by a new call in August 74 • Not very many submissions (Why?) • IBM submitted Lucifer • NSA worked with IBM in redesigning the algorithm [From Andre L. M. dos Santos ]

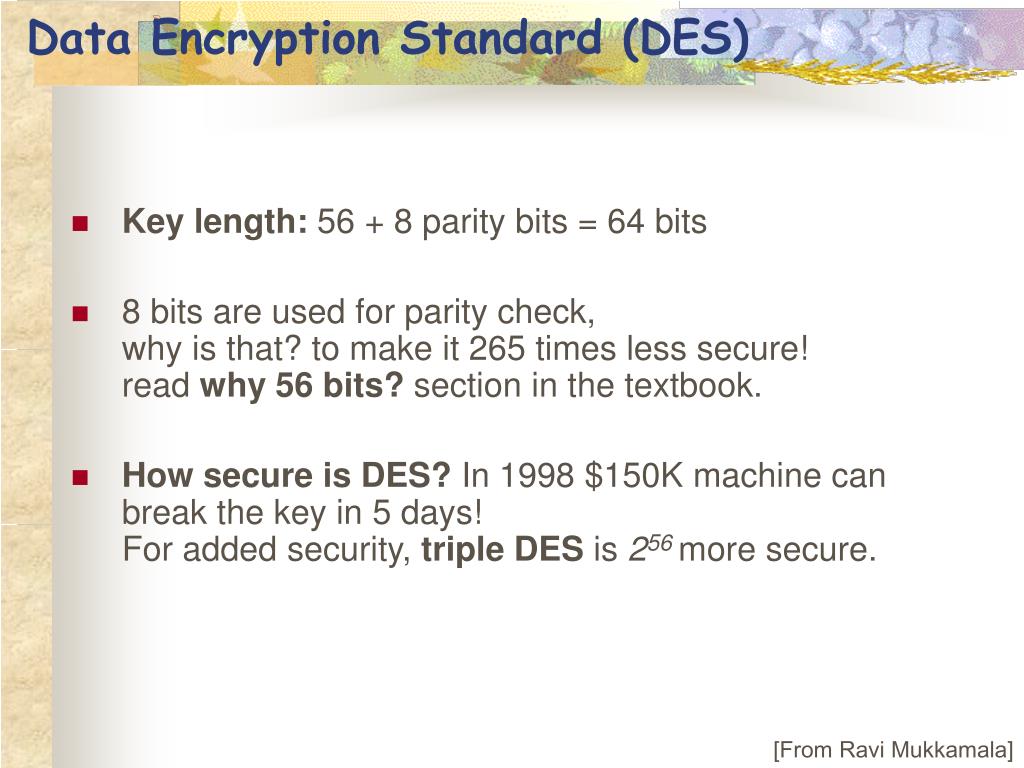

  16. Data Encryption Standard (DES) • Key length: 56 + 8 parity bits = 64 bits • 8 bits are used for parity check, why is that? to make it 265 times less secure! read why 56 bits? section in the textbook. • How secure is DES? In 1998 $150K machine can break the key in 5 days! For added security, triple DES is 256more secure. [From Ravi Mukkamala]

  17. DES Enciphering Computation [From Sai Kovvuri]

  18. DES [From Henric Johnson]

  19. Time to break a code (106 decryptions/µs) [From Henric Johnson]

  20. Problems covered • Text encryption/decryption • Ciphers • Symmetric and asymmetric ciphers • Which ciphers to use? • Substitution • XOR • DES, IDEA, AES etc (symmetric) • RSA etc (asymmetric)

  21. Asymmetric cryptography • Each user has a public and a private key • The public key is published in a “phone book” • The private key is kept secret • Messages encrypted with the public key can be decrypted with the private key • To send a message to Mårten, look up Mårten’s public key in the “phone book”. • Mårten can then decrypt the message with his private key • Number of keys is linear in the number of users

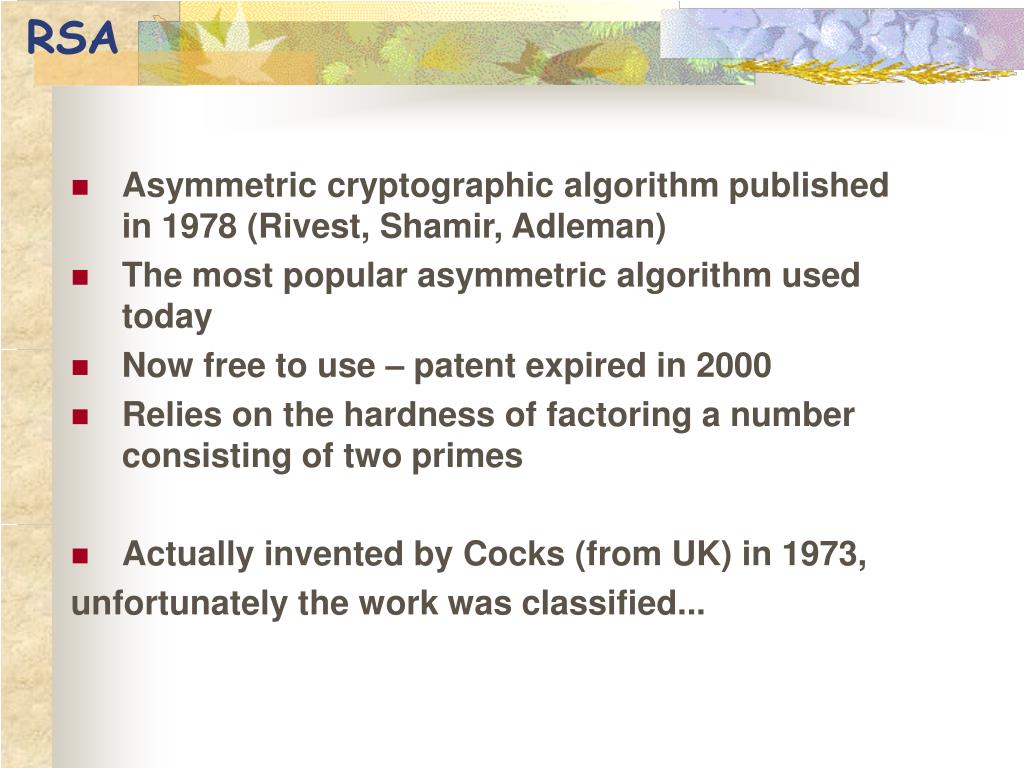

  22. RSA • Asymmetric cryptographic algorithm published in 1978 (Rivest, Shamir, Adleman) • The most popular asymmetric algorithm used today • Now free to use – patent expired in 2000 • Relies on the hardness of factoring a number consisting of two primes • Actually invented by Cocks (from UK) in 1973, unfortunately the work was classified...

  23. Public-key cryptosystems P: *  * public key S: *  * secret key • For an arbitrary message M* we must have: • M = S(P(M)), and • M = P(S(M))

  24. Public-key cryptosystems - Encryption [Adapted from T.Cormen, C.Leiserson, R. Rivest]

  25. The RSA public-key cryptosystem p,q - two large primes (100 digits or more) n = pq e - small odd integer that is relatively prime to (p– 1)(q– 1) d - integer such that de  1 (mod(p– 1)(q– 1)) (it can be shown that it always exists) P = (e,n) - public key S = (d,n) - secret key Encoding: P(M) = Me(mod n) Decoding: S(C) = Cd(mod n) It works!

  26. RSA - Correctness n = pq e - odd and relatively prime to (p – 1)(q – 1) d - such that de  1(mod(p– 1)(q– 1)) P(M) = Me(mod n), S(C) = Cd(mod n) P(S(M)) = S(P(M)) = Med (mod n), ed = 1 + k(p– 1)(q– 1) M 0 (mod p)  MedM(Mp–1)k(q–1) (mod p)  M(1)k(q–1) (mod p)  M(mod p) M 0 (mod p)  Med M(mod p)

  27. RSA - Correctness Med M(mod p) Med M(mod q) Thus Med M(mod n)

  28. RSA - Complexity Encoding: P(M) = Me(mod n) Decoding: S(C) = Cd(mod n)

  29. Breaking RSA • If we can factor n we can break RSA • Suppose we know p, q such that pq = n • We can compute (p – 1)(q – 1) • It is now trivial to compute d = e-1 mod ((p – 1)(q – 1)) • The largest number that is (publicly) known to have been factored today is 512 bits

  30. Breaking RSA • If we can factor n we can break RSA • Suppose we know p, q such that pq = n • We can compute (p – 1)(q – 1) • It is now trivial to compute d = e-1 mod ((p – 1)(q – 1)) • The largest number that is (publicly) known to have been factored today is 512 bits • As of 2005 the largest number factored by general-purpose methods was 663 bits long

  31. Breaking RSA • If we can factor n we can break RSA • As of 2005 the largest number factored by general-purpose methods was 663 bits long • RSA keys are typically 1024–2048 bits long. Some experts believe that 1024-bit keys may become breakable in the near term (though this is disputed); few see any way that 4096-bit keys could be broken in the foreseeable future. • Other attacks exist for certain uses of RSA

  32. Problems covered • Text encryption/decryption • Ciphers • Symmetric and asymmetric ciphers • Which ciphers to use? • Substitution • XOR • DES, IDEA, AES etc (symmetric) • RSA etc (asymmetric) • Stream ciphers and block ciphers

  33. Block ciphers • A block cipher B is an encryption function Ekey:{0,1}k {0,1}l and a decryption function Dkey:{0,1}l {0,1}k such thatDkey(Ekey(m)) = m. • The value k is called block length. Usually k = l. • Commonly used block ciphers include DES, 3DES and IDEA. Clear (plain) text Cipher text n bits Key

  34. Stream ciphers

  35. Problems covered • Text encryption/decryption • Ciphers • Symmetric and asymmetric ciphers • Which ciphers to use? • Substitution • XOR • DES, IDEA, AES etc (symmetric) • RSA etc (asymmetric) • Stream ciphers and block ciphers • Chaining

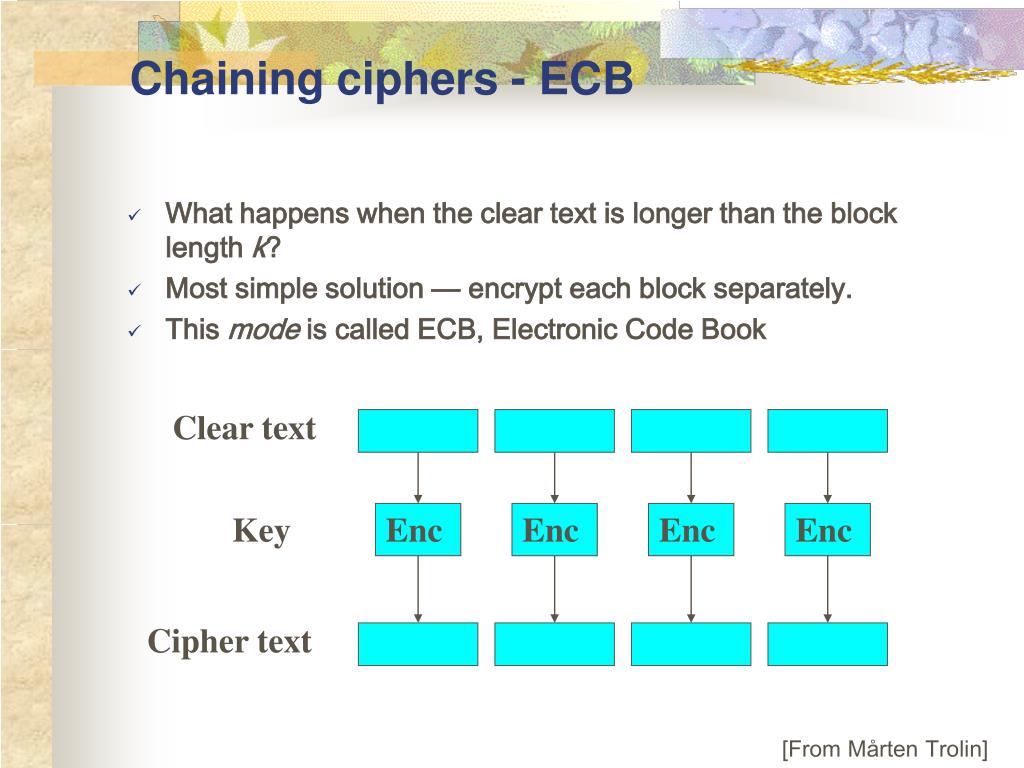

  36. Chaining ciphers - ECB Clear text Key Enc Enc Enc Enc Cipher text • What happens when the clear text is longer than the block length k? • Most simple solution — encrypt each block separately. • This mode is called ECB, Electronic Code Book [From Mårten Trolin]

  37. Chaining ciphers - CBC

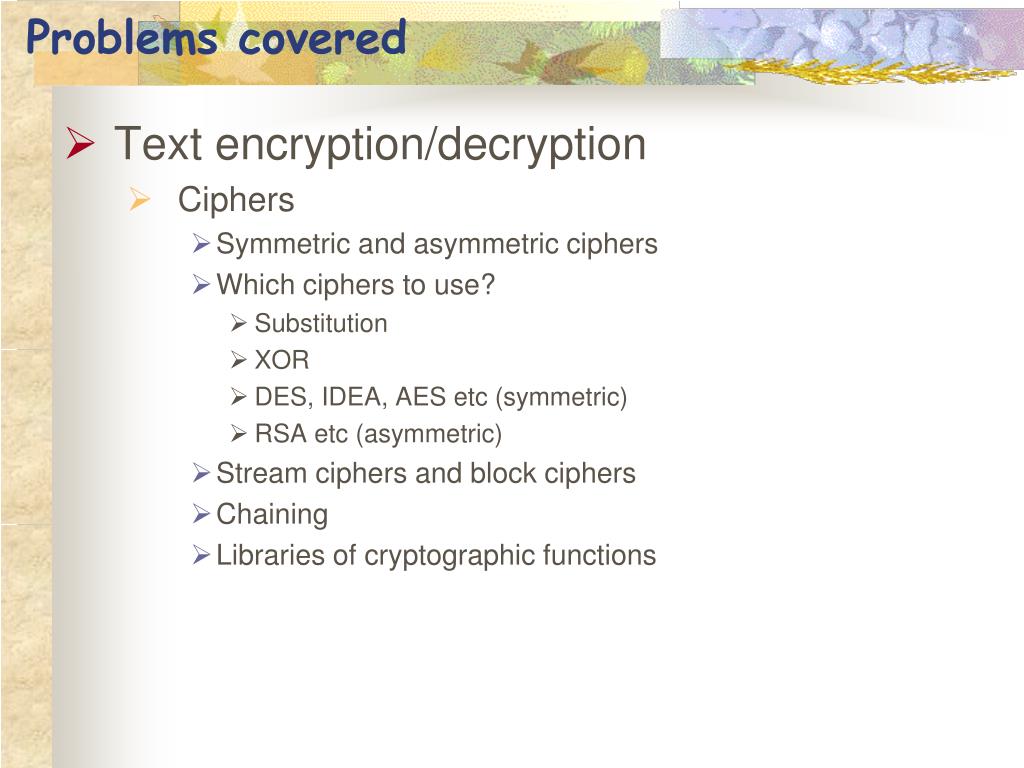

  38. Problems covered • Text encryption/decryption • Ciphers • Symmetric and asymmetric ciphers • Which ciphers to use? • Substitution • XOR • DES, IDEA, AES etc (symmetric) • RSA etc (asymmetric) • Stream ciphers and block ciphers • Chaining • Libraries of cryptographic functions

  39. Problems covered • Text encryption/decryption • Ciphers • Symmetric and asymmetric ciphers • Which ciphers to use? • Stream and block ciphers • Chaining • Stream ciphers and block ciphers • Chaining • Libraries of cryptographic functions • Digital signatures • Hash functions • MD5, SHA-1 etc

  40. Public-key cryptosystems - Digital signature [Adapted from T.Cormen, C.Leiserson, R. Rivest]

  41. Properties of good hash functions • Let H be a hash function • One-way • Given x, unfeasible to compute an v such that H(v) = x • Collision-free • Unfeasible to find x1 and x2 such that H(x1) = H(x2) and x1x2

  42. MD5 Message Digest Algorithm MD5 • Step 1: Append padding bits • Padded so that its bit length  448 mod 512 (i.e., the length of padded message is 64 bits less than an integer multiple of 512 bits) • Padding is always added, even if the message is already of the desired length (1 to 512 bits) • Padding bits: 1000….0 (a single 1-bit followed by the necessary number of 0-bits) [From H. Yoon]

  43. MD5 Message Digest Algorithm MD5 • Step 1: Append padding bits • Step 2: Append length • 64-bit length: contains the length of the original message modulo 264 • The expanded message is Y0, Y1, …, YL-1; the total length is L  512 bits • The expanded message can be thought of as a multiple of 16 32-bit words • Let M[0 … N-1] denote the word of the resulting message, where N = L  16 [From H. Yoon]

  44. MD5 Message Digest Algorithm    MD5 MD5 processing of a single 512-bit block (MD5 compression function) [From H. Yoon]

  45. Another use of hash functions - passwords httpd:Nologin:100:22:httpd:/usr/users/httpd:/bin/sh guest:41LYDCYHYJzHQ:200:15:Guest:/usr/users/guest:/bin/tcsh oracle:Nologin:201:200::/usr/users/oracle:/bin/tcsh mysql:LS6qP.LbvchSk:202:202::/usr/users/mysql:/bin/tcsh Andris:Ie7K1yjGLDqsw:203:203::/usr/users/Andris:/bin/tcsh Password length up to 8 characters, encrypted by 1-way hash function crypt(3).

  46. Problems covered • Text encryption/decryption • Ciphers • Symmetric and asymmetric ciphers • Which ciphers to use? • Stream and block ciphers • Chaining • Stream ciphers and block ciphers • Chaining • Libraries of cryptographic functions • Digital signatures • Hash functions • MD5, SHA-1 etc • Digital signature algorithms (DSA etc)

  47. Digital signature algorithm - DSA

  48. Problems covered • Text encryption/decryption • Ciphers • Digital signatures • Hash functions • Digital signature algorithms • Protocols • Key generation and exchange

  49. What is a protocol? • Protocol - a series of steps, involving two or more parties, • designed to accomplish a task. • For cryptographic protocols: • — It should not be possible to do more or learn more than • what is specified in the protocol

  50. Types of protocols
