Inclusive Jet Cross Section at CDF

HRPN-CT-2002-00292 E.U. Research Training Network Probe for New Physics. Inclusive Jet Cross Section at CDF. Régis Lefèvre IFAE Barcelona on behalf of the CDF Collaboration. HEP-EPS 2005 International Europhysics Conference on High Energy Physics July 21 st -27 th 2005, Lisboa, Portugal.

erma
Télécharger la présentation

Inclusive Jet Cross Section at CDF

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. HRPN-CT-2002-00292 E.U. ResearchTraining Network Probe for New Physics Inclusive Jet Cross Section at CDF Régis Lefèvre IFAE Barcelona on behalf of the CDF Collaboration HEP-EPS 2005 International Europhysics Conferenceon High Energy Physics July 21st-27th 2005, Lisboa, Portugal

  2. Outline • Introduction • Tevatron • CDF • Motivations • Cone Jet Algorithms and pQCD • KT Algorithm • Framework - Related Topics • Underlying Event • Jet Shapes • Jet Energy Scale • Results • Inclusive Jet Production Cross Section using the KT Algorithm • Inclusive Jet Production Cross Section using the Midpoint Algorithm • Conclusion and Outlook Régis Lefèvre, HEP-EPS 2005, July 21st 2005, Lisboa, Portugal

  3. Tevatron • Proton-antiproton collisions • s = 1.96 TeV (Run I  1.8 TeV) • 36 bunches: 396 ns crossing time • Peak luminosity ~ 1032 cm-2 s-1 • Weekly integrating 12 to 20 pb-1 • About 1.1 fb-1 delivered Régis Lefèvre, HEP-EPS 2005, July 21st 2005, Lisboa, Portugal

  4. CDF • Highly upgraded for run II • New silicon tracking • New drift chamber • Upgraded muon chambers • New plug calorimeters • New TOF • Data taking efficiency ~ 85 % • About 0.9 fb-1 on tape • Analysis based on 385 pb-1 Régis Lefèvre, HEP-EPS 2005, July 21st 2005, Lisboa, Portugal

  5. CTEQ4M PDFsCTEQ4HJ PDFs Run I CDF Inclusive Jet Data(Statistical Errors Only)JetClu RCONE=0.7 0.1<||<0.7R=F=ET /2 RSEP=1.3 Motivations • Legacy from Run I • Great interest on apparent excess at high ET • SM explanation: increased gluon PDFat high x • New PDFs from global fit including CDF/D0 high ET data (CTEQ6, MRST2001) • Stringent test of pQCD • Over ~ 8 order of magnitudes • Tail sensitive to New Physics • Probing distances ~ 10-19 m • PDFs at high Q2 & high x • Enhanced cross section thanks to new s Régis Lefèvre, HEP-EPS 2005, July 21st 2005, Lisboa, Portugal

  6. below threshold (no jets) above threshold (1 jet) Cone Jet Algorithms and pQCD • Infrared and Collinear Safety • Fixed order pQCD contains not fully cancelled infrared divergences • Inclusive jet cross section affected at NNLO • Run I Cone Algorithm: JetClu • Neither infrared nor collinear safe • Run II Cone Algorithm: Midpoint • Uses midpoints between pairs of proto-jets as additional seeds  Infrared and collinear safety restored • Merging/Splitting • NLO pQCD uses larger cone radius R’=RRSEPto emulate experimental merging/splitting • Arbitrary parameter RSEP: prescription RSEP=1.3 (based on parton level approximate arguments) Régis Lefèvre, HEP-EPS 2005, July 21st 2005, Lisboa, Portugal

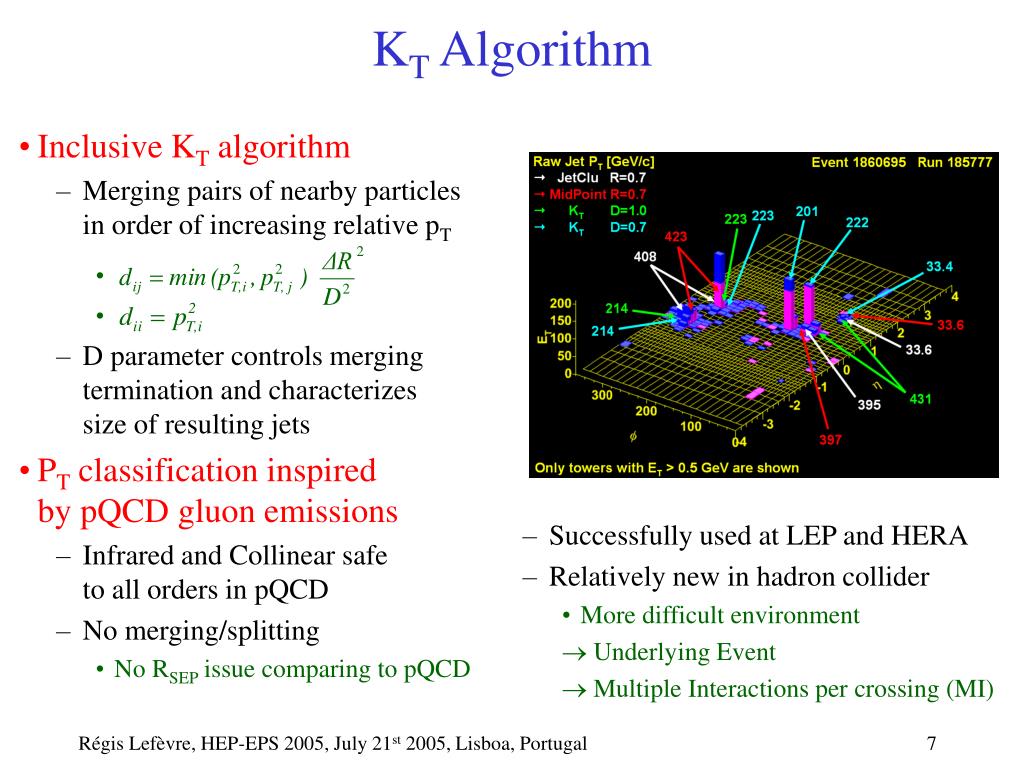

  7. KT Algorithm • Inclusive KT algorithm • Merging pairs of nearby particles in order of increasing relative pT • D parameter controls merging termination and characterizes size of resulting jets • PT classification inspired by pQCD gluon emissions • Infrared and Collinear safeto all orders in pQCD • No merging/splitting • No RSEP issue comparing to pQCD • Successfully used at LEP and HERA • Relatively new in hadron collider • More difficult environment • Underlying Event  Multiple Interactions per crossing (MI) Régis Lefèvre, HEP-EPS 2005, July 21st 2005, Lisboa, Portugal

  8. Framework - Related Topics • Central jets: 0.1 < |y| < 0.7 • Midpoint: RCONE = 0.7, fMERGE = 75% • KT: D = 0.5, 0.7 and 1.0 • To make sure that Underlying Event and MI contributions are well under control • Data fully corrected to hadron level • Requires a good simulation of the detector • Requires a Monte-Carlo generator able to reproduce the Jet Shapes • Jet fragmentation and parton cascades • NLO pQCD corrected to hadron level • Parton level pQCD calculation correctedfor the Underlying Event and Hadronization • Requires a Monte-Carlo generator able to reproduce the Underlying Event Régis Lefèvre, HEP-EPS 2005, July 21st 2005, Lisboa, Portugal

  9. Underlying Event • Everything but the hard scattering process • Initial state soft radiations • Beam-beam remnants • Multiple Parton Interactions (MPI) • Studied in the transverse region • Leading jet sample • Back-to-back sample Régis Lefèvre, HEP-EPS 2005, July 21st 2005, Lisboa, Portugal

  10. Energy Flow Inside Jets Jet shapes governed by multi-gluon emission from primary parton • Test of parton shower models • Sensitive to underlying event structure • Sensitive to quark and gluon mixture in the final state hep-ex/0505013(Accepted by PRD) (1-) 37 < pT < 380 GeV/c Régis Lefèvre, HEP-EPS 2005, July 21st 2005, Lisboa, Portugal

  11. Jet Energy Scale • Central calorimeter response very well reproduced by the simulation • Absolute Calibration • E/p of isolated tracks used to tune the showering simulation (G-Flash) • Residual discrepancies taken as systematic errors • E/p depends on E (non compensated calorimeters): reasonable simulation of the pT spectrum of the particles within a jet by PYTHIA and HERWIG fragmentation models • Induced difference on Jet Energy Scale < 1% • Photon-jet balance • Data and Simulation agreeat 1% to 2% level • Non uniformity versus  • Dijet balance • Resolution • Bisector method Régis Lefèvre, HEP-EPS 2005, July 21st 2005, Lisboa, Portugal

  12.  (Hadron Level with MPI) CHAD =  (Parton Level without MPI) Jet Production with KT • NLO pQCD corrected to hadron level using PYTHIA-Tune A • Good data-theory agreement • Over ~ 8 orders of magnitude • PT reach extended by ~ 150 GeV/c with respect to Run I • Experimental uncertainty dominated by jet energy scale • 6% luminosity uncertaintynot included in the plots • Theoretical error dominated by PDFs • Gluon at high x Régis Lefèvre, HEP-EPS 2005, July 21st 2005, Lisboa, Portugal

  13. KT jets versus D D = 0.5 D = 0.7 D = 1.0 Régis Lefèvre, HEP-EPS 2005, July 21st 2005, Lisboa, Portugal

  14. Jet Production with Midpoint Régis Lefèvre, HEP-EPS 2005, July 21st 2005, Lisboa, Portugal

  15. Conclusion and Outlook • Good agreement with pQCD using both KT and Midpoint • Stringent test of pQCD over ~ 8 orders of magnitude • PT reach extended by ~ 150 GeV/c with respect to Run I • Careful treatment of non perturbative effects • KT study done with 3 different values of the D parameter • Underlying Event and MI contributions seem to be well under control • To be used in future PDF global fits in order to better constrain the gluon PDF at high x • Outlook • Measurements done with 1 fb-1will come soon • Inclusive forward jets productionmeasurement expected soon • Further constrain the PDFs • Search for contact interactions comparing central and forward jet production rates Régis Lefèvre, HEP-EPS 2005, July 21st 2005, Lisboa, Portugal
