  1. COBA Software Platform Lecture 5

  2. Targets of Lecture • Introduction to COBA software products • Understanding COBA architecture • Duration: 1 hour

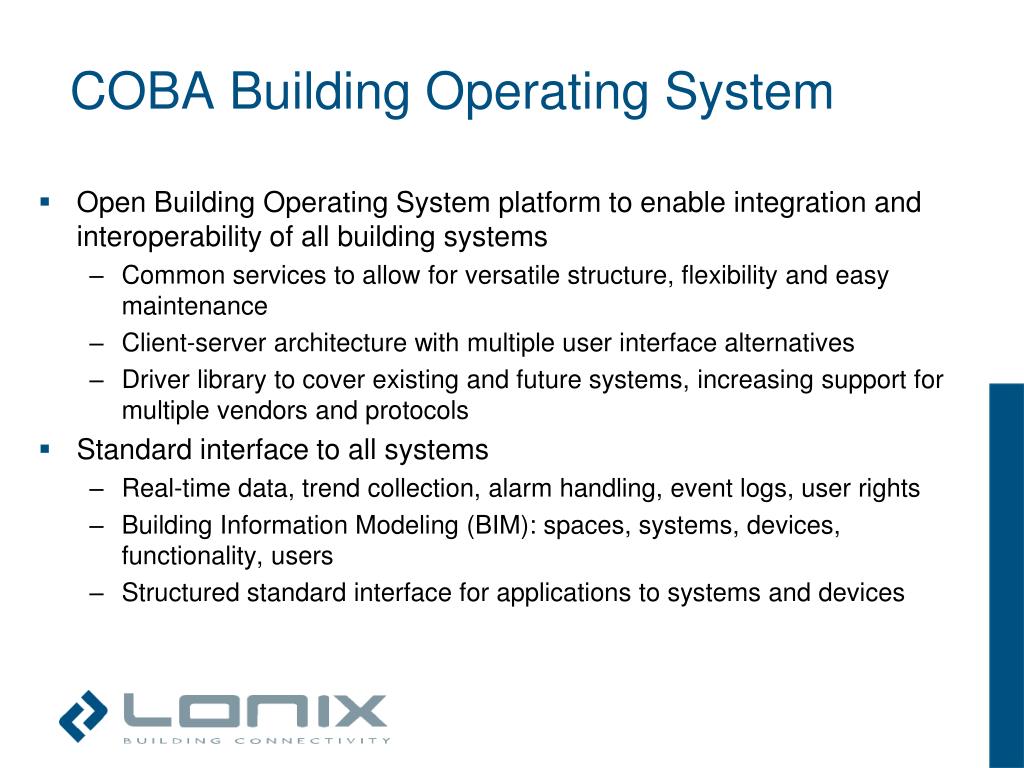

  3. COBA Building Operating System • Open Building Operating System platform to enable integration and interoperability of all building systems • Common services to allow for versatile structure, flexibility and easy maintenance • Client-server architecture with multiple user interface alternatives • Driver library to cover existing and future systems, increasing support for multiple vendors and protocols • Standard interface to all systems • Real-time data, trend collection, alarm handling, event logs, user rights • Building Information Modeling (BIM): spaces, systems, devices, functionality, users • Structured standard interface for applications to systems and devices

  4. Common integration platform COBA BOS - integration of all low-voltage systems • Heating • Cooling • Ventilation • Lighting • Leakage and humidity alarms • Consumption metering • Emergency lighting • Access control • Video monitoring • Burglar alarms • Fire alarms

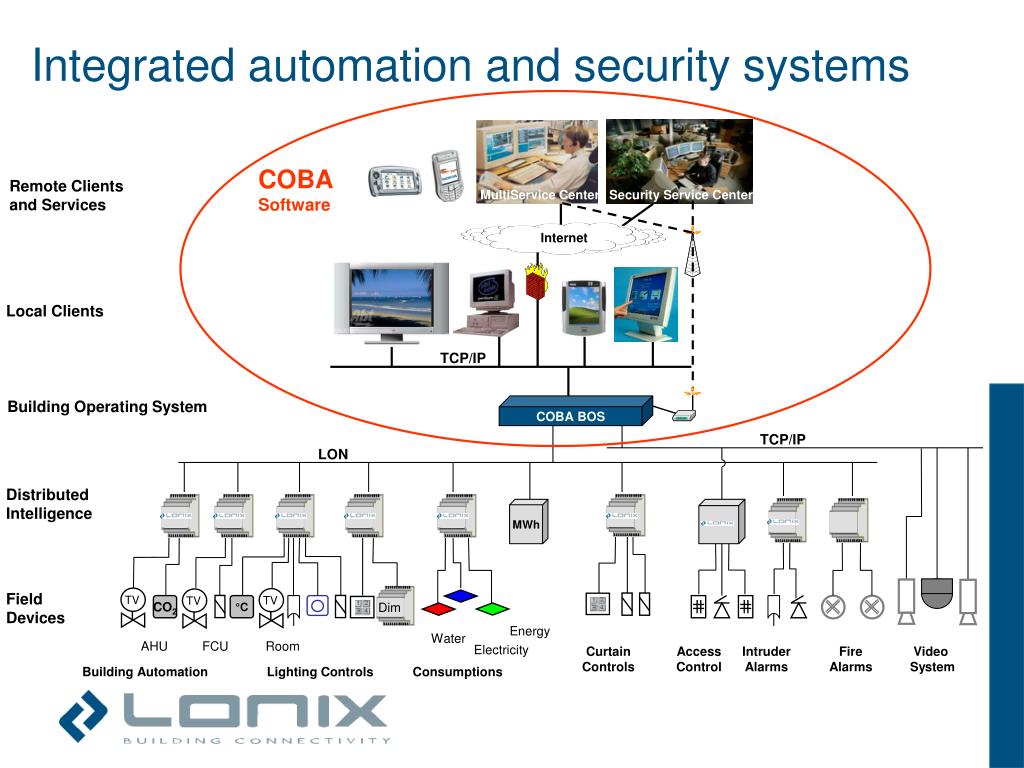

  5. TV TV TV Integrated automation and security systems COBA Software Remote Clients and Services MultiService Center Security Service Center Internet Local Clients TCP/IP Building Operating System COBA BOS TCP/IP LON Distributed Intelligence MWh Field Devices Dim CO2 °C Energy Water AHU FCU Room Electricity Curtain Controls Access Control Intruder Alarms Fire Alarms Video System Building Automation Lighting Controls Consumptions

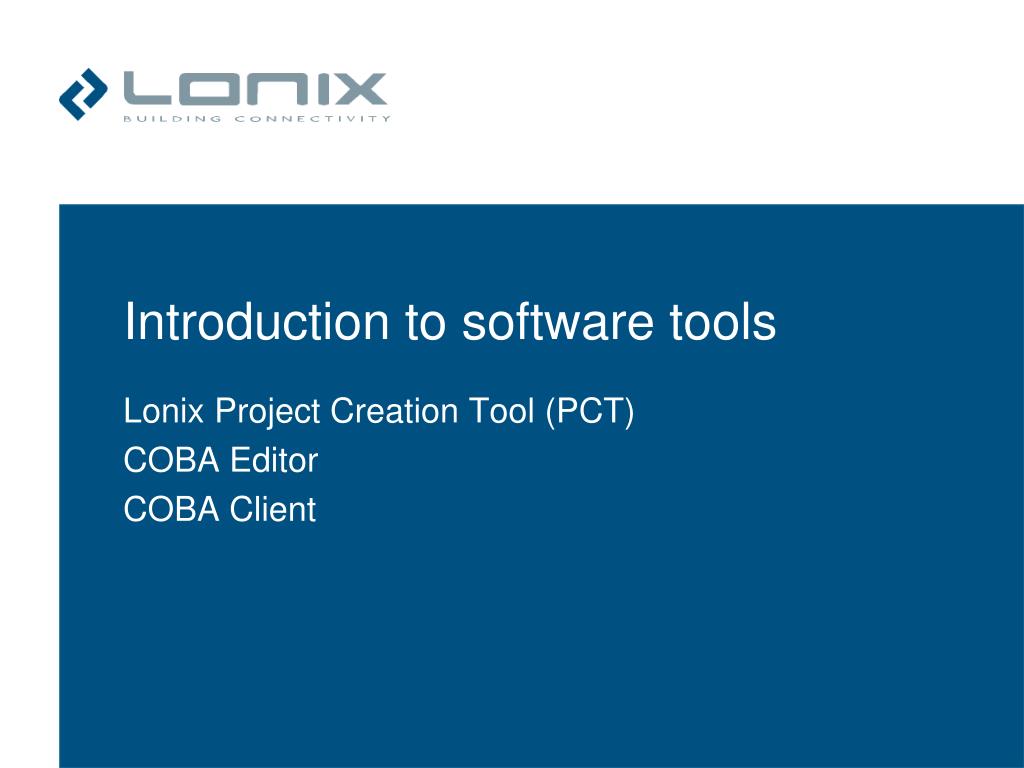

  6. Introduction to software tools Lonix Project Creation Tool (PCT) COBA Editor COBA Client

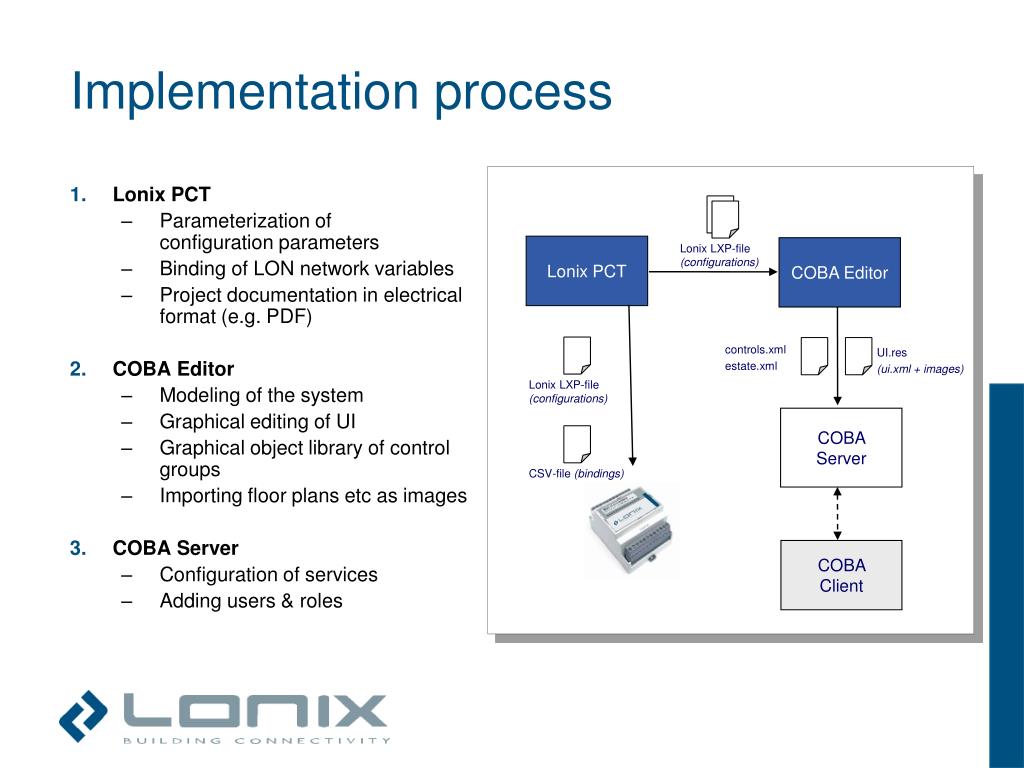

  7. COBA Client Lonix LXP-file (configurations) Lonix LXP-file (configurations) CSV-file (bindings) Implementation process • Lonix PCT • Parameterization of configuration parameters • Binding of LON network variables • Project documentation in electrical format (e.g. PDF) • COBA Editor • Modeling of the system • Graphical editing of UI • Graphical object library of control groups • Importing floor plans etc as images • COBA Server • Configuration of services • Adding users & roles Lonix PCT COBA Editor controls.xml estate.xml UI.res (ui.xml + images) COBA Server

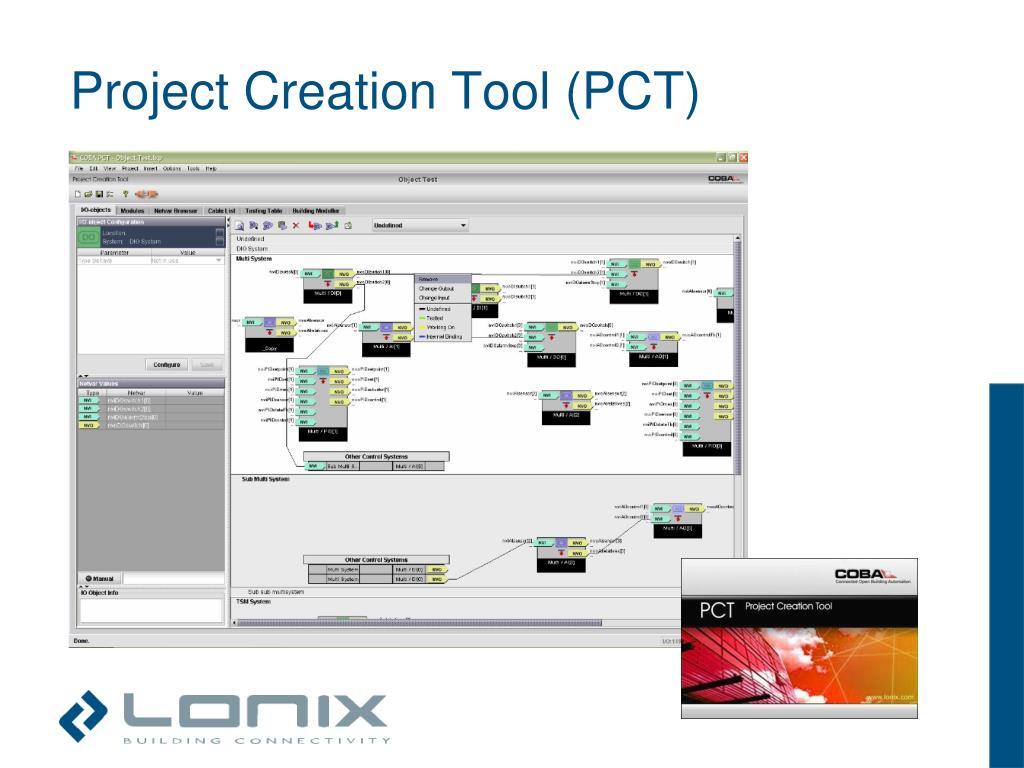

  8. Project Creation Tool (PCT)

  9. PCT - features • PCT is designed for easy management of a large number of I/O points • Modules and I/O points are categorized into logical entities • Based on location • Based on system • Online- and Offline-configurations and bindings • Modules are configured for the project using Offline-mode before going to the site • Online-configuration when connected to LON-network • PCT produces project documentation in PDF format • List of I/O points • Configuration data • Cable list • Testing table • Building Modeller

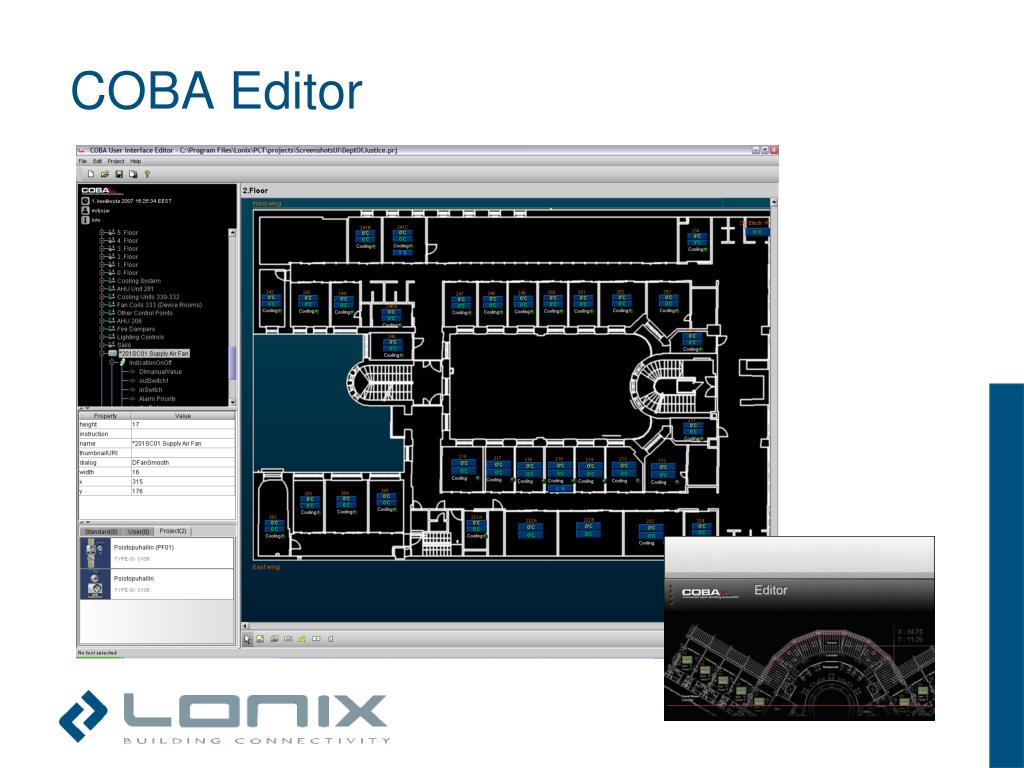

  10. COBA Editor

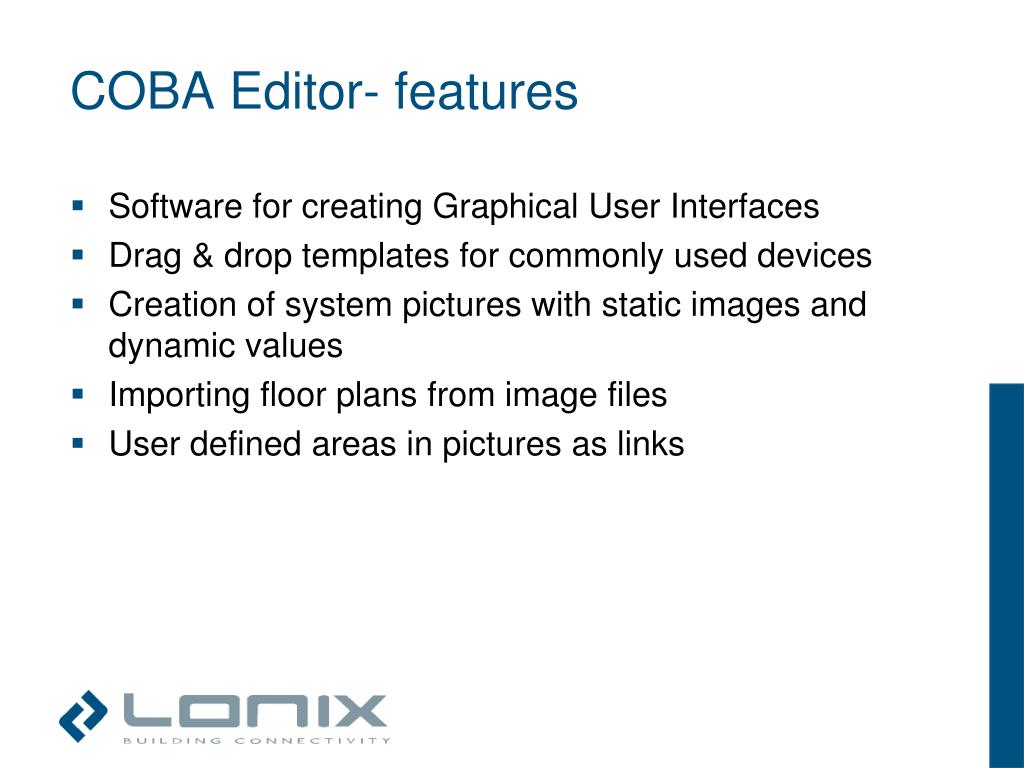

  11. COBA Editor- features • Software for creating Graphical User Interfaces • Drag & drop templates for commonly used devices • Creation of system pictures with static images and dynamic values • Importing floor plans from image files • User defined areas in pictures as links

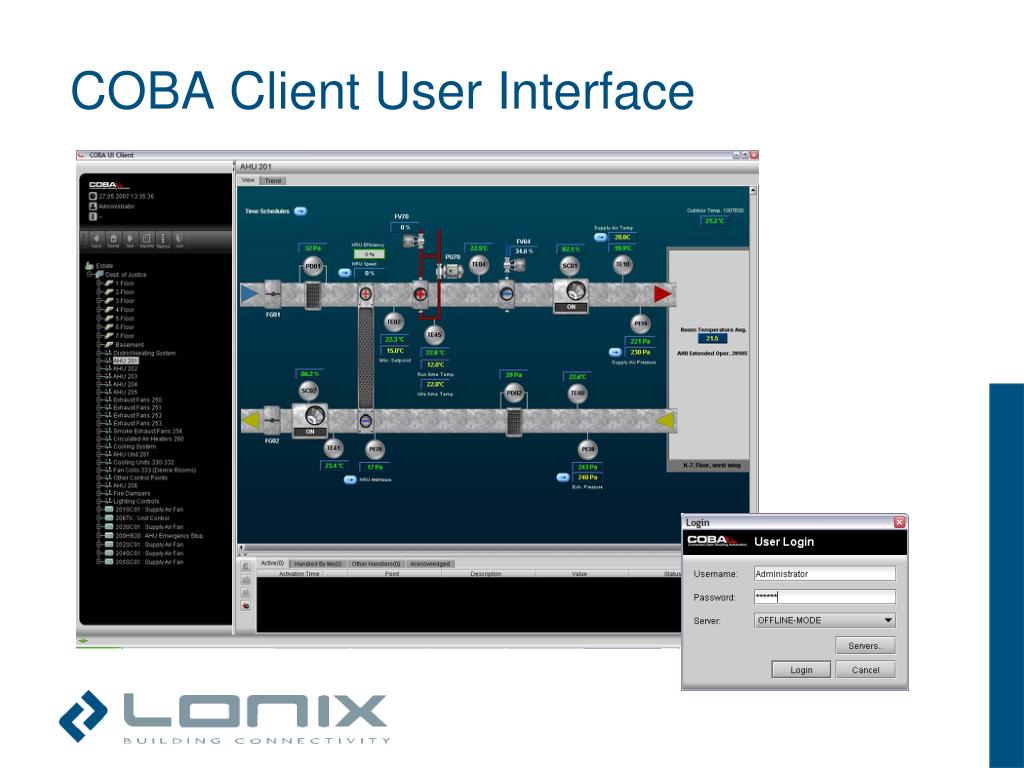

  12. COBA Client User Interface

  13. COBA Client Software - features • Local and remote usage of several sites with one client software • Views: System view, Floor plan view, Trends, Reports, Alarms and logs • Dynamic resource download from server after login • Configurable layout

  14. System view

  15. Floor plan view

  16. Trends

  17. Alarms

  18. COBA Architecture

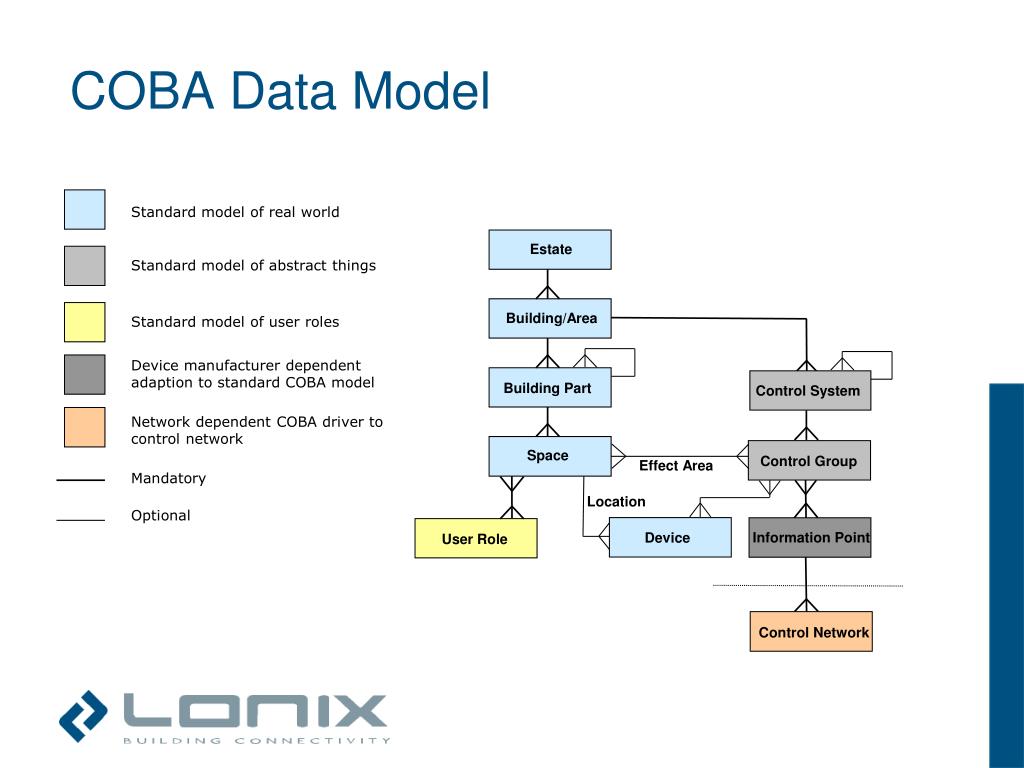

  19. User Role COBA Data Model Standard model of real world Estate Standard model of abstract things Building/Area Standard model of user roles Device manufacturer dependent adaption to standard COBA model Building Part Control System Network dependent COBA driver to control network Space Control Group Effect Area Mandatory Location Optional Location Information Point Device Control Network

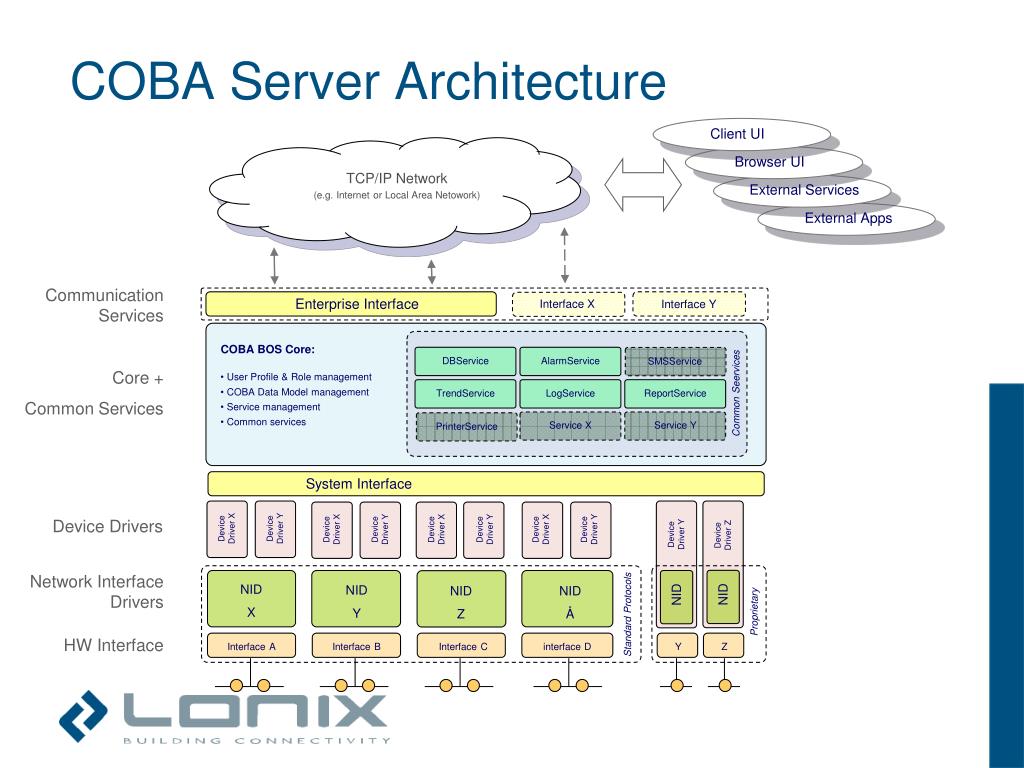

  20. Service X ReportService TrendService LogService AlarmService DBService COBA Server Architecture Client UI Browser UI TCP/IP Network (e.g. Internet or Local Area Netowork) External Services External Apps Communication Services Enterprise Interface Interface X Interface Y COBA BOS Core: SMSService Core + Common Services • User Profile & Role management • COBA Data Model management • Service management • Common services Common Seervices Service Y PrinterService System Interface Device Drivers Device Driver X Device Driver Y Device Driver X Device Driver Y Device Driver X Device Driver Y Device Driver X Device Driver Y Device Driver Y Device Driver Z Network Interface Drivers NID X NID Y NID Z NID Å NID NID Proprietary Standard Protocols HW Interface Interface A Interface B Interface C interface D Y Z

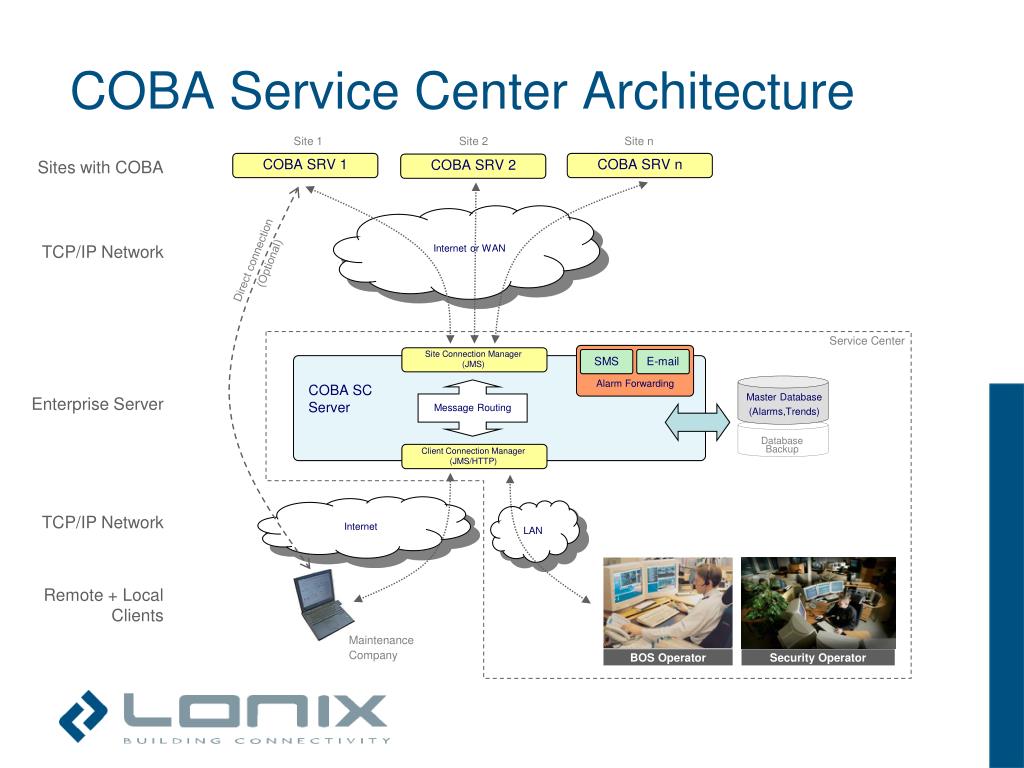

  21. COBA SRV n COBA SRV 1 COBA SRV 2 SMS E-mail Master Database (Alarms,Trends) Database Backup COBA Service Center Architecture Site 1 Site 2 Site n Sites with COBA TCP/IP Network Internet or WAN Direct connection (Optional) Service Center Site Connection Manager (JMS) Alarm Forwarding COBA SC Server Enterprise Server Message Routing Client Connection Manager (JMS/HTTP) TCP/IP Network Internet LAN Remote + Local Clients Maintenance Company BOS Operator Security Operator

  22. COBA SC Data Model Project Area/Group Geographical area, City, etc. COBA SRV 1 COBA SRV 2 COBA SRV n ... ...
