  1. Specialized Reference Counting Garbage Collection using Data Structure Annotations By Eric Watkins and Dzin Avots for CS 343 Spring 2002

  2. Motivation • Improve use of ref counting for C++ • Problem: cycles can’t be freed automatically, expensive to determine what is unreachable • Solution: Use user specified data structure annotations to improve performance

  3. Goals & Techniques • Avoid unnecessary mark & sweeps • Acyclic Data Structure Optimizations • Avoid some memory leaks • Reference Removal Invariant Model

  4. Reference Counting using Smart Pointers

  5. Garbage Example #1 • Doubly Linked List • Everything is strongly connected • Nothing can be freed until all external refs are gone • How can we recognize this data structure? ext ptr ext ptr

  6. Abstract Description of Data Structures • The compiler can’t differentiate these two even though they will obviously be connected in different ways. • ADDS can tell us how to customize smart pointer usage for certain data structures

  7. Doubly Linked List ADDS

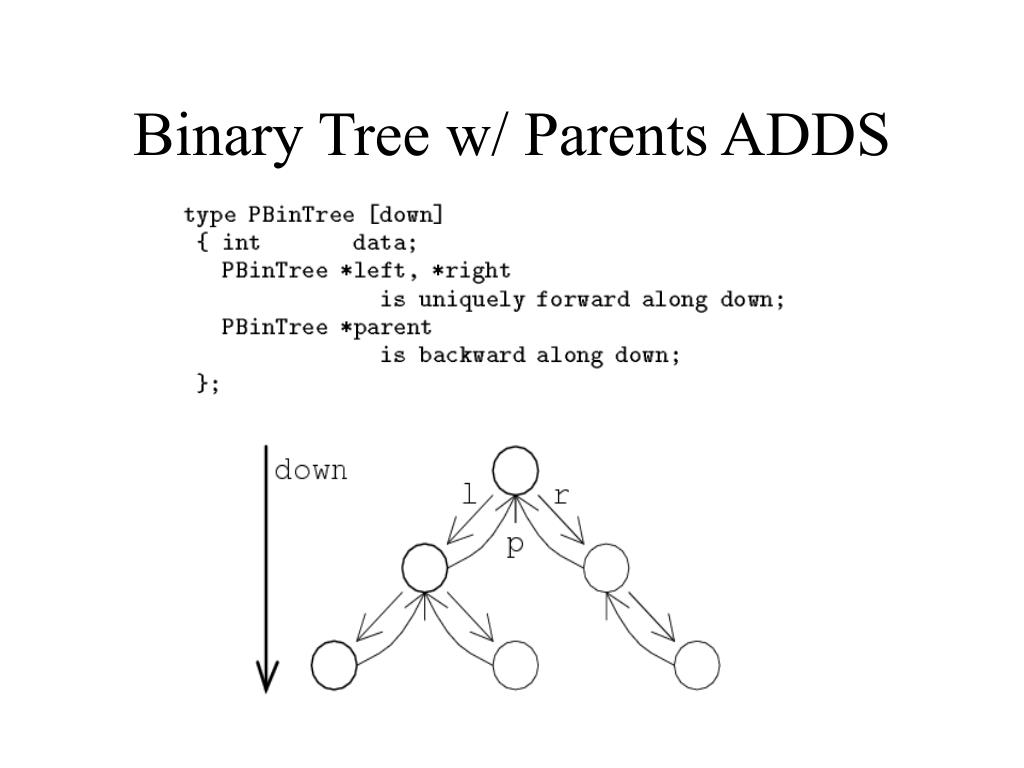

  8. Binary Tree w/ Parents ADDS

  9. ADDS spec • Dimensions (1-d, 2-d, etc.) • Directionality (forward and backward) • Uniqueness of forward references (DAGs vs. lists) • Cyclicity

  10. Linked List Optimization • The entire dimension is strongly connected, forwards and backwards • Summarize with single ref counter for all external references to dimension

  11. Dimensional Independence • Dimensions X and Y are dependent if one traversal along X and another traversal along Y may lead to a common node by different paths

  12. Other ADDS issues • What about describing relations between different acyclic data structures? • Could avoid marking & sweeping this structure etc.

  13. Primary & Secondary Pointers • Primary pointers – if these point to an object, then object is still in use • Secondary pointers – point to object, but don’t affect use status • Memory leak – Primary pointers are all removed, but a secondary pointer remains

  14. Garbage Example #2 • Programs can contain complicated, interconnected relationships between objects BugManager Grid Secondary refs Primary refs Bug Bug

  15. Garbage Example #2 • If the user forgets to remove the secondary reference, the Bug won’t be deleted. BugManager Grid Secondary refs Primary ref Bug Bug

  16. Primary & Secondary Pointers • User specifies primary & secondary pointers in ADDS specification • Primary & Secondary pointer invariant can be expressed as instrumentation predicate in 3-valued logic • Generate shape analysis to detect leak condition

  17. Plan of Action • Investigate use of ADDS specs to improve refcount performance • Generate interprocedural shape analysis from primary & secondary edge specs • Look into other improvements from user specifications

  18. Related Work • ADDS work: L. Hendren and J. Hummel, Abstractions for Recursive Pointer Data Structures: Improving the Analysis and Transformation of Imperative Programs • Shape Analysis: M. Sagiv, T. Reps and R. Wilhelm, Parametric Shape Analysis via 3-Valued Logic
