Maintenance Policies. Corrective maintenance: It is usually referred to as repair. Its purpose is to bring the component back to functioning state as soon as possible. In some cases, it involves replacement of one or more components.

Télécharger la présentation
## Maintenance Policies

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

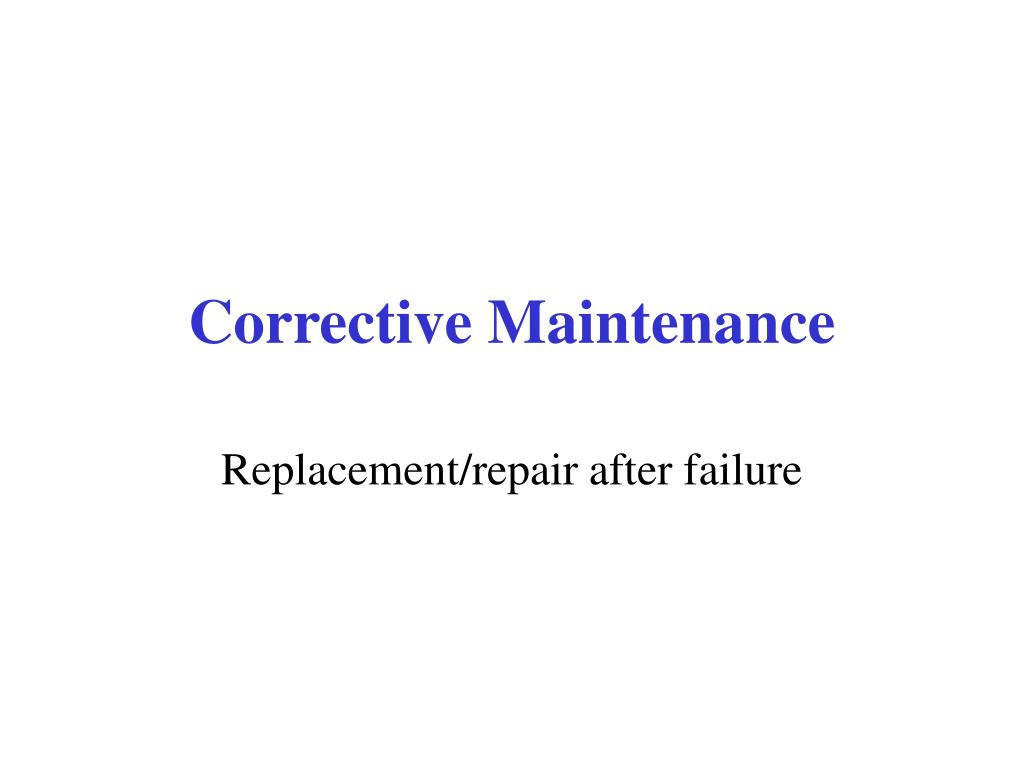

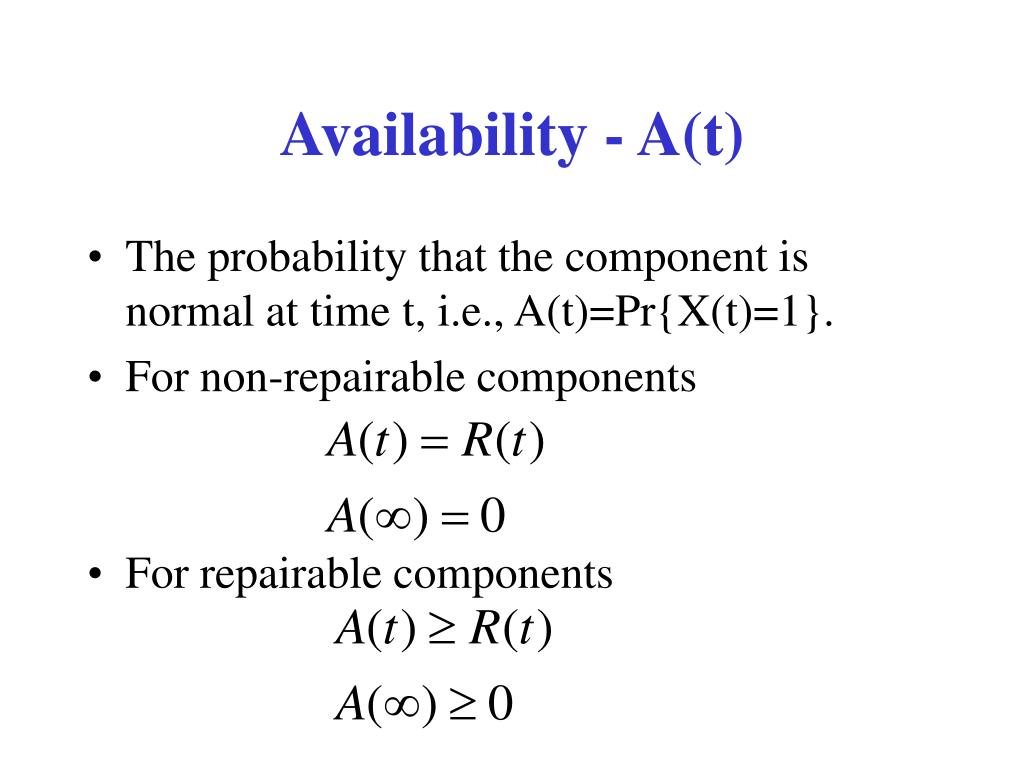

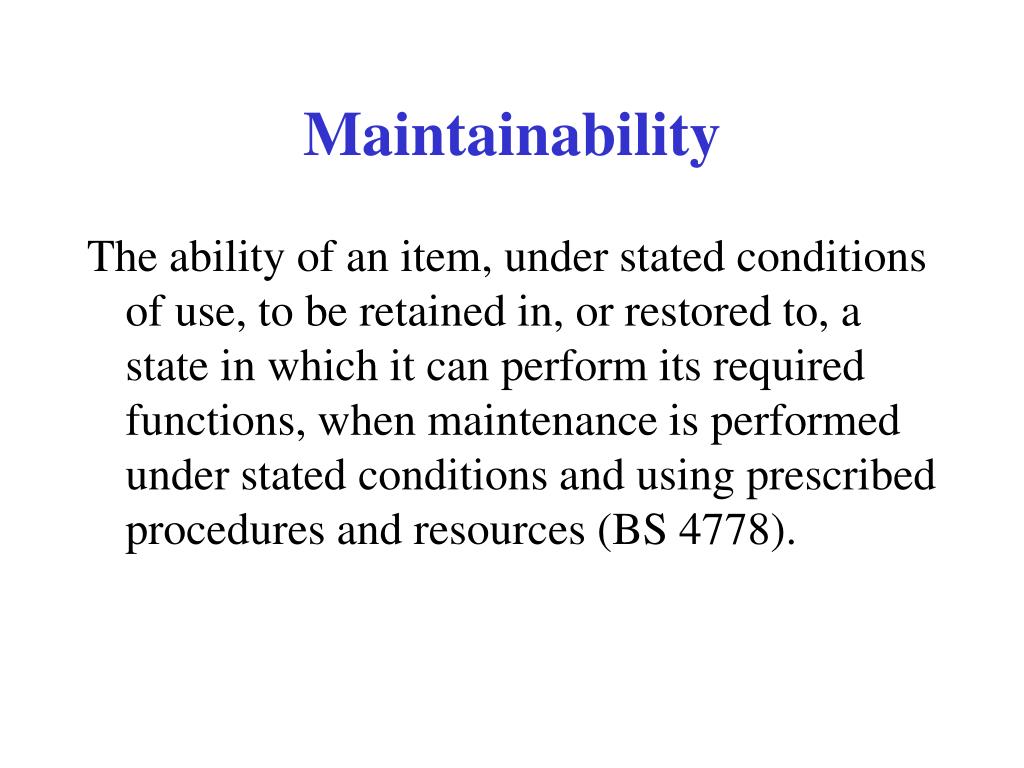

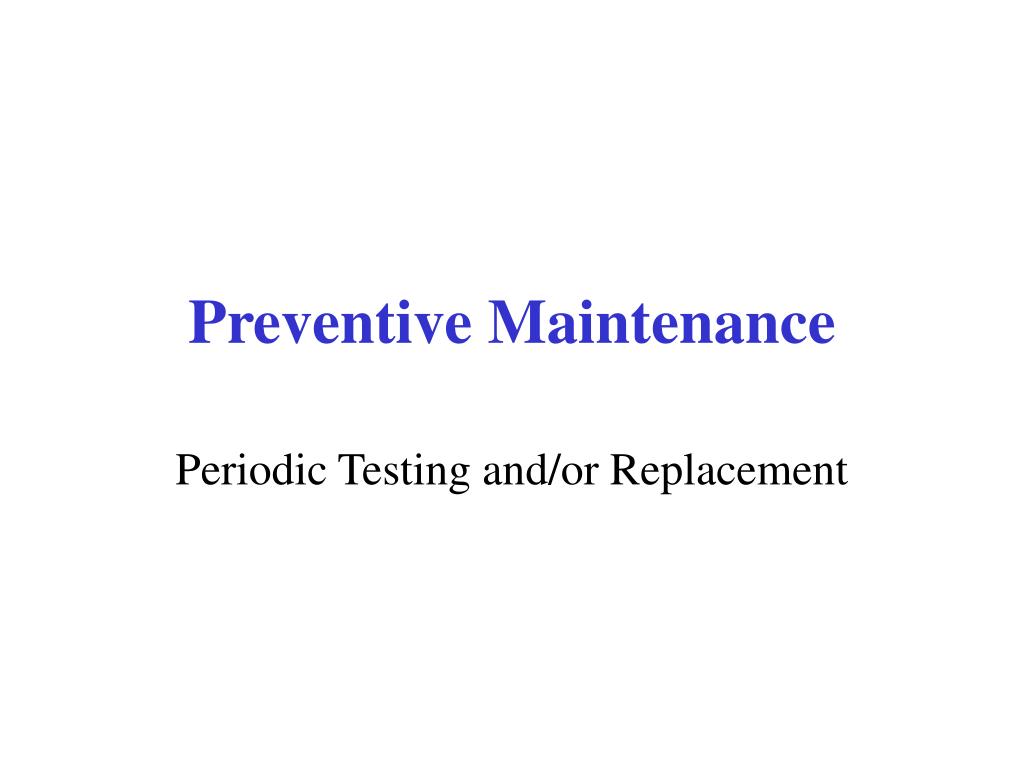

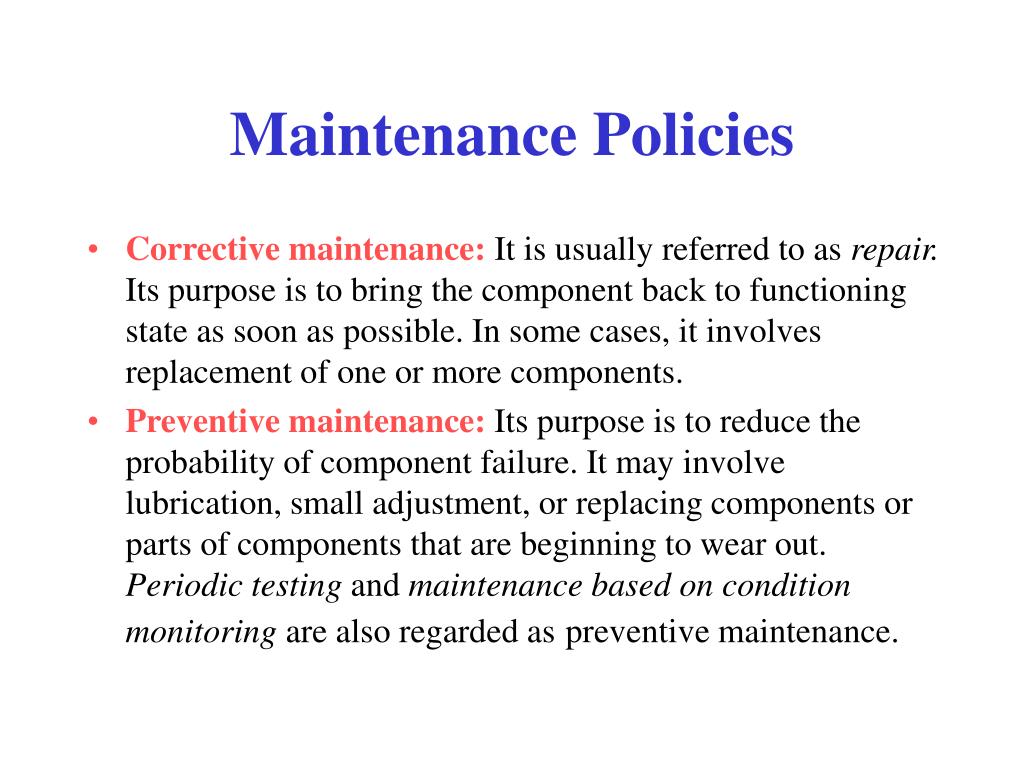

**Maintenance Policies**• Corrective maintenance: It is usually referred to as repair. Its purpose is to bring the component back to functioning state as soon as possible. In some cases, it involves replacement of one or more components. • Preventive maintenance: Its purpose is toreduce the probability ofcomponent failure. It may involve lubrication, small adjustment, or replacing components or parts of components that are beginning to wear out. Periodic testing and maintenance based on condition monitoring are also regarded aspreventive maintenance.**Maintainability**The ability of an item, under stated conditions of use, to be retained in, or restored to, a state in which it can perform its required functions, when maintenance is performed under stated conditions and using prescribed procedures and resources (BS 4778).**Availability**The ability of an item (under combined aspects of its reliability, maintainability, and maintenance support) to perform its required function at a stated instant of time or over a stated period of time (BS 4778). When considering a production system, the average availability of the production is sometimes called the production regularity.**Corrective Maintenance**Replacement/repair after failure**Transition of Component States**Normal state continues Component fails Failed state continues N F Component is repaired**Repair Probability - G(t)**• The probability that repair is completed before time t, given that the component failed at time zero. • If the component is non-repairable**Repair Rate - m(t)**• The probability that the component is repaired per unit time at time t, given that the component failed at time zero and has been failed to time t. • If the component is non-repairable**Availability - A(t)**• The probability that the component is normal at time t, i.e., A(t)=Pr{X(t)=1}. • For non-repairable components • For repairable components**Unavailability - Q(t)**• The probability that the component fails at time t, i.e., • For non-repairable components • For repairable components**Unconditional Failure Density, w(t)**The probability that a component fails per unit time at time t, given that it jumped into the normal state at time zero. Note, for non-repairable components.**Unconditional Repair Density, v(t)**The probability that the component is repaired per unit time at time t, give that it jumped into the normal state at time zero.**Conditional Failure Intensity λ(t)**The probability that the component fails per unit time, given that it is in the normal state at time zero and normal at time t. In general , λ(t)≠r(t). For non-repairable components, λ(t) = r(t). However, if the failure rate is constant (λ) , then λ(t) = r(t) = λ for both repairable and non-repairable components.**Conditional Repair Intensity, µ(t)**The probability that a component is repaired per unit time at time t, given that it is jumped into the normal state at time zero and is failed at time t, For non-repairable component, µ(t)=m(t)=0. For a constant repair rate m, µ(t)=m.**The Average Availability**The average availability in a time interval is defined as This definition can be interpreted as the average proportion of interval where the component is able to function.**The Limiting Availability**It can be shown that In the reliability literature, the symbol A is often used as notation both for the limiting availability and the average availability.**ENF over an interval, W(t1,t2 )**Expected number of failures during (t1,t2) given that the component jumped into the normal state at time zero. For non-repairable components**ENR over an interval,**Expected number of repairs during , given that the component jumped into the normal state at time zero. For non-repairable components**Mean Time Between Repairs, MTBR**Expected length of time between two consecutive repairs. MTBR = MTTF + MTTR Mean Time Between Fails, MTBF Expected length of time between two consecutive failures. MTBF = MTBR**Let**where**RELATIONS AMONG PROBABILISTIC PARAMETERS FOR**REPAIR-TO-FAILURE PROCESS (THE FIRST FAILURE) General r(t) Failure Rate r(t) Const. r(t)= ●**RELATIONS AMONG PROBABILISTIC PARAMETERS FOR**FAILURE-TO-REPAIR PROCESS Repair Rate m(t) General m(t) Const. m(t)=u ●**RELATIONS AMONG PROBABILISTIC PARAMETERS FOR THE WHOLE**PROCESS Repairable Non-repairable ※ ※ ※ Fundamental Relations ◎ ( Next )**Stationary**Values Remark**CALCULATION OF w(t) and v(t) (given f (t) and g (t))**Two types of components fail during [t, t+dt] : Type I F N F N Type II time u u+du t t+dt Probability of Type I : ( v (u) du ) ( f (t-u) dt ) Probability of Type II : f (t) dt OR**One type of components which is repaired during [t, t+dt]**F N time u u+du t t+dt OR**0**1 2 3 4 5 6 7 8 9 18 18 15 5 4 2 1 1 0 0 1 1 0.8333 0.2778 0.2222 0.1111 0.0556 0.0556 0 0 0 0 0.1667 0.7222 0.7778 0.8889 0.9444 0.9444 1 1 0 3 10 1 2 1 0 1 0 0 0 0.1667 0.5556 0.0556 0.1111 0.0556 0 0.0556 0 0 0 0.1667 0.6667 0.2001 0.5000 0.5005 0 1.0000 - -**TTF data**assumption Exponential Weibull Normal Log-normal Histogram polynomial approximation parameter identification f (t) MTTF r (t) F (t) R (t)**TTR data**assumption Exponential Weibull Normal Log-normal Histogram Polynomial approximation parameter identification MTTR g (t) m (t) G (t)**f (t), g (t)**or w(0) = f(0), v(0) = 0 w (t), v (t) Q (t) A (t) = 1 - Q (t) A (t)**Constant-Rate Models**• Repair-to-Failure**NON-REPAIRABLE**1 Good Failed P (t) = probability that the component is good at time t = R(t) good at t and remained good failed at t and was repaired Initial Condition :**Constant-Rate Models**• Failure-to-Repair**Constant-Rate Models**• Dynamic Behavior of Whole Process (1) • also**REPAIRABLE**1-λΔt 1-μΔt μΔt λΔt Good Failed good and remained good failed and repaired**Constant-Rate Models**• Dynamic Behavior of Whole Process (2)**Constant-Rate Models**• Stationary Values of the Whole Process**Proof (1)**• From • Laplace Transform**Proof (2)**• Rearrangement and Inversion**Preventive Maintenance**Periodic Testing and/or Replacement
