  1. CH. 3 Solar Cell Basic III: Principle Organic Materials for Electronics and Photonics II

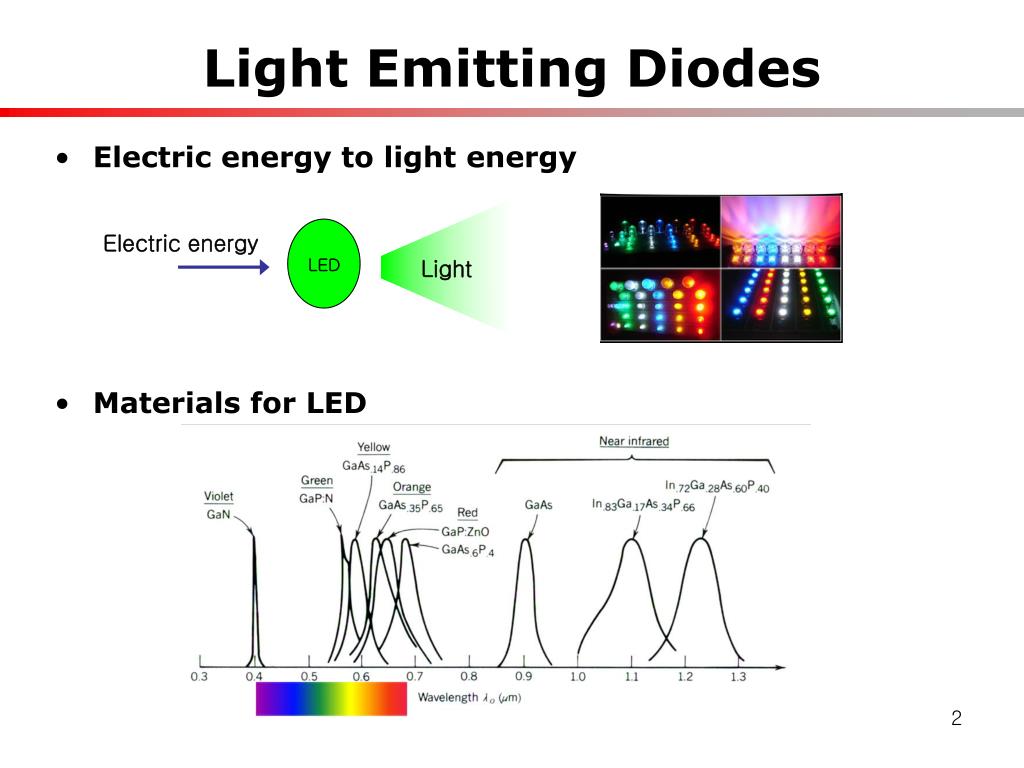

  2. Light LED Electric energy Light Emitting Diodes • Electric energy to light energy • Materials for LED

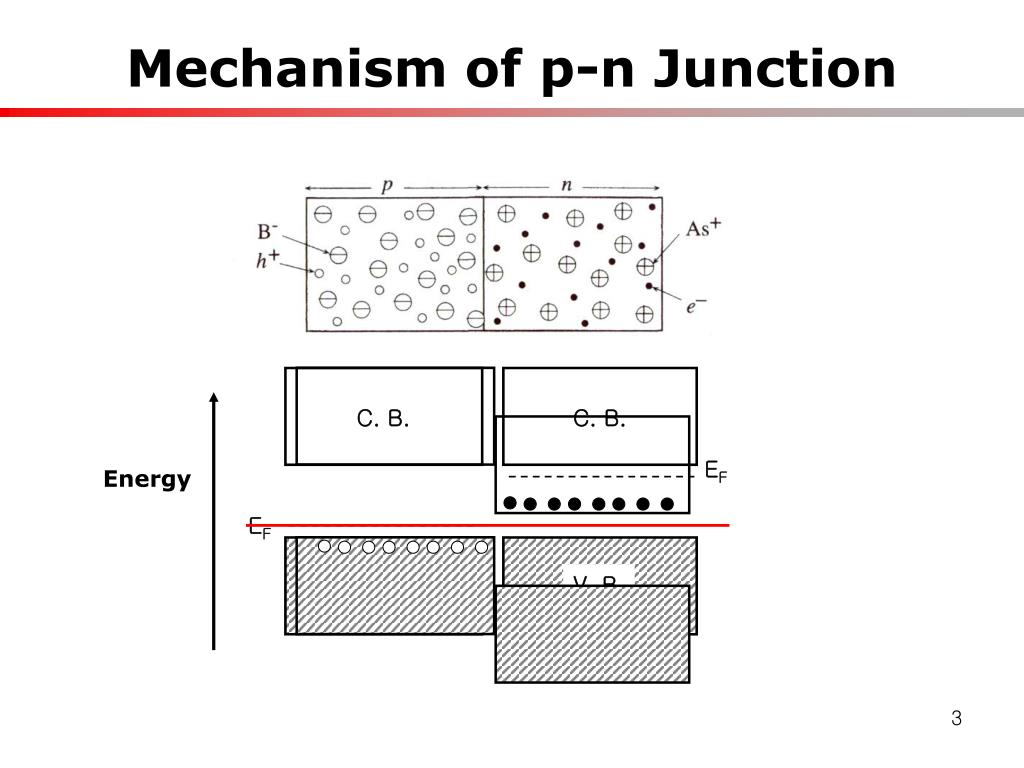

  3. C. B. C. B. EF EF V. B. V. B. Mechanism of p-n Junction Energy

  4. Mechanism of p-n Junction Depletion Layer Energy

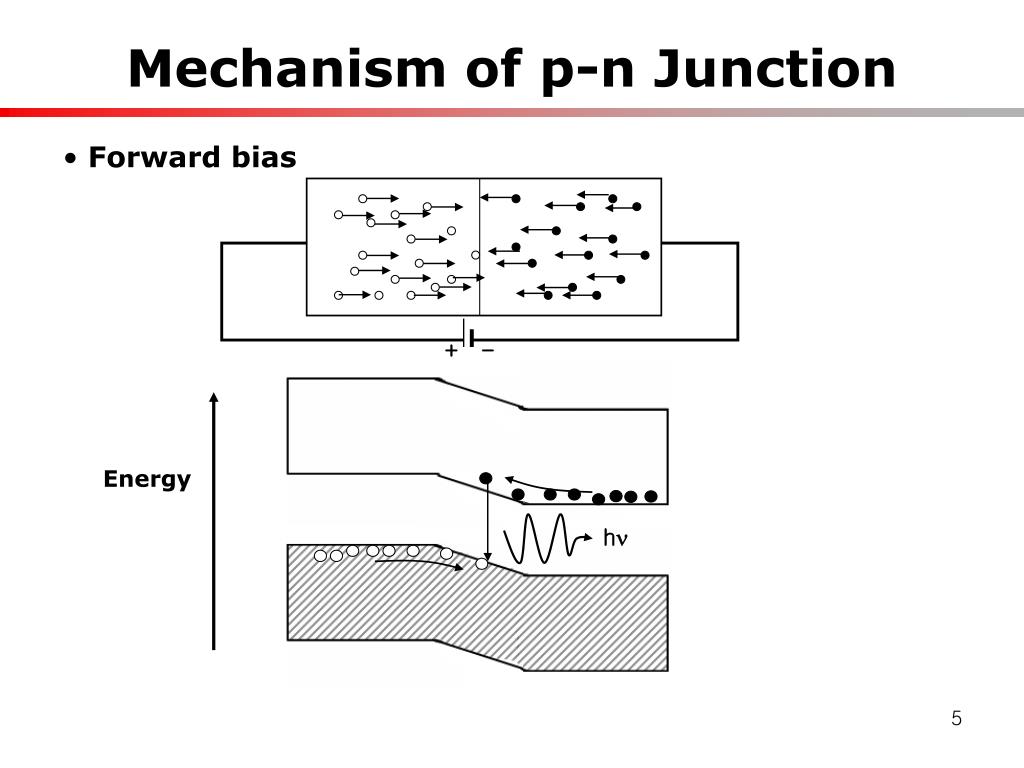

  5. Mechanism of p-n Junction • Forward bias + - Energy h

  6. LED Small Molecules (SMOLED) Polymer (PLED) Inorganic Organic (OLED) PLED PLED (Polymer Light Emitting Diode) - LED used polymer not only as the semiconductor material in LEDs but also as the composition of LED (substrate, active layer, electrode, etc.). • Advantages of PLED • low cost - low operating voltage • fast response time - full color emission • large area, flat, flexible display - easy fabrication

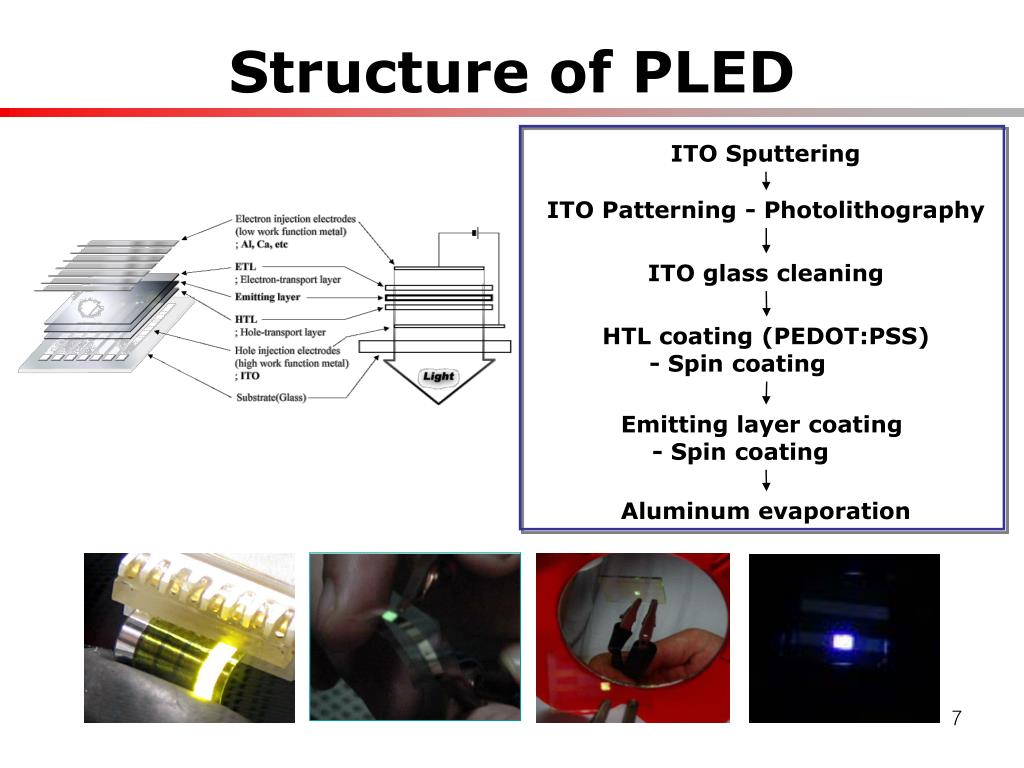

  7. ITO Sputtering ITO Patterning - Photolithography ITO glass cleaning HTL coating (PEDOT:PSS) - Spin coating Emitting layer coating - Spin coating Aluminum evaporation Structure of PLED

  8. Aluminum polymer ITO Glass + - Polymer cathode Anode h Mechanism of PLED

  9. CRT LCD PDP Organic EL Flexible display Evolution of Display

  10. Requirement for Flexible Display Flexible packaging material Substrate⇒ Flexible !! (Glass → Plastic) Electrode ⇒ Flexible electrode Emitting layer ⇒ Flexible Semiconducting polymer

  11. ITO as Flexible Electrode Require a ‘genuine’ flexible & transparent electrode!!

  12. Requirements for Flexible Electrode 1. Flexibility 2. Conductivity 3. Transparency Plastic Electrode using Conducting Polymer

  13. Reduction of Molecular Scale Disorder σdc≥ 1,000 S/cm “Recent Invention of New Metallic Polyaniline” K. Lee & S.H. Lee Nature 441 (2006) 65.

  14. Metallic PANI Electrode K. Lee et al. Nature 441 (2006) 65. Reduction of Molecular Scale Disorder σdc≥ 1,000 S/cm

  15. PANI Electrode : Flexible LED

  16. New PANI Electrode Flexible Electrode using Metallic PANI Flexible LED Flexible Solar Cell
