  1. Excel Basic Charts & Graphs

  2. Objectives • Quick Excel Interface Review • Learn commands used to insert a chart/graph • Learn how to edit a chart/graph • Learn how to save chart/graph as an image for use on Illustrator

  3. Sources • Kids Count Data Center • http://datacenter.kidscount.org/ • American Fact Finder • http://factfinder2.census.gov/faces/nav/jsf/pages/index.xhtml • U.S. Census Bureau • http://www.census.gov/ • Google Public Data Explorer • http://www.google.com/publicdata/directory

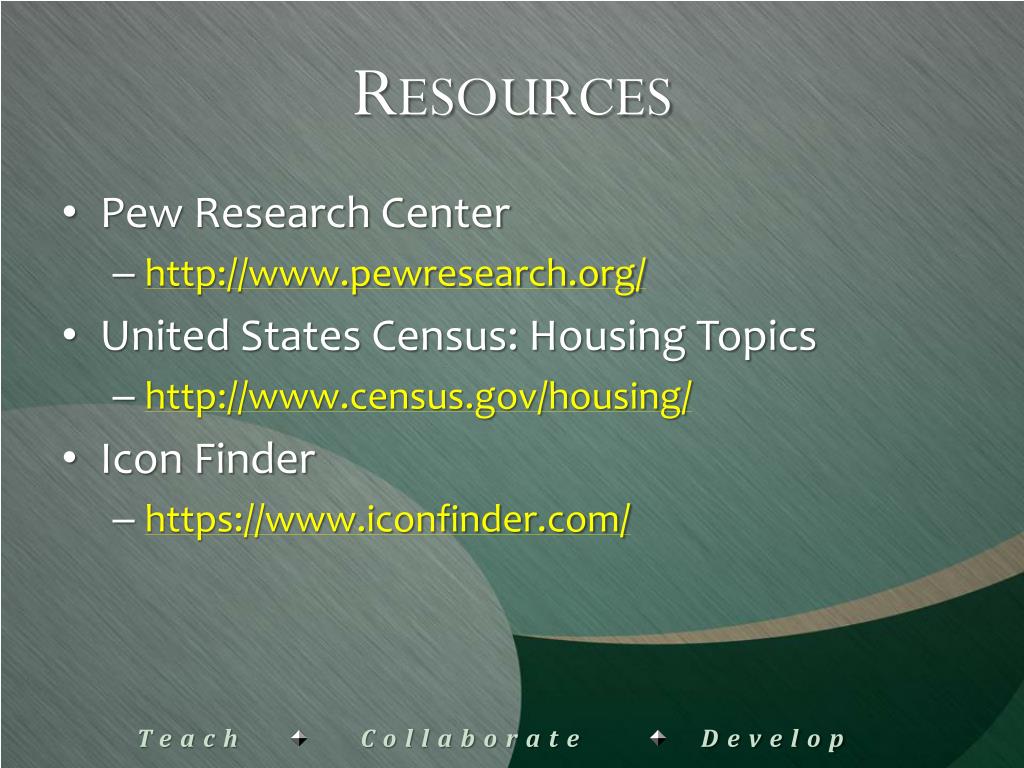

  4. Resources • Pew Research Center • http://www.pewresearch.org/ • United States Census: Housing Topics • http://www.census.gov/housing/ • Icon Finder • https://www.iconfinder.com/

  5. Excel Basics

  6. Excel Interface • Ribbon • Commands • Workbook • Worksheet(s)

  7. The Worksheet • Columns • Rows • Cells Example shows Data has column headers and how many variables?

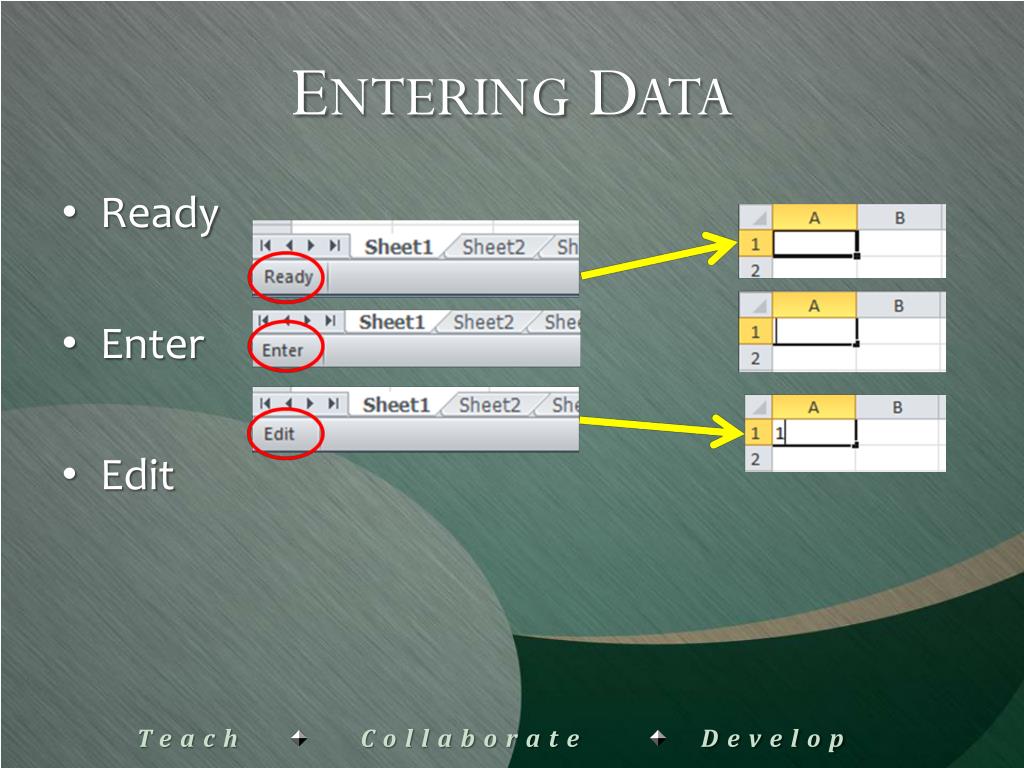

  8. Entering Data • Ready • Enter • Edit

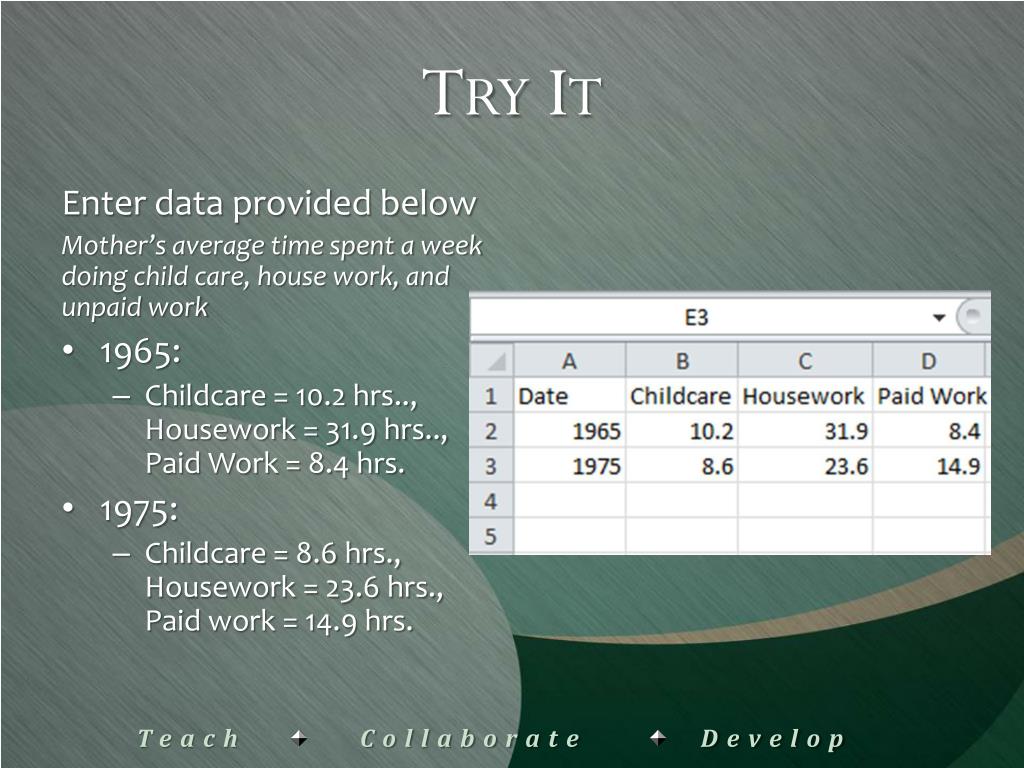

  9. Try It Enter data provided below Mother’s average time spent a week doing child care, house work, and unpaid work • 1965: • Childcare = 10.2 hrs.., Housework = 31.9 hrs.., Paid Work = 8.4 hrs. • 1975: • Childcare = 8.6 hrs., Housework = 23.6 hrs., Paid work = 14.9 hrs.

  10. Formatting Data • Tell excel if contents in cell is: • Number • Text • Date • Currency • Right Click > Format Cells • Try It with data you entered…

  11. Working with Charts/Graphs

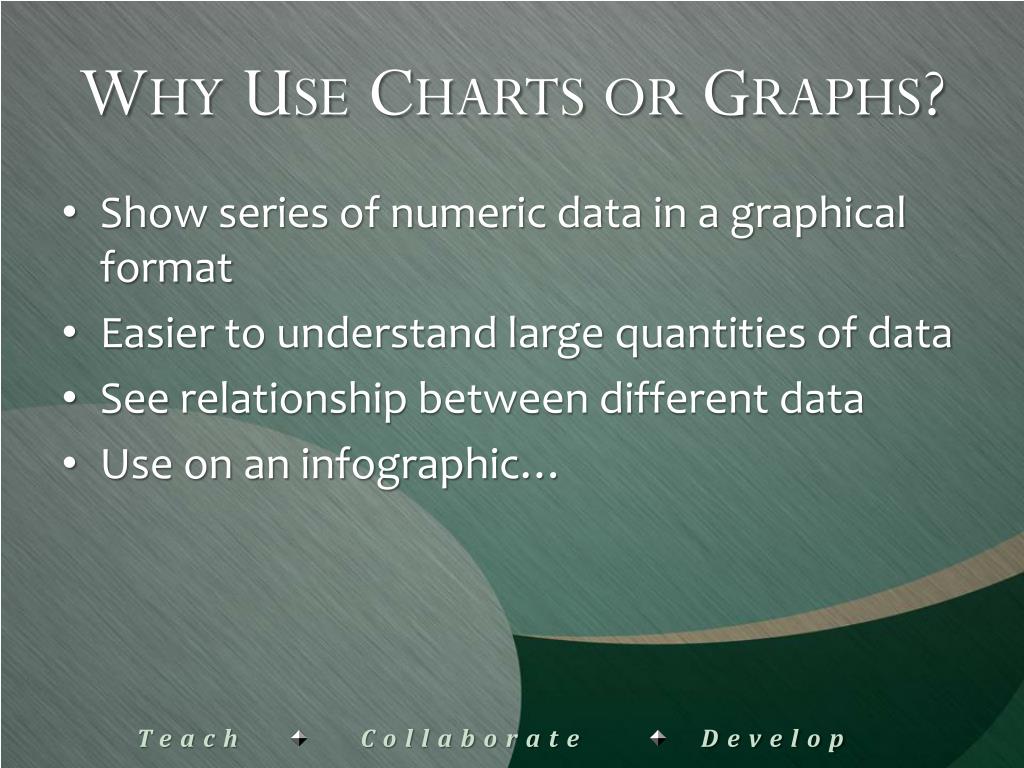

  12. Why Use Charts or Graphs? • Show series of numeric data in a graphical format • Easier to understand large quantities of data • See relationship between different data • Use on an infographic…

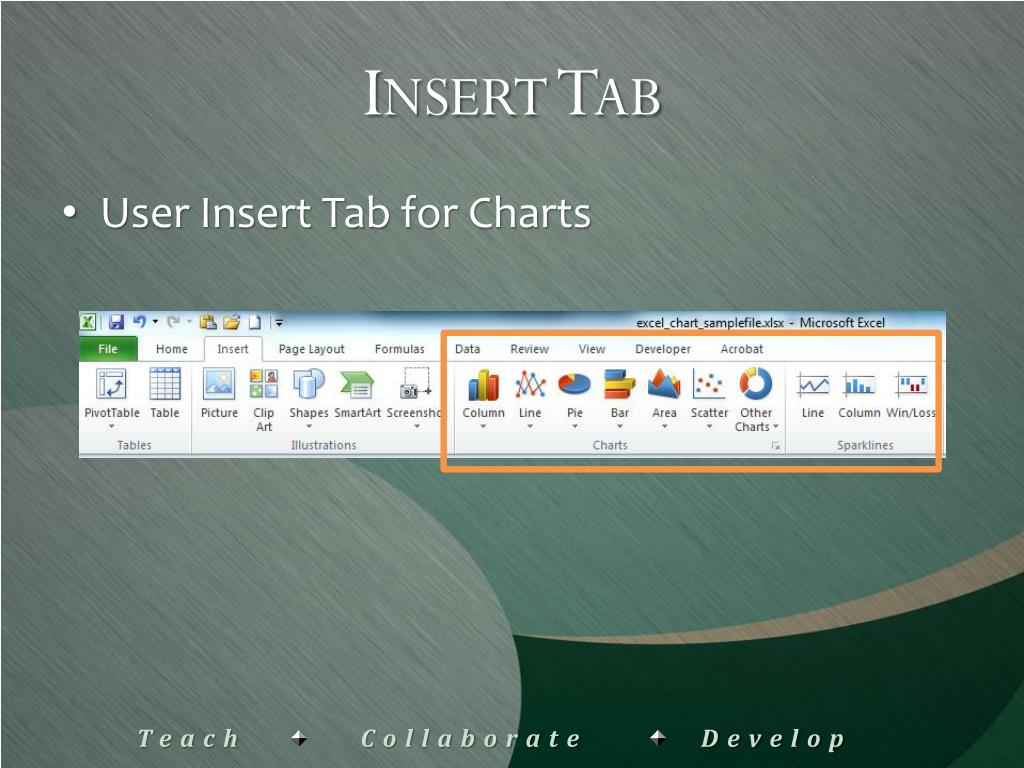

  13. Insert Tab • User Insert Tab for Charts

  14. Chart/Graph Examples on an Infographic

  15. Before You Start • Have you gathered your data? • Recorded sources to cite? • Will you import data? • Copy Data? • Manually enter data from survey?

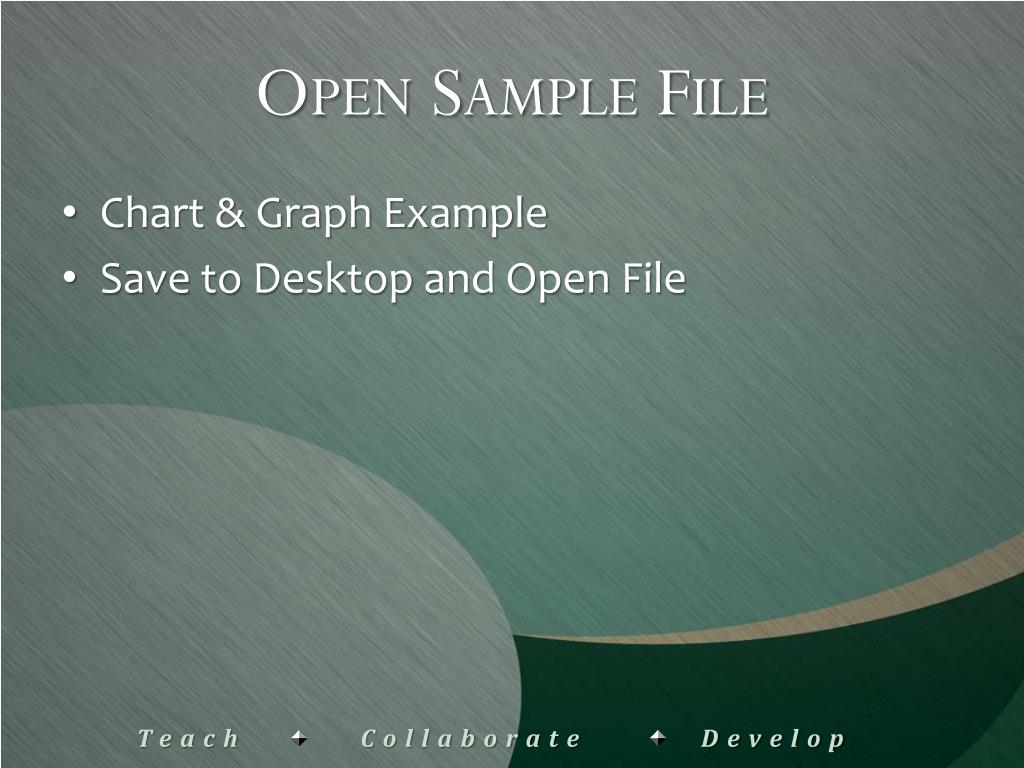

  16. Open Sample File • Chart & Graph Example • Save to Desktop and Open File

  17. Lay Out Data

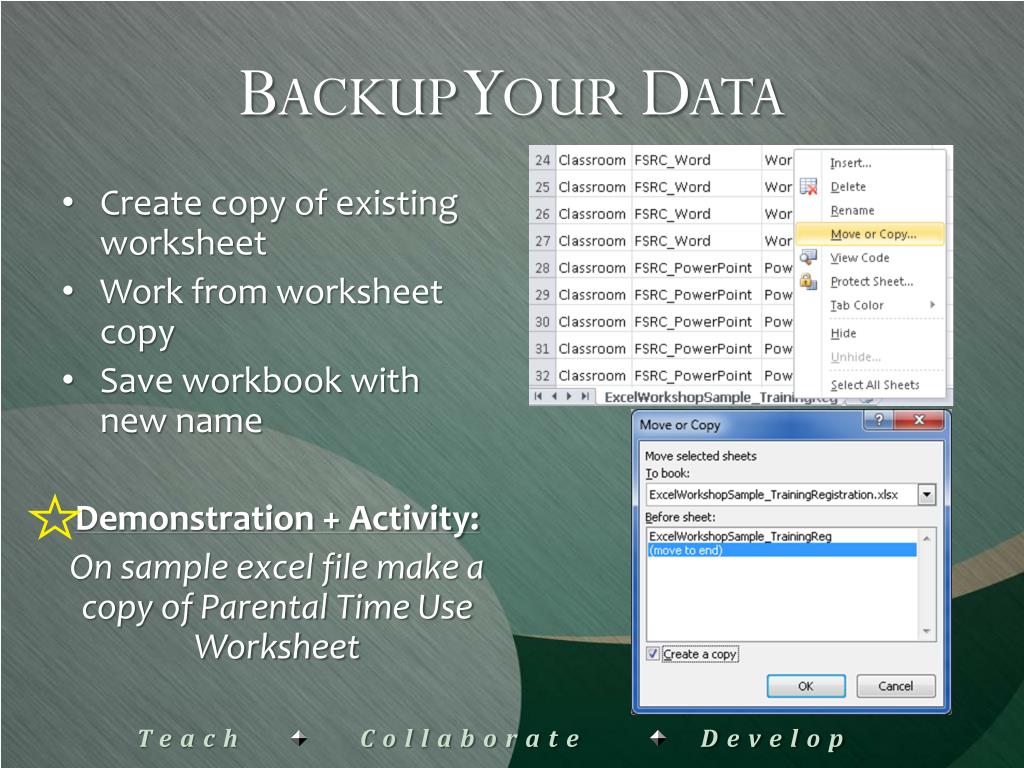

  18. Backup Your Data • Create copy of existing worksheet • Work from worksheet copy • Save workbook with new name Demonstration + Activity: On sample excel file make a copy of Parental Time Use Worksheet

  19. Rename worksheets • Helps keep track of worksheet contents • Limit of 31 Characters • Worksheet with Raw data should contain “Raw data” reference Demonstration + Activity: Rename the original Raw data worksheet and worksheet copy

  20. More Worksheet Options • Add a Tab Color • Hide Worksheets

  21. Edit Data

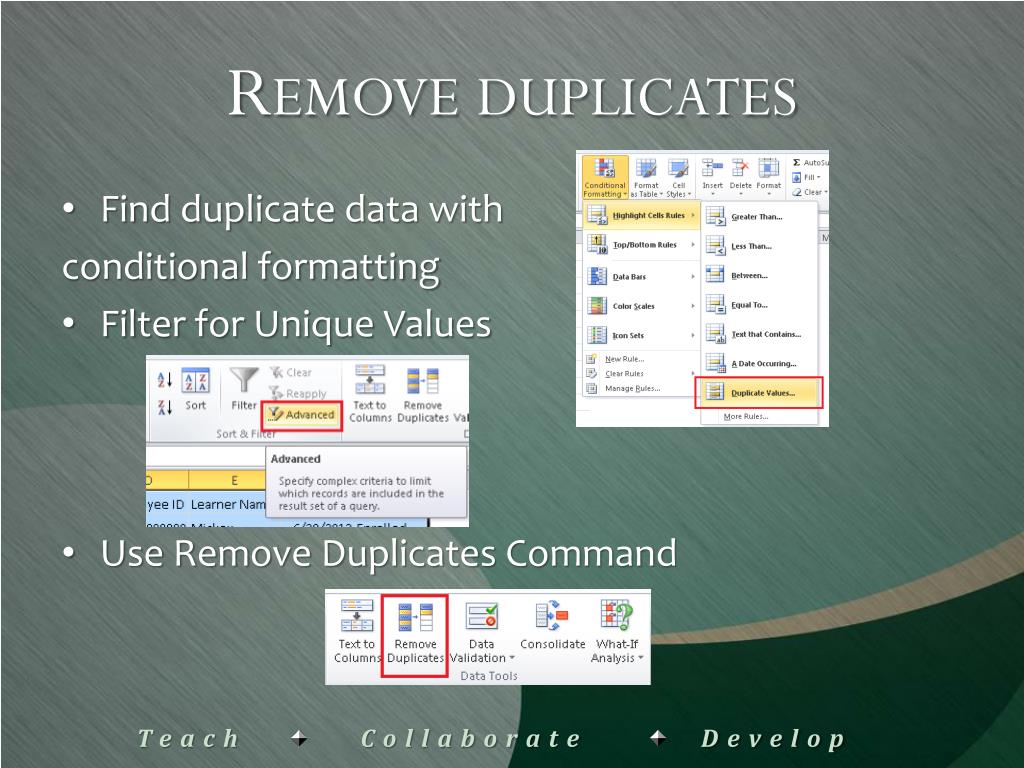

  22. Remove duplicates • Find duplicate data with conditional formatting • Filter for Unique Values • Use Remove Duplicates Command

  23. Demo & Activity • Use Conditional Formatting, Remove duplicates, options • Clear rules from selected sheets when you remove duplicates • Home > Styles > conditional formatting > clear rules from entire sheet

  24. Charts

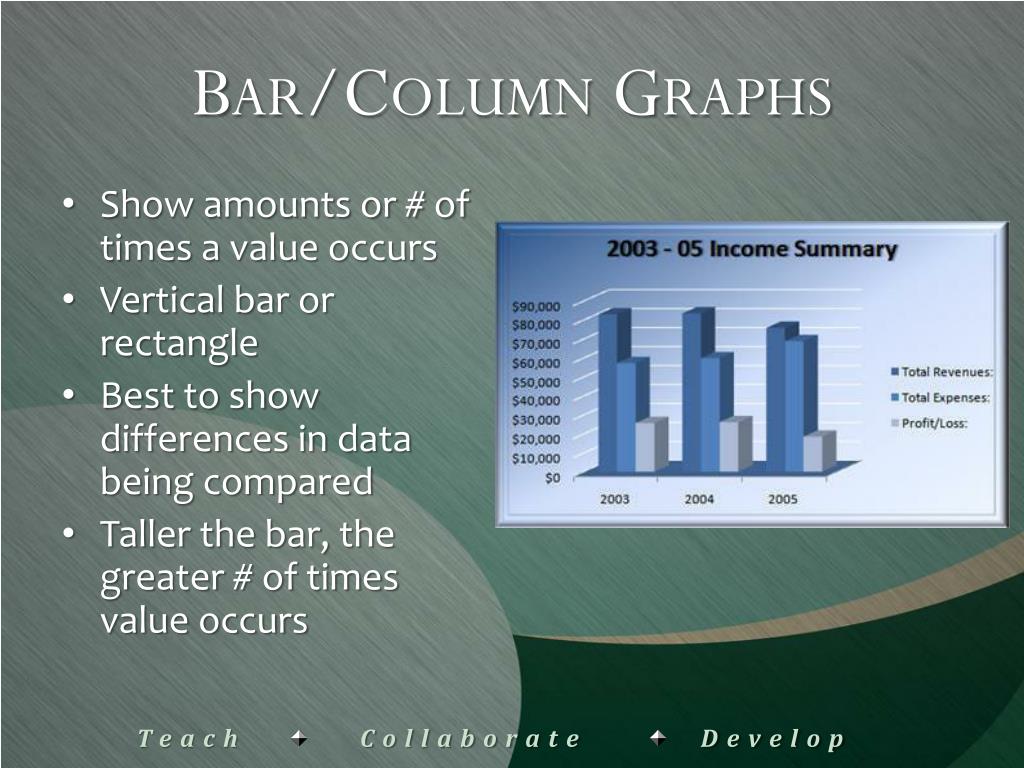

  25. Bar/Column Graphs • Show amounts or # of times a value occurs • Vertical bar or rectangle • Best to show differences in data being compared • Taller the bar, the greater # of times value occurs

  26. Line Graphs • Plot changes in data over time • Vertical and Horizontal Axis • Time plotted on x-axis • Other data on vertical y axis • Used to predict future results

  27. Scatter Plot Graphs • Show trends in data • Useful for large data sets • “Best Fit” line – closer the points, stronger correlation • Left to Right = Positive correlation • Right to Left = Negative correlation

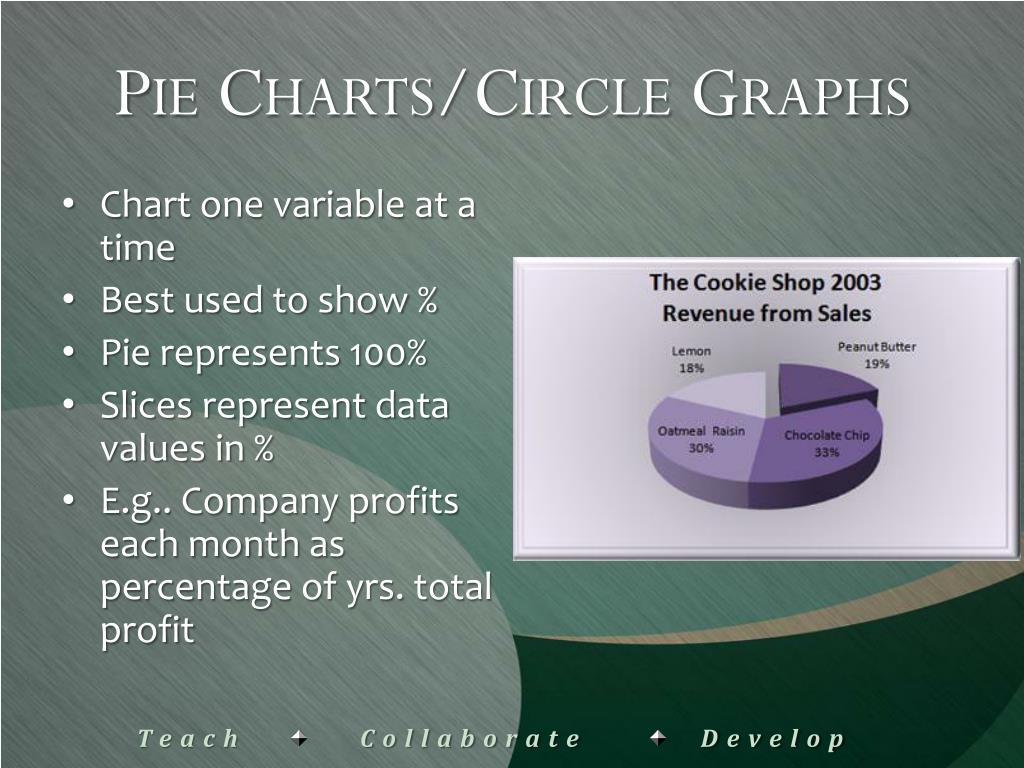

  28. Pie Charts/Circle Graphs • Chart one variable at a time • Best used to show % • Pie represents 100% • Slices represent data values in % • E.g.. Company profits each month as percentage of yrs. total profit

  29. Insert a Chart • Open Sample Data • What type of chart is best? • Select data to be charted • Insert Tab > Charts • Choose Chart Type • Chart is inserted • Use Line Graph

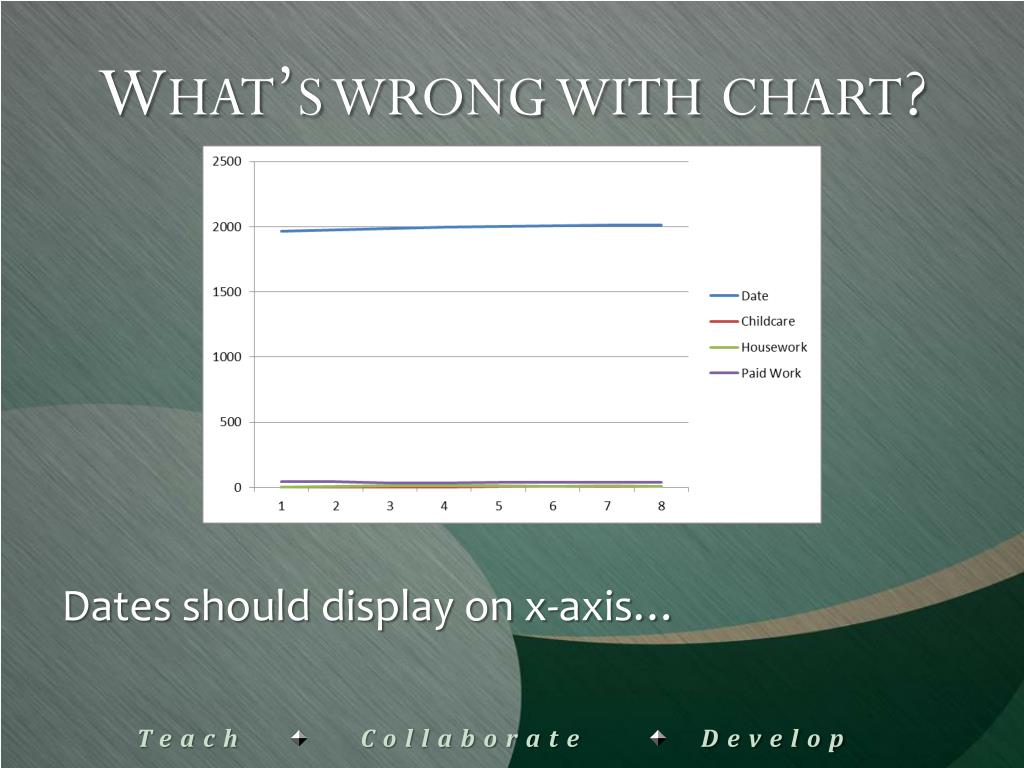

  30. What’s wrong with chart? Dates should display on x-axis…

  31. Edit Chart • Right Click Chart > Select Data

  32. Select Data Source • Edit Horizontal Axis Labels • Select Edit > Select Dates on Excel Sheet • Remove date from Legend Entries

  33. Chart Tools • Design • Change chart type • Select Data • Edit Layout and Styles • Move Chart

  34. Edit Layout & Style • Chart Layouts Group • Select Layout 3 • Adds a Chart Title option and moves legend below x axis • Chart Styles Group • Choose any style of choice

  35. Layout Tools • Edit Axis Labels • Labels Group > Axis Title • Add Horizontal Axis - “Years” • Add Vertical Axis- “Hours” • Rename chart title: “Father’s Parental Time Use”

  36. Format Tools • Format individual chart/graph elements • Menus provide formatting options depending on item selected in chart • Resize As Needed – Larger is Better • Drag corner • Size Group

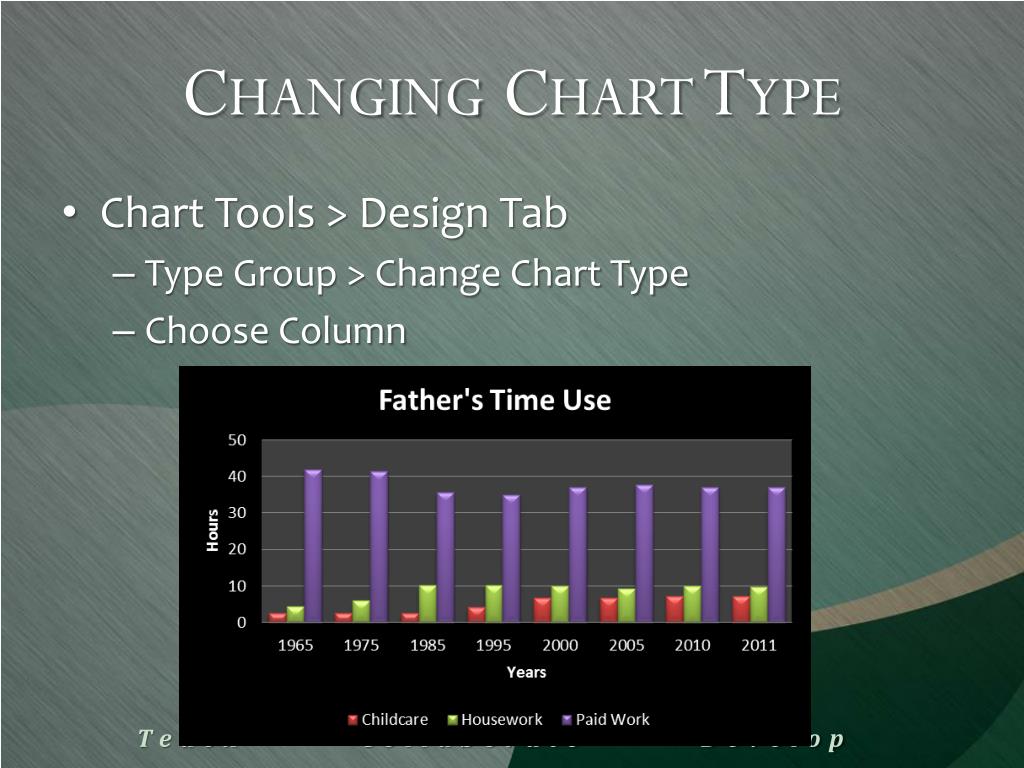

  37. Changing Chart Type • Chart Tools > Design Tab • Type Group > Change Chart Type • Choose Column

  38. Activity • Practice all steps with “Mothers” Parental time data • Use a column chart again

  39. Using a Picture Fill

  40. Using Fill Options • Best for Column/Bar charts • Easier to see type of data presented • Great for infographic

  41. Activity • Find the following pictures/icons online: • Dollar sign • Baby • House • Search Google or Icon Finder • Insert each picture as a fill for columns chart

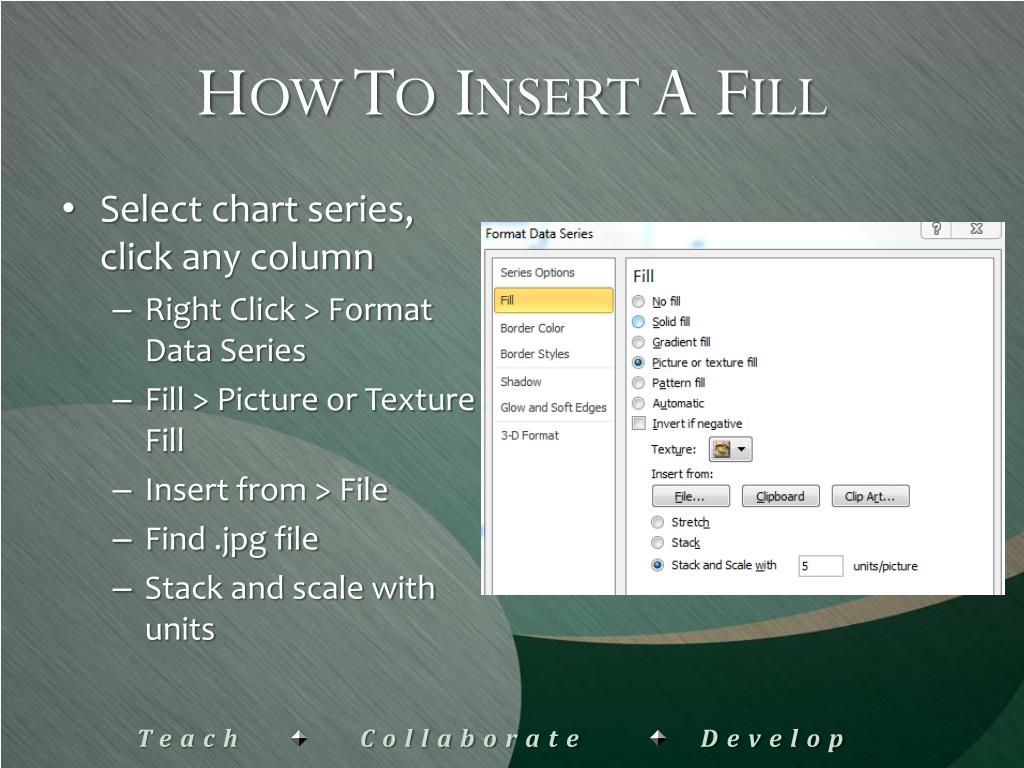

  42. How To Insert A Fill • Select chart series, click any column • Right Click > Format Data Series • Fill > Picture or Texture Fill • Insert from > File • Find .jpg file • Stack and scale with units

  43. Remove Picture Fill • Right Click Bar > Format Data Series • Click Fill, and then under Fill, click Automatic. • Clicking “No Fill” removes all formatting for element

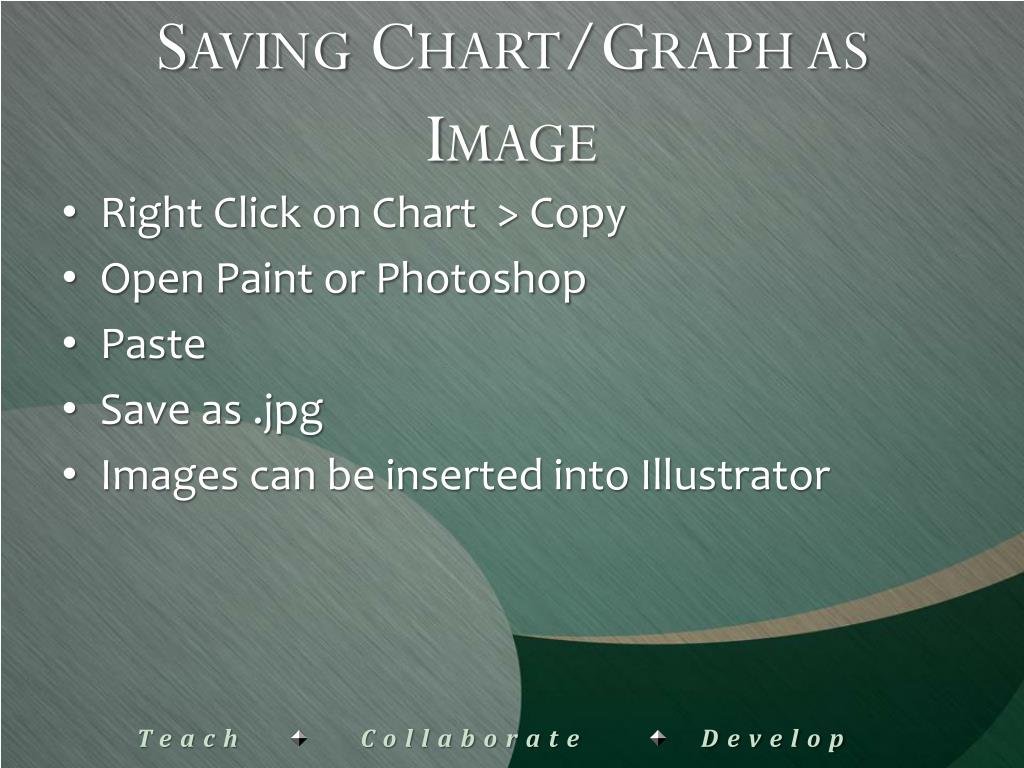

  44. Saving Chart/Graph as Image • Right Click on Chart > Copy • Open Paint or Photoshop • Paste • Save as .jpg • Images can be inserted into Illustrator

  45. Summary • Learned basics about Excel Interface • Learned how to insert and edit a Chart • Learned how to use a Picture Fill • Learned how to save charts as Images

  46. Questions?
