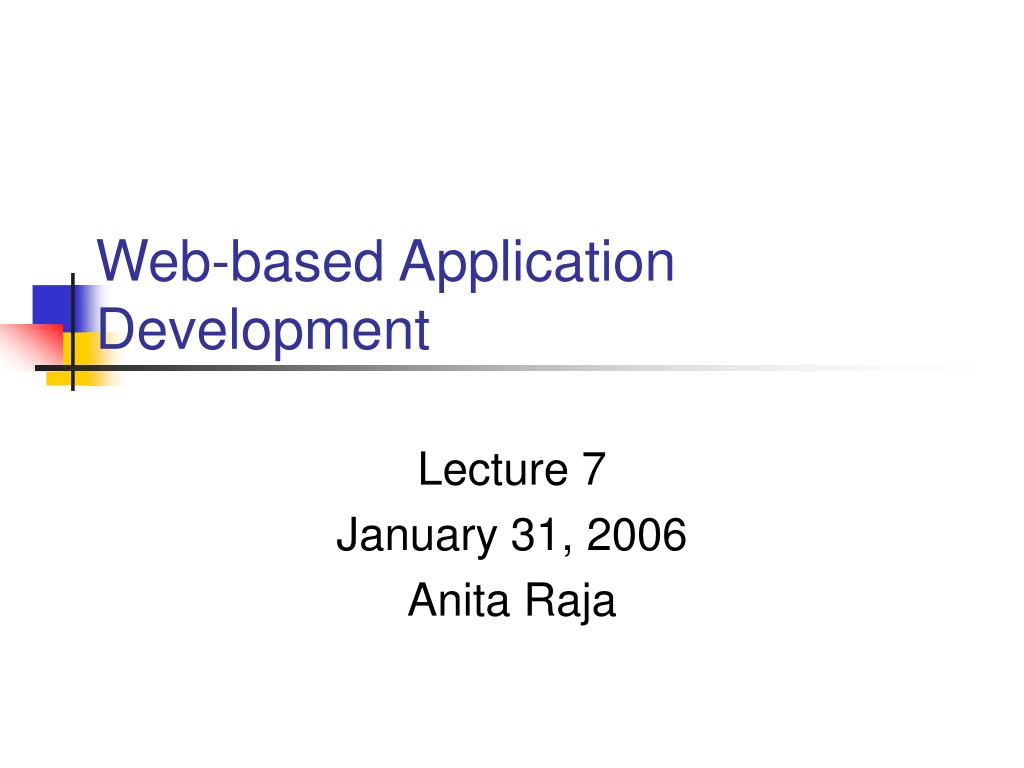

  1. Web-based Application Development Lecture 7 January 31, 2006 Anita Raja

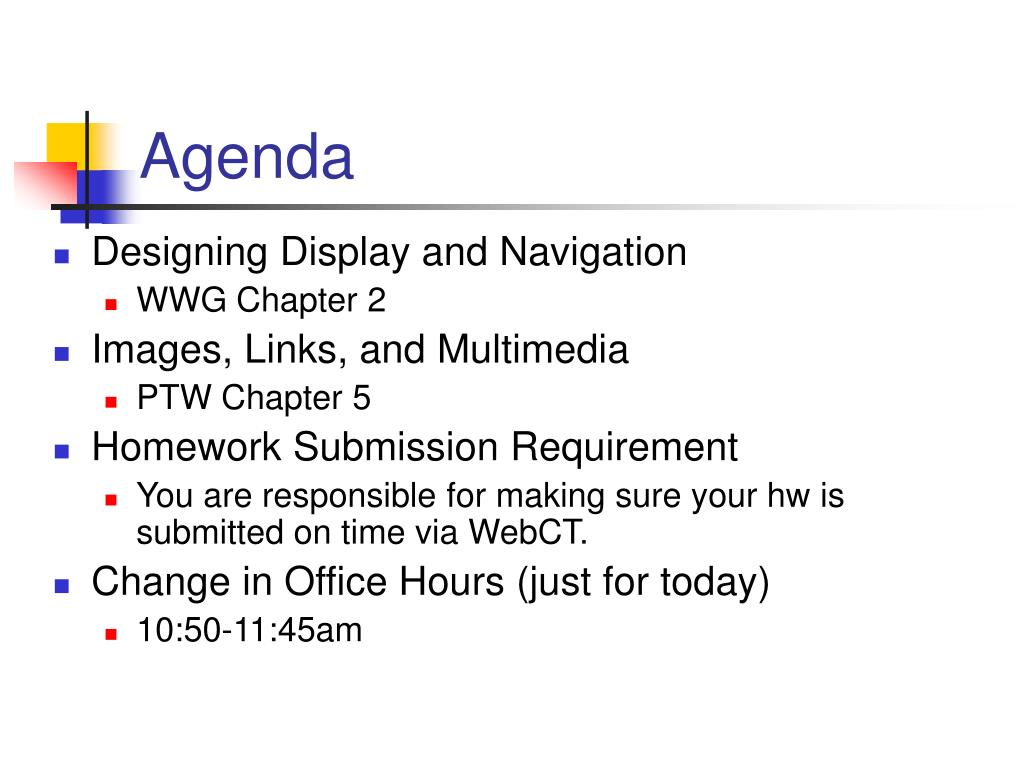

  2. Agenda • Designing Display and Navigation • WWG Chapter 2 • Images, Links, and Multimedia • PTW Chapter 5 • Homework Submission Requirement • You are responsible for making sure your hw is submitted on time via WebCT. • Change in Office Hours (just for today) • 10:50-11:45am

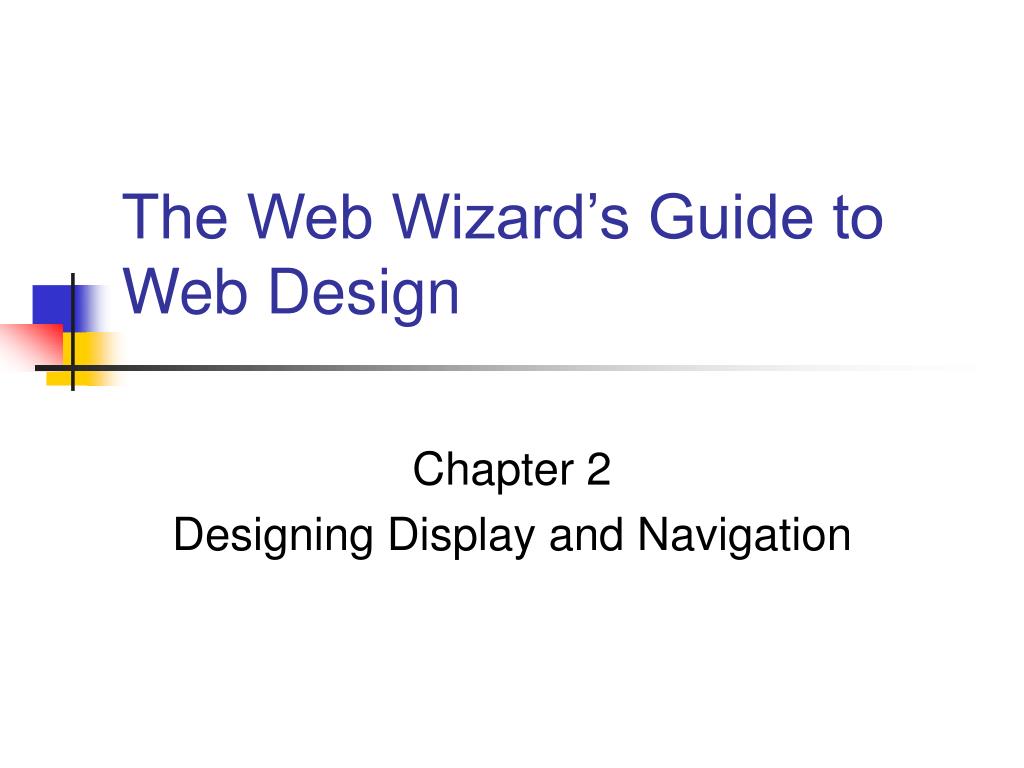

  3. The Web Wizard’s Guide to Web Design Chapter 2 Designing Display and Navigation

  4. Navigation Through the Site • Unlike books, magazines, & newspapers, there is no common Web format to specify: • Whose site am I looking at? • Where am I within the site? • What else is available from this site? • Where should I go next? • How do I get there? • How do I find whatever I’m looking for?

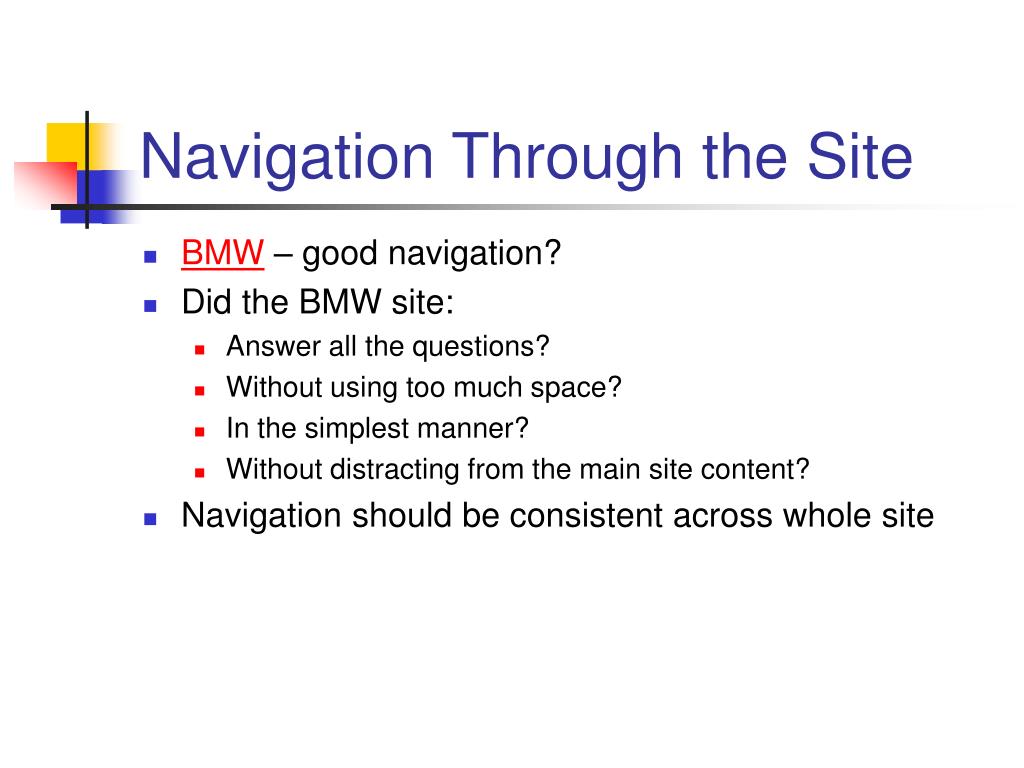

  5. Navigation Through the Site • BMW – good navigation? • Did the BMW site: • Answer all the questions? • Without using too much space? • In the simplest manner? • Without distracting from the main site content? • Navigation should be consistent across whole site

  6. Navigation Through the Site • Why is site identification important? • How is it accomplished? • Text (name of organization) • Logo (graphic)

  7. Navigation Through the Site • Common visual theme • Identifies • Reinforces • Balance: • Content • Navigation • Organization identity

  8. Navigation Through the Site • “Place” within books, magazines, movies • Intuitive • Familiar • Place within Web sites? • Menus • Horizontal • Vertical

  9. Navigation Through the Site • Menus: • Provide means of navigation • Show site organization • Indicate current location • Keep size small, content short • Not every page needs a menu • Keep style consistent throughout site • Site maps …

  10. Navigation Through the Site Cascading titles (“breadcrumbs”)

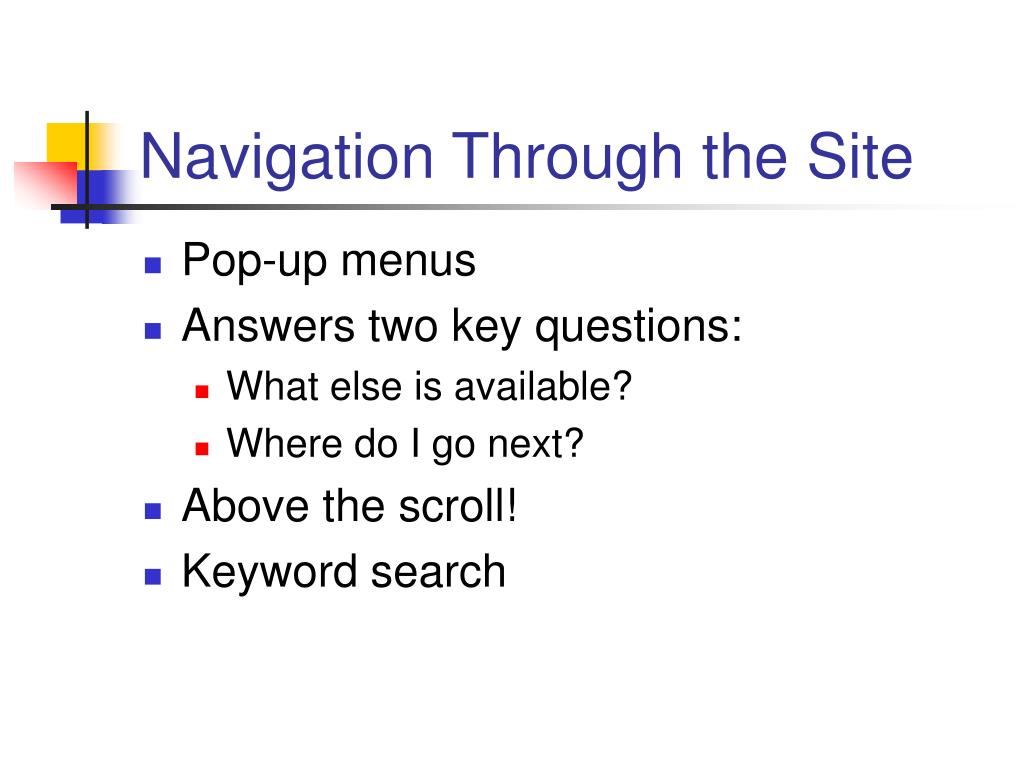

  11. Navigation Through the Site • Pop-up menus • Answers two key questions: • What else is available? • Where do I go next? • Above the scroll! • Keyword search

  12. Navigation Through the Site • Don’t have to provide every navigation aid to every user on every page • Arrange aids so they: • Obvious • Consistent • Easy to use • Take up as little “floor space” as possible

  13. Feedback and Interaction • Internet is two-way • State interactivity goals in site’s purpose • Is collecting user information important? • Explicit (user is aware) • Must allocate space on page(s) • Provide functionality (error checking, other) • Implicit (user is not aware)

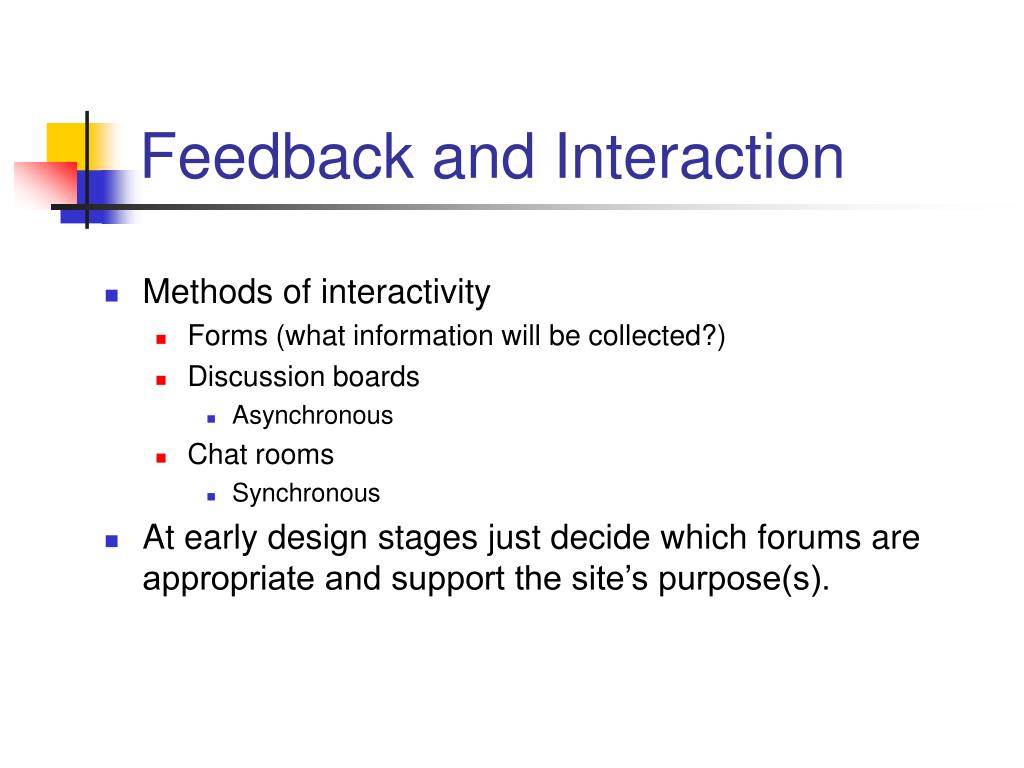

  14. Feedback and Interaction • Methods of interactivity • Forms (what information will be collected?) • Discussion boards • Asynchronous • Chat rooms • Synchronous • At early design stages just decide which forums are appropriate and support the site’s purpose(s).

  15. Organizational Identity • Visual identity • Symbol • Nike swoosh • GE symbol • Ford oval • Color (IBM blue)

  16. Organizational Identity • Colors • Logo • Font • Design features • Shapes • Ford’s oval motif • Patterns • Mascots • Look and feel

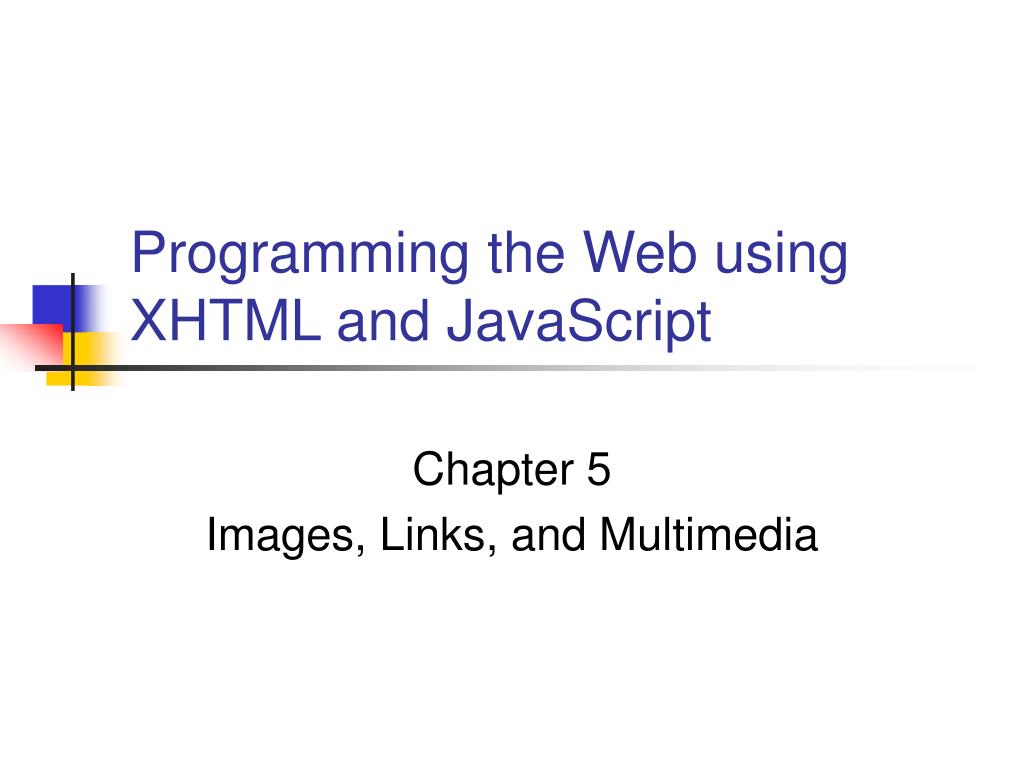

  17. Programming the Web using XHTML and JavaScript Chapter 5 Images, Links, and Multimedia

  18. Displaying Images • General Form <img src=“URL goes here” /> • Example <img src = “http://www.nasa.gov/multimedia/imagegallery/image_feature_73.html” />

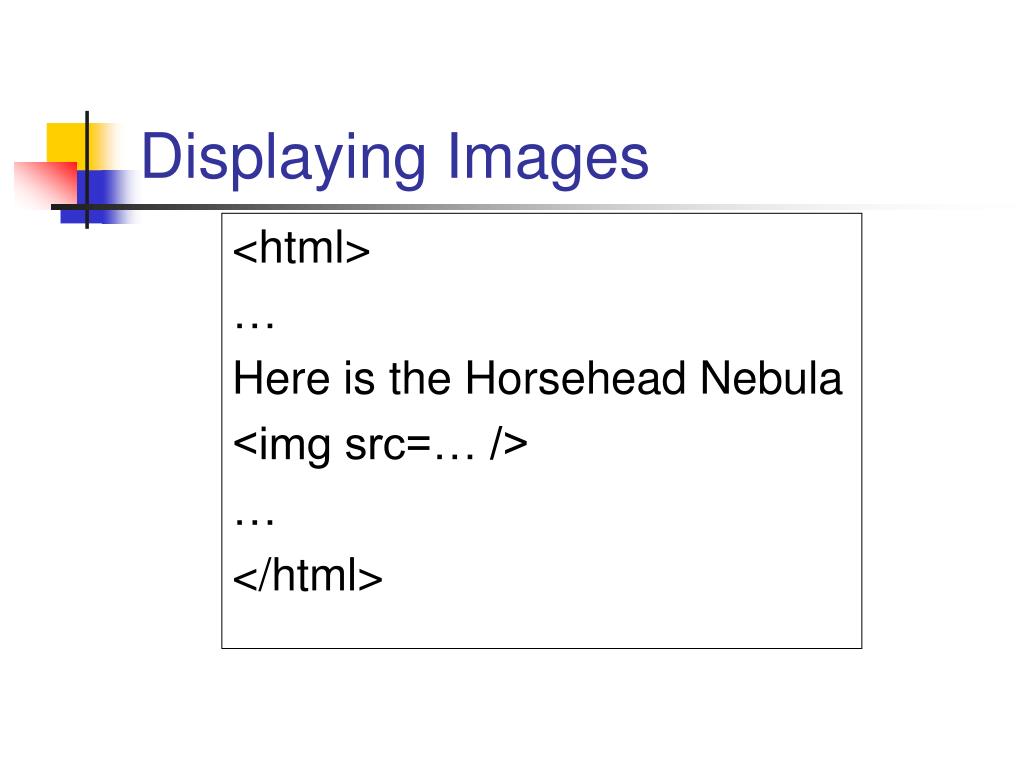

  19. Displaying Images <html> … Here is the Horsehead Nebula <img src=… /> … </html>

  20. Displaying Images • Ch05-Ex-01

  21. Displaying Images • Absolute Path <img src = “http://www.nasa.gov/multimedia/imagegallery/image_feature_73.html” /> • Relative Path <img src =“image_feature_73.html” />

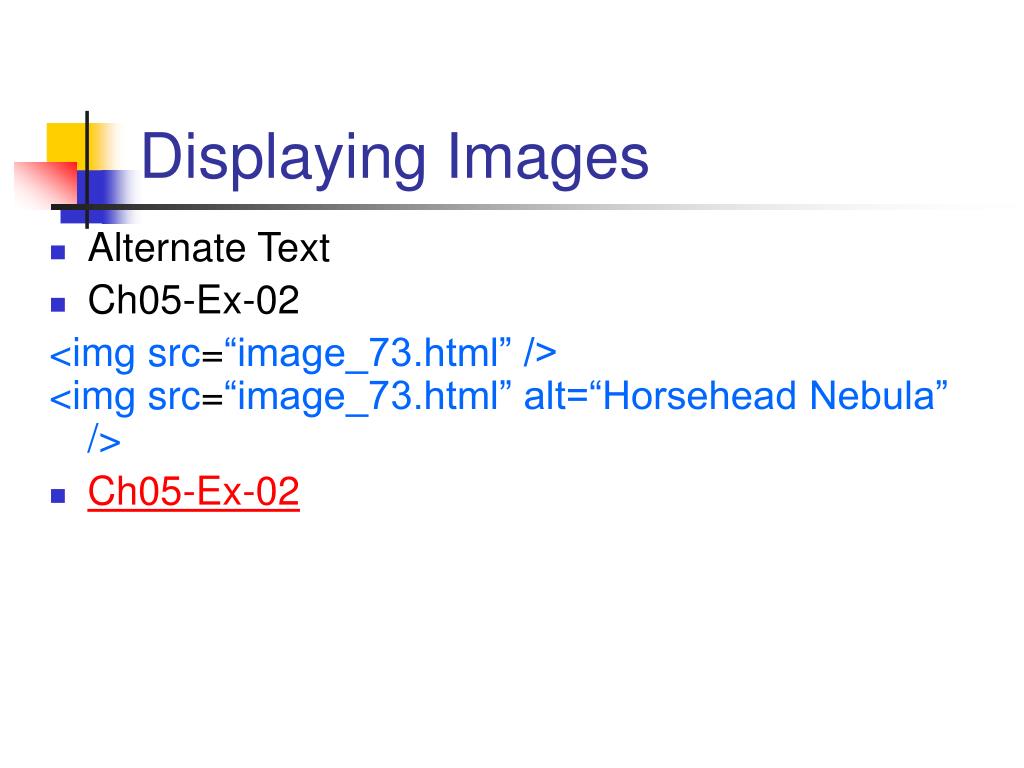

  22. Displaying Images • Alternate Text • Ch05-Ex-02 <img src=“image_73.html” /> <img src=“image_73.html” alt=“Horsehead Nebula” /> • Ch05-Ex-02

  23. Displaying Images • Inline images • “In line” with the rest of text like any other character • Blah blah blah <img …> blah blah blah • Image may not be the same size as the characters on the rest of the line • How to align text with image?

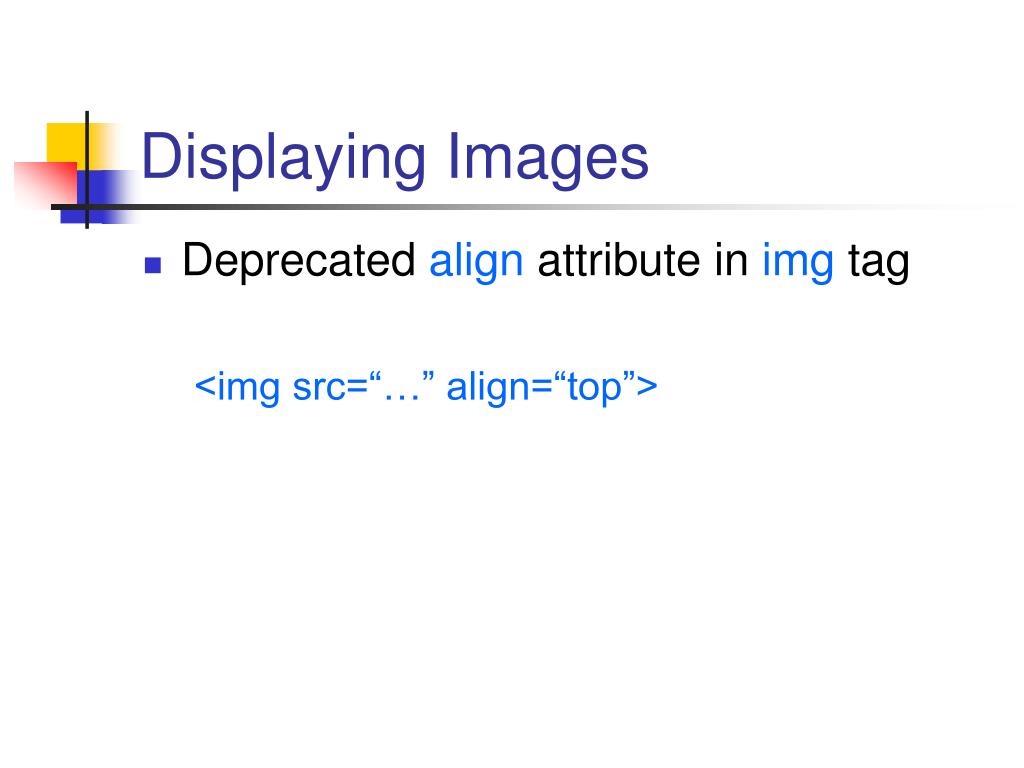

  24. Displaying Images • Deprecated align attribute in img tag <img src=“…” align=“top”>

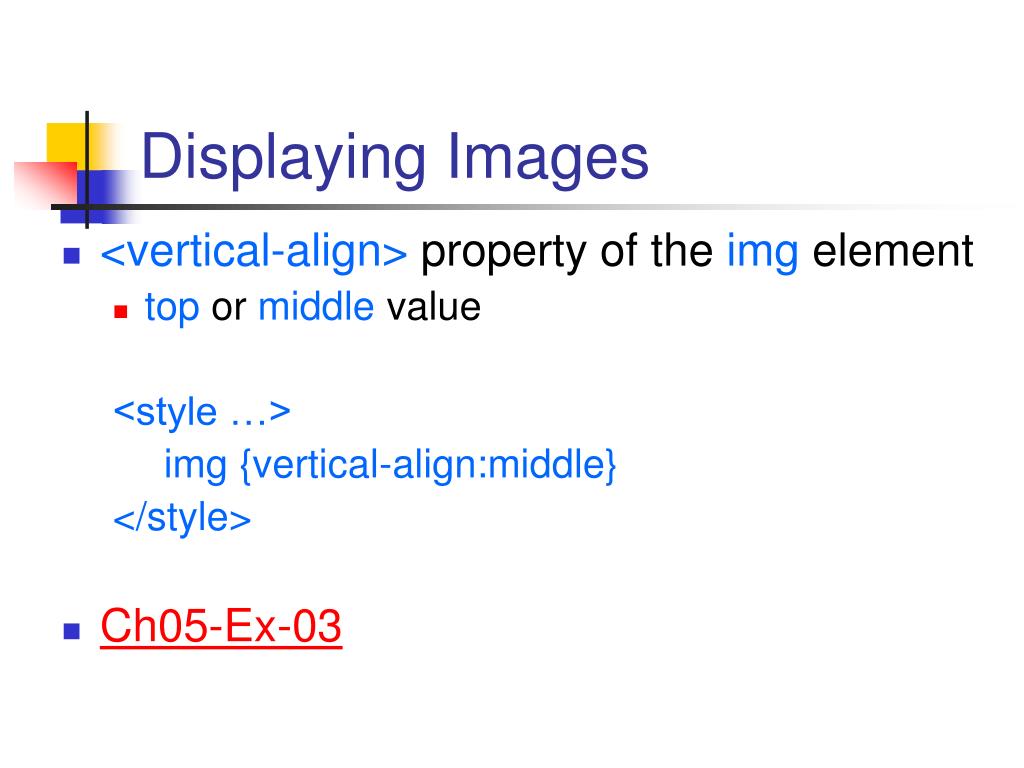

  25. Displaying Images • <vertical-align> property of the img element • top or middle value <style …> img {vertical-align:middle} </style> • Ch05-Ex-03

  26. Displaying Images • Problem when text is more than just a few words. • Cho5-Ex-04

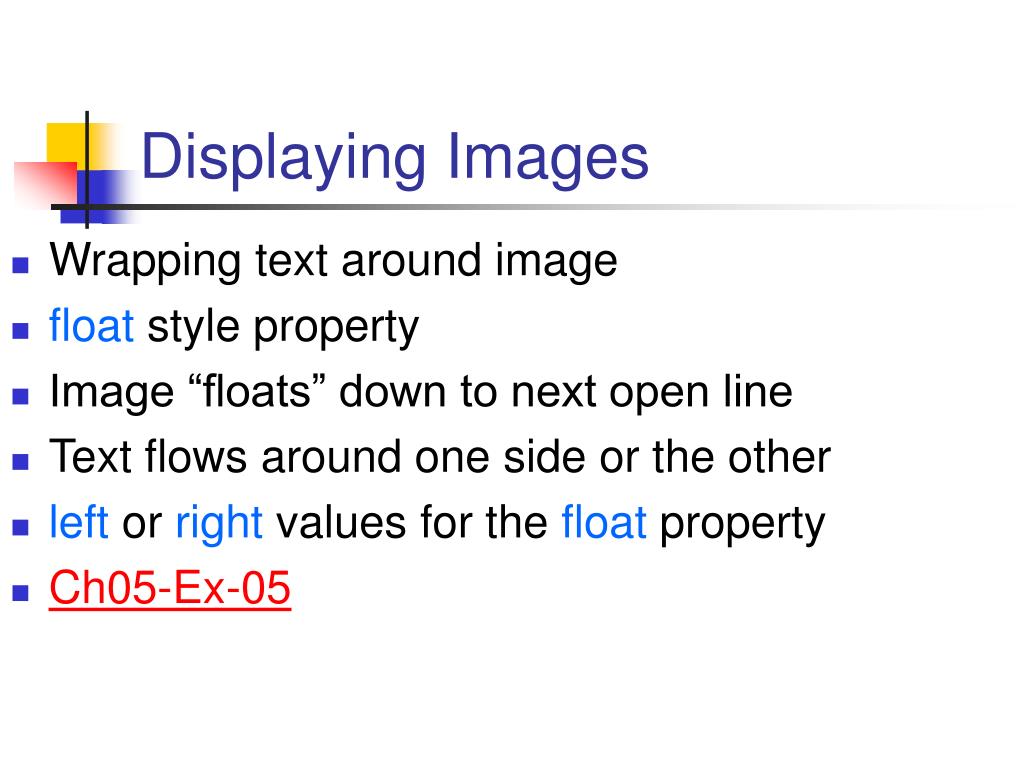

  27. Displaying Images • Wrapping text around image • float style property • Image “floats” down to next open line • Text flows around one side or the other • left or right values for the float property • Ch05-Ex-05

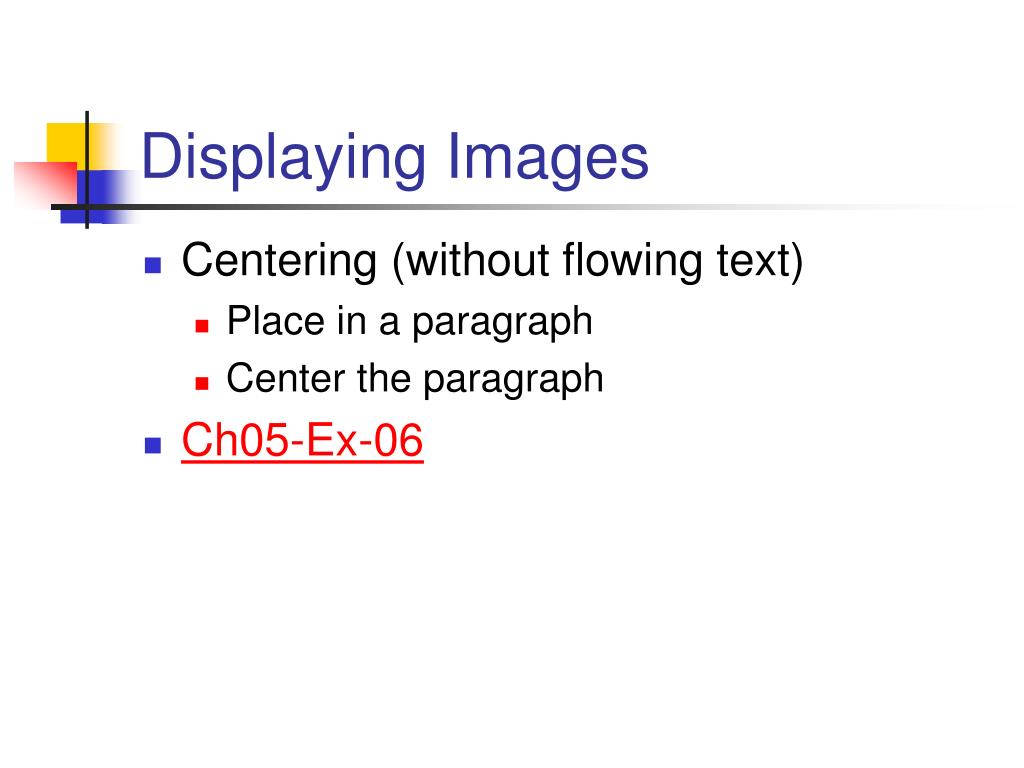

  28. Displaying Images • Centering (without flowing text) • Place in a paragraph • Center the paragraph • Ch05-Ex-06

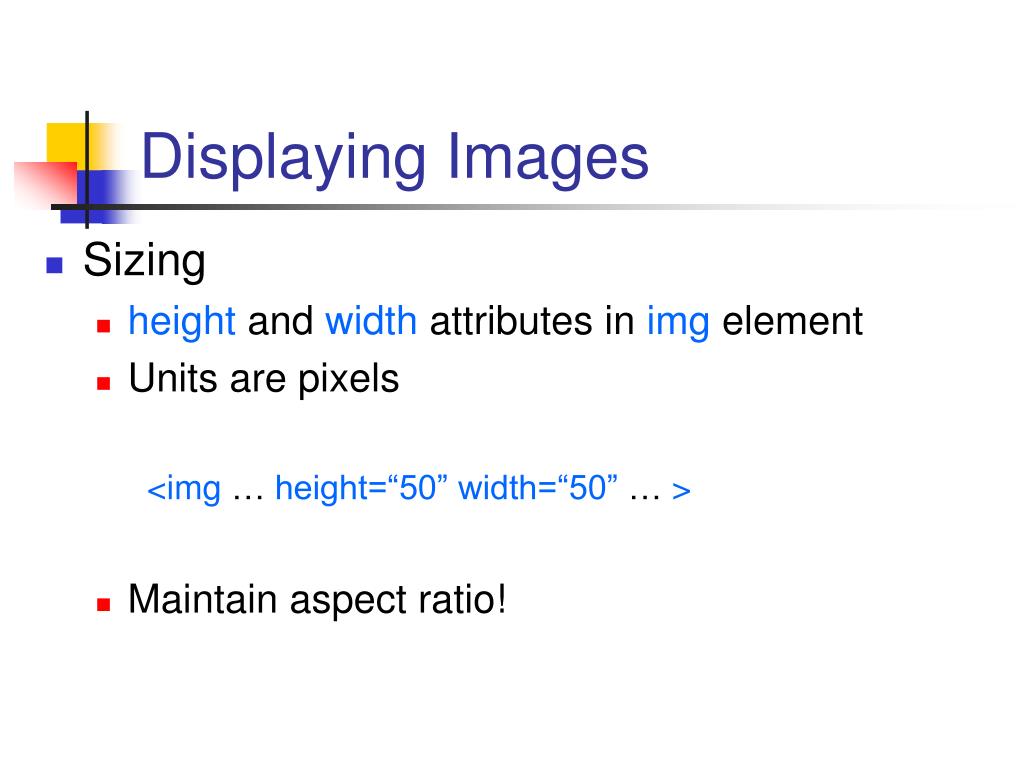

  29. Displaying Images • Sizing • height and width attributes in img element • Units are pixels <img … height=“50” width=“50” … > • Maintain aspect ratio!

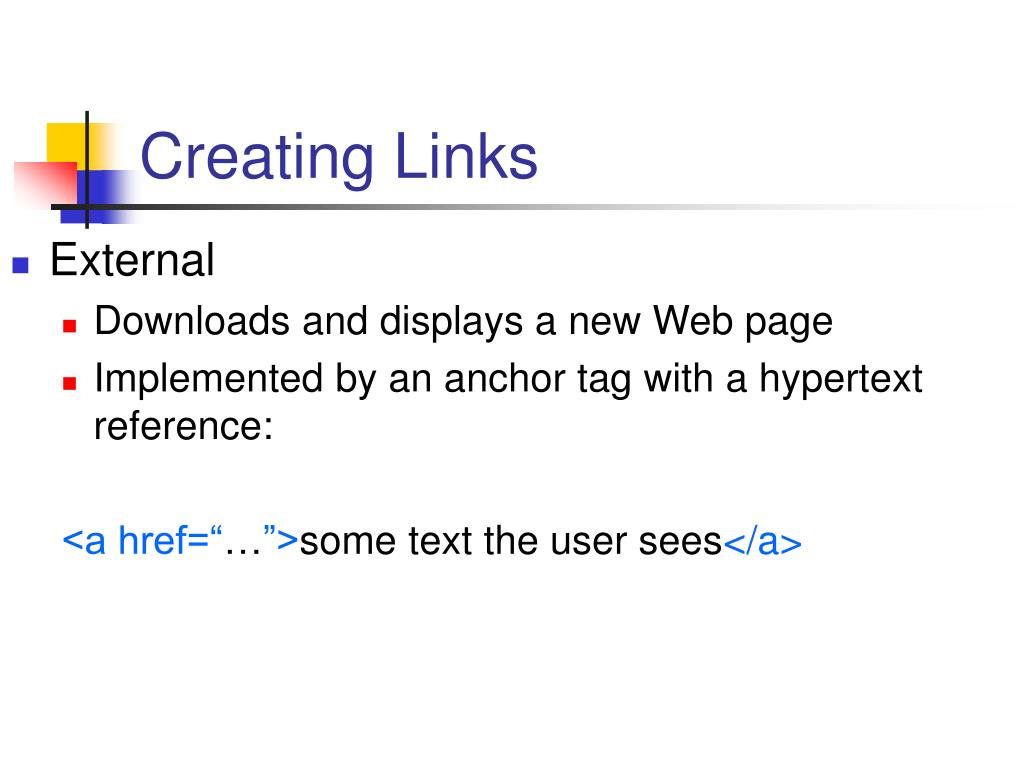

  30. Creating Links • External • Downloads and displays a new Web page • Implemented by an anchor tag with a hypertext reference: <a href=“…”>some text the user sees</a>

  31. Creating Links • Pathnames • Absolute http://www.nasa.gov/multimedia/highlights/index.html • Relative highlights/index.html index.html • Defaults to index.html

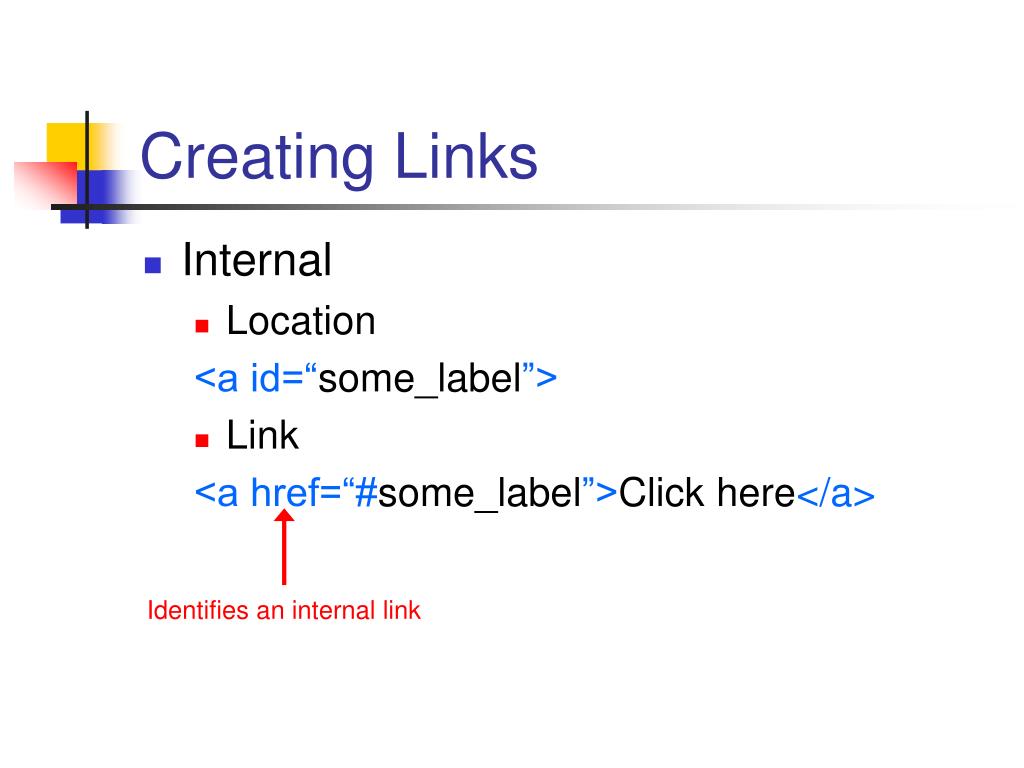

  32. Identifies an internal link Creating Links • Internal • Location <a id=“some_label”> • Link <a href=“#some_label”>Click here</a>

  33. Creating Links • Combined • Form: url#id http://www.sis.uncc.edu/~anraja/courses/2300/assignments.htm#Lagerstrom-Ch-5

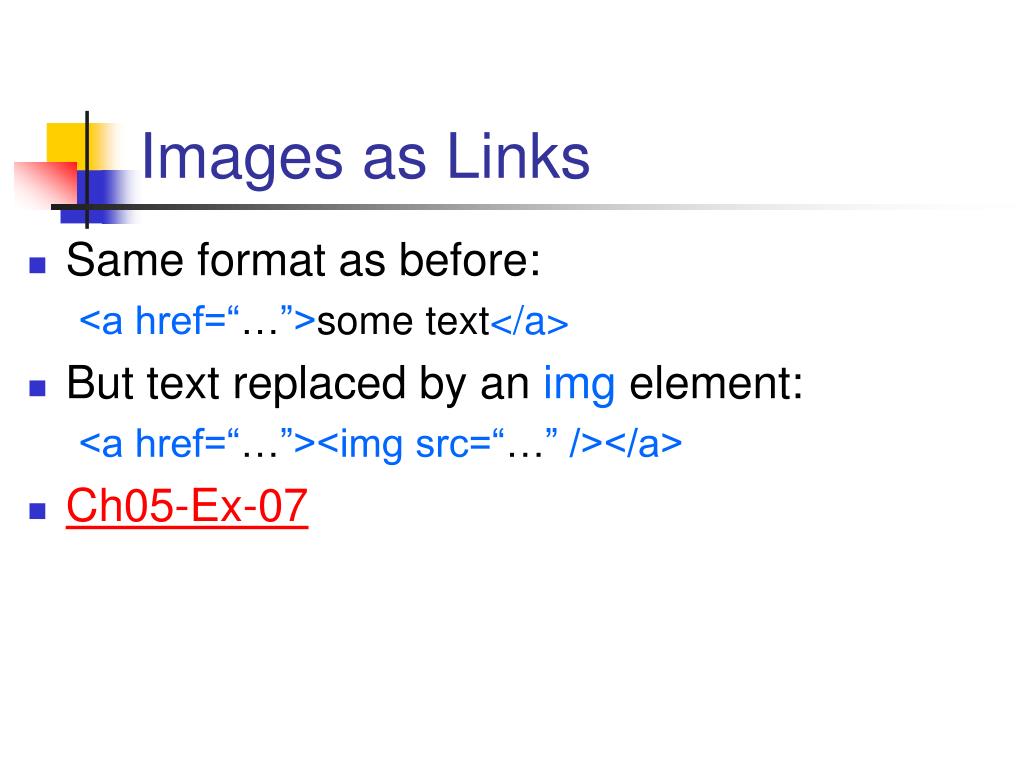

  34. Images as Links • Same format as before: <a href=“…”>some text</a> • But text replaced by an img element: <a href=“…”><img src=“…” /></a> • Ch05-Ex-07

  35. Images as Links • Image Maps • Graphics with “hotspots” that act as links • Client-side and server-side • Two-step process: • Define hotspots • Overlay graphic with hotspots

  36. Images as Links <map id=“map_name”> </map> <area shape=“rect” coords=“43, 70, 97, 120” href=“…” />

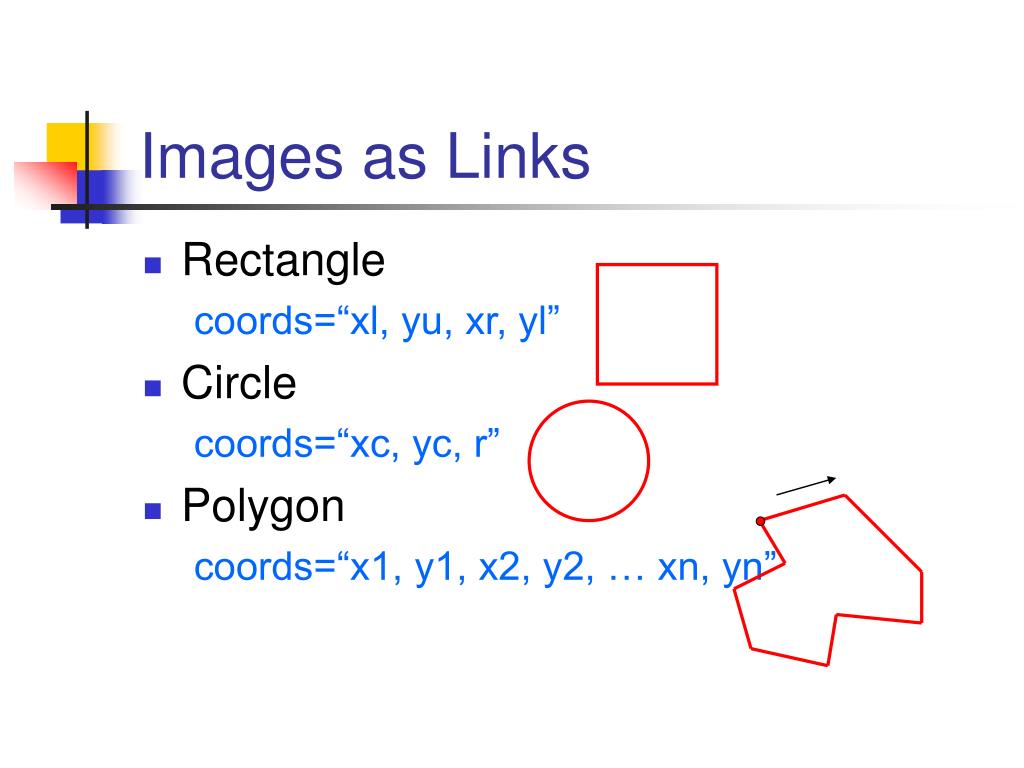

  37. Images as Links • Rectangle coords=“xl, yu, xr, yl” • Circle coords=“xc, yc, r” • Polygon coords=“x1, y1, x2, y2, … xn, yn”

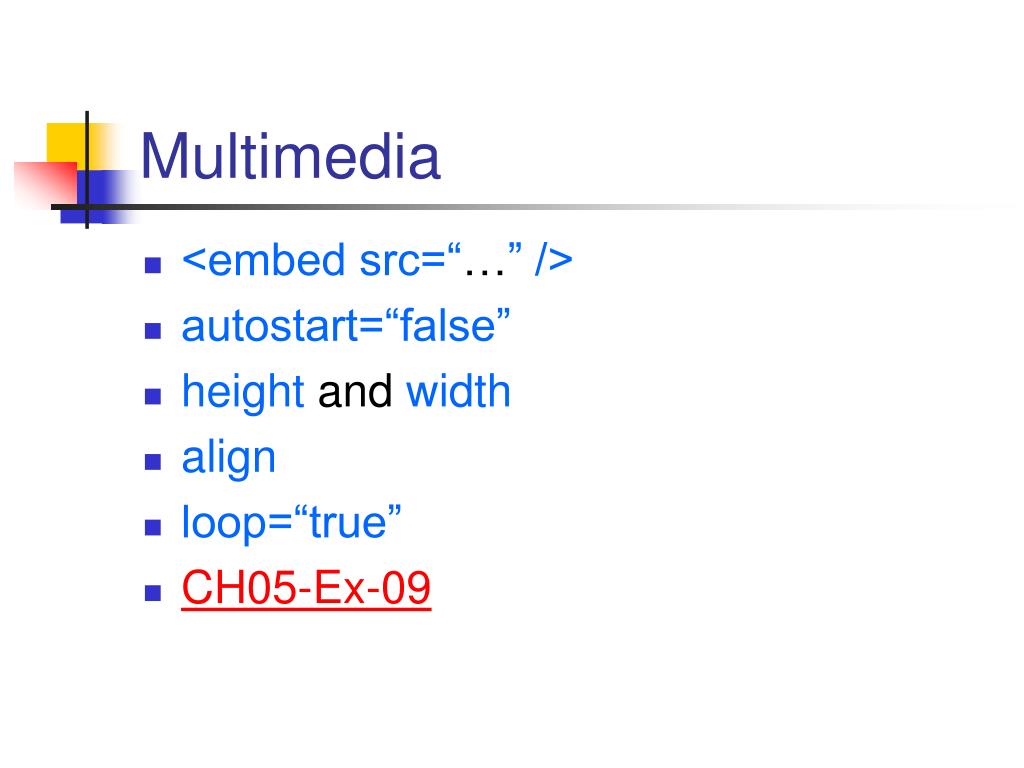

  38. Multimedia • <embed src=“…” /> • autostart=“false” • height and width • align • loop=“true” • CH05-Ex-09

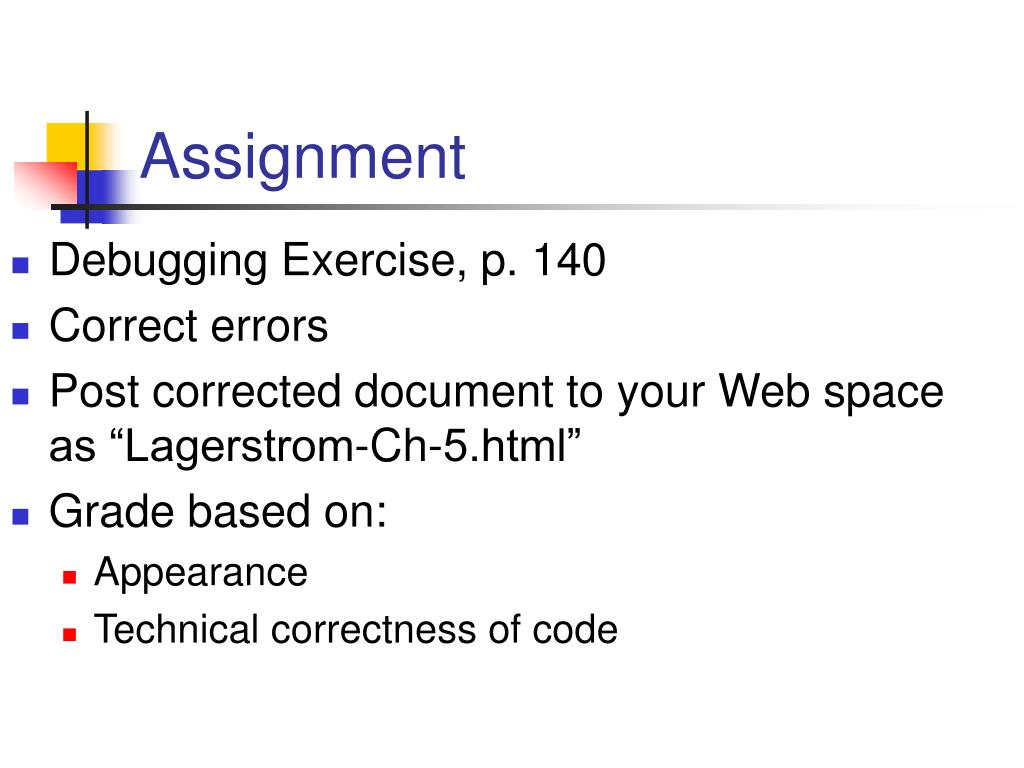

  39. Assignment • Debugging Exercise, p. 140 • Correct errors • Post corrected document to your Web space as “Lagerstrom-Ch-5.html” • Grade based on: • Appearance • Technical correctness of code
