  1. Scenarios and Considerations of IPv6 in IEEE 802.16 Networksdraft-shin-ipv6-ieee802.16-01 Myung-Ki Shin, ETRI Jung-Mo Moon, ETRI Youn-Hee Han, Samsung AIT IETF-64 16ng BoF @ Vancouver, BC, Canada

  2. Goal and Scope • The characteristics of IEEE 802.16 networks (links) put special considerations on how IPv6 is used • draft-jee-16ng-problem-statement-02 • IEEE 802.16 network deployment scenarios have an influence on how to adopt IPv6 • The considerations might be classified into : • Protocol issues, implementation issues and operation issues • The draft will not cover WiMAX and WiBro implementation-specific functions

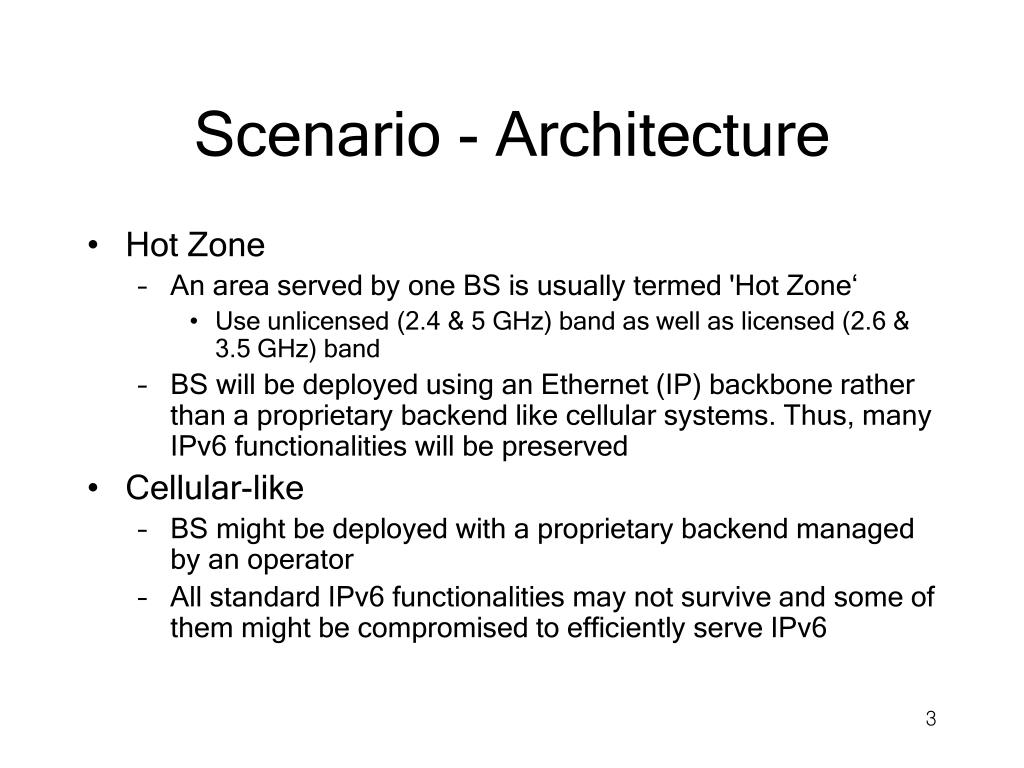

  3. Scenario - Architecture • Hot Zone • An area served by one BS is usually termed 'Hot Zone‘ • Use unlicensed (2.4 & 5 GHz) band as well as licensed (2.6 & 3.5 GHz) band • BS will be deployed using an Ethernet (IP) backbone rather than a proprietary backend like cellular systems. Thus, many IPv6 functionalities will be preserved • Cellular-like • BS might be deployed with a proprietary backend managed by an operator • All standard IPv6 functionalities may not survive and some of them might be compromised to efficiently serve IPv6

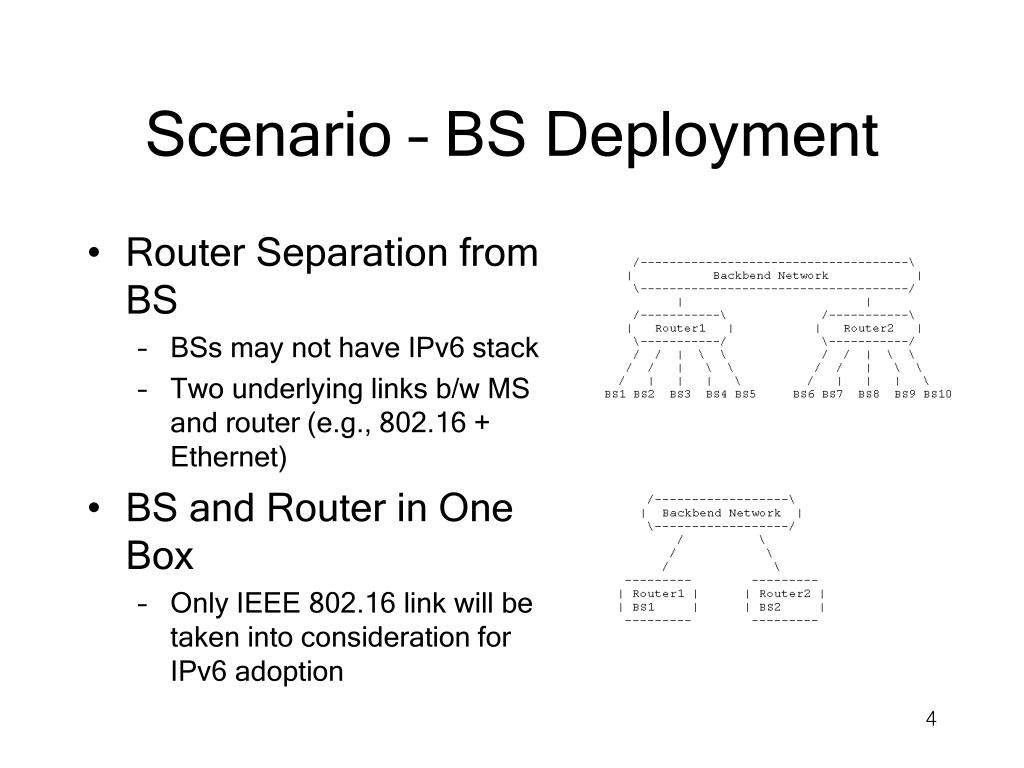

  4. Scenario – BS Deployment • Router Separation from BS • BSs may not have IPv6 stack • Two underlying links b/w MS and router (e.g., 802.16 + Ethernet) • BS and Router in One Box • Only IEEE 802.16 link will be taken into consideration for IPv6 adoption

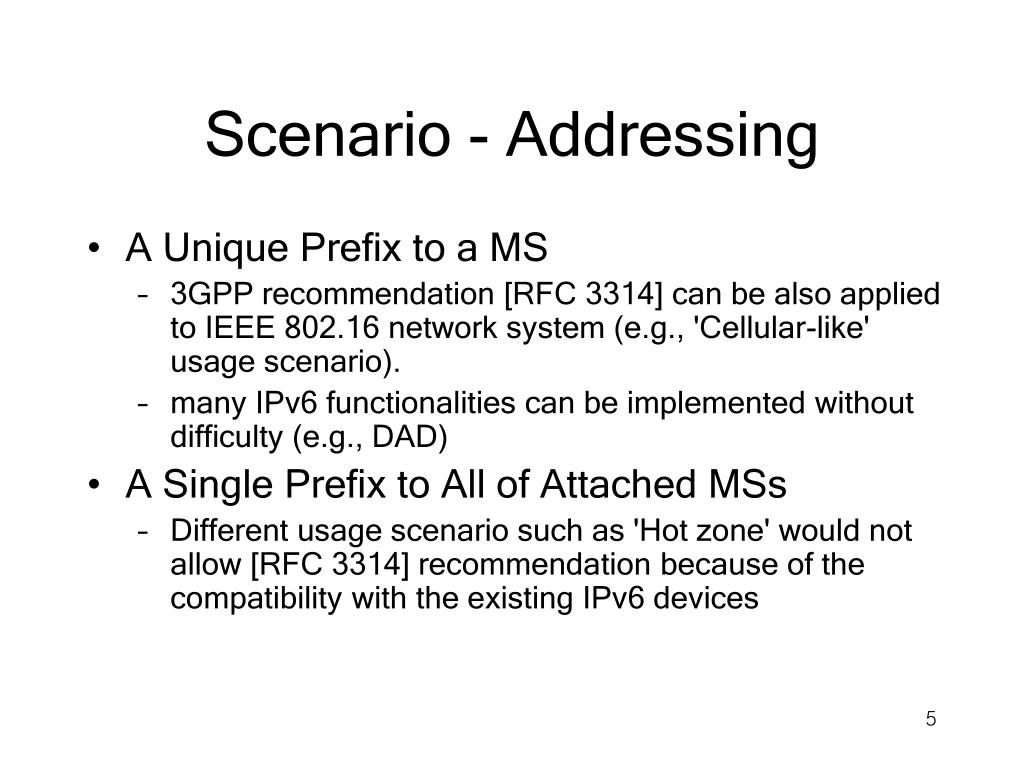

  5. Scenario - Addressing • A Unique Prefix to a MS • 3GPP recommendation [RFC 3314] can be also applied to IEEE 802.16 network system (e.g., 'Cellular-like' usage scenario). • many IPv6 functionalities can be implemented without difficulty (e.g., DAD) • A Single Prefix to All of Attached MSs • Different usage scenario such as 'Hot zone' would not allow [RFC 3314] recommendation because of the compatibility with the existing IPv6 devices

  6. Eight Scenarios

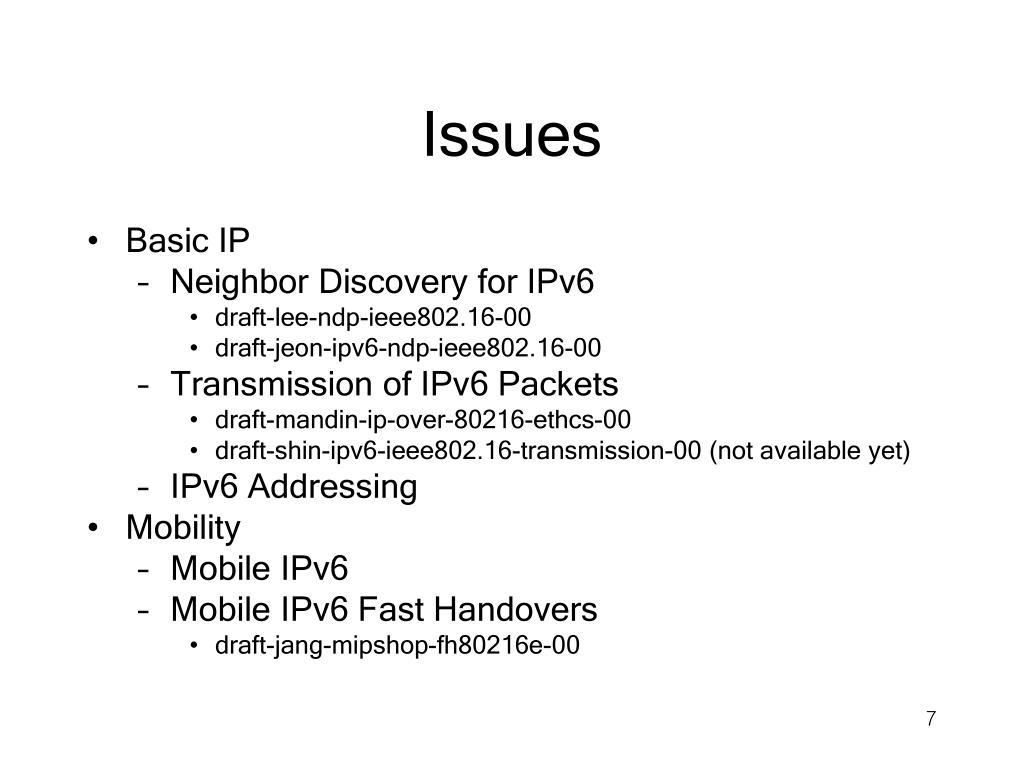

  7. Issues • Basic IP • Neighbor Discovery for IPv6 • draft-lee-ndp-ieee802.16-00 • draft-jeon-ipv6-ndp-ieee802.16-00 • Transmission of IPv6 Packets • draft-mandin-ip-over-80216-ethcs-00 • draft-shin-ipv6-ieee802.16-transmission-00 (not available yet) • IPv6 Addressing • Mobility • Mobile IPv6 • Mobile IPv6 Fast Handovers • draft-jang-mipshop-fh80216e-00

  8. Issues, cont. • Multicast • MLD • ND issues + MLD reports suppression needed • Interworking with IP Multicast and MBS • MBS seems to be broadcast service, not multicasting. • Security • IPsec • Security Threat Analysis • Multiple Interfaces with Different Properties

  9. Summary +------------------------------------------------------+ | # | issues | target | wg | +------------------------------------------------------+ | 1.1 | neighbor | protocol | ipv6 | | | discovery | | 16ng | +------------------------------------------------------+ | 1.2 | packet | protocol | ipv6 | | | transmission | | 16ng | +------------------------------------------------------+ | 1.3 | addressing | operation | na | | | | | | +------------------------------------------------------+ | 2.1 | mobile | operation / | na | | | ipv6 | implementation| | +------------------------------------------------------+ | 2.2 | fast | protocol | mipshop | | | handover | | 16ng | +------------------------------------------------------+ | 3.1 | multicast | protocol | mboned | | | listener | | 16ng | +------------------------------------------------------+ | 3.2 | mbs | operation / | mboned | | | interworking | implementation| 16ng | +------------------------------------------------------+ | 4.1 | ipsec | operation / | v6ops | | | | implementation| | +------------------------------------------------------+ | 4.2 | threat | operation / | v6ops | | | model | implementation| | +------------------------------------------------------+ | 5 | multiple | operation / | na | | | interfaces | implementation| | +------------------------------------------------------+
