1 / 43

Validation of Geant4 (V4.2) for GLAST-LAT: Theory Comparison, Beam Tests, and EGS4 Analysis

This report presents comprehensive validation of Geant4 version 4.2, focusing on electromagnetic processes for the GLAST-LAT project. Conducted from December 2000 to November 2001 at SLAC, it compares Geant4 outputs with theoretical predictions, results from beam test engineering models, and EGS4 simulations. Key topics include the performance of electromagnetic showers, pair creation, multiple scattering, and average cluster sizes. The study concludes that Geant4 matches or exceeds current electromagnetic simulators, suggesting implementation in BFEM for further research.

etoile
Télécharger la présentation

Validation of Geant4 (V4.2) for GLAST-LAT: Theory Comparison, Beam Tests, and EGS4 Analysis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Validation of Geant4 (V4.2) for GLAST-LAT • Comparison with Theory, Beam Test Data and EGS4 – • S. Ogata, T. Mizuno, H. Mizushima (Hiroshima/SLAC) • P. Valtersson, M. Sjogren (Royal Inst. of Tech/SLAC) • T. Kamae, H. Tajima (SLAC) • (Note) • This report covers the work done between Dec. 2000 to Nov. 2001 at SLAC. Note that similar work has been in progress in Italy. • Our focus has been in the electromagnetic processes. • (Contents) • Comparison with Theory • Comparison with Results of Beam Test Engineering Model • Comparison with EGS4

  2. Bethe-Bloch Formula Default Geant4 parameters used in the study (exception: EM shower study)

  3. Landau distribution (proton1)

  4. Landau Distribution (proton)

  5. Landau Distribution (proton3)

  6. Landau Distribution (Electron1)

  7. Landau Distribution (Electron2)

  8. Mean range (Proton1)

  9. Mean range (Proton2)

  10. Pair Creation (G4 vs. EGS4: Fix needed in G4) No.1

  11. Pair Creation (G4 vs. EGS4: Fix needed in G4) No.2

  12. Moller Scattering (G4 vs Theory: Fix needed in G4?)

  13. Multiple Scattering (G4 vs. BTEM: Proton) No.1

  14. Multiple Scattering (G4 vs. BTEM: Proton) No.2

  15. Average Cluster Size (G4 vs. BTEM: Proton and Positron)

  16. Average Cluster Size (G4 vs. BTEM: Different proton runs)

  17. Average No. Hits (G4 vs. BTEM: Proton and Positron)

  18. Average No. Hits (G4 vs. BTEM: Positron w/ charge sharing)

  19. Average No. Hits (G4 vs. BTEM: Positron w/lower threshold)

  20. Total No. Hits (G4 vs. BTEM: Proton/Positron at 0/30 deg)

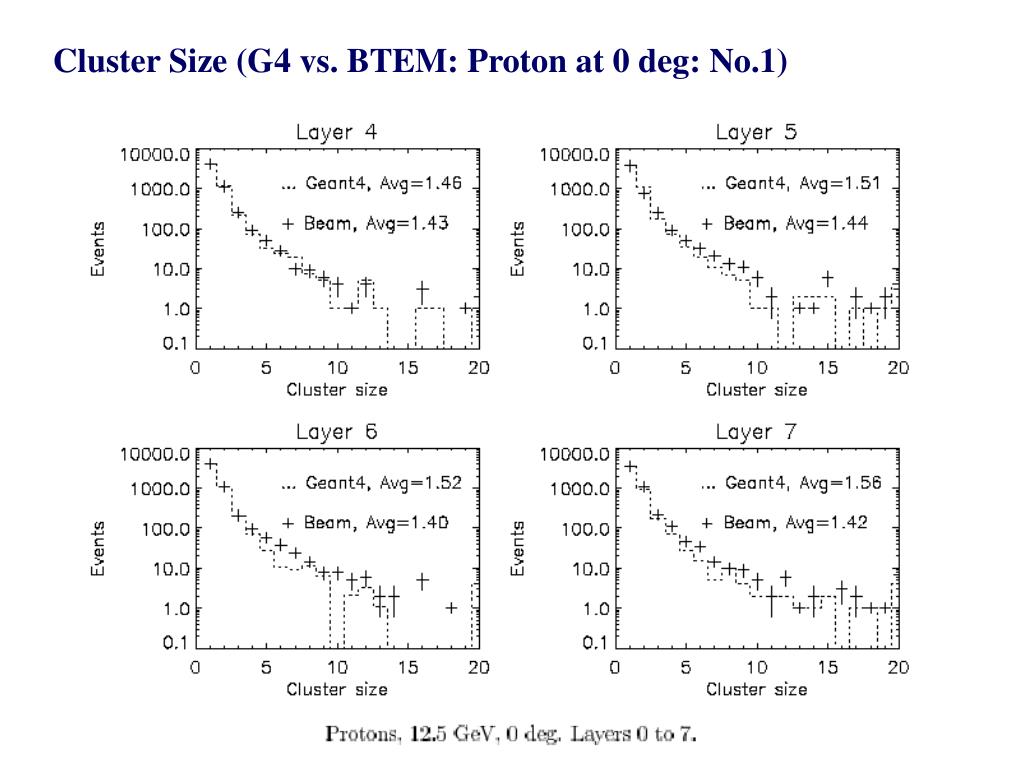

  21. Cluster Size (G4 vs. BTEM: Proton at 0 deg: No.1)

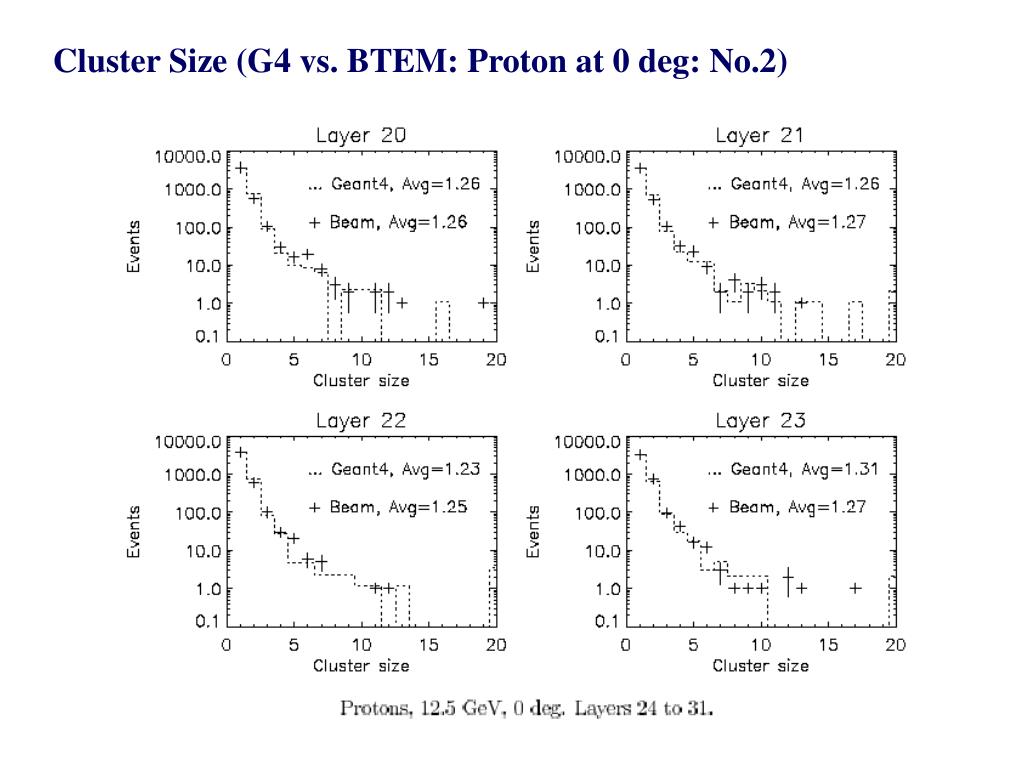

  22. Cluster Size (G4 vs. BTEM: Proton at 0 deg: No.2)

  23. Cluster Size (G4 vs. BTEM: Proton at 30 deg: No.1)

  24. Cluster Size (G4 vs. BTEM: Proton at 30 deg: No.2)

  25. Cluster Size (G4 vs. BTEM: Positron at 0 deg)

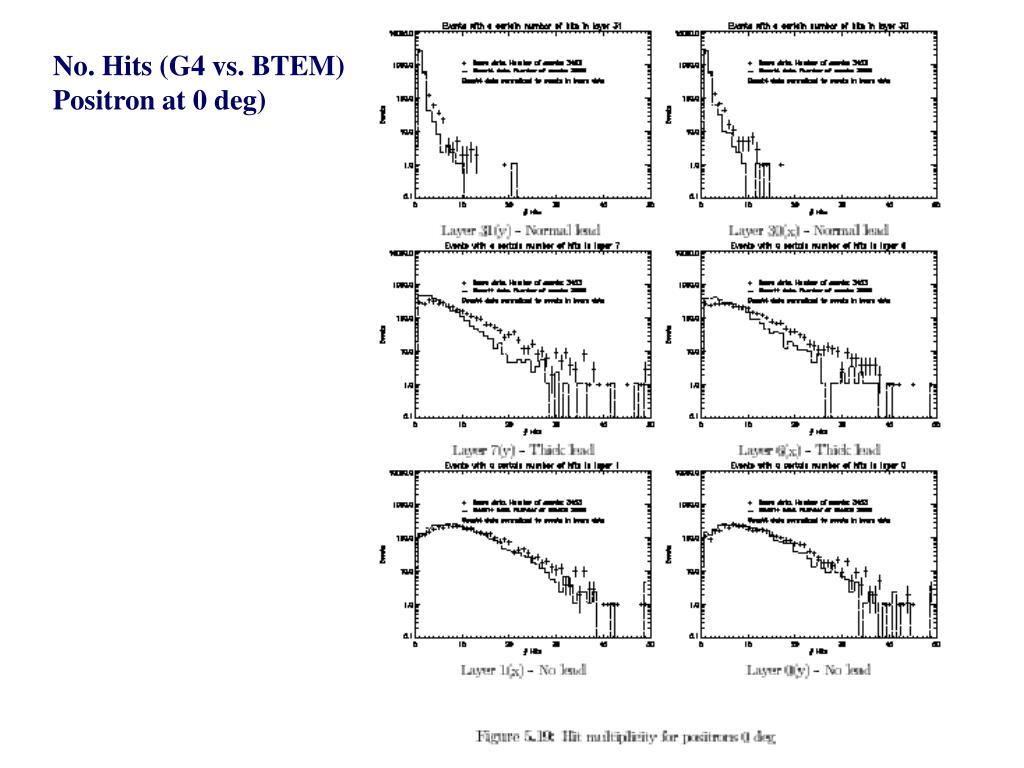

  26. No. Hits (G4 vs. BTEM) Positron at 0 deg)

  27. No. Hits (G4 vs. BTEM) Positron at 30 deg)

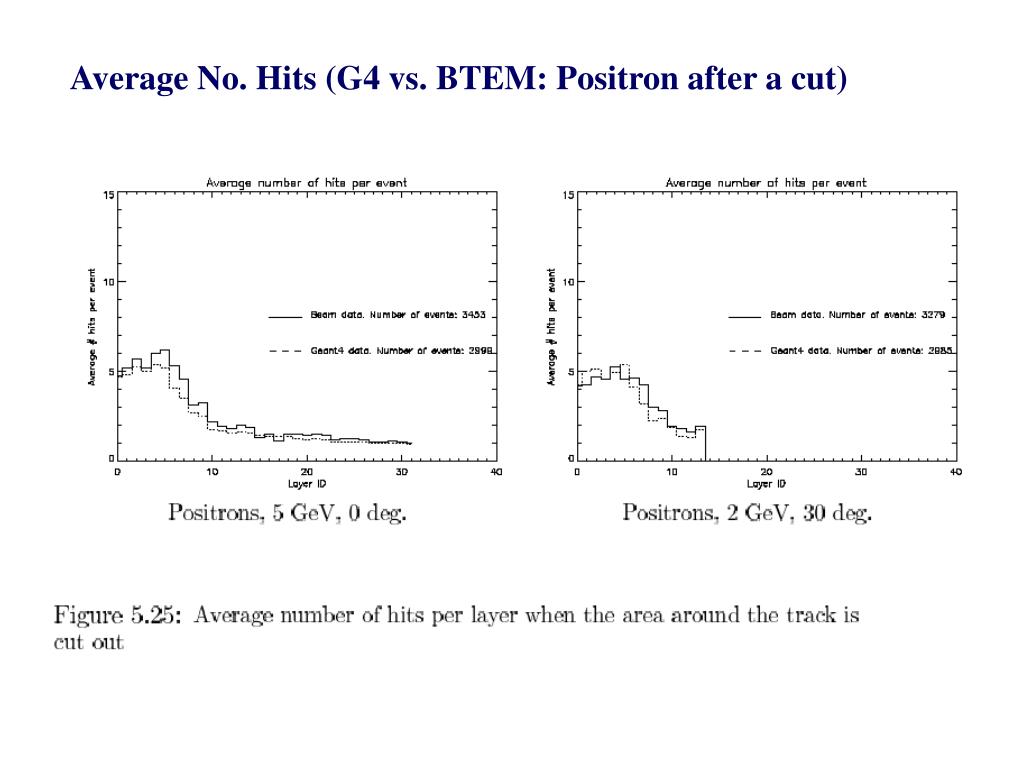

  28. Average No. Hits (G4 vs. BTEM: Positron after a cut)

  29. Average No. Hits (G4 vs. BTEM: Positron study)

  30. EM Shower (G4 vs EGS4): Cutoff Parameters

  31. EM Shower (G4 vs EGS4): Geometry1

  32. EM Shower (G4 vs EGS4): Geometry2,3

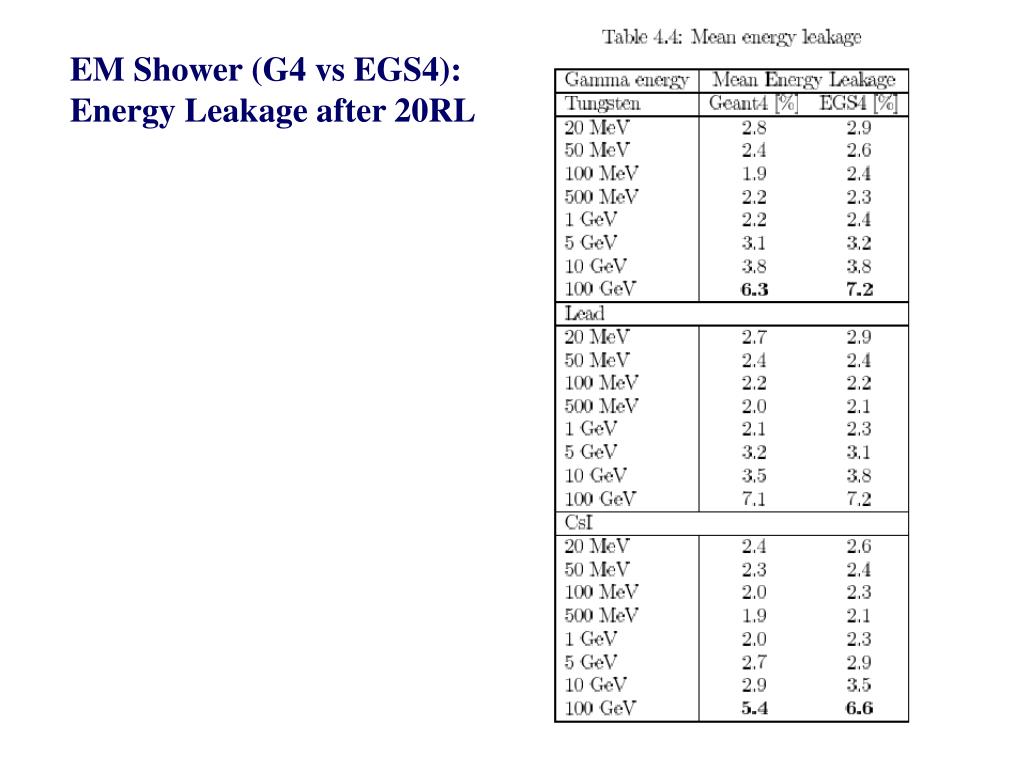

  33. EM Shower (G4 vs EGS4): Energy Leakage after 20RL

  34. EM Shower (G4 vs EGS4): Longitudinal Profile No.1

  35. EM Shower (G4 vs EGS4): Longitudinal Profile No.2

  36. EM Shower (G4 vs EGS4): Lateral Profile No.1

  37. EM Shower (G4 vs EGS4): Lateral Profile No.2

  38. EM Shower (G4 vs EGS4): Lateral Profile No.3

  39. EM Shower (G4 vs EGS4): Lateral Profile No.4

  40. EM Shower (G4 vs EGS4): Profile near the Core No.1

  41. EM Shower (G4 vs EGS4): Profile near the Core No.2

  42. EM Shower (G4 vs EGS4): Parameter Dependence

  43. Conclusion • Validation of Geant4 (V4.2) for GLAST-LAT • Comparison with Theory, Beam Test Data and EGS4 – • (Note) • This report covers the work done between Dec. 2000 to Nov. 2001 at SLAC. Note that similar work has been in progress in Italy. • Our focus has been in the electromagnetic processes. • (Conclusion) • Geant4 is as good as any existing EM simulator now • Implement in BFEM G4 and study effects of proposed fixes (angular distr.)

More Related
