Presentation Transcript

  1. Introduction to the BEA WebLogic Platform Peter Laird Managing Architect WebLogic Portal Peter Laird. | 1

  2. About the Speaker • Has 10 years of server side Java development experience • Leads the architecture team for BEA WebLogic Portal, a leading Java enterprise portal product • Has worked on WebLogic Portal for 7 years as a developer and architect • Holds the following certifications • Oracle DBA • Cisco CCNA • Regular contributor to BEA’s developer website • http://dev2dev.bea.com BEA Systems

  3. Housekeeping • Oracle has made a bid to acquire BEA Systems • Can’t be discussed in this venue • This is a product talk • Usually not allowed, but was explicitly approved by IOUG • Will cover Java Enterprise Edition, enterprise portal, enterprise integration at a high level • Primarily focused on the WebLogic product stack BEA Systems

  4. Agenda • History of BEA and the WebLogic product line • Components of the WebLogic Platform • WebLogic Server • WebLogic Portal • Workshop for WebLogic • WebLogic Integration BEA Systems

  5. History of BEA Systems • Started in 1995 with venture capital to form a middleware company • Soon after acquired the Tuxedo product • Mission critical transaction processing platform • In use by banks, telecoms, airlines, etc • Based on the C programming language • Wide platform support • Positioned BEA as a player in the enterprise middleware space BEA Systems

  6. History of WebLogic • Started in 1995 with a few engineers • Began as a middle tier Java database connectivity server • Over time more features were added to the server • Often first implementations of new Java specifications • Became a general purpose Java application server • Rode the rise in popularity of server side Java • Acquired by BEA in 1998 • Java Enterprise Edition specification introduced by Sun in 1999 – WebLogic was the dominant implementation • Has been a leader in JEE ever since BEA Systems

  7. History of WebLogic Platform • In 1999, BEA began to build out the WebLogic product line • WebLogic Portal started as Personalization Server and Commerce Server in 1999 • Evolved into WebLogic Portal in 2001 with version 4.0 • WebLogic Integration began as a collection of products • BEA acquired Crossgain in 2001, a Java tooling specialist • WebLogic Workshop soon followed • All 4 products combined into an enterprise class platform, called WebLogic Platform • First coordinated platform release was version 8.1 in 2003 • WebLogic Platform at release 10.2 as of spring 2008 BEA Systems

  8. History of WebLogic Platform • WebLogic Server is the foundation of the platform • Integration and Portal are run on Server • Workshop provides the platform development experiences • WebLogic Platform is the focus of this talk BEA Systems

  9. History of the AquaLogic SOA Platform • In 2005, BEA introduced a new product line to complement Tuxedo and WebLogic • AquaLogic product line is focused on Service Oriented Architectures (SOA) • Some products in the AquaLogic suite • AquaLogic Service Bus • AquaLogic Enterprise Repository • AquaLogic Business Process Management • AquaLogic User Interaction Portal • AquaLogic Data Services Platform BEA Systems

  10. Core Values of the WebLogic Brand • Commitment to Java • Standards support • RASP - Reliability, Availability, Scalability, Performance • Hardware, O/S, and Database independent • WebLogic Platform interoperability • Easy upgrades and backwards compatibility • Support for applications blended with Open Source BEA Systems

  11. WebLogic Server BEA Systems

  12. WebLogic Server Overview • Will focus on differentiated features of WebLogic Server • Feature areas to discuss • Java Enterprise Edition • Single Process Architecture • Rich Internet Appliciation (RIA) support • EJB 3 and JPA support • Java Message Service • Security • Database Connectivity • Clustering • Application deployment BEA Systems

  13. WLS: Java Enterprise Edition • WebLogic Server (WLS) is a JEE (a.k.a J2EE) implementation • JEE 5 supported in WebLogic Server version 10 • Servlet 2.5 • EJB 3.0 – a major improvement • JSP 2.1 • JAX-WS 2.0 – a major improvement • JMS 1.1 • ...and many others • Number of other containers in the JEE space • WebLogic Server provides great implementations of the specs • But talking about the specs is not a good way to spend our time • Will focus on differentiated features BEA Systems

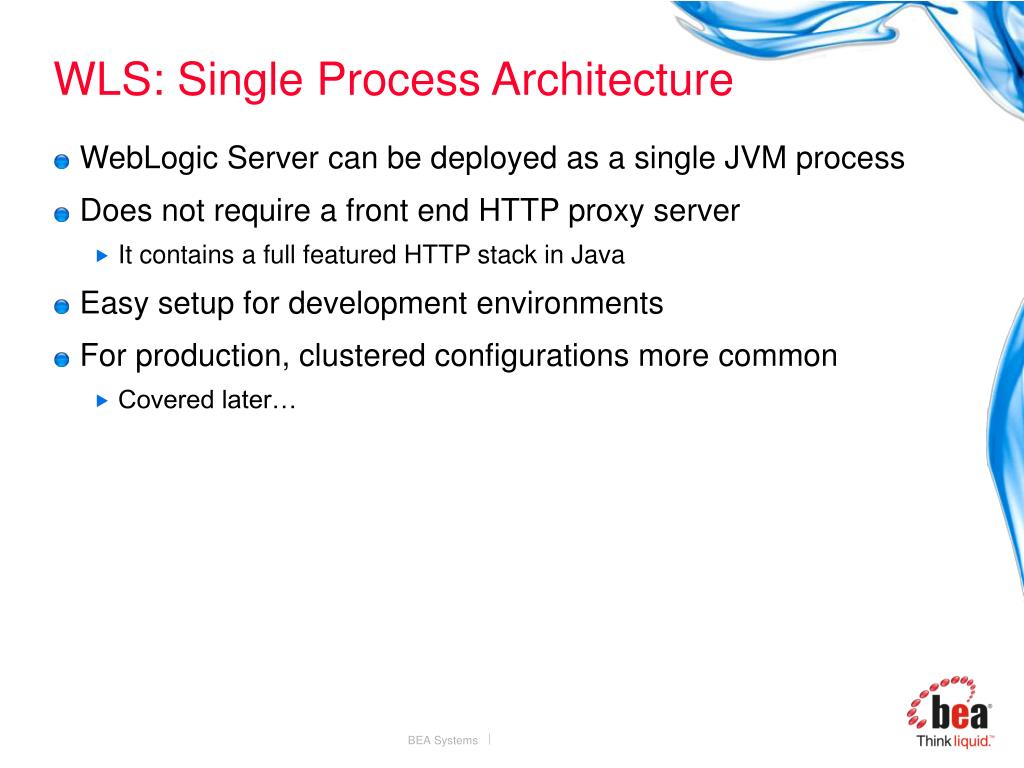

  14. WLS: Single Process Architecture • WebLogic Server can be deployed as a single JVM process • Does not require a front end HTTP proxy server • It contains a full featured HTTP stack in Java • Easy setup for development environments • For production, clustered configurations more common • Covered later… BEA Systems

  15. WLS: RIA Support • RIA applications are highly interactive • Implemented with Ajax, Flex, Laslo, etc • Clients fire many fine grained requests at the server • RIA apps can overload the server polling for updates to data being displayed • WebLogic Server has provided the AbstractAsyncServlet for many years • Client issues a request to the servlet to be notified on an update • Servlet delays fulfillment of the request, no thread is consumed • An application event notifies the servlet that an update has occurred • Servlet sends a response to the client BEA Systems

  16. WLS: RIA Support • WebLogic Server 10.3 adds on to the AbstractAsyncServlet • Provides an HTTP Pub/Sub server • Useful when implementing applications such as chat • Uses the Bayeux protocol BEA Systems

  17. WLS: JMS Support • Full support of JMS 1.1 • The additional features of WebLogic Server fall into the following high level categories: • Enterprise-grade reliability – transaction and fail-over features • Enterprise-level features – manageability, life cycle, resource pooling • Performance – memory and disk IO optimizations • Tight integration with WebLogic Server – works within the same process space • Interoperability – with other versions of WebLogic Server, with Tuxedo BEA Systems

  18. WLS: JMS Reliability • Full participation with transactions, including XA • File and Database backed persistent message storage • Store and Forward (SAF) protects against message loss when remote destination is unavailable • Advanced clustering and failover features • Transparent failover • Whole server migration • Load balancing BEA Systems

  19. WLS: Security Service SSPI • Every enterprise has different requirements and existing security systems • WebLogic supports a pluggable model for security (SSPI) BEA Systems

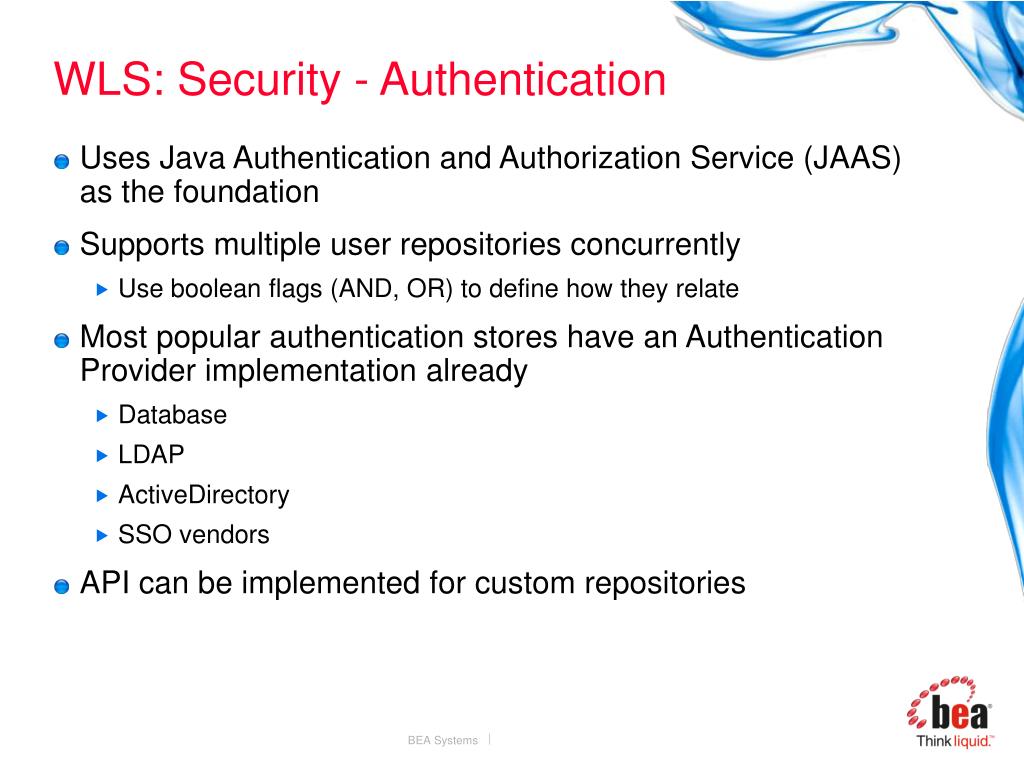

  20. WLS: Security - Authentication • Uses Java Authentication and Authorization Service (JAAS) as the foundation • Supports multiple user repositories concurrently • Use boolean flags (AND, OR) to define how they relate • Most popular authentication stores have an Authentication Provider implementation already • Database • LDAP • ActiveDirectory • SSO vendors • API can be implemented for custom repositories BEA Systems

  21. WLS: Database Connectivity • WebLogic Server has its roots in Java database connectivity BEA Systems

  22. WLS: Database Connectivity • Advanced connection pooling • Dynamic sizing • Connection testing • Statement caching • Multi Data Source • Wraps multiple actual Data Sources • Provides load balancing and fail-over • Data Source aliases • Maps the same Data Source into multiple JNDI names • Certified with many databases, including Oracle RAC BEA Systems

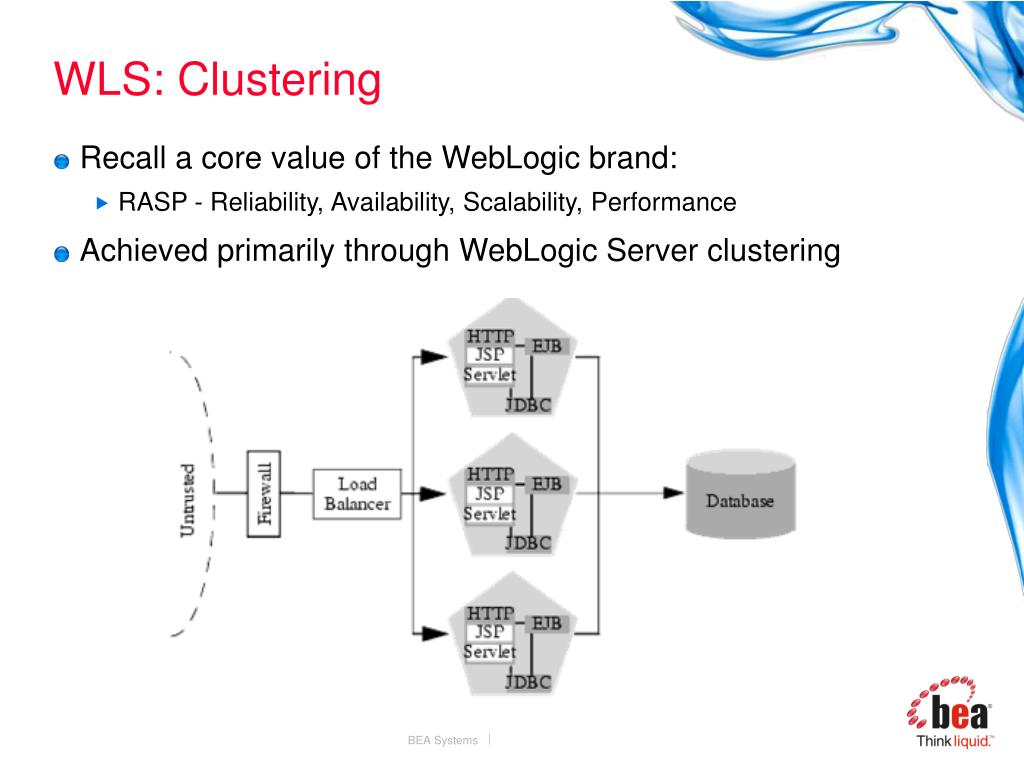

  23. WLS: Clustering • Recall a core value of the WebLogic brand: • RASP - Reliability, Availability, Scalability, Performance • Achieved primarily through WebLogic Server clustering BEA Systems

  24. WLS: Clustering • Application is deployed to the cluster machines • Client requests are load balanced across the cluster • Plugin to Apache, IIS; or hardware load balancer • Session affinity supported by the load balancer • Application state replicated to one other member of the cluster • HttpSession and Stateful Session EJBs • Primary and Secondary design • Cluster heart beat detects downed nodes • Clients of the affected node are sent to the secondary on next request BEA Systems

  25. WLS: MAN and WAN Clustering • Application is deployed on multiple clusters in multiple data centers • MAN and WAN clustering options handle HttpSession state • Metropolitan Area Network (MAN) • Low latency assumed between the data centers • Synchronous Http Session replication BEA Systems

  26. WLS: MAN and WAN Clustering • Wide Area Network (WAN) • High latency assumed between the data centers • Asynchronous Http Session replication • Uses a replicated database as the transport BEA Systems

  27. WLS: Application Deployment for Devs • WebLogic Server supports quick development round trips • Change-Aware Classloader • Replaces the affected module’s classloader to achieve a focused redeployment • Fast-swap • Uses an advanced form of Java class redefinition • Prevents any application redeployment after changing a class • Supports many edits, including adding and removing methods and changing method bodies BEA Systems

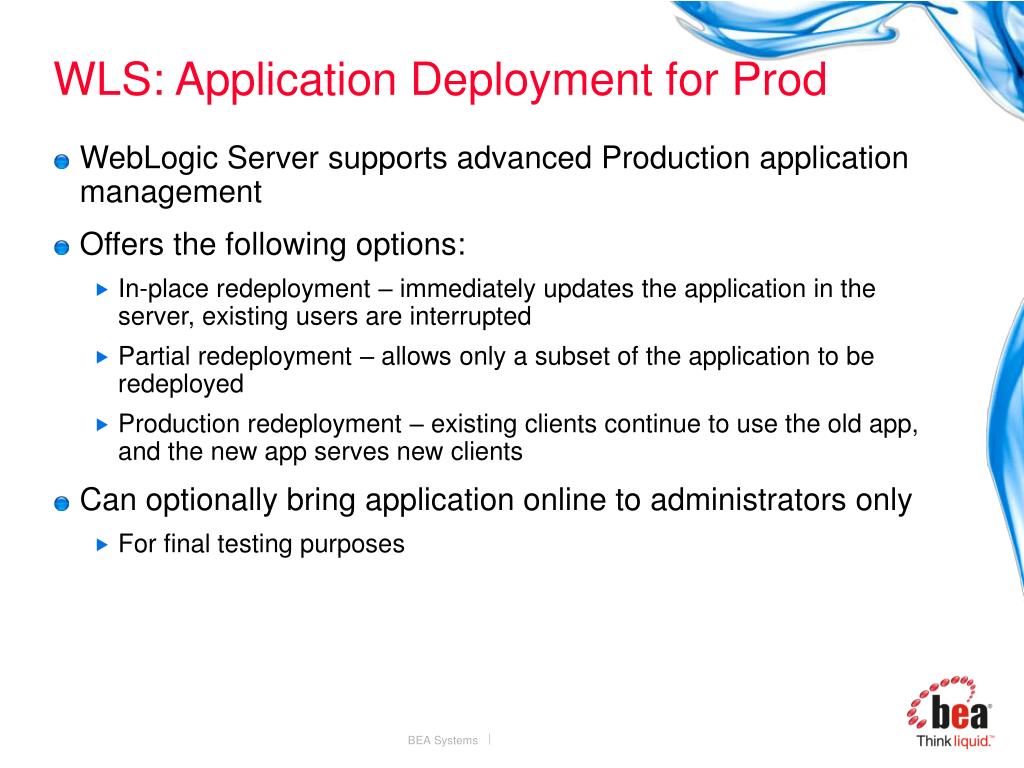

  28. WLS: Application Deployment for Prod • WebLogic Server supports advanced Production application management • Offers the following options: • In-place redeployment – immediately updates the application in the server, existing users are interrupted • Partial redeployment – allows only a subset of the application to be redeployed • Production redeployment – existing clients continue to use the old app, and the new app serves new clients • Can optionally bring application online to administrators only • For final testing purposes BEA Systems

  29. WLS: Virtualization • Key data center technology for reducing operating costs • Better hardware utilization by allowing servers to be consolidated into a virtual computing cloud • WebLogic Server supports virtualization efforts through its Virtualization Edition (WLS-VE) release • WLS-VE deploys on top of a special Java Virtual Machine, LiquidVM, that does not require an operating system • Liquid Operations Console manages application deployments into the WLS-VE cloud BEA Systems

  30. WLS: Virtualization BEA Systems

  31. WebLogic Portal BEA Systems

  32. WebLogic Portal • WebLogic Portal (WLP) is an enterprise portal product • Built on top of WebLogic Server • Deploys as a JEE application composed of many components • Too much to discuss, so will focus on the primary features • Primary feature areas we will discuss: • Portal Framework • Portlet Container • Portlet Federation • Portal Services BEA Systems

  33. Enterprise Portal Products • Enterprise portals consolidate many web applications into a single web application • Achieves a number of goals: • Efficient application management and deployment • Consistent user experience • Centralized security • Common infrastructure • WebLogic Portal is a product offering that supports these objectives. BEA Systems

  34. WLP: Portal Framework • Core concept to all portal products is the user interface • WLP has a highly scalable and customizable framework • Control tree implementation (like JSF) • Provides nested customization concepts – library, admin, user • Highly tuned caching for scalability • WLP supports these and other user interface controls: • Portal page – a logical page that is surfaced as a tab or menu item • Book – a collection of pages • Portlet – a small window into an application; often there are many portlets on a page • Header and Footer – artifacts that appear on the top and bottom of every page • Look and Feel – the style of the page BEA Systems

  35. WLP: Portal Framework BEA Systems

  36. WLP: Portal Framework Features • Dynamically defined Desktops • Create new portals from existing components in production • Interportlet Communication • Robust server-side eventing mechanism to allow portlets to communicate with each other • Framework Ajax • Automatically Ajax enables the portal without recoding the portlet • Framework automatically weaves in Ajax into existing portlets • Client-side JavaScript programming • JavaScript object model, REST APIs for dynamic customization • Community Framework • Allow users to organize themselves into communities • Community leaders can define their own Desktop without IT’s help BEA Systems

  37. WLP: Portlet Container • WLP officially supports portlet development using a number of technologies • JSP • JSF (JSP or Facelets) • JSR 168 • Struts/Pageflow • IFrame • Web Clipping • Workshop for WebLogic provides wizards for these types • Other technologies are known to work • Velocity • Spring Portlet MVC BEA Systems

  38. WLP: Portlet Federation • Portals support SOA initiatives • Often portlets consume remote data services • But requires the UI for the data service to be implemented for each Portal deployment • Portlet federation solves this problem BEA Systems

  39. WLP: Portlet Federation - WSRP • Industry standard for federation is WSRP • Web Services for Remote Portlets, an Oasis standard • SOAP based protocol for hosting portlet UI as a remote service • Provides rich portlet features – modes, states, user profile, postback • WebLogic Portal has been a leader for WSRP • Expert group participation • Robust specification implementation • Features above the specification BEA Systems

  40. WLP: Portlet Federation – HTTP • WebLogic Portal is a pioneer in a different federation approach • Portlet Publishing allows any deployed portlet to be a URL addressable widget • http://myportal.abc.com/portal/customer/orderList.portlet • Can be consumed by any web application via: • IFrame • Ajax snippet • Extends the value of developed portlets by allowing them to surface on legacy web applications • Targets the “long-tail” of IT web applications • Can also easily be consumed using other approaches • WLP portlets as Google Gadgets BEA Systems

  41. WLP: Portal Services • WebLogic Portal also includes a rich eco-system of out of the box services, like Content Management and Personalization BEA Systems

  42. Workshop Studio (formerly Workshop for WebLogic) BEA Systems

  43. WLW: Development IDE for the Platform • General purpose Java development platform • Java Web applications • JEE applications • IDE for the WebLogic Platform • Contains additional tools to support Server, Portal, Integration • Based on Eclipse • Open source IDE platform with a very active community • Hundreds of available plugins • Workshop is the Eclipse IDE, plus a set of plugins BEA Systems

  44. WLW: Features • Support for multiple web application frameworks in one IDE: Struts, JSF and Beehive • Flexible tools for creating and testing WebLogic web services • ORM mapping support via BEA Kodo and Hibernate • Automatic generation of Spring configuration and DAO classes • Database inspection tools • WebLogic Platform specific tooling • App X-Ray: sophisticated application analysis BEA Systems

  45. WLW: Features BEA Systems

  46. WebLogic Integration BEA Systems

  47. WebLogic Integration • A single environment to build an integrated enterprise application • Business process integration (from business process modeling to integrating enterprise adapters) • Custom application development using robust Web services and controls • Developing an application to provide employees, partners, and customers with an integrated view of applications and data. BEA Systems

  48. WebLogic Integration BEA Systems

  49. WLI: Process Engine • Supports back business process execution • Based on Java Process Definition format • Can be exported as a BPEL process • Can orchestrate a process between Web Services, human input, and native adapters BEA Systems

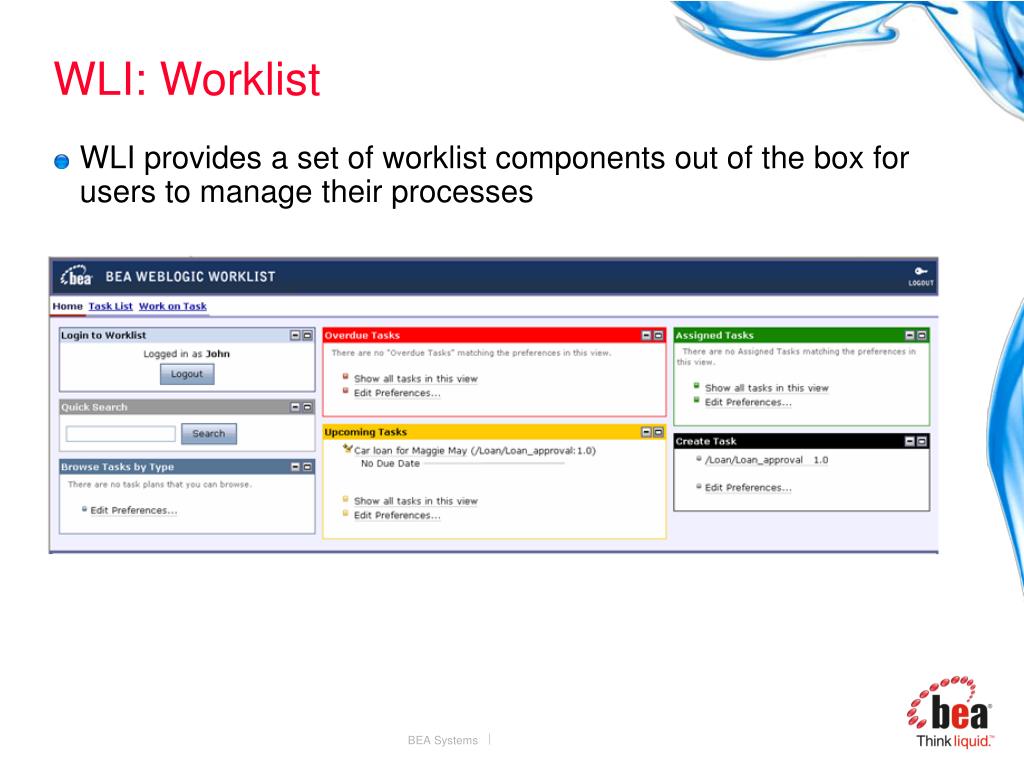

  50. WLI: Worklist • WLI provides a set of worklist components out of the box for users to manage their processes BEA Systems
