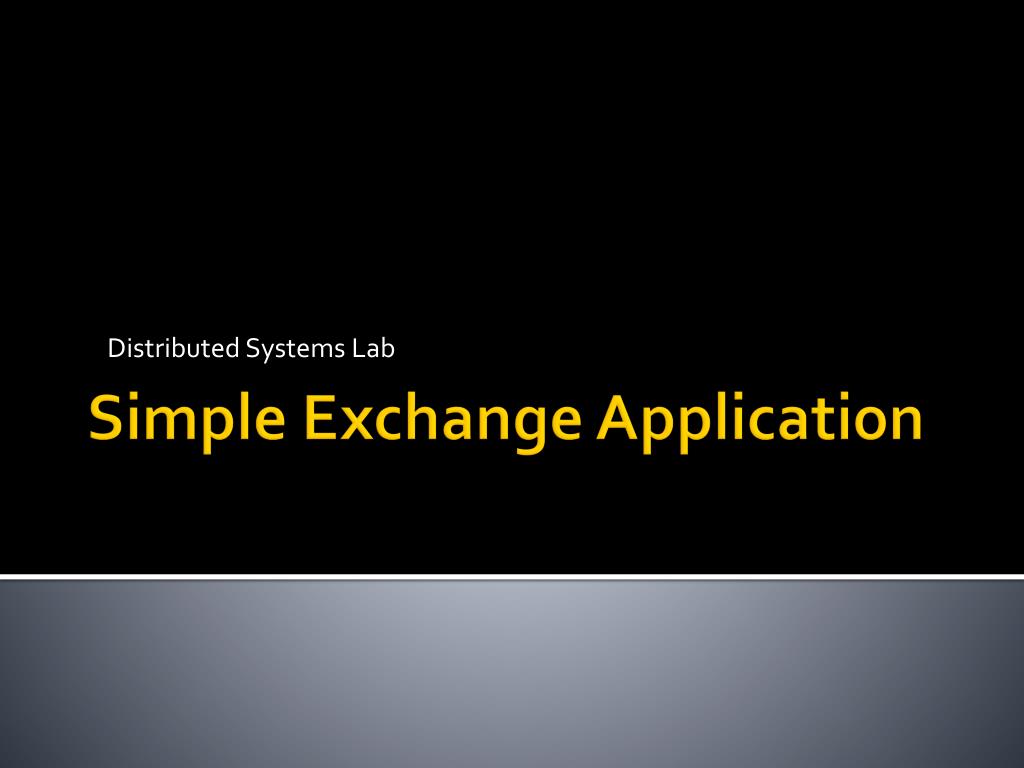

  1. Distributed Systems Lab Simple Exchange Application

  2. Part1

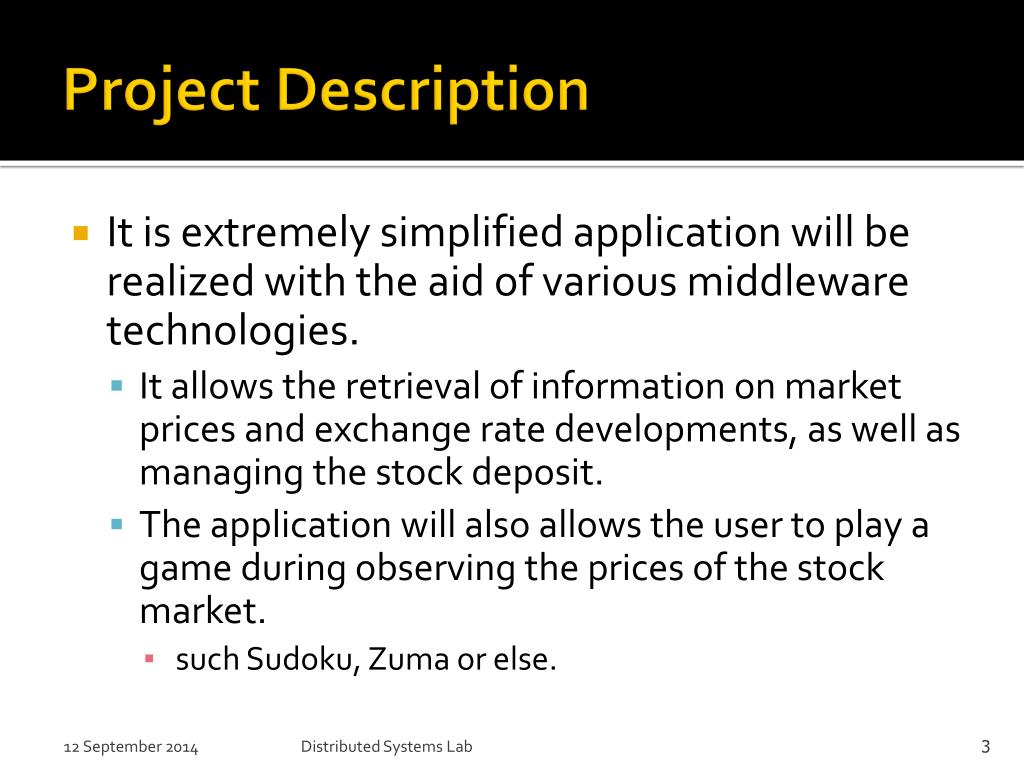

  3. Project Description • It is extremely simplified application will be realized with the aid of various middleware technologies. • It allows the retrieval of information on market prices and exchange rate developments, as well as managing the stock deposit. • The application will also allows the user to play a game during observing the prices of the stock market. • such Sudoku, Zuma or else. Distributed Systems Lab

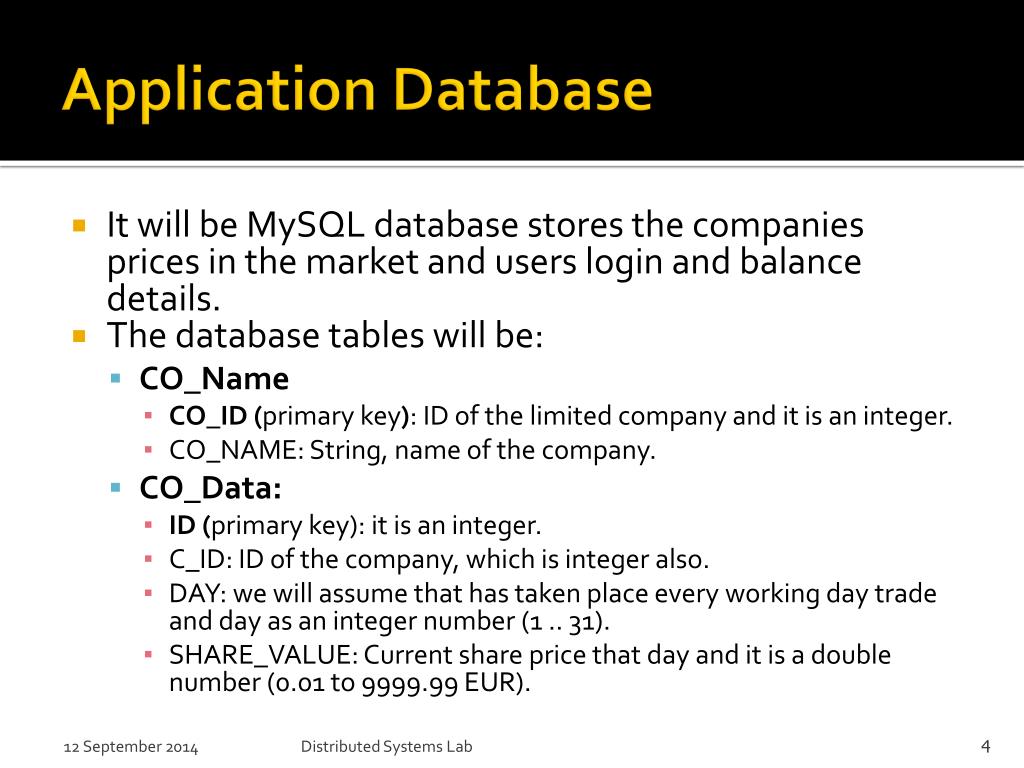

  4. Application Database • It will be MySQL database stores the companies prices in the market and users login and balance details. • The database tables will be: • CO_Name • CO_ID (primary key): ID of the limited company and it is an integer. • CO_NAME: String, name of the company. • CO_Data: • ID (primary key): it is an integer. • C_ID: ID of the company, which is integer also. • DAY: we will assume that has taken place every working day trade and day as an integer number (1 .. 31). • SHARE_VALUE: Current share price that day and it is a double number (0.01 to 9999.99 EUR). Distributed Systems Lab

  5. Application Database Cont. • USER • U_ID (primary key): ID of the limited company and it is an integer. • U_NAME: String, name of the company. • U_PSWD: • USER_TRANS: // user transaction history • ID (primary key): it is an integer. • C_ID: ID of the company, which is integer also. • U_ID: • DAY: we will assume that has taken place every working day trade and day as an integer number (1 .. 31). • TRANS_TYPE: • AMOUNT: int amount Distributed Systems Lab

  6. Implementation • Application will be implemented as following: • ConnectDB Class • exchangeClient Class • GameClass • Note: • Interface or abstract class. Which one should you use on the project. Distributed Systems Lab

  7. Part2

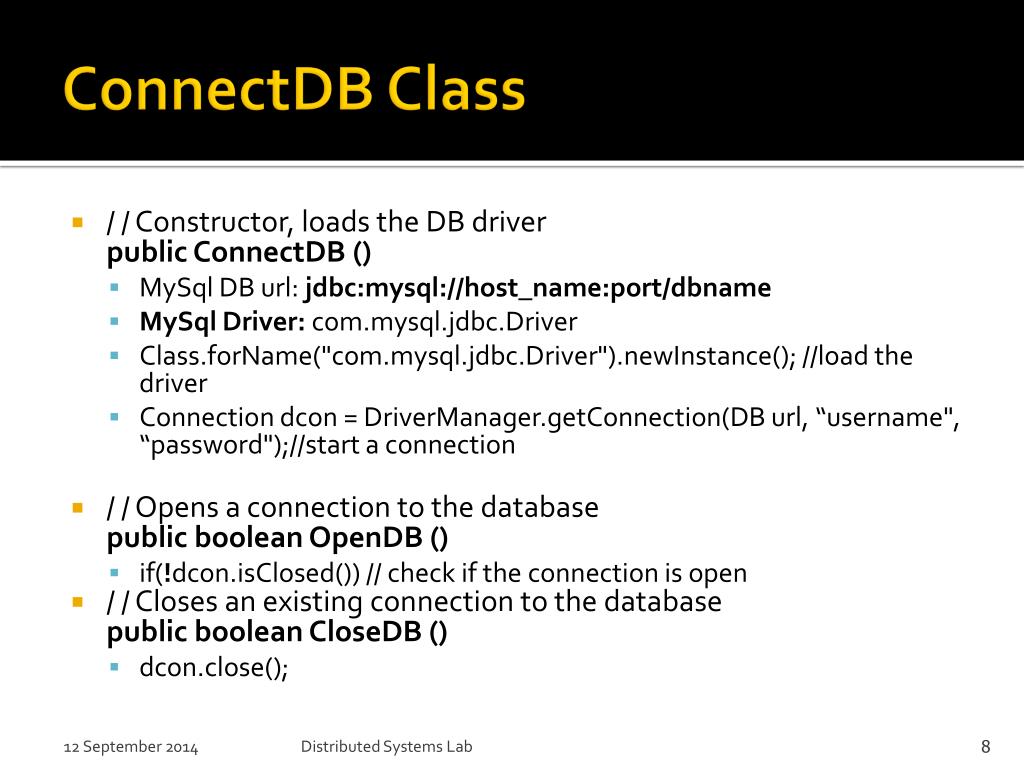

  8. ConnectDB Class • / / Constructor, loads the DB driverpublic ConnectDB () • MySql DB url: jdbc:mysql://host_name:port/dbname • MySql Driver: com.mysql.jdbc.Driver • Class.forName("com.mysql.jdbc.Driver").newInstance(); //load the driver • Connection dcon = DriverManager.getConnection(DB url, “username", “password");//start a connection • / / Opens a connection to the databasepublic booleanOpenDB () • if(!dcon.isClosed()) // check if the connection is open • / / Closes an existing connection to the databasepublic booleanCloseDB () • dcon.close(); Distributed Systems Lab

  9. ConnectDB Class Cont. • / / Takes the SQL string from the open DB and return ResultSet. on error SQLException is thrown public ResultSet executeDB (String SQL) //define statement object to execute sql query Statement stat = dcon.createStatement();  //results of sql query returns in a ResultSet object ResultSet rs = stat.executeQuery("select * from table where “); if (!rs.next()) { //if no results found  rs.close(); stat.close(); dcon.close(); } else { // action code } • / / Returns the error message of the last executed SQL command. if the command was successful, "OK" would be returned public String getStatus () Distributed Systems Lab

  10. Part3

  11. exchangeClient Class • public String CreateUser(String name, String pwrd) • It returns string on success like “your account is created successfully ” , or if there is any problem during the creation such as the duplication of the user name, empty field it returns message of that problem. • public String Login (String name, String pwrd) • If there is any problem during the login process such as the name is not exist in the DB it returns message of it . Otherwise it returns welcoming message. Distributed Systems Lab

  12. exchangeClient Class Cont. • public String [] GetAllCompanies () • Returns a list of all Company names in an array of strings. • public double GetValue (int x, String Company) • It returns the price of the share of the Company on day X (1 .. 31). When entering an invalid date and / or Company-name is not exist will return "-1.0". Distributed Systems Lab

  13. exchangeClient Class Cont. • public double BigWinnerGain (int X, int Y) • Investigated the stock during the period between the 2 days X (1 .. 30) and Y (X. .. 31) the largest percentage gain • With Y > X and K (X) = price at the date X has generated. The output is the percentage value of the price.   Distributed Systems Lab

  14. exchangeClient Class Cont. • public String BigWinnerCompany (int X, int Y)As the previous method, but the name of the concerned Company is returned. Distributed Systems Lab

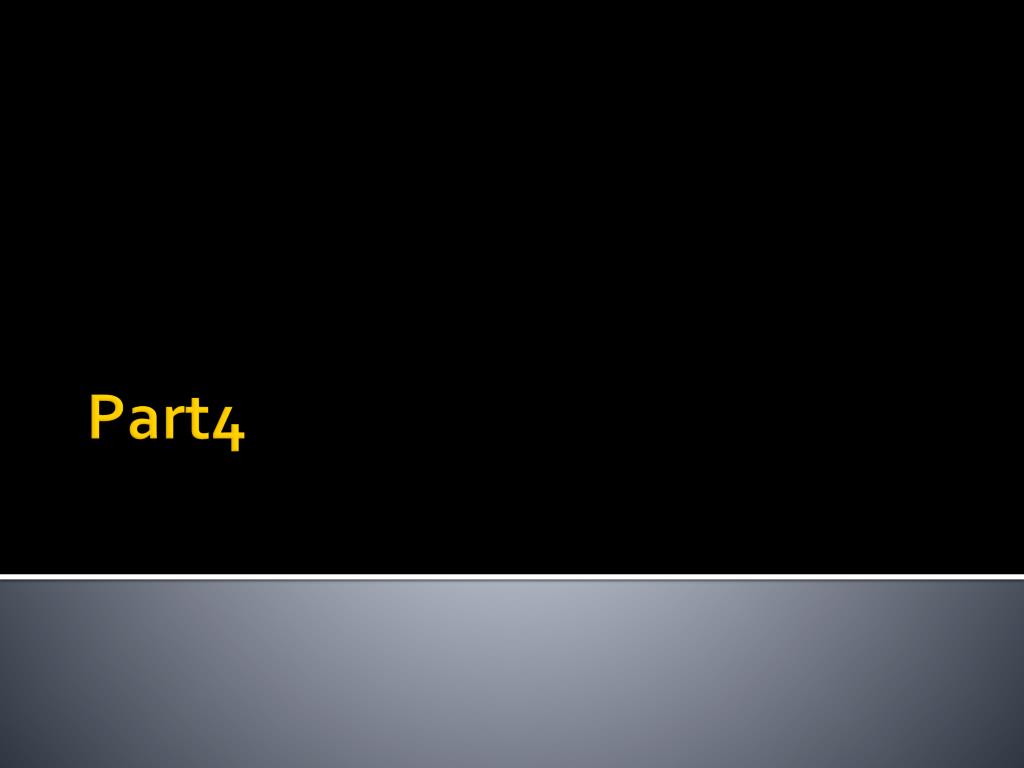

  15. Part4

  16. exchangeClient Class Cont. • public double Variance (String Company)Calculates the sensitivity of the price of a given Company-Name over the entire month. First, calculate the arithmetic mean with all the prices of the share xi of n days. • The standard deviation can then be calculated from the following equation. Distributed Systems Lab

  17. exchangeClient Class Cont. • public int Tendency (int X1)Sums the overall performance by all the companies on a given day X1 (1 .. 30) . The same happens for the following day X2 = X1 +1. The trend is as Integer value returned from the following equations: 0 - strongly positive (SumX2> SumX1 + 250) 1 - positive (SumX2 > SumX1 + 80) AND (SumX2 ≤ SumX1 +250) 2 - neutral (SumX2 > SumX1- 80) AND (SumX2 ≤ SumX1 +80) 3 - negative (SumX2 > SumX1-250) AND (SumX2 ≤ SumX1-80) 4 - strongly negative (SumX2 < SumX1-250) Distributed Systems Lab

  18. exchangeClient Class Cont. • public boolean Buy (String Company, int amount) * Buy a quantity of shares of a corporation at the current rate on 31 Day. Upon successful transaction, it returns true, otherwise false. • public void Sell (String Company, int amount) *Selling a set M of shares of a corporation at the current rate on 31 Day. Upon successful transaction, it returns true, otherwise false. Distributed Systems Lab

  19. exchangeClient Class Cont. • public int StockAmount (String CO) *Returns the number of the shares of the Company CO, which one has in its custody. • public double StockValue (String CO) *Returns the value of the shares of the Company CO, which one has in its custody. By the price of 31 Day is used. Distributed Systems Lab

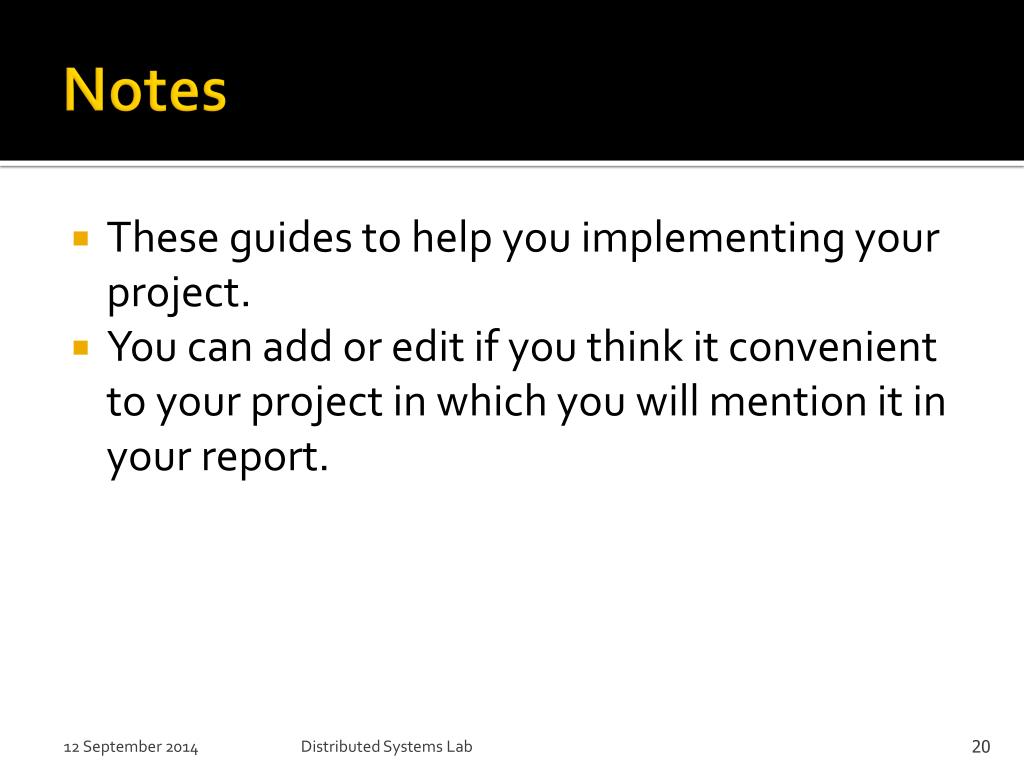

  20. Notes • These guides to help you implementing your project. • You can add or edit if you think it convenient to your project in which you will mention it in your report. Distributed Systems Lab

  21. Resources • http://www.roseindia.net/jdbc/jdbc.shtml • http://www.stardeveloper.com/articles/display.html?article=2003090401&page=1 Distributed Systems Lab
