  1. Function Points • Synthetic measure of program size used to estimate size early in the project • Easier (than lines of code) to calculate from requirements • Standards at the International Function Point Users Group (IFPUG) www.ifpug.org

  2. FP Rules: #FPs depends on: • External Inputs • External Outputs • External Queries • Internal Logical Files • External Interface Files

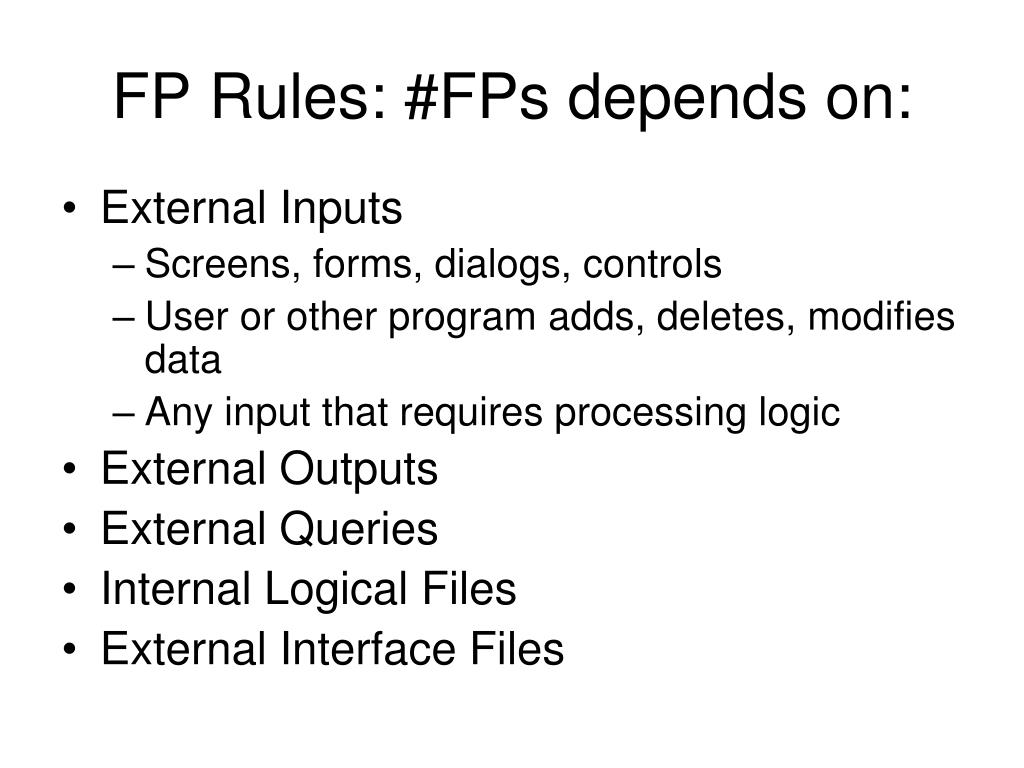

  3. FP Rules: #FPs depends on: • External Inputs • Screens, forms, dialogs, controls • User or other program adds, deletes, modifies data • Any input that requires processing logic • External Outputs • External Queries • Internal Logical Files • External Interface Files

  4. FP Rules: #FPs depends on: • External Inputs • External Outputs • Screens, reports, dialog boxes, control signals generated for end user or other program • External Queries • Internal Logical Files • External Interface Files

  5. FP Rules: #FPs depends on: • External Inputs • External Outputs • External Queries • I/O combinations in which an input results in a simple output • Queries retrieve data with no formatting. Output is formatted • Internal Logical Files • External Interface Files

  6. FP Rules: #FPs depends on: • External Inputs • External Outputs • External Queries • Internal Logical Files • Major logical groups of end-user data completely controlled by the program • Might be a flat file, a database table, or a collection of other data • External Interface Files

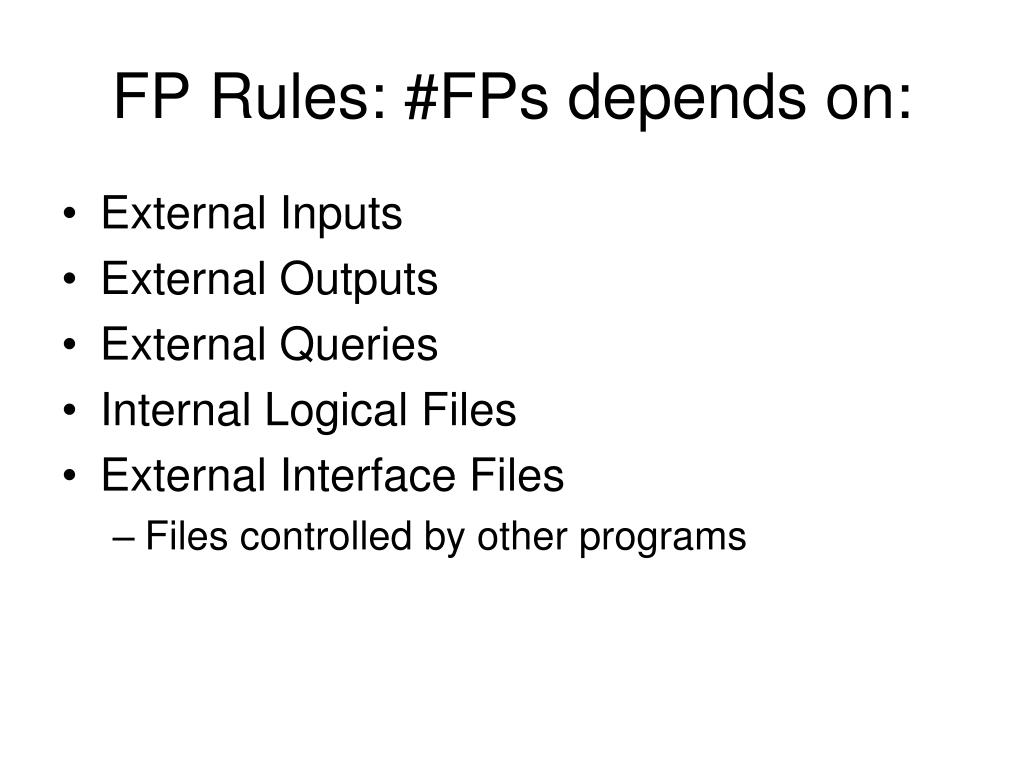

  7. FP Rules: #FPs depends on: • External Inputs • External Outputs • External Queries • Internal Logical Files • External Interface Files • Files controlled by other programs

  8. FP Rules: Complexity Multipliers

  9. LOC vs FP (Boehm 2000, Stutzke 2005)

  10. FP results • Certified counters vary by 10% • Untrained counters vary by much more • The multipliers may or may not be useful (some research indicates unadjusted FPs are more closely correlated with effort) • The LOC have on average a range of 3x wrt FPs

  11. COCOMO

  12. COCOMO • COCOMO  COnstructive COst MOdel • Model to help reason about the cost and schedule implications of decisions • Project Budgets • Scheduling • Planning • Risk Management Decisions

  13. 3 Types of COCOMO Estimates • Basic • good for quick estimate of software costs • Does not account for differences in hardware constraints, personnel quality and experience, or use of modern tools and techniques • Early Design Model • High level model • Used to explore architectural alternatives or incremental development strategies • Post-Architecture Model • Detailed model • Used once the project is ready to sustain a fielded system

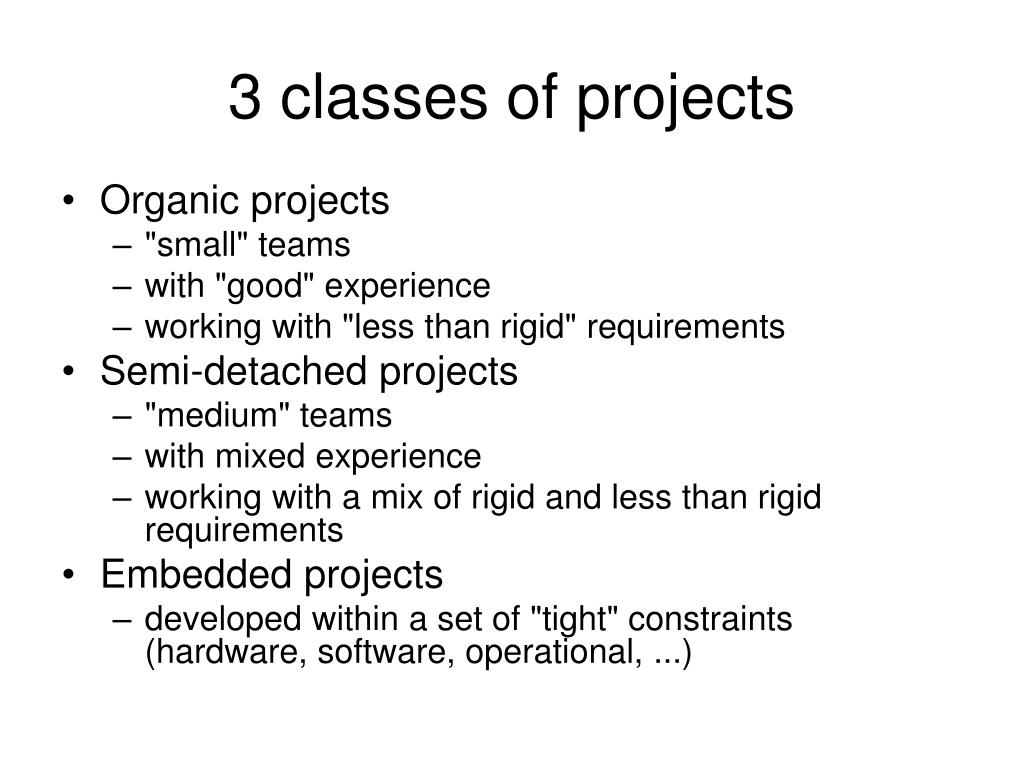

  14. 3 classes of projects • Organic projects • "small" teams • with "good" experience • working with "less than rigid" requirements • Semi-detached projects • "medium" teams • with mixed experience • working with a mix of rigid and less than rigid requirements • Embedded projects • developed within a set of "tight" constraints (hardware, software, operational, ...)

  15. Basic COCOMO Equations Effort Applied (in person-months) = a* (KLOC)b Development Time (in months) = c * (Effort Applied)d People required = Effort Applied / Development Time

  16. Intermediate COCOMO • Development effort is function of program size and "cost drivers" • Subjective assessment of product, hardware, personnel and project attributes. • Product attributes (required reliability, size of database, product complexity) • Hardware attributes (performance and memory constraints) • Personnel attributes • Analyst capability • Software engineering capability • Applications experience • Virtual machine experience • Programming language experience • Project attributes (use of tools and methods)

  17. Intermediate COCOMO Cost Drivers • 15 attributes • Rated on 6-point scale (very low to extra high) • Effort multipliers (from 0.9 to 1.4) from table • Intermediate Cocomo formula: E=a (KLoC)b * EAF • E: effort applied in person-months • KLoC: estimated number of thousands of lines of code for the project • EAF: factor calculated above

  18. COCOMO II: Post Architecture PM = 2.45*EAF*(SLOC/1000)^PDM = 2.50*(PM)^TST = PM/DMPM - person-months needed for projectEAF - effort adjustment factor (0.6-1.4)SLOC - source lines of codeP - project complexity (1.04-1.24)DM - duration time in months for projectT - sloc-dependent coefficient (0.32-0.38)ST - average staffing necessary

  19. Effort Per Phase Schedule
