  1. ARP Poisoning Rushad Shaikh CSCI 5931 Web Security Spring 2004

  2. ARP Poisoning Attacks • Topics • Logical Address • Physical Address • Mapping • ARP • ARP Cache Table • ARP Poisoning • Prevent ARP Poisoning

  3. Logical address • Internetwork address • Unique universally • In TCP/IP its called IP Address • 32 bits long Physical Address • Local address • Unique locally

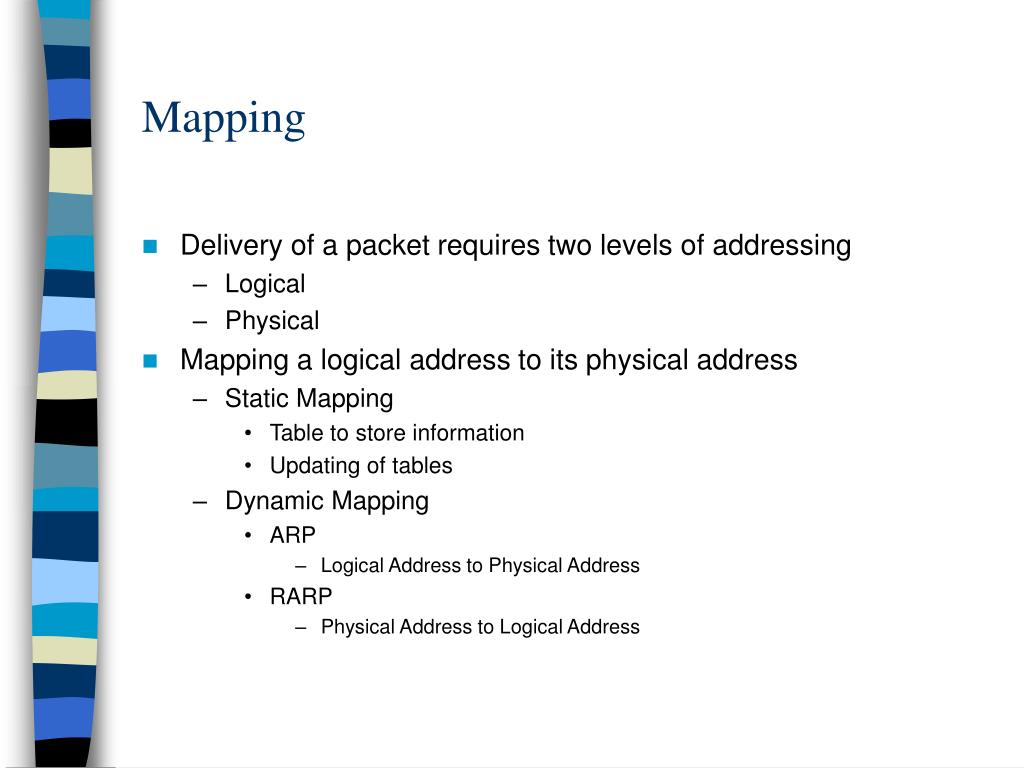

  4. Mapping • Delivery of a packet requires two levels of addressing • Logical • Physical • Mapping a logical address to its physical address • Static Mapping • Table to store information • Updating of tables • Dynamic Mapping • ARP • Logical Address to Physical Address • RARP • Physical Address to Logical Address

  5. ARP • ARP request • Computer A asks the network, "Who has this IP address?“

  6. ARP(2) • ARP reply • Computer B tells Computer A, "I have that IP. My Physical Address is [whatever it is].“

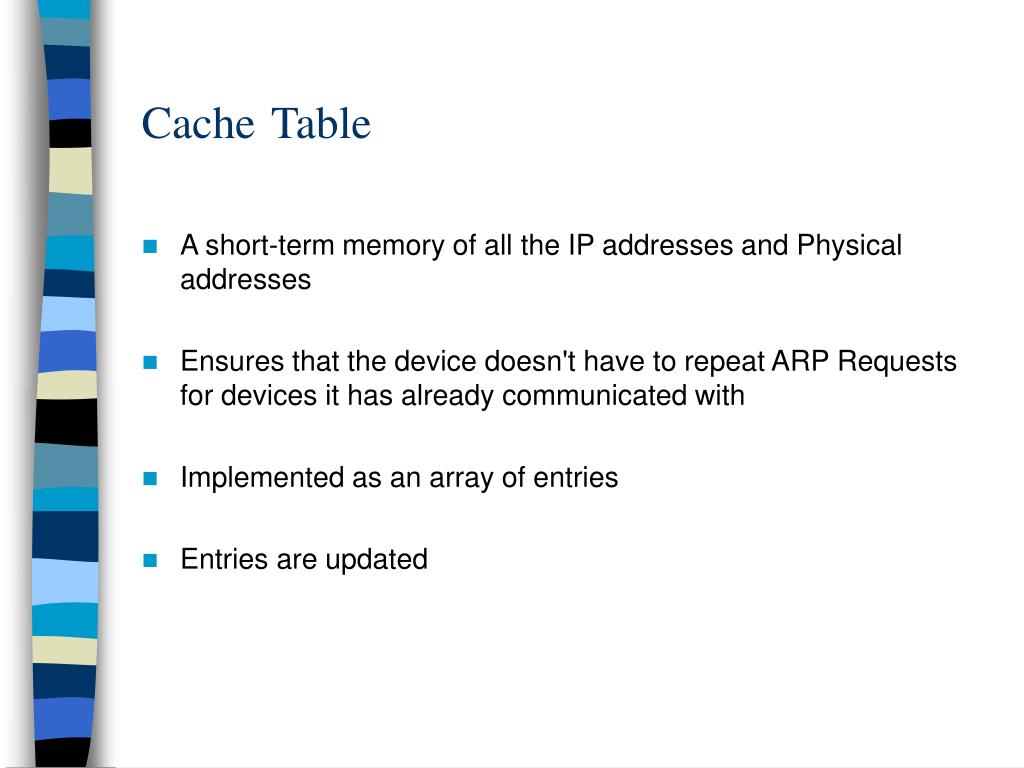

  7. CacheTable • A short-term memory of all the IP addresses and Physical addresses • Ensures that the device doesn't have to repeat ARP Requests for devices it has already communicated with • Implemented as an array of entries • Entries are updated

  8. Cache Table State Queue Attempt Time-out IP Address Physical Address R5900180.3.6.1ACAE32457342 P22129.34.4.8 P145201.11.56.7 R8450114.5.7.89457342ACAE32 P121220.55.5.7 F R 9 60 19.1.7.82 4573E3242ACA P 18 3 188.11.8.71

  9. ARP Poisoning • Simplicity also leads to major insecurity • No Authentication • ARP provides no way to verify that the responding device is really who it says it is • Stateless protocol • Updating ARP Cache table • Attacks • DOS • Hacker can easily associate an operationally significant IP address to a false MAC address • Man-in-the-Middle • Intercept network traffic between two devices in your network

  10. ARP Poisoning(3a) – Man-In-The-Middle

  11. ARP Poisoning(3b) – Man-In-The-Middle

  12. ARP Poisoning(3c) – Man-In-The-Middle

  13. Prevent Arp Poisoning • For Small Network • Static Arp Cache table • For Large Network • Arpwatch • As an administrator, check for multiple Physical addresses responding to a given IP address

  14. References: • www.watchguard.com/infocenter/editorial/135324.asp • www.l0t3k.org/security/docs/arp/
