  1. Parallel Decomposition Methods Introduction to Parallel Programming – Part 2

  2. Review & Objectives • Previously: • Defined parallel computing • Explained why parallel computing is becoming mainstream • Explained why explicit parallel programming is necessary • At the end of this part you should be able to: • Identify opportunities for parallelism in code segments and applications • Describe three methods of dividing independent work

  3. Methodology • Study problem, sequential program, or code segment • Look for opportunities for parallelism • Try to keep all cores busy doing useful work

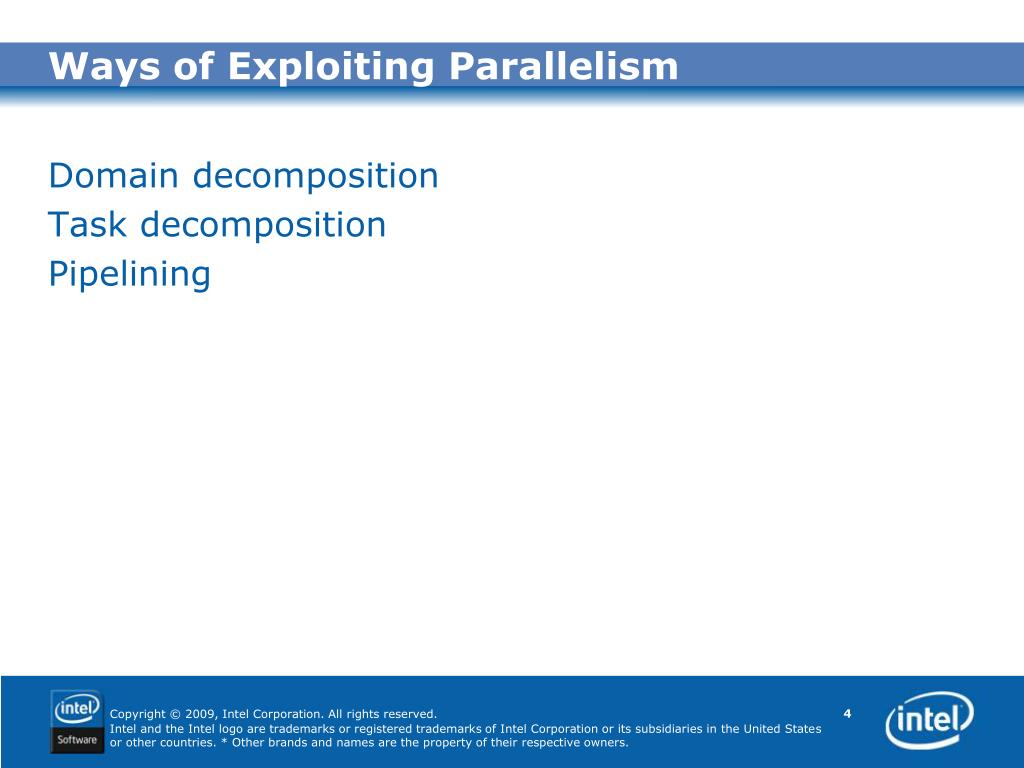

  4. Ways of Exploiting Parallelism • Domain decomposition • Task decomposition • Pipelining

  5. Domain Decomposition • First, decide how data elements should be divided among cores • Second, decide which tasks each core should be doing • Example: Vector addition

  6. Domain Decomposition Find the largest element of an array

  7. Domain Decomposition Find the largest element of an array Core 0 Core 1 Core 2 Core 3

  8. Domain Decomposition Find the largest element of an array Core 0 Core 1 Core 2 Core 3

  9. Domain Decomposition Find the largest element of an array Core 0 Core 1 Core 2 Core 3

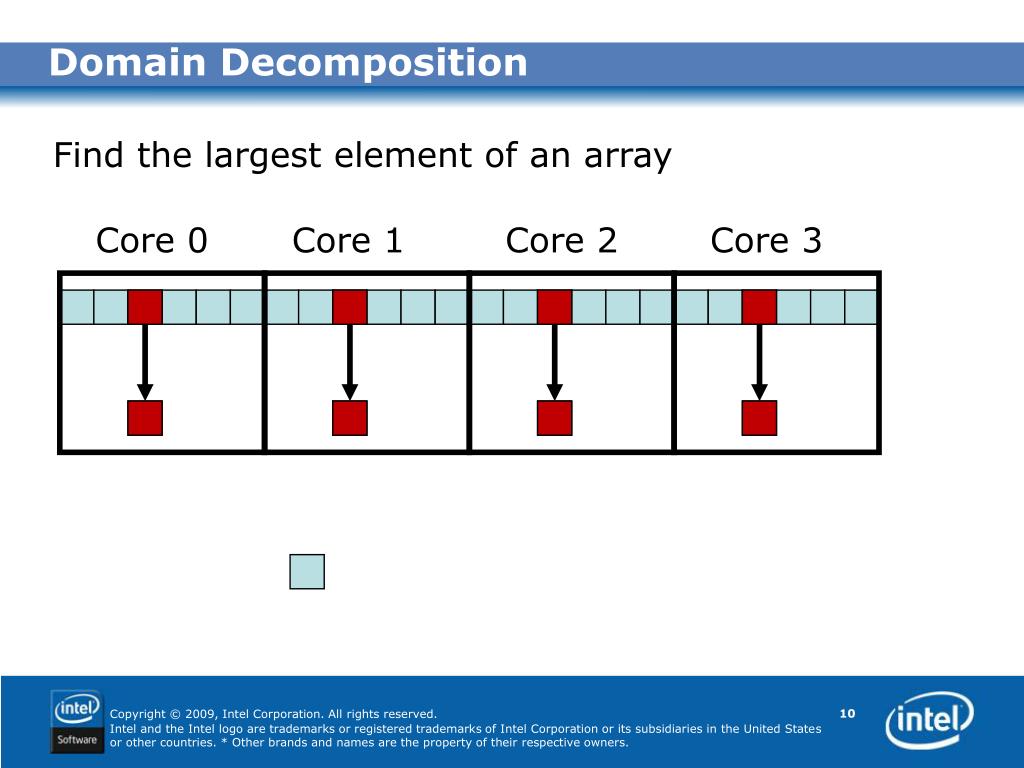

  10. Domain Decomposition Find the largest element of an array Core 0 Core 1 Core 2 Core 3

  11. Domain Decomposition Find the largest element of an array Core 0 Core 1 Core 2 Core 3

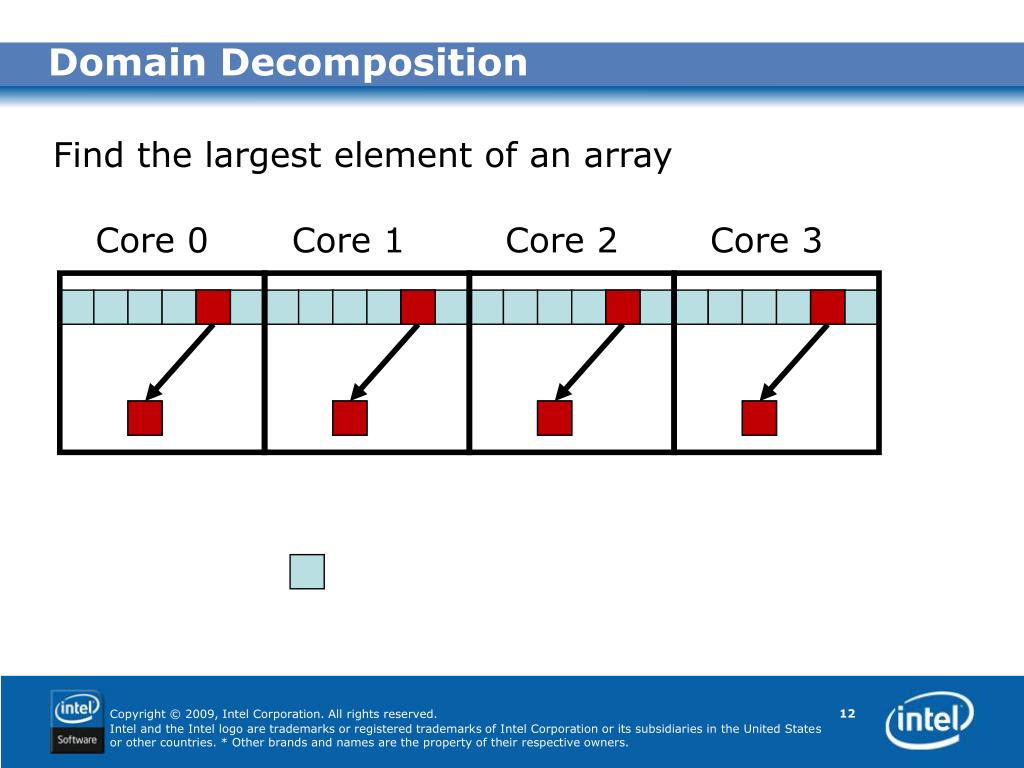

  12. Domain Decomposition Find the largest element of an array Core 0 Core 1 Core 2 Core3

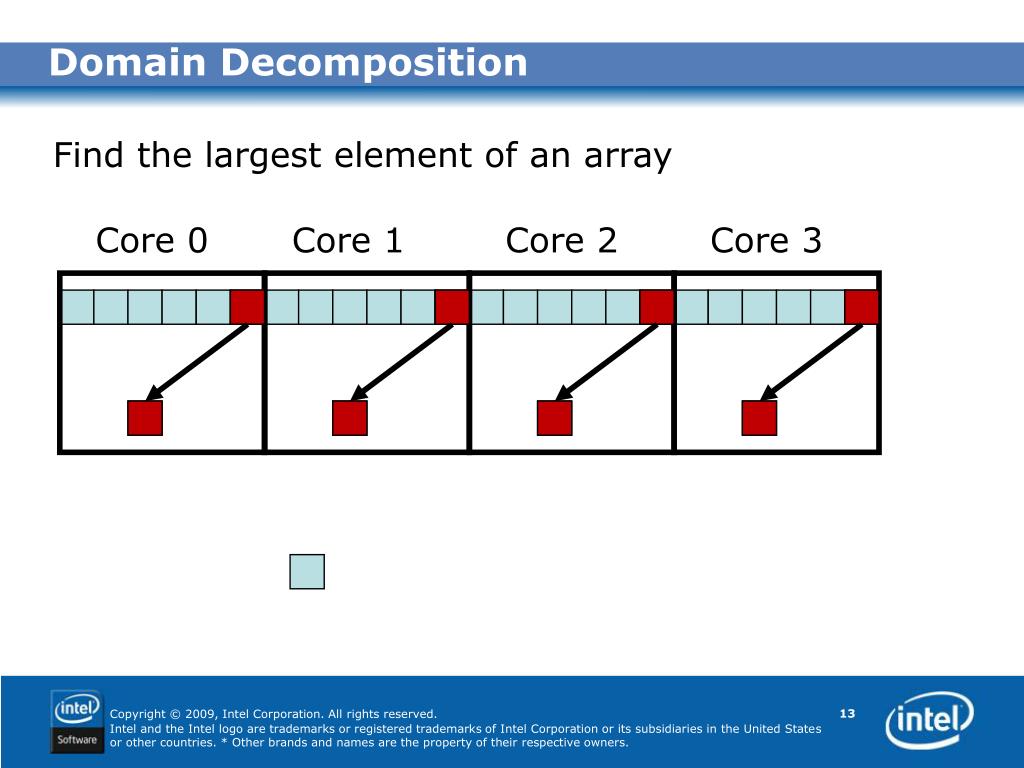

  13. Domain Decomposition Find the largest element of an array Core 0 Core 1 Core 2 Core 3

  14. Domain Decomposition Find the largest element of an array Core 0 Core 1 Core 2 Core 3

  15. Domain Decomposition Find the largest element of an array Core 0 Core 1 Core 2 Core 3

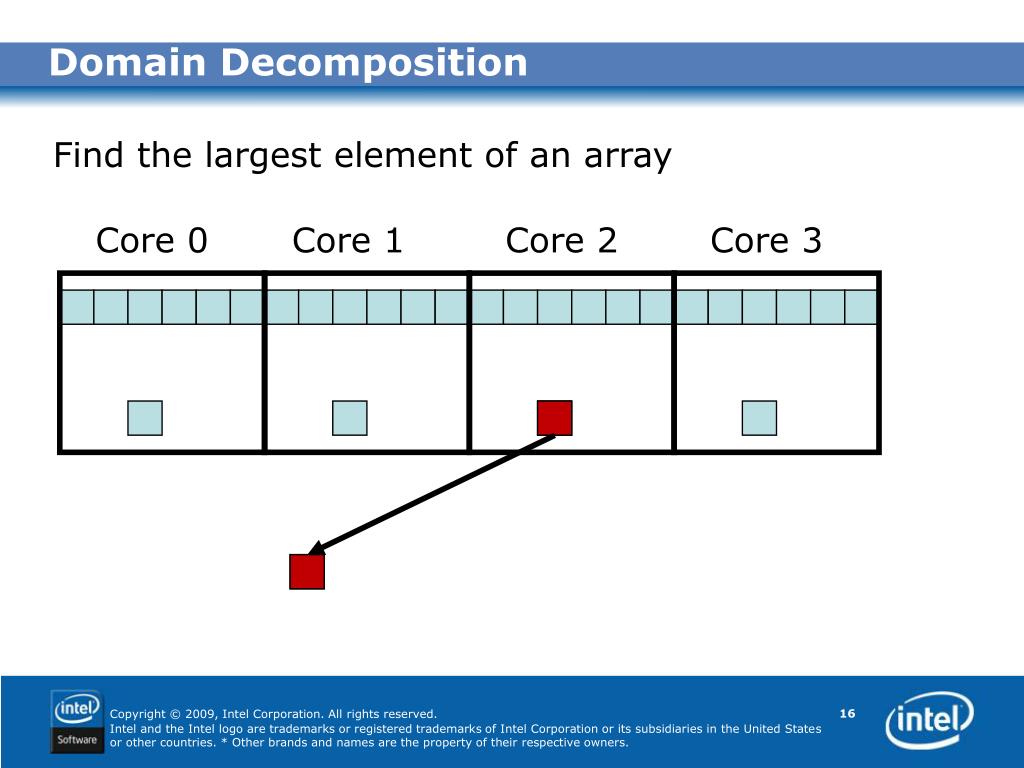

  16. Domain Decomposition Find the largest element of an array Core 0 Core 1 Core 2 Core 3

  17. Domain Decomposition Find the largest element of an array Core 0 Core 1 Core2 Core3

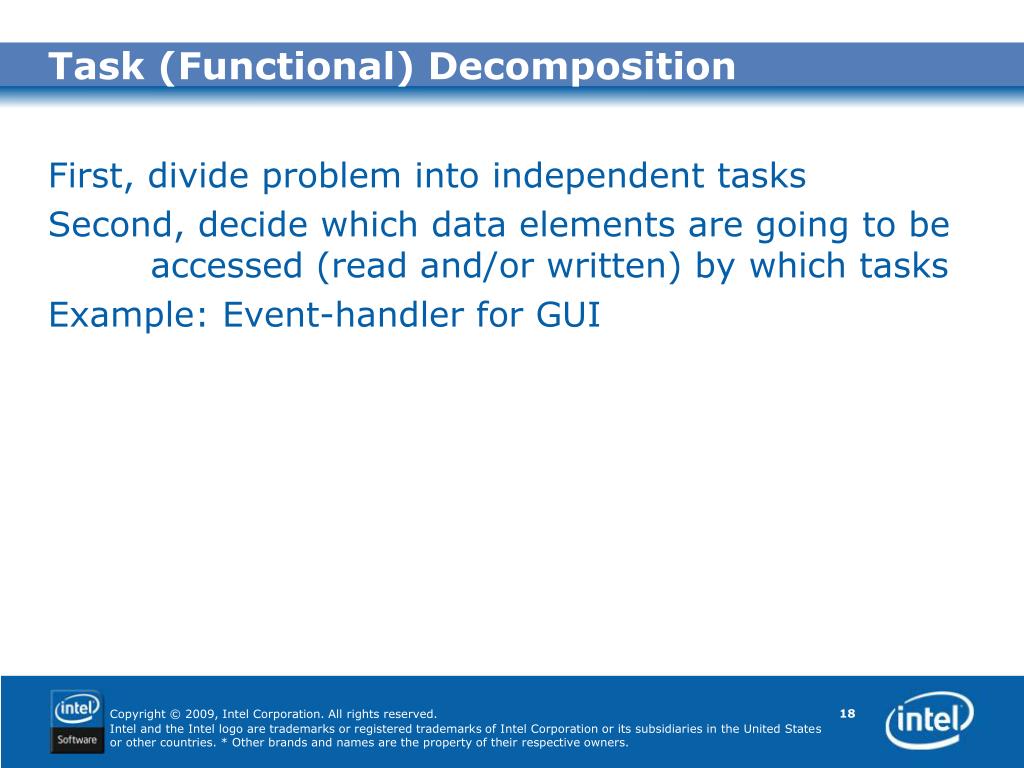

  18. Task (Functional) Decomposition • First, divide problem into independent tasks • Second, decide which data elements are going to be accessed (read and/or written) by which tasks • Example: Event-handler for GUI

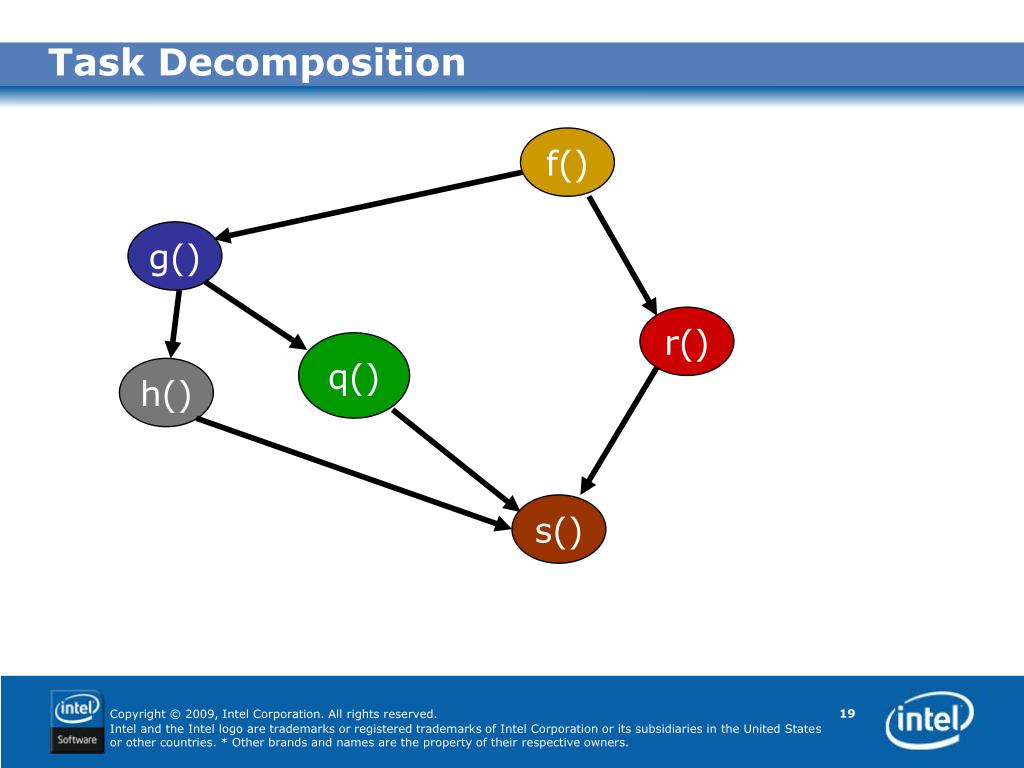

  19. Task Decomposition f() g() r() q() h() s()

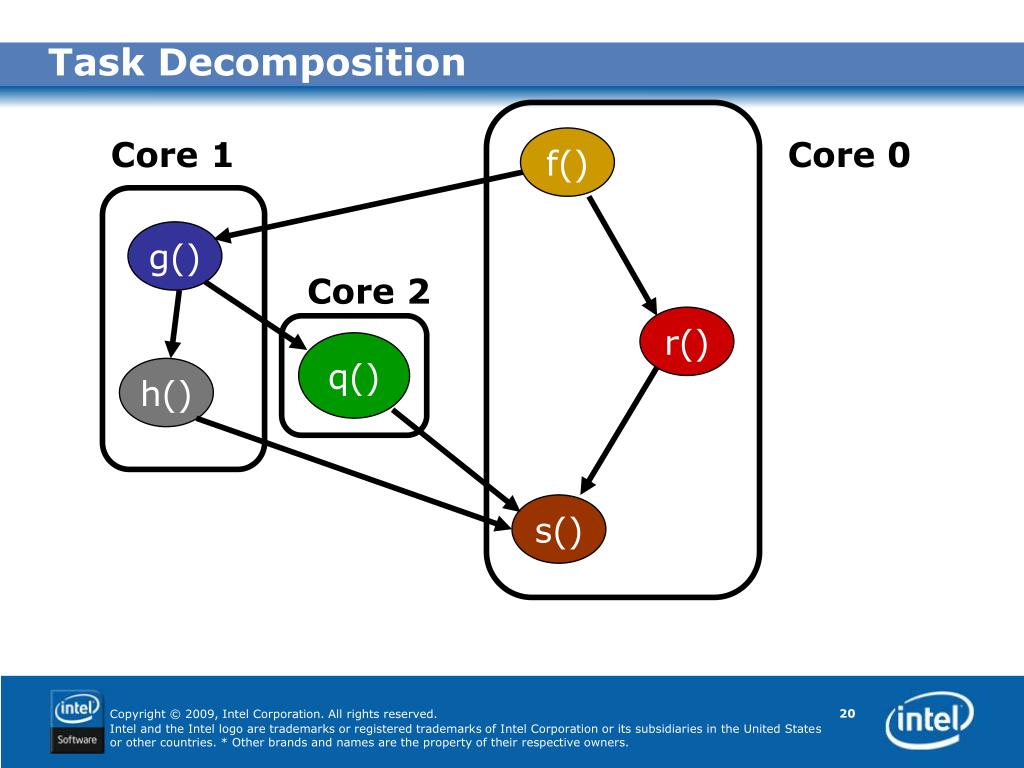

  20. Task Decomposition Core1 f() Core 0 g() Core 2 r() q() h() s()

  21. Task Decomposition Core 1 f() Core 0 g() Core 2 r() q() h() s()

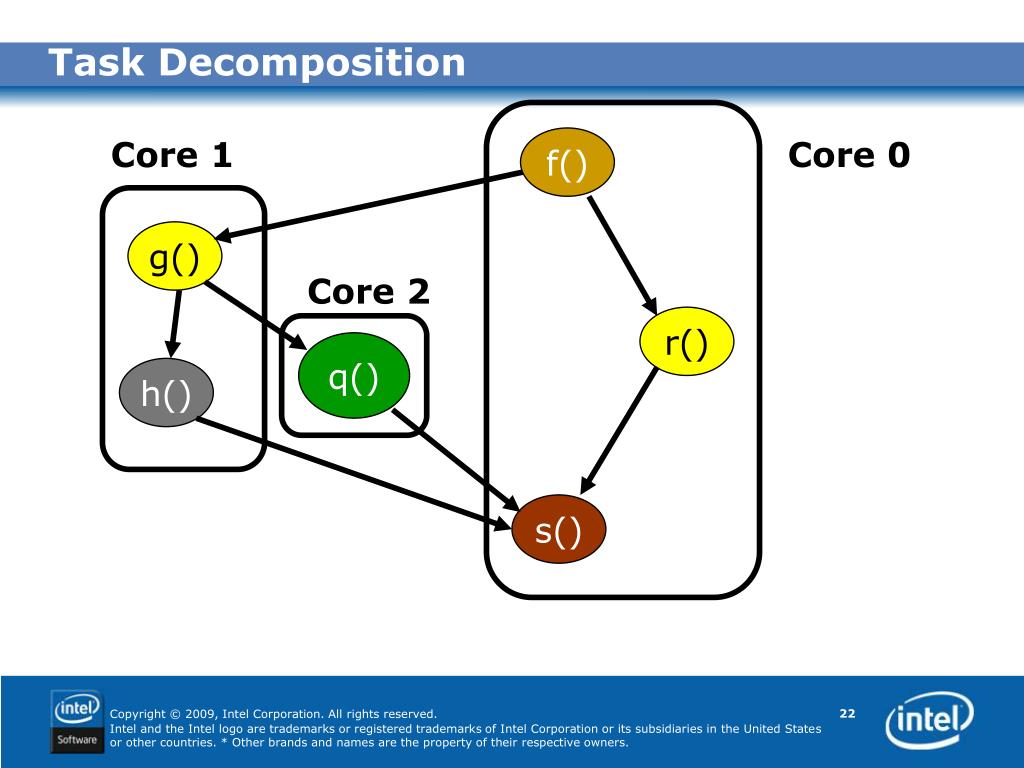

  22. Task Decomposition Core 1 f() Core 0 g() Core 2 r() q() h() s()

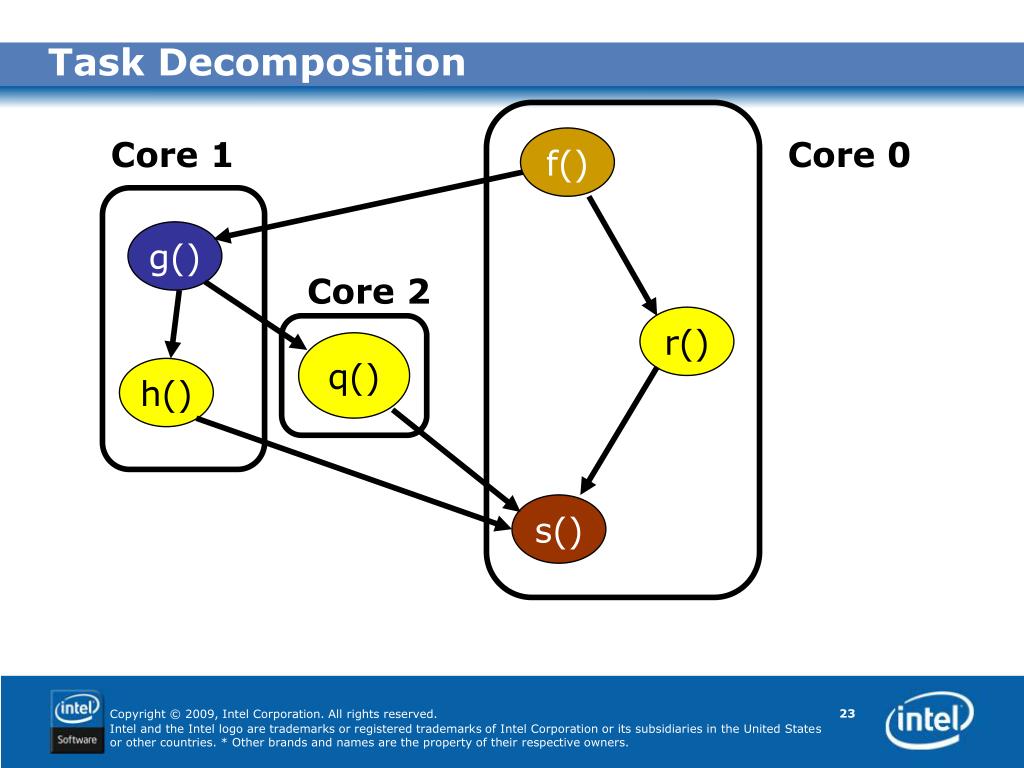

  23. Task Decomposition Core 1 f() Core 0 g() Core 2 r() q() h() s()

  24. Task Decomposition Core 1 f() Core 0 g() Core 2 r() q() h() s()

  25. Pipelining • Special kind of task decomposition • “Assembly line” parallelism • Example: 3D rendering in computer graphics Model Project Clip Rasterize Output Input

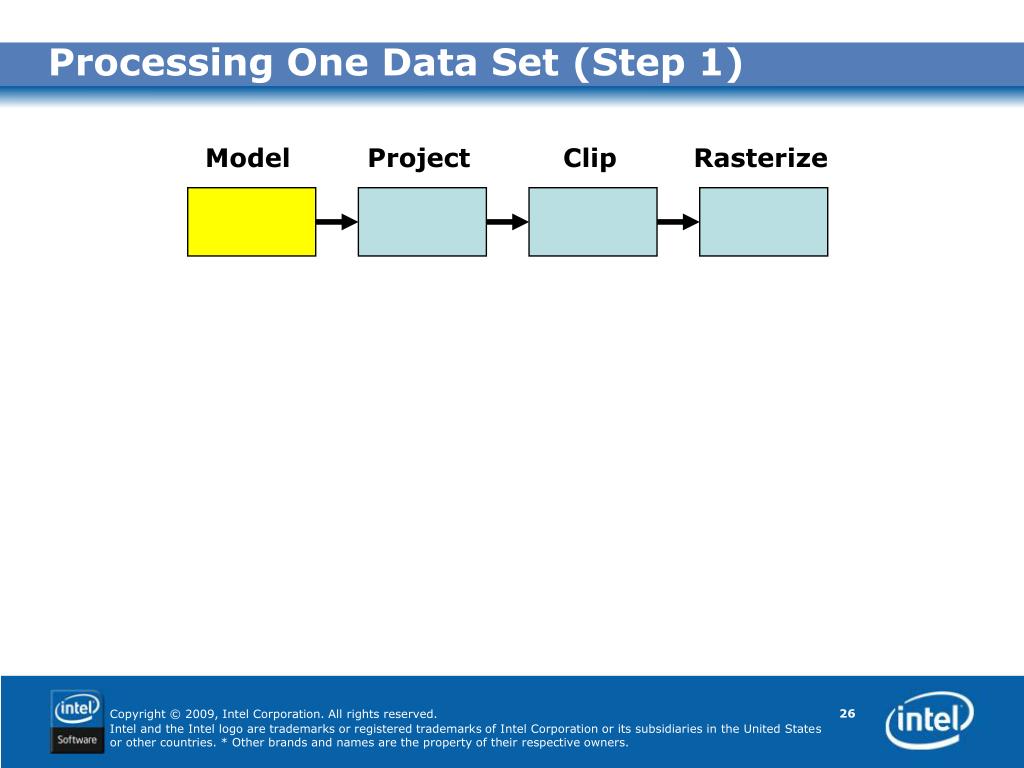

  26. Processing One Data Set (Step 1) Model Project Clip Rasterize

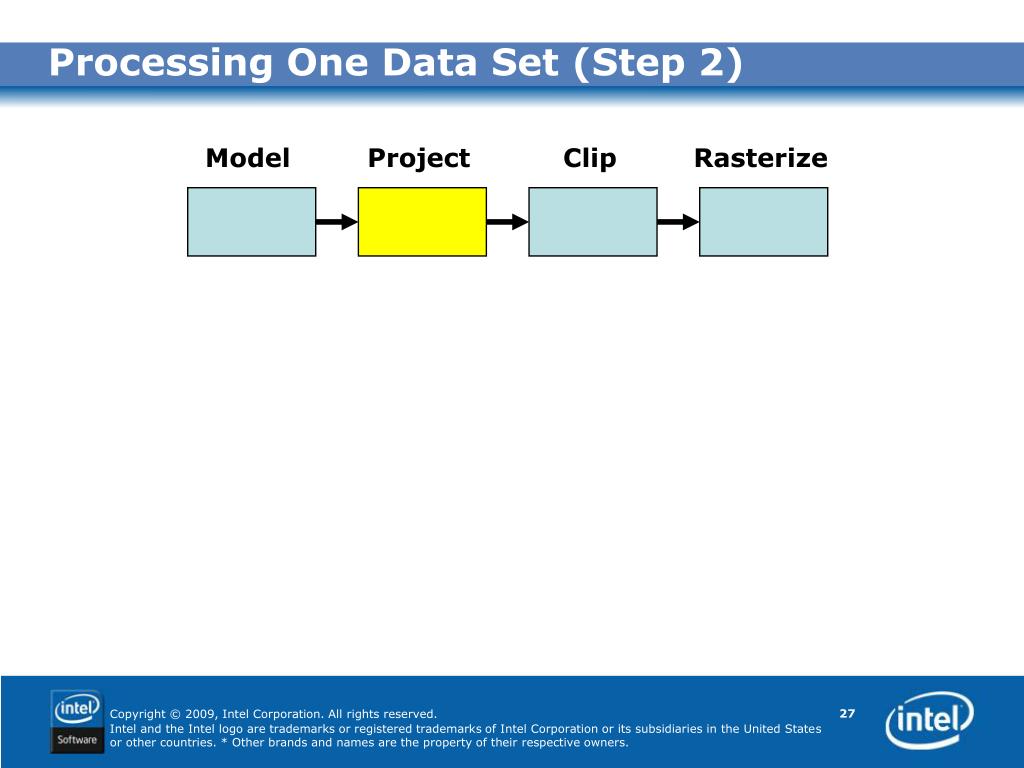

  27. Processing One Data Set (Step 2) Model Project Clip Rasterize

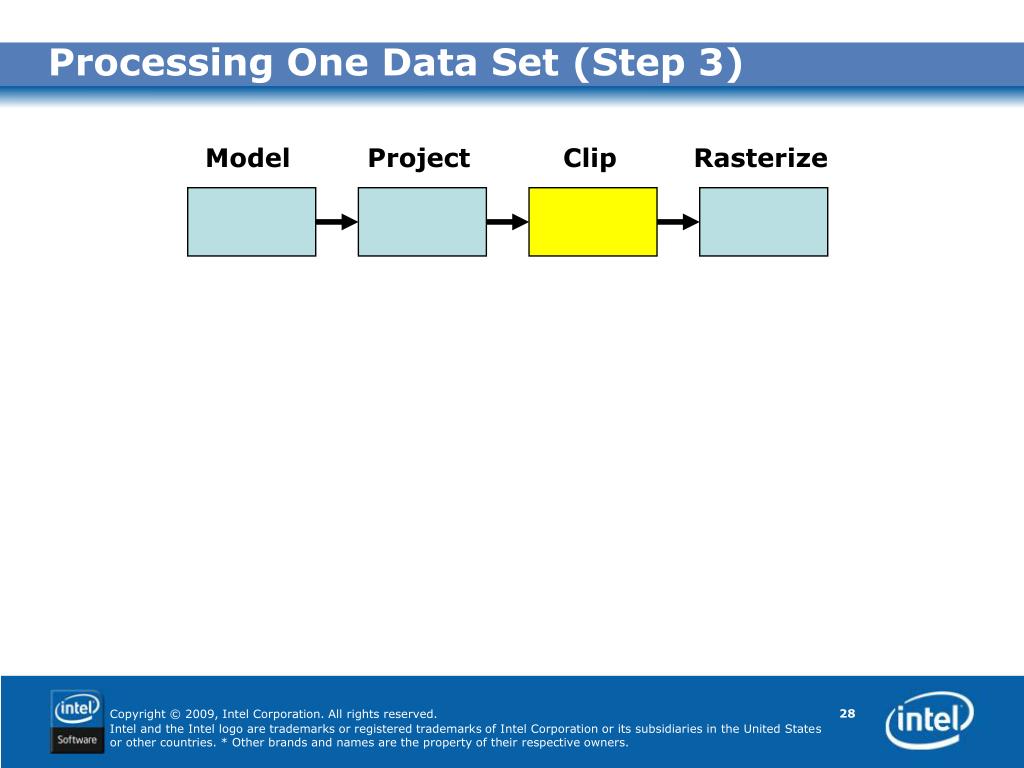

  28. Processing One Data Set (Step 3) Model Project Clip Rasterize

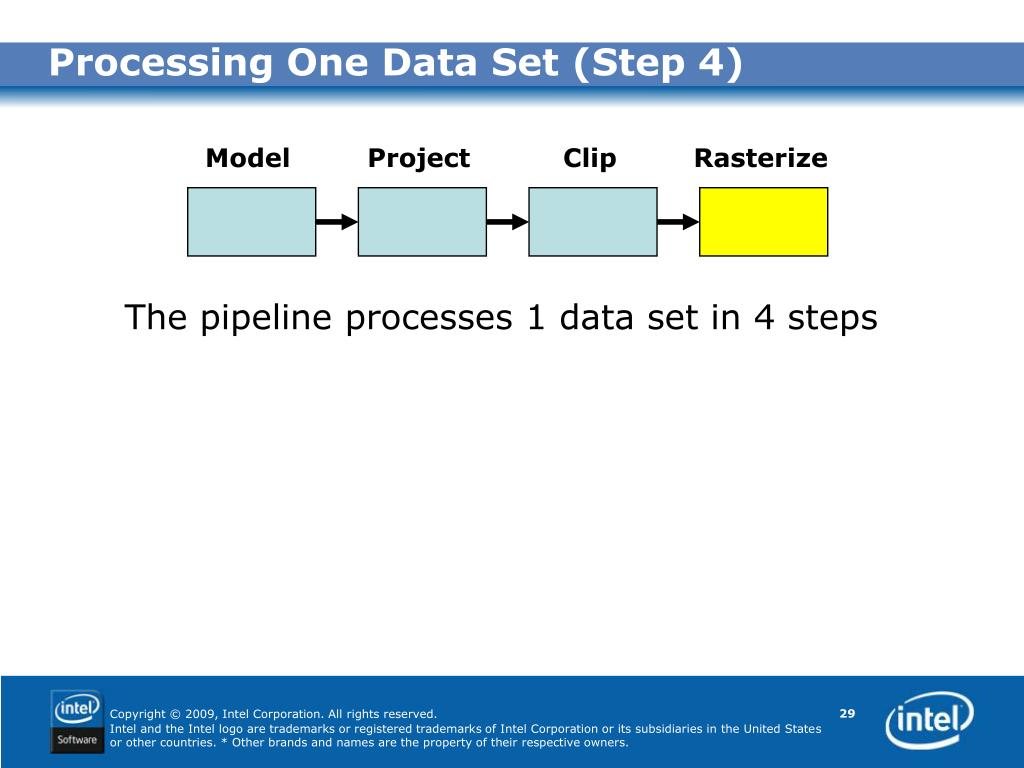

  29. Processing One Data Set (Step 4) Model Project Clip Rasterize The pipeline processes 1 data set in 4 steps

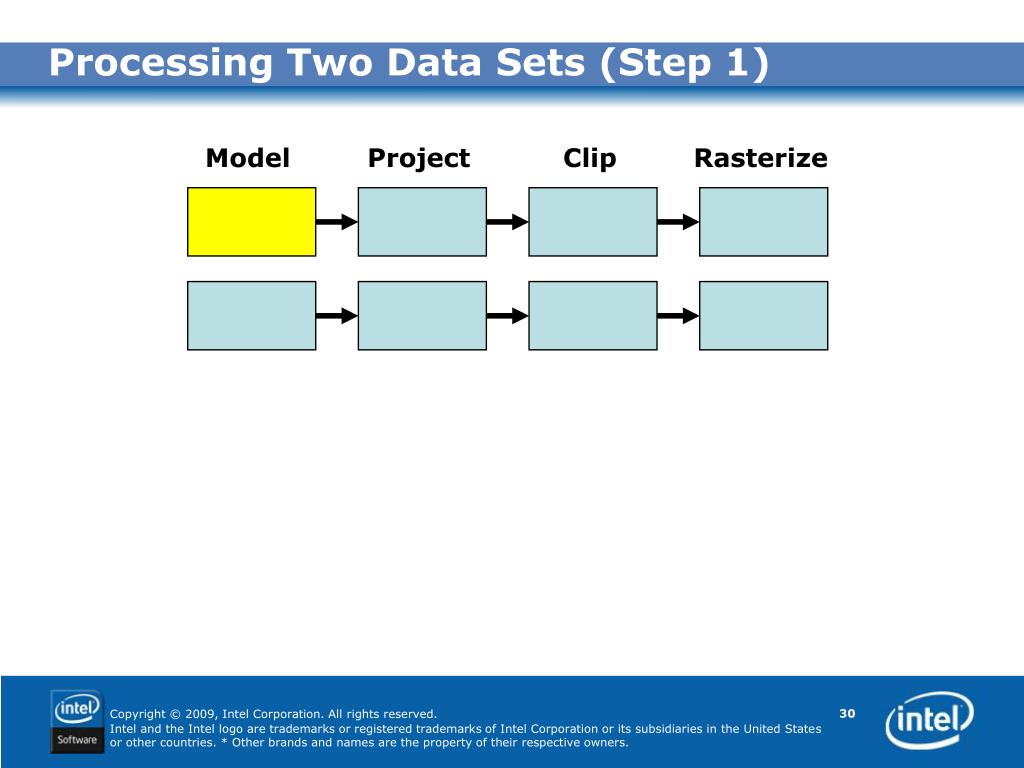

  30. Processing Two Data Sets (Step 1) Model Project Clip Rasterize

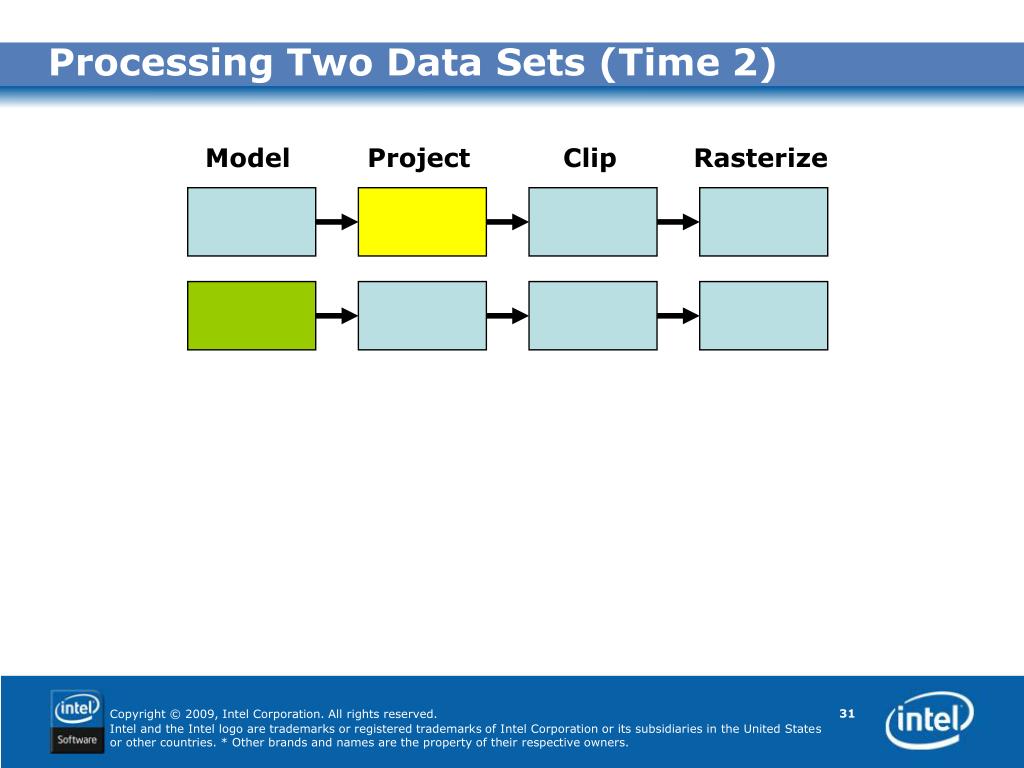

  31. Processing Two Data Sets (Time 2) Model Project Clip Rasterize

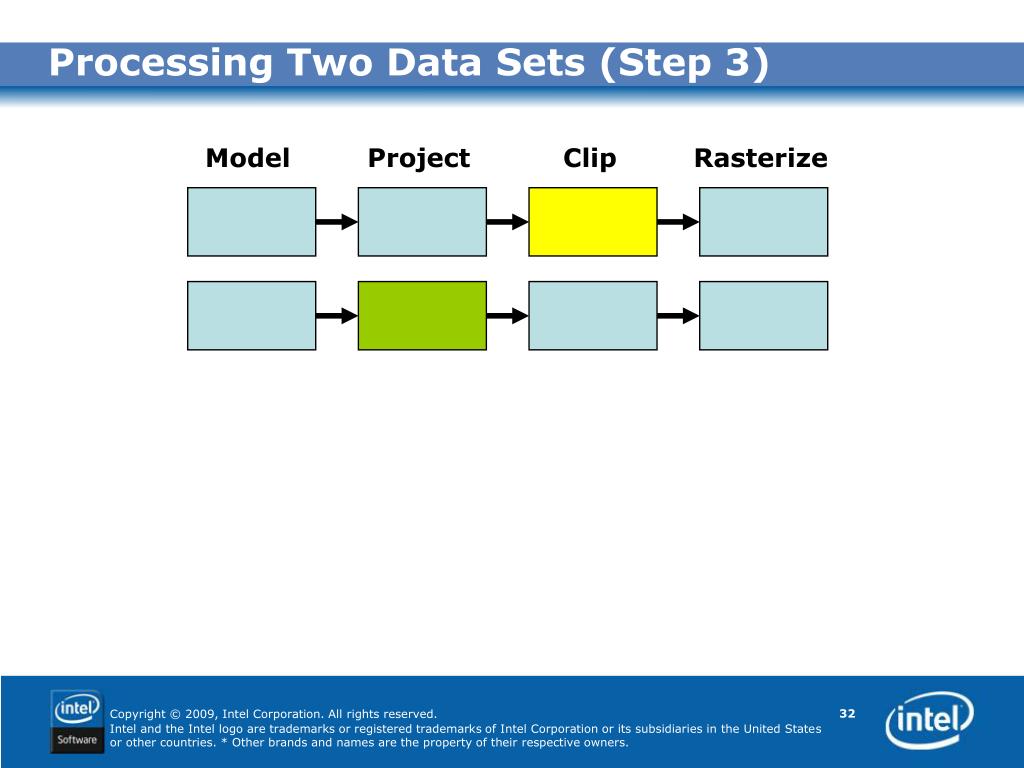

  32. Processing Two Data Sets (Step 3) Model Project Clip Rasterize

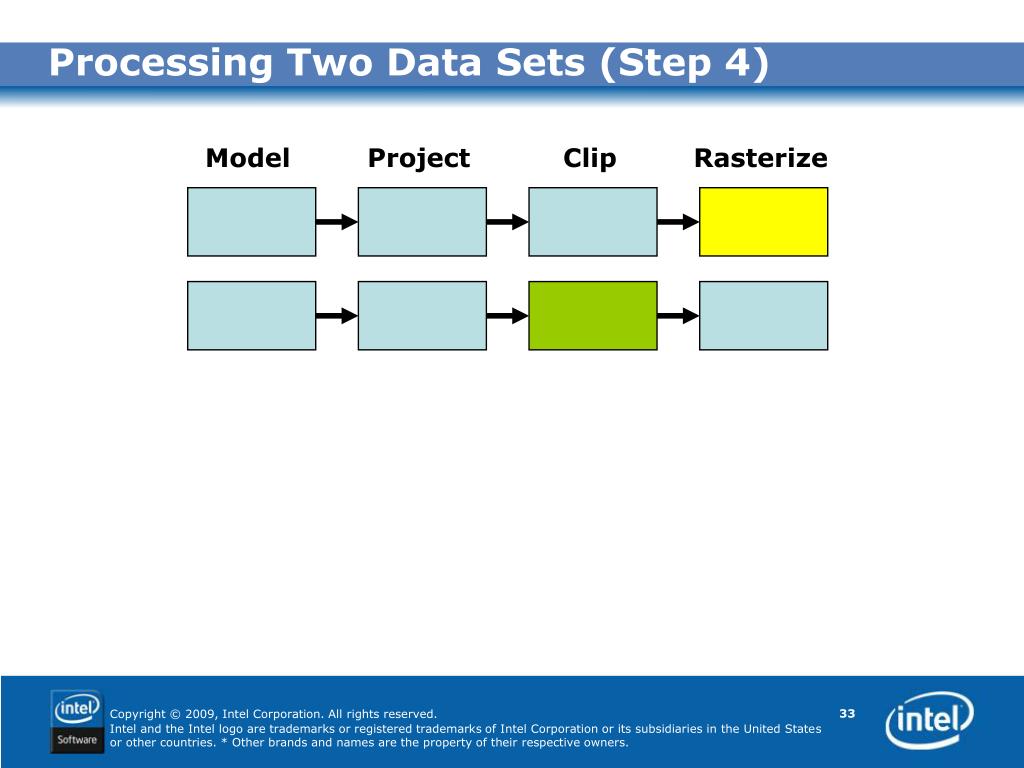

  33. Processing Two Data Sets (Step 4) Model Project Clip Rasterize

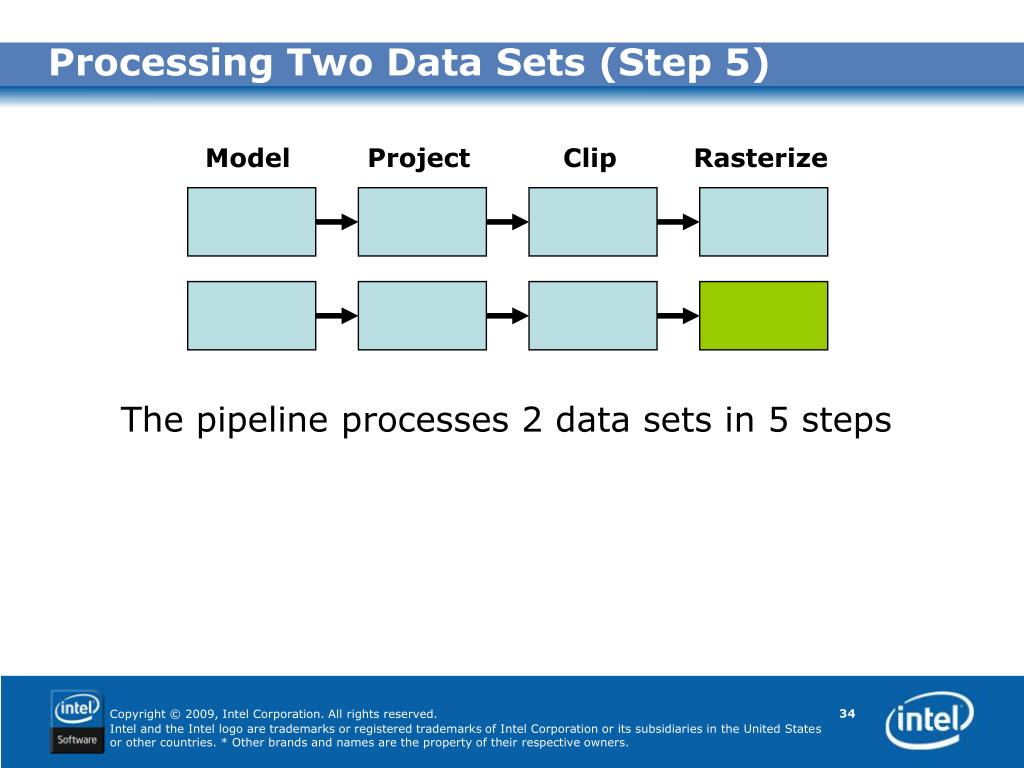

  34. Processing Two Data Sets (Step 5) Model Project Clip Rasterize The pipeline processes 2 data sets in 5 steps

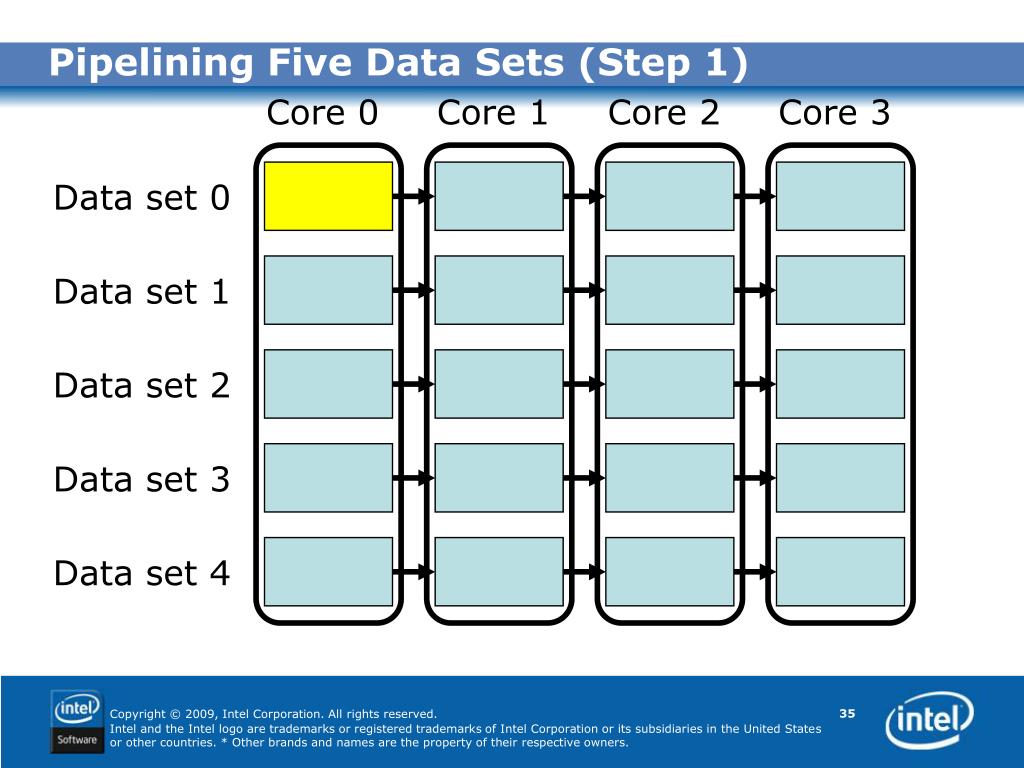

  35. Pipelining Five Data Sets (Step 1) Core 0 Core 1 Core 2 Core 3 Data set 0 Data set 1 Data set 2 Data set 3 Data set 4

  36. Pipelining Five Data Sets (Step 2) Core 0 Core 1 Core 2 Core 3 Data set 0 Data set 1 Data set 2 Data set 3 Data set 4

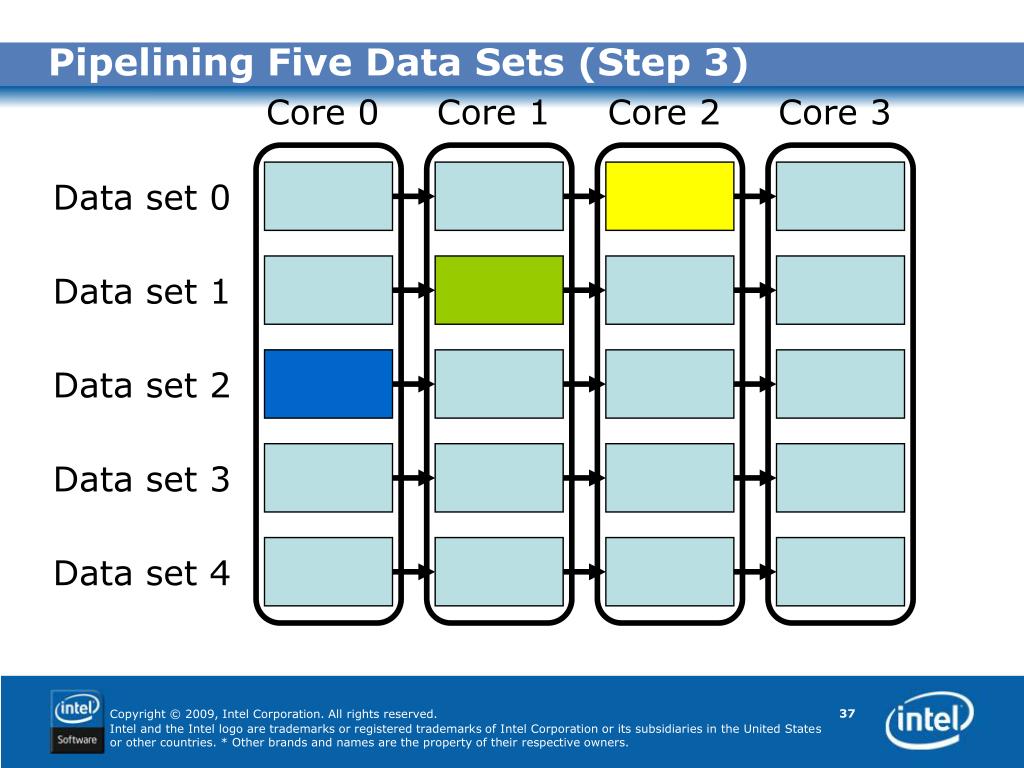

  37. Pipelining Five Data Sets (Step 3) Core 0 Core 1 Core 2 Core 3 Data set 0 Data set 1 Data set 2 Data set 3 Data set 4

  38. Pipelining Five Data Sets (Step 4) Core 0 Core 1 Core 2 Core 3 Data set 0 Data set 1 Data set 2 Data set 3 Data set 4

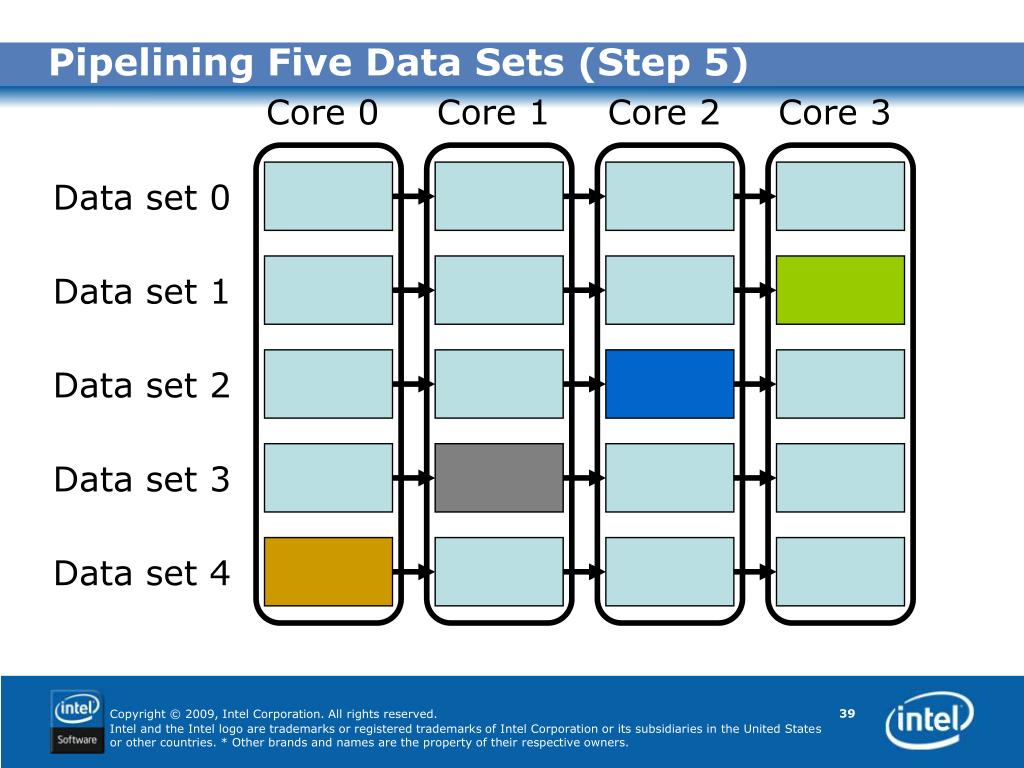

  39. Pipelining Five Data Sets (Step 5) Core 0 Core 1 Core 2 Core 3 Data set 0 Data set 1 Data set 2 Data set 3 Data set 4

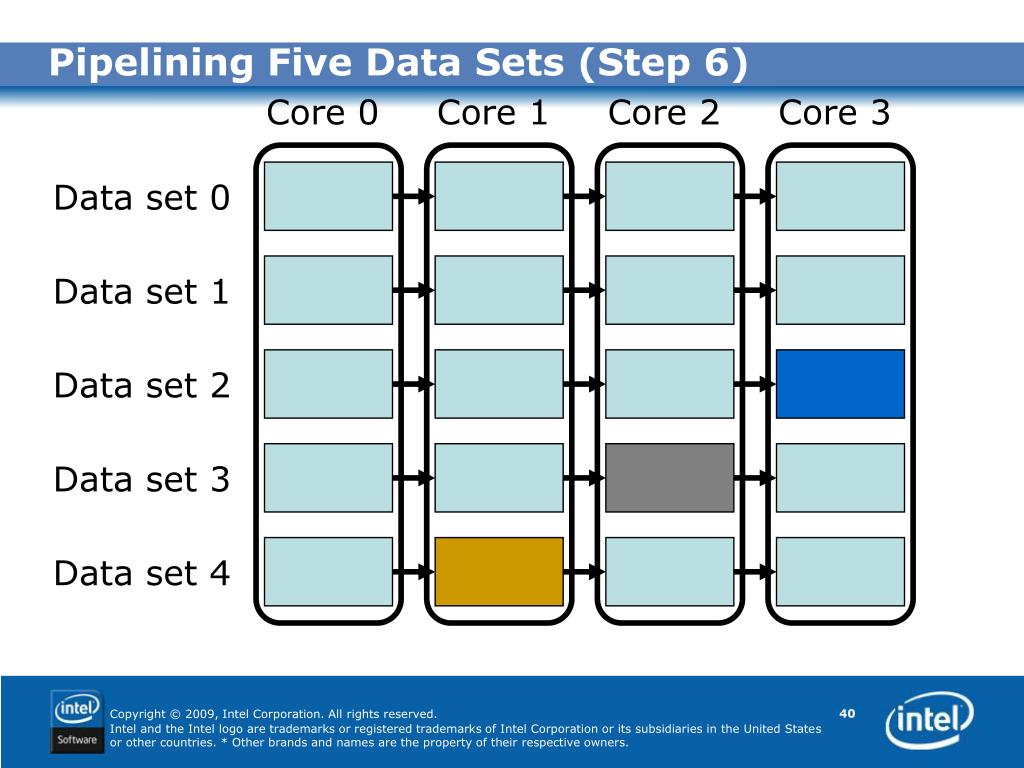

  40. Pipelining Five Data Sets (Step 6) Core 0 Core 1 Core 2 Core 3 Data set 0 Data set 1 Data set 2 Data set 3 Data set 4

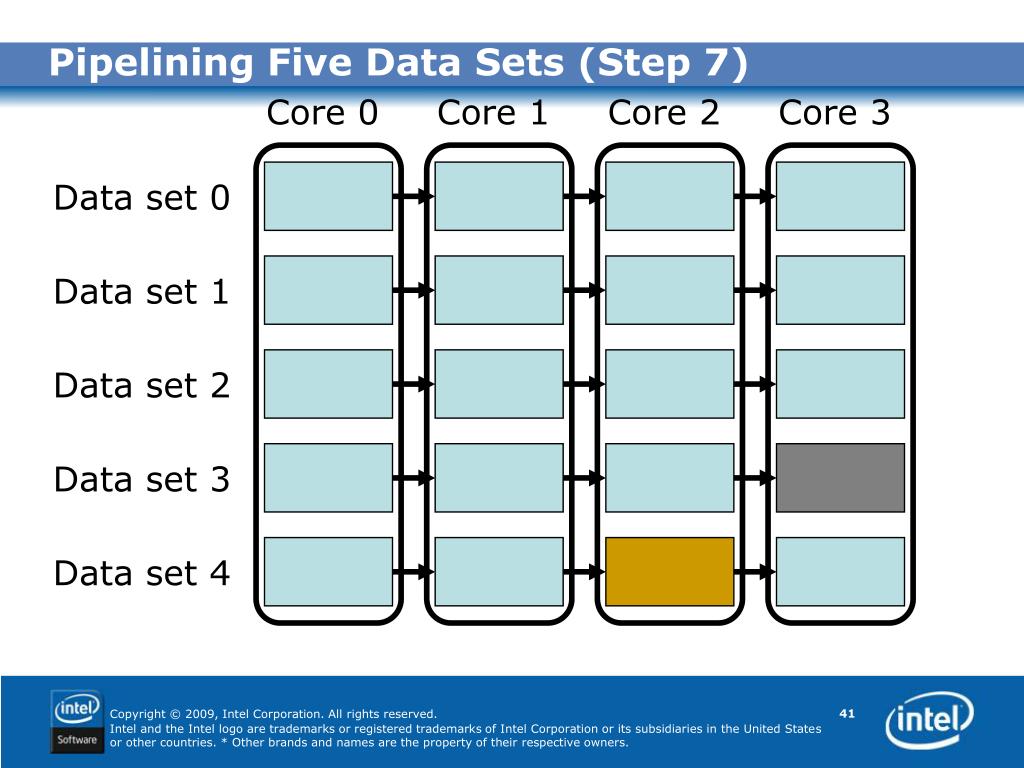

  41. Pipelining Five Data Sets (Step 7) Core 0 Core 1 Core 2 Core 3 Data set 0 Data set 1 Data set 2 Data set 3 Data set 4

  42. Pipelining Five Data Sets (Step 8) Core 0 Core 1 Core 2 Core 3 Data set 0 Data set 1 Data set 2 Data set 3 Data set 4

  43. References • Richard H. Carver and Kuo-Chung Tai, Modern Multithreading: Implementing, Testing, and Debugging Java and C++/Pthreads/ Win32 Programs, Wiley-Interscience (2006). • Robert L. Mitchell, “Decline of the Desktop,” Computerworld (September 26, 2005). • Michael J. Quinn, Parallel Programming in C with MPI and OpenMP, McGraw-Hill (2004). • Herb Sutter, “The Free Lunch is Over: A Fundamental Turn Toward Concurrency in Software,” Dr. Dobb’s Journal 30, 3 (March 2005).
