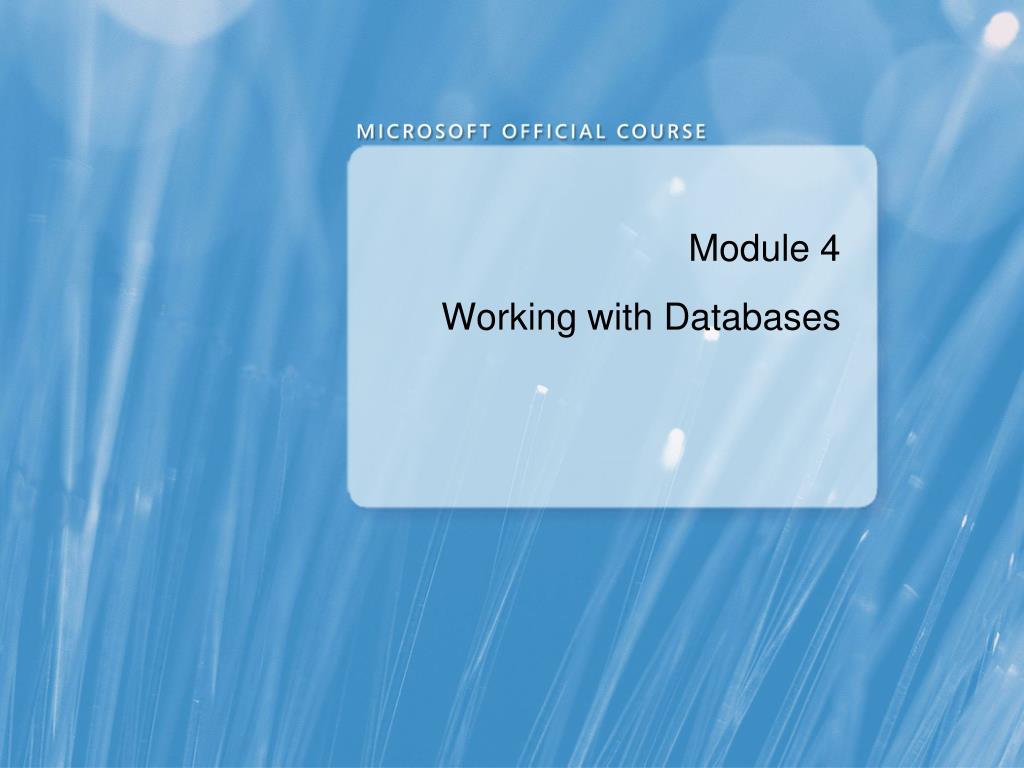

  1. Module 4 Working with Databases

  2. Module Overview • Overview of SQL Server Databases • Working with Files and Filegroups • Moving Database Files

  3. Lesson 1: Overview of SQL Server Databases • How Data is Stored in SQL Server • Determining File Placement and Number of Files • Ensuring Sufficient File Capacity • System Databases Supplied with SQL Server • Overview of tempdb • Demonstration 1A: Working with tempdb

  4. How Data is Stored in SQL Server Primary Data file: .mdf Secondary data file: .ndf Transaction Log file: .ldf Extent: 8 contiguous 8KB pages Table and Index data is stored in Pages that are grouped in Extents. Special allocation pages keep track of page usage. Page: 8KB

  5. Determining File Placement and Number of Files • Isolate log and data files at the physical disk level • Use appropriate RAID levels • Determine the number and location of data files based on performance and maintenance considerations • Use additional files to spread data over more spindles or storage locations • Use smaller data files when easier maintenance is needed • Use data files as units of backup and restore • Determine log file requirements • Use a single log file in most situations as log files are written sequentially

  6. Ensuring Sufficient File Capacity • Estimate the size of data, log files and tempdb • Perform load testing with the actual application • Check with the database vendor • Set the size to a reasonable size: • Leave enough place for new data, without the need to expand often • Monitor data and log file usage • Plan for manual expansion • Keep autogrowth enabled to allow for unexpected growth

  7. System Databases Supplied with SQL Server

  8. Overview of tempdb • tempdb contains temporary data for internal objects, row versioning, and user objects • Is truncated or rebuilt with every restart of the instance • Occupies space depending upon workload and usage patterns on the SQL Server instance • Should be tested with real-life workloads • Place tempdb on a fast and separate I/O subsystem to ensure good performance • Split tempdb into data files of equal size per core (up to a maximum of about 8 data files) • Use testing to confirm the best value

  9. Demonstration 1A: Working with tempdb • In this demonstration, you will see how the size of the tempdb database files is managed.

  10. Lesson 2: Working with Files and Filegroups • Creating User Databases • Configuring Database Options • Instant File Initialization • Demonstration 2A: Creating Databases • Altering Databases • Expanding and Shrinking Database Files • Demonstration 2B: Altering Databases • Working with Filegroups • Demonstration 2C: Filegroups

  11. Creating User Databases • Can be created in GUI • Can be created with CREATE DATABASE T-SQL command • Collation can be specified CREATEDATABASE Branch ON ( NAME =Branch_dat, FILENAME='D:\Data\Branch.mdf',SIZE = 100MB, MAXSIZE = 500MB, FILEGROWTH = 20%) LOGON ( NAME =Branch_log, FILENAME='L:\Logs\Branch.ldf', SIZE = 20MB, MAXSIZE =UNLIMITED, FILEGROWTH = 10MB );

  12. Configuring Database Options Database-level options are unique to each database Important database options:

  13. Instant File Initialization • Allows reclaiming used disk space quickly • Does not require first filling that space with zeros • Is a minor security concern • Is enabled by assigning the SQL Server service account the Perform Volume Maintenance Tasks permission • Applies only to data files • Does not apply to log files

  14. Demonstration 2A: Creating Databases • In this demonstration you will see how to create a database using the GUI in SSMS and using the CREATE DATABASE statement in T-SQL.

  15. Altering Databases • Database files can be added, dropped, expanded, and shrunk • All file operations are online operations using • SSMS • ALTER DATABASE • DBCC (options such as CHECKDB and SHRINKFILE) • Dropping a database file requires it to be emptied first • Need to migrate data to other files

  16. Expanding and Shrinking Database Files • Files can be expanded manually • Files can grow automatically using the auto-growth options • Performed only when new place is needed • Can lead to blocking and time-out problems • Should be avoided: Plan for manual file expansion • Shrinking files is possible • Uses DBCC SHRINKDATABASE, DBCC SHRINKFILE • Should be performed only when absolutely needed • Is a very intrusive operation • Can lead to heavily fragmented databases

  17. Demonstration 2B: Altering Databases • In this demonstration you will see: • How to add a file to a database • How to expand a database file • How to shrink a database file • How to drop a database file

  18. Working with Filegroups Filegroups are named groups of database files that are used to control placement of database objects. Filegroups can be backed up or restored separately. Primary Filegroup Data File(s) *.mdf , *.ndf Database OtherFilegroups Data File(s) *.ndf Log File(s) *.ldf

  19. Demonstration 2C: Filegroups • In this demonstration you will see: • How to create a database with several filegroups • How to create objects in filegroups

  20. Lesson 3: Moving Database Files • Overview of Detach and Attach • Moving User Database Files • Demonstration 3A: Detach and Attach • Moving System Database Files • Copying Databases • Demonstration 3B: Moving and Reconfiguring tempdb

  21. Overview of Detach and Attach • Detaching a database drops the database from the instance • Data and log files are kept intact • Detached files can be attached again on the same or a different instance • Use detach/attach to move databases to other instances • Detach/attach is also useful in disaster recovery situations

  22. Moving User Database Files • Data and log files can be moved within the instance • Can be performed using Detach/Attach • Preference is to use the ALTER DATABASE statement • Use Detach/Attach when moving between instances • Logical name of the database files are needed • Used to identify the files to be moved • Database needs to be set offline • Files need to be moved manually within the filesystem

  23. Demonstration 3A: Detach and Attach • In this demonstration, you will see how to use detach and attach with database files.

  24. Moving System Database Files • All system databases except the resource database can be moved to new locations • Moving the master database: • Startup parameters for the SQL Server services must be changed • Files must be moved manually while the instance is stopped • Moving other system databases: • Use ALTER DATABASE as with user databases • Be cautious performing these operations • Misconfiguration can prevent SQL Server from starting

  25. Copying Databases • There are different ways to copy databases: • Backup and Restore • Detach and Attach • Copy Database Wizard • Copy Database Wizard • Can be used to move or copy databases between instances • Can copy additional objects the database depends on such as logins, jobs, maintenance plans, user-defined error messages and shared objects from the master database • Can be scheduled through a SQL Agent Job

  26. Demonstration 3B: Moving and Reconfiguring tempdb • In this demonstration, you will see how to move and reconfigure tempdb to have multiple files.

  27. Lab 4: Working with Databases • Exercise 1: Adjust tempdb configuration • Exercise 2: Create the RateTracking database • Exercise 3: Attach the OldProspects database • Challenge Exercise 4: Add multiple files to tempdb(Only if time permits) Logon information Estimated time: 45minutes

  28. Lab Scenario Now that the Proseware instance of SQL Server has been installed and configured on the server, a number of additional database configurations need to be performed. As the database administrator, you need to perform these configuration changes. You need to create a new database on the server, based on requirements from an application vendor's specifications. A client has sent you a database that needs to be installed on the Proseware instance. Instead of sending you a backup, they have sent a detached database and log file. You need to attach the database to the Proseware instance. A consultant has also provided recommendations regarding tempdb configuration that you need to review and implement if appropriate.

  29. Lab Review • What is the biggest challenge where databases on a single server use different collations? • Why should tempdb have multiple files on most systems?

  30. Module Review and Takeaways • Review Questions • Best Practices
