  1. Capacity Management andRouting Policiesfor Voice over IP Traffic Partho P. Mishra, Gigabit Wireless Huzur Saran, Indian Institute of Technology Delhi Chin-Kai Wu, CS, NTHU

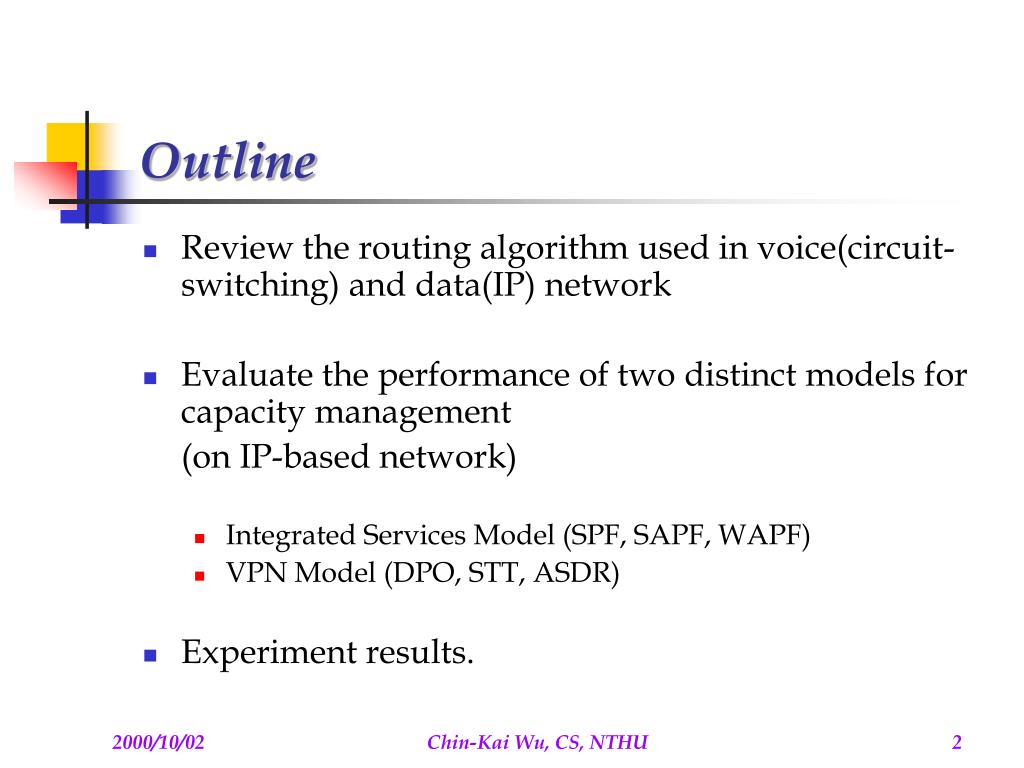

  2. Outline • Review the routing algorithm used in voice(circuit-switching) and data(IP) network • Evaluate the performance of two distinct models for capacity management (on IP-based network) • Integrated Services Model (SPF, SAPF, WAPF) • VPN Model (DPO, STT, ASDR) • Experiment results. Chin-Kai Wu, CS, NTHU

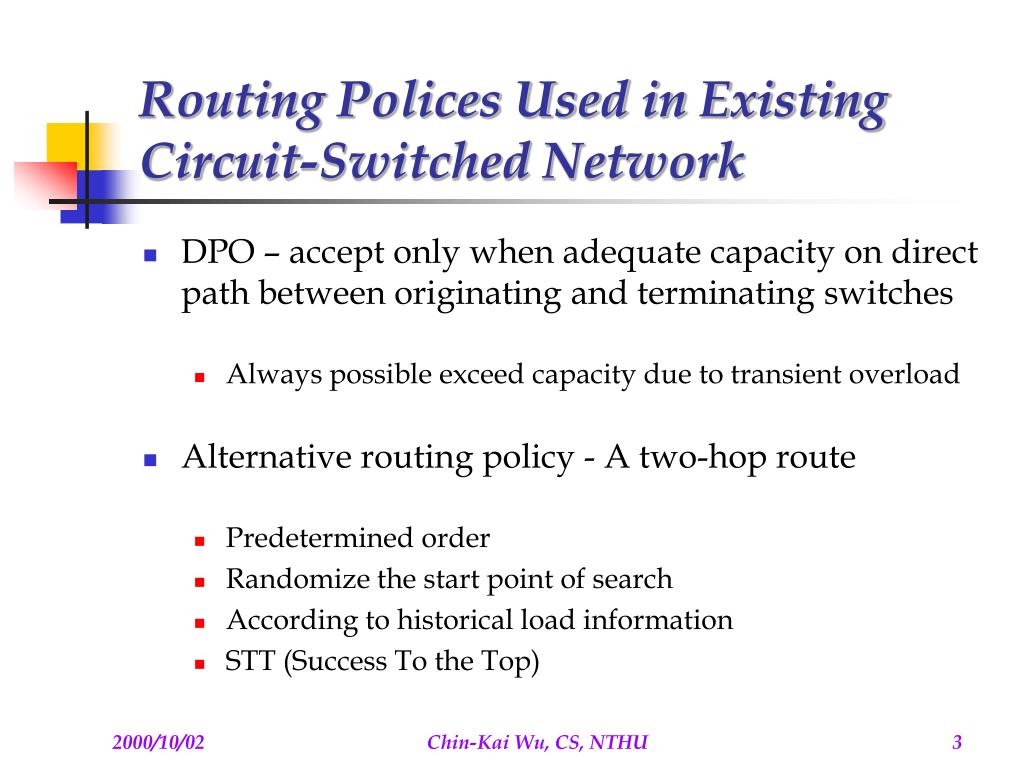

  3. Routing Polices Used in Existing Circuit-Switched Network • DPO – accept only when adequate capacity on direct path between originating and terminating switches • Always possible exceed capacity due to transient overload • Alternative routing policy - A two-hop route • Predetermined order • Randomize the start point of search • According to historical load information • STT (Success To the Top) Chin-Kai Wu, CS, NTHU

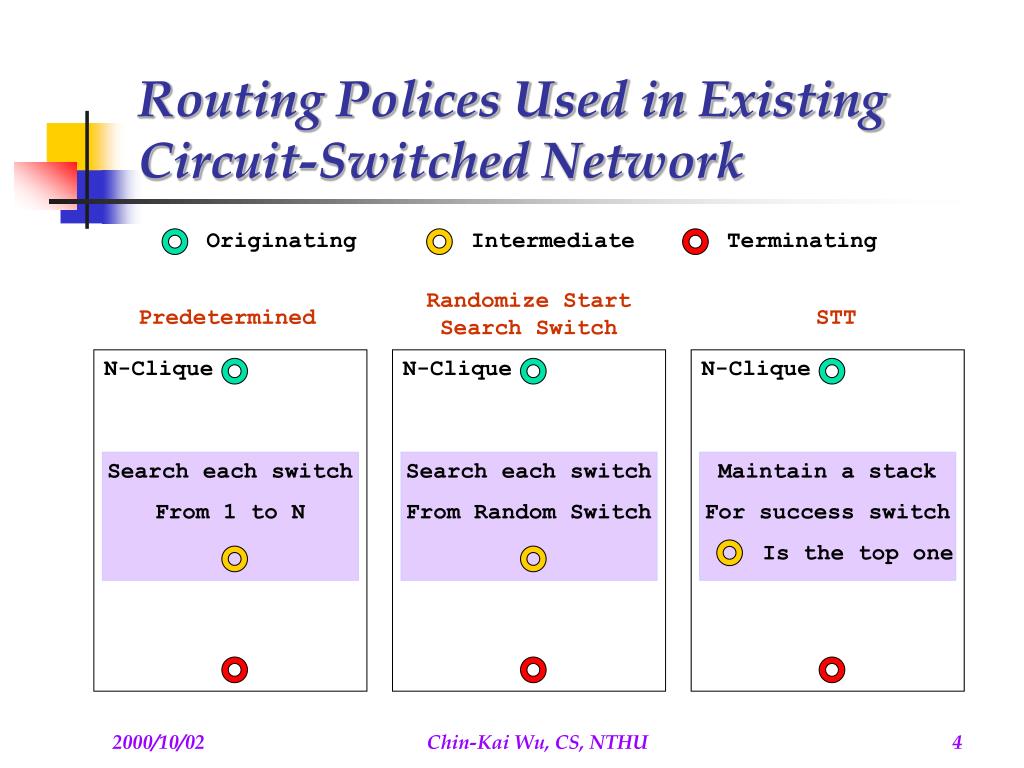

  4. N-Clique N-Clique N-Clique Search each switch From 1 to N Search each switch From Random Switch Routing Polices Used in Existing Circuit-Switched Network Originating Intermediate Terminating Randomize Start Search Switch Predetermined STT Maintain a stack For success switch Is the top one Chin-Kai Wu, CS, NTHU

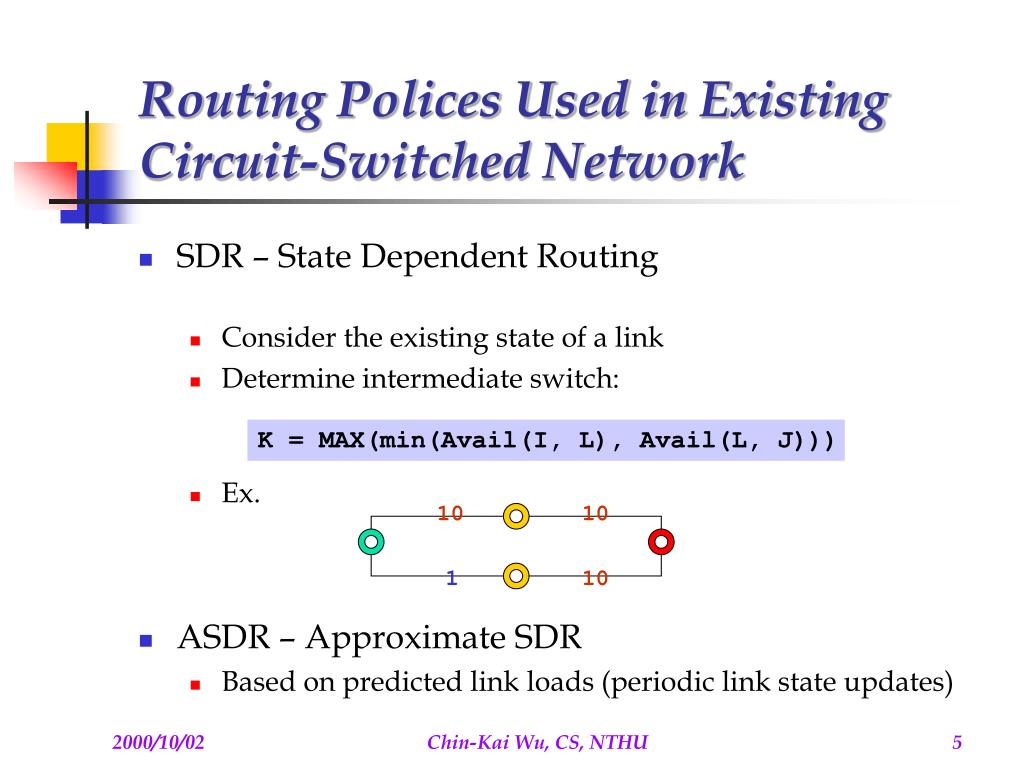

  5. Routing Polices Used in Existing Circuit-Switched Network • SDR – State Dependent Routing • Consider the existing state of a link • Determine intermediate switch: • Ex. • ASDR – Approximate SDR • Based on predicted link loads (periodic link state updates) K = MAX(min(Avail(I, L), Avail(L, J))) 10 10 1 10 Chin-Kai Wu, CS, NTHU

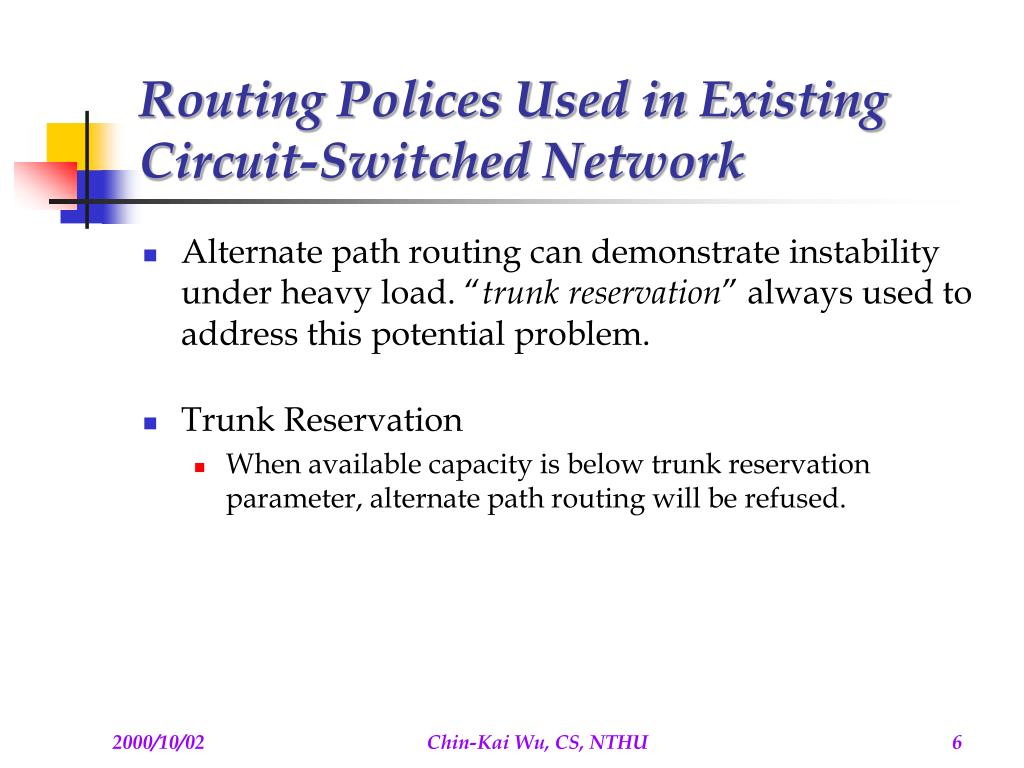

  6. Routing Polices Used in Existing Circuit-Switched Network • Alternate path routing can demonstrate instability under heavy load. “trunk reservation” always used to address this potential problem. • Trunk Reservation • When available capacity is below trunk reservation parameter, alternate path routing will be refused. Chin-Kai Wu, CS, NTHU

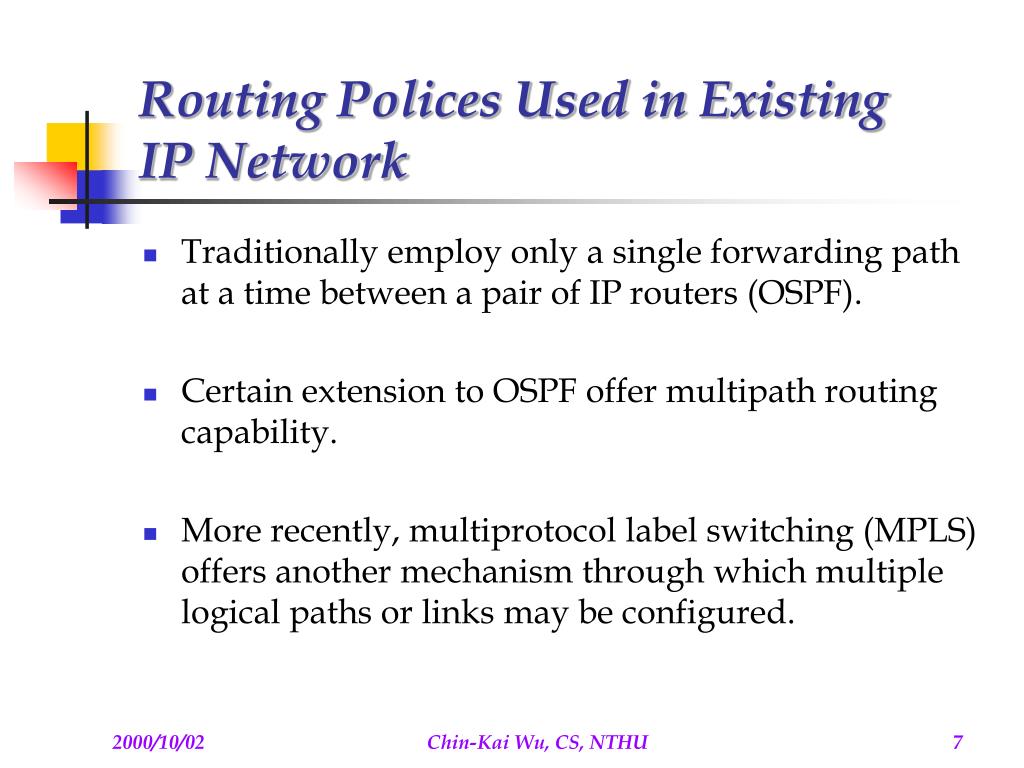

  7. Routing Polices Used in ExistingIP Network • Traditionally employ only a single forwarding path at a time between a pair of IP routers (OSPF). • Certain extension to OSPF offer multipath routing capability. • More recently, multiprotocol label switching (MPLS) offers another mechanism through which multiple logical paths or links may be configured. Chin-Kai Wu, CS, NTHU

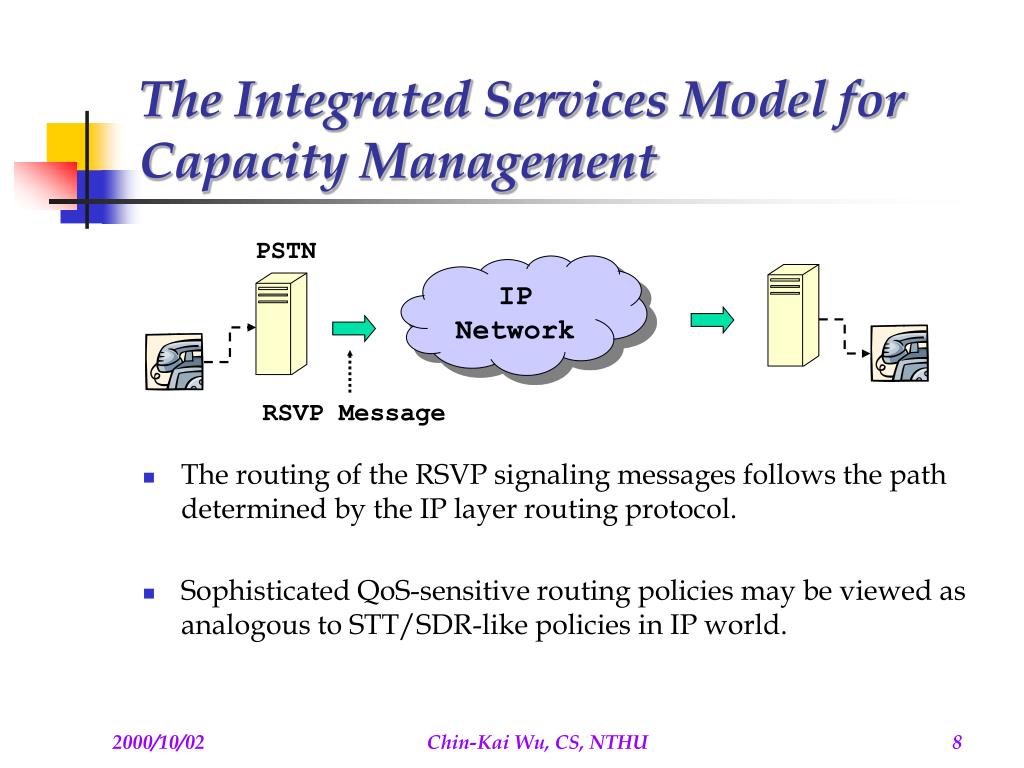

  8. The Integrated Services Model for Capacity Management • The routing of the RSVP signaling messages follows the path determined by the IP layer routing protocol. • Sophisticated QoS-sensitive routing policies may be viewed as analogous to STT/SDR-like policies in IP world. PSTN IP Network RSVP Message Chin-Kai Wu, CS, NTHU

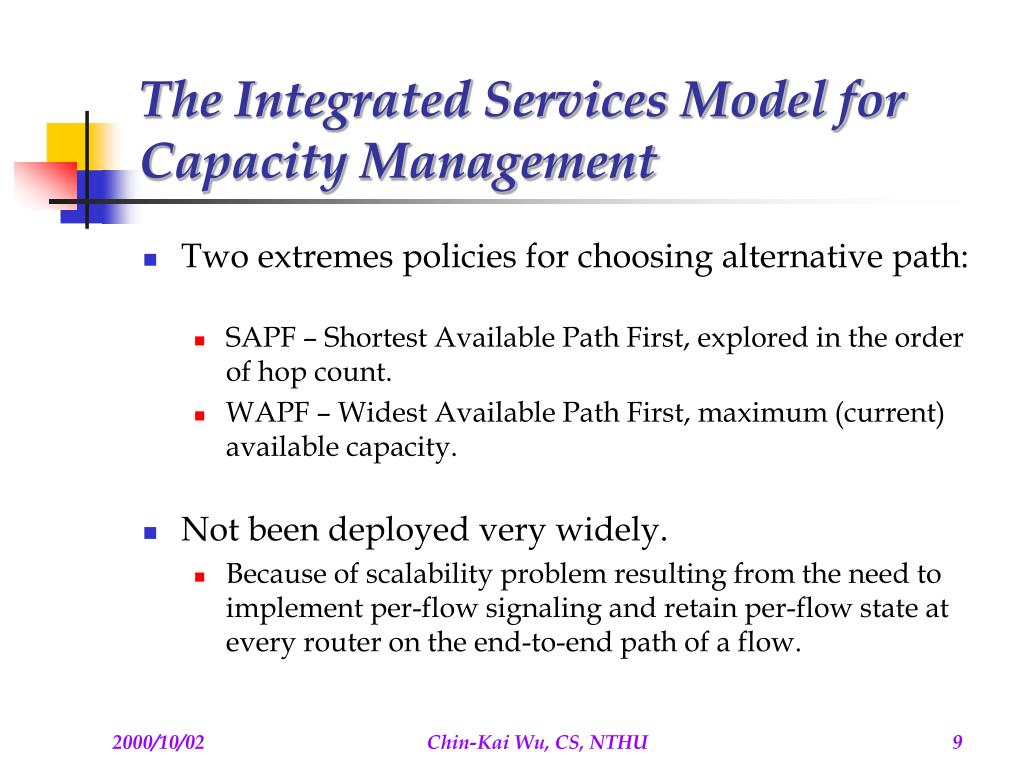

  9. The Integrated Services Model for Capacity Management • Two extremes policies for choosing alternative path: • SAPF – Shortest Available Path First, explored in the order of hop count. • WAPF – Widest Available Path First, maximum (current) available capacity. • Not been deployed very widely. • Because of scalability problem resulting from the need to implement per-flow signaling and retain per-flow state at every router on the end-to-end path of a flow. Chin-Kai Wu, CS, NTHU

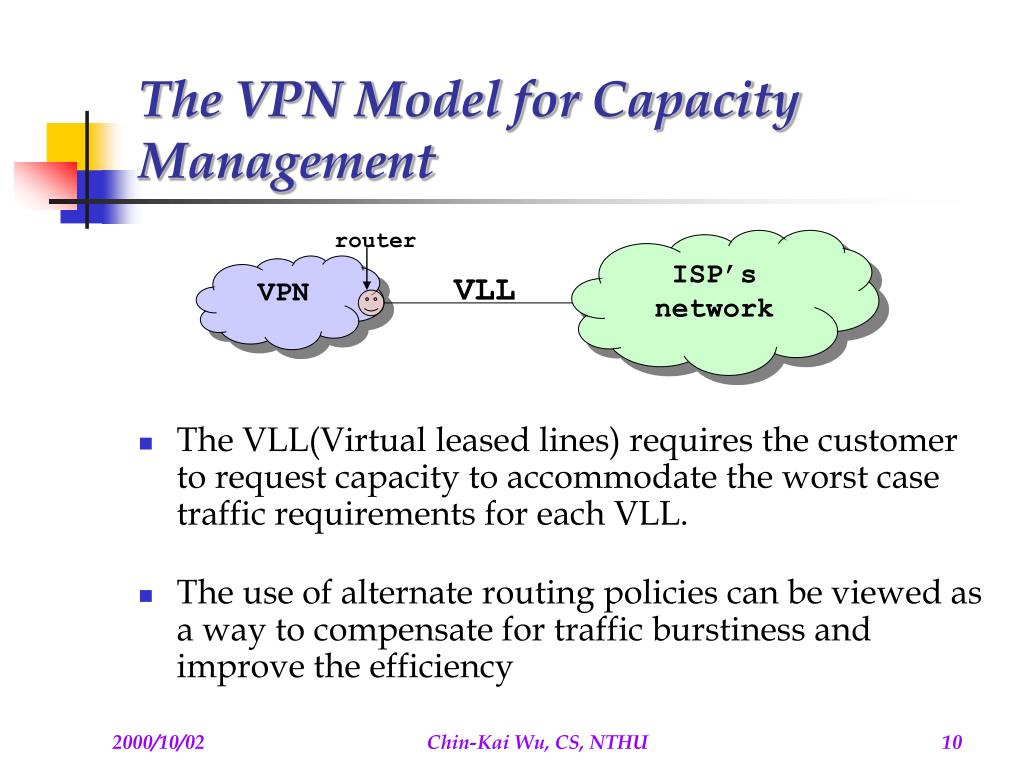

  10. The VPN Model for Capacity Management router • The VLL(Virtual leased lines) requires the customer to request capacity to accommodate the worst case traffic requirements for each VLL. • The use of alternate routing policies can be viewed as a way to compensate for traffic burstiness and improve the efficiency ISP’s network VPN VLL Chin-Kai Wu, CS, NTHU

  11. Experiment Environment 12 core routers 42 links 168 PSTN Gateway Chin-Kai Wu, CS, NTHU

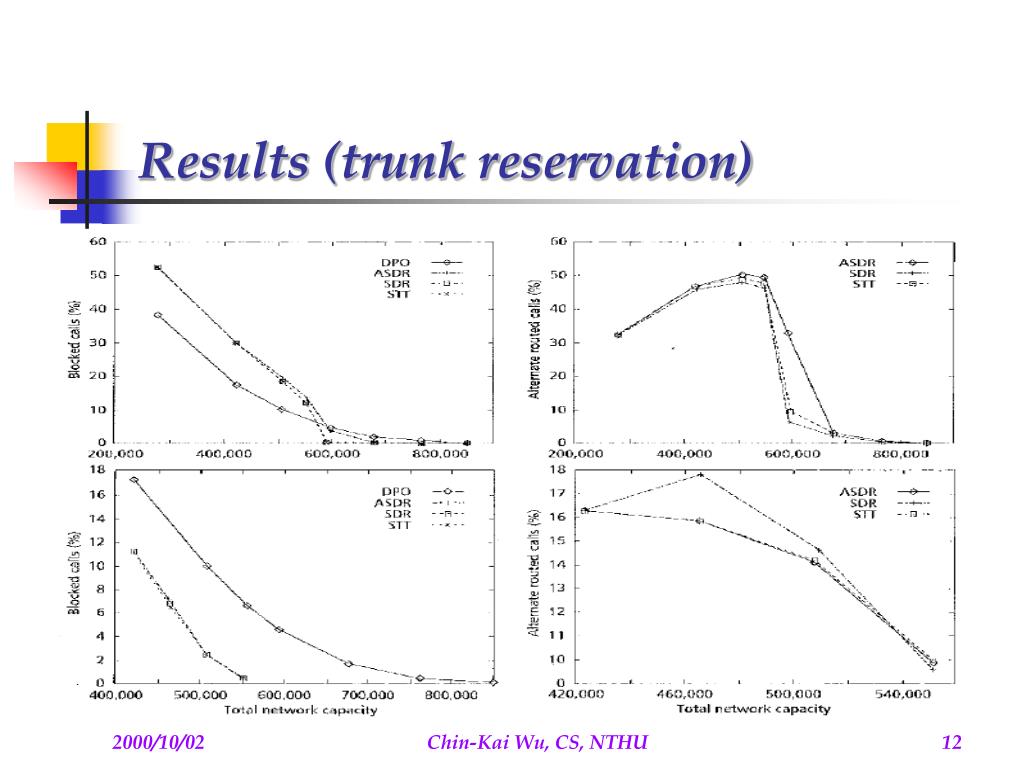

  12. Results (trunk reservation) Chin-Kai Wu, CS, NTHU

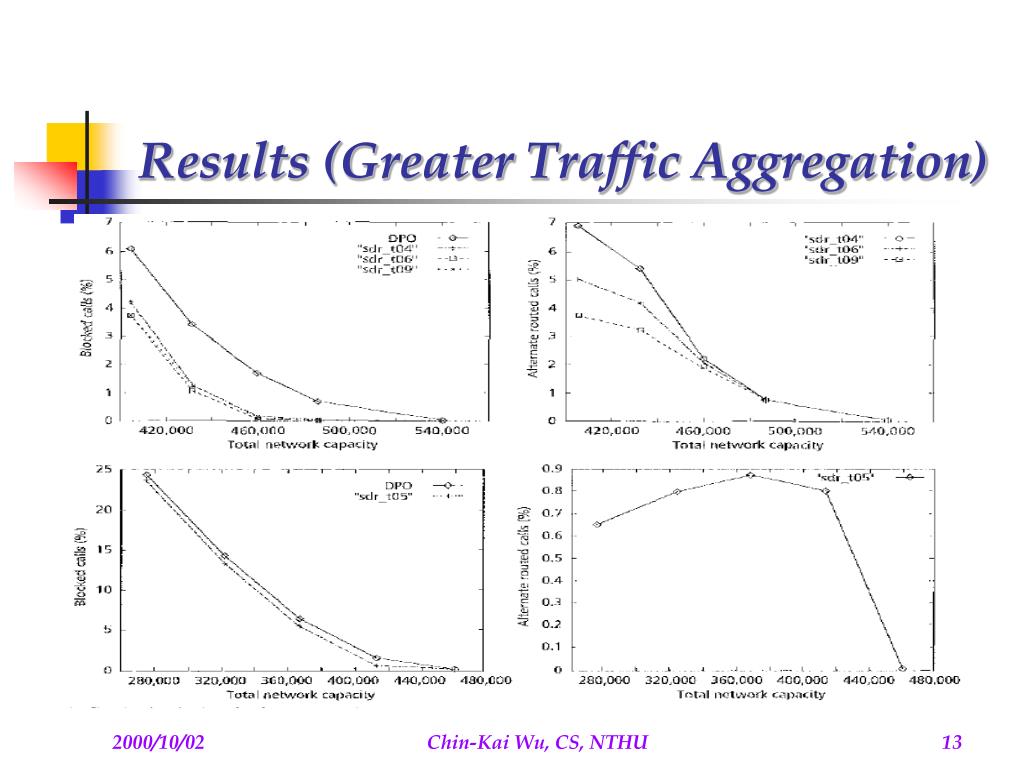

  13. Results (Greater Traffic Aggregation) Chin-Kai Wu, CS, NTHU

  14. Results (Integrated Service Model) Chin-Kai Wu, CS, NTHU
