  1. Model checking transactional memorywith Spin John O’Leary, Bratin Saha, Mark Tuttle Intel Corporation We used the Spin model checker to prove that Intel’s software transactional memory is correct.

  2. What is transactional memory? A programming abstraction that makes it easier to write concurrent programs.

  3. Concurrent programs are tricky • How do you synchronize access to tail of the queue? • What keeps two threads from writing the same queue entry? enqueue(a) concurrent queue enqueue(b) enqueue(c) enqueue(v) = if last == max return false; last := last + 1; queue[last] := v; return true;

  4. Locks are hard • Locks used badly can lead to many subtle problems: • Hot-spots, blocking, dead-lock, priority inversion, preemption … enqueue(a) concurrent queue enqueue(b) enqueue(c) enqueue(v) = if last == max return false; last := last + 1; queue[last] := v; return true; acquire(lock); release(lock);

  5. Transactional memory is easy • A programming abstraction for many core • Makes it easy to implement atomic operations without locks • Makes is possible for average programmers to write correct code enqueue(a) concurrent queue enqueue(b) enqueue(c) enqueue(v) = if last == max return false; last := last + 1; queue[last] := v; return true; atomic { }

  6. Programming is easy • Elegant code, properly synchronized, no data races concurrent linked list head 0 0 0 0 A takes head off list A: atomic { result := head; if head != null then head := head.next; } use result; B increments list elements B: atomic { node := head; while (node != null) { node.value++; node := node.head; }

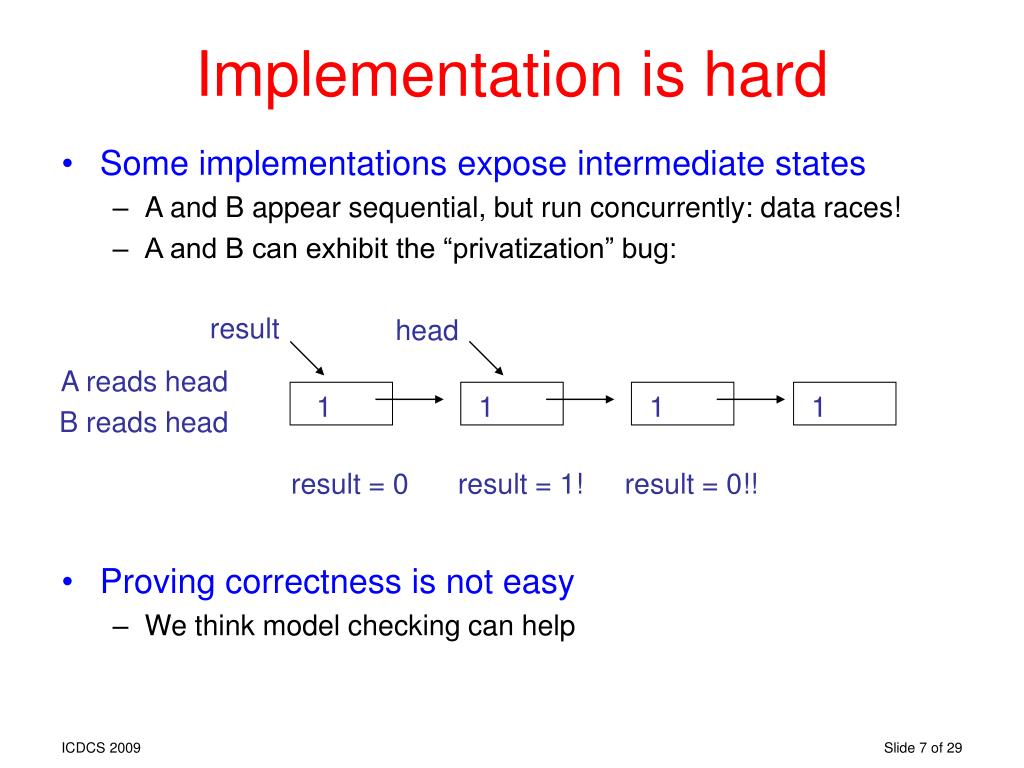

  7. Implementation is hard • Some implementations expose intermediate states • A and B appear sequential, but run concurrently: data races! • A and B can exhibit the “privatization” bug: result head head A reads head 0 0 0 0 1 1 1 1 B reads head result = 0 result = 1! result = 0!! • Proving correctness is not easy • We think model checking can help

  8. Our results • McRT is a software transactional memory from Intel • Spin is a software model checker from AT&T + NASA • We use Spin to prove that McRT is correct • “Every execution of every purely-transactional program with two transactions doing three reads and writes is serializable” • We validate an implementation model of an industrial product, not just an abstract protocol model • We give a Spin accelerator for shared memory programs

  9. What is McRT?

  10. That’s it • We modeled this pseudocode exactly • We even model pointer dereferencing with array indexing • We do make the usual simplifying assumptions • No partial writes: modeled only whole-block loads and stores • No conflict handling: one of two conflicting transactions aborts • Timestamps are the key to the protocol

  11. Timestamps are everywhere • Global timestamp: global.ts • Advances whenever a transaction tries to commit or abort • When it changes, memory may have changed, so be careful • Transaction timestamp: txn.ts • Transaction start time (and current proposal for commit time) • Will be read by other transactions when they commit • Stored in transaction descriptor • Along with transaction read set, write set, undo log (local data) • Memory block timestamp: blk.ts • Commit time of last transaction writing the block • Stored in transaction record • Along with a lock needed to write the block

  12. Design rule 1 • No transaction ever sees inconsistent data • Not even an aborting transaction! • Requires frequent checks that the read set is still valid • Validate() = • ts := global.ts • for each blk in my read set • confirm blk is not locked by another transaction • confirm blk.ts  my.ts • abort if either confirmation fails • my.ts := ts • After validation conclude • Read set has not change since transaction start

  13. Design rule 2 • No transaction commits until conflicting transactions abort • Wait for conflicting transactions to undo changes upon abort • Avoids linked list privatization bug illustrated in introduction • Quiesce(my.ts) = • for each active transaction txn • block while txn.ts < my.ts and txn remains active • After quiescence conclude • Every conflicting transaction will validate which it commits • Validation will fail, transaction will abort, and undo its changes

  14. Commit Increment global ts Validate read set Set write set ts to global ts Abort Increment global ts Undo changes to write set Set write set ts to global ts Read Add block to read set … unless Block is locked blk.ts > txn.ts Write Add block to write set Add block value to undo log Update block value … unless Block is locked blk.ts > txn.ts Protocol sketch

  15. What does our model look like?

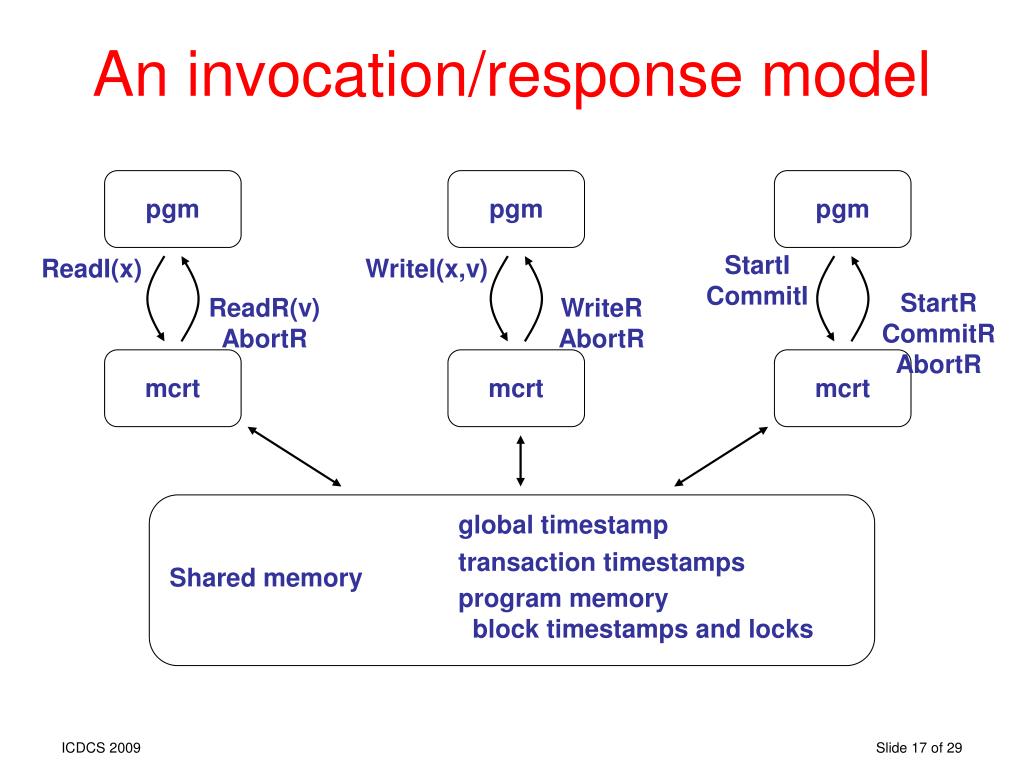

  16. pgm pgm pgm StartICommitI ReadI(x) WriteI(x,v) StartRCommitRAbortR ReadR(v)AbortR WriteRAbortR mcrt mcrt mcrt global timestamp transaction timestamps Shared memory program memory block timestamps and locks An invocation/response model

  17. McRT environment Environment pgm1 pgm2 pgm3 send1 recv1 send2 recv2 send3 recv3 mcrt1 mcrt2 mcrt3 shared memory

  18. Environment generatesprograms on the fly pgm k pgm k pgm k read(x,_) read(x,v) read(x,v) ---- read(y,_) read(y,_) ---- ---- ---- ReadI(y) ReadI(x) ReadR(v) mcrt k mcrt k

  19. Environment simulates programsincluding aborts pgm k pgm k pgm k pc read(x,v) read(x,_) read(x,_) read(y,w) read(y,_) read(y,_) pc write(z,u) write(z,u) write(z,u) WriteI(z,u) StartI AbortR mcrt k mcrt k

  20. Environment checks results pgm 1 pgm 2 pgm 3 read(x,v) read(w,a) write(m,l) read(y,w) read(y,w) write(n,p) write(z,u) write(w,b) write(z,v) CommitR CommitR CommitR(ordering hint) mcrt 1 • CommitR carries transaction ordering hint • Environment finds a transaction ordering consistent with transaction results and program memory

  21. We modeled pseudocode “exactly” Let’s look at the least “exact” match: Abort

  22. STMTxnAbort(TxnDesc* txnDesc, uint32 reason) { for ( (addr, val, size) in txnDesc->undoLog ) { if (addr is on dead stack frames) continue; switch(size) { case 4: *(uint32*)addr = val; break; ... } } if ((token = txnDesc->token) == 0) token = lockedIncrement(globalTimeStamp); for ( txnRecPtr in txnDesc->writeSet ) *txnRecPtr = token; txnDesc->localTimeStamp = 0; backoff(); abortInternal(txnDesc); /* longjmp */ } inline abortTransaction(txnDescPtr, ...) { foreach adr in 0..(num_addresses)-1 { if :: txnDesc(txnDescPtr).undoLog[adr] != null_data -> memory[adr] = txnDesc(txnDescPtr).undoLog[adr]; :: else fi }; fetch_and_incr (globalTimeStamp,token,token_new); foreach blk in 0..(num_memory_blocks)-1 { if :: txnDesc(txnDescPtr).writeSet[blk] -> txnRecHeap[blk] = token_new; :: else fi }; /* reset transaction descriptor for restart */ initTxnDesc(txnDesc(txnDescPtr),...); txnDesc(txnDescPtr).localTimeStamp = 0; } Pseudocode Our model

  23. What obstacles did we face?

  24. Challenges • Modeling environment, abort, timestamps, … • Code-level models are hard to model check • Too much detail, too many interleavings • SPIN statement-merging is conservative • Intended to reduce detail by creating larger atomic blocks • Looping over data structures inhibits statement-merging • SPIN partial-order reduction is conservative • Intended to identify and ignore “redundant” interleavings • Global variables (like shared memory) inhibit partial-order reduction

  25. A SPIN preprocessor • Loop unrolling to help statement merging, etc. • Loop unrolling alone gives 50% speedup • Model rewriting to help partial order reduction (planned) • Help Spin find fewer, longer atomic blocks to reorder • Rewrite model as a set of transitions of the form atomic{ local access; local access; … ; global access} adr = 0;do :: adr < num_addresses -> memory[adr] = 0 :: else -> break;od; memory[0] := 0memory[1] := 0memory[2] := 0memory[3] := 0

  26. Related work A deep result:Model checking TM often reduces to checking 2 threads • Deferred update [Guerraoui, Henzinger, Jobstmann, Singh, PLDI’08] • Applies to any TM that satisfies four structural properties • Clean, elegant result, but doesn’t apply to McRT • Update in place [Guerraoui, Henzinger, Singh, CAV’09] • Requires hand proof than TM satisfies four generalize properties • They prove this for an abstract model of McRT • Proof not clear for our implementation model of McRT

  27. The abstract model Our implementation model is 2500+ lines of Spin

  28. Conclusion We validated Intel’s implementation of STM. We optimized SPIN’s performance on shared memory protocols.
