  1. XML in RDBMSs

  2. Why Bother? • Most (structured) data stored in RDBMS • Seamless integration of XML and rel. Data • Exploit capabilities of RDBMS • Scalability, Availability, Performance(?), ... • Many people with knowledge around • XML-RDBMS Applications • Legal documents, decision support on XML • When not to use RDBMS • Streaming data (RSS, SOAP), IR (Google)

  3. Approaches • Store XML as a CLOB/BLOB in relational database • Shredding into relations • Covered in the previous lecture • Manual/middleware based approaches • SQL/XML (now part of commercial products) • Extend SQL with XML data type • Plus: integrates well with relational data • Minus: not clear how it integrates with application, odd „marriage“

  4. Overview of SQL/XML • Goal: standardization of interaction/integration of SQL and XML • Store XML Data in Relational Databases • Publish relational data as XML • Query XML data in RDBMS using XQuery • Part 14 of the SQL standard • First edition in SQL:2003 • Limited functionality: storage and publishing • Second edition in SQL:2006 • More complete integration of XQuery + XQuery Data Model • Transforming XML data into relational (table) format • Validating an XML value according to some XML Schema

  5. XML Data Type in SQL • A new data type (like varchar, date, numeric) • No comparison operators defined • Can have optimized internal representation (different from character string) • In SQL:2003, XML values can be • An XML document • The content of an XML element (“well-formed external parsed entity”) • Null value • In SQL:2006, XML values can be • Any legal value of the XQuery Data Model • Null value • XQuery empty sequence is different from null value • Proper superset of XML values in SQL/XML:2003 • Additional, optional type modifiers can restrict possible XML values • XML(SEQUENCE), XML(CONTENT(ANY)), XML(DOCUMENT(UNTYPED)), …

  6. XML Data Type CREATE TABLE employees ( id CHAR(6), lastname VARCHAR (30), ..., resume XML );

  7. XMLPARSE & XMLSERIALIZE • SQL functions to convert from/to character strings and BLOBs • Examples: INSERT INTO employees VALUES (‘123456’, ‘Smith’, …, XMLPARSE(DOCUMENT ‘<?xml version="1.0"?> <resume xmlns="http://www.res.com/resume"><name> … </name><address> …</address>...</resume>’ PRESERVE WHITESPACE) ); SELECT e.id, XMLSERIALIZE(DOCUMENT e.resume AS VARCHAR (2000)) AS resume FROM employees AS e WHERE e.id = ‘123456’;

  8. Publishing Functions • SQL functions/operators for generating XML constructs (elements, attributes, ...) within a query • XMLELEMENT generates an XQuery element node • XMLCONCAT concatenates XML values • XMLFOREST generates multiple XQuery element nodes • XMLAGG aggregates XML values across multiple relational tuples • XMLCOMMENT generates an XQuery comment node • XMLPI generates an XQuery processing instruction node • XMLCAST converts SQL to XML values and vice versa • XMLQUERY evaluates an XQuery expression • XMLVALIDATE validates a given XML value according to some XML Schema • XMLDOCUMENT wraps an XQuery document node around an XML value • XMLTEXT generates an XQuery text node

  9. XMLELEMENT • Produces an XML value that corresponds to an XML element, given: • An SQL identifier that acts as its name • An optional list of namespace declarations • An optional list of named expressions that provides names and values of its attributes • An optional list of expressions that provides its content • An option how to handle NULL content: • EMPTY ON NULL (default since SQL/XML:2003 behavior) • NULL ON NULL • ABSENT ON NULL • NIL ON NULL • NIL ON NO CONTENT

  10. XMLELEMENT • XMLELEMENT can produce simple element structures: SELECT e.id, XMLELEMENT (NAME "Emp", e.fname || ' ' || e.lname) AS "result“ FROM employees e WHERE ... ;

  11. XMLELEMENT • XMLELEMENT can produce nested elements (with mixed content): SELECT e.id, XMLELEMENT (NAME "Emp", 'Employee ', XMLELEMENT (NAME "name", e.lname ), ' was hired on ', XMLELEMENT (NAME "hiredate", e.hire ) ) AS "result“ FROM employees e;

  12. XMLELEMENT • XMLELEMENT can take subqueries as arguments: SELECT e.id, XMLELEMENT (NAME "Emp", XMLELEMENT (NAME "name", e.lname ), XMLELEMENT (NAME "dependants", (SELECT COUNT (*) FROM dependants d WHERE d.parent = e.id)) ) AS "result“ FROM employees e WHERE … ;

  13. XMLATTRIBUTES (within XMLELEMENT) • Attribute specifications must be bracketed by XMLATTRIBUTES keyword and must appear directly after element name and optional namespace declaration. • Each attribute can be named implicitly or explicitly. SELECT e.id, XMLELEMENT (NAME "Emp", XMLATTRIBUTES (e.id, e.lname AS "name") ) AS "result" FROM employees e WHERE … ;

  14. XMLNAMESPACES (within XMLELEMENT) • Namespace declarations are bracketed by XMLNAMESPACES keyword and must appear directly after element name. SELECT empno, XMLELEMENT(NAME "admi:employee", XMLNAMESPACES(’http://www.admi.com’ AS "admi"), XMLATTRIBUTES(e.workdept AS "admi:department"), e.lastname ) AS "result" FROM employees e WHERE e. job = ’ANALYST’;

  15. XMLCONCAT • Produces an XML value given two or more expressions of XML type. • If any of the arguments evaluate to the null value, it is ignored. SELECT e.id, XMLCONCAT (XMLELEMENT (NAME "first", e.fname), XMLELEMENT ( NAME "last", e.lname) ) AS "result" FROM employees e;

  16. XMLFOREST • Produces a sequence of XML elements given named expressions as arguments. Arguments can also contain a list of namespace declarations and an option how to handle NULL content: • NULL ON NULL (default since SQL/XML:2003 behavior) • EMPTY ON NULL • ABSENT ON NULL • NIL ON NULL • NIL ON NO CONTENT • Element can have an explicit name: • e.salary AS "empSalary" • Element can have an implicit name, if the expression is a column reference: • e.salary

  17. XMLFOREST - Example SELECT e.id, XMLFOREST (e.hire, e.dept AS "department") AS "result" FROM employees e WHERE ... ;

  18. XMLAGG • An aggregate function, similar to SUM, AVG, etc. • The argument for XMLAGG must be an expression of XML type. • Semantics • For each row in a group G, the expression is evaluated and the resulting XML values are concatenated to produce a single XML value as the result for G. • An ORDER BY clause can be specified to order the results of the argument expression before concatenating. • All null values are dropped before concatenating. • If all inputs to concatenation are null or if the group is empty, the result is the null value.

  19. XMLAGG - Example SELECT XMLELEMENT ( NAME "Department", XMLATTRIBUTES ( e.dept AS "name" ), XMLAGG (XMLELEMENT (NAME "emp", e.lname)) ) AS "dept_list", COUNT(*) AS "dept_count" FROM employees e GROUP BY dept ;

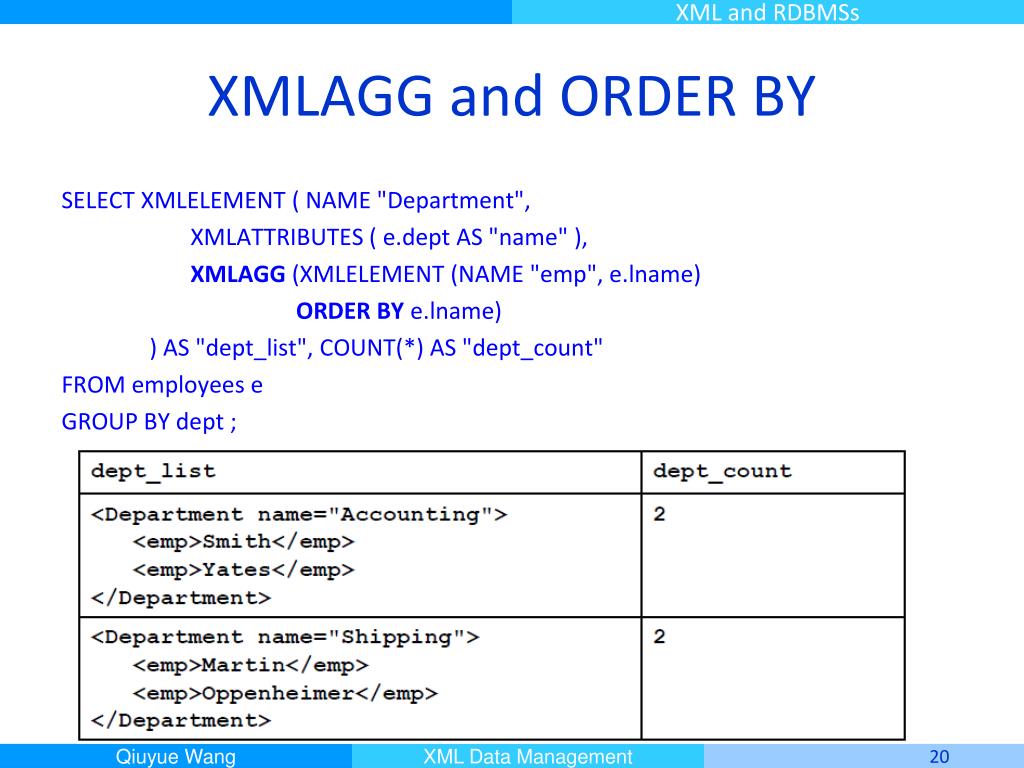

  20. XMLAGG and ORDER BY SELECT XMLELEMENT ( NAME "Department", XMLATTRIBUTES ( e.dept AS "name" ), XMLAGG (XMLELEMENT (NAME "emp", e.lname) ORDER BY e.lname) ) AS "dept_list", COUNT(*) AS "dept_count" FROM employees e GROUP BY dept ;

  21. XMLCOMMENT & XMLPI • XMLCOMMENT • Creates an XQuery comment node (XML comment) • One mandatory character string input argument XMLCOMMENT (‘This is a comment’)  <!--This is a comment--> • XMLPI • Creates an XQuery processing instruction node • Two input arguments: • One mandatory name for the PI (an SQL identifier); a.k.a. the PI target • One optional character string input argument; defines the content of the PI target XMLPI (NAME “includeFile”, ‘/POs/template.hls’)  <?includeFile /POs/template.hls?>

  22. XMLTEXT • Creates an XQuery text node • One mandatory character string input argument • Example: SELECT XMLELEMENT (NAME "p", XMLAGG (XMLCONCAT (XMLText (T.Text), XMLELEMENT (NAME "em", T.Emphasized_text) ) ORDER BY T.Seqno ) ) AS “result” FROM T

  23. XMLDOCUMENT • Wraps an XQuery document node around an XML value • According to the rules of XQuery’s document constructor • Useful for converting an arbitrary XQuery sequence into an XML document or a “well-formed external parsed entity”

  24. XMLQUERY • Evaluates an XQuery or XPath expression • Provided as a character string literal • Allows for optional arguments to be passed in • Zero or more named arguments • At most one unnamed argument can be passed in as the XQuery context item • Arguments can be of any predefined SQL data type incl. XML • Non-XML arguments will be implicitly converted using XMLCAST • Returns a sequence of XQuery nodes

  25. XMLQUERY - Examples SELECT XMLQUERY(‘<e>hi</e>’ RETURNING SEQUENCE BY REF) AS “result” FROM T SELECT XMLQUERY(‘for $i in $po/purchaseOrder/customer where $i/zip[@type=“US”]=“95141” return $i/name’ PASSING BY REF po AS “po” RETURNING SEQUENCE) AS “Name_elements” FROM POrders

  26. XMLCAST • Convert an SQL value into an XML value • Values of SQL predefined types are cast to XQuery atomic types using • The defined mapping of SQL types/values to XML Schema types/values • The semantics of XQuery’s cast expression • XMLCAST(NULL AS XML) returns the SQL null value typed as XML • Convert an XML value into an SQL value • XML values are converted to values of SQL predefined types using a combination of • The defined mapping of SQL types to XML Schema types • XQuery’s fn:data function • XQuery’s cast expression • SQL’s CAST specification • An XML value that is the empty sequence is converted to a NULL value of the specified SQL data type • Note: XMLCAST to/from character strings is different from XMLSERIALIZE and XMLPARSE

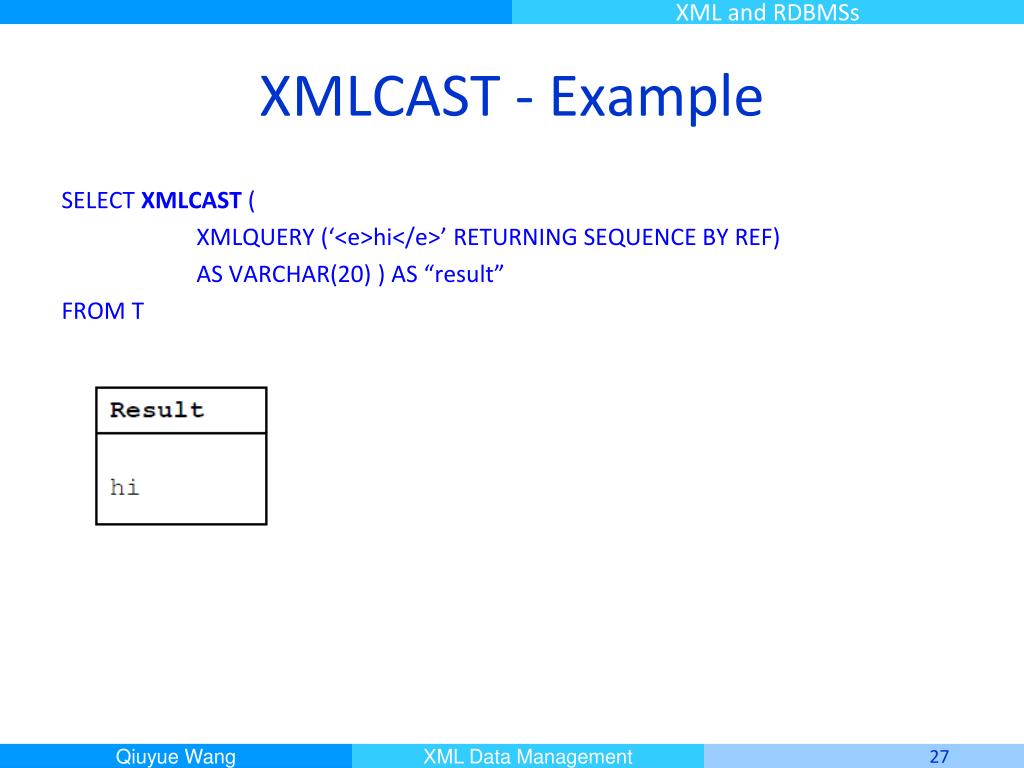

  27. XMLCAST - Example SELECT XMLCAST ( XMLQUERY (‘<e>hi</e>’ RETURNING SEQUENCE BY REF) AS VARCHAR(20) ) AS “result” FROM T

  28. XMLTABLE • Transforming XML data into table format • Allows for optional arguments to be passed in • Just like XMLQUERY • Element/attribute values are mapped to column values using path expressions (PATH) – the “column pattern” • Provided as a character string literal • Names and SQL data types for extracted values/columns need to be specified • Default values for “missing” columns can be provided • ORDINALITY column can be generated • Contains a sequential number of the corresponding XQuery item in the XQuery sequence (result of the row pattern)

  29. XMLTABLE - Example SELECT X.* FROM POrders P, XMLTABLE (‘$po//customer’ PASSING P.po AS “po” COLUMNS “#num” FOR ORDINALITY, “CID” INTEGER PATH ‘@id’, “Name” VARCHAR(30) PATH ‘name’, “ZipType” CHAR(2) PATH ‘zip/@type’, “Zip” VARCHAR(6) PATH ‘zip’ ) AS “X”

  30. SQL Predicates on XML Type • IS DOCUMENT • Checks whether an XML value conforms to the definition of a well-formed XML document • IS CONTENT • Checks whether an XML value conforms to the definition of either a well-formed XML document or a well-formed external parsed entity • IS VALID • Checks whether an XML value is valid according to a given XML Schema • Does not validate/modify the XML value; i.e., no default values are supplied. • XMLEXISTS • Checks whether the result of an XQuery expression (an XQuery sequence) contains at least one XQuery item

  31. XMLEXISTS - Example SELECT id, bib FROM bibliographies WHERE XMLEXISTS(‘$doc/bib/book/@price’ PASSING bib AS “doc”);

  32. Relation  XML XML view relational view XMLELEMENT, … XMLTABLE, … XMLQUERY SQL XML data relational data default view

  33. Summary of SQL/XML

  34. IBM DB2 v9.5 pureXML

  35. System Architecture K. Beyer, et al., “System RX: One Part Relational, One Part XML”, SIGMOD 2005

  36. Native XML Storage Requirements • Must support direct access and subdocument updates • Documents need to span pages • Must support XQuery’s node reference semantics • Must support rollback and recovery • Need to reuse of existing relational infrastructure • Table spaces, buffer pools, lock manager and log manager used without modification • Reuse of transactions, concurrency, scalability and recoverability simplified implementation and is essential for coexistence with relational data

  37. Native XML Store Highlights • XML is stored as instances of XQuery Data Model in a structured and type annotated tree • Every node contains pointers to its children and parent • Path expressions are directly executed over the native store • Each node has a unique identifier • A persistent dictionary maps strings to identifiers • Regions of nodes for a given XML document are grouped together on pages and linked by a logical regions index • Direct access to nodes using node identifiers and the regions index

  38. Efficient Document Tree Storage

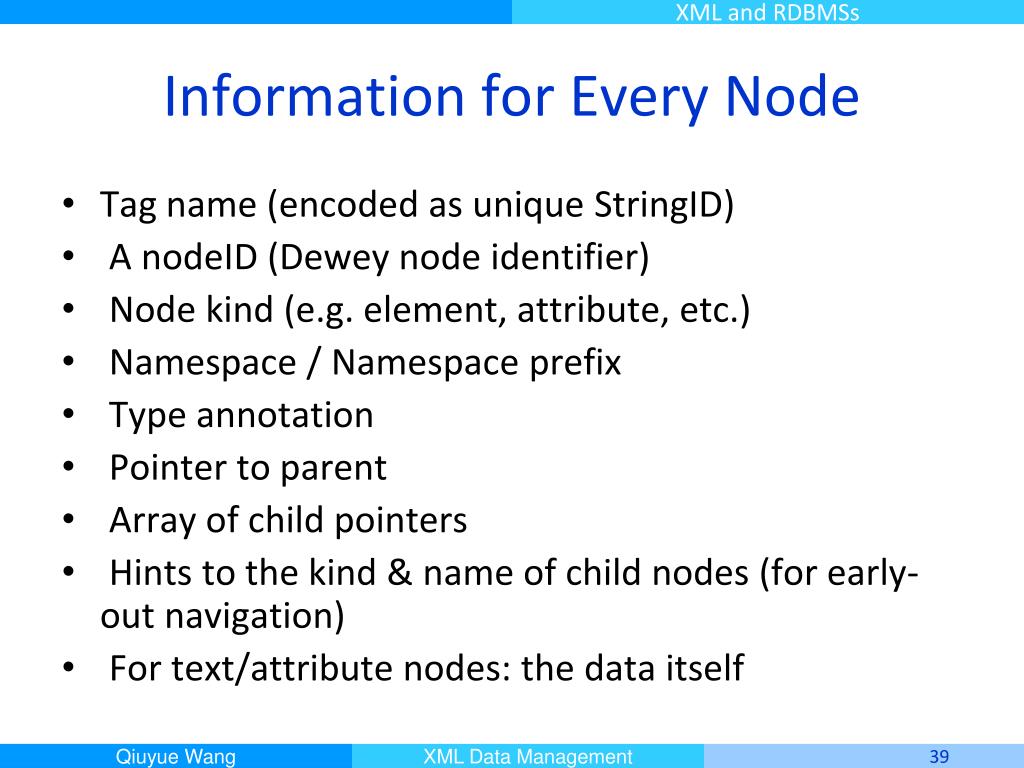

  39. Information for Every Node • Tag name (encoded as unique StringID) • A nodeID (Dewey node identifier) • Node kind (e.g. element, attribute, etc.) • Namespace / Namespace prefix • Type annotation • Pointer to parent • Array of child pointers • Hints to the kind & name of child nodes (for early-out navigation) • For text/attribute nodes: the data itself

  40. XML Node Storage Layout • Node hierarchy of an XML document stored on DB2 pages • Documents that don’t fit on 1 page: split into regions / pages • Docs < 1 page: 1 region, multiple docs/regions per page

  41. XML Storage: “Regions Index” • not user defined, default component of XML storage layer • maps nodeIDs to regions & pages • allows to fetch required regions instead of full documents • allows intelligent prefetching

  42. XML Indexes • Define 0, 1 or multiple XML Value Indexes per XML column • Can index all elements/attributes, but not forced to do so • Index definition uses an XML pattern to specify which elements/attributes to index (and which not to) • XML pattern = XPath without predicates, only child axis, attribute axis, self axis, descendent axis and descendent-or-self axis • XML index maps: (pathID, value) → (nodeID, rowID) • Index any elements or attributes, incl. mixed content • E.g. • CREATE UNIQUE INDEX idx2 ON dept(deptdoc) USING XMLPATTERN '/dept/employee/@id' AS double; • CREATE INDEX idx3 ON dept(deptdoc) USING XMPPATTERN '/dept/employee/name' AS varchar(35);

  43. XML Index Selection • Given an XPath query Q and an XPath Index I • Determine if the index is applicable • Build index pushdown QI : Q = QC (QI) • Index I can be used to answer query Q only if Q  I, i.e. every node returned by Q is also returned by V. • XPath containment problem • XPath{[ ],*,//] subset is NP Complete • A. Balmin, F. Özcan, K. Beyer, R. Cochrane, H. Pirahesh, “A Framework for Using Materialized XPath Views in XML Query Processing”, VLDB 2004

  44. When Indexes cannot be Used • When path expressions are in let bindings or return clause, indexes cannot be used for $i in db2-fn:xmlcolumn('T.XMLCOL')/a/b return <Customer> {$i[@c = 10]} </Customer> • Outerjoin semantics prevents index usage • Need to return correct number of empty <Customer> elements • Indexes will skip nodes • A. Balmin, K. Beyer, F. Özcan, “On the Path to Efficient XML Queries”, VLDB 2006

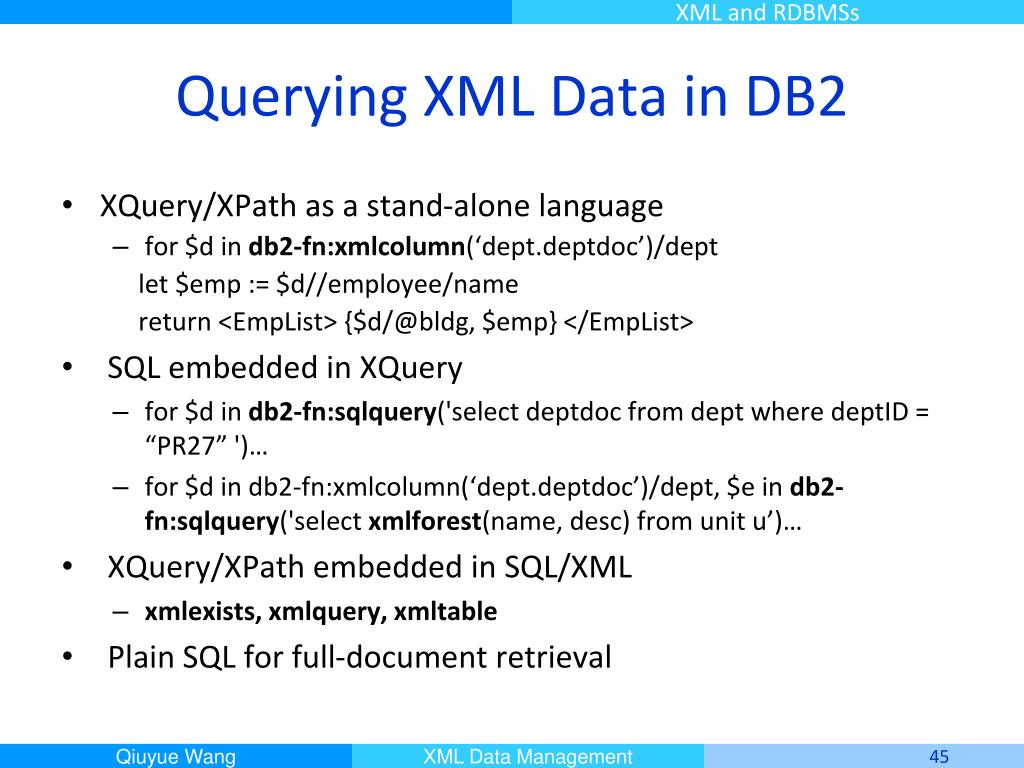

  45. Querying XML Data in DB2 • XQuery/XPath as a stand-alone language • for $d in db2-fn:xmlcolumn(‘dept.deptdoc’)/dept let $emp := $d//employee/name return <EmpList> {$d/@bldg, $emp} </EmpList> • SQL embedded in XQuery • for $d in db2-fn:sqlquery('select deptdoc from dept where deptID = “PR27” ')… • for $d in db2-fn:xmlcolumn(‘dept.deptdoc’)/dept, $e in db2-fn:sqlquery('select xmlforest(name, desc) from unit u’)… • XQuery/XPath embedded in SQL/XML • xmlexists, xmlquery, xmltable • Plain SQL for full-document retrieval

  46. Hybrid Query Compiler • Two major design decisions • No static typing to support dynamic, changing schemas • No XPath normalization into explicit FLWR blocks • Steps are not broken into selections, as in XPERANTO • Path expressions consisting of solely navigational steps are expressed as an atomic unit • Built on extensibility features of Starburst

  47. Semantic Modeling • XQuery is represented via an internal Query Graph Model (QGM) • QGM • Is a semantic network used to represent the data flow in a query • Consists of operations and arcs, representing data flow between operations • QGM is augmented with native constructs which are specific to XML, such as complex navigation

  48. Example QGM Graph

  49. Query Rewrite Transformations • QGM generated by the parser captures the most general semantics, and is not efficient in most cases • Two goals • Optimize the data flow by consolidating operations in the graph • Normalize QGM representation for cost-based optimizer • Rewrite transformations use heuristics, such as applying selections as early as possible • Rewrite transformations are part of a rule-based engine • Rules organized into classes
