  1. Euro-Asian Transport LinkagesProjectProgress on the GIS data base and maps UNECE - UNESCAP

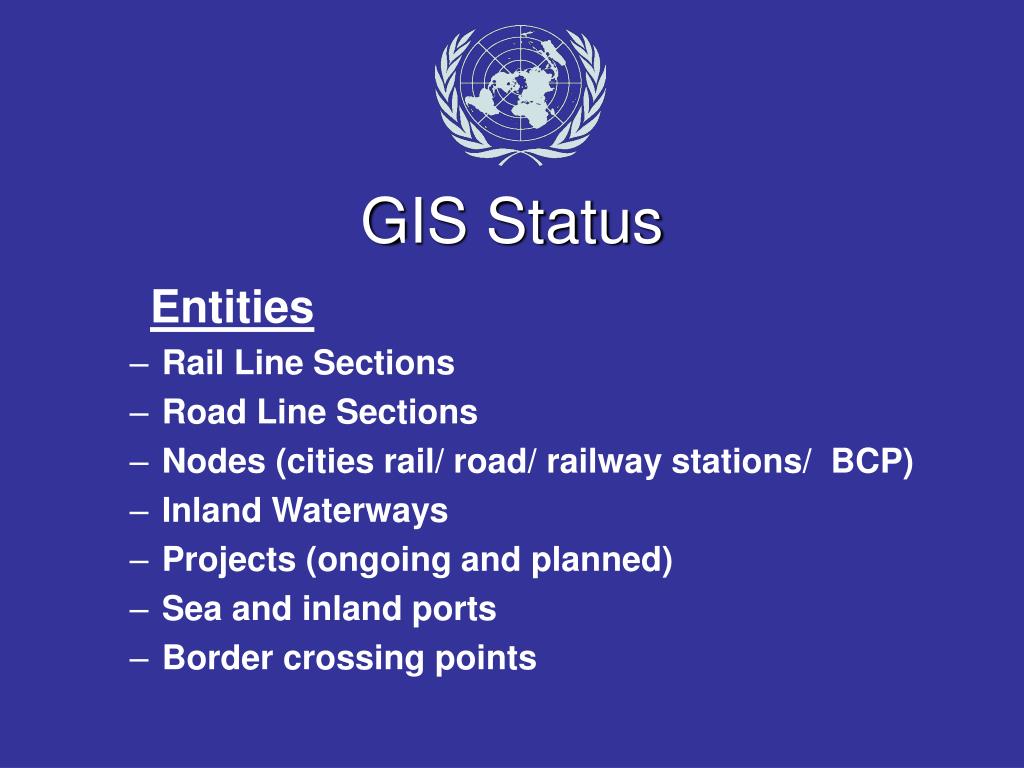

  2. GIS Status Entities • Rail Line Sections • Road Line Sections • Nodes (cities rail/ road/ railway stations/ BCP) • Inland Waterways • Projects (ongoing and planned) • Sea and inland ports • Border crossing points

  3. Layers GIS (Predefined) • Border Shapes • Rivers and Lakes • Cities (Capitals, Small Cities, Populated places, Build up areas) • Railway Lines – all • Railway Stations • Road by categories

  4. Layers GIS(EATL Specific ) • Nodes (cities rail/ road/ railway stations/ BCP) • EATL Rail Routes • EATL Road Routes • EATL Rail Line Sections with associated data • EATL Road Line Sections with associated data • Projects (ongoing and planned) • Sea and inland ports • Border crossing points

  5. Available GIS System Software • MapInfo GIS version 7.5 • MapInfo Viewer version 7.0 • ADC WorldMap Europe Version 4.0 • ADC WorldMap Middle East Version 4.0 • ADC WorldMap Asia Version 4.0

  6. Euro-Asian Transport Links Rail and Road RoutesGIS Status Example of result get from EATL GIS

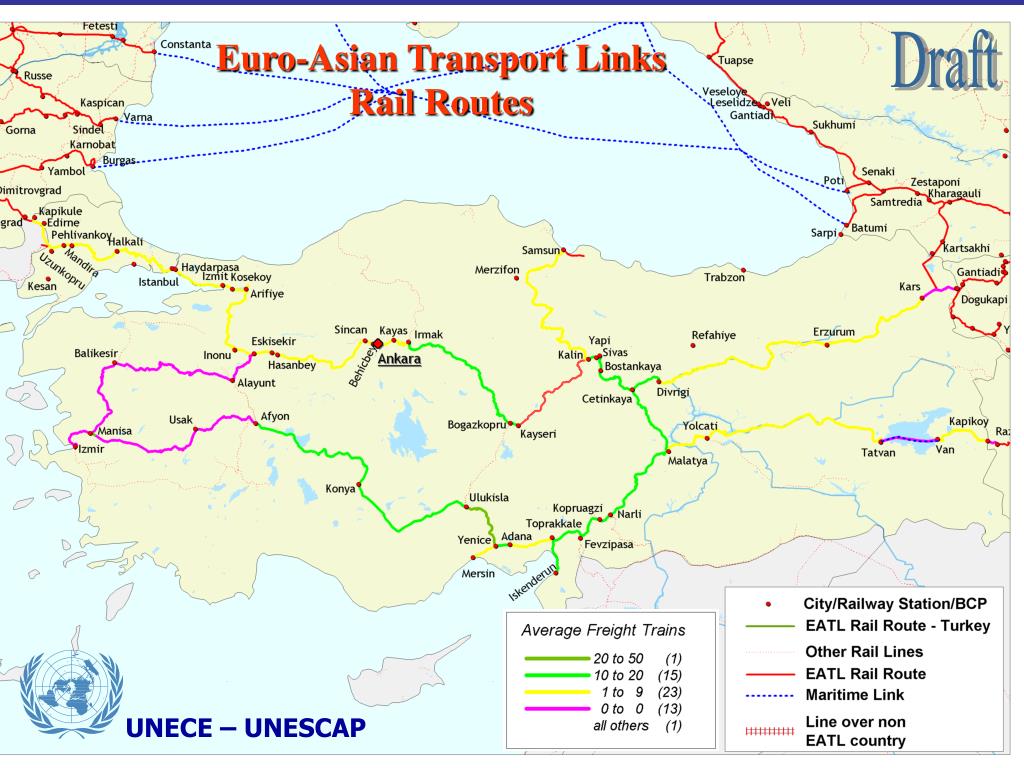

  7. Euro-Asian Transport Links Rail Routes Draft UNECE – UNESCAP

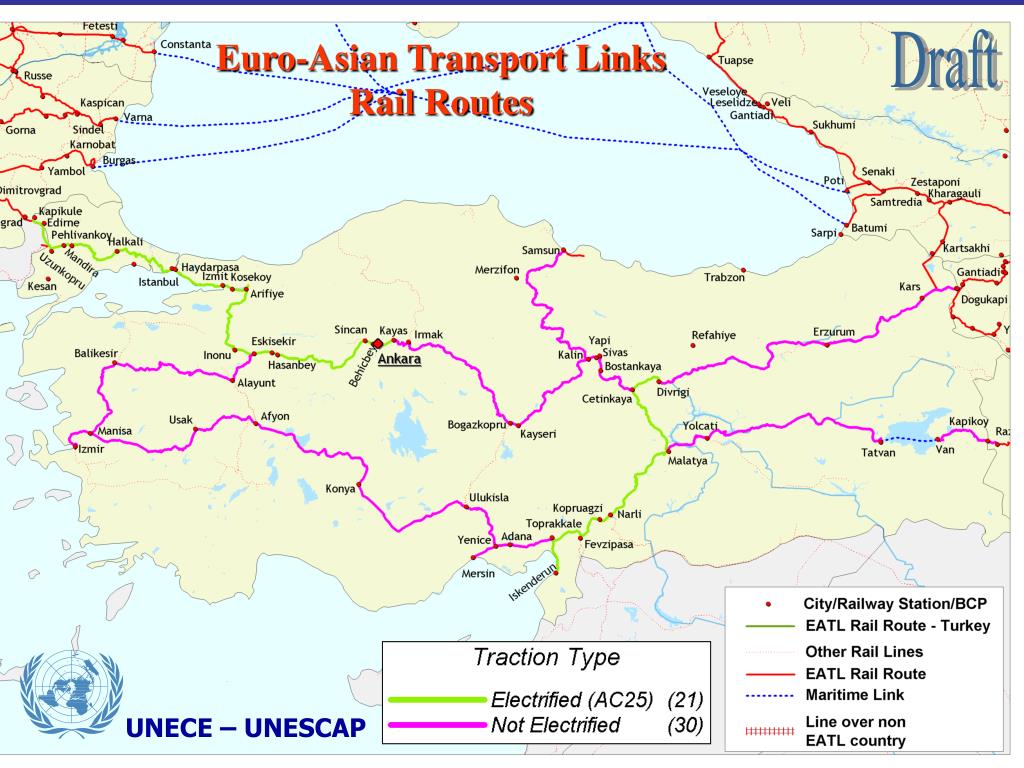

  8. Euro-Asian Transport Links Rail Routes Draft UNECE – UNESCAP

  9. Euro-Asian Transport Links Rail Routes Draft UNECE – UNESCAP

  10. Euro-Asian Transport Links Rail Routes Draft UNECE – UNESCAP

  11. Euro-Asian Transport Links Rail Routes Draft UNECE – UNESCAP

  12. Euro-Asian Transport Links Rail Routes Draft UNECE – UNESCAP

  13. Euro-Asian Transport Links Rail Routes Draft UNECE – UNESCAP

  14. Euro-Asian Transport Links Rail Routes Draft UNECE – UNESCAP

  15. Euro-Asian Transport Links Rail Routes Draft UNECE – UNESCAP

  16. Euro-Asian Transport Links Road Routes Draft Same maps can be obtained for: - roads, projects, etc.; - overlapped layer of rail, roads, ports, projects, etc. UNECE – UNESCAP

  17. Thank you
