Understanding Differential Equations and Separation of Variables

This document explores the fundamentals of differential equations, particularly focusing on the separation of variables method. It begins with the introduction of a basic differential equation derived from motion, given by dy/dt = -9.8t. The concept of separating variables is explained thoroughly, leading to the general solution of the form y = -4.9t² + C. Moreover, we provide a step-by-step guide to solving a specific differential equation with an initial condition, demonstrating the process of variable separation, finding the anti-derivative, and isolating the solution in terms of the constant C.

fairly
Télécharger la présentation

Understanding Differential Equations and Separation of Variables

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Differential Equations and Seperation of Variables

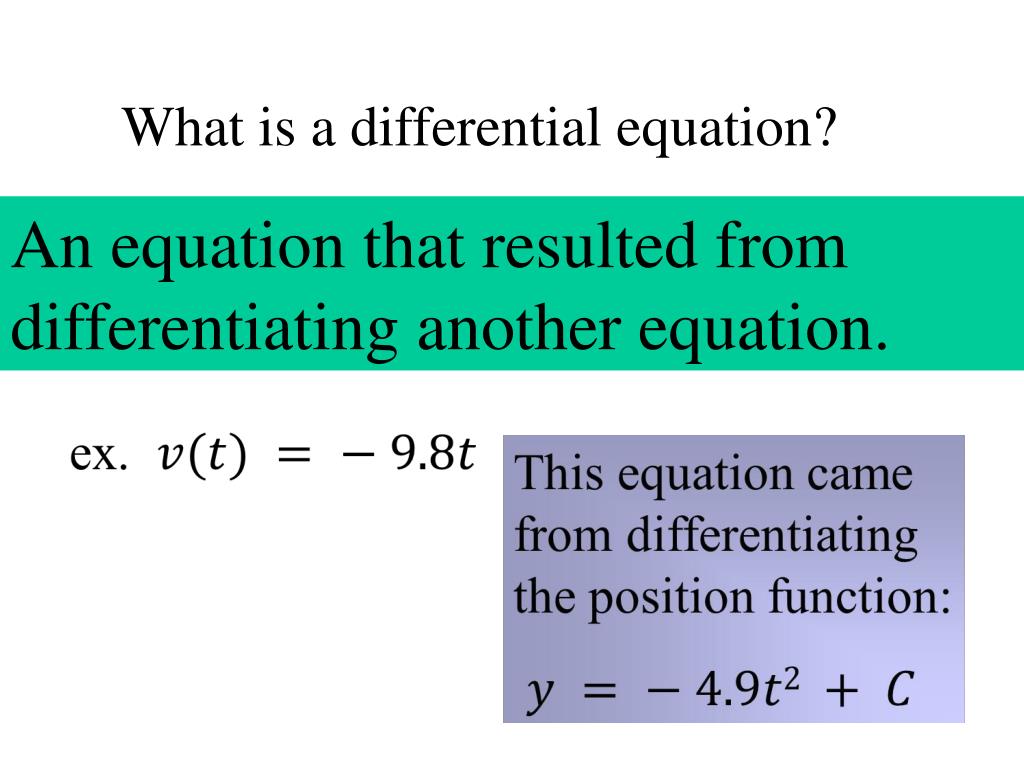

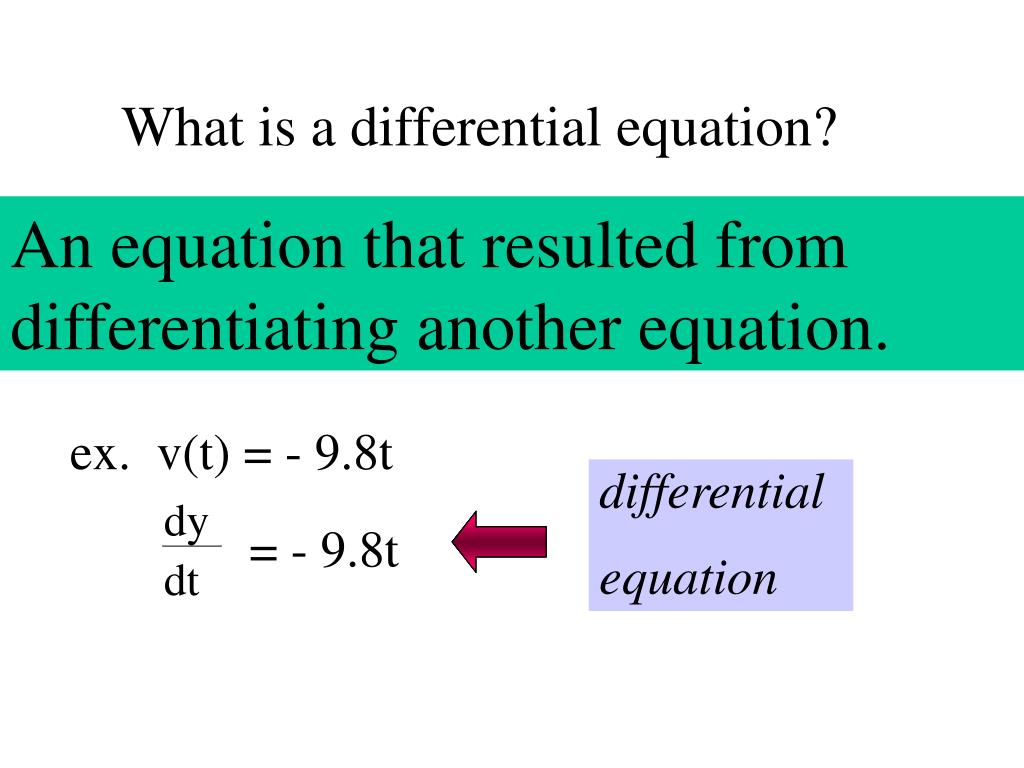

  2. dy = - 9.8t dt What is a differential equation? An equation that resulted from differentiating another equation. ex. v(t) = - 9.8t differential equation

  3. What is a differential equation? An equation that resulted from differentiating another equation.

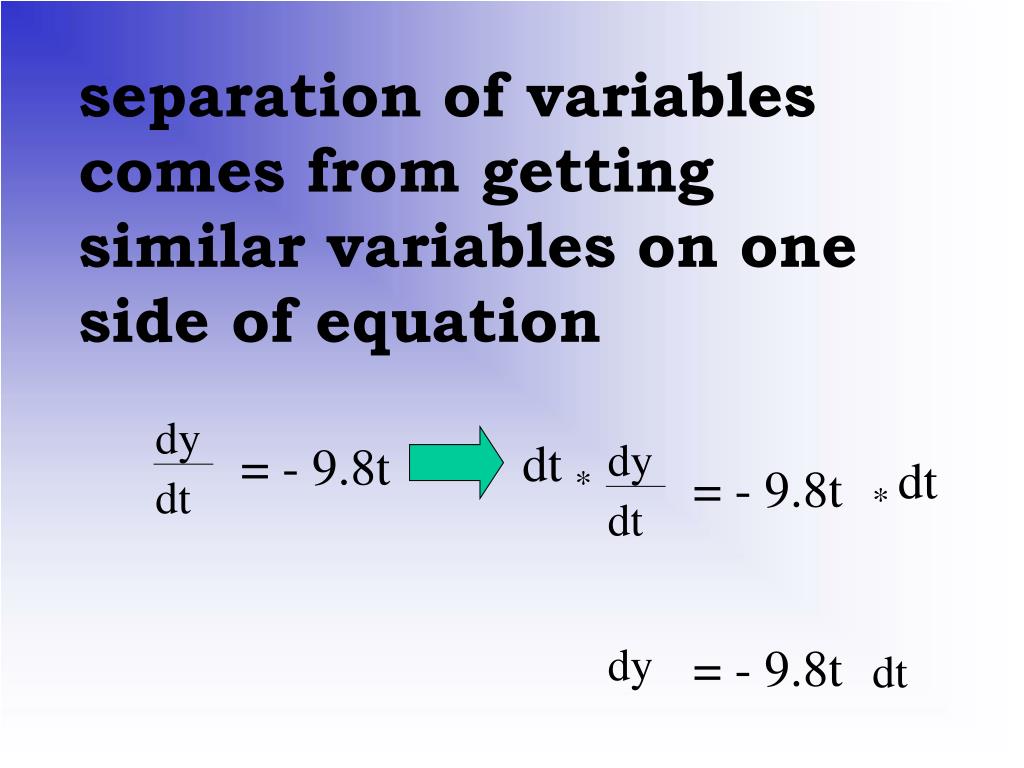

  4. dt * * dt dy dy = - 9.8t = - 9.8t dy = - 9.8t dt dt dt separation of variables comes from getting similar variables on one side of equation

  5. dy = - 9.8t dt anti-derivative: y = - 4.9 t2 + C This is the solution to the differential equation!!!

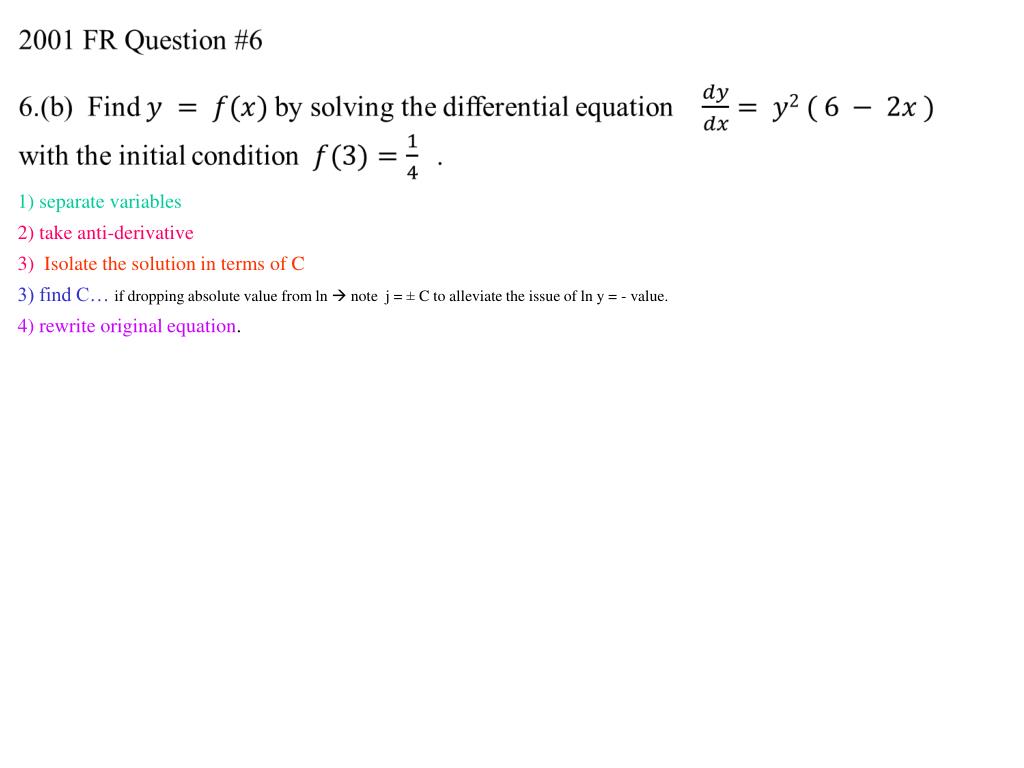

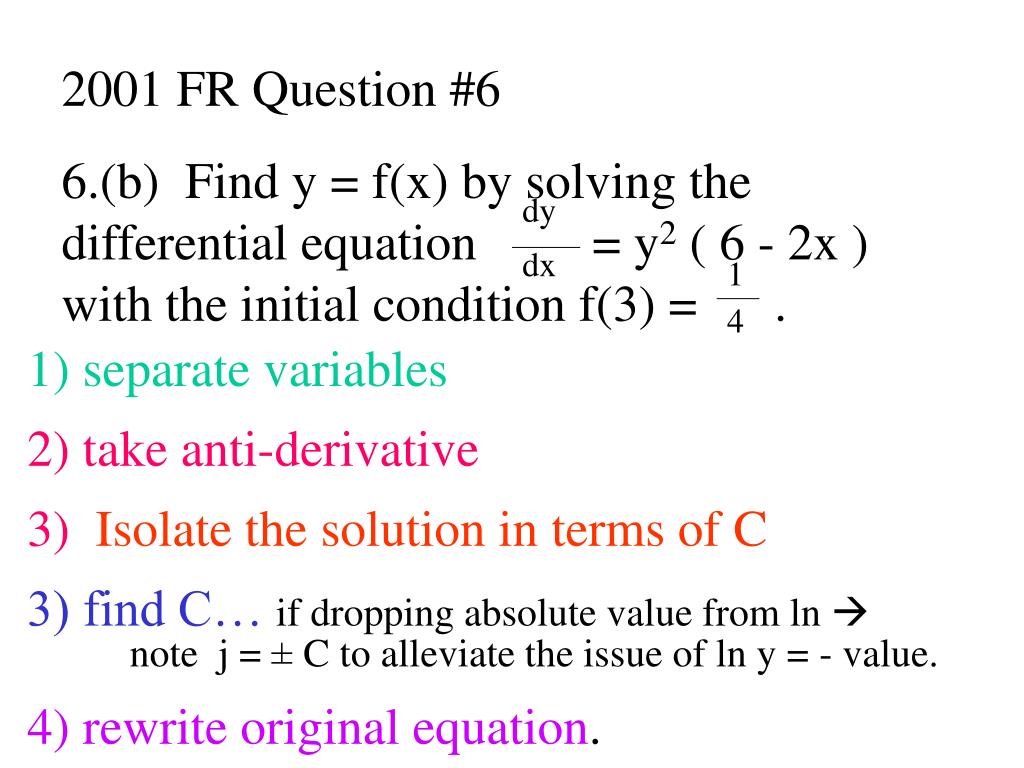

  6. dy dx 1 4 2001 FR Question #6 6.(b) Find y = f(x) by solving the differential equation = y2 ( 6 - 2x ) with the initial condition f(3) = . 1) separate variables 2) take anti-derivative 3) Isolate the solution in terms of C 3) find C… if dropping absolute value from ln  note j = ± C to alleviate the issue of ln y = - value. 4) rewrite original equation.

  7. 1) separate variables 2) take anti-derivative 3) Isolate the solution in terms of C 3) find C… if dropping absolute value from ln  note j = ± C to alleviate the issue of ln y = - value. 4) rewrite original equation.

  8. Solve the differential equation using two different family points, (there will be two different solutions) End Day 1
