  1. Software Testing 101 By Rick Clements cle@cypress.com

  2. Overview • Terminology • Requirements • Configuration control • Test plan • Test cases • Test procedures • Bug tracking & ship decision • After the testing

  3. Terminology QA vs. QC • Quality assurance (QA) - The management of quality. The encouragement of best practices. QA is about preventing defects. • Quality control (QC) - Validation and verification of the product. This includes reviews, inspections and testing.

  4. Terminology Test Documents • Test plan (or validation plan) - The plan describing the general approach, the people required, equipment required and schedule for testing and other validation activities • Test cases - Specific data used to test the product. • Test procedures - The procedures to follow in testing the product. These may be manual or automated.

  5. Terminology Types of Tests • Black box testing - Testing by looking at the requirements to develop test cases. System level testing is often black box testing. • White box testing - Testing by looking at the structure of the program to develop test cases. White box testing often occurs in unit testing.

  6. Terminology Levels of Testing • Unit testing - The process of running small parts of the software. The design teams often handle unit testing. • Integration testing or Interface testing - The testing of pre-tested modules and hardware to determine that they work together. • System testing - The testing of the entire product to see that it meets its requirements. This occurs after the product has been integrated.

  7. Software Development Process Software Implementation & Debug Software Design Define Requirements Software Test Test Implementation & Debug Test Design Software Release

  8. Requirements • Why are they important? • How are they documented? • What’s important? • What if you don’t have any requirements?

  9. Requirements Why Are Requirements Important? • How do the designers know what to build? • How can you test that it was built correctly? • When you disagree, who’s right?

  10. Requirements Documenting Requirements • Data sheet • Requirements specification • Functional specification • Data base • Traceability matrix

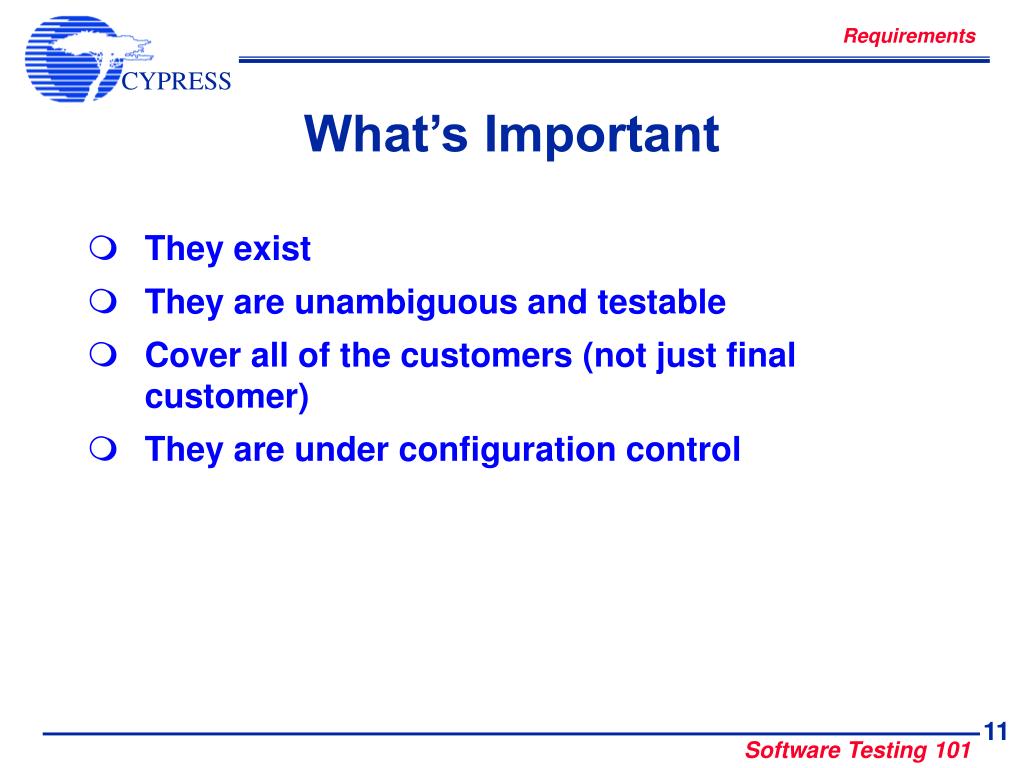

  11. Requirements What’s Important • They exist • They are unambiguous and testable • Cover all of the customers (not just final customer) • They are under configuration control

  12. Requirements No Documented Requirements • Ask the project manager • Ask the marketing representative • Has anything been sent to the customer? • Ask a domain expert • What are the designers building? • Write them down

  13. Configuration Control • Why is it a testing issue? • What to track • Build & Version Number

  14. Configuration Control Why Is It A Testing Issue? • Ship the version that was tested • A single test system failing • Modules accidentally reverting to older version • Re-create software and tests

  15. Configuration Control What To Track • Requirements • Software • Hardware • Tests

  16. Configuration Control Version & Build Number • Simple to generate • Unique for each build or change • Readily visible and validated for correctness

  17. Test Plan • What will be tested and not tested? • What approach will be taken? • What resources are needed? • Which people are needed? • Schedule

  18. Test Cases • Test boundary conditions • System interfaces • Where have other errors been found? • What will the users do most often? • What is the most serious if it fails? • Usability • What is unique to your product's environment?

  19. Test Cases Boundary Conditions • Values at and away from the boundaries • Valid and invalid values • Both numeric values and strings • Minimum-1, minimum, maximum, maximum+1, a good middle value

  20. Test Cases Where Have Errors Been Found? • Errors tend to cluster • Can a common error be fixed? • Would a code review be useful?

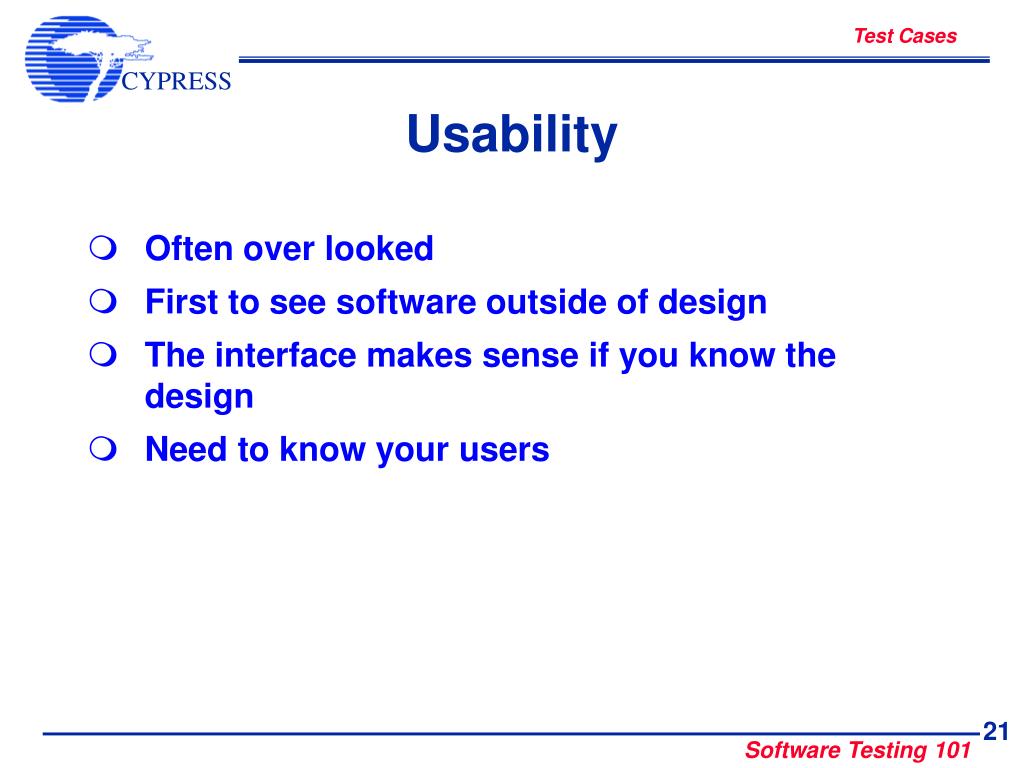

  21. Test Cases Usability • Often over looked • First to see software outside of design • The interface makes sense if you know the design • Need to know your users

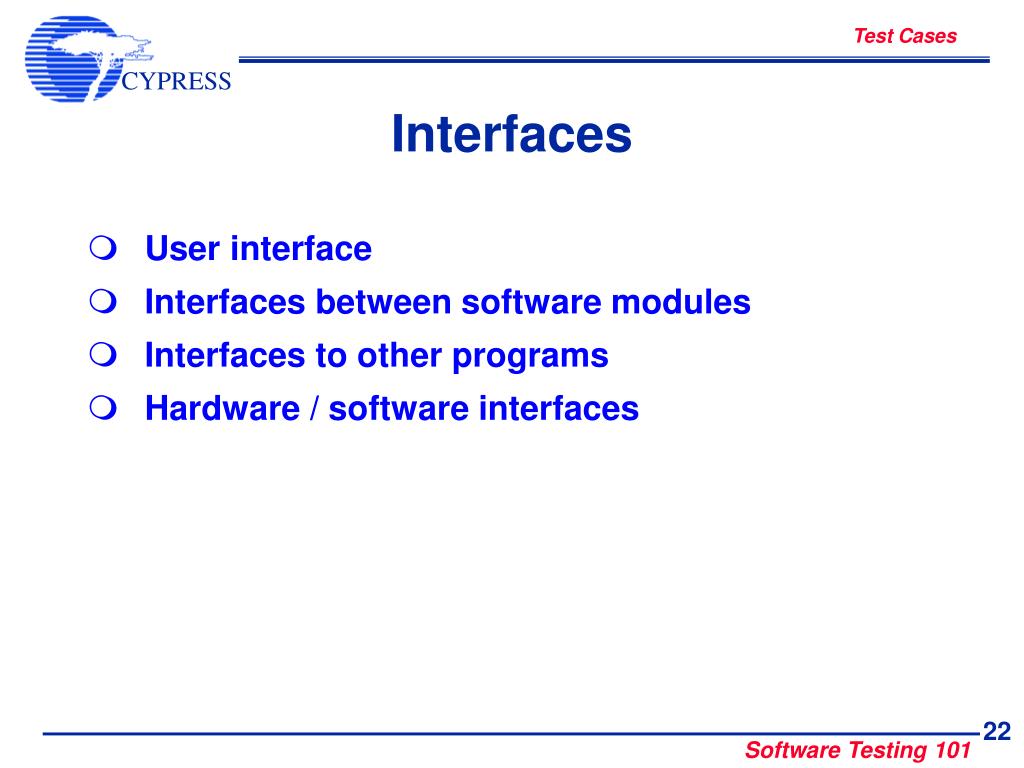

  22. Test Cases Interfaces • User interface • Interfaces between software modules • Interfaces to other programs • Hardware / software interfaces

  23. Test Cases What Will Users Do Most Often? • Frequently encountered errors impact the user more • Test heavily used areas more heavily • Less used areas can’t be ignored

  24. Test Cases What Failures Are Most Serious? • Areas data could be lost • Errors with a large financial impact • Errors that could injure someone

  25. Test Cases Unique to Web Applications • Versions of browsers • Different operating systems • Server capacity • Multiple servers - one fails?

  26. Test Cases Unique to GUI Based Application • System configuration changes • Size of the screen • Number of colors available • Default font type and size

  27. Test Cases Unique to Database Applications • Compatible with existing data • Testing on a copy of real data • Server capacity

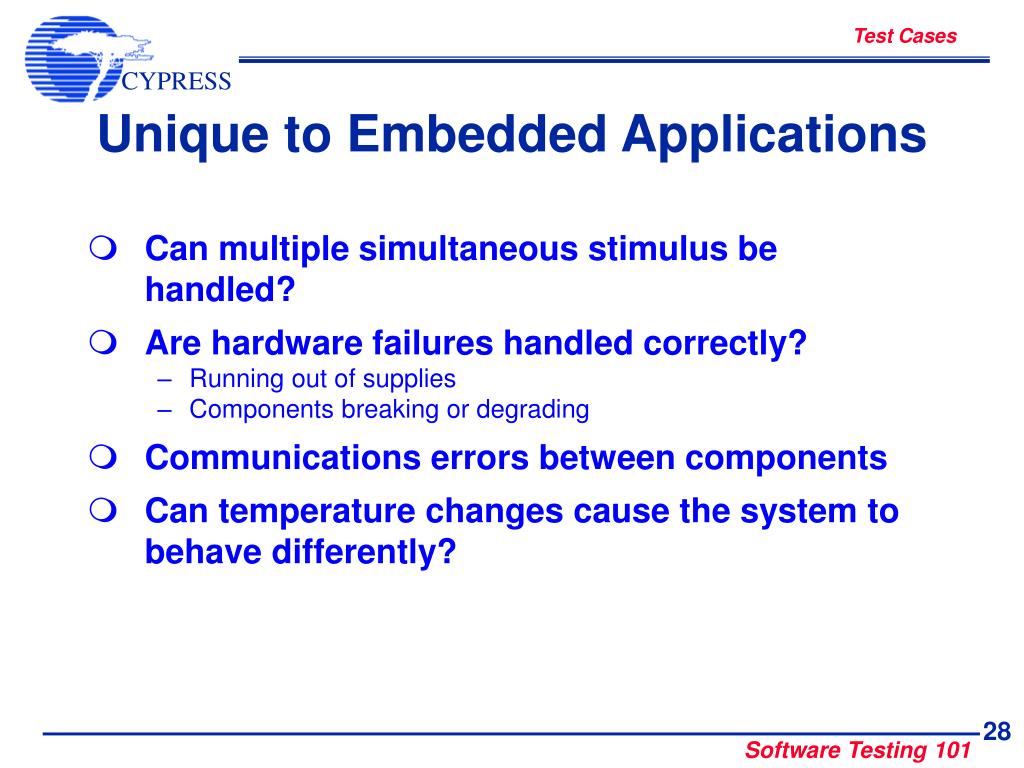

  28. Test Cases Unique to Embedded Applications • Can multiple simultaneous stimulus be handled? • Are hardware failures handled correctly? • Running out of supplies • Components breaking or degrading • Communications errors between components • Can temperature changes cause the system to behave differently?

  29. Bug Tracking & Ship Decision • Bug states • Bug Information • Is the software ready?

  30. Bug Tracking & Ship Decision

  31. Bug Tracking & Ship Decision

  32. After the Testing • Known problems and solutions • Defects not fixed • Shorten customer service leaning curve • Test report • Tuned to the audience • Introduction & conclusion • Major defects • What was run on which versions • What tests couldn’t be run
