  1. EML 2023 – Threads and Fasteners Lecture 4- Adding external threads to a rod

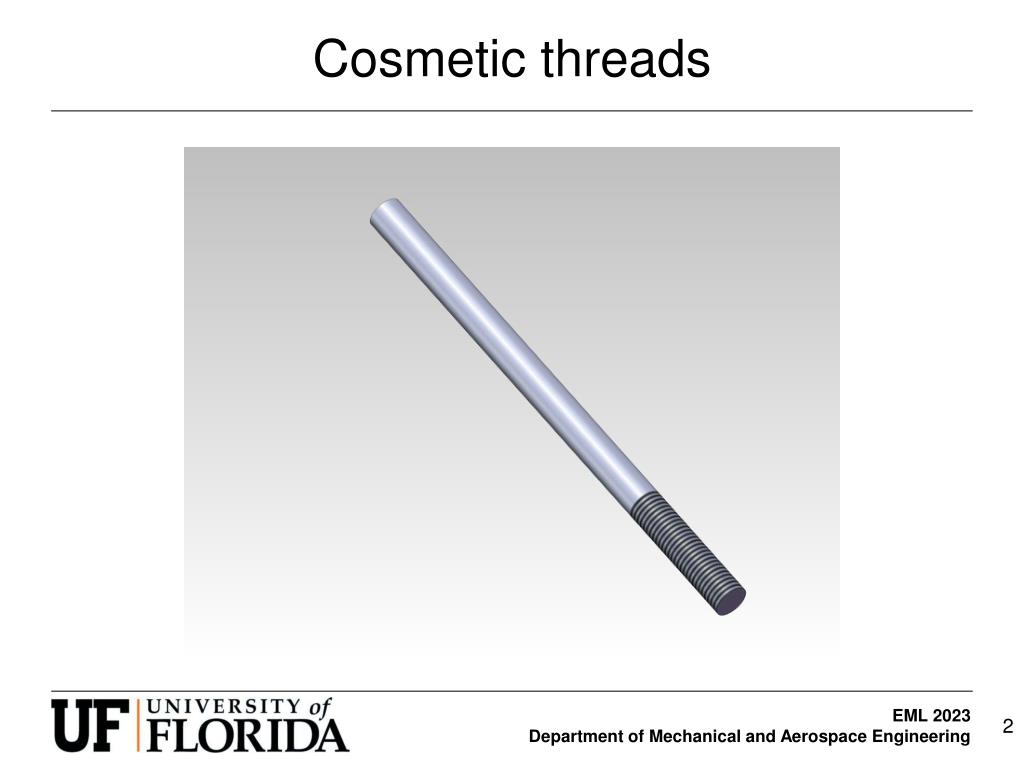

  2. Cosmetic threads

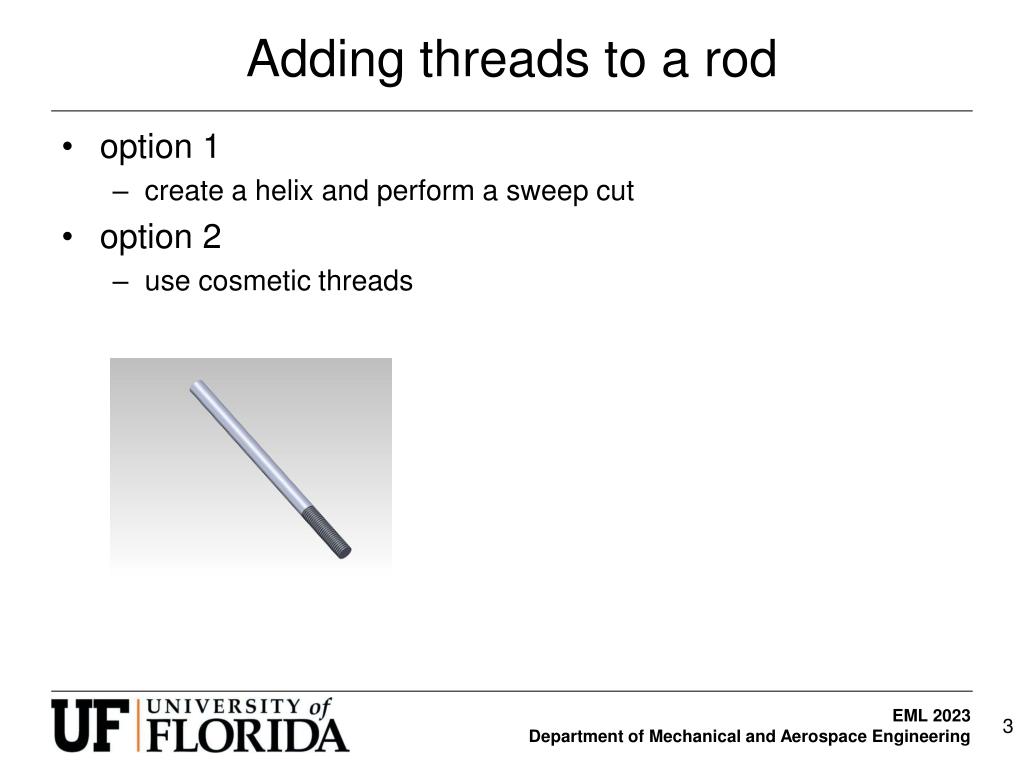

  3. Adding threads to a rod • option 1 • create a helix and perform a sweep cut • option 2 • use cosmetic threads

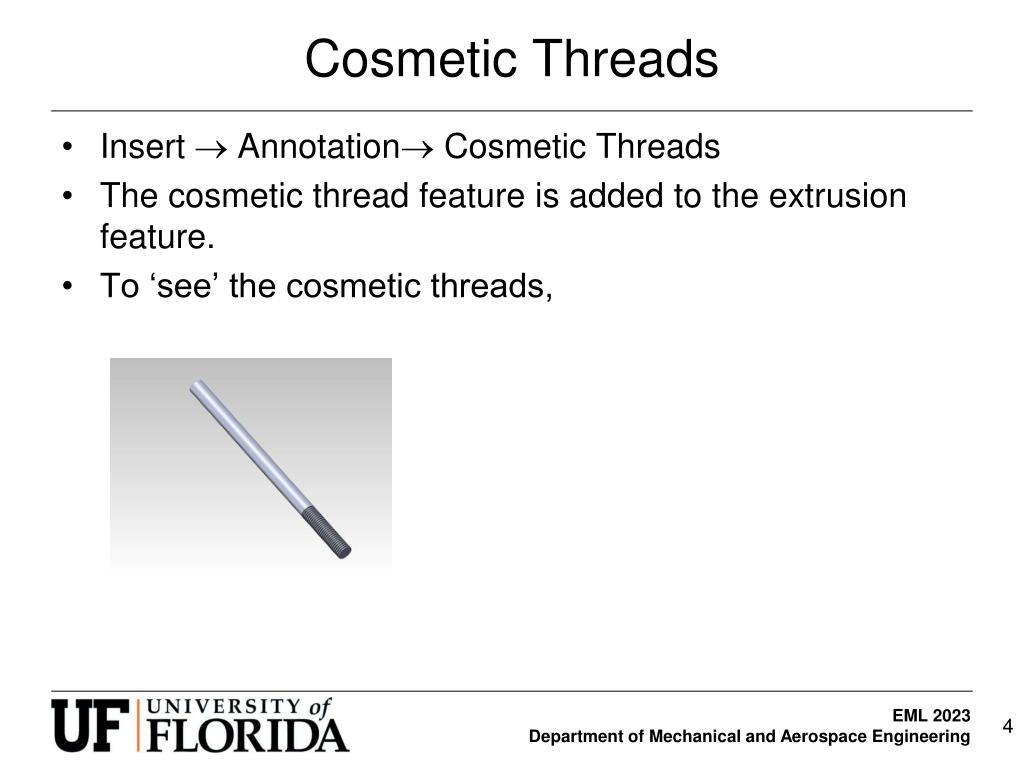

  4. Cosmetic Threads • Insert  Annotation Cosmetic Threads • The cosmetic thread feature is added to the extrusion feature. • To ‘see’ the cosmetic threads,

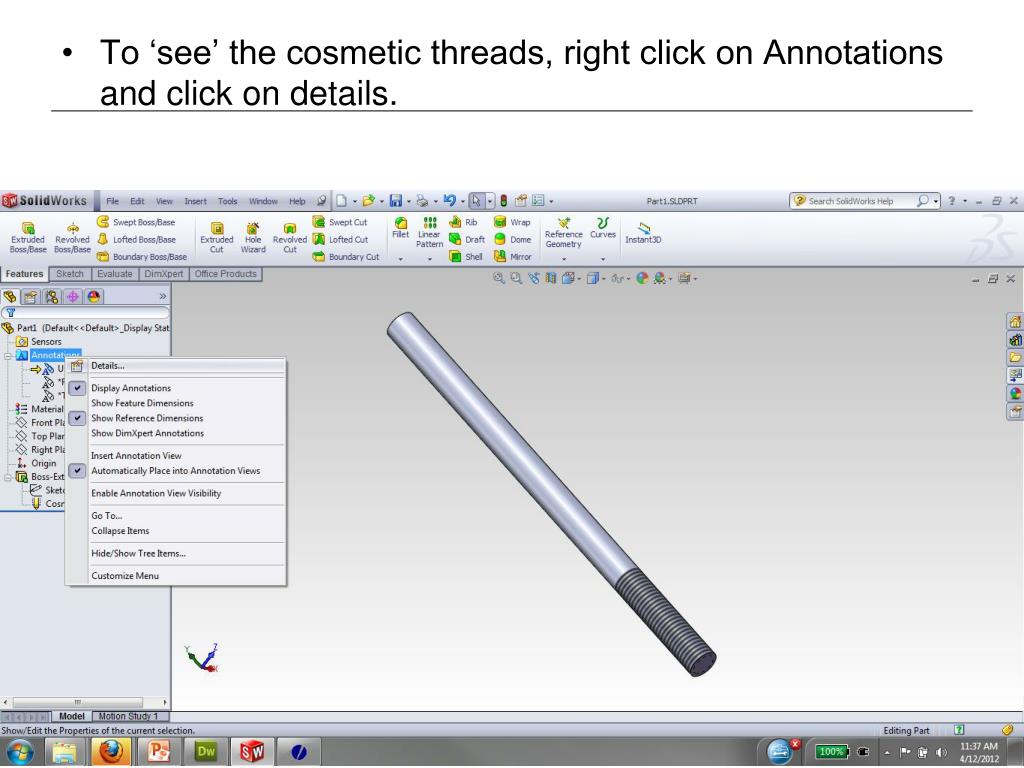

  5. To ‘see’ the cosmetic threads, right click on Annotations and click on details.

  6. ‘Shaded cosmetic threads’ should be checked.
