Case Study: Simultaneous Switching Outputs (SSOs)

This case study explores the optimization of simultaneous switching outputs (SSOs) in the RT54SX72S device, structured into four design cases: A, B, C, and D. Each case employs different methodologies for output bank separation and placement to manage delay timing during output enablement. The study analyzes worst-case scenarios for SSO mitigation, including temperature and voltage variables, while examining output enablement paths and the implications of auto-placement versus manual adjustments. The findings provide critical insights for enhancing electronic device performance through optimal layout design.

faraji
Télécharger la présentation

Case Study: Simultaneous Switching Outputs (SSOs)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

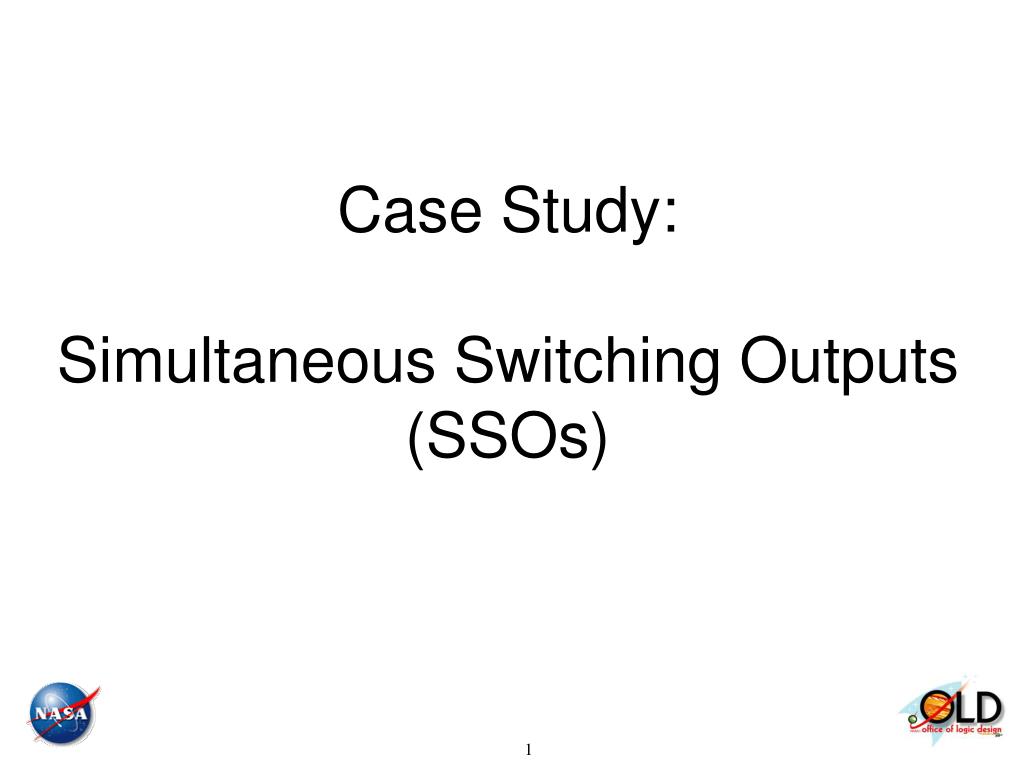

  1. Case Study:Simultaneous Switching Outputs (SSOs)

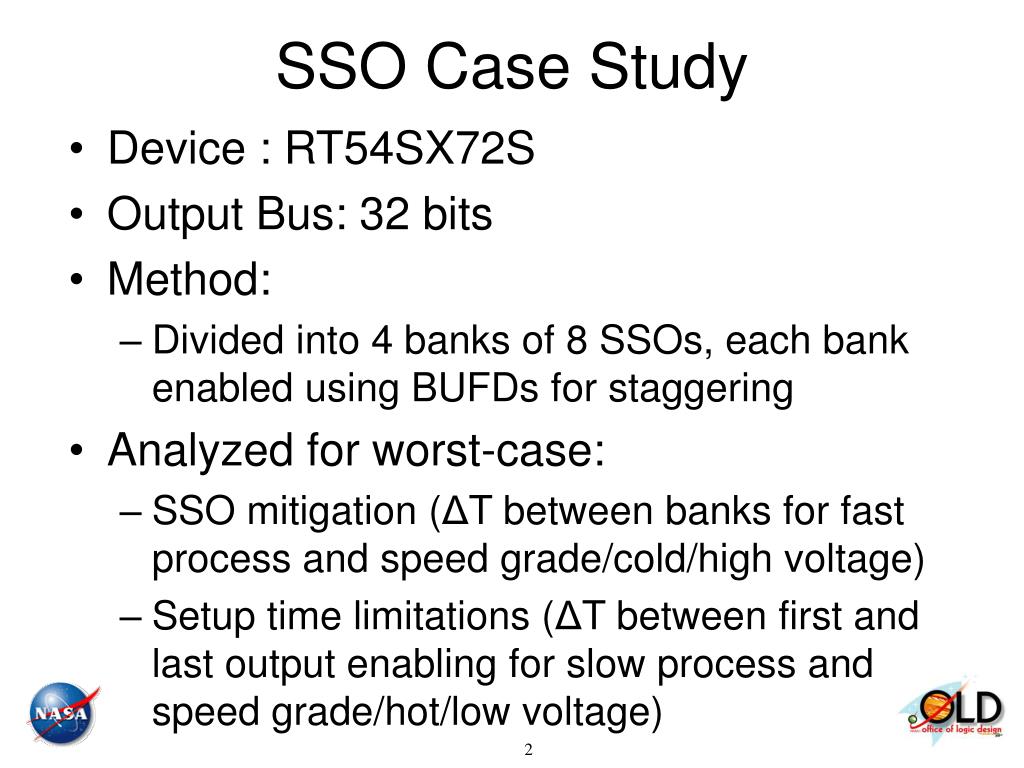

  2. SSO Case Study • Device : RT54SX72S • Output Bus: 32 bits • Method: • Divided into 4 banks of 8 SSOs, each bank enabled using BUFDs for staggering • Analyzed for worst-case: • SSO mitigation (ΔT between banks for fast process and speed grade/cold/high voltage) • Setup time limitations (ΔT between first and last output enabling for slow process and speed grade/hot/low voltage)

  3. Design Schematics

  4. Design Schematics (Close-up)

  5. RT54SX72S 47 rows 126 columns

  6. Case A • All macros auto-placed by Designer • No manual adjustments to placement Outputs Enable Path

  7. Case A: Auto-placement Max ΔT Min ΔT • Minimum ΔT between banks: ~ 3 ns • Maximum ΔT between 1st and last output enabling: ~ 25 ns (average 7ns per stage)

  8. Case B • All macros initially auto-placed by Designer • Subsequently, BUFDs are placed manually to achieve significant increase in delays due to routing • Each pair of [logically] adjacent BUFDs separated by ~40 rows and ~40 columns Outputs Enable Path

  9. Max ΔT Min ΔT Case B: 40 x 40 Separation • Minimum ΔT between banks: ~ 6 ns • Maximum ΔT between 1st and last output enabling: ~ 46 ns (average 14 ns per stage)

  10. Case C • Modification of Case B with smaller separation distance between BUFDs • Each pair of [logically] adjacent BUFDs separated by ~15 rows and ~15 columns Outputs Enable Path

  11. Case C: 15 x 15 Separation Max ΔT Min ΔT • Minimum ΔT between banks: ~ 4 ns • Maximum ΔT between 1st and last output enabling: ~ 37 ns (average 8 ns per stage)

  12. Case D • All output macros are hand-placed together along one side of the die • Provides for “convenient” (seemingly optimal) board layout • All other macros are auto-placed Outputs Enable Path

  13. Case D: “Pretty” Layout Max ΔT Min ΔT • Minimum ΔT between banks: ~ 1 ns • Maximum ΔT between 1st and last output enabling: ~ 11 ns (average 4 ns per stage)

  14. Delay Summary Method Spacing Range A: Auto-placement 3 25 B: 40 x 40 Separation 6 46 C: 15 x 15 Separation 4 37 D: “Pretty” Layout 1 11
