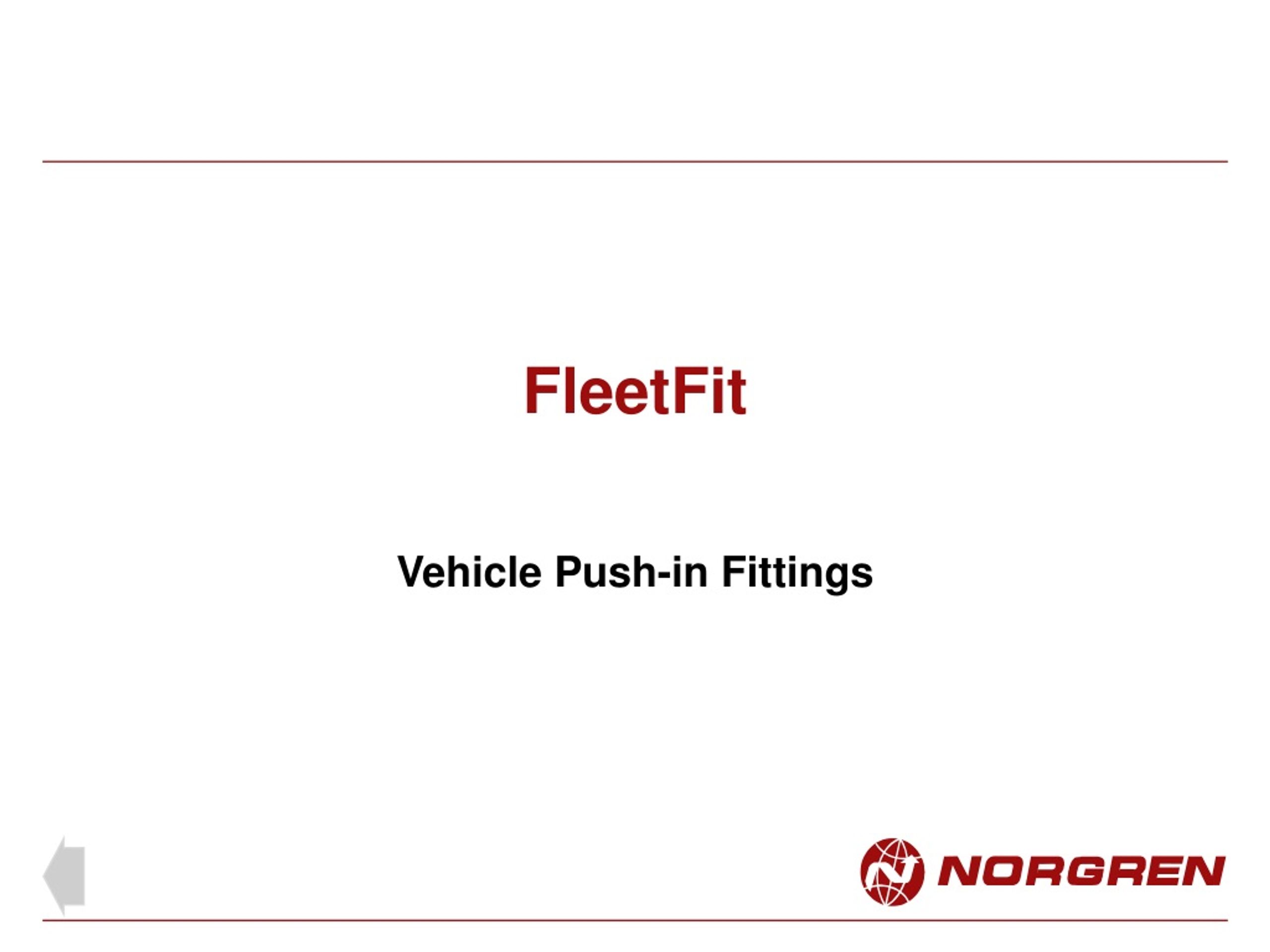

  1. FleetFit Vehicle Push-in Fittings

  2. FleetFit vehicle push-in fittings • Air braking systems • Auxiliary systems including: • exhaust braking • axle lift • gear changer • axle ratio change • throttle control • speed limiters • passenger doors • air horns • air suspension • air gauges • air seats • reversing aids • fifth wheel • levelling devices • security systems • differential lock • tail lift

  3. 8 mm 8 mm FleetFit vehicle push-in fittings • The push-in design allows tubing joints to be made in just seconds for high productivity during vehicle manufacture, maintenance, repair and retro-fit installation • Tube assembly times can be reduced by 5 to 25 times compared with traditional compression or swaged brake fittings • Complies with Standards and Legislation world-wide including: • DOT FMVSS, SAE, TÜV, DIN, ISO, NFR

  4. FleetFit vehicle push-in fittings • Chamfer for easy targeting and anti kink • Body internally machined to secure the collet • Collet with multiple teeth for high grip on the tube • Lubricated ‘O’ Ring for pneumatic sealing between tube and body • Tube support to maintain firm tube grip under extreme conditions • Thread sealant coating on NPTF versions

  5. 8 mm 8 mm FleetFit vehicle push-in fittings • Vacuum to 10 bar air pressure • Operating temperature - 40 to +100 OC • Natural finish brass body • Metric have nickel plated collet and tube support for identification • Low nitrile ‘O’ Ring • Roll marked collet for easy sizing • Release and remake many times • No tools required • Available in four ranges • 94 Series - Inch o/d - Metric & BSPT • 95 Series - Inch o/d tube - NPTF • 97 Series - Metric o/d - Metric & BSPT • 98 Series - Metric o/d tube - NPTF

  6. Tube and fitting assembly FleetFit

  7. 900 Tube preparation • Use a standard tube cutter to give a square end • Ensure that the tube end is clean and free from surface damage

  8. Tube and fitting assembly • Push the tube firmly into the collet over the tube support, through the ‘O’ ring and down to the tube stop. • Pull back on the tube to reinforce the collet teeth gripping action • The pressure can then be applied

  9. Tube and fitting assembly • Push the tube firmly into the collet over the tube support, through the ‘O’ ring and down to the tube stop. • Pull back on the tube to reinforce the collet teeth gripping action • The pressure can then be applied

  10. Tube and fitting assembly • Push the tube firmly into the collet over the tube support, through the ‘O’ ring and down to the tube stop. • Pull back on the tube to reinforce the collet teeth gripping action • The pressure can then be applied

  11. Tube and fitting assembly • Push the tube firmly into the collet over the tube support, through the ‘O’ ring and down to the tube stop. • Pull back on the tube to reinforce the collet teeth gripping action • The pressure can then be applied

  12. Tube and fitting assembly • Push the tube firmly into the collet over the tube support, through the ‘O’ ring and down to the tube stop. • Pull back on the tube to reinforce the collet teeth gripping action • The pressure can then be applied

  13. Tube removal FleetFit

  14. Tube removal • Turn off and exhaust the pressure • Push the collet in firmly and hold it there • Pull the tube out and release the collet

  15. Tube removal • Turn off and exhaust the pressure • Push the collet in firmly and hold it there • Pull the tube out and release the collet

  16. Tube removal • Turn off and exhaust the pressure • Push the collet in firmly and hold it there • Pull the tube out and release the collet

  17. Tube removal • Turn off and exhaust the pressure • Push the collet in firmly and hold it there • Pull the tube out and release the collet

  18. FleetFit selection from the range

  19. Selection from the range • Male straight adaptors taper and paralell • Female straight adaptors • Straight connectors • Bulkhead connectors and adaptors

  20. Selection from the range • Elbow connectors • Elbow adaptors • 900 Swivel adaptors • 450 Swivel adaptors • Female swivel nut elbow adaptors • Bulkhead elbow adaptors

  21. Selection from the range • Tee connectors equal and unequal • Tee adaptors • Tee adaptors, locking nut and ring seal ( Hobbs ) • Special bracketed reducing tee connectors • Swivel side tee adaptors

  22. Benefits of our total fittings system design service Rationalise the quantity of fittings used Shorten assembly time Lower cost of assembly Increase reliability Reduce potential leak paths Reduce weight Ease stock holding Improve access Simplify testing Dedicated fittings are designed for specific placement in systems, they provide the exact sizes at the exact angles Total fittings system
