  1. Swift Water

  2. Swiftwater • One of the most dynamic and dangerous areas of Special Operations • Difficult to train for the real thing • Our goal • Knowledge • Skills • Come home safe

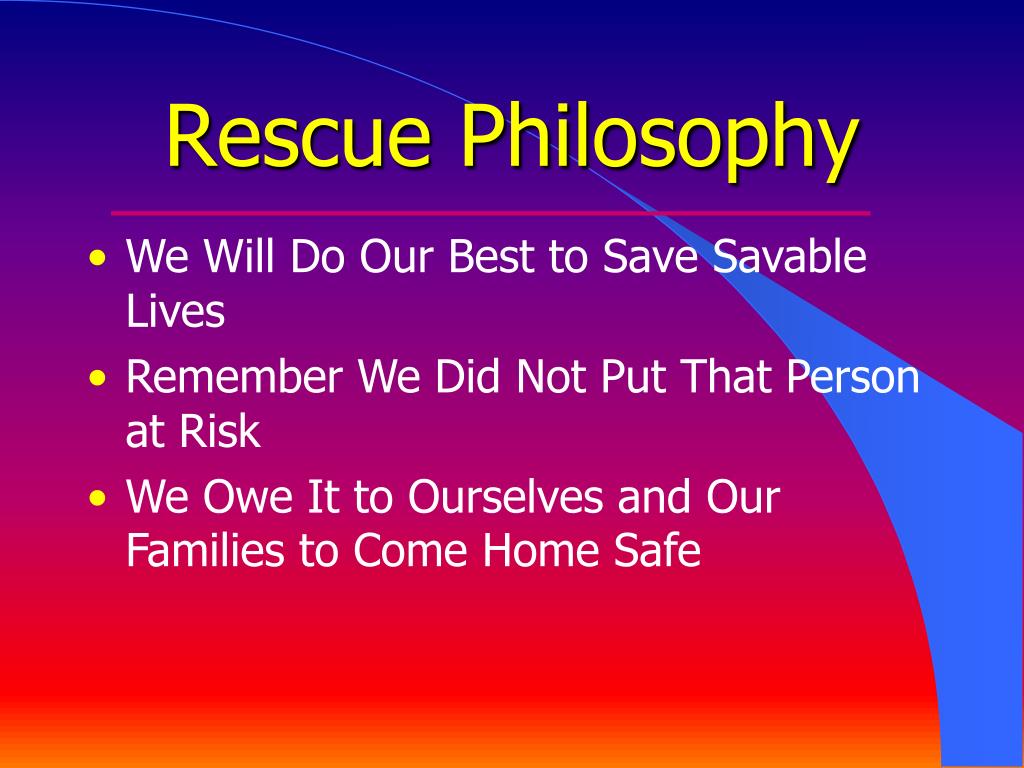

  3. Rescue Philosophy • We Will Do Our Best to Save Savable Lives • Remember We Did Not Put That Person at Risk • We Owe It to Ourselves and Our Families to Come Home Safe

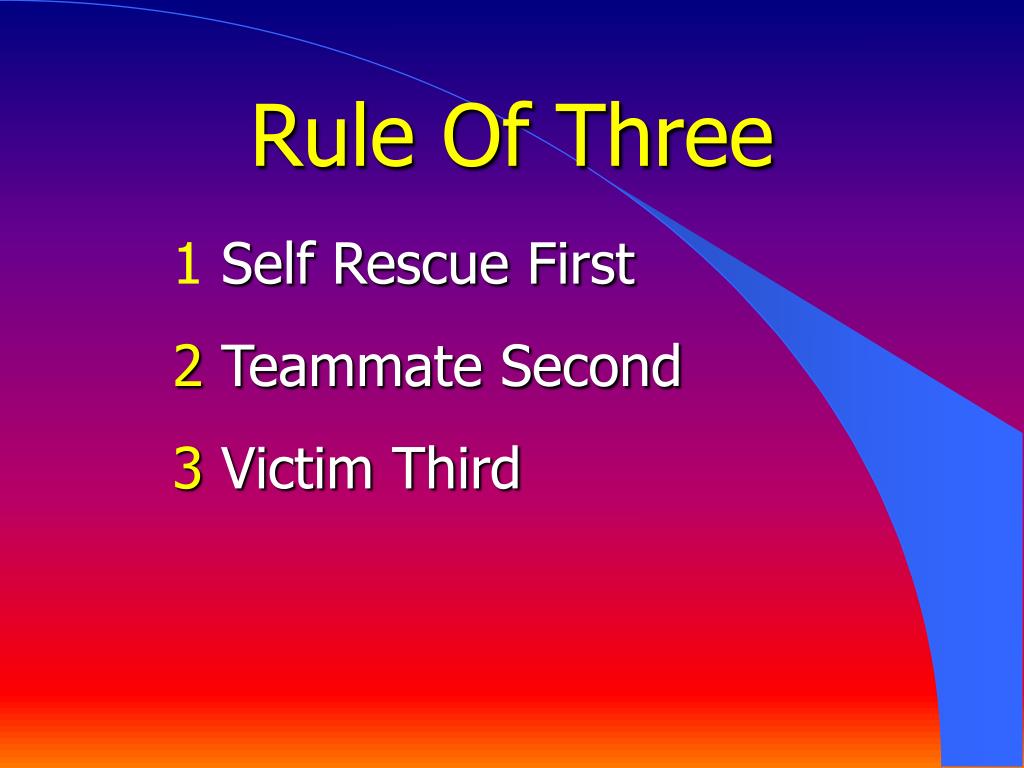

  4. Rule Of Three 1 Self Rescue First 2 Teammate Second 3 Victim Third

  5. Hydrology

  6. Friend or…

  7. Or FOE !!!

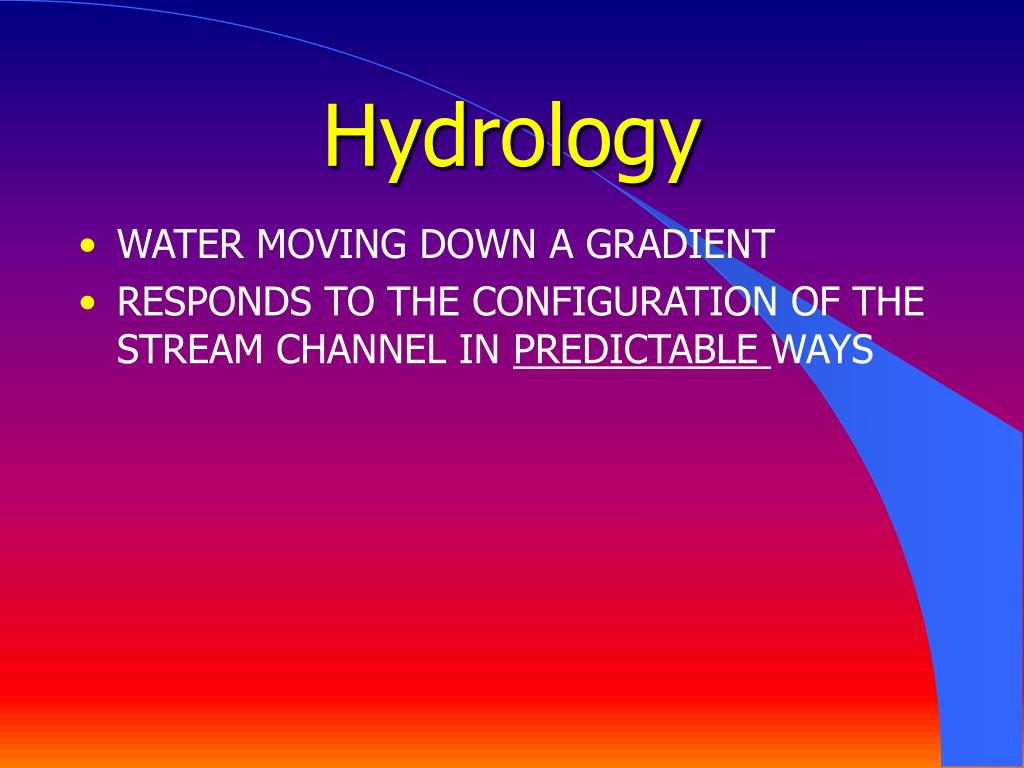

  8. Hydrology • WATER MOVING DOWN A GRADIENT • RESPONDS TO THE CONFIGURATION OF THE STREAM CHANNEL IN PREDICTABLE WAYS

  9. Swift Water • Rivers • Creeks • Washes • Flood Control Channels

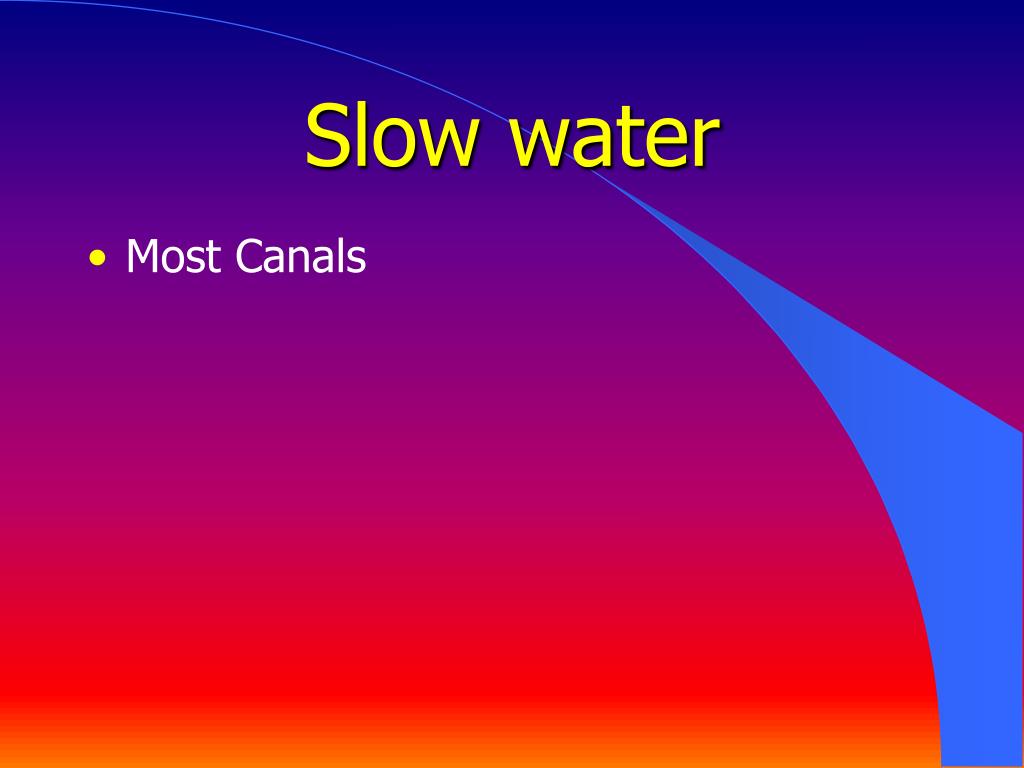

  10. Slow water • Most Canals

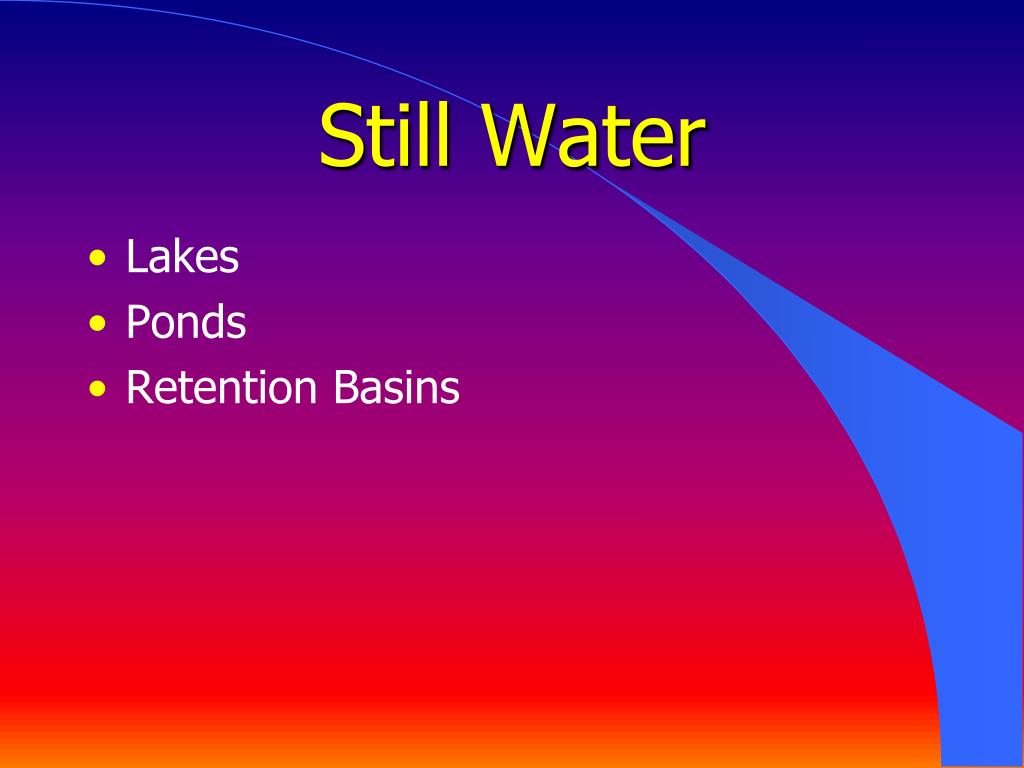

  11. Still Water • Lakes • Ponds • Retention Basins

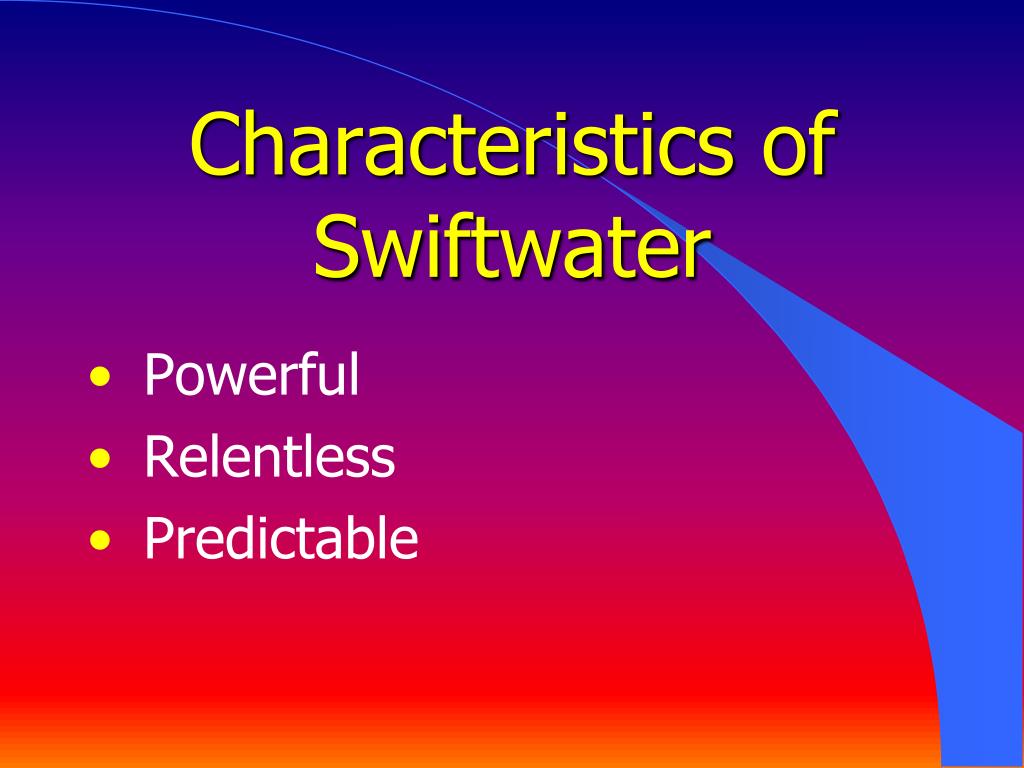

  12. Characteristics of Swiftwater • Powerful • Relentless • Predictable

  13. 62 Powerful • Water Weights 62 Pounds Per Cubic Foot • That Mass Obeys the Laws of Physics • Moving Water Has Tremendous Energy

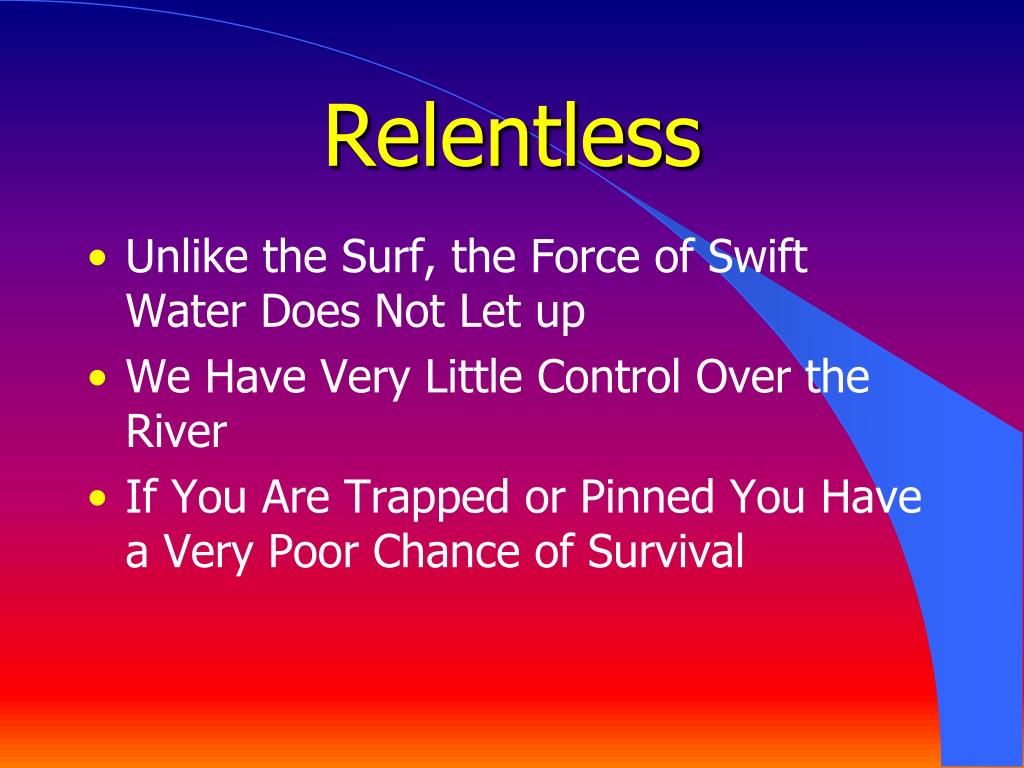

  14. Relentless • Unlike the Surf, the Force of Swift Water Does Not Let up • We Have Very Little Control Over the River • If You Are Trapped or Pinned You Have a Very Poor Chance of Survival

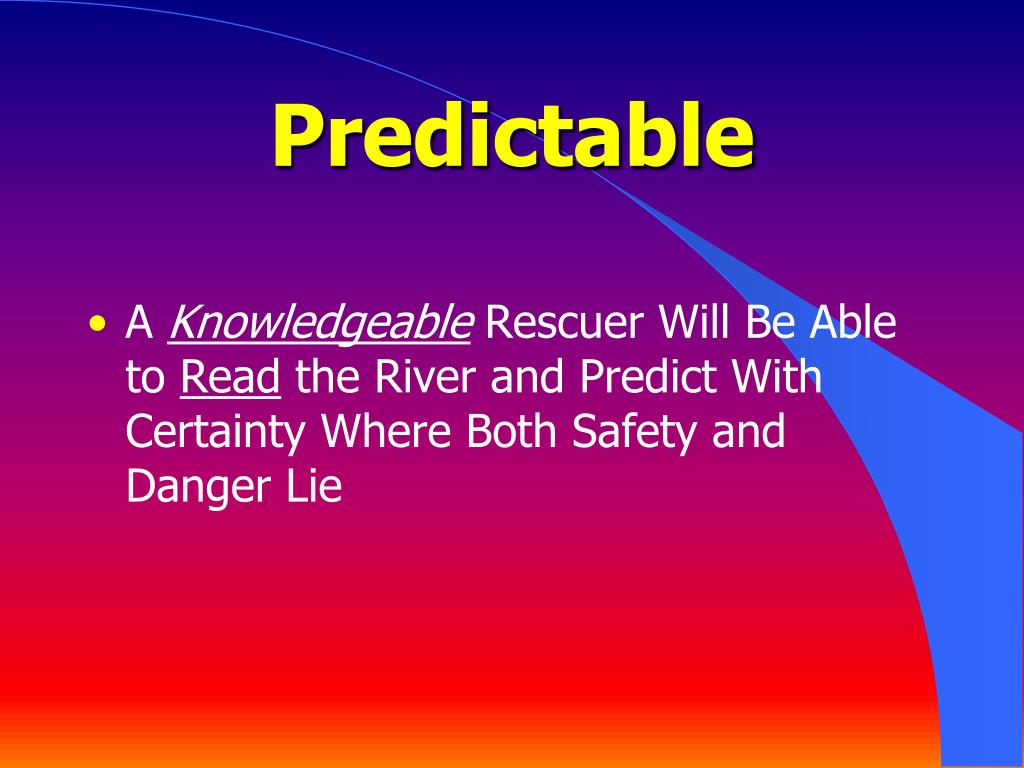

  15. Predictable • A Knowledgeable Rescuer Will Be Able to Read the River and Predict With Certainty Where Both Safety and Danger Lie

  16. FORCE = mass X VELOCITY SQUARED!!!

  17. FORCE ~ VELOCITY VELOCITY POUNDS POUNDS FT/S M.P.H ON LEGS ON BODY 5ft/S=3.4 M.P.H 16.8 33.6 10ft/S=6.8 M.P.H. 67.2 134 20ft/S=13.6 M.P.H. 269 538 Rule of thumb: Stay out of current over your knees

  18. Determine Velocity 100 FT MEASURE THE TIME IT TAKES AN OBJECT TO FLOAT 100 FT Note: with a 10mph current an object will travel one mile in six minutes

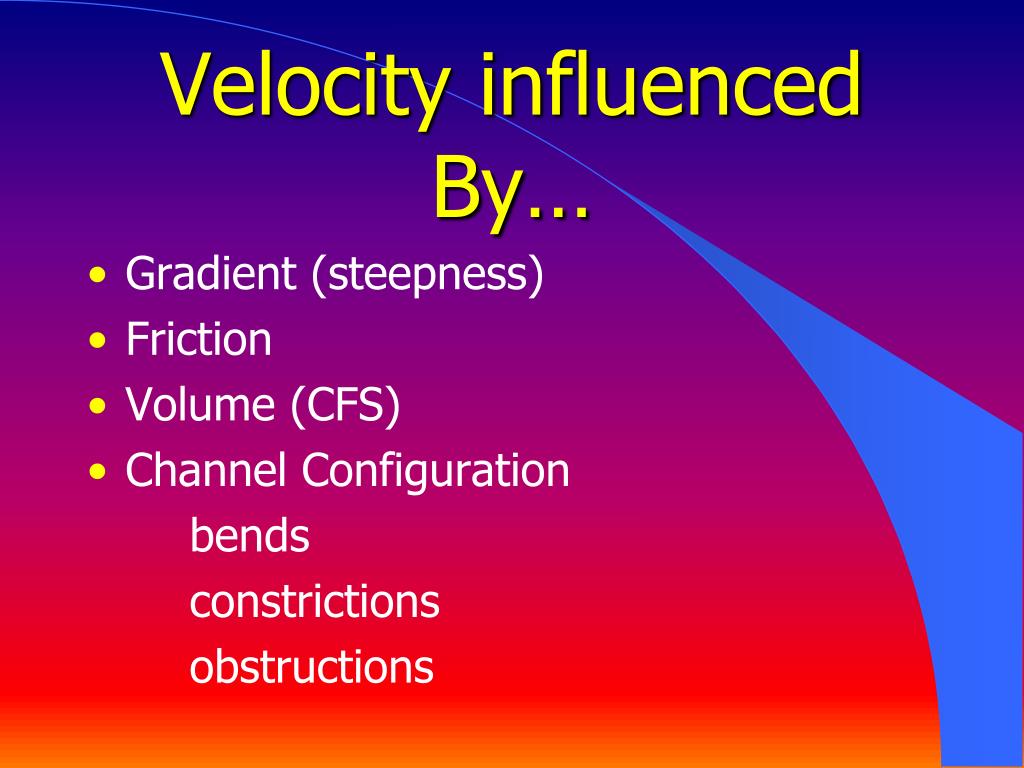

  19. Velocity influenced By… • Gradient (steepness) • Friction • Volume (CFS) • Channel Configuration bends constrictions obstructions

  20. Bank Erosion

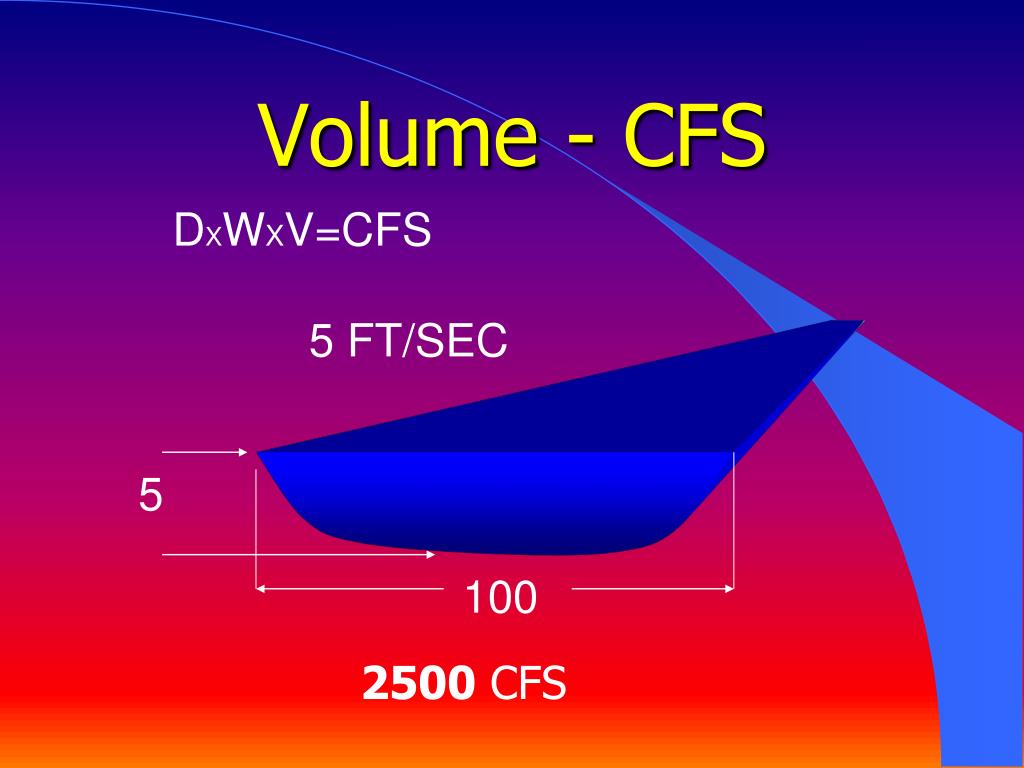

  21. Volume - CFS DXWXV=CFS 5 FT/SEC 5 100 2500 CFS

  22. Flash Flood

  23. L R River Terminology • Our reference point will always be facing down river • River Left or River Right • Up River or Down River

  24. Laminar Flow FASTEST SLOWEST

  25. Helical Flow

  26. River Features • Down Stream V • Eddy • Eddy Line • Hydraulic • Up Stream V • Standing Waves • Bends

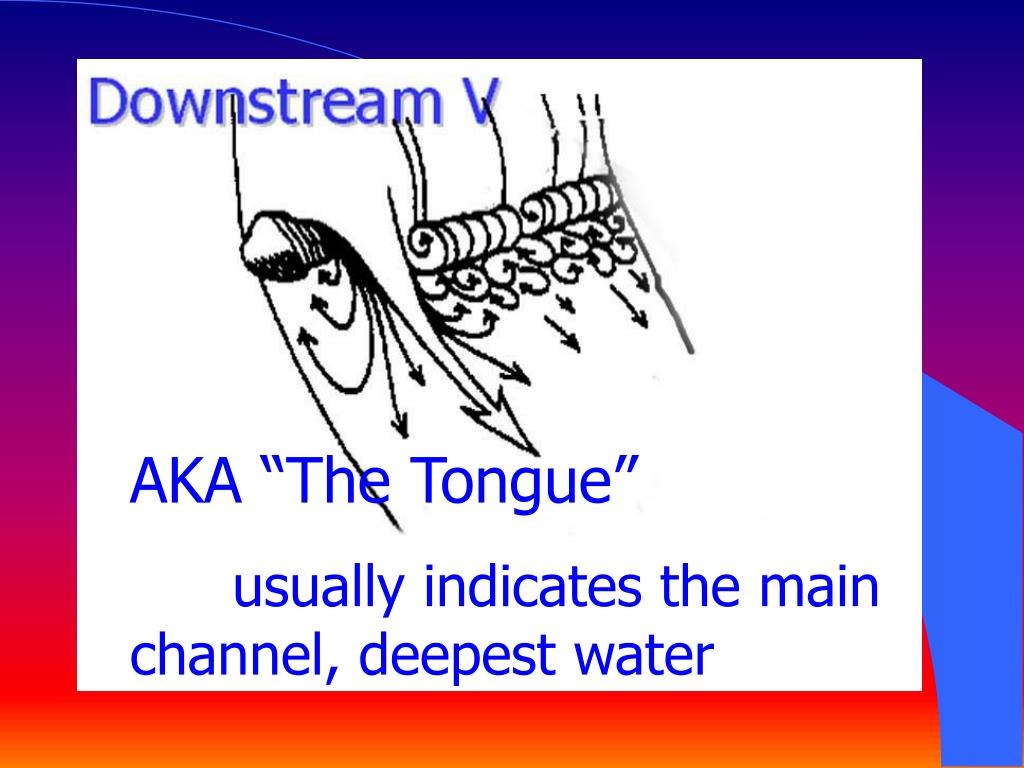

  27. AKA “The Tongue” usually indicates the main channel, deepest water

  28. Eddy – a horizontal Reversal of current

  29. Eddy's

  30. Eddy Line

  31. Hydraulic – a vertical reversal of water

  32. Hydraulic

  33. Up Stream V Usually indicates the presence of an obstruction

  34. Standing Waves

  35. How Standing waves are formed

  36. Low Head Dams Strainers Trees & Logs Fences Vehicles Bends Undercut Rocks Foot Entrapment Stationary Objects Panicked Swimmer Hypothermia Debris / Loads Hazards

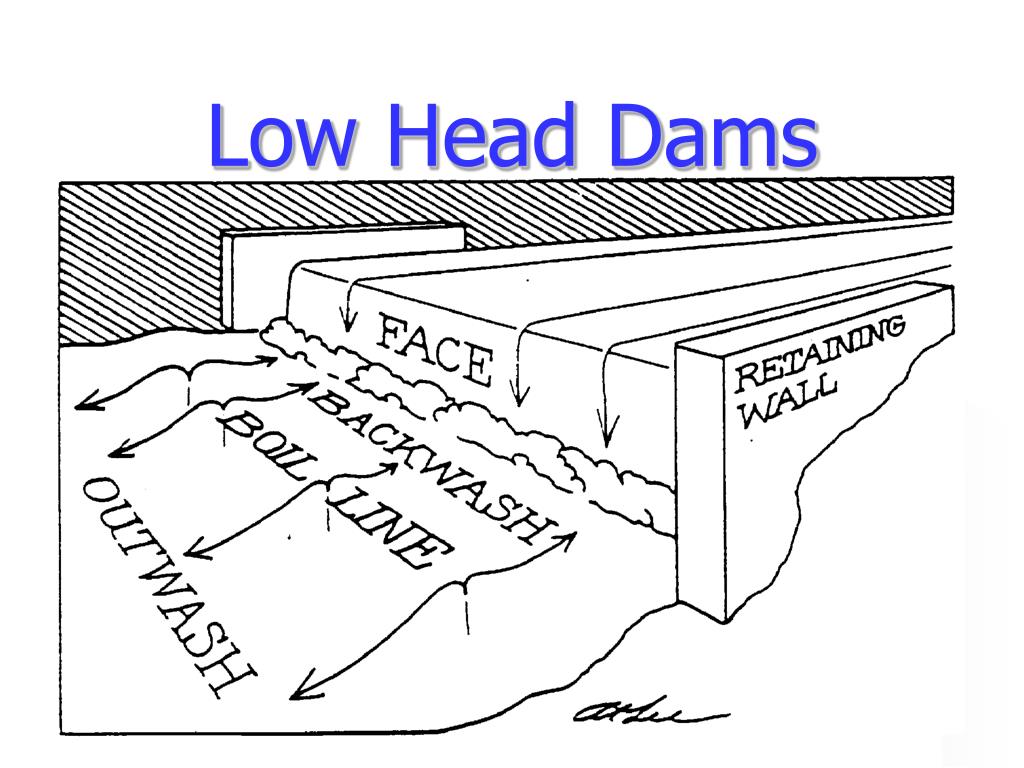

  37. Low Head Dams

  38. Escape Route

  39. Strainers • The Most Dangerous Hazard on the River • Anything That Water Flows Through but a Person Wont • Avoid It or Climb Over It or You Will Drown
