1. - 1. 1. - 1. Unit Circle. (A circle of radius 1.). (x, y). r =1. Every ray that comes from the origin and intersects the unit circle has a length of 1 (because it is a radius). y. x.

fawzia
Télécharger la présentation

- 1

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

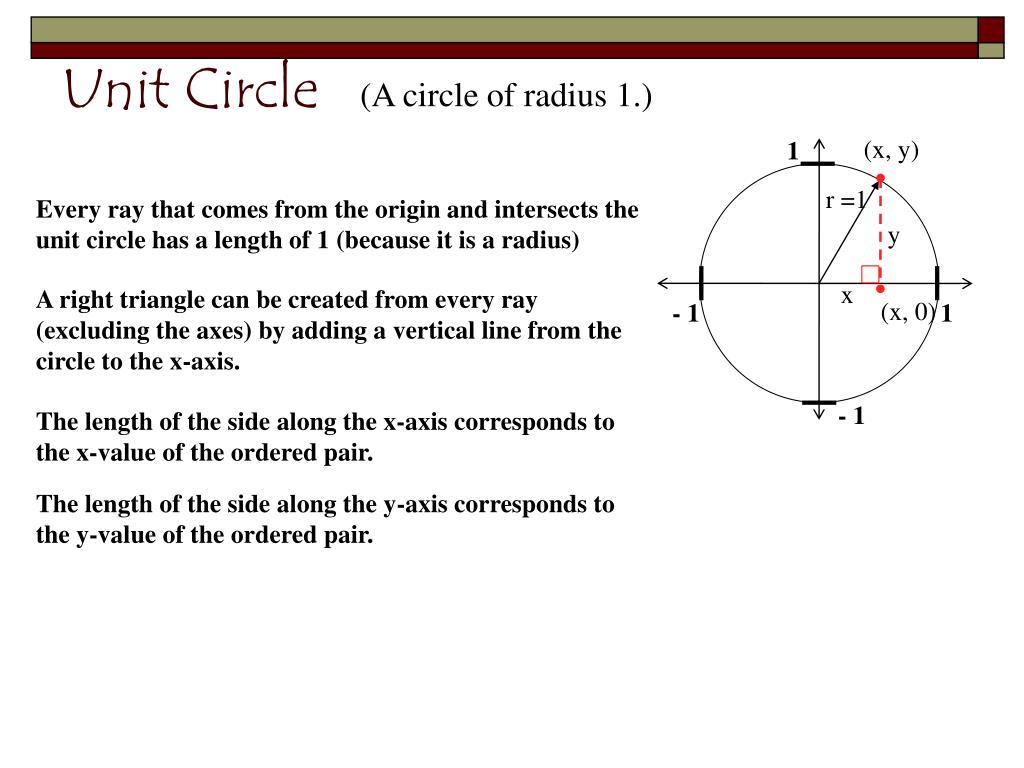

  1. 1 - 1 1 - 1 Unit Circle (A circle of radius 1.) (x, y) r =1 Every ray that comes from the origin and intersects the unit circle has a length of 1 (because it is a radius) y x A right triangle can be created from every ray (excluding the axes) by adding a vertical line from the circle to the x-axis. (x, 0) The length of the side along the x-axis corresponds to the x-value of the ordered pair. The length of the side along the y-axis corresponds to the y-value of the ordered pair.

  2. Unit Circle

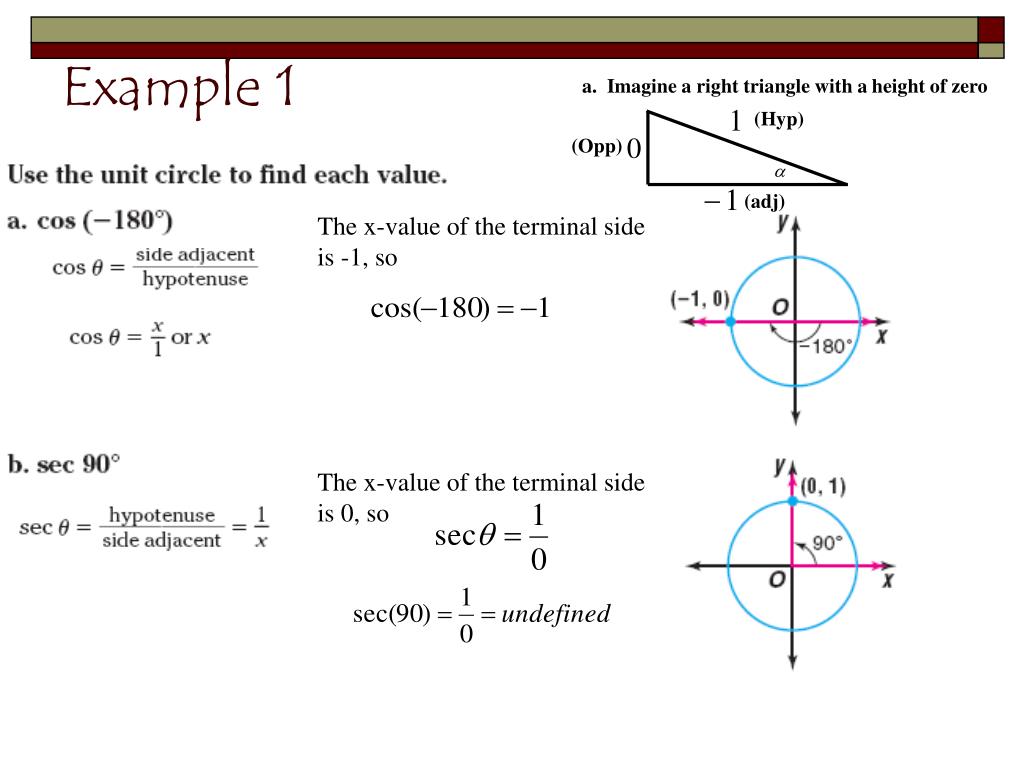

  3. a. Imagine a right triangle with a height of zero (Hyp) (Opp) (adj) Example 1 The x-value of the terminal side is -1, so The x-value of the terminal side is 0, so

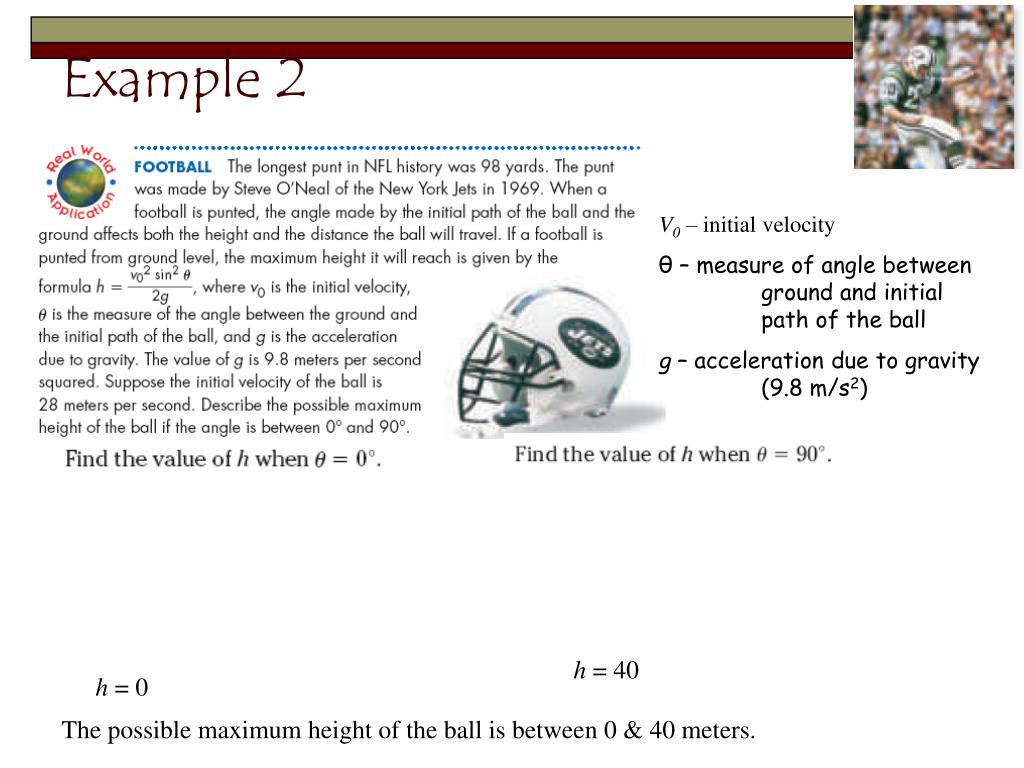

  4. Example 2 V0 – initial velocity θ – measure of angle between ground and initial path of the ball g – acceleration due to gravity (9.8 m/s2) h = 40 h = 0 The possible maximum height of the ball is between 0 & 40 meters.

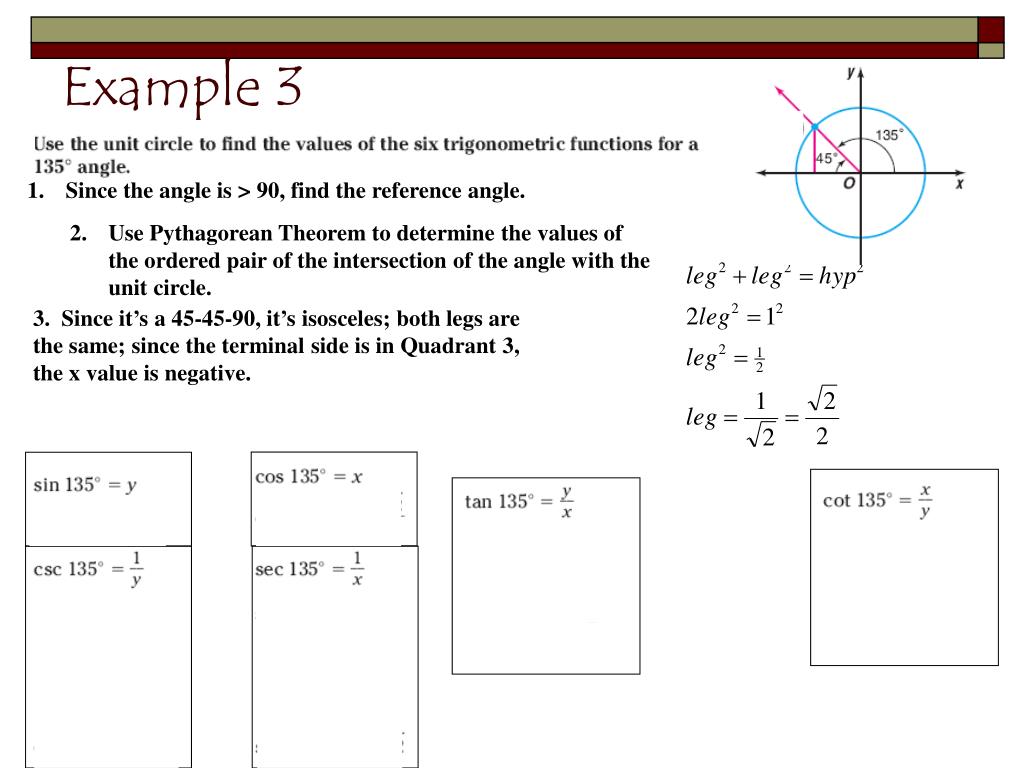

  5. Example 3 • Since the angle is > 90, find the reference angle. • Use Pythagorean Theorem to determine the values of the ordered pair of the intersection of the angle with the unit circle. 3. Since it’s a 45-45-90, it’s isosceles; both legs are the same; since the terminal side is in Quadrant 3, the x value is negative.

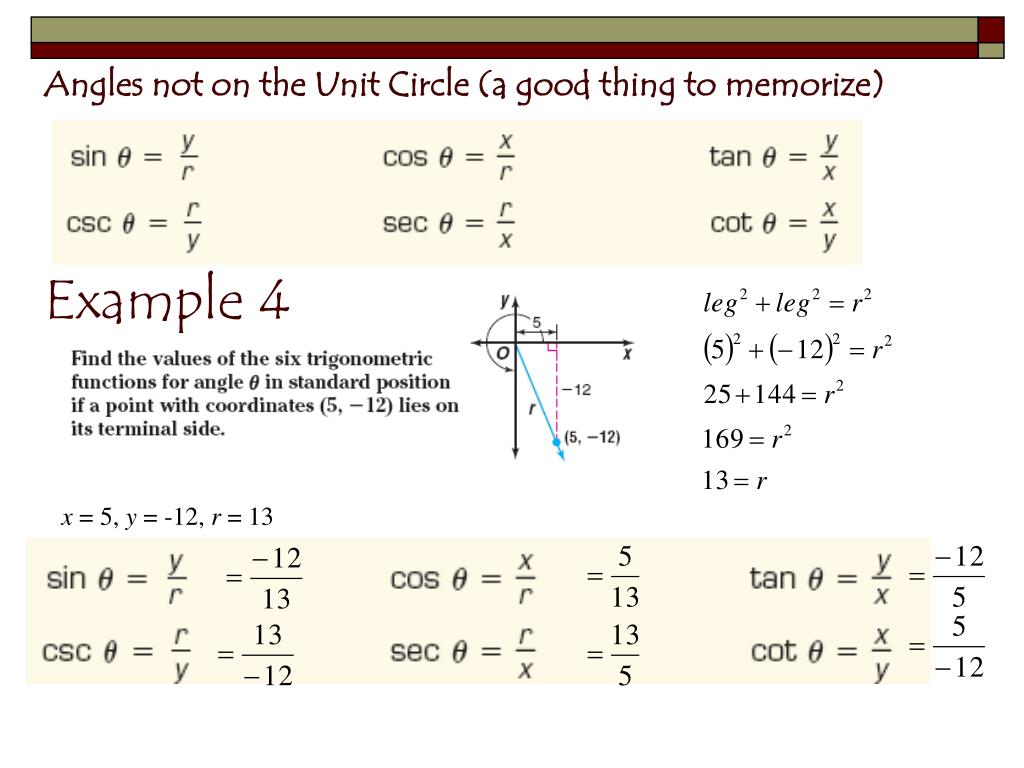

  6. Angles not on the Unit Circle (a good thing to memorize) Example 4 x = 5, y = -12, r = 13

  7. Example 5 θ is the angle formed at the origin. Since the terminal side is in Quadrant III, the x-value must be negative, so x = -3 Sin is opp over hyp so you know where to put each value. x = -3, y = -4, r = 5

  8. Signs of Trig functions: (another shortcut) All Students Take Calculus: STUDENTS only Sine/Cosecant are positive in Quadrant II ALL values are positive in Quadrant I CALCULUS only Cosine/Sec are positive in Quadrant IV TAKE only Tangent/Cotangent are positive in Quadrant III

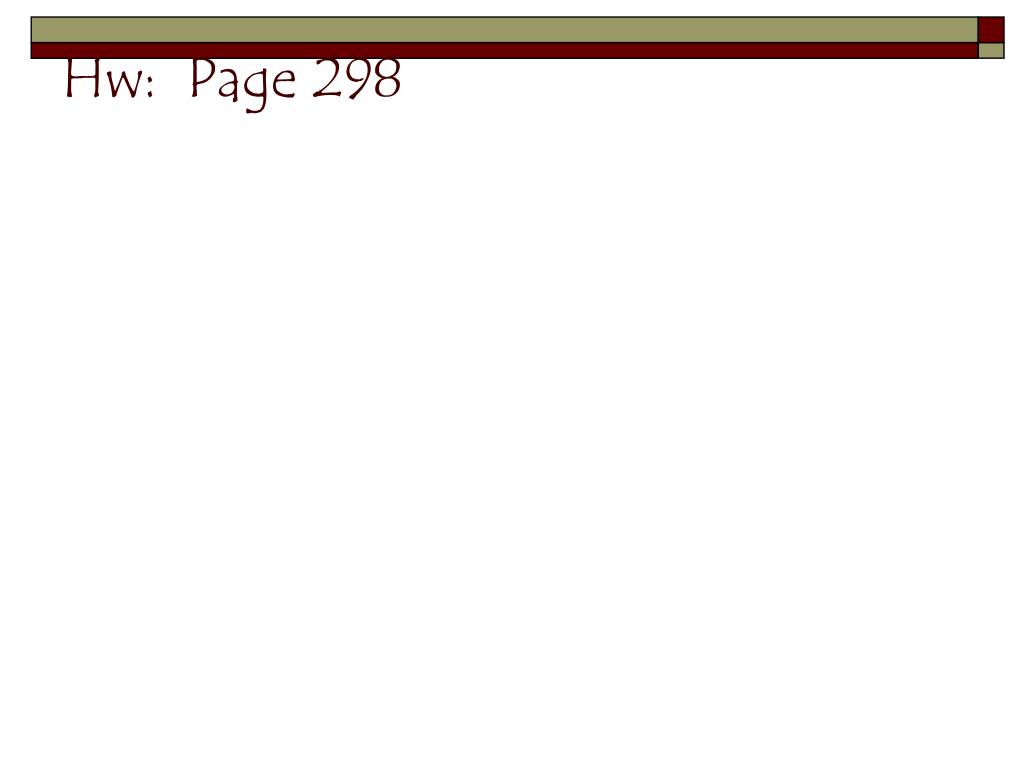

  9. Hw: Page 298
