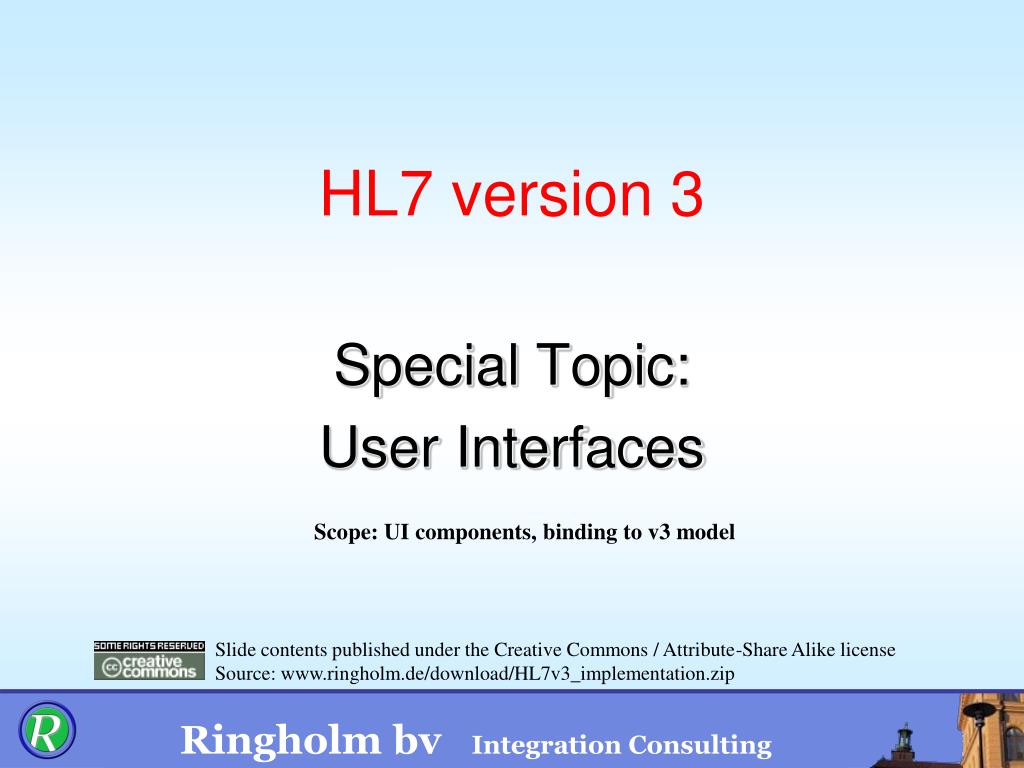

  1. HL7 version 3 Special Topic: User Interfaces Scope: UI components, binding to v3 model Slide contents published under the Creative Commons / Attribute-Share Alike license Source: www.ringholm.de/download/HL7v3_implementation.zip

  2. UI PL RIMBAA Technology Matrix Processing Logic Object Representation User Interface

  3. User Interfaces • There are two (extreme) options: • Run time: Dynamically (at run time) generate the UI based on a CIM/LIM-like definition • need to do some pre-formatting, otherwise the generated layout may be quite nonsensical for the human user • Development time: Define the UI first; bind elements in the UI to RO/CO/AO classes/attributes.

  4. User Interface - Development • UI integration with templates (LIM): commonality is one of the key reasons for using RIM • start with the generic controls, make them work, bolt them together, less generic as you go up the data stack.

  5. Model Driven User Interfaces • HL7 version 3 has an elaborate terminology model. • Based on HL7 (and ISO) data types Person name: EN [0..*] administrativeGenderCode: CE … Person Demographics Sex: CE data type: (code, codeSystem) OR (nullFlavor)

  6. User Interface Implementation Experiences Slide contents published under the Creative Commons / Attribute-Share Alike license Source: www.ringholm.de/download/implementation_mechanics.ppt

  7. CfH NHS - Xforms • https://xmlprocess.projects.openhealthtools.org/ • Annotated MIF to Xform generator. • Annotations: • Parts that should be editable or read-only or hidden • Use business names instead of formal RIM names as that might make things a bit more intuitive to users

  8. Phi: UI design

  9. Phi: UI model

  10. Any Questions ? • Or: post your question/suggestions via • HL7 Wiki: http://bit.ly/d7tSsL • E-mail v3impl@ringholm.com
