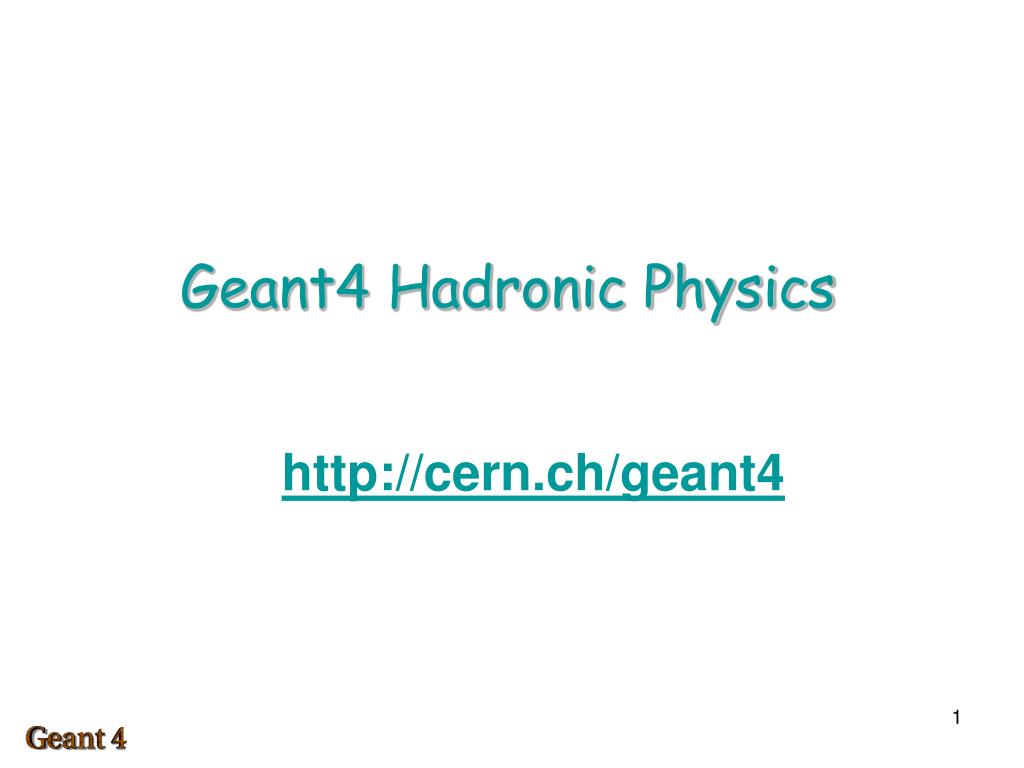

  1. Geant4 Hadronic Physics http://cern.ch/geant4

  2. Acnowledgements • These slides are based on Dennis Wright, Aatos Helkkinen IEEE 2003 and IEEE 2004 Geant4 lecture notes and Tatsumi Koi from SLAC 2006 Course

  3. Outline • Processes and hadronic physics • Hadronic cross sections • Parametrised models • Theoretical models • Model framework • Physics lists • Code examples • Physics validation against experimental data • Radioactive Decay Module and Ion Physics

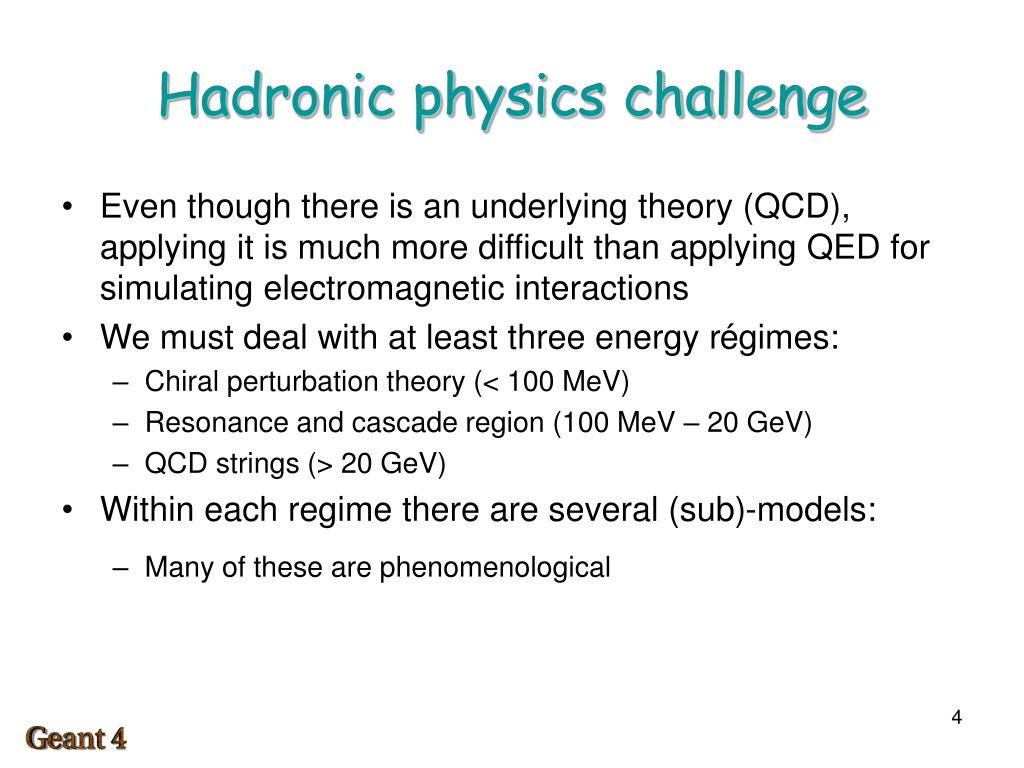

  4. Hadronic physics challenge • Even though there is an underlying theory (QCD), applying it is much more difficult than applying QED for simulating electromagnetic interactions • We must deal with at least three energy régimes: • Chiral perturbation theory (< 100 MeV) • Resonance and cascade region (100 MeV – 20 GeV) • QCD strings (> 20 GeV) • Within each regime there are several (sub)-models: • Many of these are phenomenological

  5. The Geant4 philosophy of hadronics (1/2) • Provide a general model framework that allows implementation of processes and models at many levels • Separate models and processes in framework: • Hadronic models and cross sections implement processes • Provide processes containing: • Many possible models and cross sections • Default cross sections for each model

  6. The Geant4 philosophy of hadronics (2/2) • Provide several optional models and cross section sets in each region • Let the user decide which physics is best: • Complex task is handled with physics lists • Educated guess physics lists are provided by use-case • Validate new models against latest data: • Extensive and systematic validation program • Understand the trade-off between performance, physics and general applicability vs. energy – there is only one nature

  7. Geant4 process • A process uses cross sections to decide when and where an interaction will occur: • GetPhysicalInteractionLength() • A process uses an interaction model to generate the final state: • DoIt() • Three types of process: • AtRest • AlongStep • PostStep • Each particle has its own process manager • Each process has a set of models coordinated with energy range manager

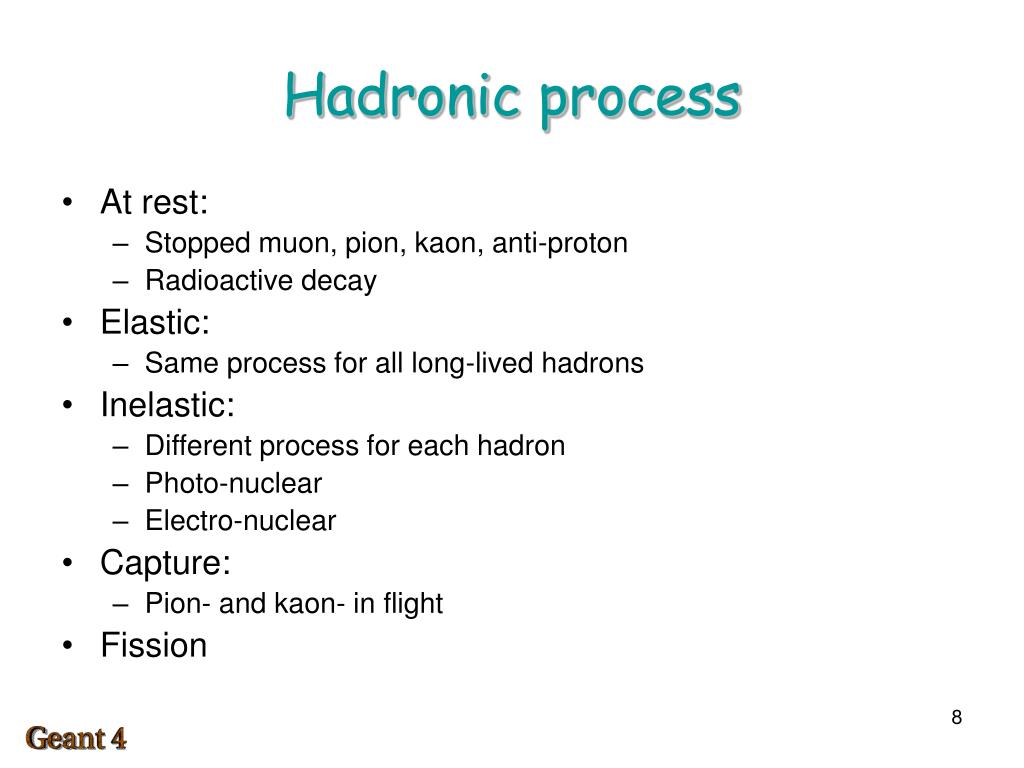

  8. Hadronic process • At rest: • Stopped muon, pion, kaon, anti-proton • Radioactive decay • Elastic: • Same process for all long-lived hadrons • Inelastic: • Different process for each hadron • Photo-nuclear • Electro-nuclear • Capture: • Pion- and kaon- in flight • Fission

  9. Cross sections • Default cross section sets are provided for each type of hadronic process: • Fission, capture, elastic, inelastic • Can be overridden or completely replaced • Different types of cross section sets: • Some contain only a few numbers to parameterize cross section • Some represent large databases (data driven models) • Cross Section Management: • GetCrossSection() sees last set loaded for energy range

  10. Alternative cross sections • Low energy neutrons • G4NDL available as Geant4 distribution data files • Available with or without thermal cross sections • Neutron and proton reaction cross sections • 20 MeV < E < 20 GeV • Ion-nucleus reaction cross sections • Good for E/A < 1 GeV • Isotope production data • E < 100 MeV

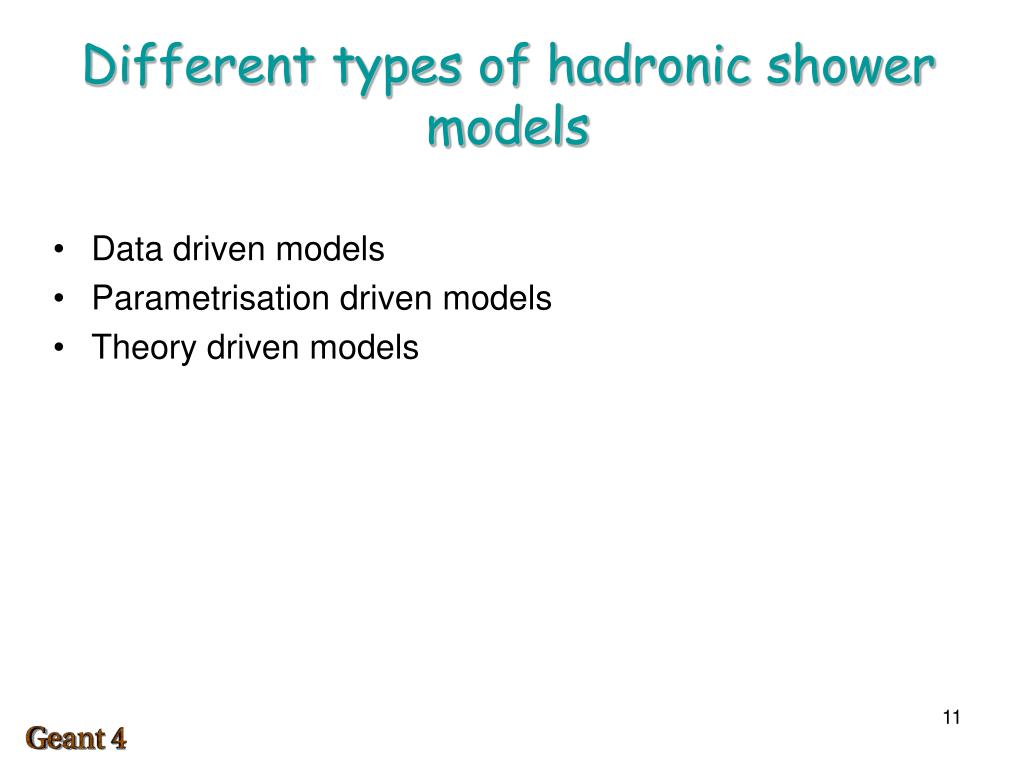

  11. Different types of hadronic shower models • Data driven models • Parametrisation driven models • Theory driven models

  12. Models in hadronic framework

  13. Data driven models (1/2) • Characterized by lots of data: • Cross section • Angular distribution • Multiplicity • To get interaction length and final state, models simply interpolate data: • Usually linear interpolation of cross section, and Legendre polynomials • Examples: • Coherent elastic scattering (pp, np, nn) • Radioactive decay • Neutrons (E < 20 MeV)

  14. Data driven models (2/2) • Transport of low energy neutrons in matter: • The energy coverage of these models is from thermal energies to 20 MeV • The modeling is based on the data formats of ENDF/B-VI, and all distributions of this standard data format are implemented • The data sets used are selected from data libraries that conform to these standard formats • The file system is used in order to allow granular access to, and flexibility in, the use of the cross-sections for different isotopes, and channels • Code in sub-directory: /source/processes/hadronic/models/neutron_hp

  15. Parametrisation driven models (1/2) • Depends on both data and theory: • Enough data to parameterize cross sections, multiplicities, angular distributions • Final states determined by theory, sampling: • Use conservation laws to get charge, energy, etc. • Examples: • Fission • Capture • LEP, GEISHA based HEP models

  16. Parametrisation driven models (2/2) • Based on GHEISHApackage of Geant3.21, two sets of models exist for inelastic scattering of particles in flight: • Low energy models: • E < 20 GeV • /hadronic/models/low_energy • High energy models: • 20 GeV < E < O(TeV) • /hadronic/models/high_energy • Original approach to primary interaction, nuclear excitation, intra-nuclear cascade and evaporation is kept • Fission, capture and coherent elastic scattering are also modeled through parametrised models

  17. Theory driven models (1/2) • Dominated by theory (QCD, strings, chiral perturbation theory) • Data used mainly for normalization and validation • Final states determined by sampling theoretical distributions • Philosophy implies the usage physics lists, providing wanted collection of models, such as: • Parton string models at high energies, of intra-nuclear transport models at intermediate energies, and of statistical break-up models for de-excitation

  18. Theory driven models (2/2) • Parton string: • Projectiles with E > 5 GeV • /hadronic/models/parton_string • Chiral invariant phase space, CHIPS: • All energies • Quark-level event generator for the fragmentation of hadronic systems into hadrons • Interactions between hadrons are treated as purely kinematic effects of quark exchange • Decay of excited hadronic systems is treated as the fusion of two quark-partons within the system • Includes nonrelativistic phase space of nucleons to explain evaporation • /hadronic/models/chiral_inv_phase_space • Nuclear de-excitation and breakup

  19. Bertini intra-nuclear cascade (1/2) • Collection of theory driven models with parametrisation features: • /hadronic/models/cascade • Intermediate energies ~100 keV – 10MeV • Models included: • Bertini INC model with exitons • Pre-equilibrium model • Nucleus explosion model • Fission model • Evaporation model

  20. Bertini intra-nuclear cascade (2/2) • For A>4 a nuclei model is composed of three concentric spheres • Impulse distribution in each region follows Fermi distribution with zero temperature • Particle treated p,n, pions, photon evaporation and nuclear isotope remnats • Latest addition include incident kaons up to an energy of 15 GeV: • Final states, will be included for K+, K-, K0, K0bar, lambda, sigma+, sigma0, sigma-, xi0 and xi- Schematic presentation of the intra-nuclear cascade. A hadron with 400 MeV energy is forming an INC history. Crosses present the Pauli exclusion principle in action.

  21. Hadronic model inventory

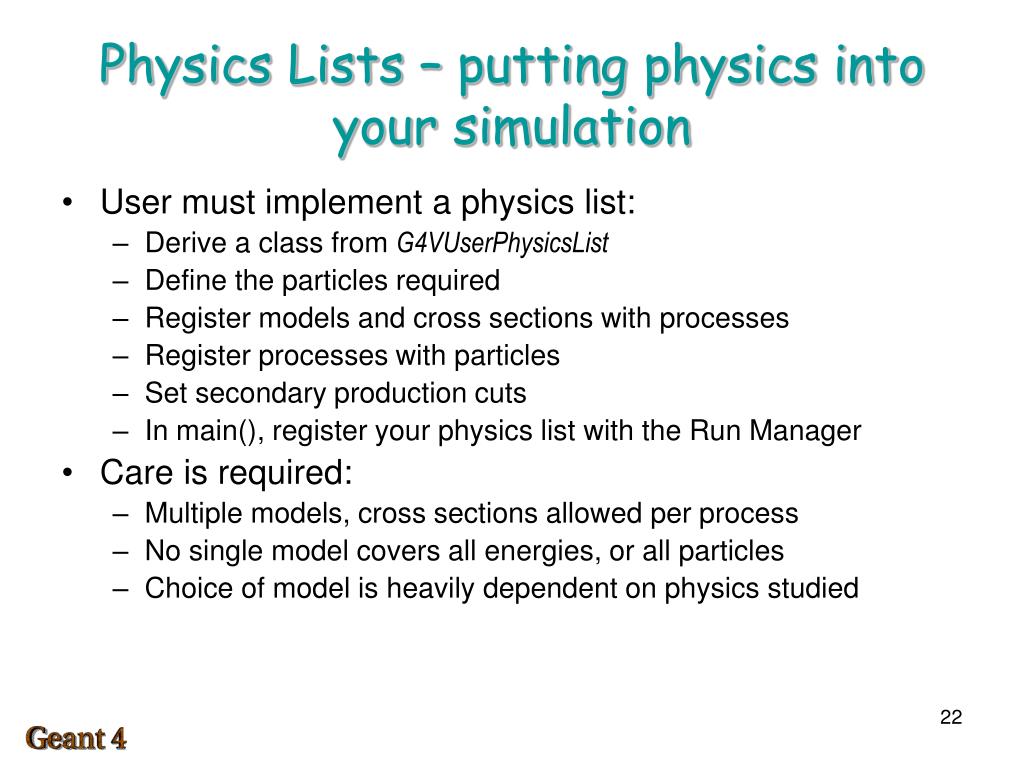

  22. Physics Lists – putting physics into your simulation • User must implement a physics list: • Derive a class from G4VUserPhysicsList • Define the particles required • Register models and cross sections with processes • Register processes with particles • Set secondary production cuts • In main(), register your physics list with the Run Manager • Care is required: • Multiple models, cross sections allowed per process • No single model covers all energies, or all particles • Choice of model is heavily dependent on physics studied

  23. Physics lists by use case • Geant4 recommendation: • Use example physics lists • Go to Geant4 home page > Site Index > physics lists • Many hadronic physics lists available including: • Low and high energy nucleon penetration shielding • Low energy dosimetric applications • Medical neutron applications • Low background experiments (underground)

  24. Code Example (1/2) void MyPhysicsList::ConstructProton() { G4ParticleDefinition* proton = G4Proton::ProtonDefinition(); G4ProcessManager* protonProcessManager = proton->GetProcessManager(); // Elastic scattering G4HadronElasticProcess* protonElasticProcess = new G4HadronElasticProcess(); G4LElastic* protonElasticModel = new G4LElastic(); protonElasticProcess->RegisterMe(protonElasticModel); protonProcessManager->AddDiscreteProcess(protonElasticProcess); ...

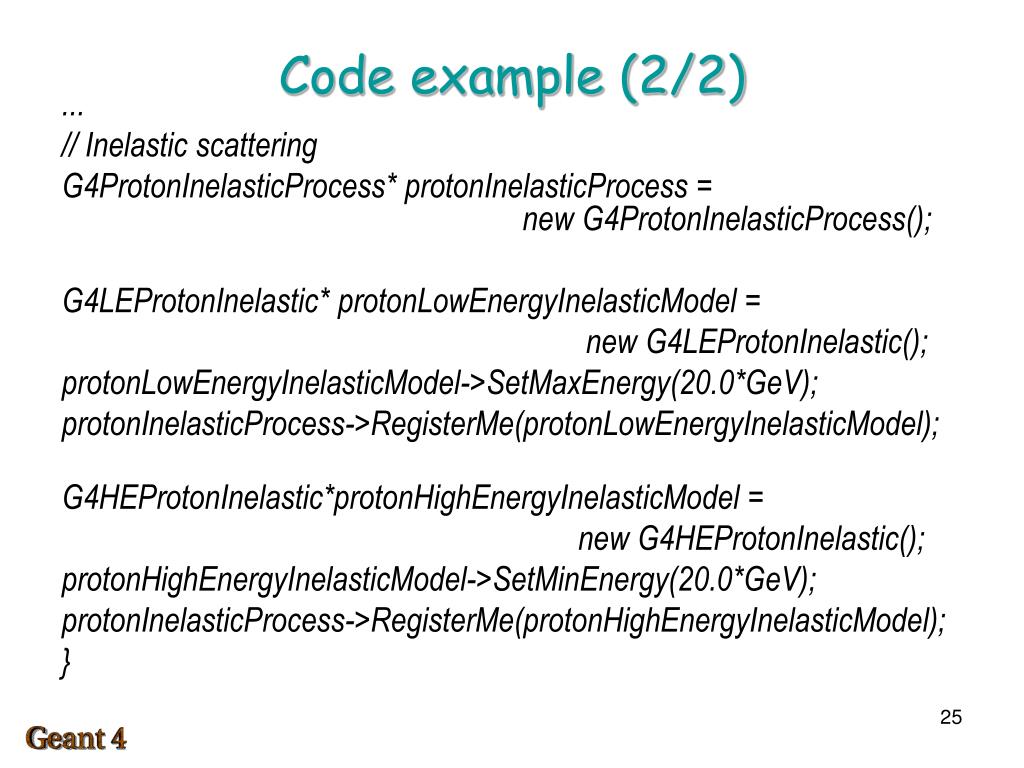

  25. Code example (2/2) ... // Inelastic scattering G4ProtonInelasticProcess* protonInelasticProcess = new G4ProtonInelasticProcess(); G4LEProtonInelastic* protonLowEnergyInelasticModel = new G4LEProtonInelastic(); protonLowEnergyInelasticModel->SetMaxEnergy(20.0*GeV); protonInelasticProcess->RegisterMe(protonLowEnergyInelasticModel); G4HEProtonInelastic*protonHighEnergyInelasticModel = new G4HEProtonInelastic(); protonHighEnergyInelasticModel->SetMinEnergy(20.0*GeV); protonInelasticProcess->RegisterMe(protonHighEnergyInelasticModel); }

  26. Gean3.21 based Geant4 LEP model pion production from 730 MeV proton on Carbon

  27. Bertini cascade model pion production from 730 MeV proton on Carbon

  28. Bertini cascade model nuclei fragmet production from 170 MeV proton on Uranium

  29. Double differential cross-section for neutrons produced by 256 MeV protons.

  30. Comparison of differential pion yields for positive and negative pions in pion Magnesium reactions at 320 GeV lab momentum. The dots are data and the open circles are Monte Carlo predictions by G4QGSModel.

  31. Geant4 simulation of gammas from 14 MeV neutron capture on uranium.

  32. Summary (1) • Geant4 hadronic physics allows user to choose how a physics process should be implemented: • cross sections • models • Many processes, models and cross sections to choose from • hadronic framework makes it easier for users to add more

  33. Summary (2) • Parameterized models (LEP, HEP) handle the most particle types over the largest energy range • based on fits to data and some theory • not very detailed • fast • Cascade models (Bertini, Binary) are valid for fewer particles over a smaller energy range • more theory-based • more detailed • slower

  34. Low energy (< 20MeV) neutrons physics • High Precision Neutron Models (and Cross Section Data Sets) • G4NDL • ENDF • Elastic • Inelastic • Capture • Fission • NeutronHPorLEModel(s)

  35. G4NDL(Geant4 Neutron Data Library) • The neutron data files for High Precision Neutron models • The data are including both cross sections and final states. • The data are derived evaluations based on the following evaluated data libraries (in alphabetic order) • Brond-2.1 • CENDL2.2 • EFF-3 • ENDF/B-VI.0, 1, 4 • FENDL/E2.0 • JEF2.2 • JENDL-FF • JENDL-3.1,2 • MENDL-2 • The data format is similar ENDF, however it is not equal to.

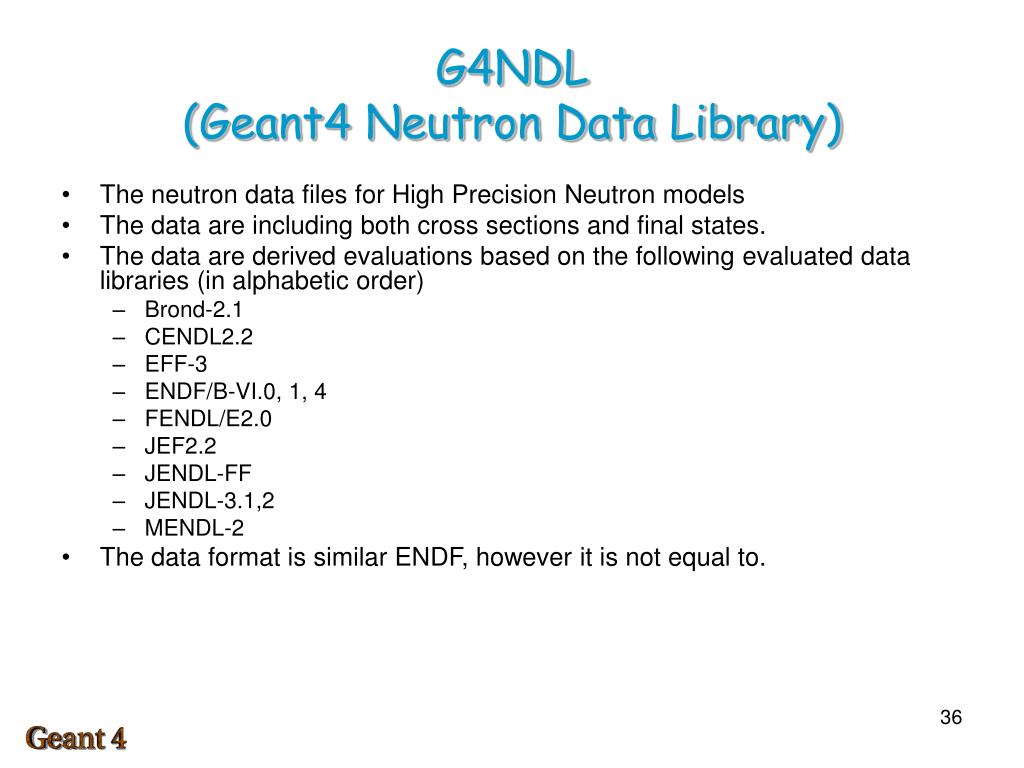

  36. Evaluated Nuclear Data File-6 • “ENDF” is used in two meanings • One is Data Formats and Procedures • How to write Nuclear Data files • How to use the Nuclear Data files • The other is Name of recommended libraries of USA nuclear data projects. • ENDF/B-VI.8 (latest) • 313 isotopes including 5 isomers • 15 elements • After G4NDL3.8 we concentrated translation from ENDF library. • No more evaluation by ourselves.

  37. Ion PhysicsInelastic Reactions • Cross Sections • Model • G4BinaryLightIon • G4WilsonAbrasion

  38. Cross Sections • Many cross section formulae for NN collisions are included in Geant4 • Tripathi, Shen, Kox and Sihver • These are empirical and parameterized formulae with theoretical insights. • G4GeneralSpaceNNCrossSection was prepared to assist users in selecting the appropriate cross section formula.

  39. References to NN Cross Section Formulae implemented in Geant4 • Tripathi Formula • NASA Technical Paper TP-3621 (1997) • Tripathi Light System • NASA Technical Paper TP-209726 (1999) • Kox Formula • Phys. Rev. C 35 1678 (1987) • Shen Formula • Nuclear Physics. A 49 1130 (1989) • Sihver Formula • Phys. Rev. C 47 1225 (1993)

  40. Ion PhysicsRadio Active Decay • To simulate the decay of radioactive nuclei • Empirical and data-driven model • α, β+, β- decay electron capture (EC) are implemented • Data (RadioactiveDecay) derived from Evaluated Nuclear Structure Data File (ENSDF)  • nuclear half-lives • nuclear level structure for the parent or daughter nuclide • decay branching ratios • the energy of the decay process. • If the daughter of a nuclear decay is an excited isomer, its prompt nuclear de-excitation is treated using the G4PhotonEvapolation • Internal conversion is also implemented

  41. Radio Active Decay • Analog sampling is default • Biasing sampling also implemented • The decays occur more frequently at certain times • For a given decay mode the branching ratios can be sampled with equal probability • split parent nuclide into a user-defined number of nuclides

  42. Radio Active DecayImportant notice for v8.0 users • Problem report #843 • Previously, G4GenericIon was derived from G4VIon, which overloaded GetAtomicMass() to return the baryon number. G4GenericIon now inherits from G4ParticleDefinition, whose GetAtomicMass() returns a (default) atomic mass number of 0. This makes G4RadioactiveDecay::IsApplicable(G4GenericIon*) fail (atomic mass is out-of-range), and hence renders G4RadioactiveDecay essentially unusable: any physics lists attempting to add G4RadioactiveDecay to ions will exit with an error. A fix users can apply until this bug is fixed is to get the G4GenericIon and call SetAtomicMass(1) before adding G4RadioactiveDecay. • ------- Additional Comments From kurasige@phys.sci.kobe-u.ac.jp 02/24/06 22:05 ------- Fixed tag of particles-V08-00-01 will be included next release. • Before the next release, users need to call SetAtomicMass(1) for GenericIon before adding G4RadioactiveDecay.

  43. Summary • High Precision Neutron models are data driven models and its used evaluated data libraries. • However the library is not complete because there are no data for several key elements. • Geant4 has abundant processes for Ion interactions with matter and also without matter. • Without any extra modules, users may simulate ion transportation in the complex and realistic geometries of Geant4. • Validation has begun and the first results show reasonable agreement with data. This work continues.

  44. Conclusion • Geant4 provides a large number of hadronic physics models for use in simulation • Cross sections, either calculated or from databases, are available to be assigned to processes • Interactions are implemented by models which are then assigned to processes. • For hadrons there are many models to choose from, so physics lists are provided by use-case
