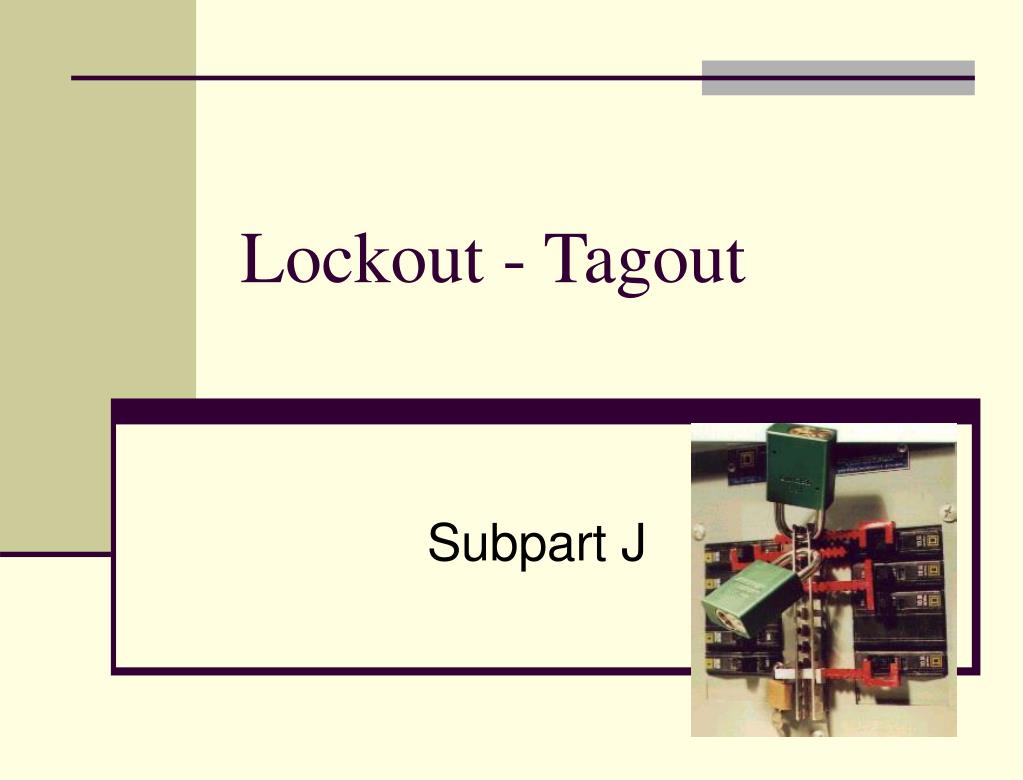

  1. Lockout - Tagout Subpart J

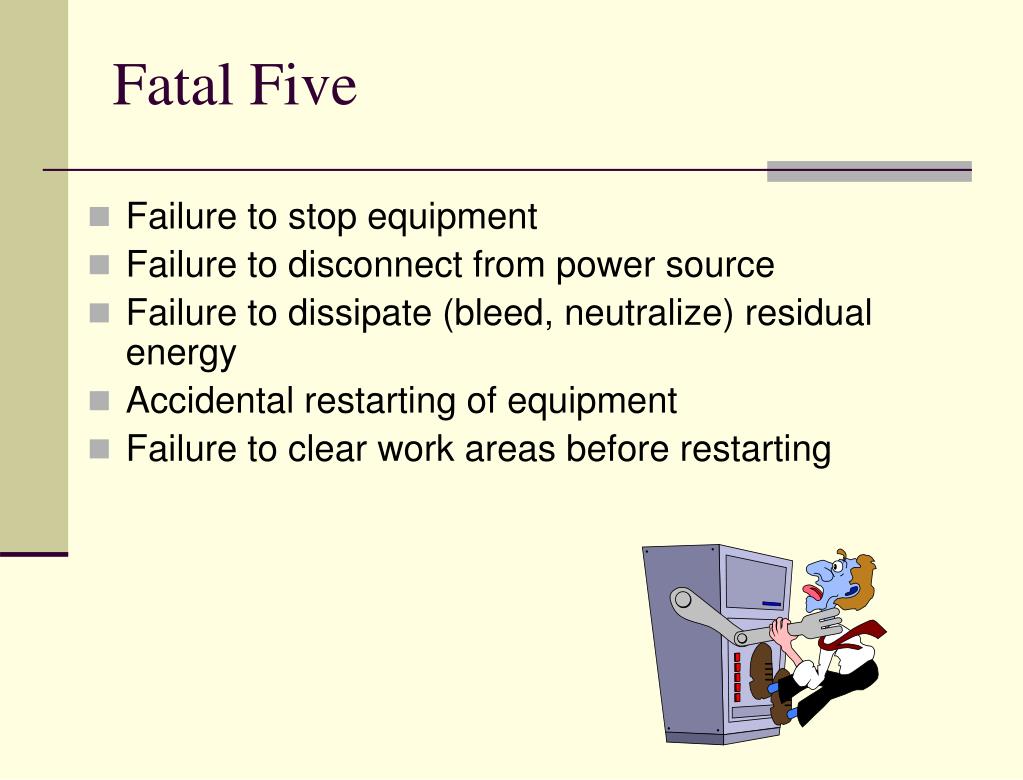

  2. Fatal Five • Failure to stop equipment • Failure to disconnect from power source • Failure to dissipate (bleed, neutralize) residual energy • Accidental restarting of equipment • Failure to clear work areas before restarting

  3. Scope and Application • Applies to general industry • Covers operators and service personnel

  4. When is LOTO Required? • Servicing or maintaining equipment where: • Hazardous energy exists • Unexpected start-up could occur • Either of these could harm an employee

  5. LOTO Shall Be Used When: • Employees are required to remove or bypass a safety device • Employees are required to place any part of their body in harm’s way • Employees are exposed to hazardous energy

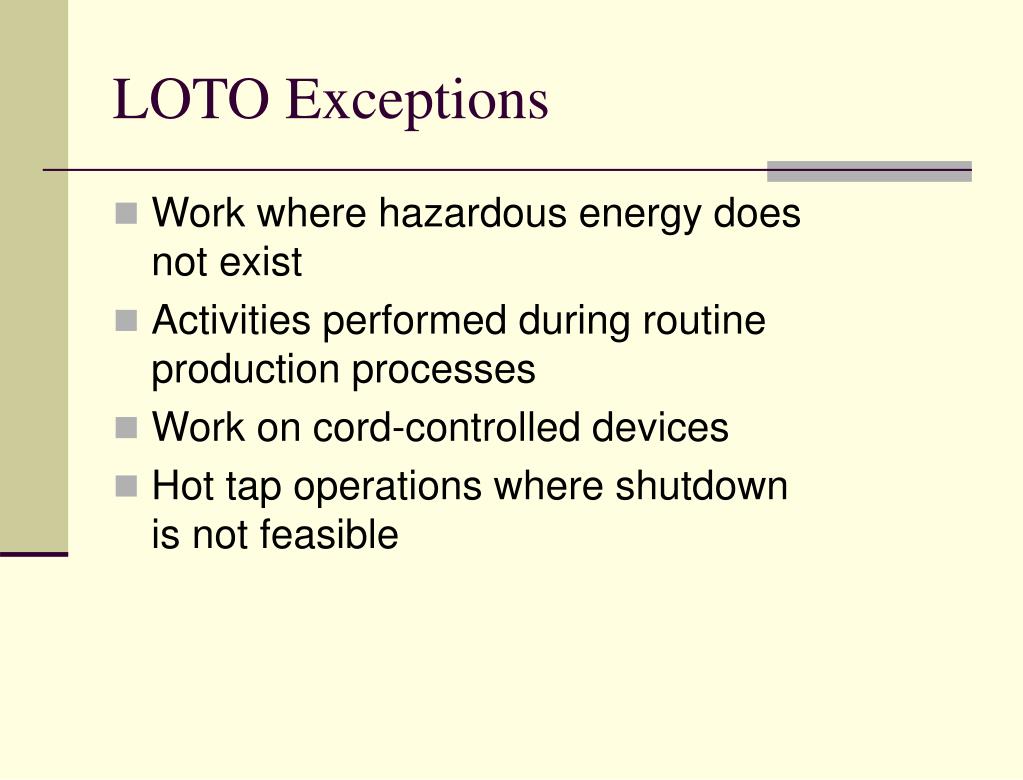

  6. LOTO Exceptions • Work where hazardous energy does not exist • Activities performed during routine production processes • Work on cord-controlled devices • Hot tap operations where shutdown is not feasible

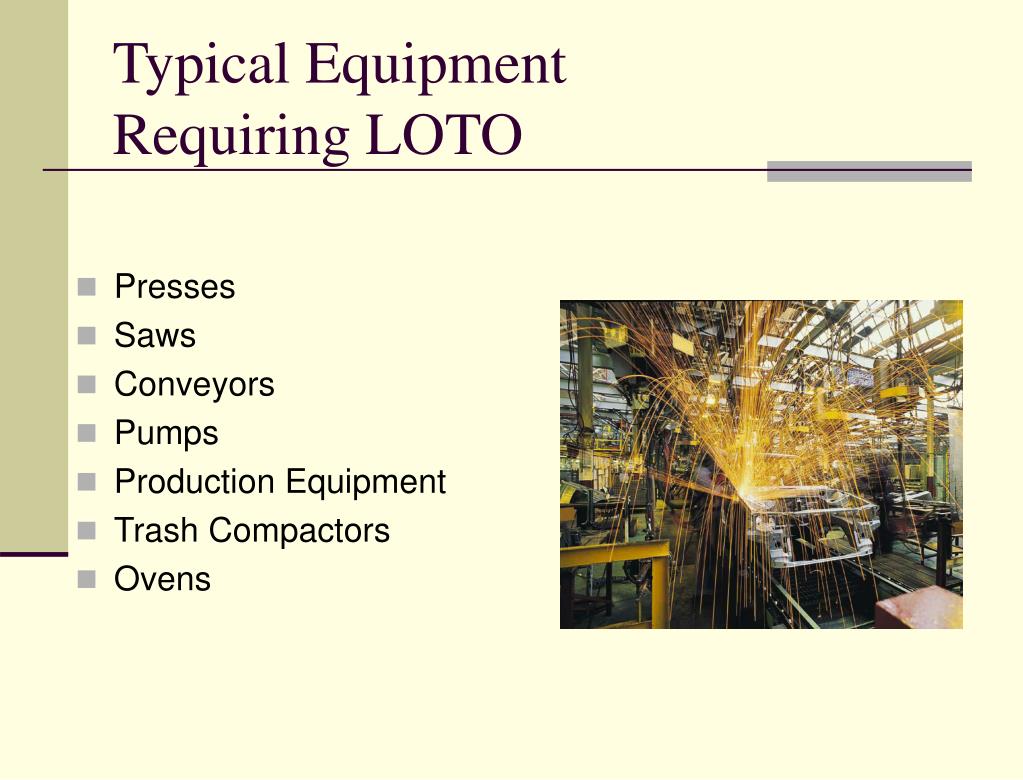

  7. Typical Equipment Requiring LOTO • Presses • Saws • Conveyors • Pumps • Production Equipment • Trash Compactors • Ovens

  8. Mechanical Chemical Thermal Hydraulic Pneumatic Electrical Gas Water Other stored energy (i.e. springs, capacitors) Energy Sources

  9. Affected Employees Employees who: • Operate • Work around • Occasionally adjust equipment that is subject to lockout tagout

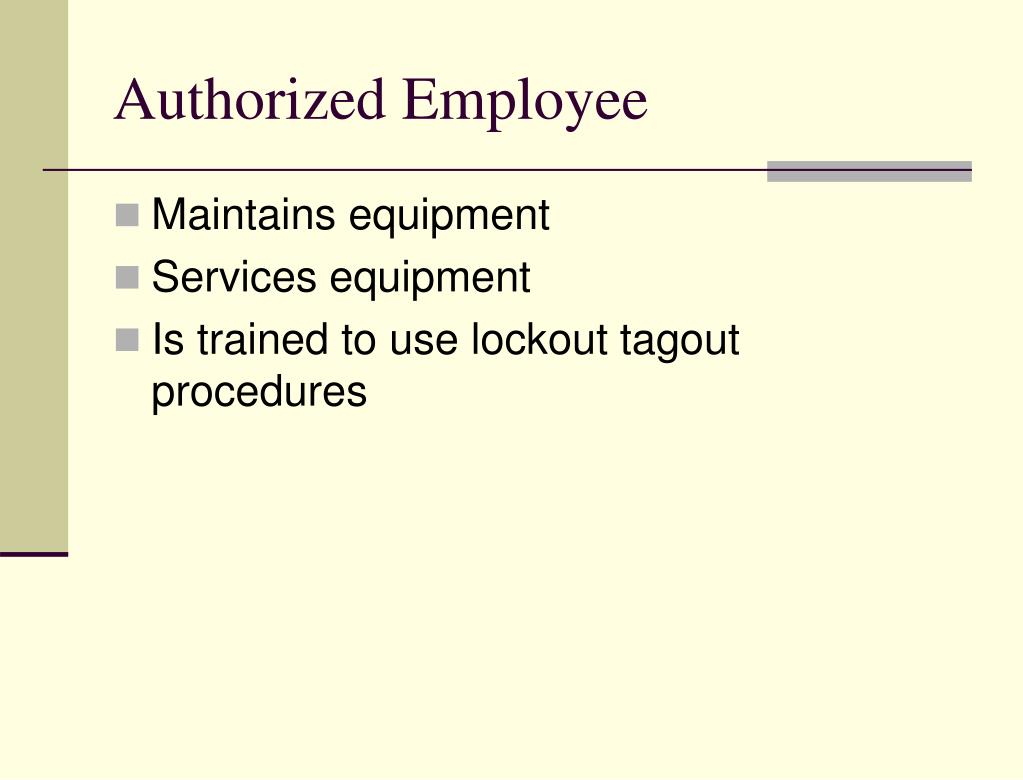

  10. Authorized Employee • Maintains equipment • Services equipment • Is trained to use lockout tagout procedures

  11. Energy Control Program • Energy control procedures • Periodic inspections • Employee training

  12. Procedures • Must clearly and specifically outline the: • Scope • Purpose • Authorization • Rules • Lockout-tagout techniques • Means to enforce compliance

  13. Procedures • Statement of intended use of the procedure • Specific energy control steps for • Shutting down • Isolating • Blocking • Securing equipment

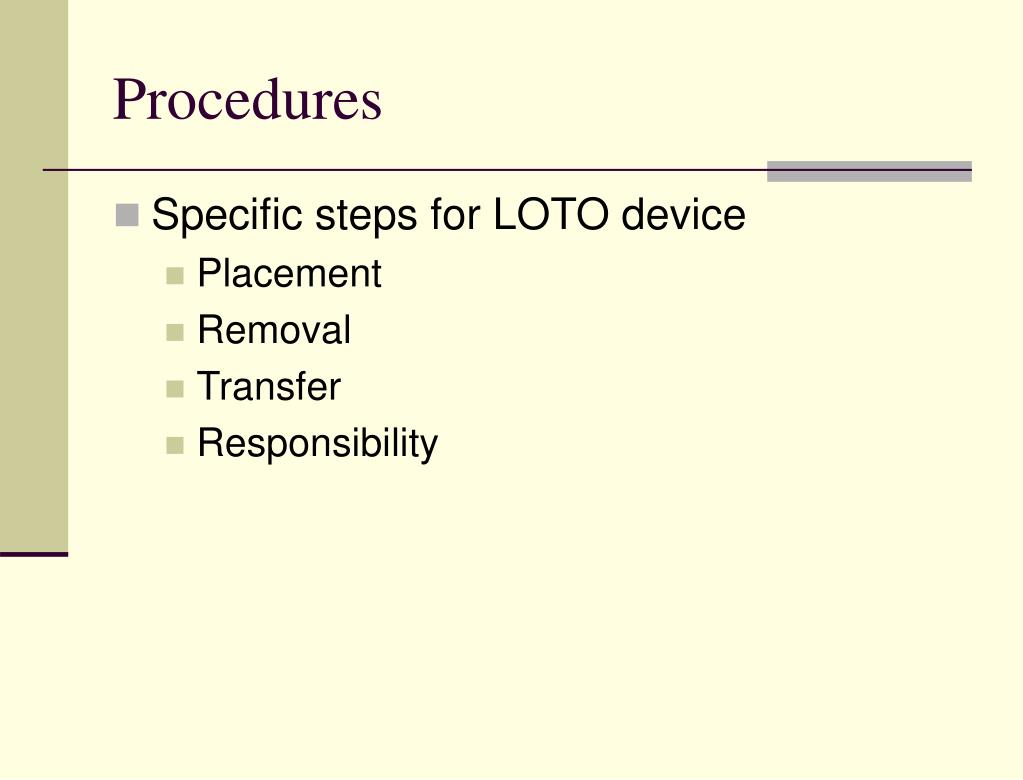

  14. Procedures • Specific steps for LOTO device • Placement • Removal • Transfer • Responsibility

  15. Procedures • Requirements for testing equipment to determine and verify the effectiveness of lockout devices, tagout devices, and other energy control measures

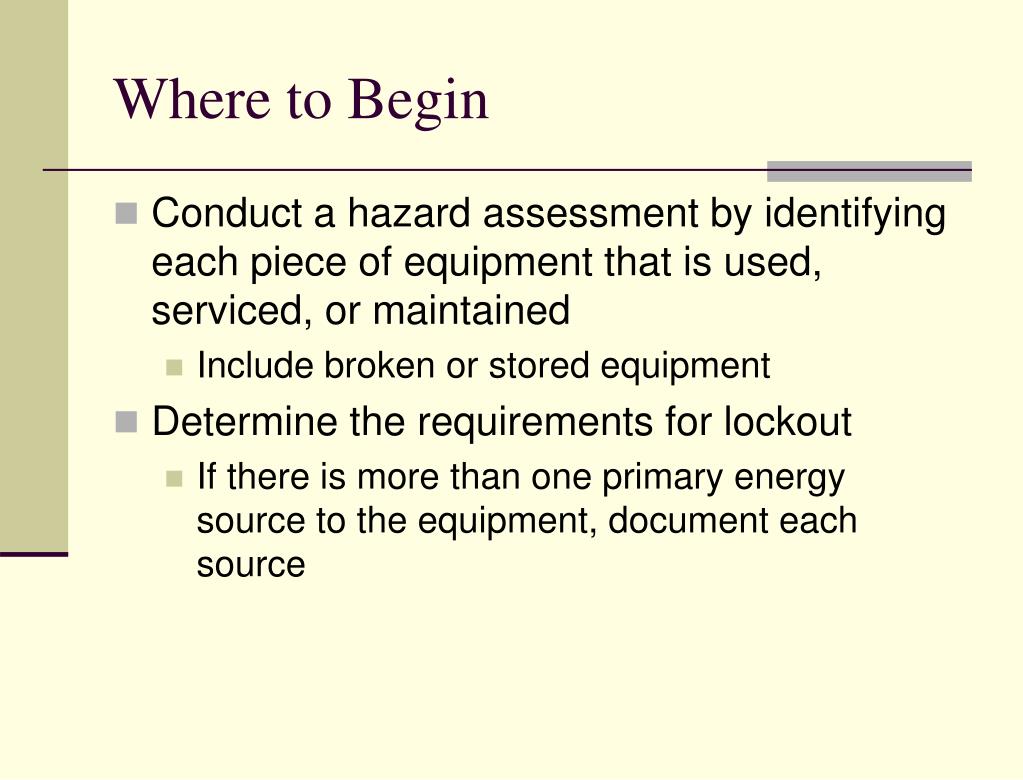

  16. Where to Begin • Conduct a hazard assessment by identifying each piece of equipment that is used, serviced, or maintained • Include broken or stored equipment • Determine the requirements for lockout • If there is more than one primary energy source to the equipment, document each source

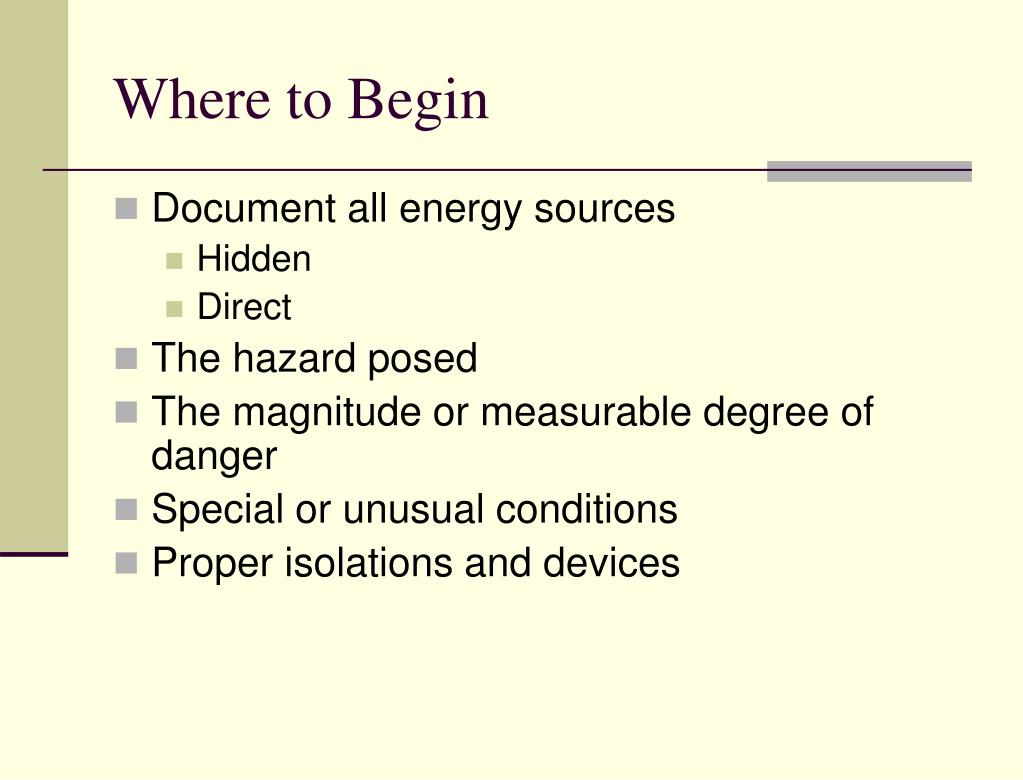

  17. Where to Begin • Document all energy sources • Hidden • Direct • The hazard posed • The magnitude or measurable degree of danger • Special or unusual conditions • Proper isolations and devices

  18. Types of Lockout Devices • Locks • Blocks • Chains • Multilock hasps • Wheel valve covers • Ball valve covers

  19. Requirements For Lockout/Tagout Devices • Durable • Standardized • Substantial • Identifiable

  20. Periodic Inspections • At least annually • Ensure procedures are implemented properly • Ensure employees are familiar with their responsibilities • Correct any deviations or inadequacies identified

  21. Designating an Inspector • Periodic inspections must be performed by an authorized employee other than the one(s) using the energy control procedure • Who can inspect • Department manager • Plant management • Safety manager • Others

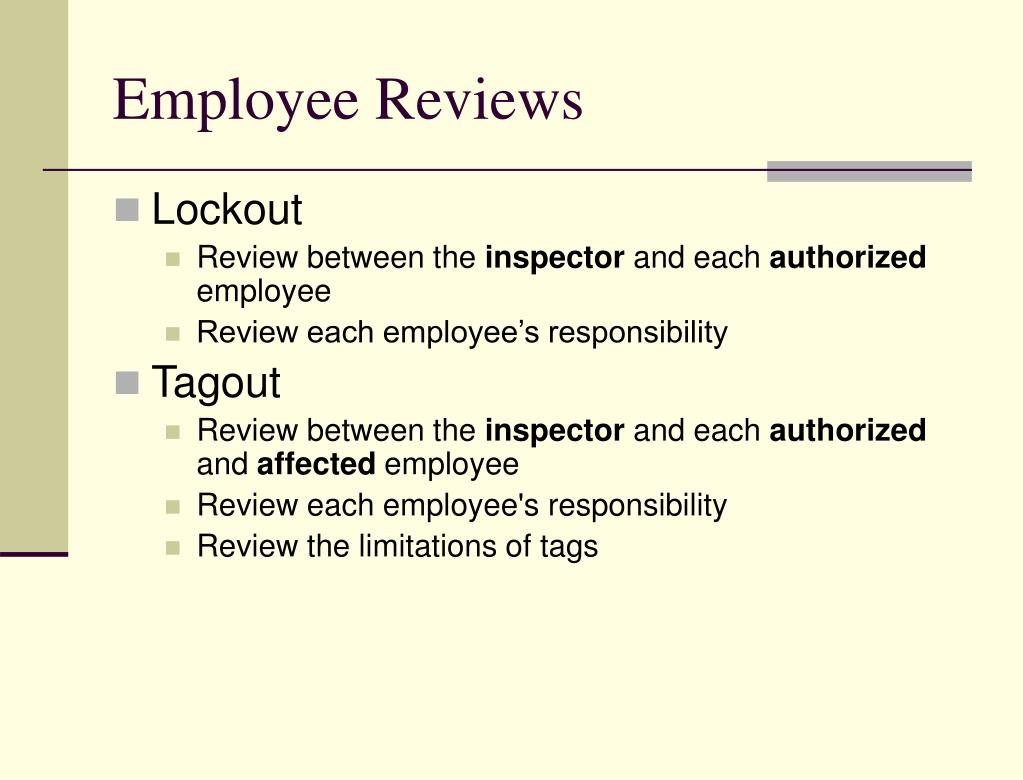

  22. Employee Reviews • Lockout • Review between the inspector and each authorized employee • Review each employee’s responsibility • Tagout • Review between the inspector and each authorized and affected employee • Review each employee's responsibility • Review the limitations of tags

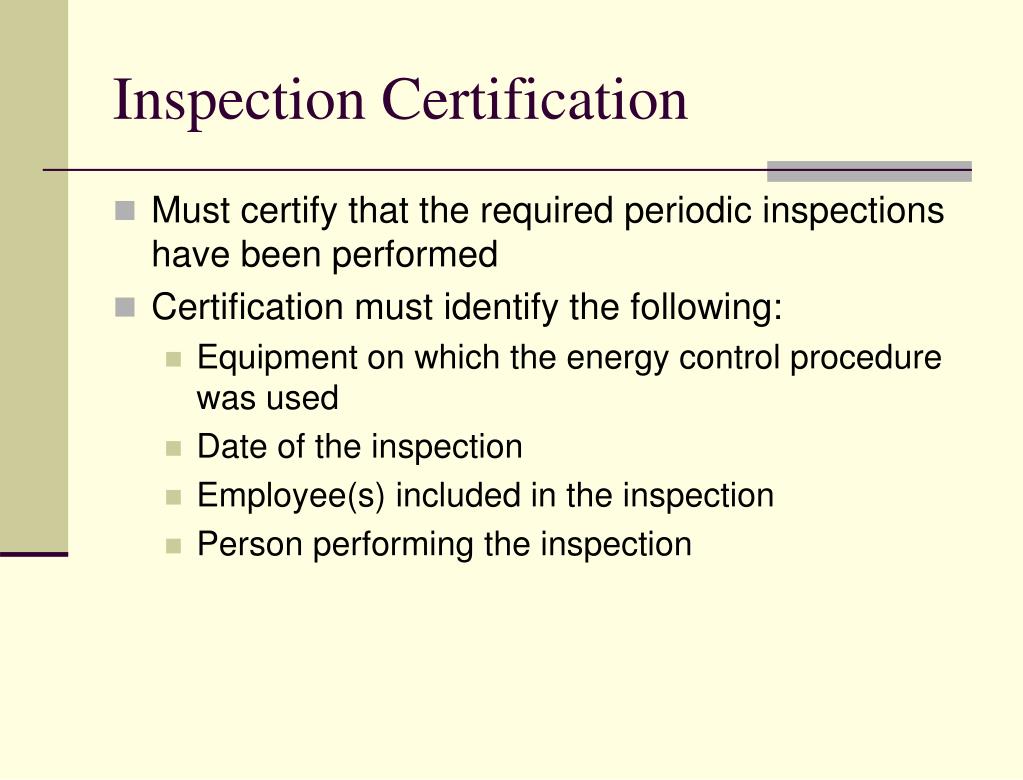

  23. Inspection Certification • Must certify that the required periodic inspections have been performed • Certification must identify the following: • Equipment on which the energy control procedure was used • Date of the inspection • Employee(s) included in the inspection • Person performing the inspection

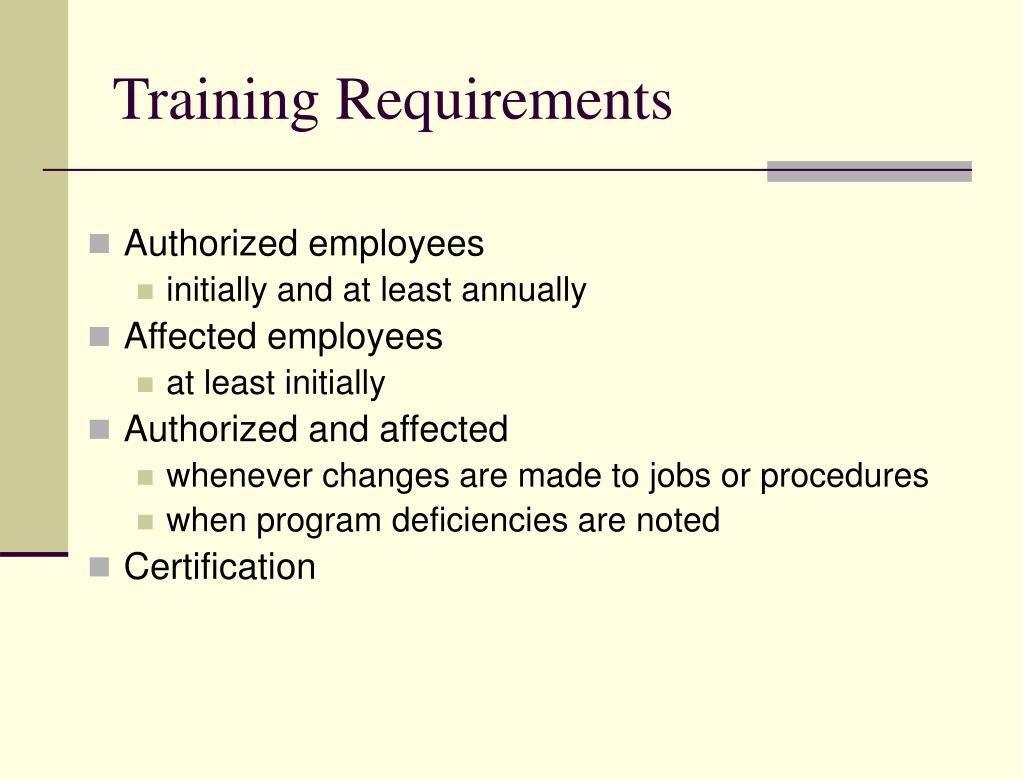

  24. Training Requirements • Authorized employees • initially and at least annually • Affected employees • at least initially • Authorized and affected • whenever changes are made to jobs or procedures • when program deficiencies are noted • Certification

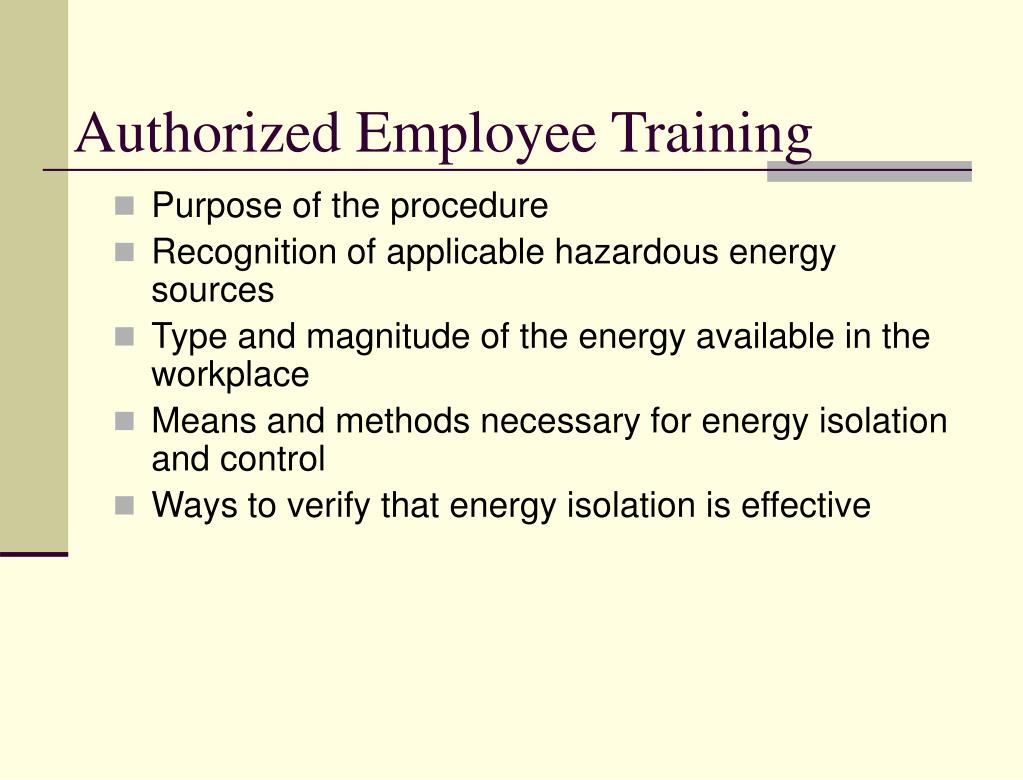

  25. Authorized Employee Training • Purpose of the procedure • Recognition of applicable hazardous energy sources • Type and magnitude of the energy available in the workplace • Means and methods necessary for energy isolation and control • Ways to verify that energy isolation is effective

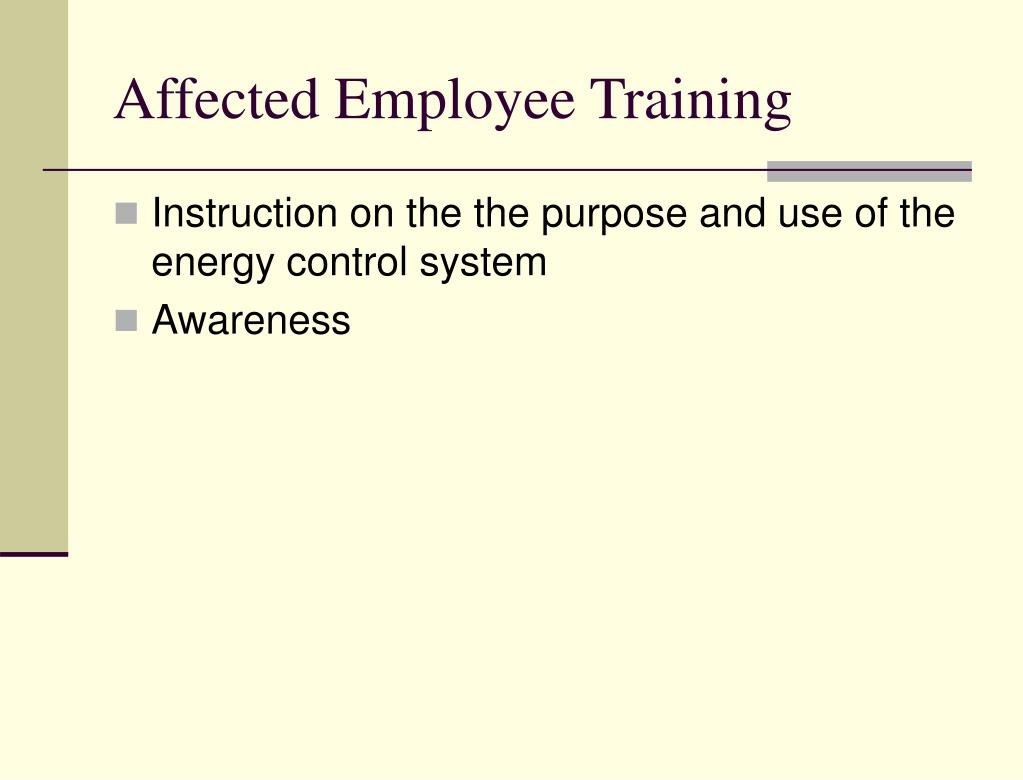

  26. Affected Employee Training • Instruction on the the purpose and use of the energy control system • Awareness

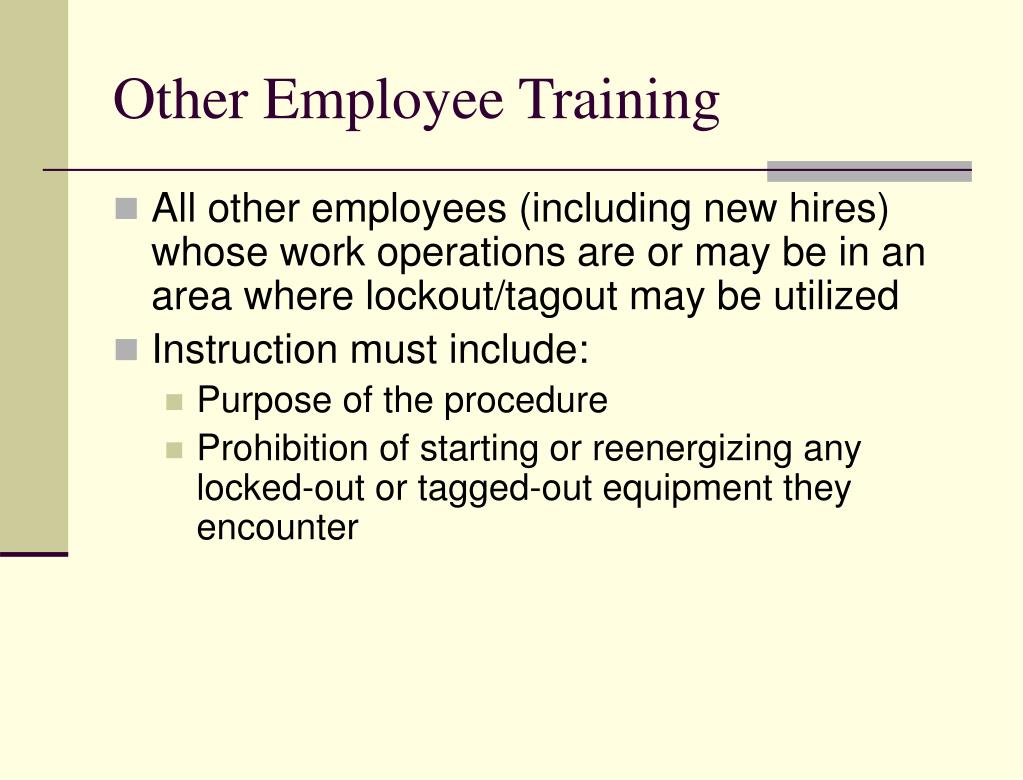

  27. Other Employee Training • All other employees (including new hires) whose work operations are or may be in an area where lockout/tagout may be utilized • Instruction must include: • Purpose of the procedure • Prohibition of starting or reenergizing any locked-out or tagged-out equipment they encounter

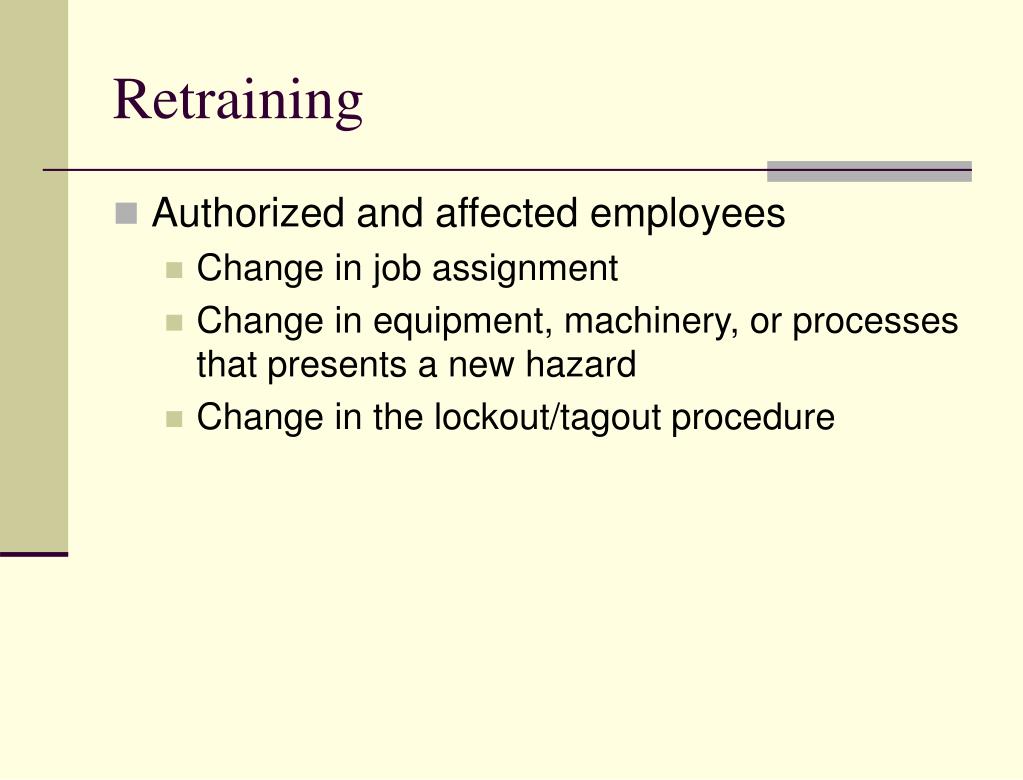

  28. Retraining • Authorized and affected employees • Change in job assignment • Change in equipment, machinery, or processes that presents a new hazard • Change in the lockout/tagout procedure

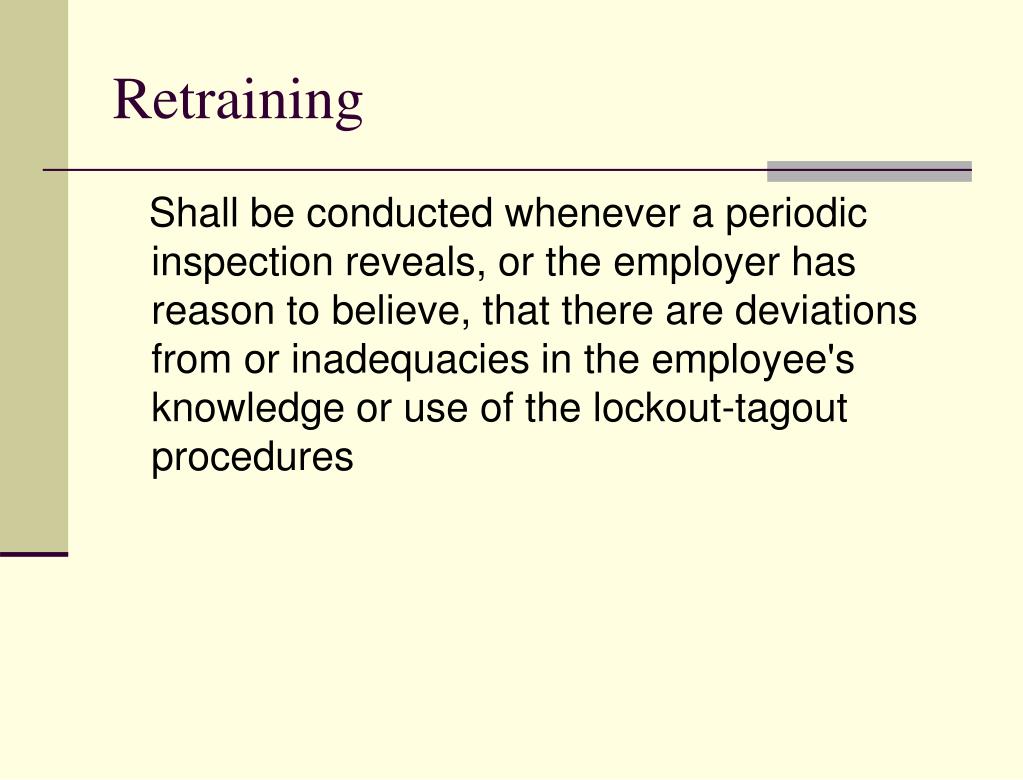

  29. Retraining Shall be conducted whenever a periodic inspection reveals, or the employer has reason to believe, that there are deviations from or inadequacies in the employee's knowledge or use of the lockout-tagout procedures

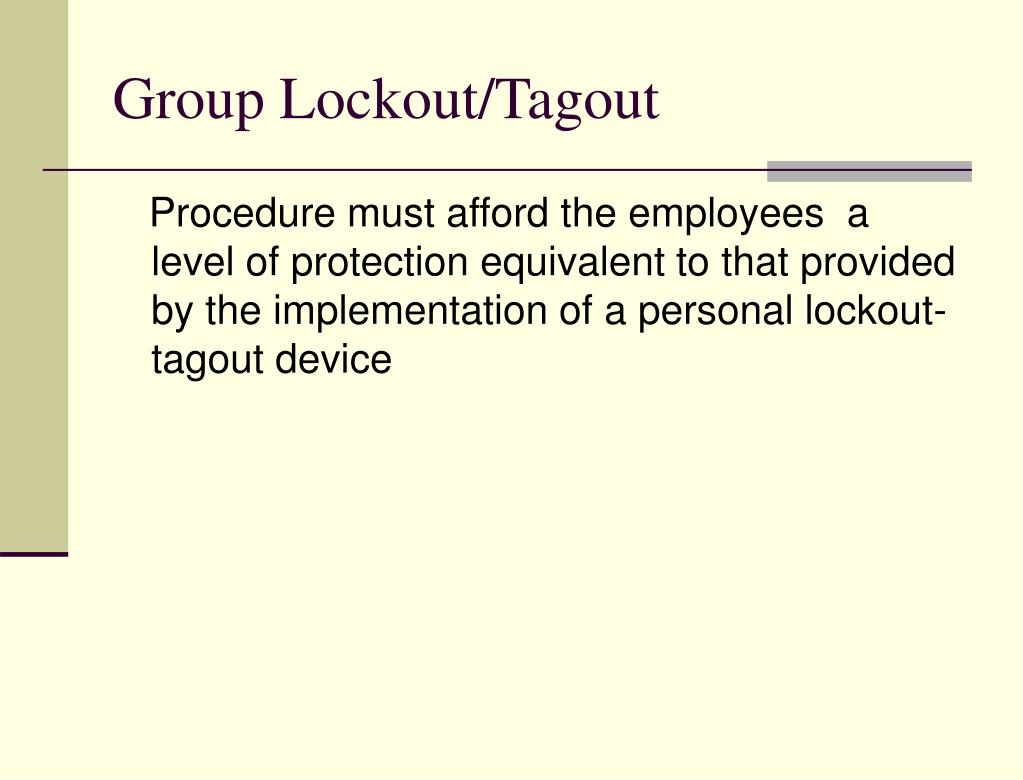

  30. Group Lockout/Tagout Procedure must afford the employees a level of protection equivalent to that provided by the implementation of a personal lockout-tagout device

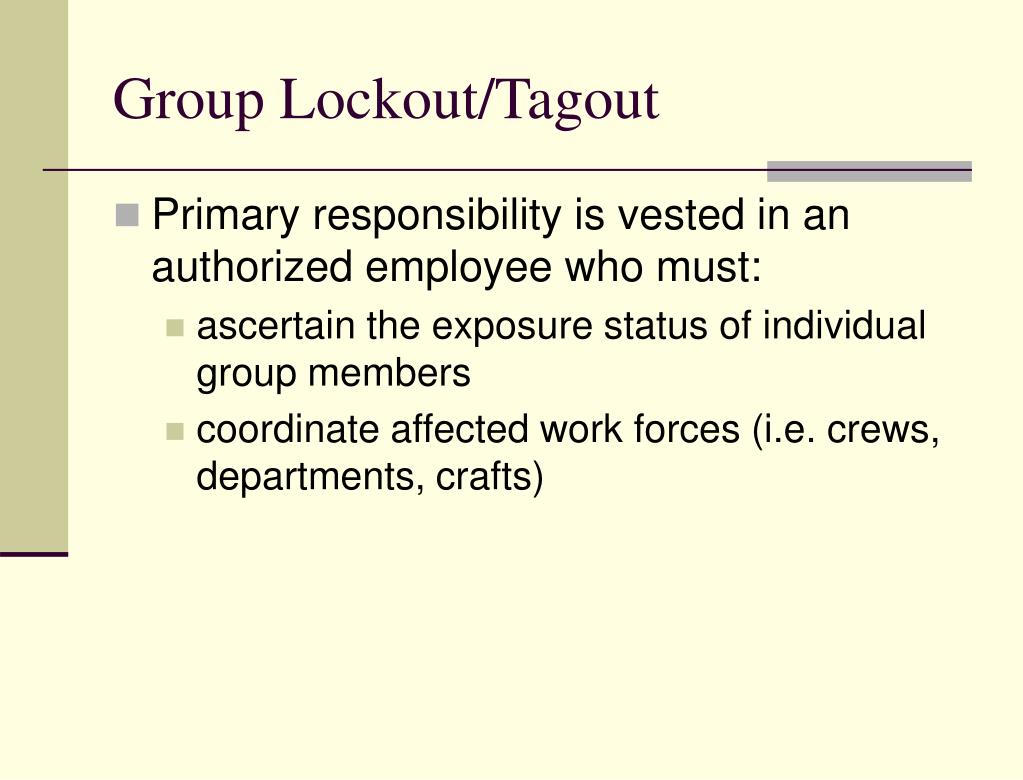

  31. Group Lockout/Tagout • Primary responsibility is vested in an authorized employee who must: • ascertain the exposure status of individual group members • coordinate affected work forces (i.e. crews, departments, crafts)

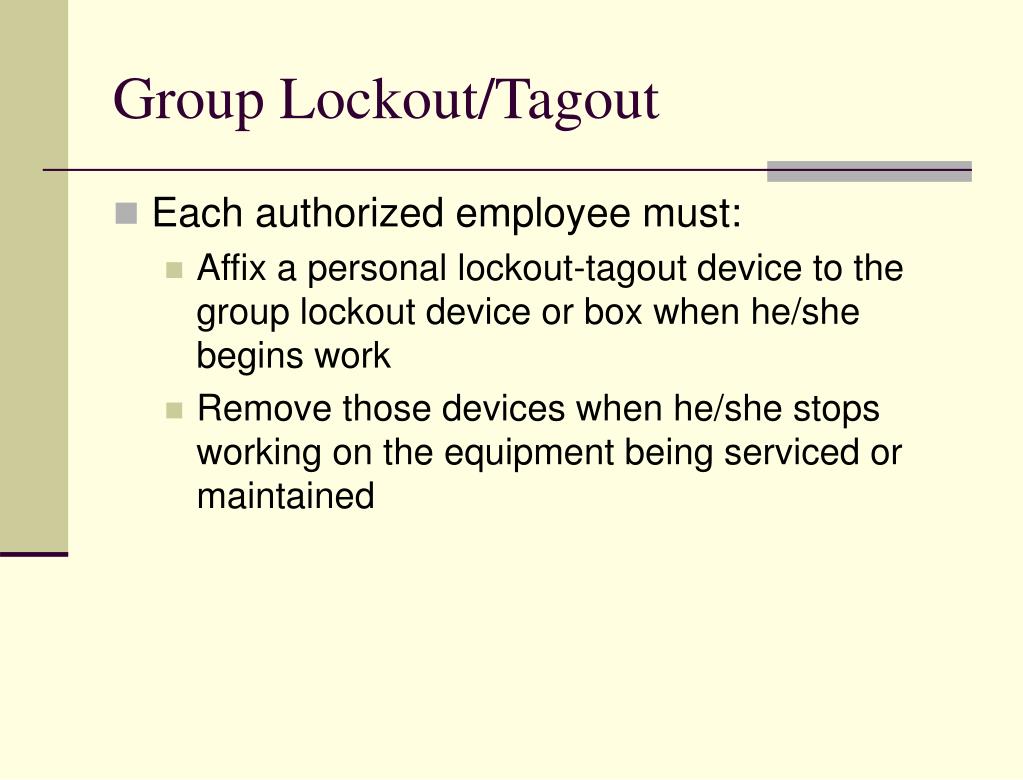

  32. Group Lockout/Tagout • Each authorized employee must: • Affix a personal lockout-tagout device to the group lockout device or box when he/she begins work • Remove those devices when he/she stops working on the equipment being serviced or maintained

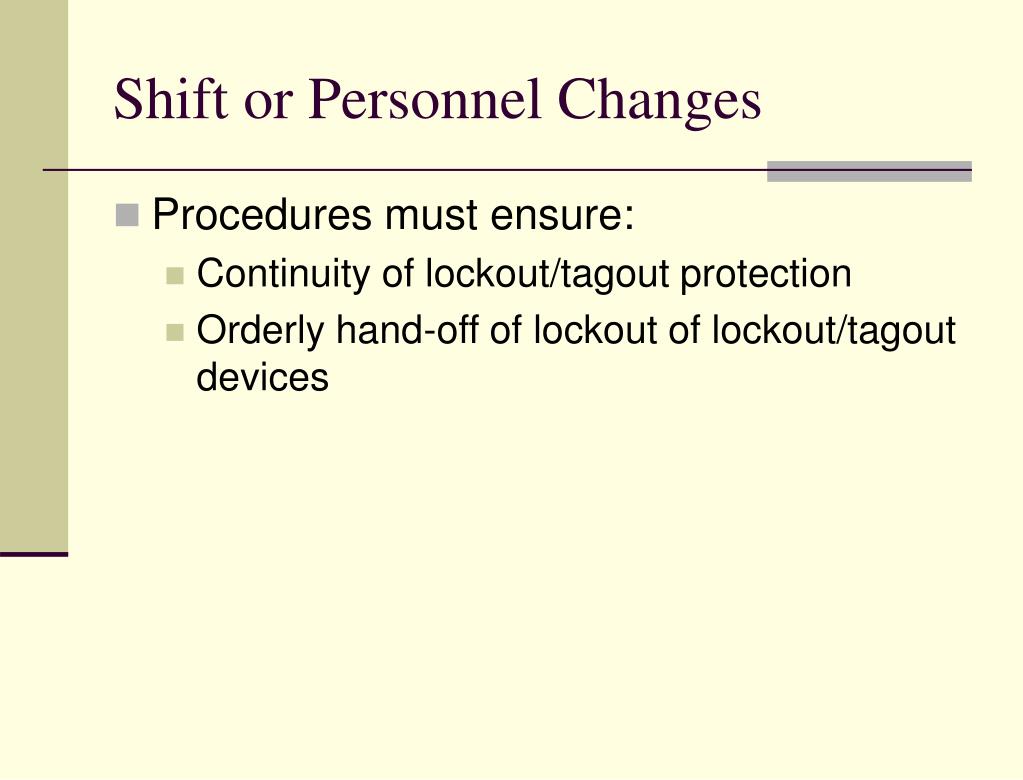

  33. Shift or Personnel Changes • Procedures must ensure: • Continuity of lockout/tagout protection • Orderly hand-off of lockout of lockout/tagout devices

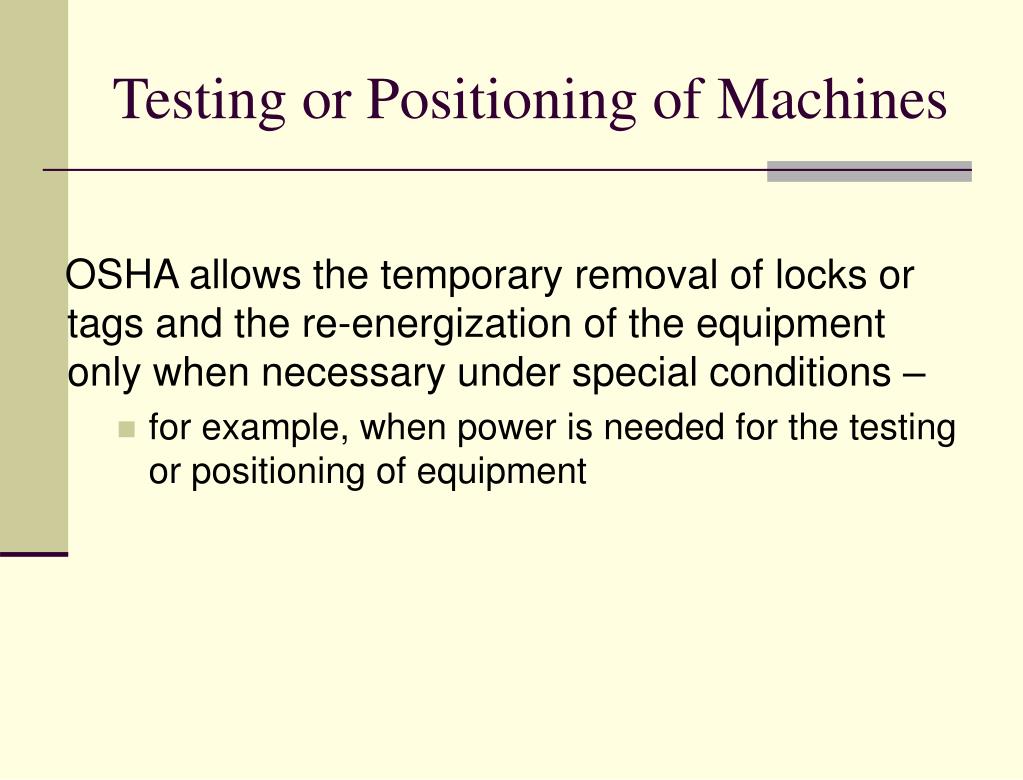

  34. Testing or Positioning of Machines OSHA allows the temporary removal of locks or tags and the re-energization of the equipment only when necessary under special conditions – • for example, when power is needed for the testing or positioning of equipment

  35. Testing or Positioning of Machines • Must be conducted in following sequence: • Clear the equipment of tools and material • Vacate employees from the equipment area • Remove the lockout-tagout device as specified in the standard (the authorized employee who applied it must remove it) • Energize the equipment and proceed with testing or positioning • De-energize all systems, isolate the equipment from the energy source, and reapply the lockout-tagout devices

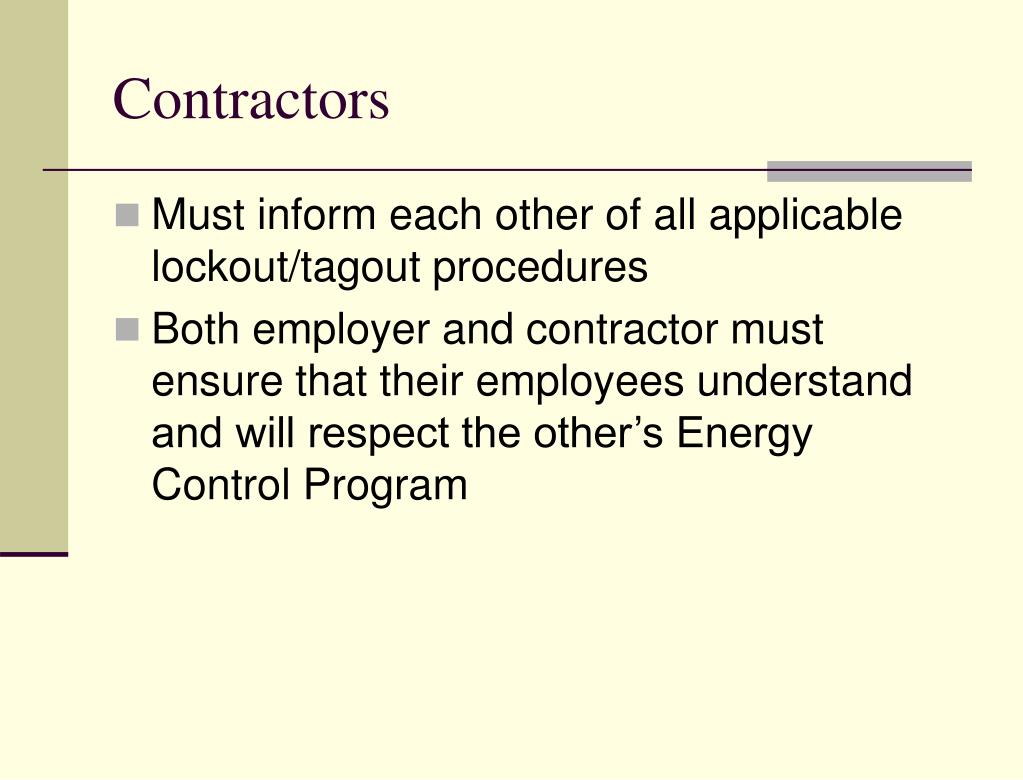

  36. Contractors • Must inform each other of all applicable lockout/tagout procedures • Both employer and contractor must ensure that their employees understand and will respect the other’s Energy Control Program

  37. Typical Shutdown Procedure • Notify affected employees • Use the specific procedures as outlined for the appropriate situation • Shut off energy source(s) to affected equipment • Use normal stopping or running procedures for the machine • Isolate the equipment from the energy source

  38. Typical Shutdown Procedures • Affix locks and tags to each energy source controlling device • Relieve all stored energy from capacitor banks, springs, compressed air, steam, hydraulics, etc. • Verify isolation of energy has occurred by trying equipment

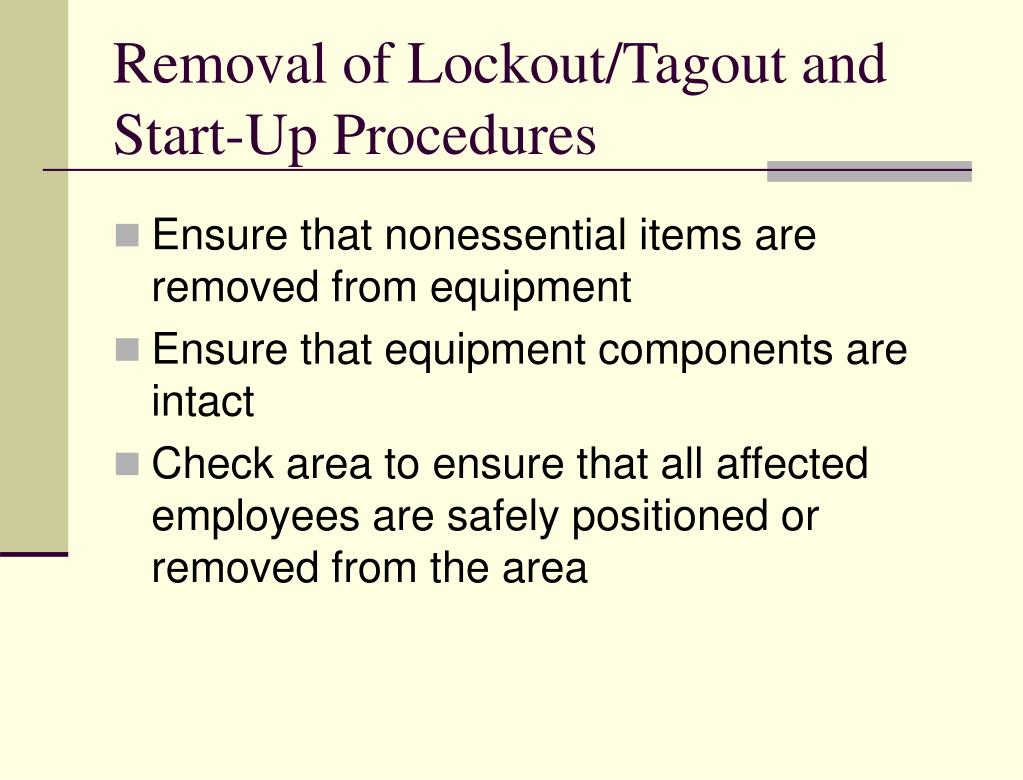

  39. Removal of Lockout/Tagout and Start-Up Procedures • Ensure that nonessential items are removed from equipment • Ensure that equipment components are intact • Check area to ensure that all affected employees are safely positioned or removed from the area

  40. Removal of Lockout/Tagout and Start-Up Procedures • Notify all affected employees and site supervisor before reenergizing the equipment • Remove lockout/tagout devices • Reenergize equipment to ensure safe operation

  41. Summary • Accidents will happen • Equipment will occasionally malfunction • People will still make mistakes There is no excuse for serious injury that results from ignorance, carelessness, complacency, or lack of an Energy Control Program
