Performance Comparison of SR5500 and Competitor Equipment Using EVM Metrics

DESCRIPTION

This summary evaluates the performance of the SR5500 lab equipment against a competitor using Error Vector Magnitude (EVM) to measure signal quality. Testing involved higher modulation schemes such as 16QAM for WCDMA/HSDPA and 64QAM for WLAN. The SR5500 demonstrated superior channel fidelity with an EVM of 1.4967% rms for 16QAM, compared to 5.9286% rms from the competitor, indicating less signal degradation. For 64QAM, the SR5500 achieved -29.106 dB, outperforming the competitor's -20.895 dB, vital for maintaining standards in WLAN applications.

1 / 4

Télécharger la présentation

Performance Comparison of SR5500 and Competitor Equipment Using EVM Metrics

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

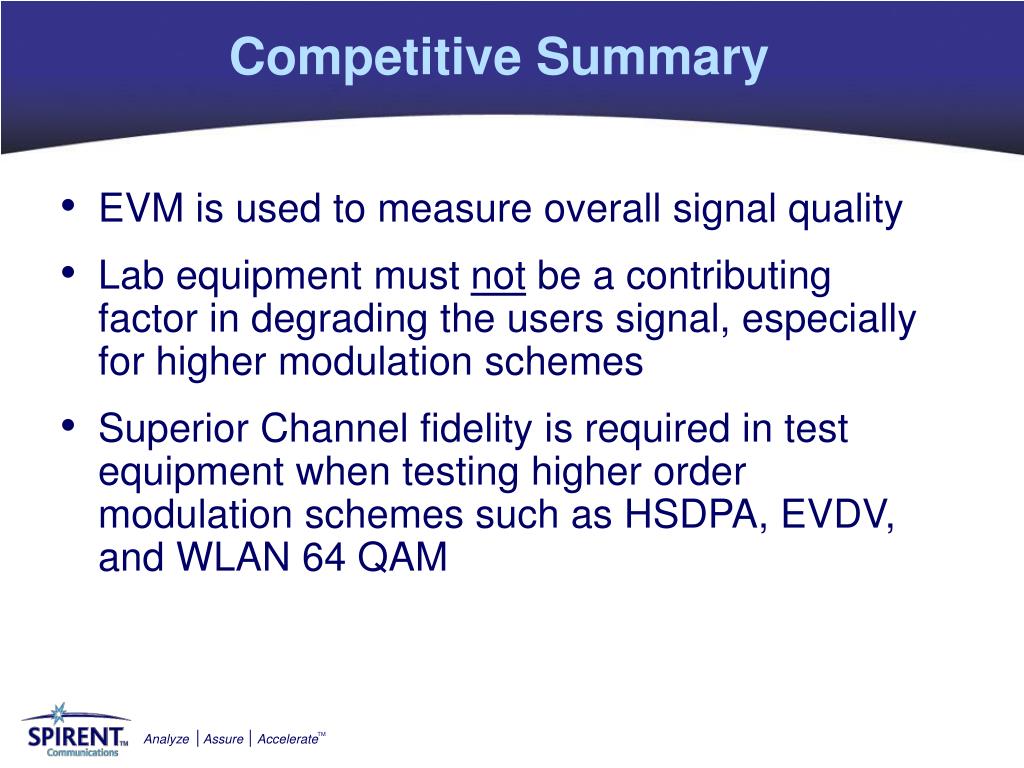

  1. Competitive Summary • EVM is used to measure overall signal quality • Lab equipment must not be a contributing factor in degrading the users signal, especially for higher modulation schemes • Superior Channel fidelity is required in test equipment when testing higher order modulation schemes such as HSDPA, EVDV, and WLAN 64 QAM

  2. Competitive Summary • WCDMA/HSDPA – 16QAM signal • A 16 QAM signal was fed thru both products resulting • SR5500 EVM = 1.4967 %rms • Competitor EVM = 5.9286 %rms SR5500 Competitor

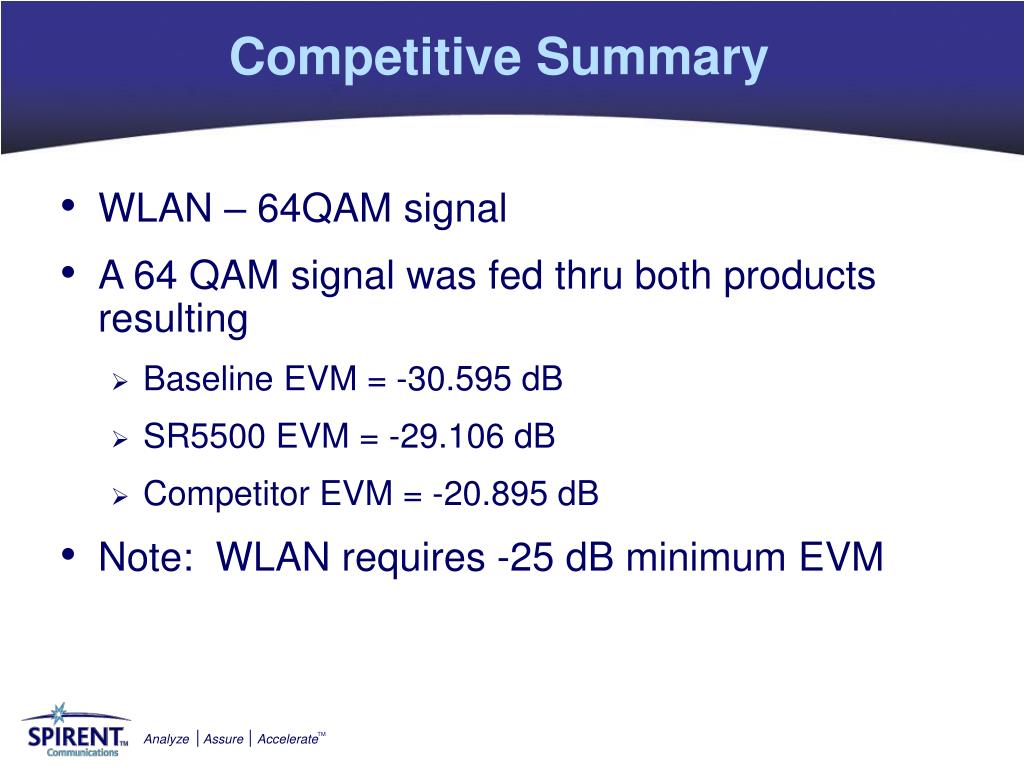

  3. Competitive Summary • WLAN – 64QAM signal • A 64 QAM signal was fed thru both products resulting • Baseline EVM = -30.595 dB • SR5500 EVM = -29.106 dB • Competitor EVM = -20.895 dB • Note: WLAN requires -25 dB minimum EVM

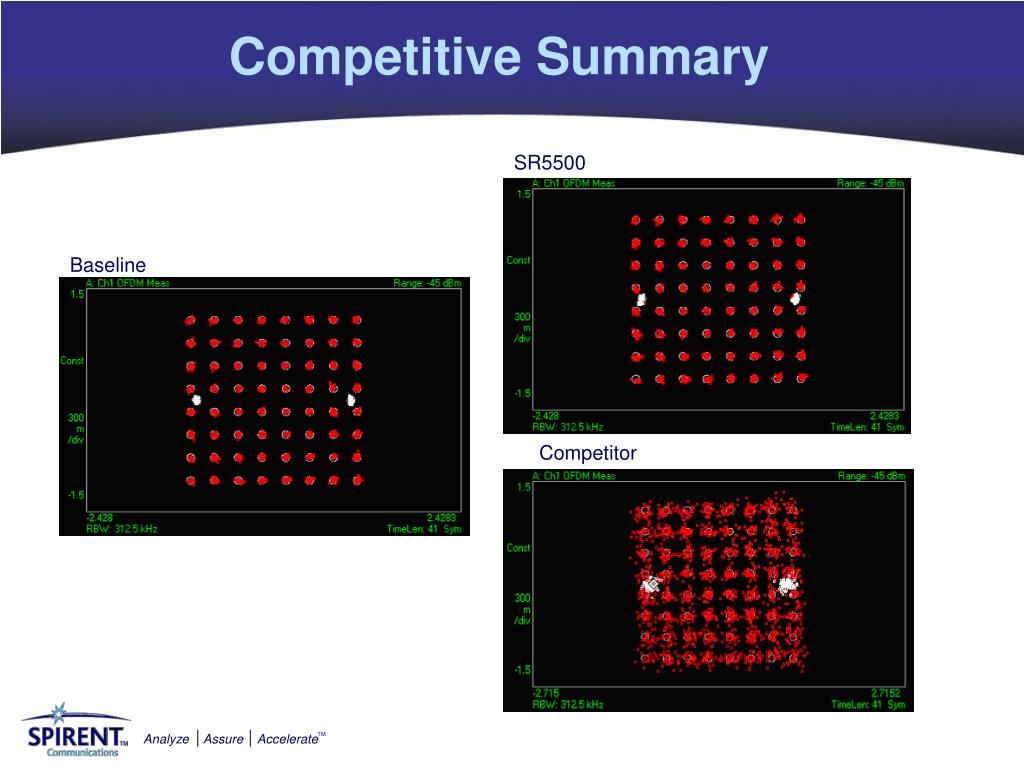

  4. Competitive Summary SR5500 Baseline Competitor
