(  ). Elements Clasiffication. Each element is characterized by the following: Family Degrees of freedom Number of nodes:Order of interpolation function (Shape function) Order of geometric description Formulation Integration. Family

felix
Télécharger la présentation

(  )

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. ()

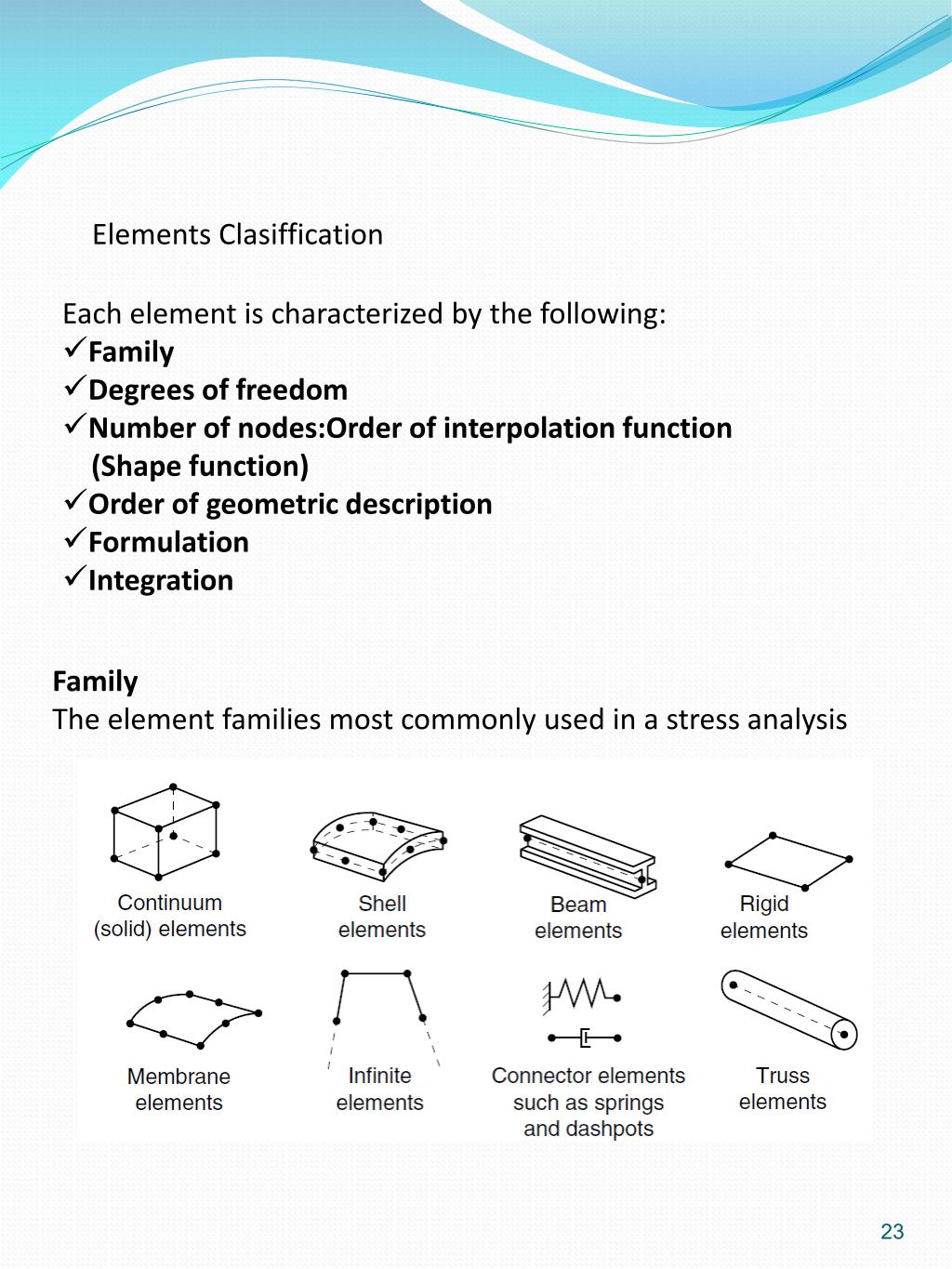

  2. Elements Clasiffication • Each element is characterized by the following: • Family • Degrees of freedom • Number of nodes:Order of interpolation function • (Shape function) • Order of geometric description • Formulation • Integration Family The element families most commonly used in a stress analysis

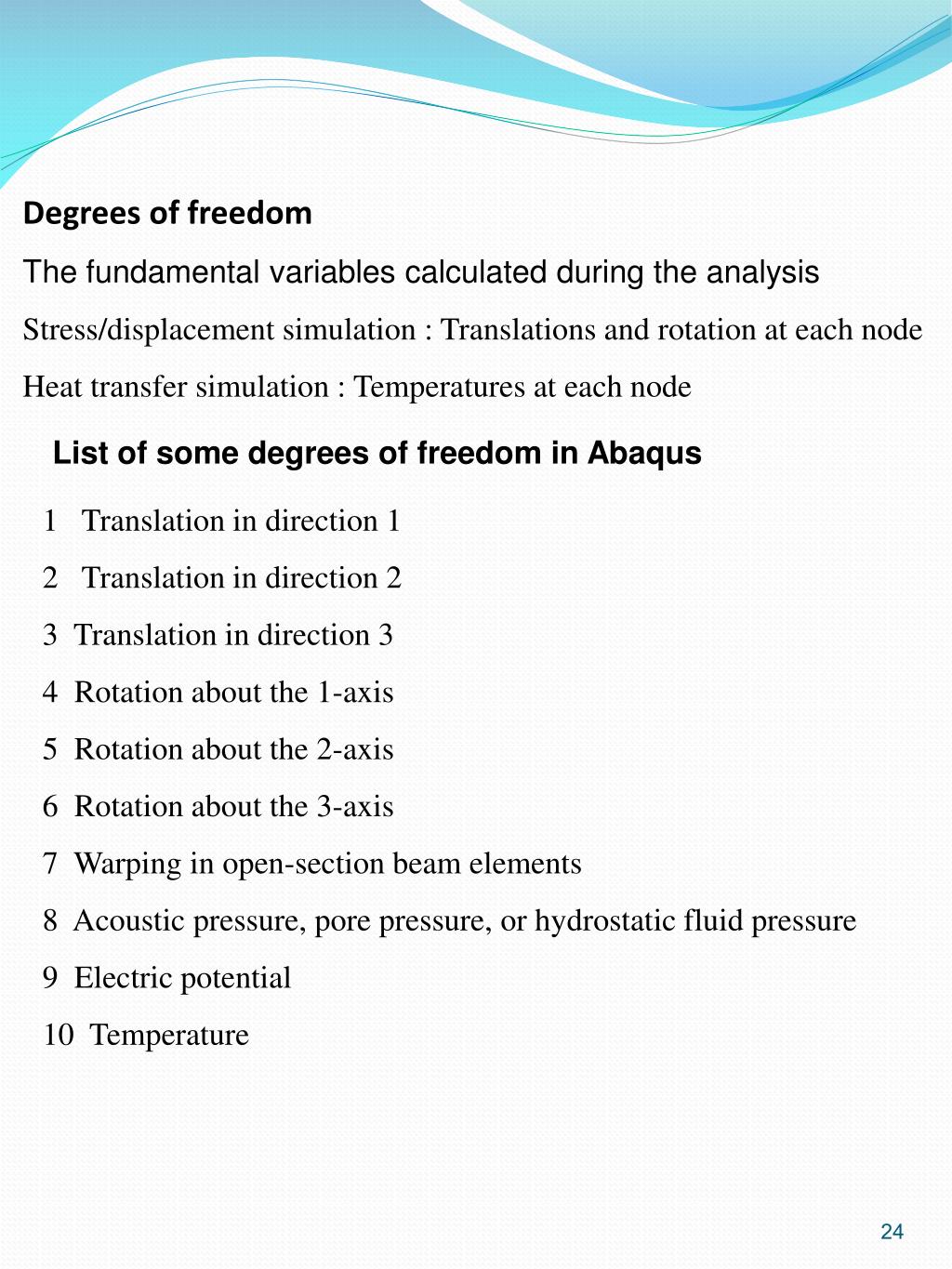

  3. Degrees of freedom The fundamental variables calculated during the analysis Stress/displacement simulation : Translations and rotation at each node Heat transfer simulation : Temperatures at each node List of some degrees of freedom in Abaqus 1 Translation in direction 1 2 Translation in direction 2 3 Translation in direction 3 4 Rotation about the 1-axis 5 Rotation about the 2-axis 6 Rotation about the 3-axis 7 Warping in open-section beam elements 8 Acoustic pressure, pore pressure, or hydrostatic fluid pressure 9 Electric potential 10 Temperature

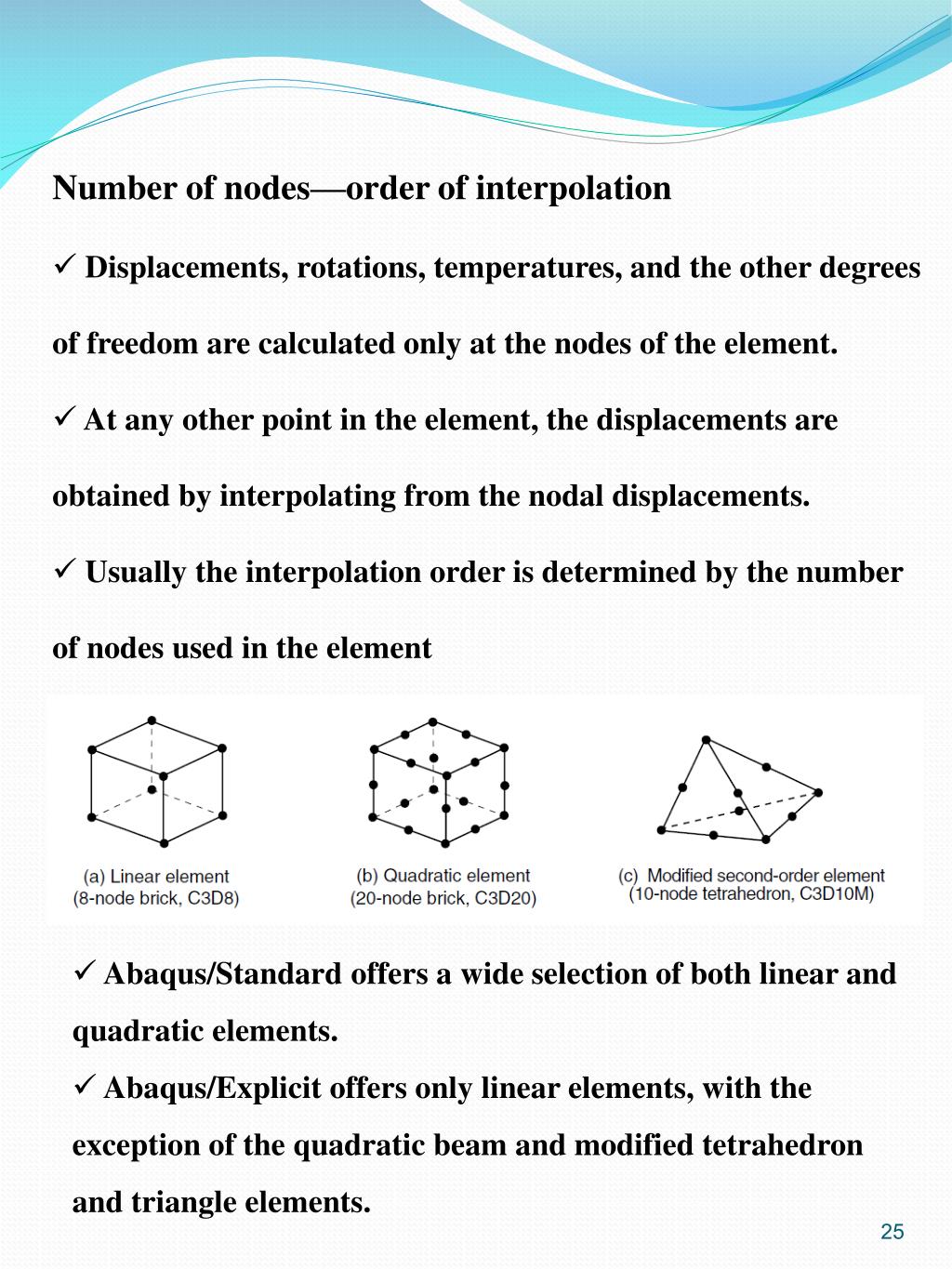

  4. Number of nodes—order of interpolation • Displacements, rotations, temperatures, and the other degrees of freedom are calculated only at the nodes of the element. • At any other point in the element, the displacements are obtained by interpolating from the nodal displacements. • Usually the interpolation order is determined by the number • of nodes used in the element • Abaqus/Standard offers a wide selection of both linear and quadratic elements. • Abaqus/Explicit offers only linear elements, with the exception of the quadratic beam and modified tetrahedron and triangle elements.

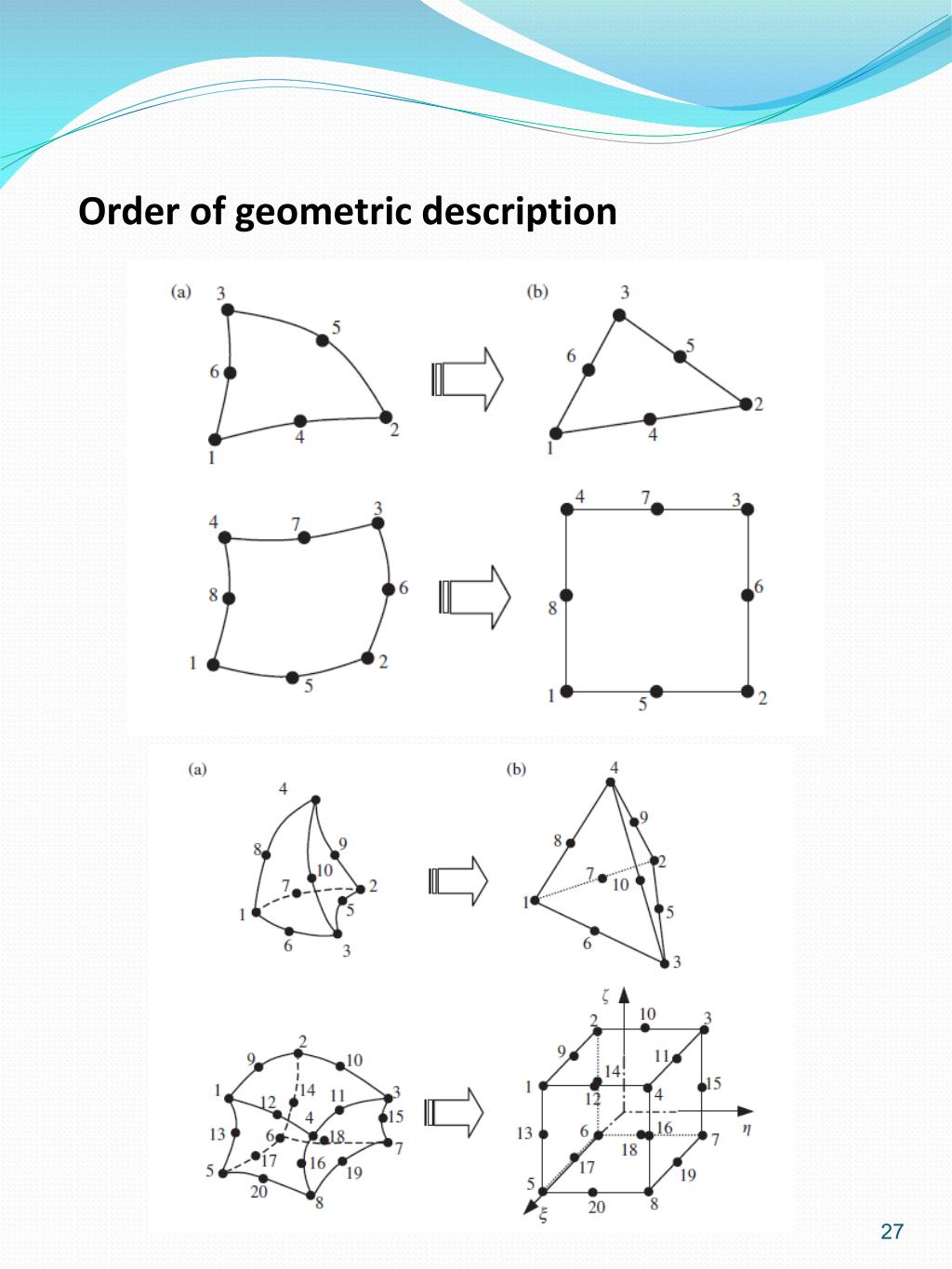

  5. Order of geometric description

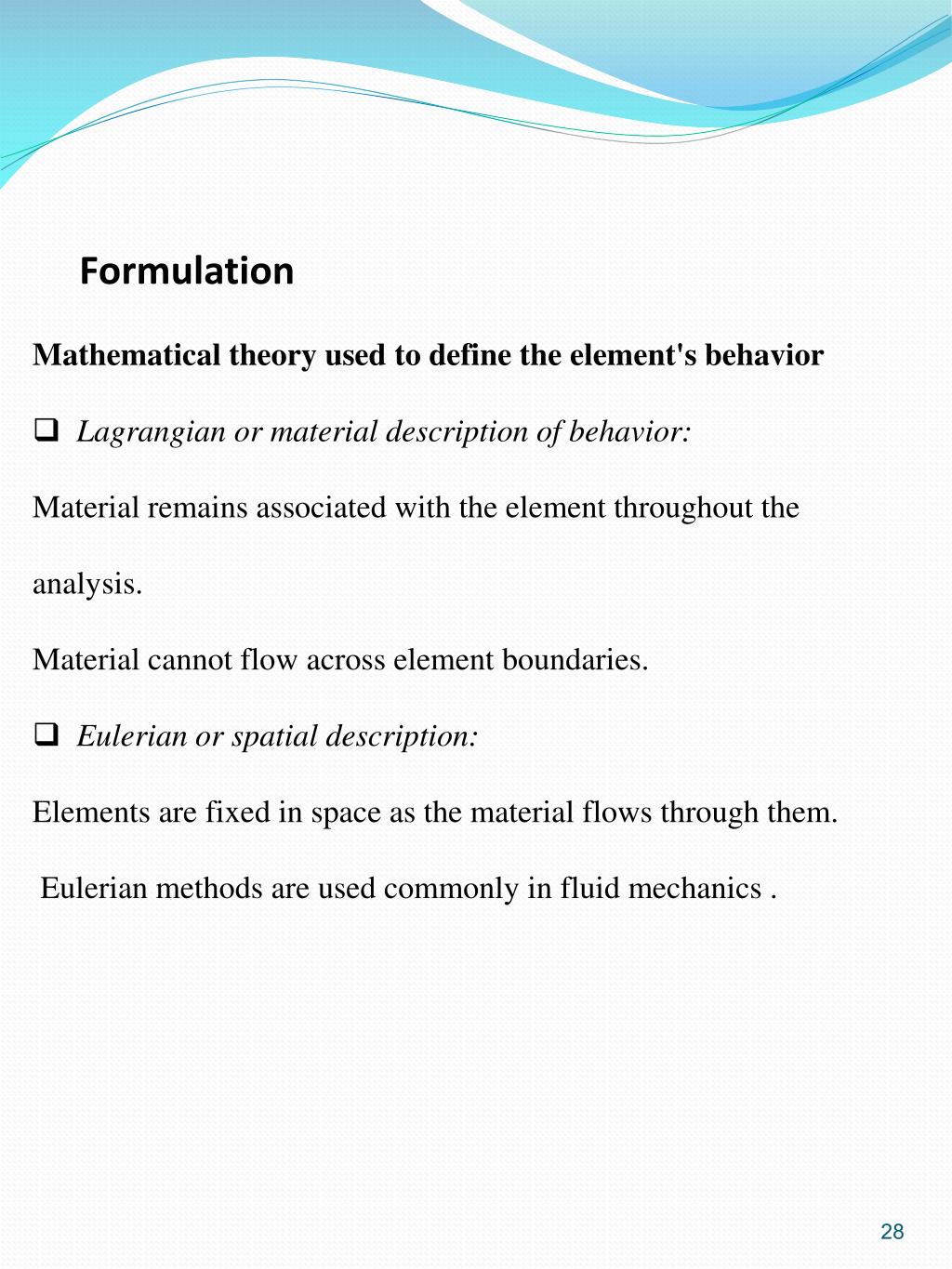

  6. Formulation • Mathematical theory used to define the element's behavior • Lagrangian or material description of behavior: • Material remains associated with the element throughout the analysis. • Material cannot flow across element boundaries. • Eulerian or spatial description: • Elements are fixed in space as the material flows through them. • Eulerian methods are used commonly in fluid mechanics .

  7. Bar Element or Truss Element

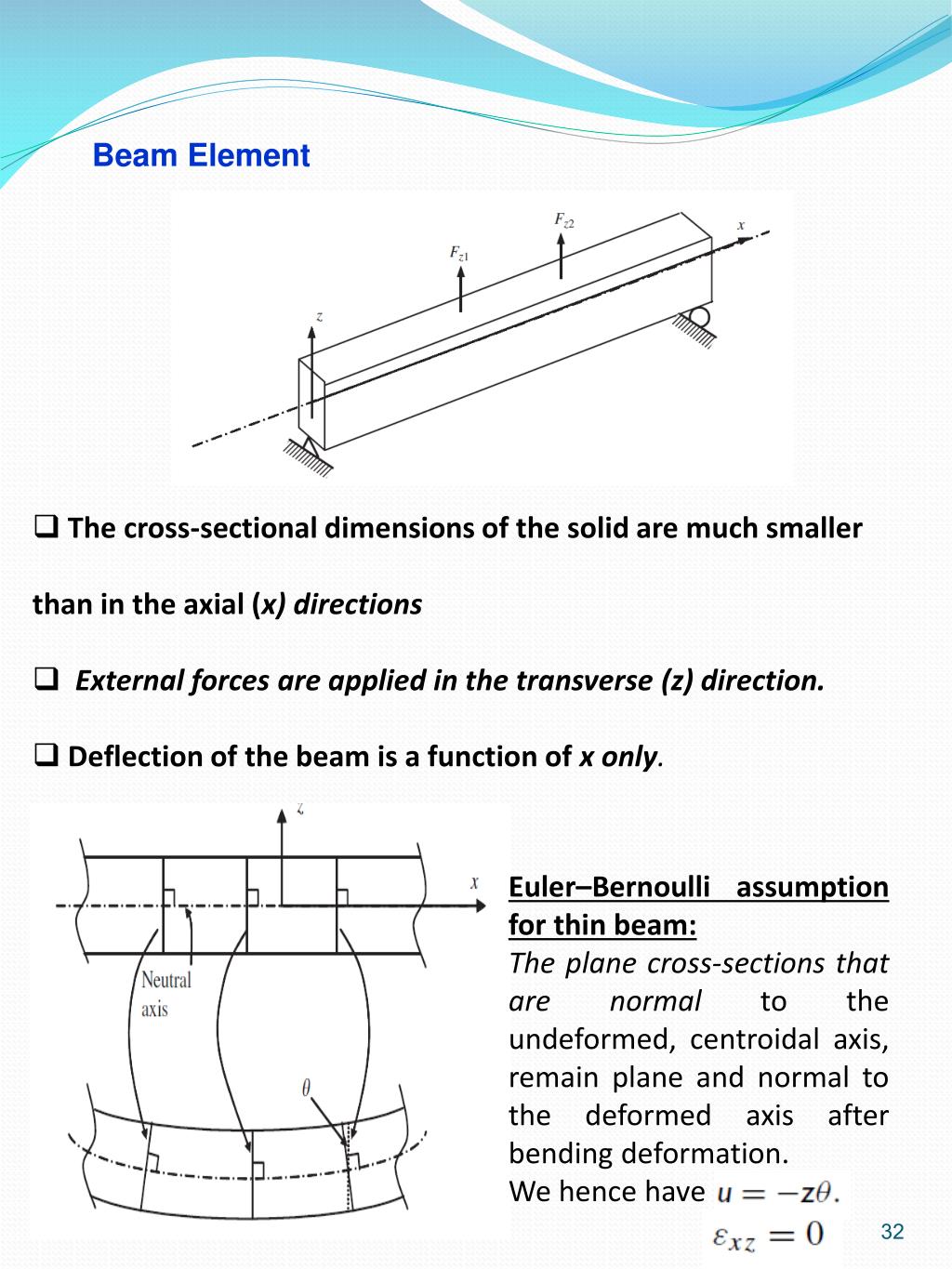

  8. Beam Element • The cross-sectional dimensions of the solid are much smaller • than in the axial (x) directions • External forces are applied in the transverse (z) direction. • Deflection of the beam is a function of x only. Euler–Bernoulli assumption for thin beam: The plane cross-sections that are normal to the undeformed, centroidal axis, remain plane and normal to the deformed axis after bending deformation. We hence have

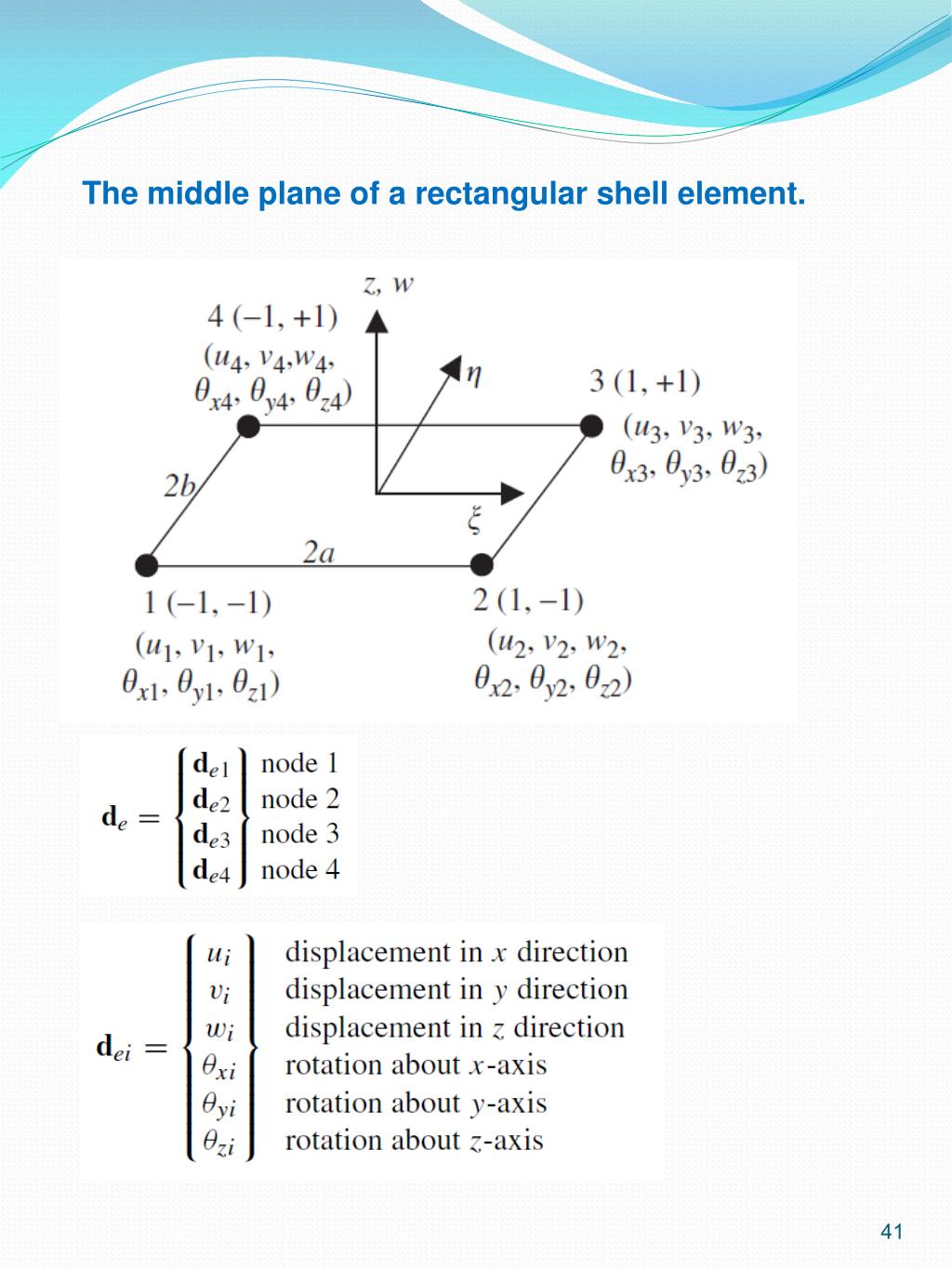

  9. The middle plane of a rectangular shell element.

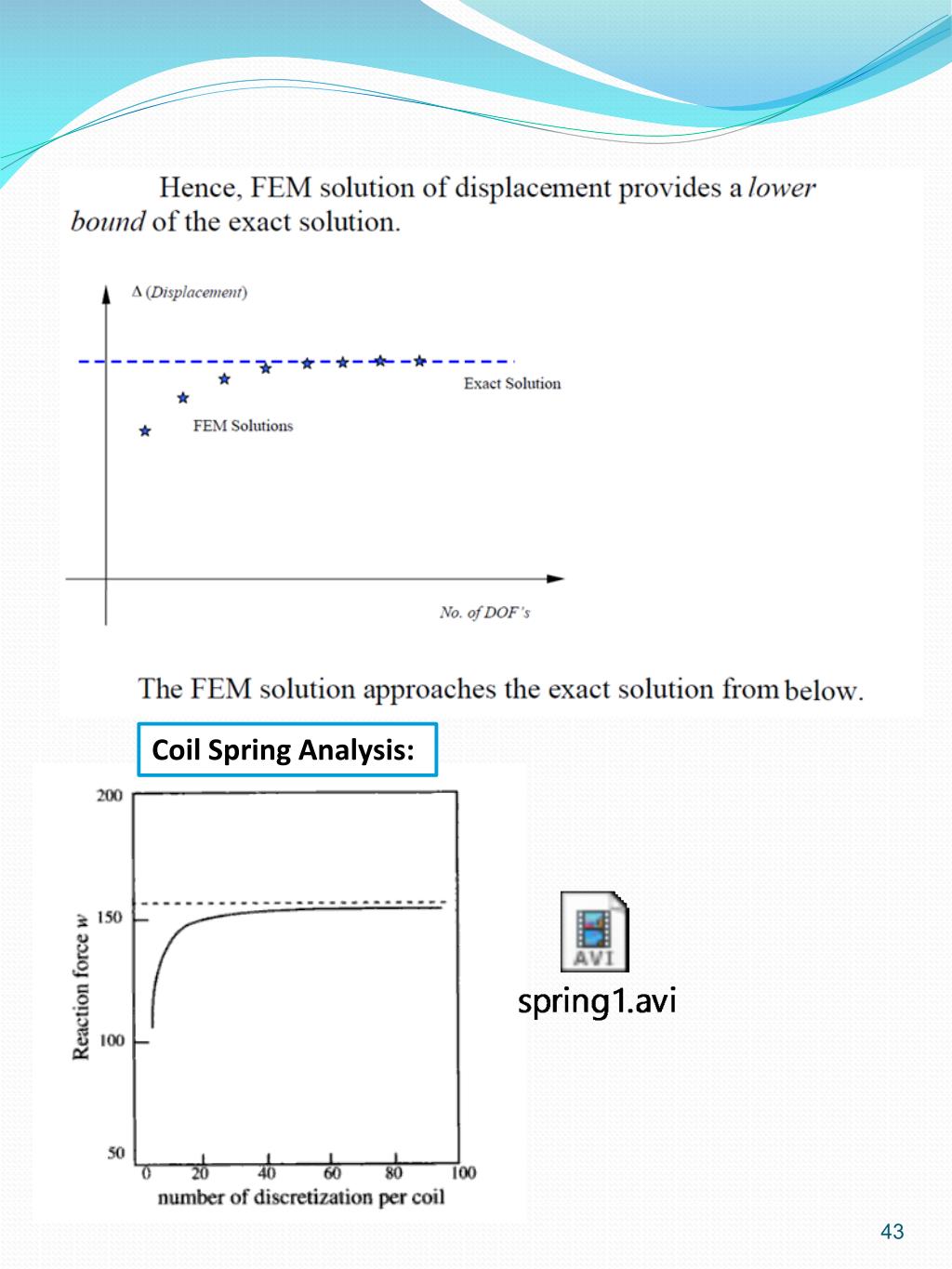

  10. Coil Spring Analysis:
