  1. Jul 21, 2014 Jason Su

  2. Motivation • Visualization of multiple image modalities or contrasts is difficult • Side by side comparisons are often not precise • Flipping back and forth helps to pronounce changes but some modalities may have no structural landmarks • Beginning to collect time-resolved “MP-nRAGE” with view-sharing methods • What is the best way to visualize such data, esp. for thalamic nuclei? • Can we do something else other than fitting a T1 map?

  3. Goal: Image Fusion • The combination of multiple images into one while preserving the important information from each • Common examples: • fMRI overlays on structural images • Segmentation overlays • Nuclear medicine overlays • HDR photography • Compared to quantitative imaging, the goal is to achieve a pleasing effect to the eye instead of fitting to a model • Thus there are many possible algorithms and no necessarily “correct” way to do things

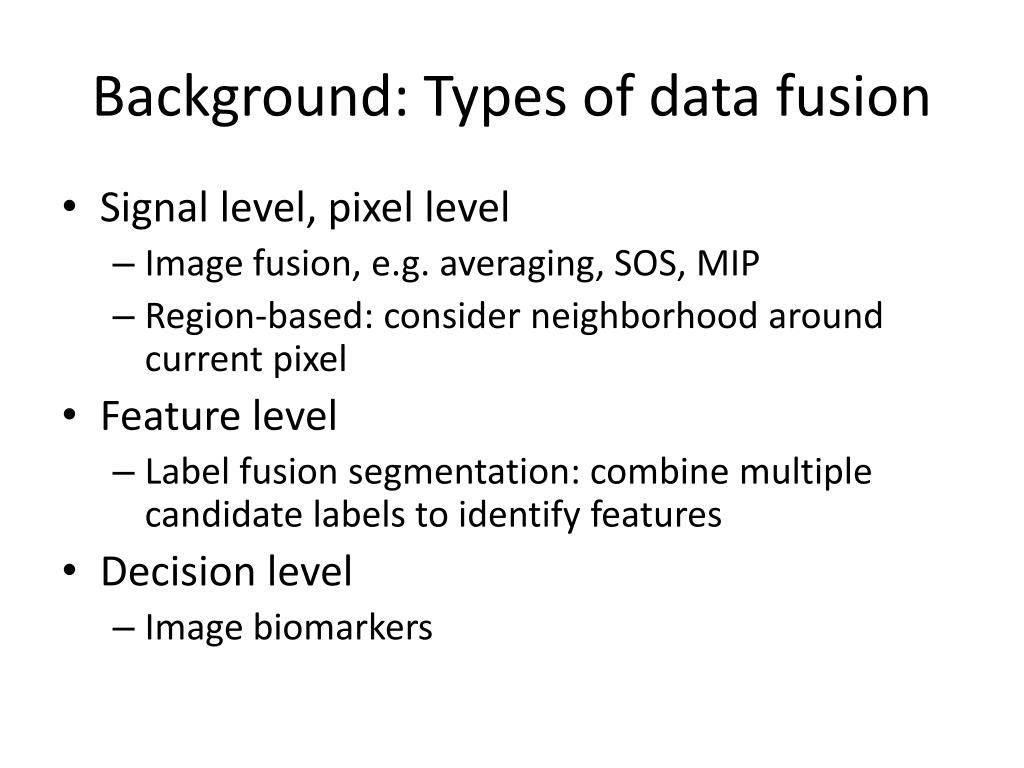

  4. Background: Types of data fusion • Signal level, pixel level • Image fusion, e.g. averaging, SOS, MIP • Region-based: consider neighborhood around current pixel • Feature level • Label fusion segmentation: combine multiple candidate labels to identify features • Decision level • Image biomarkers

  5. Gaussian and Laplacian Pyramid • Pyramids are multiresolution decompositions of images • Each level is subsampled by a factor of 2, i.e. each level is an octave • GP: Successively blurred and downsampled versions of the image • Gives scale of features in the image • LP: take differences between Gaussian levels • Gives information about edges of varying widths

  6. ROLP/Contrast Pyramid • Ratio of low-pass pyramid: take ratios between Gaussian levels • Contrast = (L-Lb)/Lb • R = L/Lb = C + 1

  7. Background: The -lets • Discontinuities destroy the sparsity of a Fourier series, the Gibbs phenomenon • Wavelets – are localized and multi-scale • Perform well in 1D, but poor sense of orientation for 2D • Only horizontal, vertical or diagonal • How to better represent a 2D image? • Want multiresolution, localization, critical sampling, directionality, anisotropy • Curvelets – Candéset al. • Developed in continuous domain then adapted to discrete • Optimally sparse representation for smooth 2D functions except for a discontinuity along a curve • Models wave propagation • Contourlets – Do and Vetterli • Developed in discrete domain Pointillism-like

  8. Background: Curvelet Decomposition Directional filter bank.(a) Frequency partitioning where l=3 and there are 23 = 8 real wedge-shaped frequency bands.

  9. Methods: Algorithm • Take 2 input images, how to combine them? • Tale contourlet transform of each • Each level apears to gain a factor of 2 in angular resolution Yang’s decomposition • How does this effect the quality?

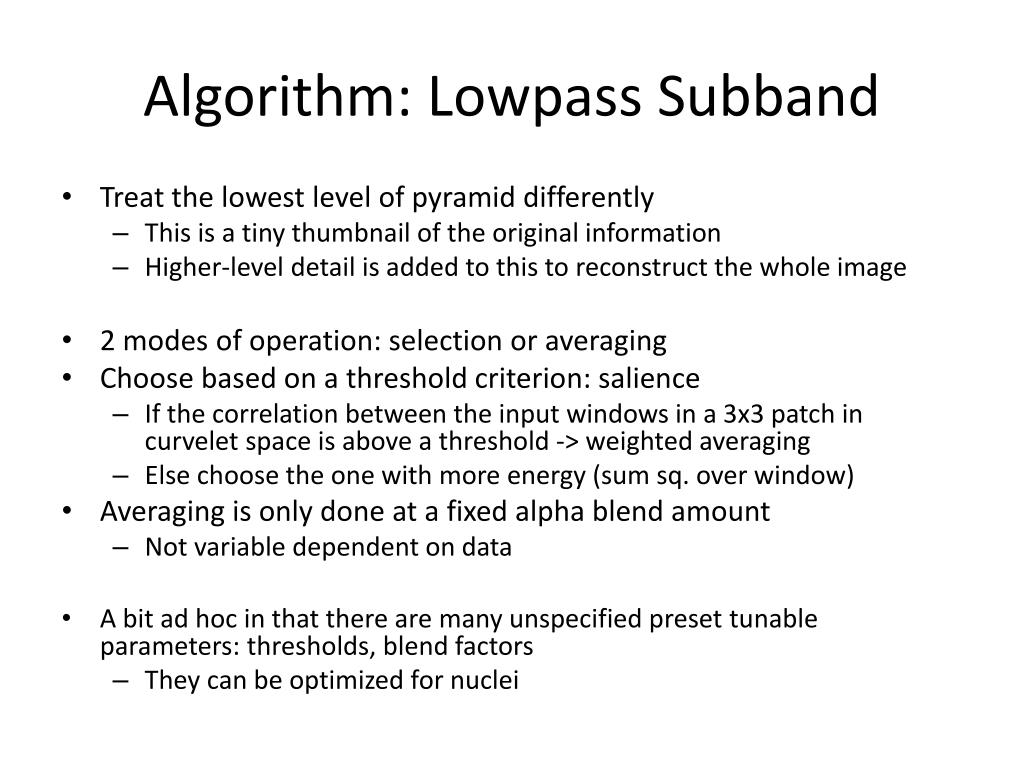

  10. Algorithm: LowpassSubband • Treat the lowest level of pyramid differently • This is a tiny thumbnail of the original information • Higher-level detail is added to this to reconstruct the whole image • 2 modes of operation: selection or averaging • Choose based on a threshold criterion: salience • If the correlation between the input windows in a 3x3 patch in curvelet space is above a threshold -> weighted averaging • Else choose the one with more energy (sum sq. over window) • Averaging is only done at a fixed alpha blend amount • Not variable dependent on data • A bit ad hoc in that there are many unspecified preset tunable parameters: thresholds, blend factors • They can be optimized for nuclei

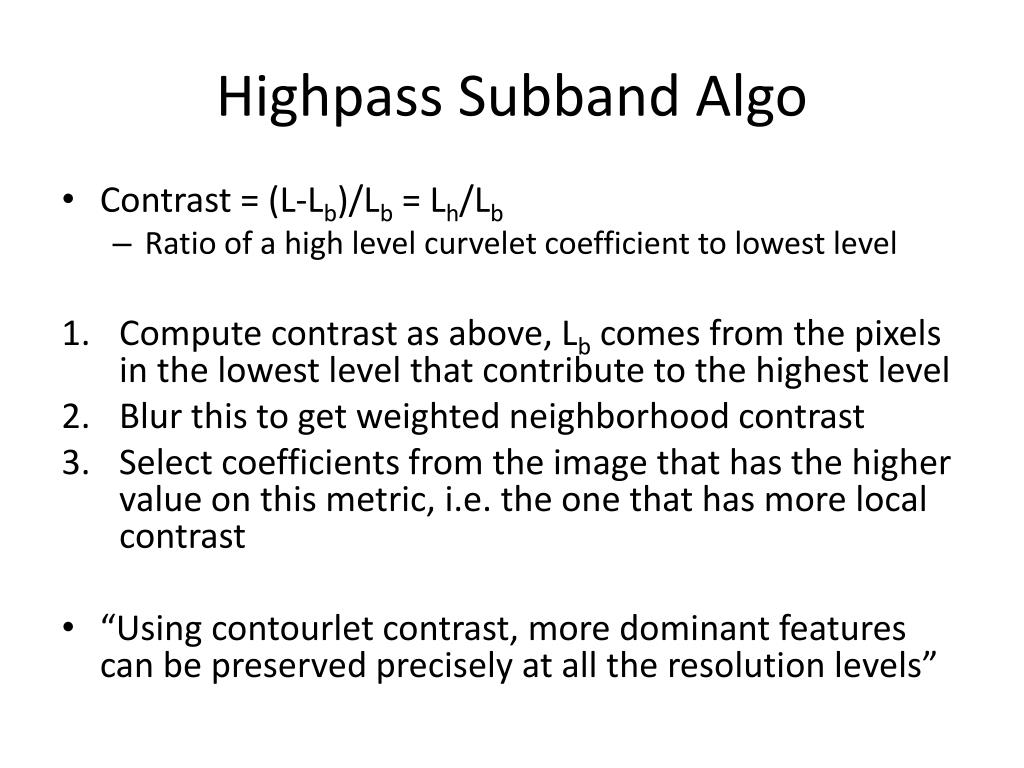

  11. HighpassSubbandAlgo • Contrast = (L-Lb)/Lb = Lh/Lb • Ratio of a high level curvelet coefficient to lowest level • Compute contrast as above, Lbcomes from the pixels in the lowest level that contribute to the highest level • Blur this to get weighted neighborhood contrast • Select coefficients from the image that has the higher value on this metric, i.e. the one that has more local contrast • “Using contourlet contrast, more dominant features can be preserved precisely at all the resolution levels”

  12. Reconstruction • Take the inverse curvelet transform of the blended pyramid

  13. Methods • Test cases • CT-MR • Gd and T2w • PD and T1w • Compared against existing methods: average, PCA, wavelet maximum • Metrics • Standard deviation – image variability • Entropy – how much information is in the image • Overall cross entropy – how close are the distributions, is information preserved in the fused result? • Spatial frequency – amount of energy energy in high frequencies • Only looking at horizontal and vertical freqs. • Correlation – how similar is the fusion to the inputs

  14. Results: Metrics • Proposed algorithm generally shows to have more variability and capture more information from the inputs

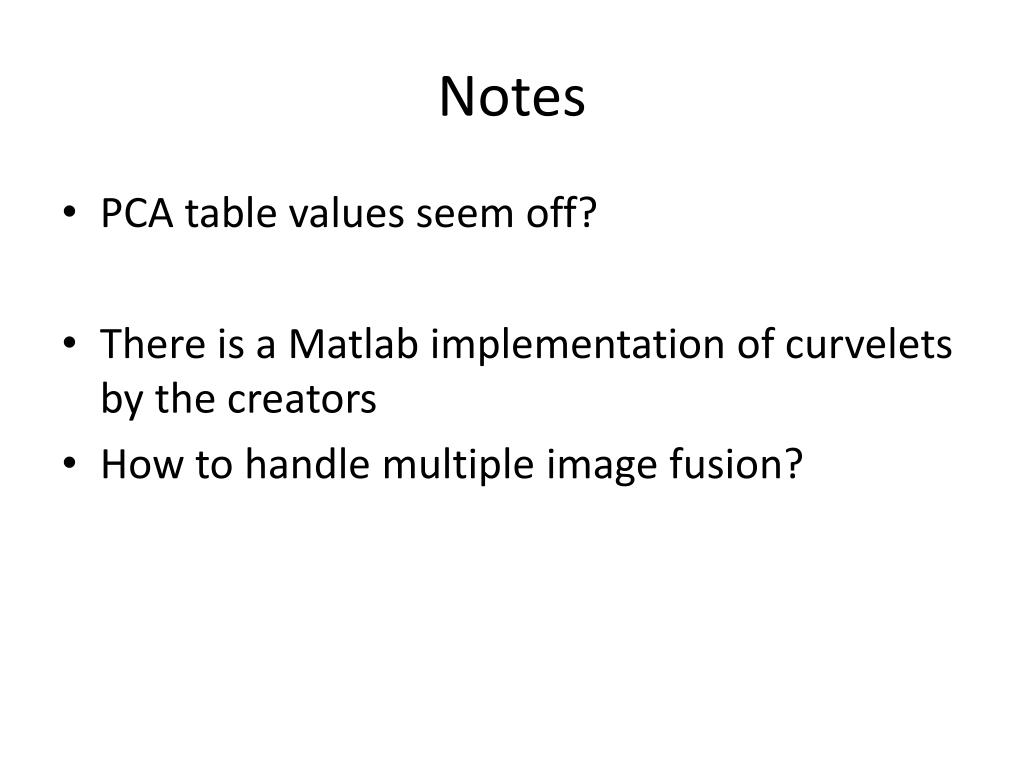

  15. Notes • PCA table values seem off? • There is a Matlab implementation of curvelets by the creators • How to handle multiple image fusion?
