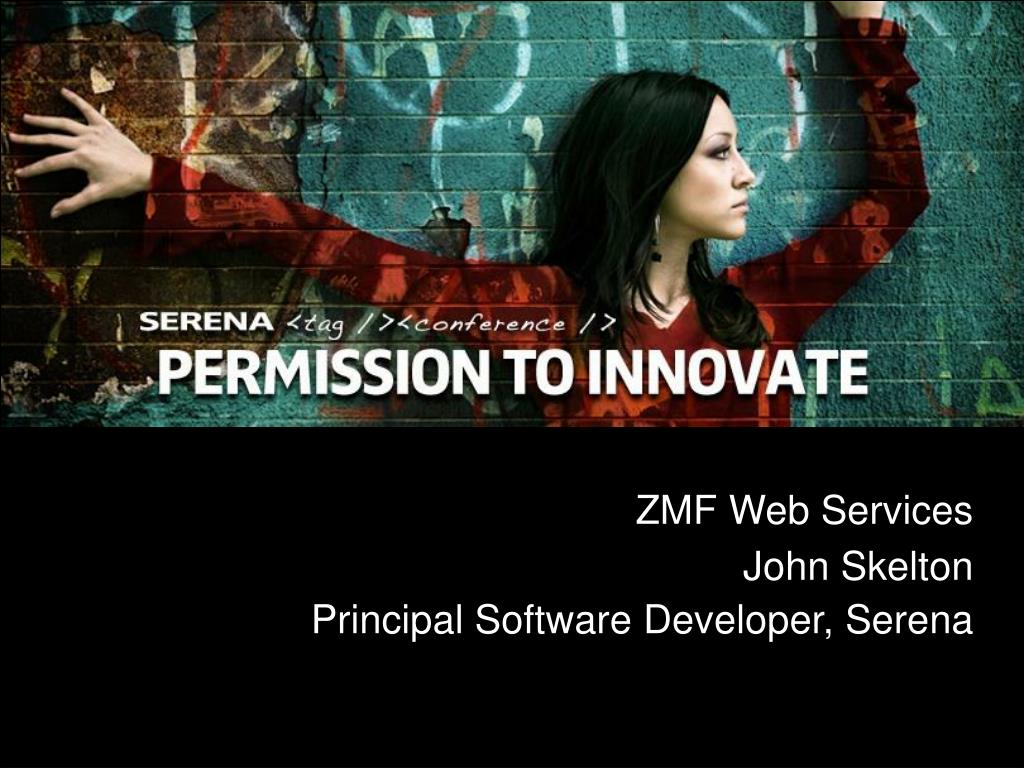

  1. ZMF Web Services John Skelton Principal Software Developer, Serena

  2. ZMF Web Services - Agenda Web Services Overview Web Services Technology ZMF Web Services Architecture ZMF Web Services Specifics

  3. What are Web Services? The W3C definition: “a software system designed to support interoperable machine-to-machine interaction over a network” More simply Web Services are just WEB-API’s Web Services are described by WSDL Service Location Methods Method Parameters Parameter Data Types Moving towards a universal programming API

  4. What are Web Services? Application Components Communicate using open protocols Self Contained and Self Describing Discovered using UDDI Consumed by other applications XML based

  5. How do they work? Web Services platform is XML + HTTP HTTP is most widely used internet protocol XML can be used between different platforms and programming languages and still express complex messages and functions. Web Services platform elements SOAP UDDI WSDL

  6. SOAP Simple Object Access Protocol Application communication protocol Format for sending messages XML based Platform independent Language independent

  7. UDDI Universal Description Discovery and Integration Directory for storing information about Web Services Communicates using SOAP

  8. WSDL Web Services Description Language XML document Where is the Web Service? What methods are in the Web Service? What are the Service Parameters

  9. ZMF Web Services ZMF Connect Web Service looks like this: <service name="ConnectServices"> <port name="Connect" binding="tns:ConnectSOAPBinding"> <soap:address location="http://localhost:7080/zmfws/services/ZMFConnectServices"/> </port> </service>

  10. ZMF Protocol Evolution APPC and TCP/IP SERENA XChange client Proprietary wire protocol XML over proprietary wire protocol ZDD, TeamTrack clients Requires SERXMLxx modules Still uses proprietary wire protocol Web Services ZMF access using open HTTP/XML protocols

  11. ZMF Web Services Access to all areas of ZMF Administration API’s - may be read only Developer API’s Grouped into logical package groups (18) Distributed as part of ZMF Runs on Tomcat Application Server Requires AXIS Servlet, WSDL, Java Stubs

  12. ZMF Web Services - AXIS AXIS provides SOAP infrastructure WSDL2JAVA utility generates JAVA code to access Web Services XML documents appear as JAVA objects Other utilities available for other languages

  13. ZMF Web Services - AXIS A look at the AXIS generated Web Services Objects // Create connect logon request. LogonRequest logonReq = new LogonRequest(); logonReq.setHost(D001.SERENA.COM); logonReq.setPortid(6611); logonReq.setUser(WSER27); logonReq.setPassword(********);

  14. ZMF Web Services - AXIS The call and the response: Logon logon = new Logon(logonReq); Connect.Response connectResponse = null; connectResponse = binding.logon(logon); connectResponse.getMessage() == “SER8209I Logon accepted for user WSER27; Local CCSID=00939”

  15. ZMF Web Services Web Service Clients communicate with SERENA Servlet using HTTP/SOAP JAVA objects Servlet extracts SOAP body (XML) and forwards it to ZMF Servlet receives response from ZMF, wraps response in SOAP envelope, returns response back to client.

  16. ZMF Web Services ZMFConnectServices Logon Logoff Change Password Must maintain session state

  17. ZMF Web Services ZMFPackageLifeCycle Create Package Approve Demote Promote Backout Freeze Revert

  18. ZMF Web Services ZMFPackageInfoManagement Get Affected Applications Get Approvers Get Package General Parameters Get Implementation Get Install Schedule Get Library Types Get Promotion History Get User Variables

  19. ZMF Web Services ZMFComponentLifeCycle Checkout Checkin Build Recompile Relink Lock Unlock Scratch

  20. ZMF Web Services ZMFComponentInfoManagement Component Change Descriptions Component Descriptions Component Promotion History Component History

  21. ZMF Web Services ZMFChangeLibraryAdmin Baseline Libraries Production Libraries Promotion Libraries Read Only

  22. ZMF Web Services ZMFDeveloperEnvironmentAdmin Global Parameters Application Parameters Global Library Types Application Library Types Build Procedures Read only

  23. ZMF Web Services general format All Services have request / response elements Logon Request Userid Password New Password Logon Response Return code Reason code Message May return “array” of result elements Get Application Parms

  24. Session State ZMF runs multiple transactions over a session Logon, Checkout, Stage, Build, Promote, Build… HTTP is stateless Problem: How to correlate discrete Web Service requests with an existing Servlet - ZMF session? AXIS Session Header Retrieve Session Header at completion of Logon Transaction Set Session Header for all other Soap Bindings.

  25. Session State Java code generated by AXIS has common Stub Stub used by Java to access Soap Methods ZMF Web Services has 18 Stubs Session Header returned from Connect Service passed to all other Services Sample code provided as part of Web Services package

  26. Session State – Java Connect // Get the stub which implements the SDI. ConnectServicesLocator csl = new ConnectServicesLocator(); binding = (ConnectSOAPBindingStub) csl.getConnect(); binding.setMaintainSession(true); // Create connect logon request. LogonRequest logonReq = new LogonRequest(); logonReq.setHost(server.getProperties().getAddress()); logonReq.setPortid(server.getPort()); logonReq.setUser(username); logonReq.setPassword(password); // Logon and Get the Response com.serena.zmf.webservices.client.internal.Connect.Response connectResponse = null; connectResponse = binding.logon(logon); // store cookie cookie = (String) binding._getCall().getMessageContext().getProperty(HTTPConstants.HEADER_COOKIE);

  27. Session State 2nd Transaction // Create a new package public NewPackageResults createPackage(NewPackageRequest request) throws CoreException { NewPackage np = new NewPackage(request); NewPackageResults results = null; PackageLifeCycleSOAPBindingStub binding = getPackageLifeCycleSOAPBindingStub(); try { results = binding.newPackage(np); } catch (Exception e) { e.printStackTrace(); } return results; }

  28. Session State – 2nd Transaction // Get PackageLifeCycleSOAPBindingStub private PackageLifeCycleSOAPBindingStub getPackageLifeCycleSOAPBindingStub() throws CoreException { PackageLifeCycleSOAPBindingStub binding = null; try { PackageLifeCycleServicesLocator sl = new PackageLifeCycleServicesLocator(); sl.setPackageLifeCycleEndpointAddress(updateURL(sl.getPackageLifeCycleAddress())); binding = (PackageLifeCycleSOAPBindingStub) sl.getPackageLifeCycle(); setCookieAndMaintainSession(binding); } catch (javax.xml.rpc.ServiceException jre) { throwCoreException(jre); } return binding; } // Set session cookie private void setCookieAndMaintainSession(Stub binding) { binding.setMaintainSession(true); binding._setProperty(HTTPConstants.HEADER_COOKIE, cookie); }

  29. ZMF Web Services Questions?

  30. Questions
