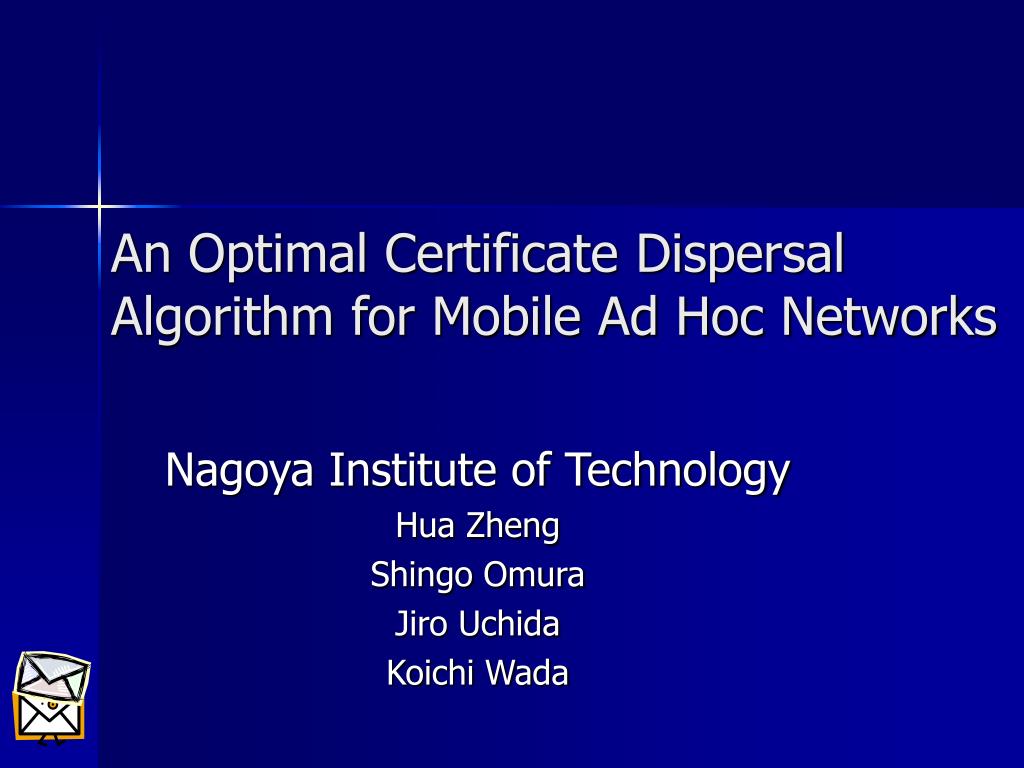

1. An Optimal Certificate Dispersal Algorithm for Mobile Ad Hoc Networks Nagoya Institute of Technology Hua Zheng Shingo Omura Jiro Uchida Koichi Wada

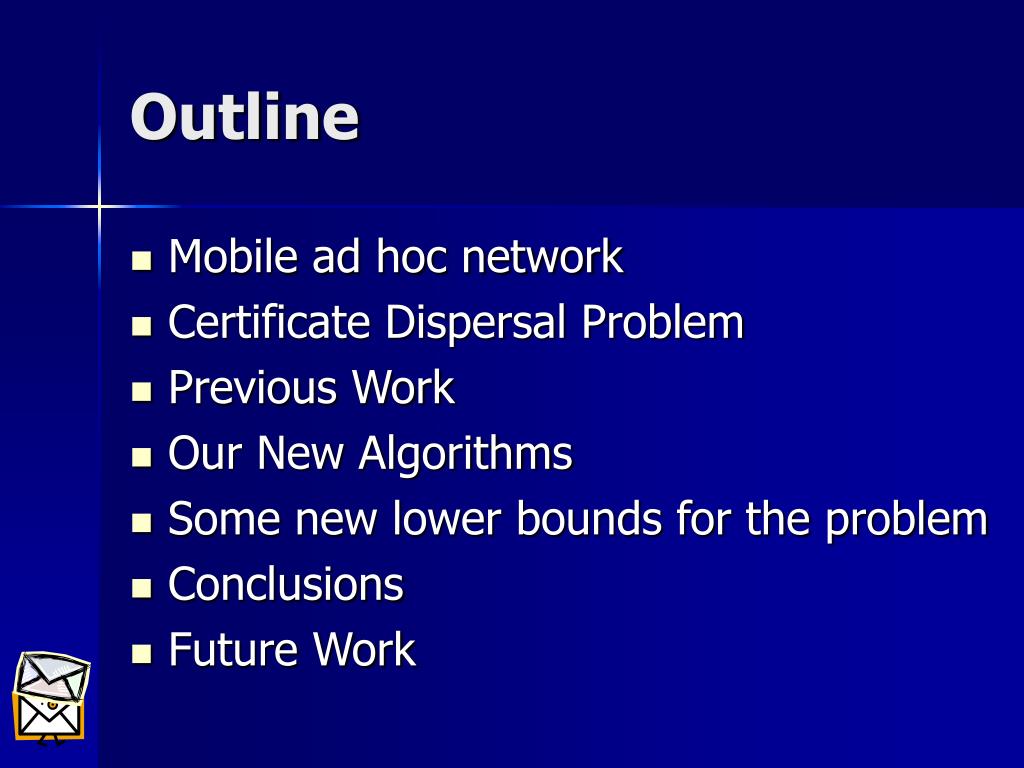

2. Outline • Mobile ad hoc network • Certificate Dispersal Problem • Previous Work • Our New Algorithms • Some new lower bounds for the problem • Conclusions • Future Work

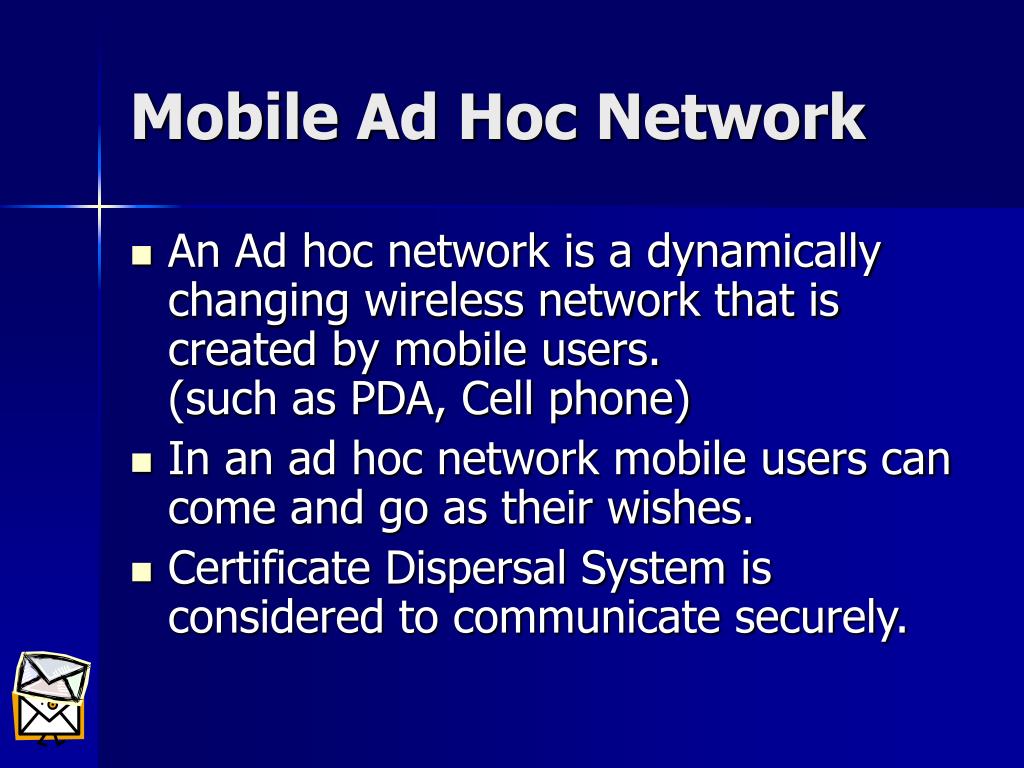

3. Mobile Ad Hoc Network • An Ad hoc network is a dynamically changing wireless network that is created by mobile users. (such as PDA, Cell phone) • In an ad hoc network mobile users can come and go as their wishes. • Certificate Dispersal System is considered to communicate securely.

5. Public-key & Private-key • Each tank holds its public-key and private-key pair for their own. private-key public-key private-key public-key

6. How to encrypt a message • A message is encrypted by the public-key. • The encrypted message can only be decrypted by its private-key.

7. Public-key dispersal is dangerous This is Mickey’s public-key public-key Certificates are needed to obtain the other’s public-key

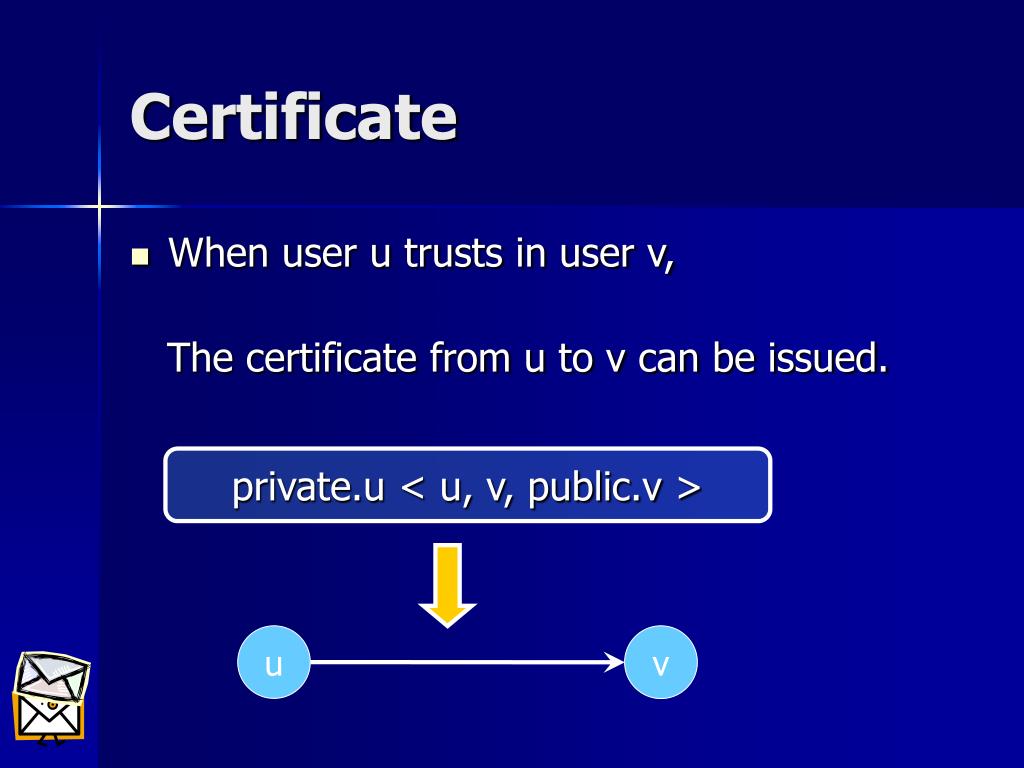

8. Certificate • When user u trusts in user v, The certificate from u to v can be issued. private.u < u, v, public.v > u v

9. Certificate Authentication

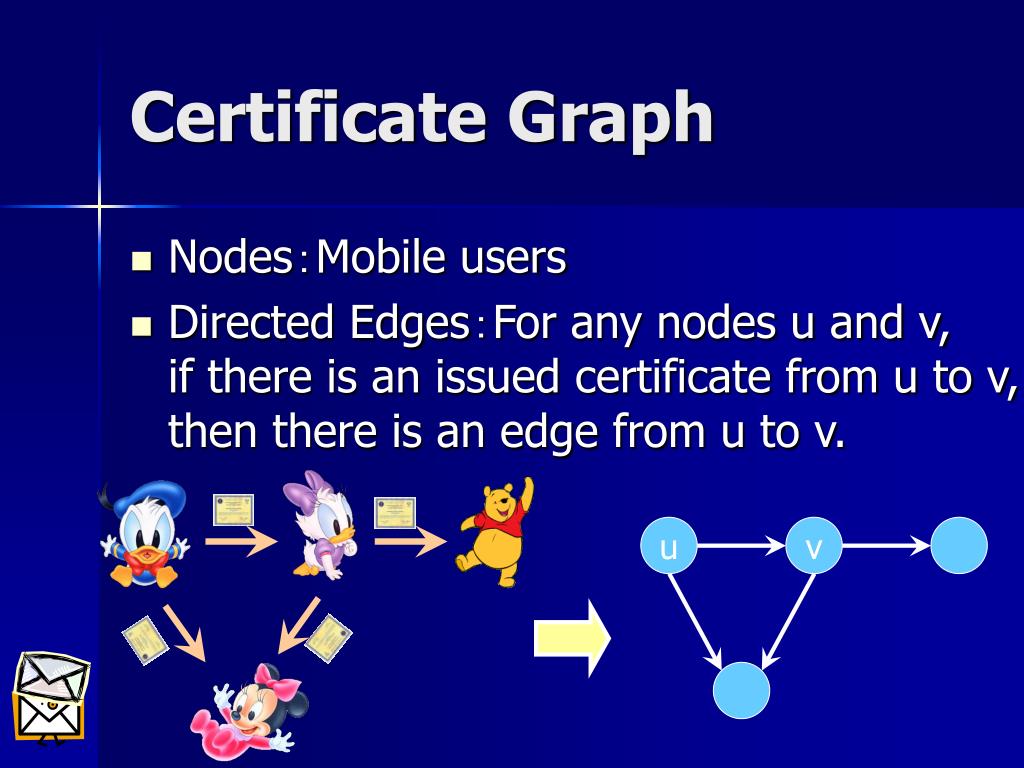

10. Certificate Graph • Nodes：Mobile users • Directed Edges：For any nodes u and v, if there is an issued certificate from u to v, then there is an edge from u to v. u v

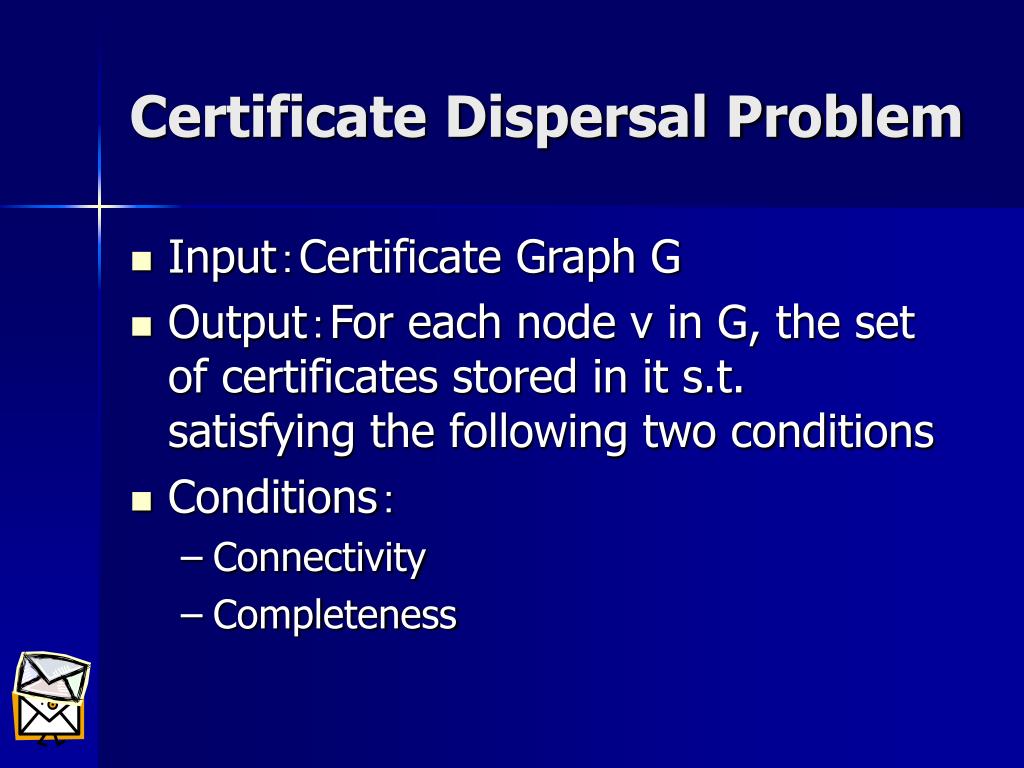

11. Certificate Dispersal Problem • Input：Certificate Graph G • Output：For each node v in G, the set of certificates stored in it s.t. satisfying the following two conditions • Conditions： • Connectivity • Completeness

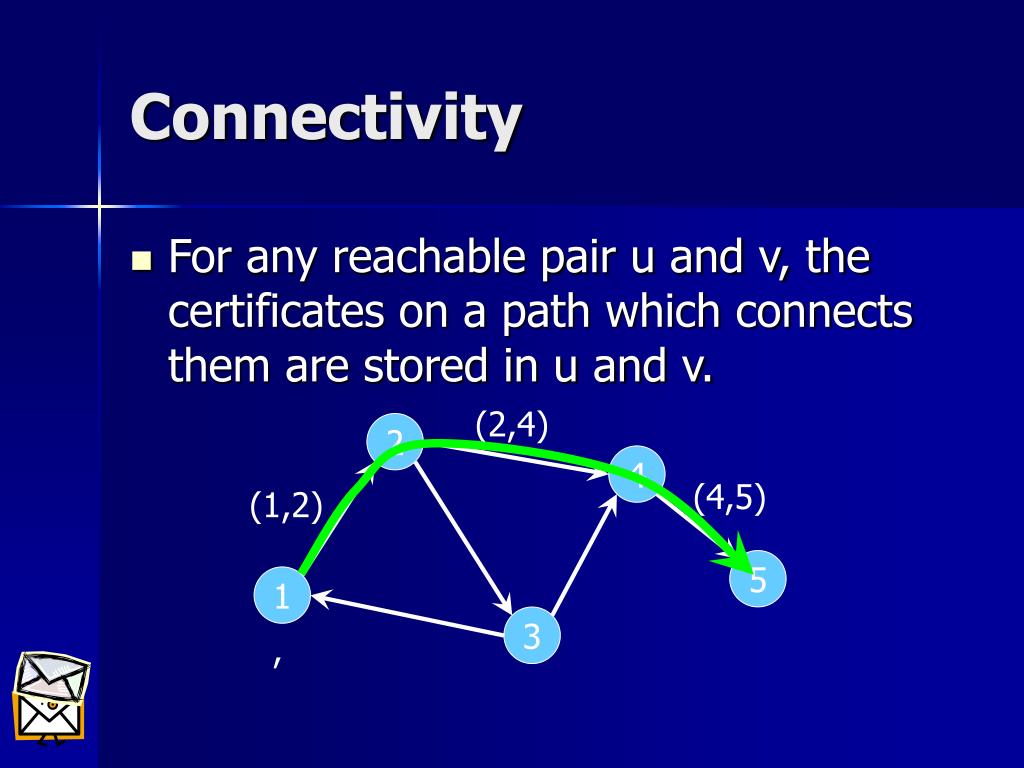

12. Connectivity • For any reachable pair u and v, the certificates on a path which connects them are stored in u and v. (2,4) 2 4 (4,5) (1,2) 5 1 3 ,

13. Completeness • All of the certificates are stored in some node. (2,4) 2 4 (4,5) (1,2) (2,3) (3,4) 5 1 3 , (3,1) ,

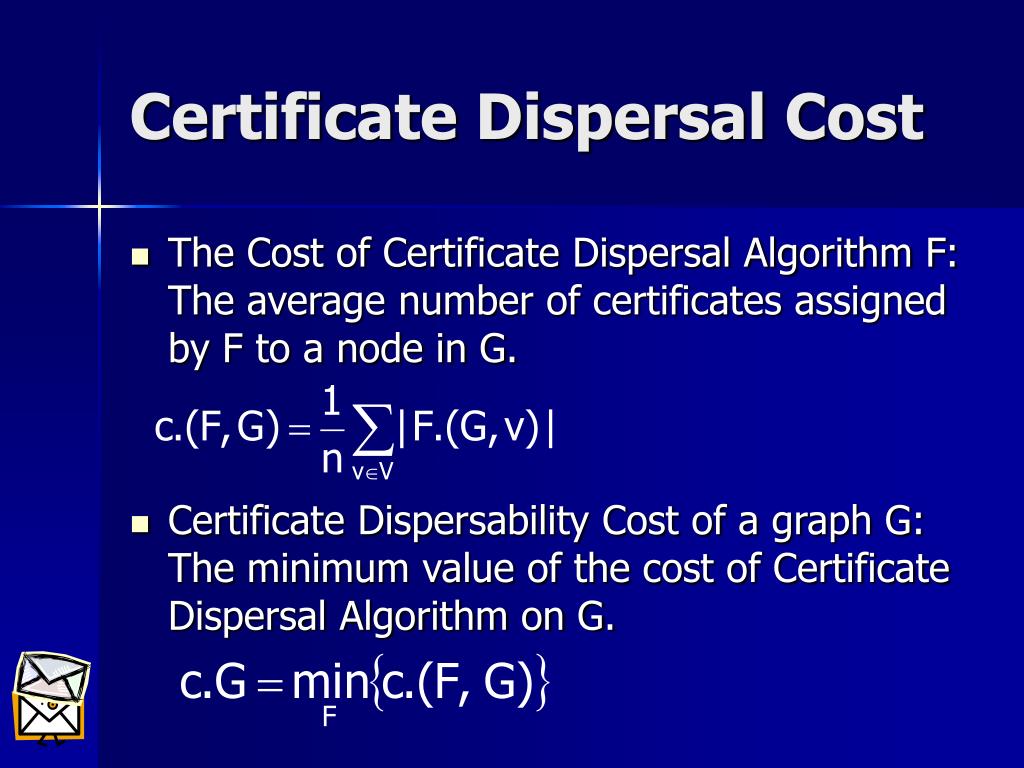

14. Certificate Dispersal Cost • The Cost of Certificate Dispersal Algorithm F:The average number of certificates assigned by F to a node in G. • Certificate Dispersability Cost of a graph G:The minimum value of the cost of Certificate Dispersal Algorithm on G.

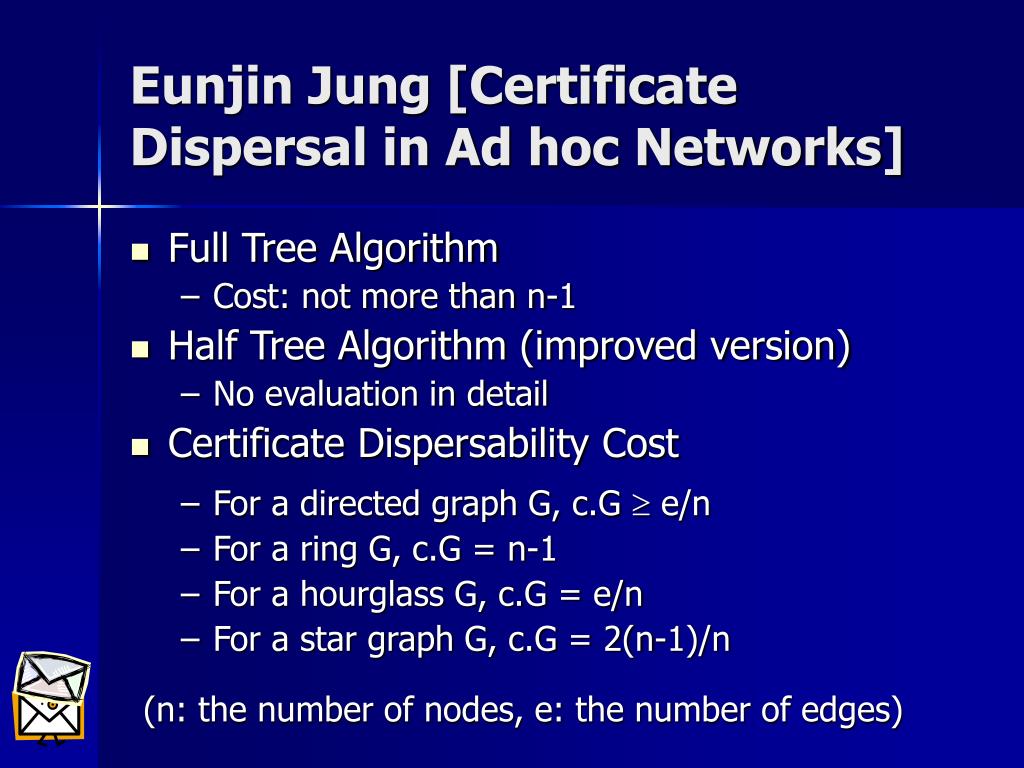

15. Eunjin Jung [Certificate Dispersal in Ad hoc Networks] • Full Tree Algorithm • Cost: not more than n-1 • Half Tree Algorithm (improved version) • No evaluation in detail • Certificate Dispersability Cost • For a directed graph G, c.G  e/n • For a ring G, c.G = n-1 • For a hourglass G, c.G = e/n • For a star graph G, c.G = 2(n-1)/n (n: the number of nodes, e: the number of edges)

16. Graphs we considered • Strongly connected graph: • A graph in which for any two distinct nodes, there exists a path between them, is said to be strongly connected. • Diameter is the maximum length of a longest distance between any of two nodes. DG=5

17. Graphs we considered • Bi-directional graph: • If there is an edge from node u to node v then there exists an edge from v to u, and vice versa • Radius is the minimum value of the longest length of the shortest path from v to any other nodes, for any node v. u v RG=2

18. Our Results

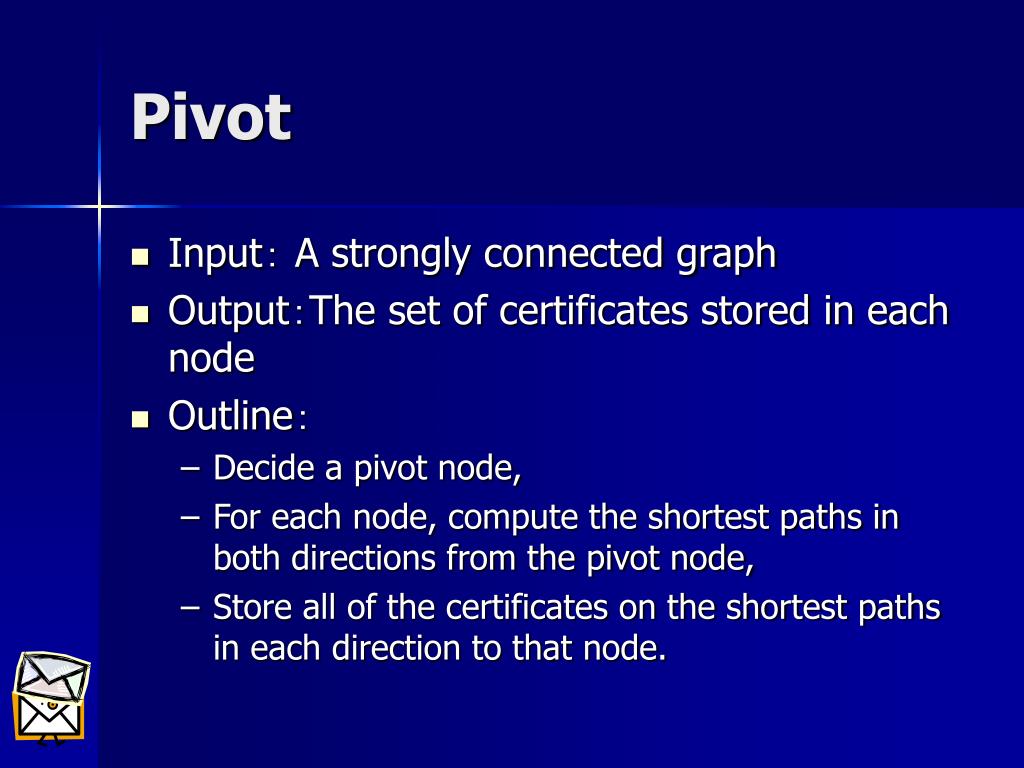

19. Pivot • Input： A strongly connected graph • Output：The set of certificates stored in each node • Outline： • Decide a pivot node, • For each node, compute the shortest paths in both directions from the pivot node, • Store all of the certificates on the shortest paths in each direction to that node.

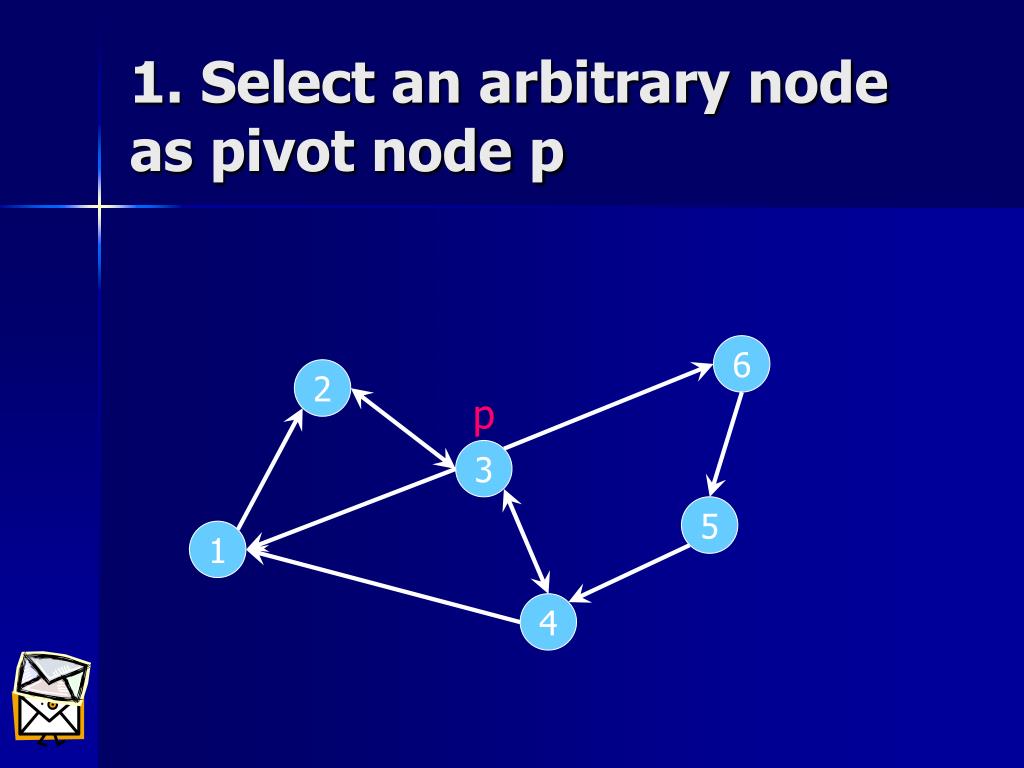

20. 1. Select an arbitrary node as pivot node p 6 2 p 3 5 1 4

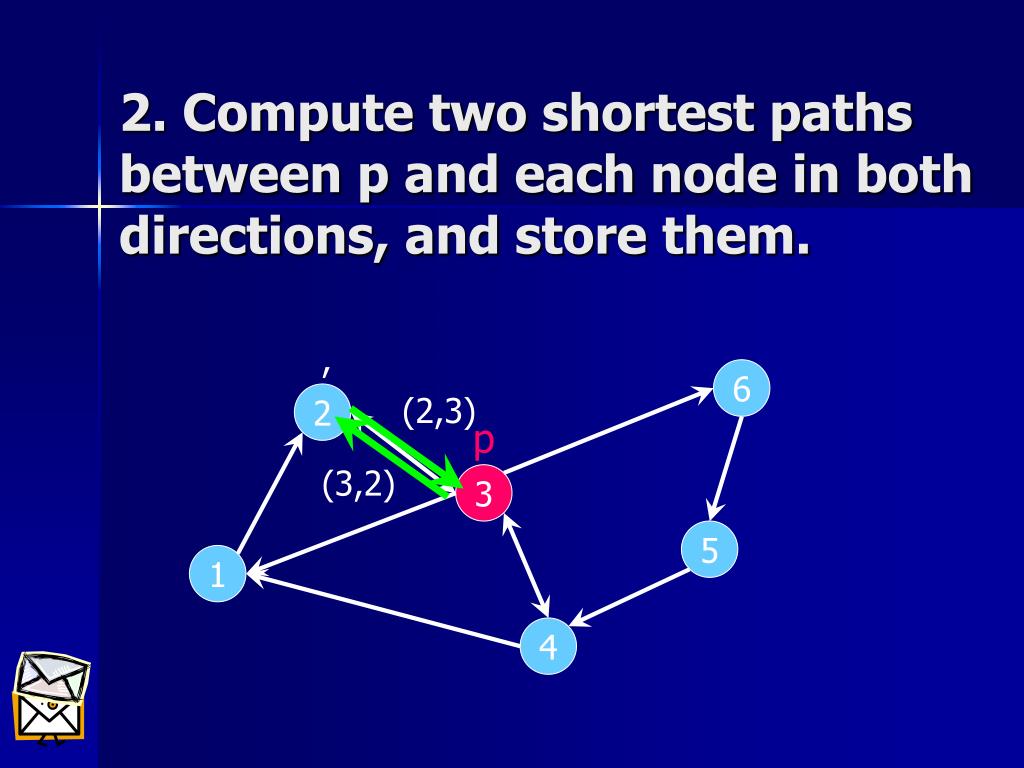

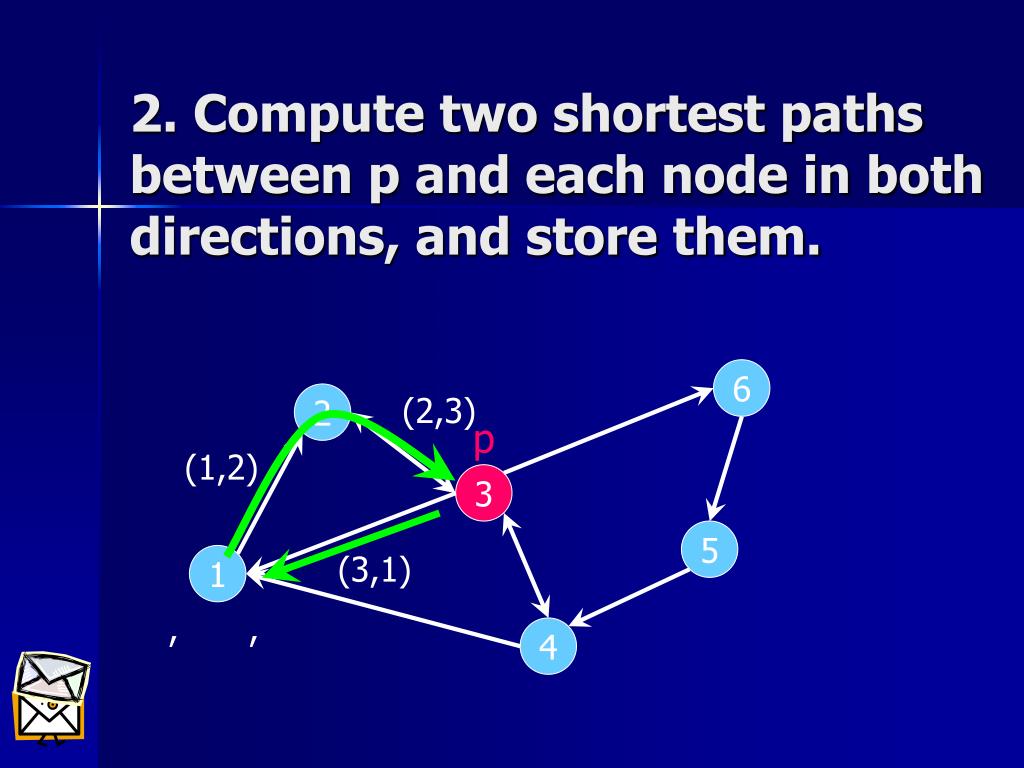

21. 2. Compute two shortest paths between p and each node in both directions, and store them. 6 2 (2,3) p (1,2) 3 5 (3,1) 1 , , 4

22. 2. Compute two shortest paths between p and each node in both directions, and store them. , 6 2 (2,3) p (3,2) 3 5 1 4

23. (6,5),(5,4),(4,3),(3,6) (2,3),(3,2) 6 2 p 3 5 1 (5,4),(4,3),(3,6),(6,5) (1,2),(2,3),(3,1) 4 (4,3),(3,4) Pivot

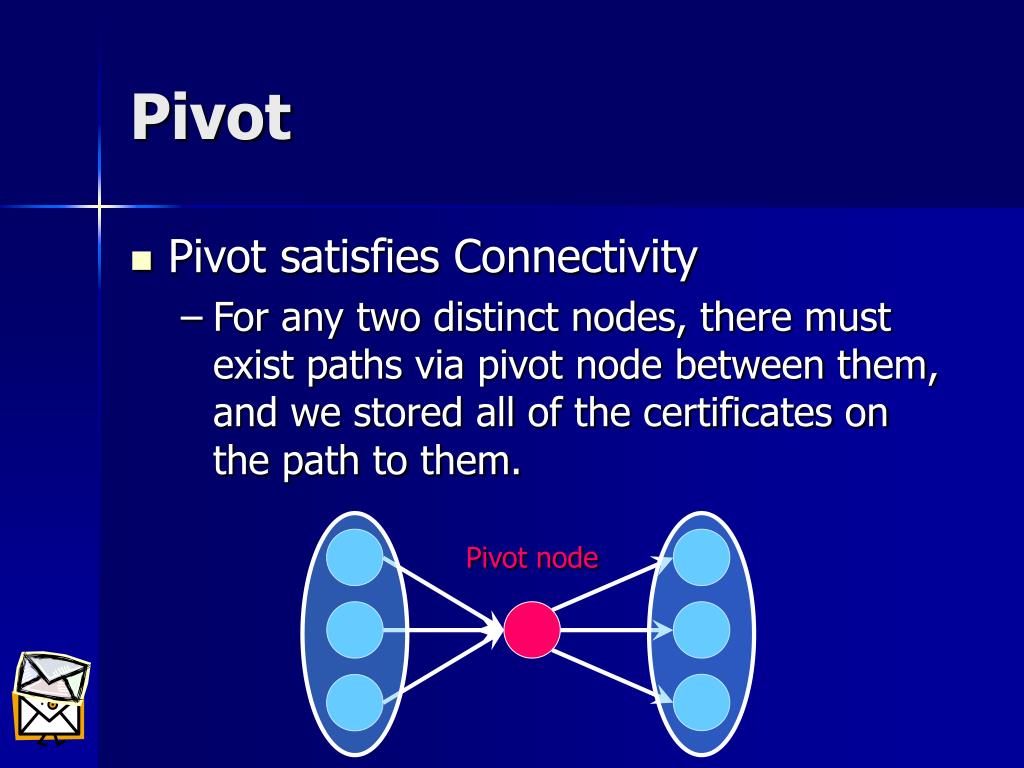

24. Pivot • Pivot satisfies Connectivity • For any two distinct nodes, there must exist paths via pivot node between them, and we stored all of the certificates on the path to them. Pivot node

25. CPivot • To satisfy Completeness, we store all remaining certificates to pivot node. • Pivot is changed to be a Certificate Dispersal Algorithm, which satisfying both of two conditions. • We name this algorithm as CPivot.

26. Evaluation of CPivot • Upper bound of the Cost(in the worst case) • Strongly connected graph: 2DG+e/n (DG: diameter) • Computation time • O(e)

27. Evaluation of CPivot More clever choice of pivot node results a better cost. • Upper bound of the Cost (in the worst case) • Bi-directional graph: 2RG+e/n(RG: radius) • Computation time • O(ne)

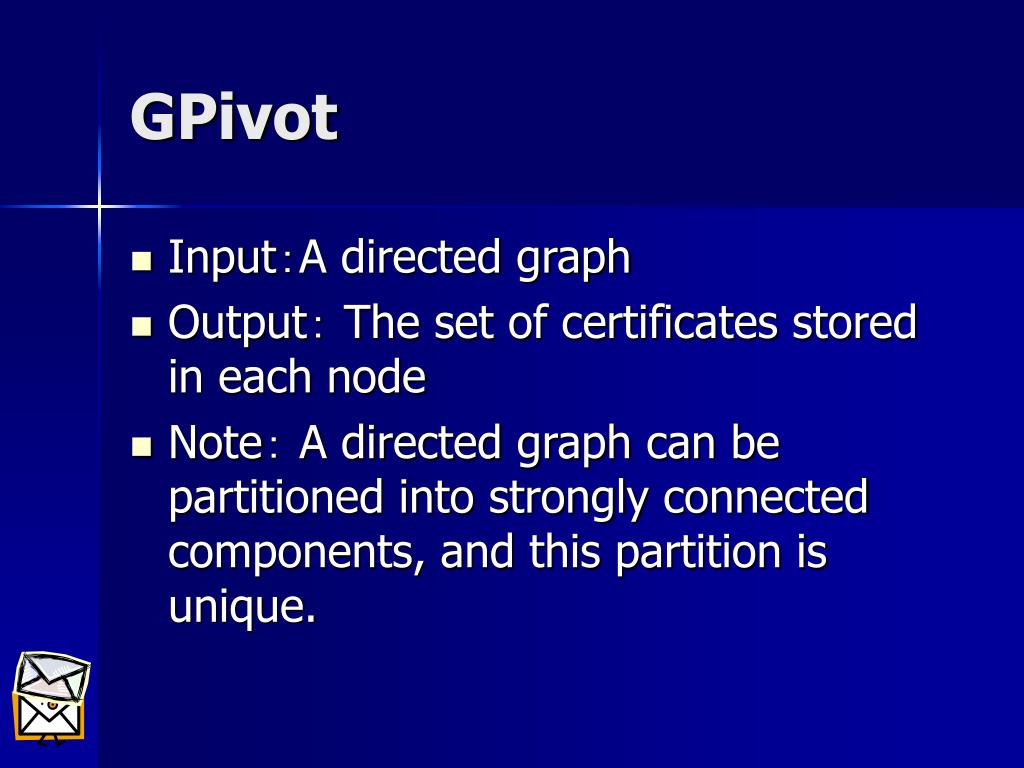

28. GPivot • Input：A directed graph • Output： The set of certificates stored in each node • Note： A directed graph can be partitioned into strongly connected components, and this partition is unique.

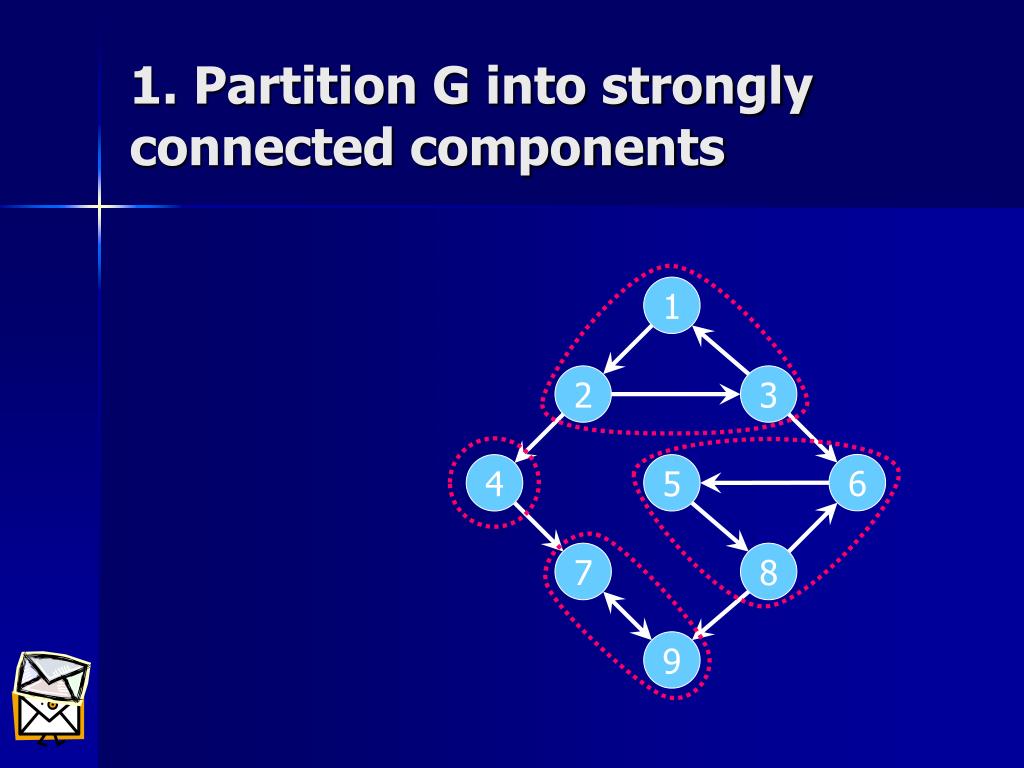

29. 1. Partition G into strongly connected components 1 2 3 6 4 5 7 8 9

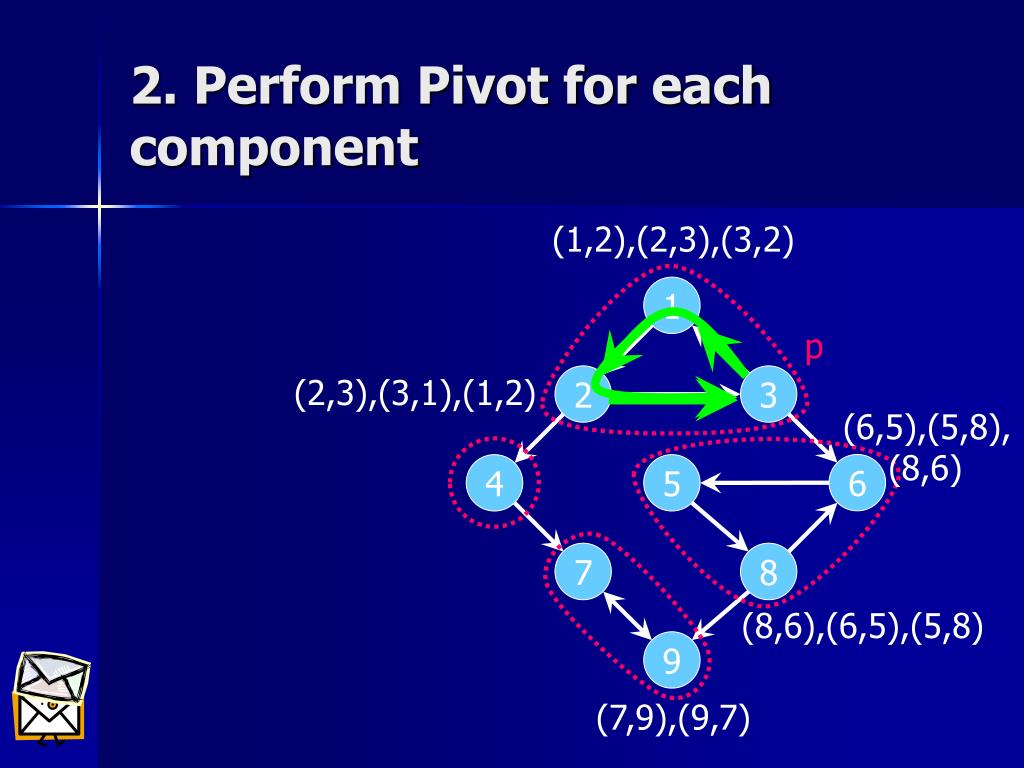

30. 2. Perform Pivot for each component (1,2),(2,3),(3,2) 1 p (2,3),(3,1),(1,2) 2 3 (6,5),(5,8),(8,6) 6 4 5 7 8 (8,6),(6,5),(5,8) 9 (7,9),(9,7)

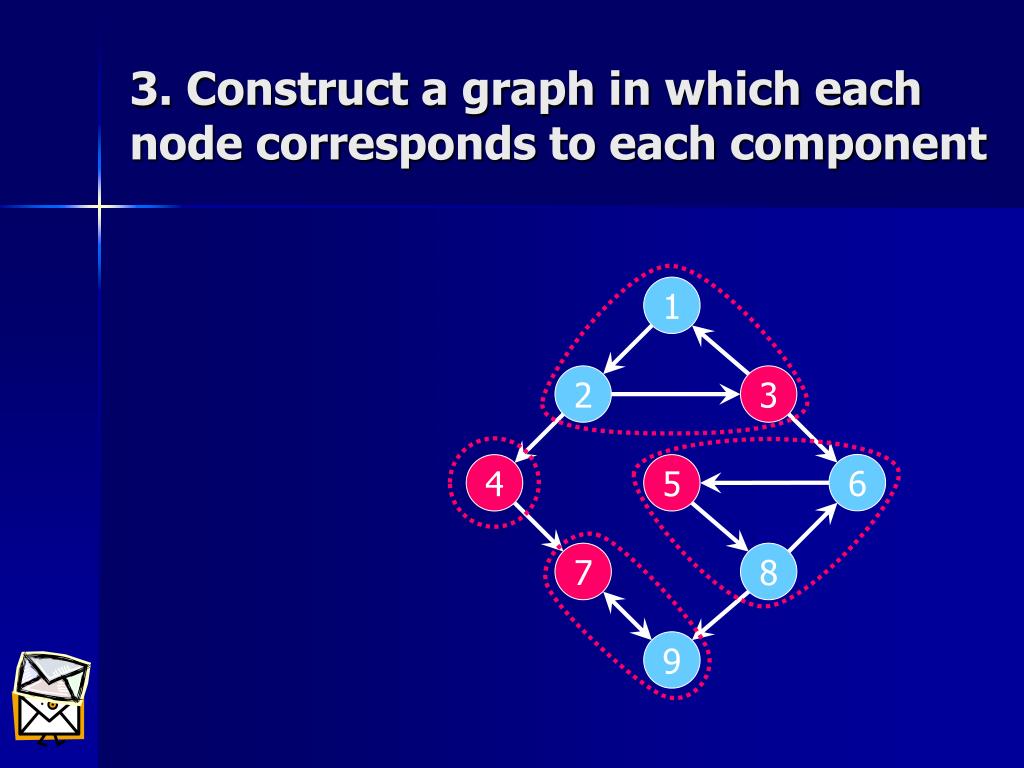

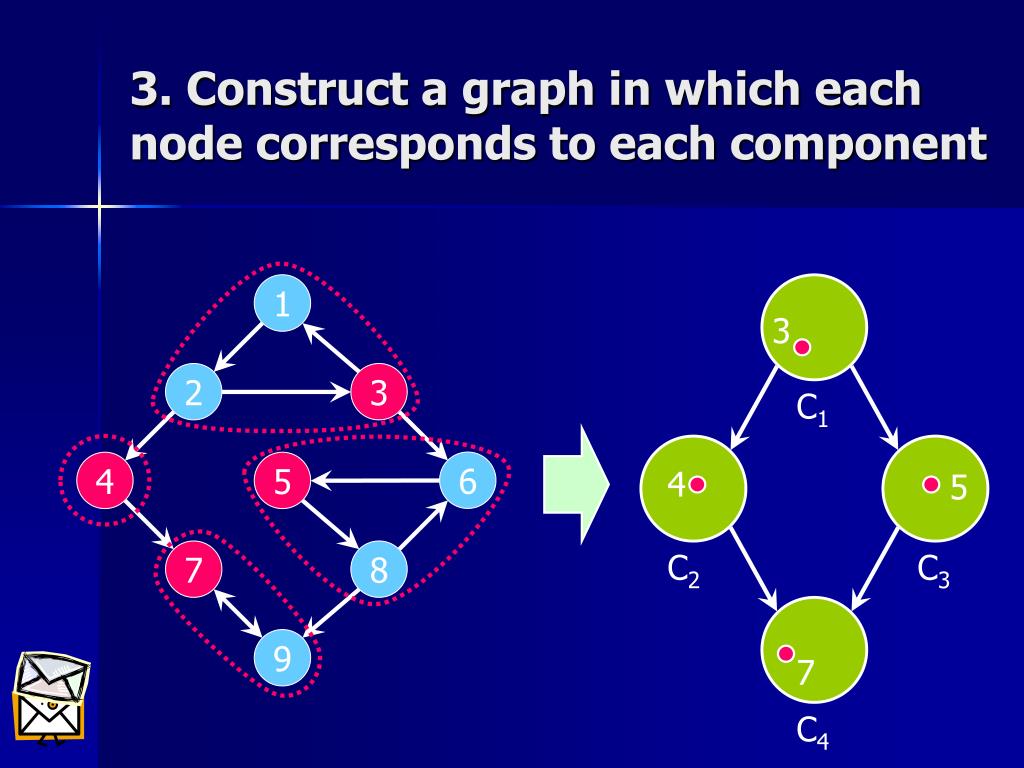

31. 1 2 3 6 4 5 7 8 9 3. Construct a graph in which each node corresponds to each component

32. 1 3 2 3 C1 6 4 5 4 5 C2 C3 7 8 9 7 C4 3. Construct a graph in which each node corresponds to each component

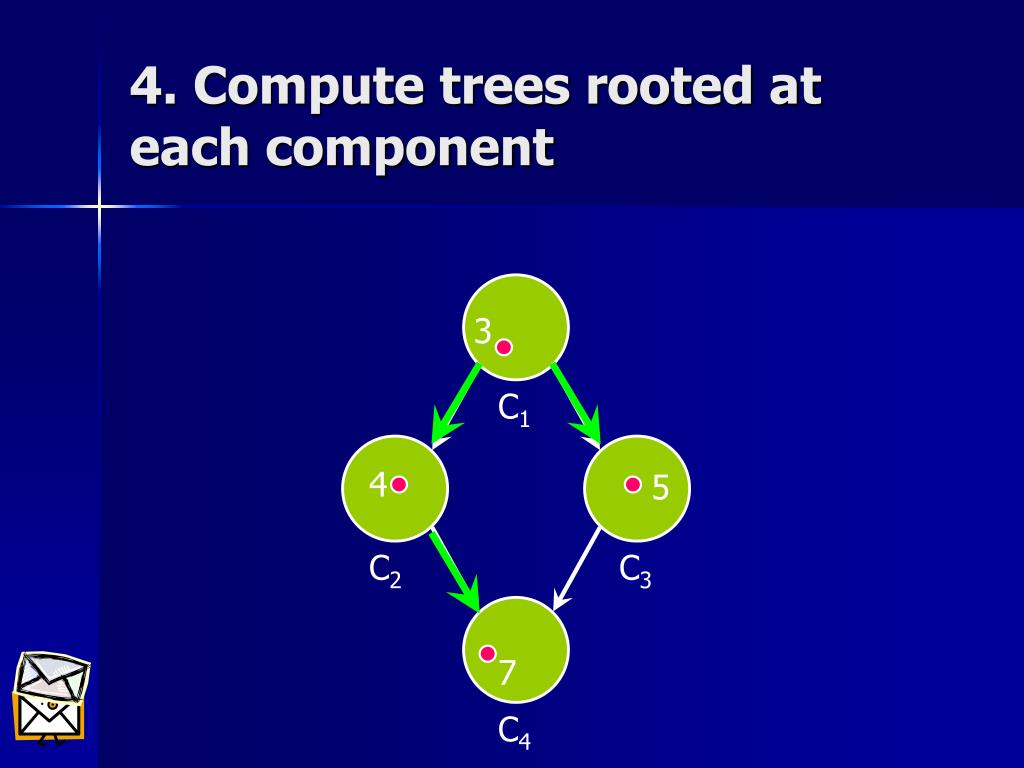

33. 3 C1 4 5 C2 C3 7 C4 4. Compute trees rooted at each component

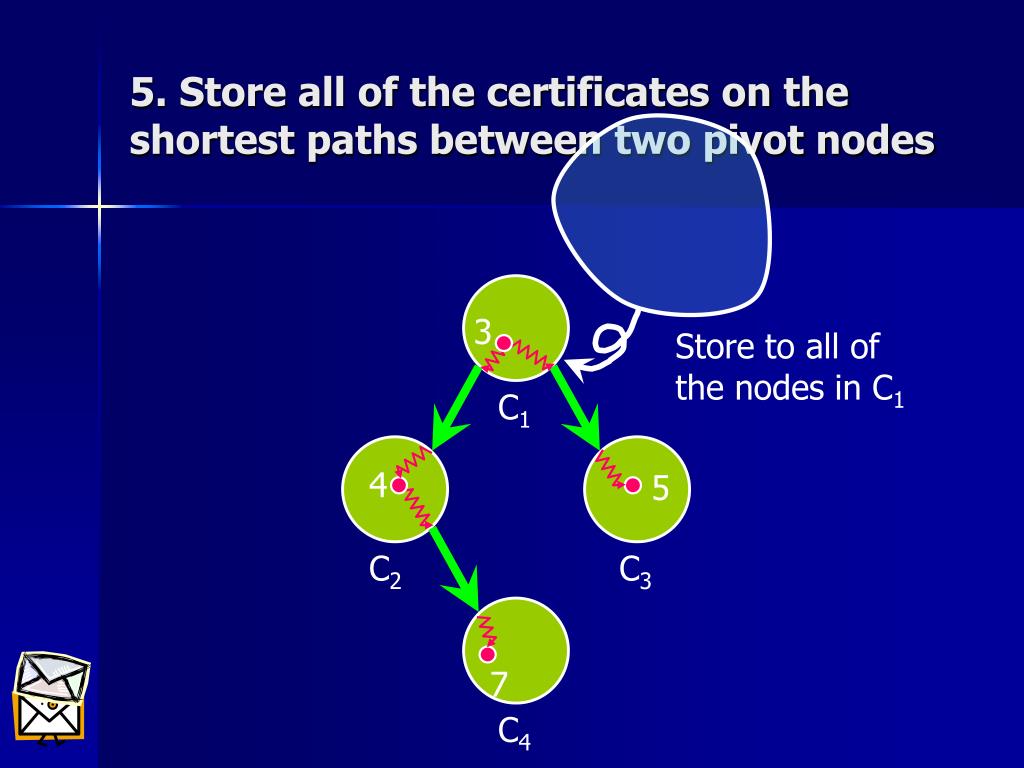

34. 5. Store all of the certificates on the shortest paths between two pivot nodes 3 Store to all of the nodes in C1 C1 4 5 C2 C3 7 C4

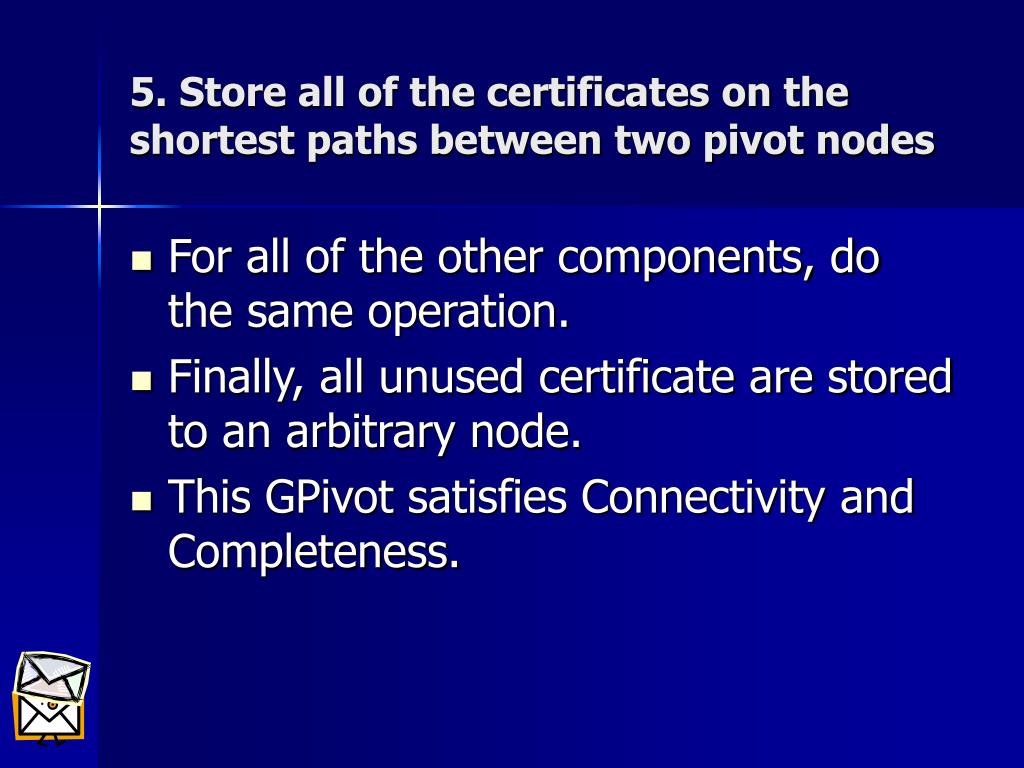

35. 5. Store all of the certificates on the shortest paths between two pivot nodes • For all of the other components, do the same operation. • Finally, all unused certificate are stored to an arbitrary node. • This GPivot satisfies Connectivity and Completeness.

36. GPivot (Connectivity) Certificates stored by Pivot 1 3 Certificates stored in step 5 C1 4 5 C2 C3 7 9 C4

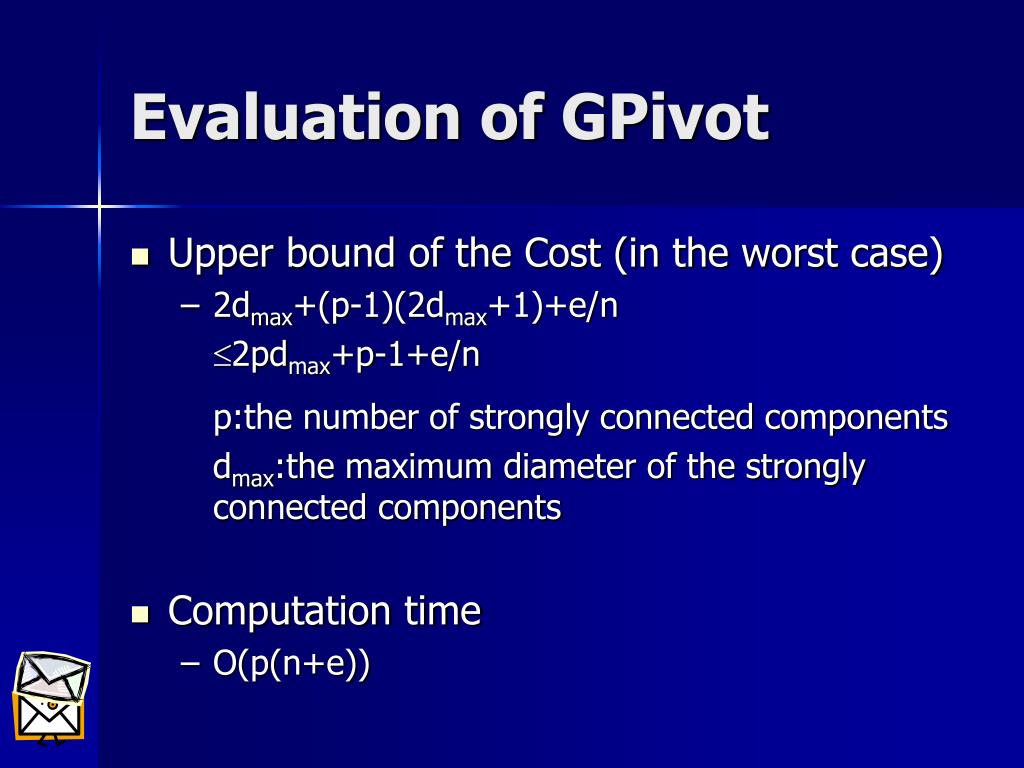

37. Evaluation of GPivot • Upper bound of the Cost (in the worst case) • 2dmax+(p-1)(2dmax+1)+e/n 2pdmax+p-1+e/n p:the number of strongly connected components dmax:the maximum diameter of the strongly connected components • Computation time • O(p(n+e))

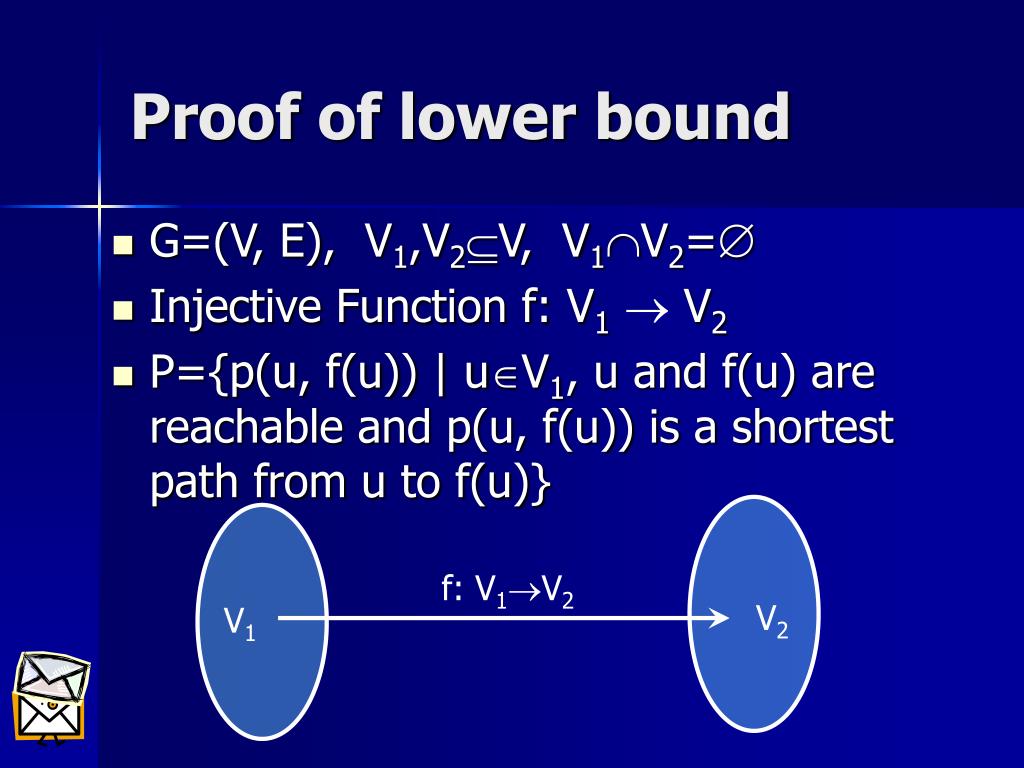

38. Proof of lower bound • G=(V, E), V1,V2V, V1V2= • Injective Function f: V1 V2 • P={p(u, f(u)) | uV1, u and f(u) are reachable and p(u, f(u)) is a shortest path from u to f(u)} f: V1V2 V2 V1

39. Proof of lower bound • Because V1 and V2 are disjoint, for satisfying Connectivity, we have to store all of the certificates on the paths in P to the end nodes of each concerned path. 5 2 3 V2 V1 4 6 1

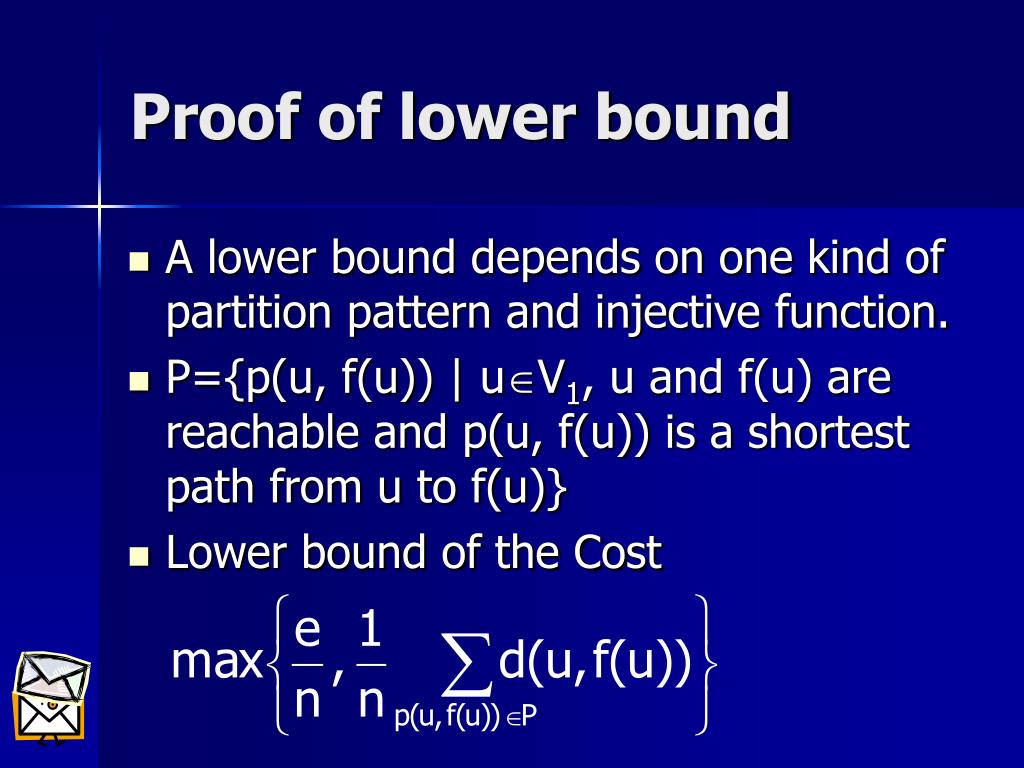

40. Proof of lower bound • A lower bound depends on one kind of partition pattern and injective function. • P={p(u, f(u)) | uV1, u and f(u) are reachable and p(u, f(u)) is a shortest path from u to f(u)} • Lower bound of the Cost

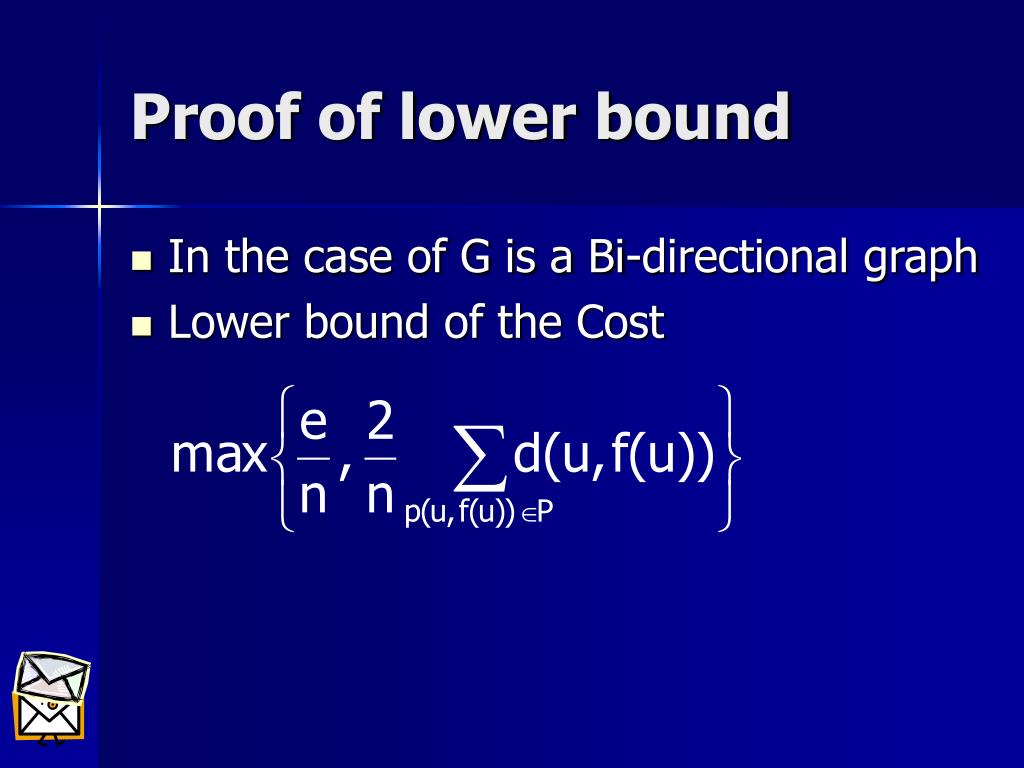

41. Proof of lower bound • In the case of G is a Bi-directional graph • Lower bound of the Cost

42. CPivot in Optimal Case Lower bound of the Cost for • Hypercubes • Meshes • Complete k-ary Trees • de-Bruijn graphs The Cost of CPivot equals to these lower bounds. CPivot is optimal in these cases.

43. (m,k)-Mesh • Mkm : • V(Mkm)＝{0, 1, …, k-1}m • E(Mkm)＝{(x,y) | x=(a1,a2,…,am), y=(b1,b2,…,bm)V, i, ji, aj=bj, ai=bi1} 00 10 20 30 n = km e = 2m(km-km-1) 01 11 21 31 M42 02 12 22 32 03 13 23 33

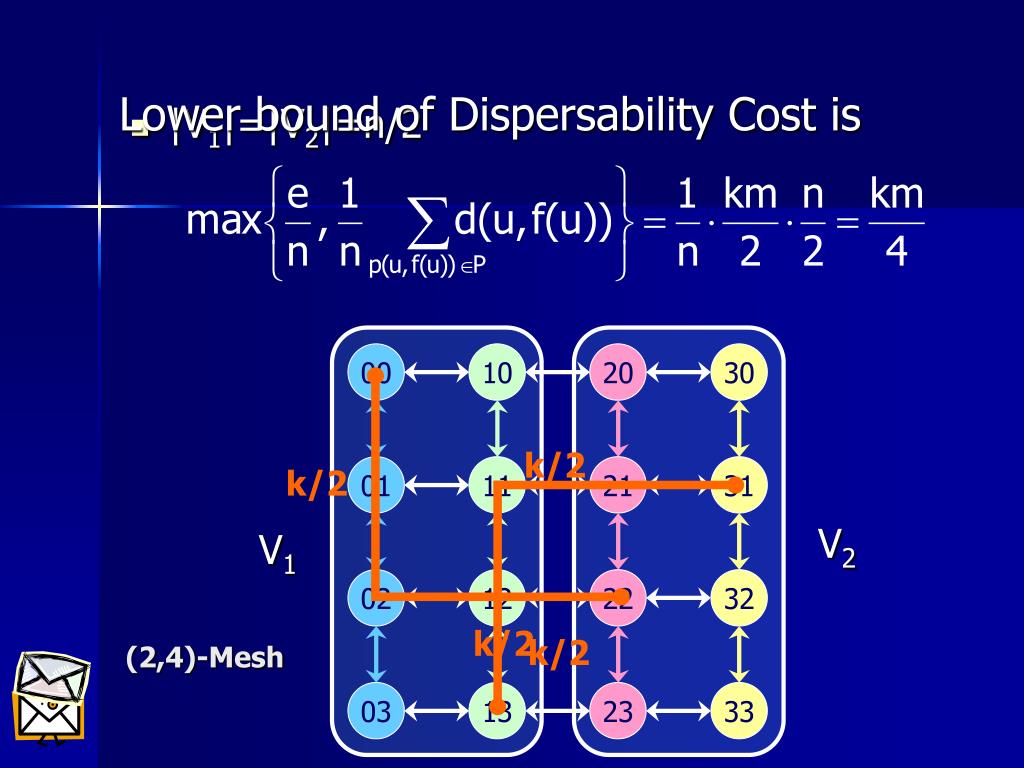

44. Lower bound of Dispersability Cost is • |V1|=|V2|=n/2 00 10 20 30 k/2 k/2 01 11 21 31 V2 V1 02 12 22 32 k/2 k/2 (2,4)-Mesh 03 13 23 33

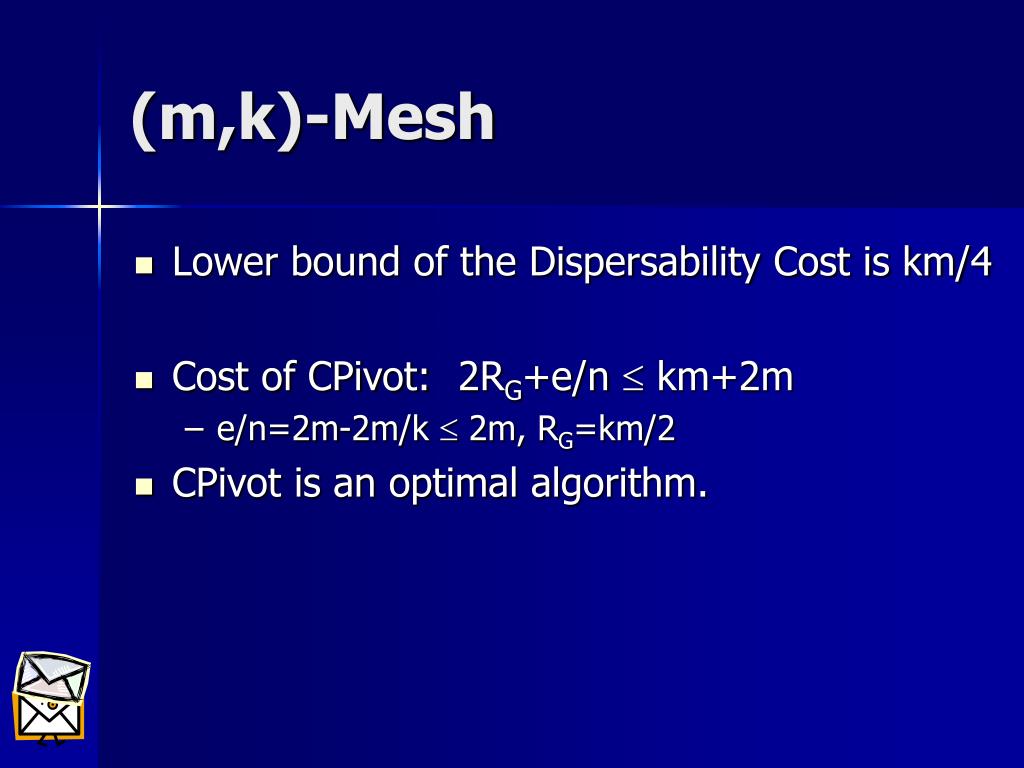

45. (m,k)-Mesh • Lower bound of the Dispersability Cost is km/4 • Cost of CPivot:2RG+e/n  km+2m • e/n=2m-2m/k  2m, RG=km/2 • CPivot is an optimal algorithm.

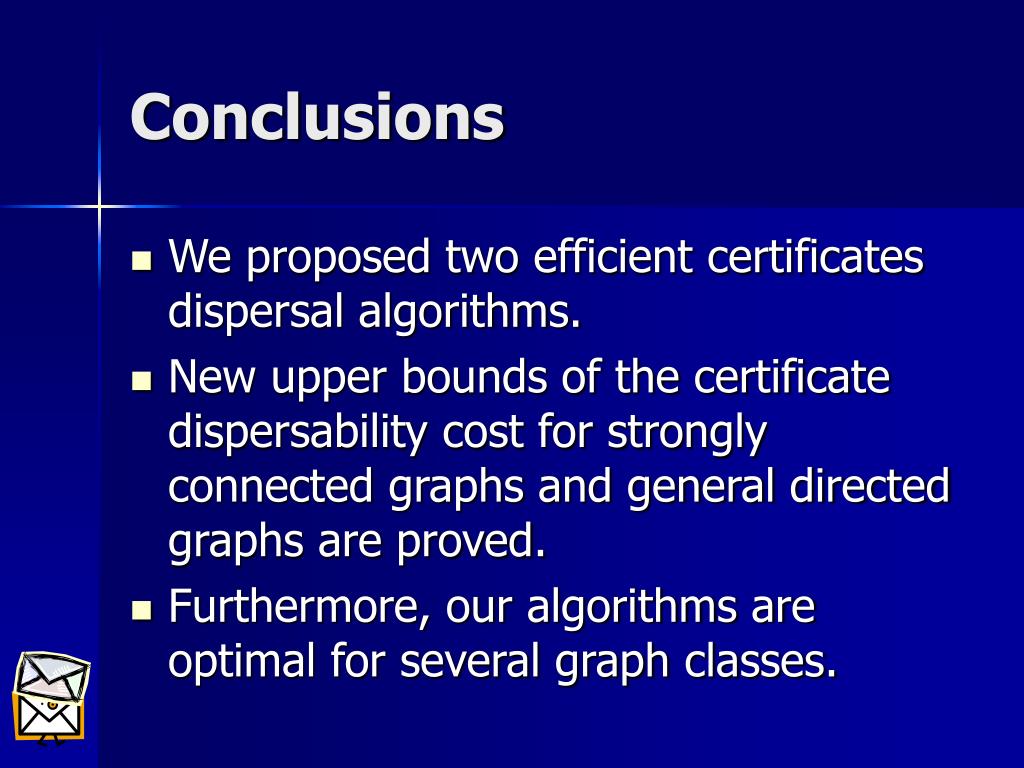

46. Conclusions • We proposed two efficient certificates dispersal algorithms. • New upper bounds of the certificate dispersability cost for strongly connected graphs and general directed graphs are proved. • Furthermore, our algorithms are optimal for several graph classes.

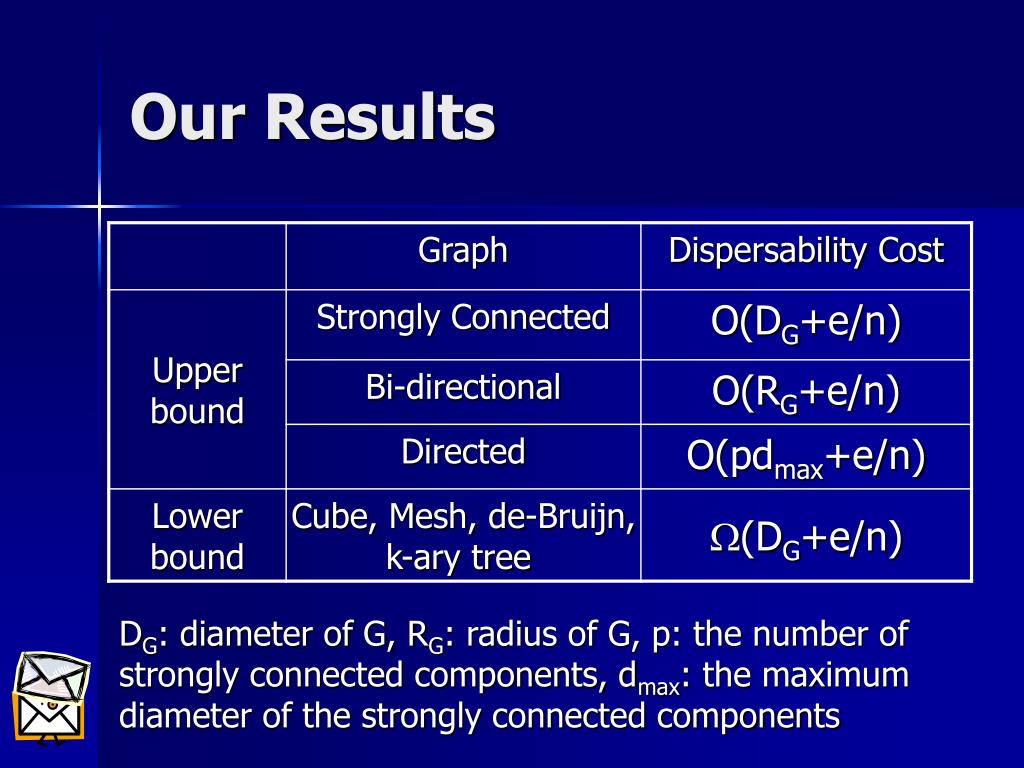

47. Our Results

48. Future Work • The problem that what kind of certificate graphs have lower dispersability cost. • To construct some other certificate dispersal algorithms with lower cost for general directed graphs. • Lower bounds of certificate dispersability cost for other graphs.
